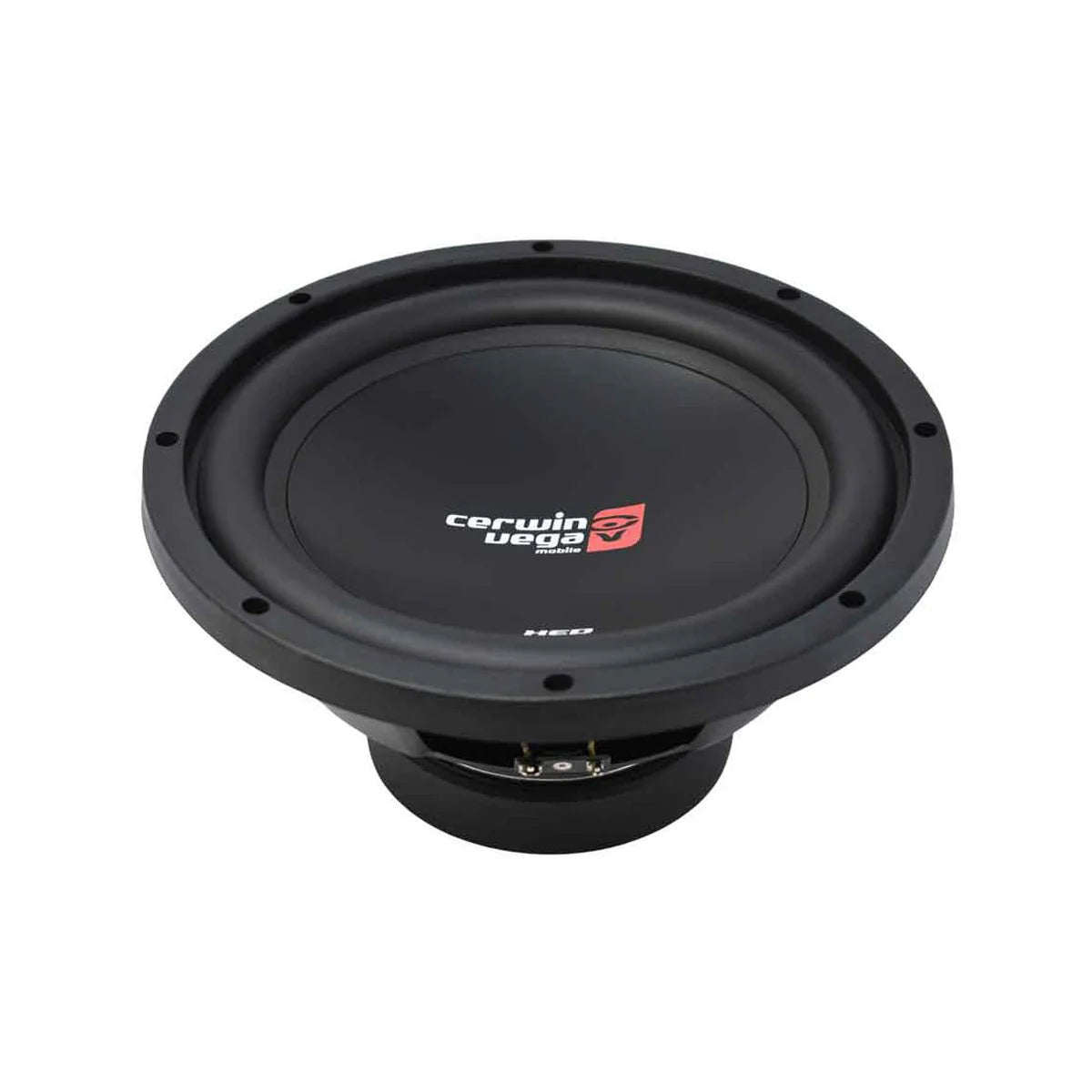

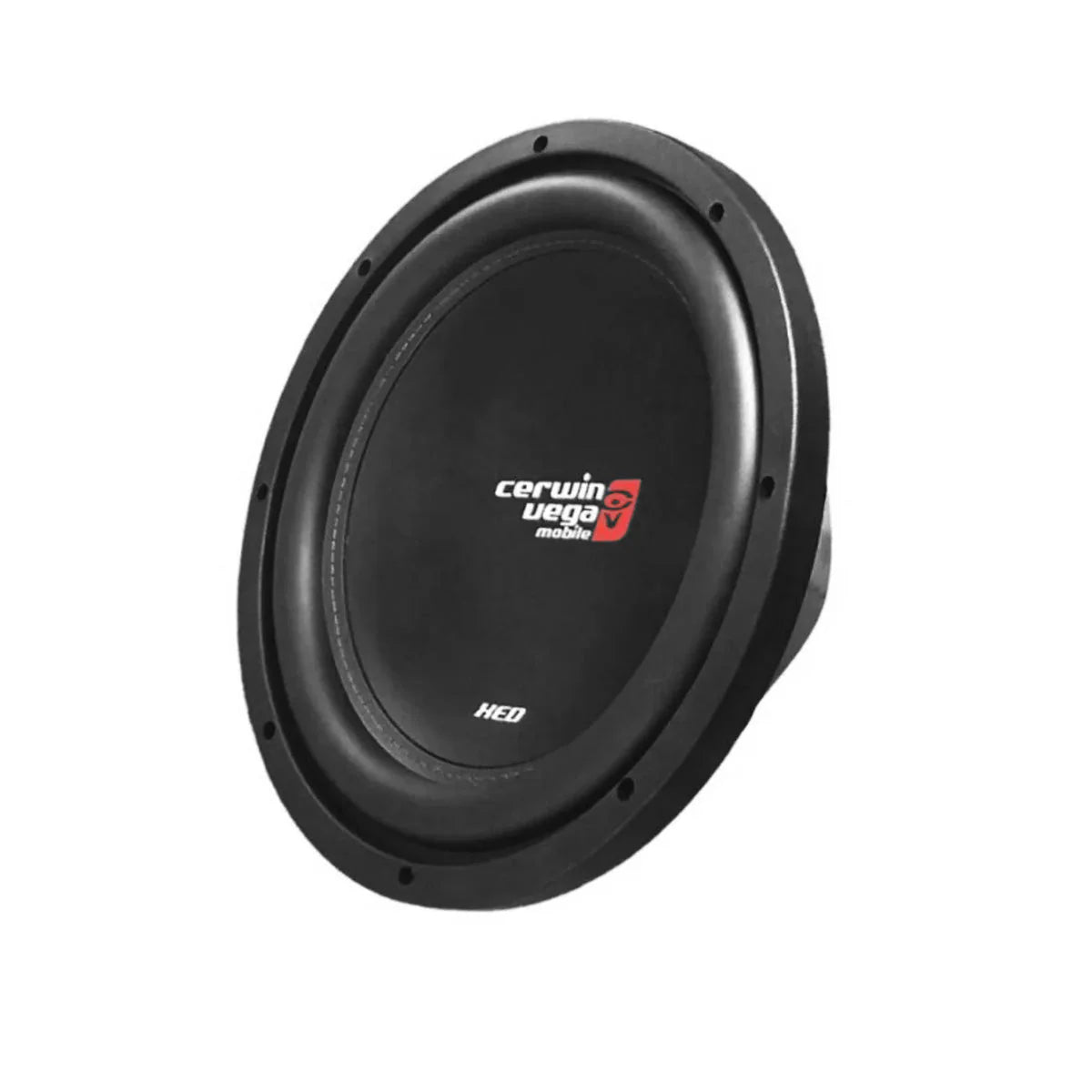

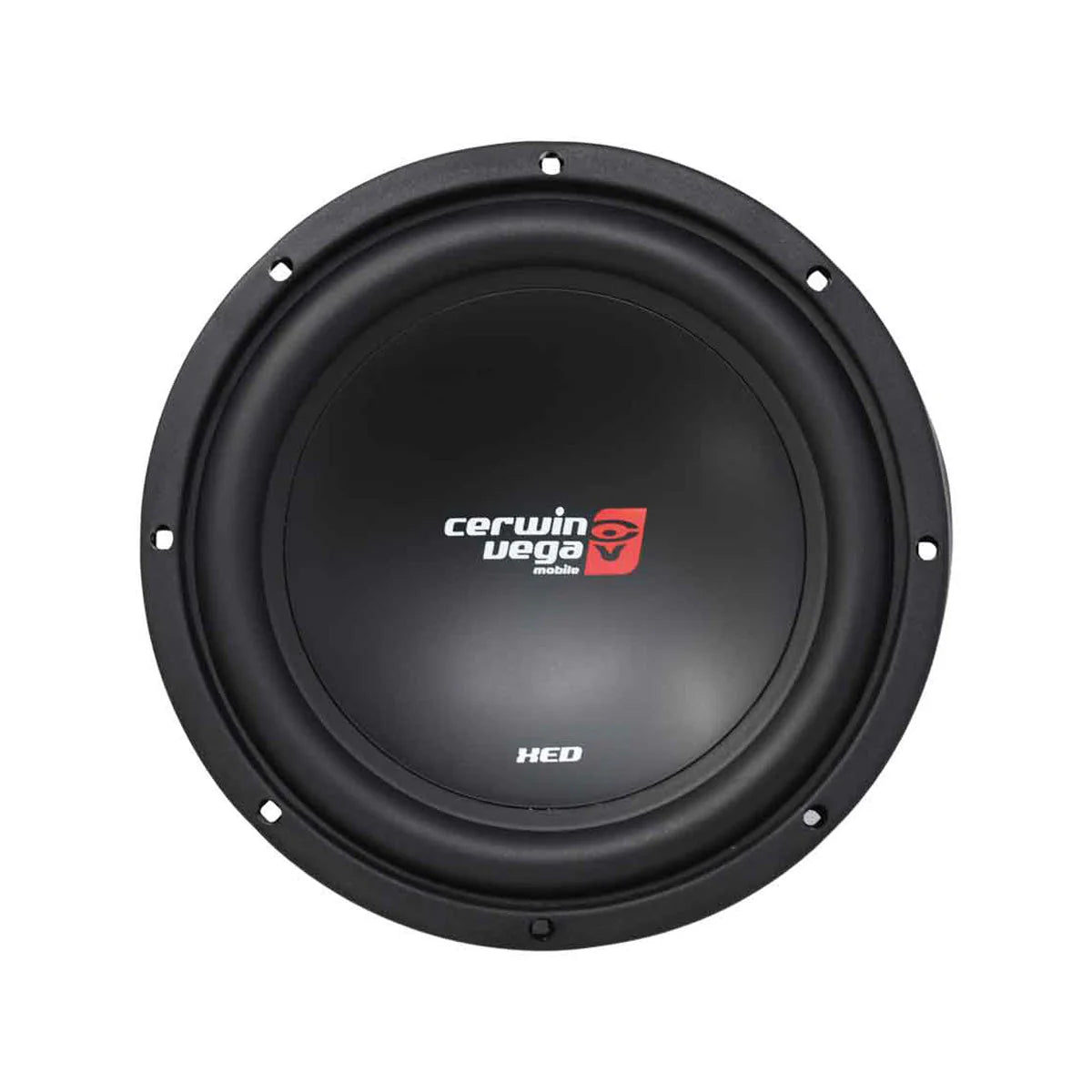

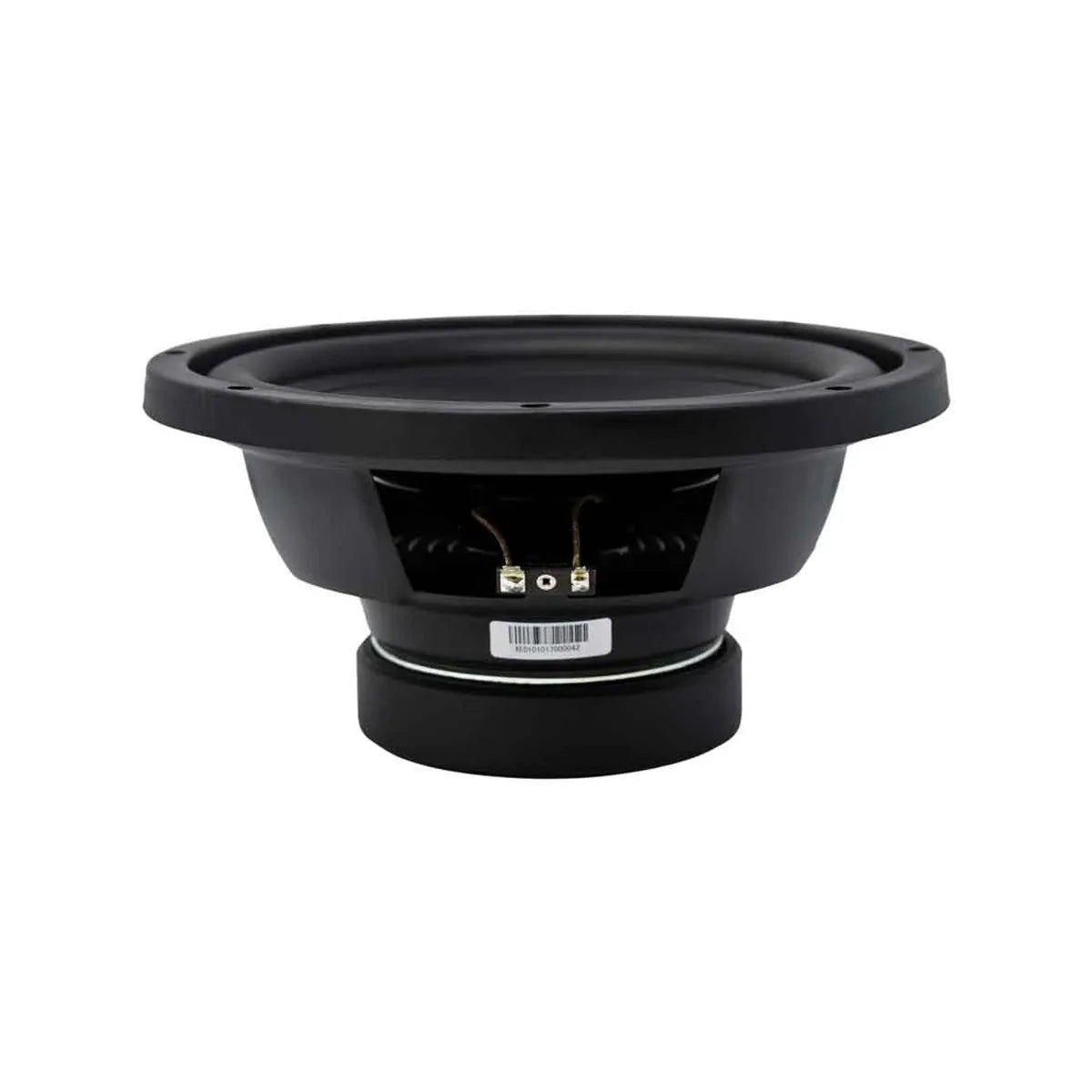

Cerwin Vega XED12V2 12" Subwoofer
Cerwin Vega XED12V2 12" Subwoofer
Couldn't load pickup availability
20 in stock
Add a dedicated foundation for bass
Build your low end around the Cerwin Vega XED12V2 12" Subwoofer. Pair it with a correctly sized enclosure and compatible amplifier for a bass system tailored to your vehicle and listening goals.
Key details
- Model / SKU: XED12V2
- RMS: 150 watts
Fitment & system matching
Match voice-coil configuration and final wired impedance to your amplifier. Check RMS power handling, mounting depth and recommended enclosure volume. Peak/MAX power is not continuous RMS power.
Full product details & specifications
These subwoofers are available in different impedance configurations (2 ohm or 4 ohm), providing flexibility for various wiring setups and compatibility with different amplifiers. This allows you to optimize your system for maximum performance. XED Series Subwoofers are capable of handling substantial amounts of power, making them suitable for high-output applications. They are designed to manage high wattage without distortion, ensuring clean and powerful bass.
Product Details:
- 12" Single 4 ohm XED Series Subwoofer
- Power Handling:
- Peak: 1000 watts
- RMS: 150 watts
- Parabolic Polypropylene cone
- High Roll Foam surround
- Bumped back plate for maximum excursion
- Vented pole piece
- 2" High Temperature Voice coil
- 17.8 mm Xmax
- Single Stacked magnet motor structure
- Resonance Frequency (Fs): 27.4 Hz
- Sensitivity: 85.5 dB
- Recommended sealed box volume:
- Recommended ported box volume: 2 cubic feet
- Top-mount depth: 5.23"
- Cutout diameter: 10.82"
Need help choosing? Explore our installation services before planning your build.
