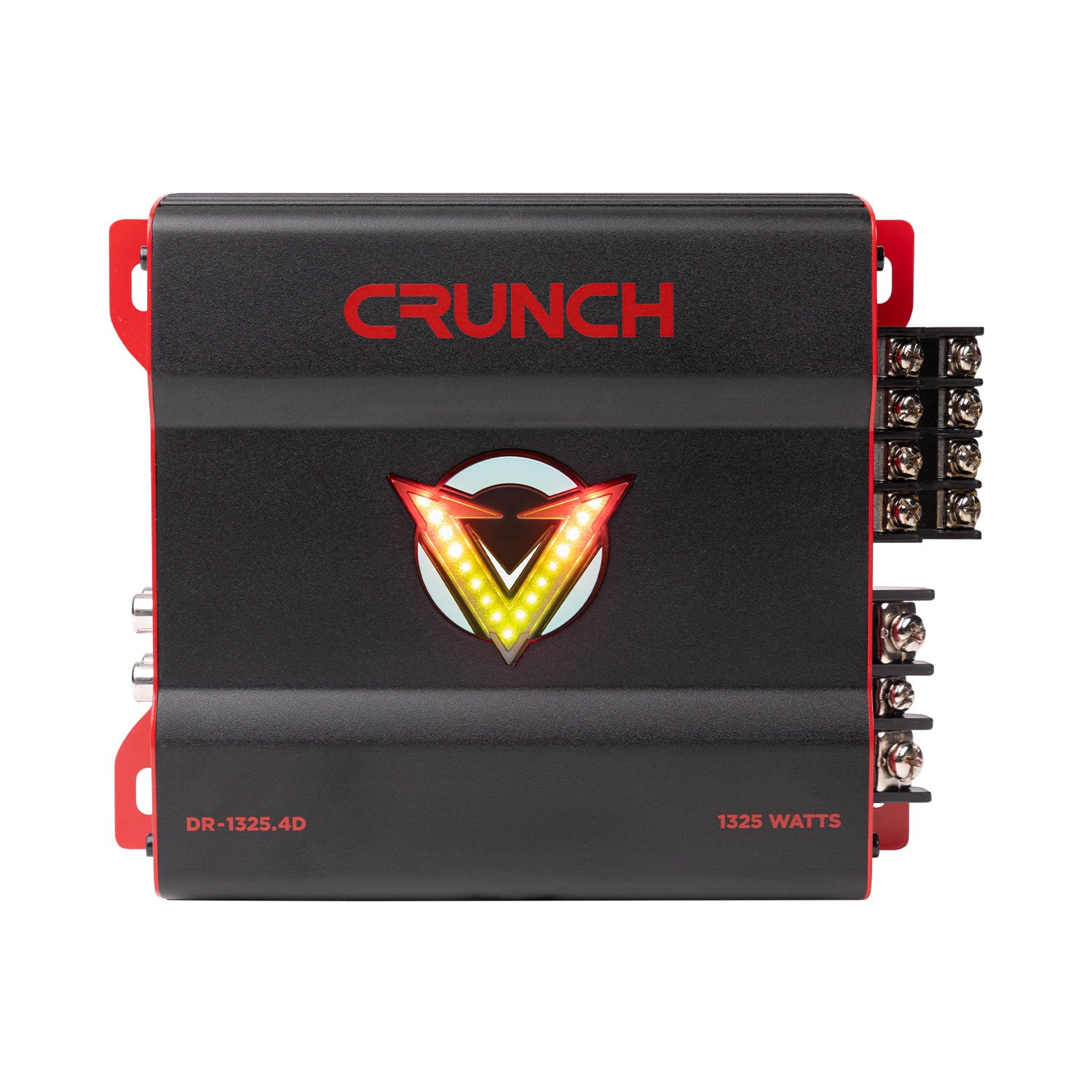

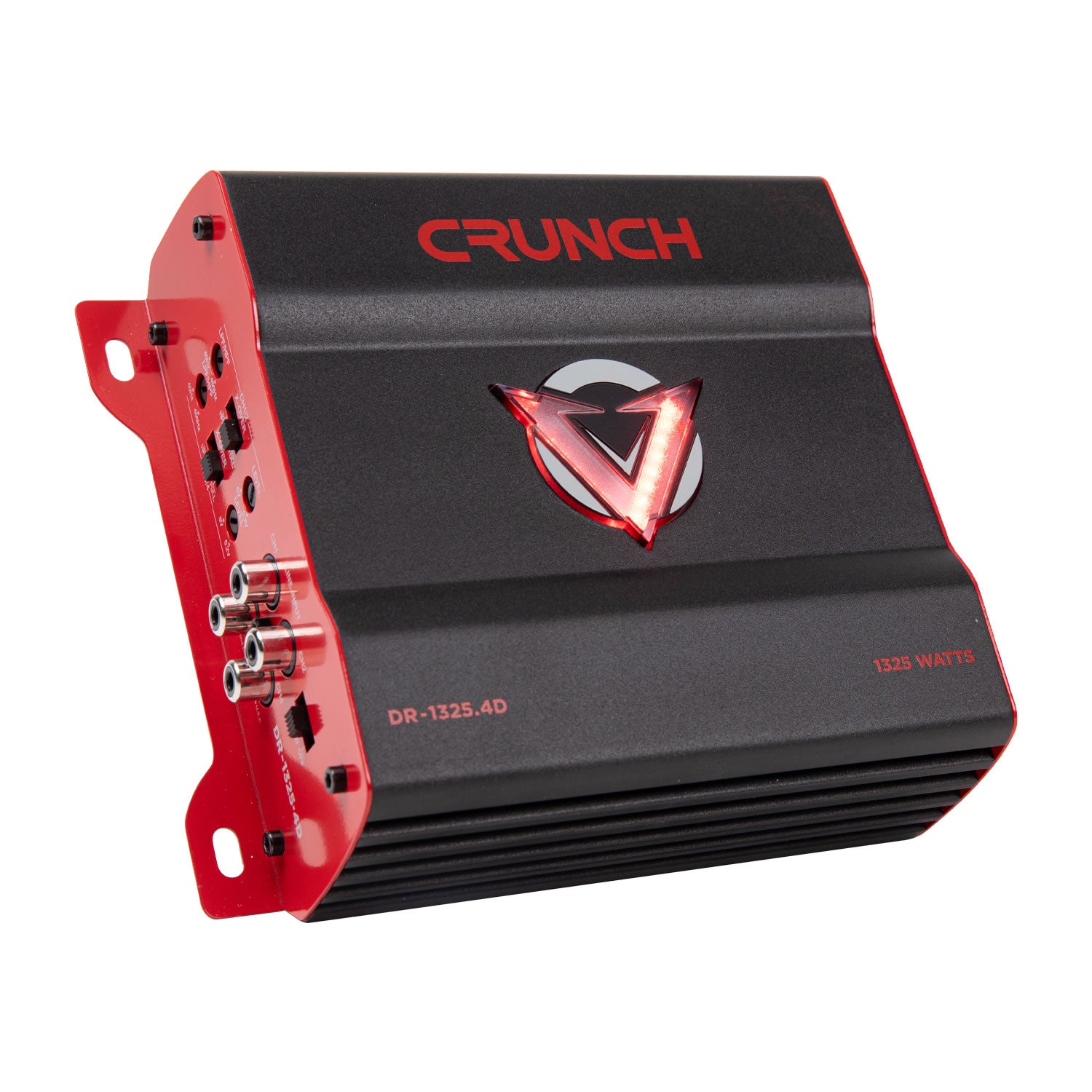

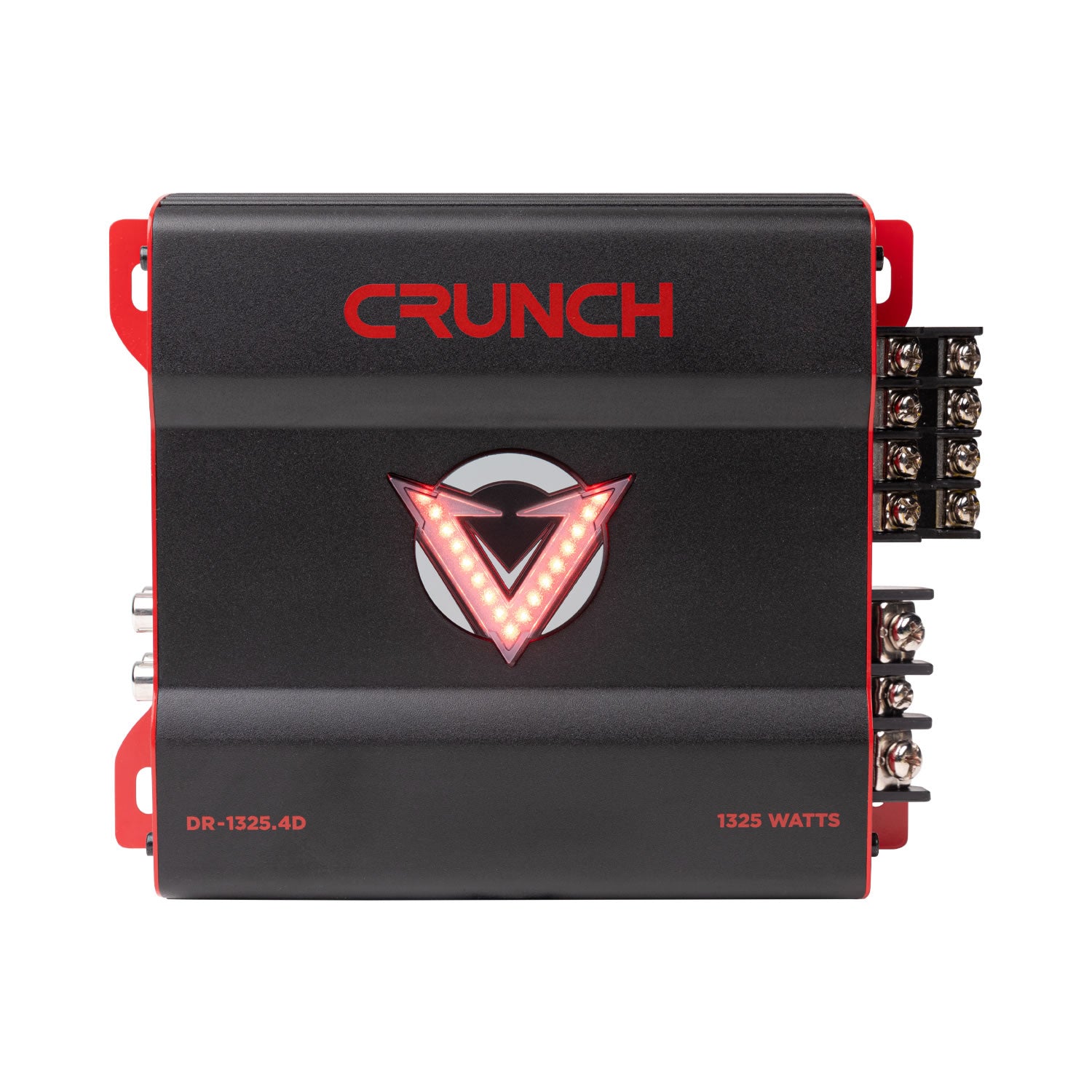

Crunch V-Drive DR-1325.4D 4-Channel Amp
Crunch V-Drive DR-1325.4D 4-Channel Amp
Couldn't load pickup availability
20 in stock
Give your system dedicated amplifier power
The Crunch V-Drive DR-1325.4D 4-Channel Amp gives you four channels of amplification for a multi-speaker system. Match its output at your chosen impedance to the speakers you plan to run.
Key details
- Model / SKU: DR-1325.4D
- Amp Frequency Response: 20Hz-20kHz
Fitment & system matching
Match RMS output at the final wired impedance to your speakers or subwoofers. Check minimum impedance, mounting dimensions, fuse requirements and power-wire size. Peak/MAX ratings are not continuous RMS output.
Full product details & specifications

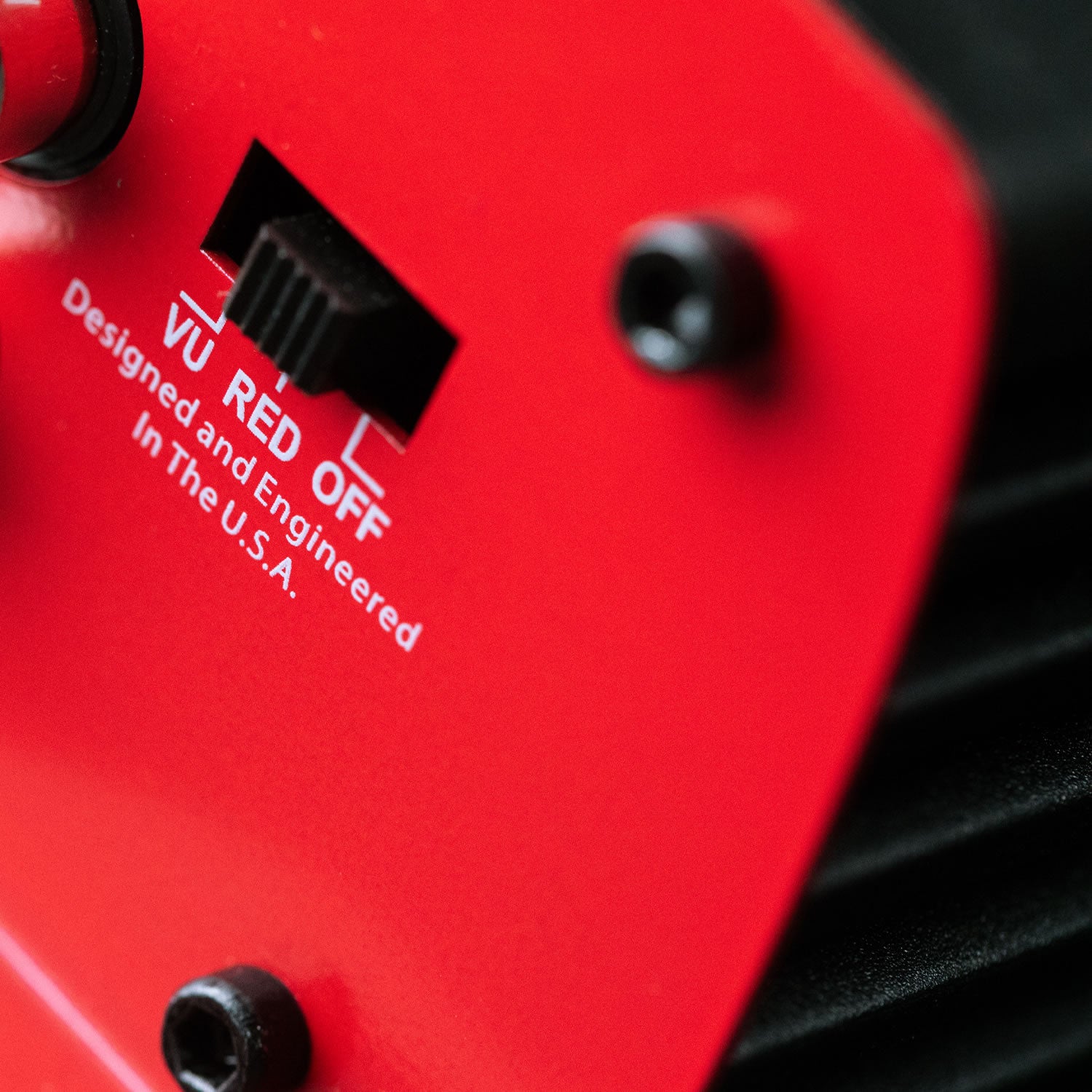

Crunch DR-1325.4D V-DRIVE amplifier series features a built-in LED VU-Meter for adjusting gain levels, Quick Thermal Dispersion Technology delivering 1325 watts to speakers, and electronic crossovers.
Item Weight (lbs)
2.86
Item Length (in)
6.85
Item Width (in)
5.83
Item Height (in)
2.2
Type
Amplifier
Brand
Crunch
Series
V-DRIVE
Category
Mobile
Condition
New
Color
Black
Compatible Vehicles
Universal
Amp Class
Class D
Amp Total Channels
4
Amp Max Power (watts)
1325
Amp Power @ 2 Ohms (ch x watts)
4 x 330
Amp Power @ 4 Ohms (ch x watts)
4 x 165
Amp Mono Bridged @ 4 Ohms (ch x watts)
2 x 660

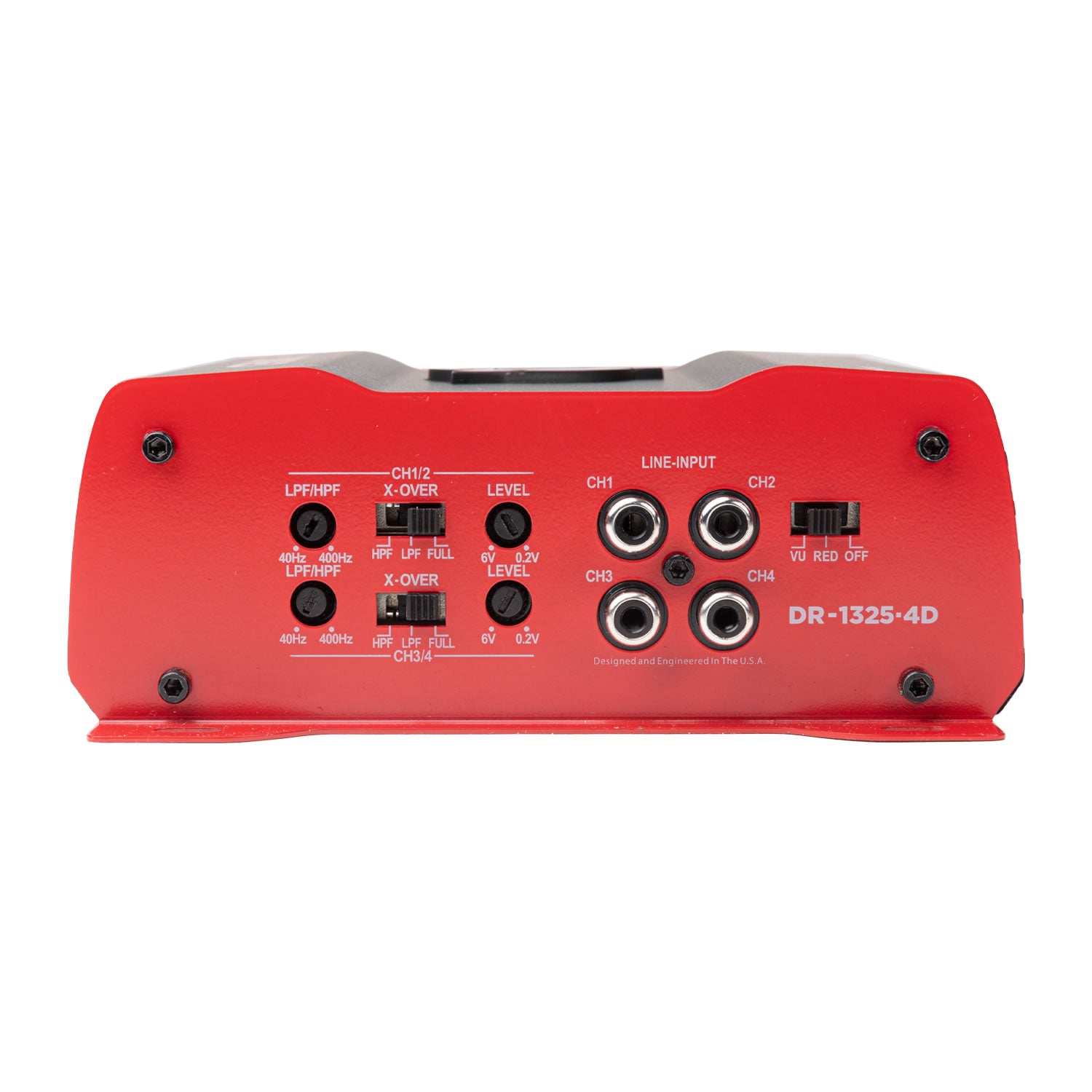

Amp Crossover
Variable Electronic 12dB Per Octave
Amp Variable High Pass Crossover 12dB per Octave
40Hz-400Hz
Amp Variable Low Pass Crossover 12dB per Octave
40Hz-400Hz
Amp Variable Voltage
0.2-6V
Amp Signal to Noise
>100dB
Amp Frequency Response
20Hz-20kHz
Amp Total Harmonic Distortion (THD)
< 0.5%
Amp Speaker Level Audio Inputs
RCA

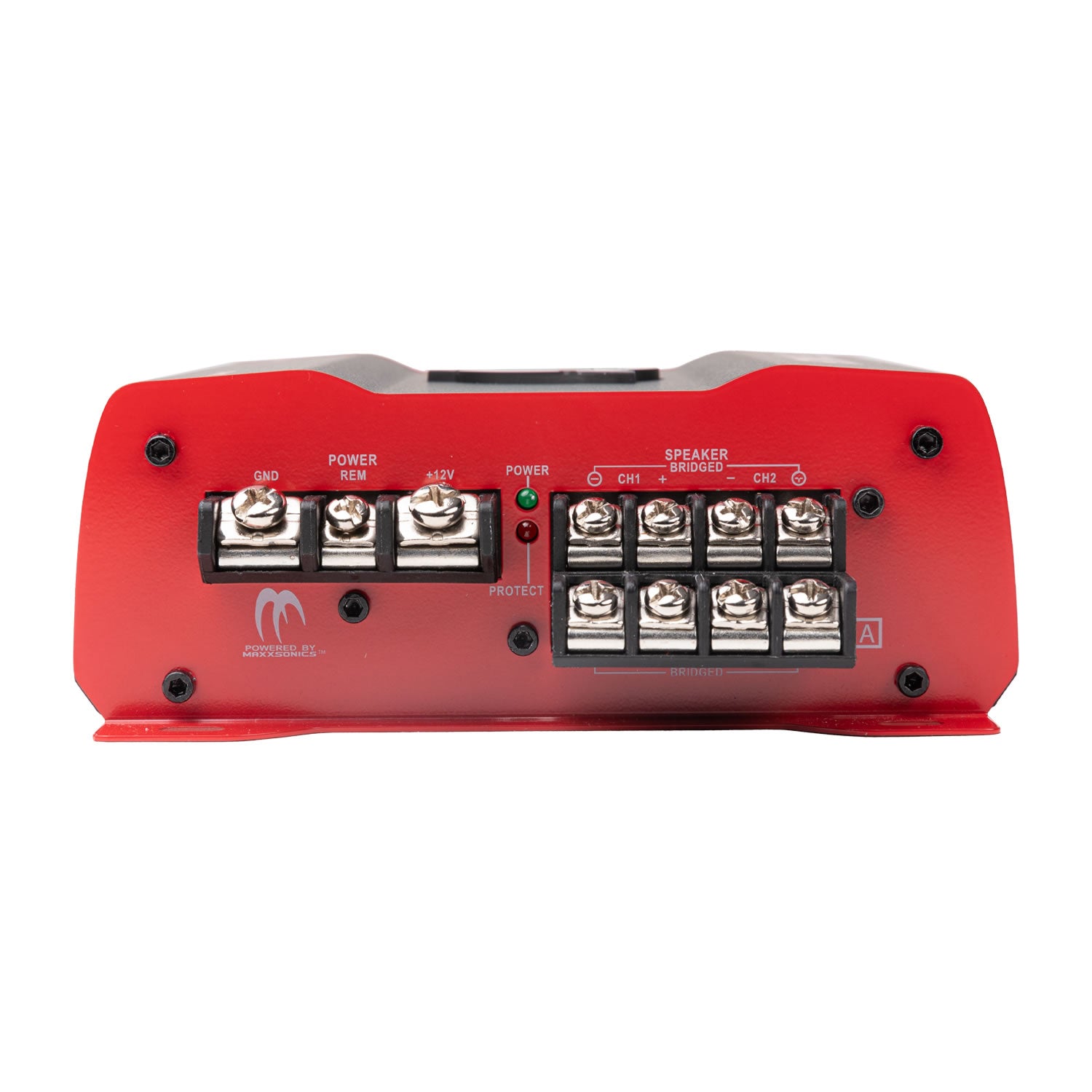

Amp Power Terminal 12v/GND
4 AWG
Amp Speaker Terminal Wire Gauge
8 GA
Amp Fusing
External 60A
