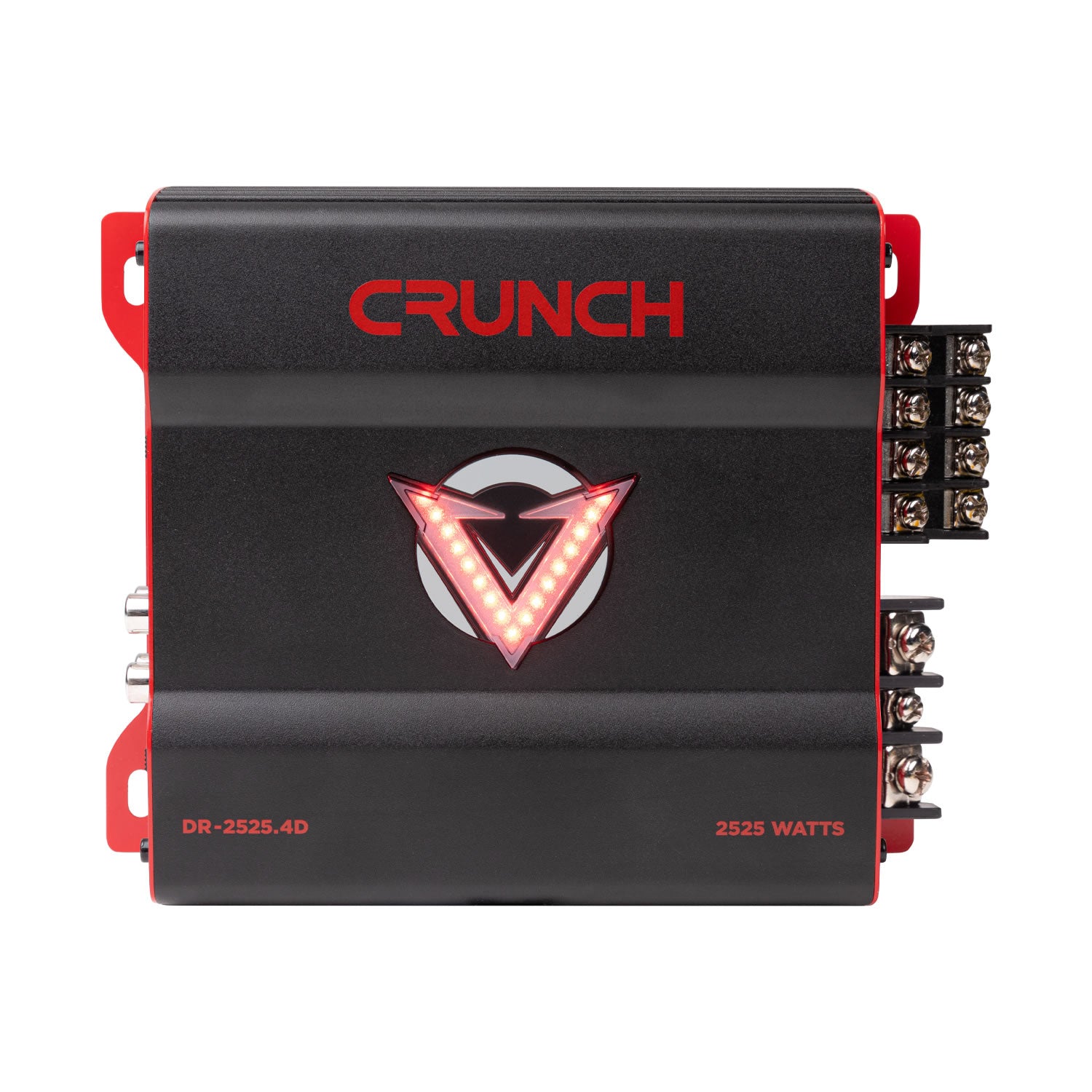

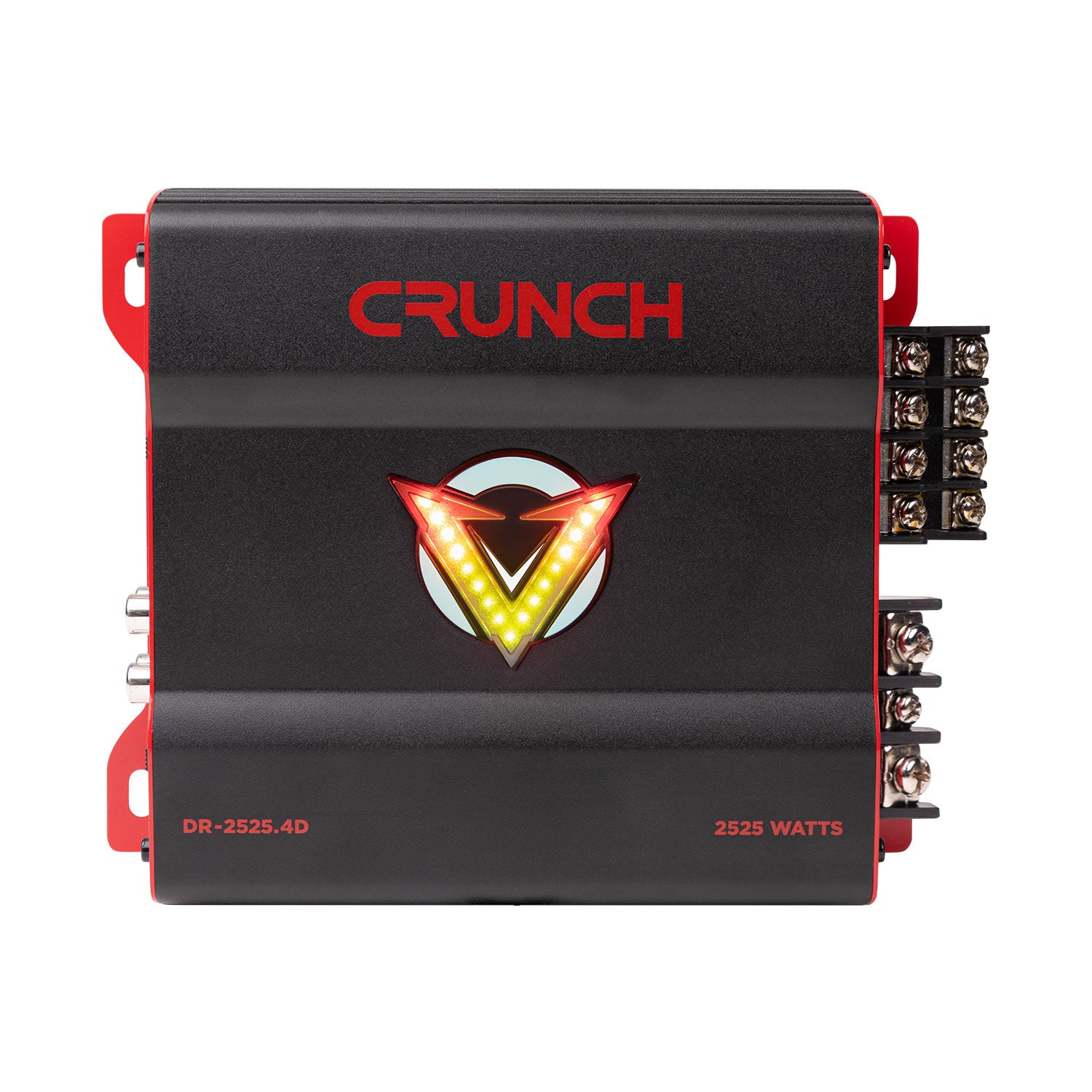

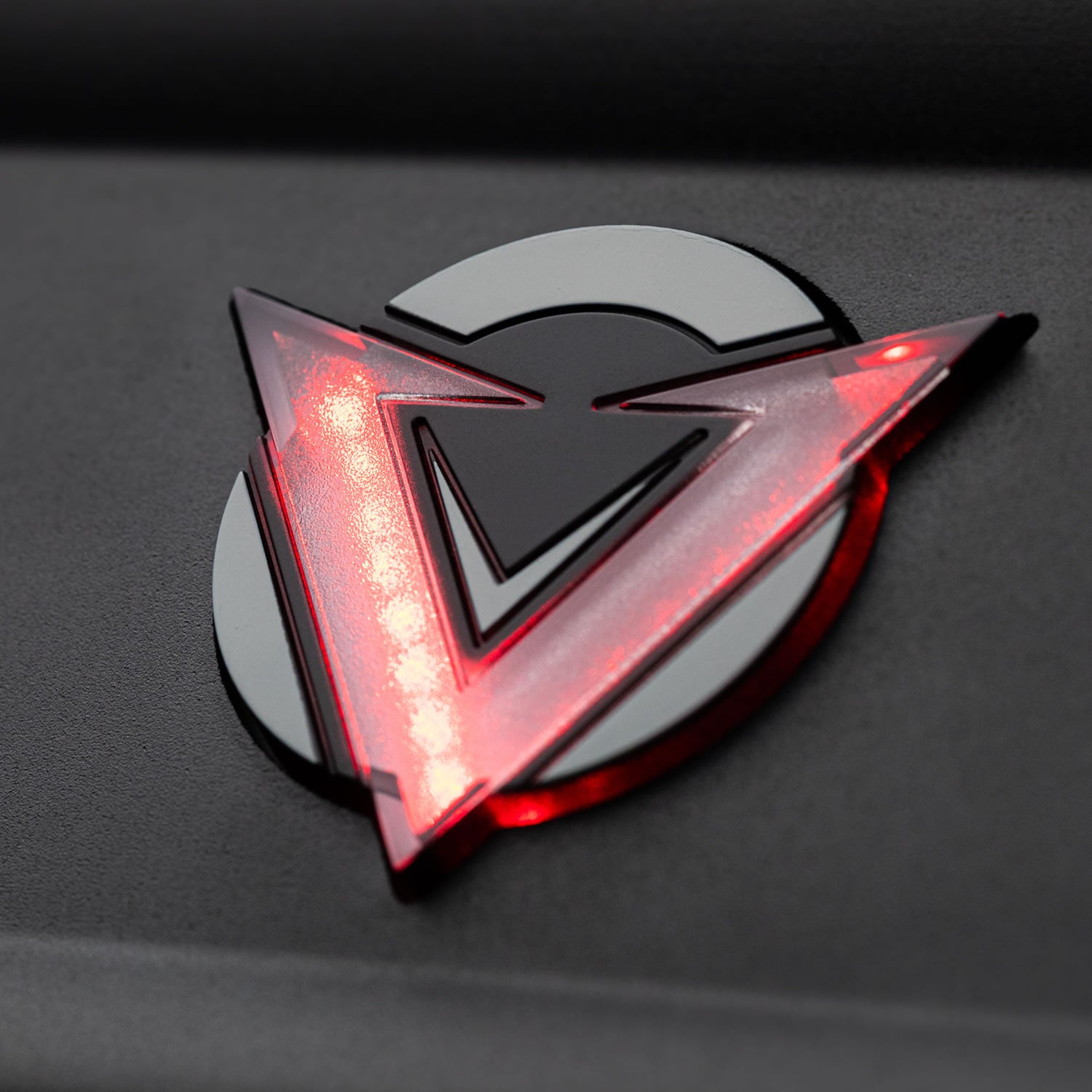

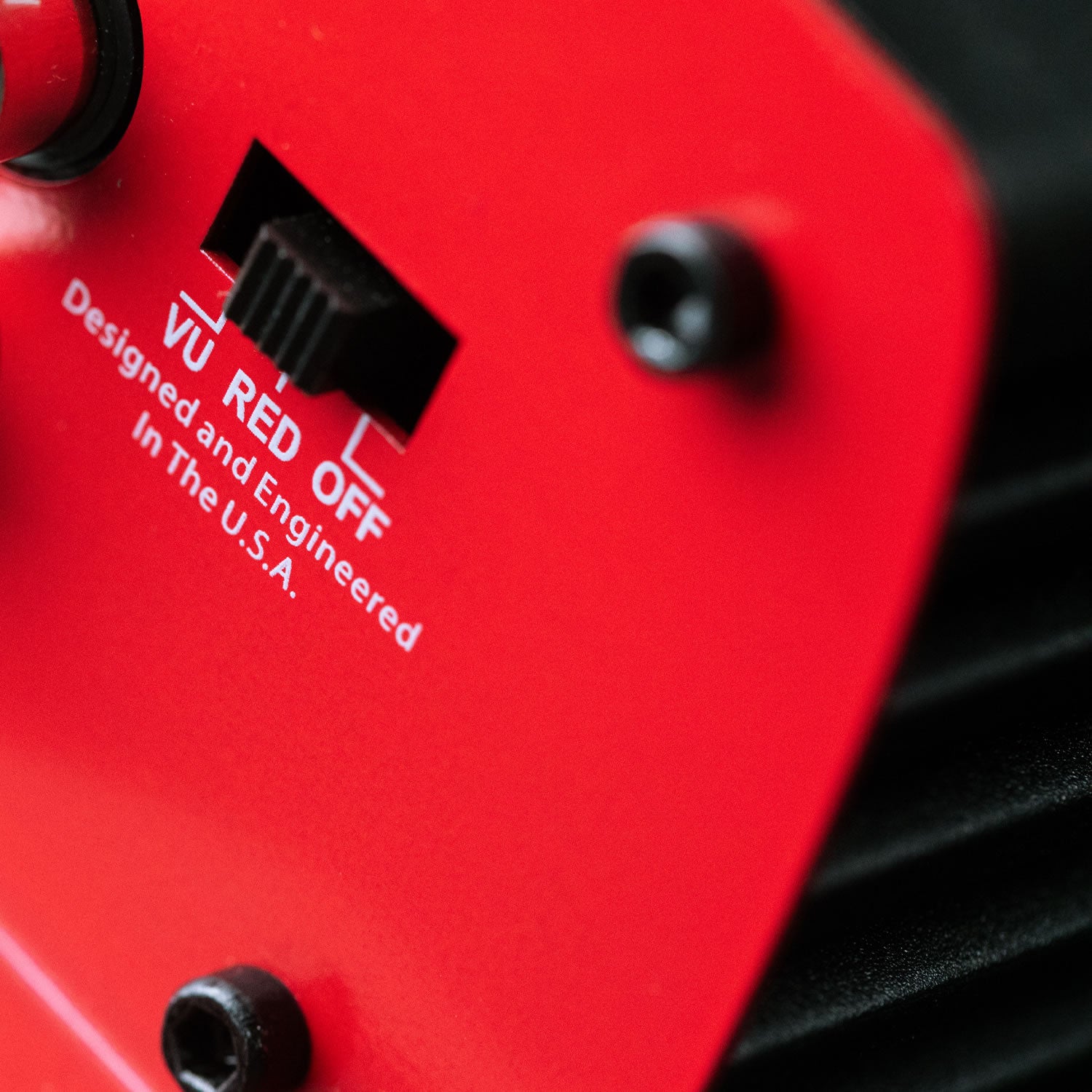

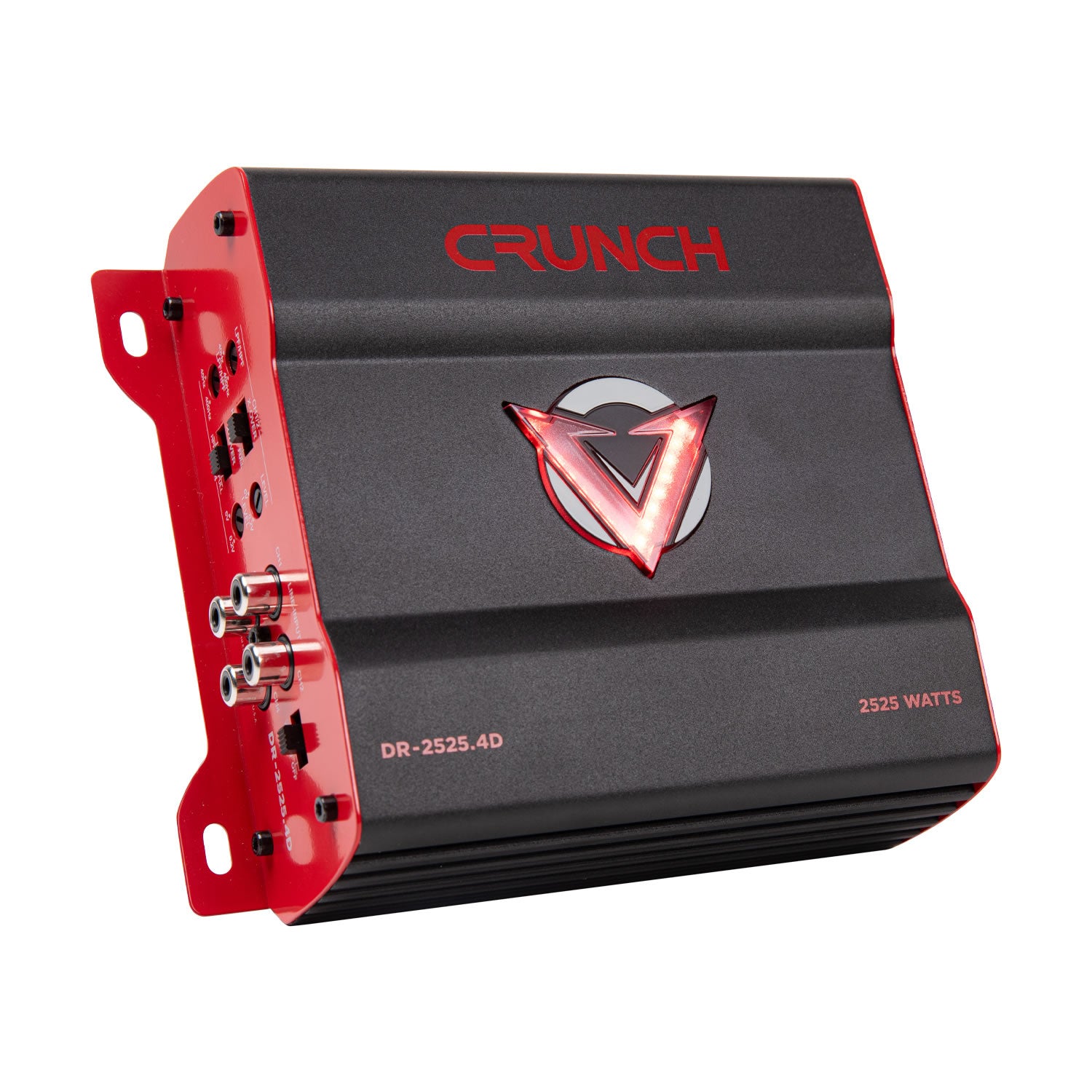

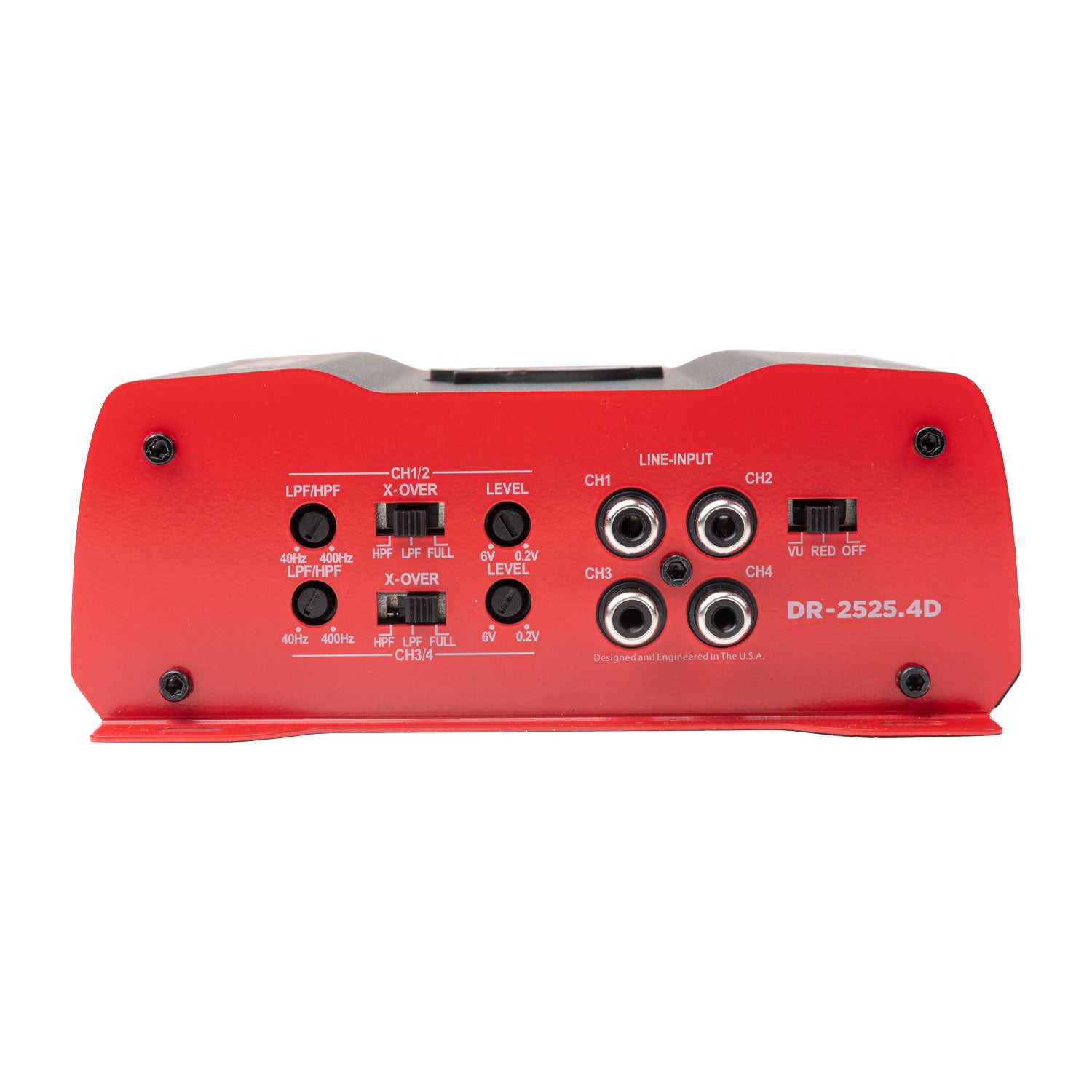

Crunch DR-2525.4D V-DRIVE amplifier series features a built-in LED VU-Meter for adjusting gain levels, Quick Thermal Dispersion Technology delivering 2525 watts to speakers, and electronic crossovers.
Item Weight (lbs)
2.93
Item Length (in)
6.85
Item Width (in)
5.83
Item Height (in)
2.2
Type
Amplifier
Brand
Crunch
Series
V-DRIVE
Category
Mobile
Condition
New
Color
Black
Compatible Vehicles
Universal
Amp Class
Class D
Amp Total Channels
4
Amp Max Power (watts)
2525
Amp Power @ 2 Ohms (ch x watts)
4 x 630
Amp Power @ 4 Ohms (ch x watts)
4 x 320
Amp Mono Bridged @ 4 Ohms (ch x watts)
2 x 1260
Amp Crossover
Variable Electronic 12dB Per Octave
Amp Variable High Pass Crossover 12dB per Octave
40Hz-400Hz
Amp Variable Low Pass Crossover 12dB per Octave
40Hz-400Hz
Amp Variable Voltage
0.2-6V
Amp Signal to Noise
>100dB
Amp Frequency Response
20Hz-20kHz
Amp Total Harmonic Distortion (THD)
< 0.5%
Amp Speaker Level Audio Inputs
RCA

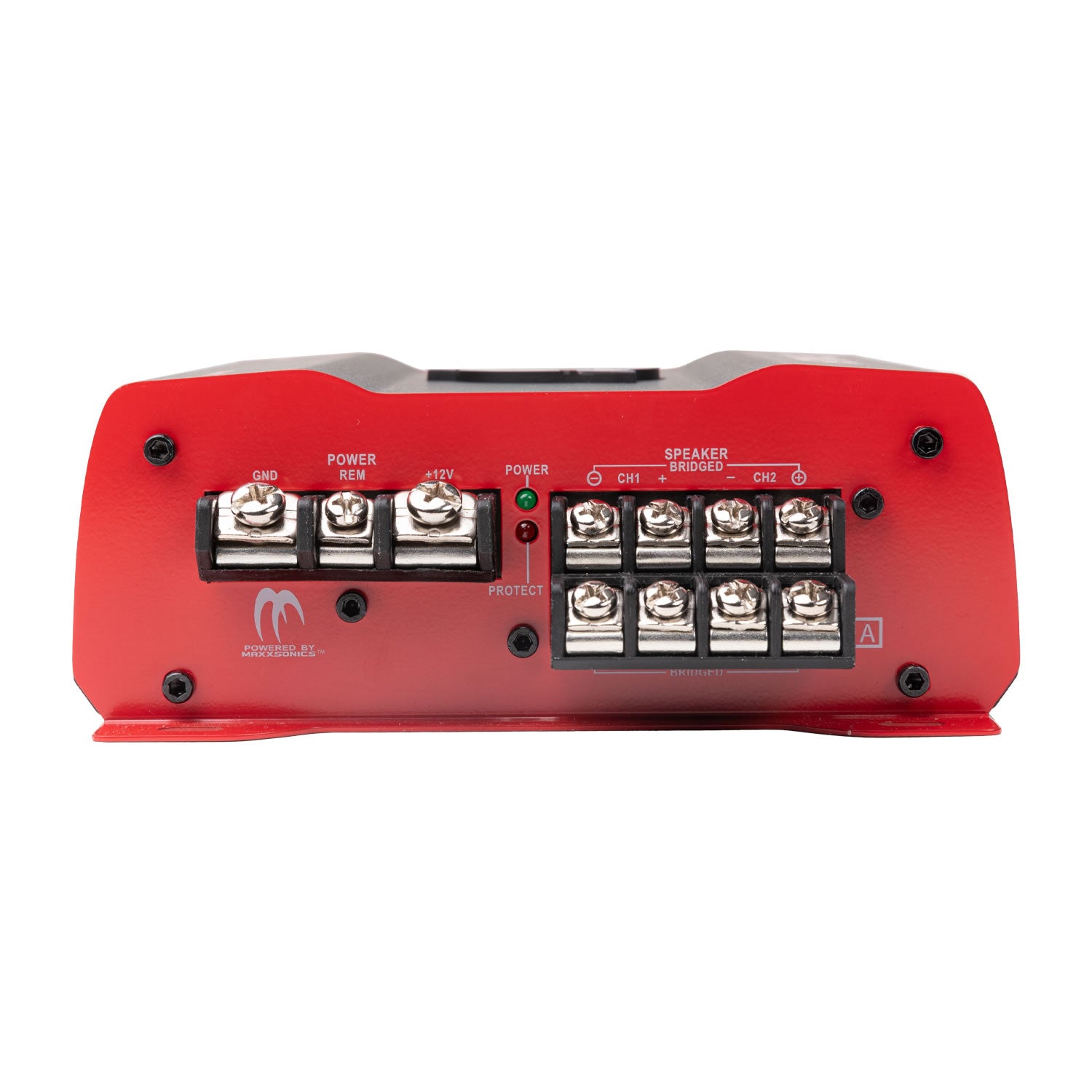

Amp Power Terminal 12v/GND
4 AWG
Amp Speaker Terminal Wire Gauge
8 GA
Amp Fusing
External 80A
