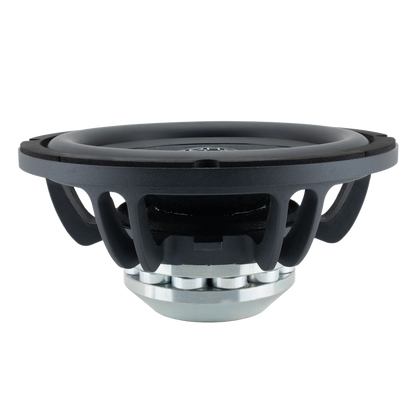

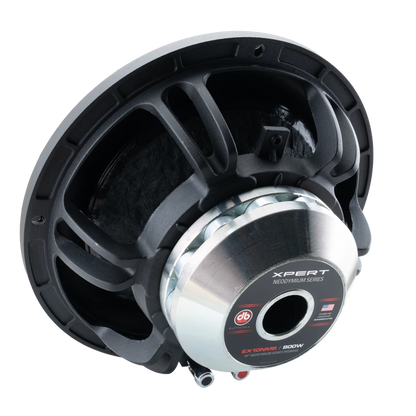

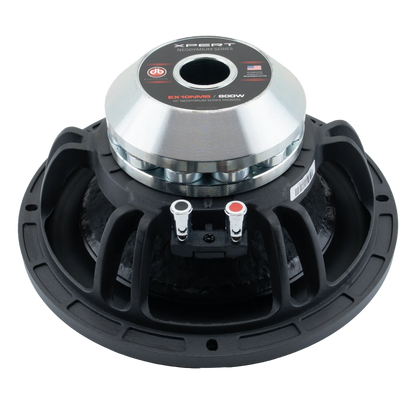

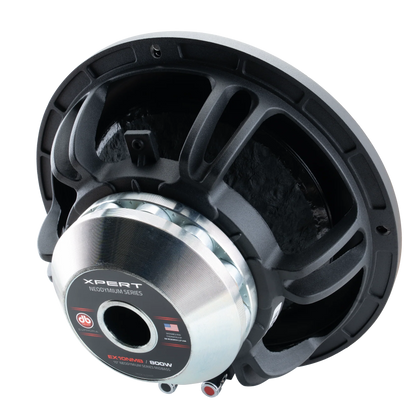

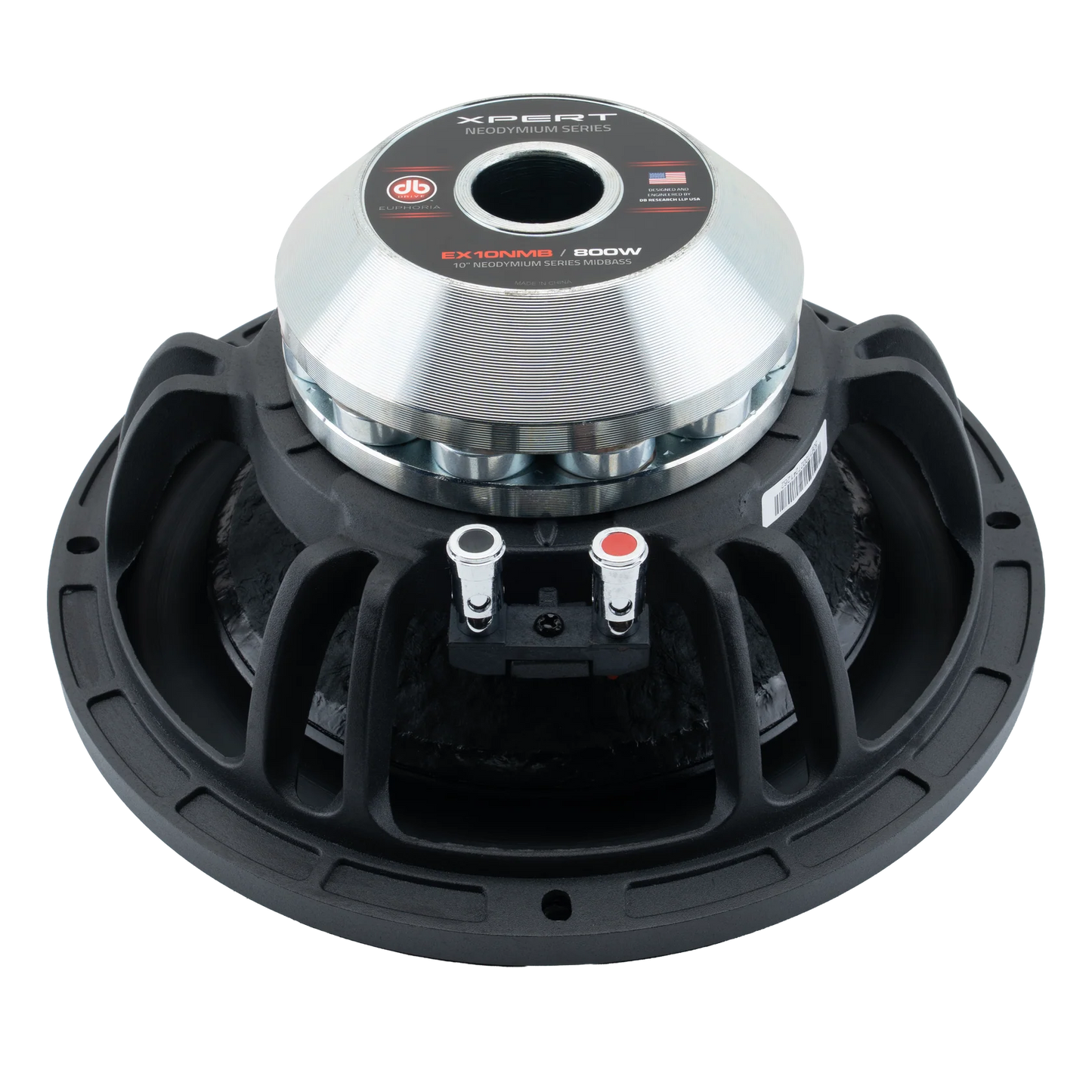

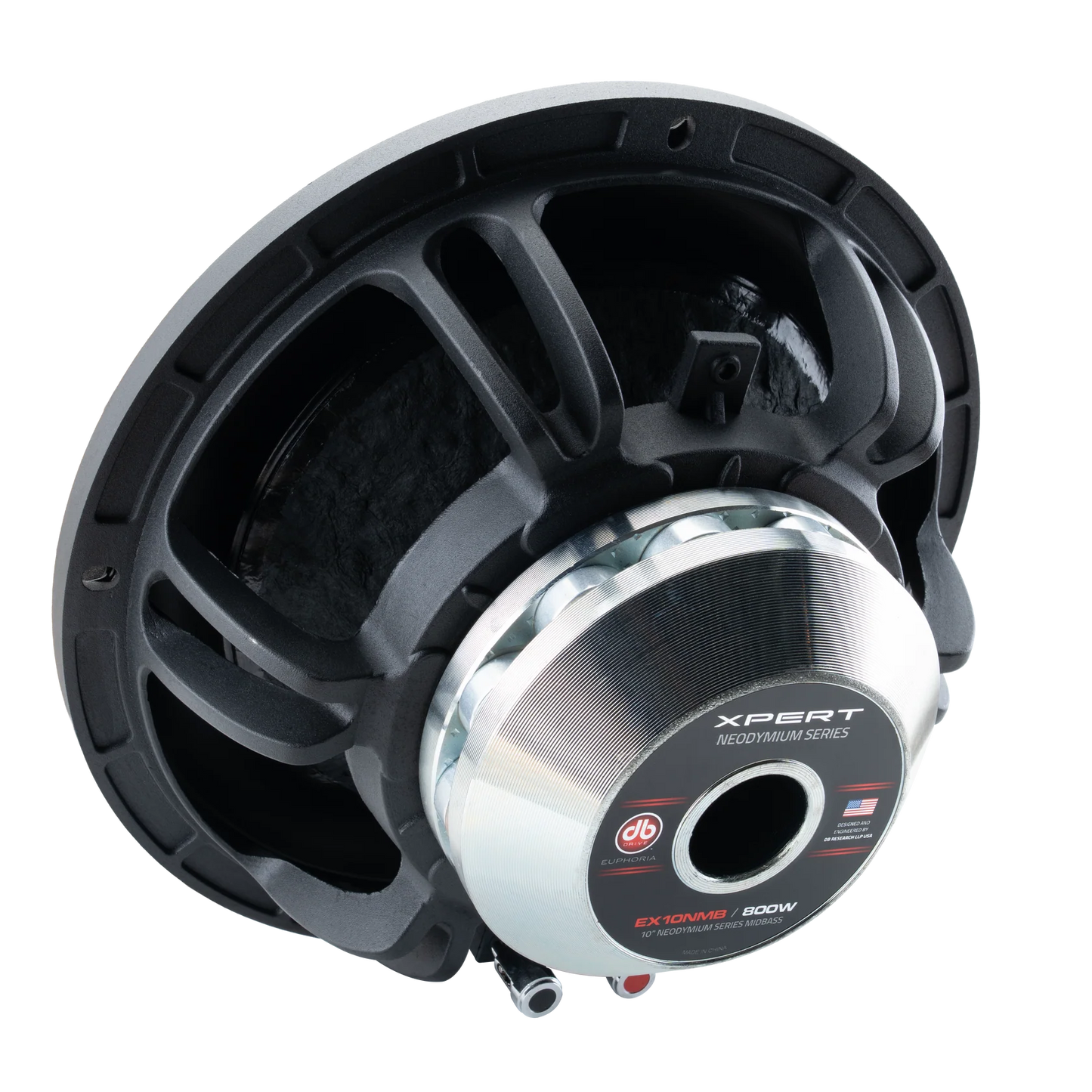

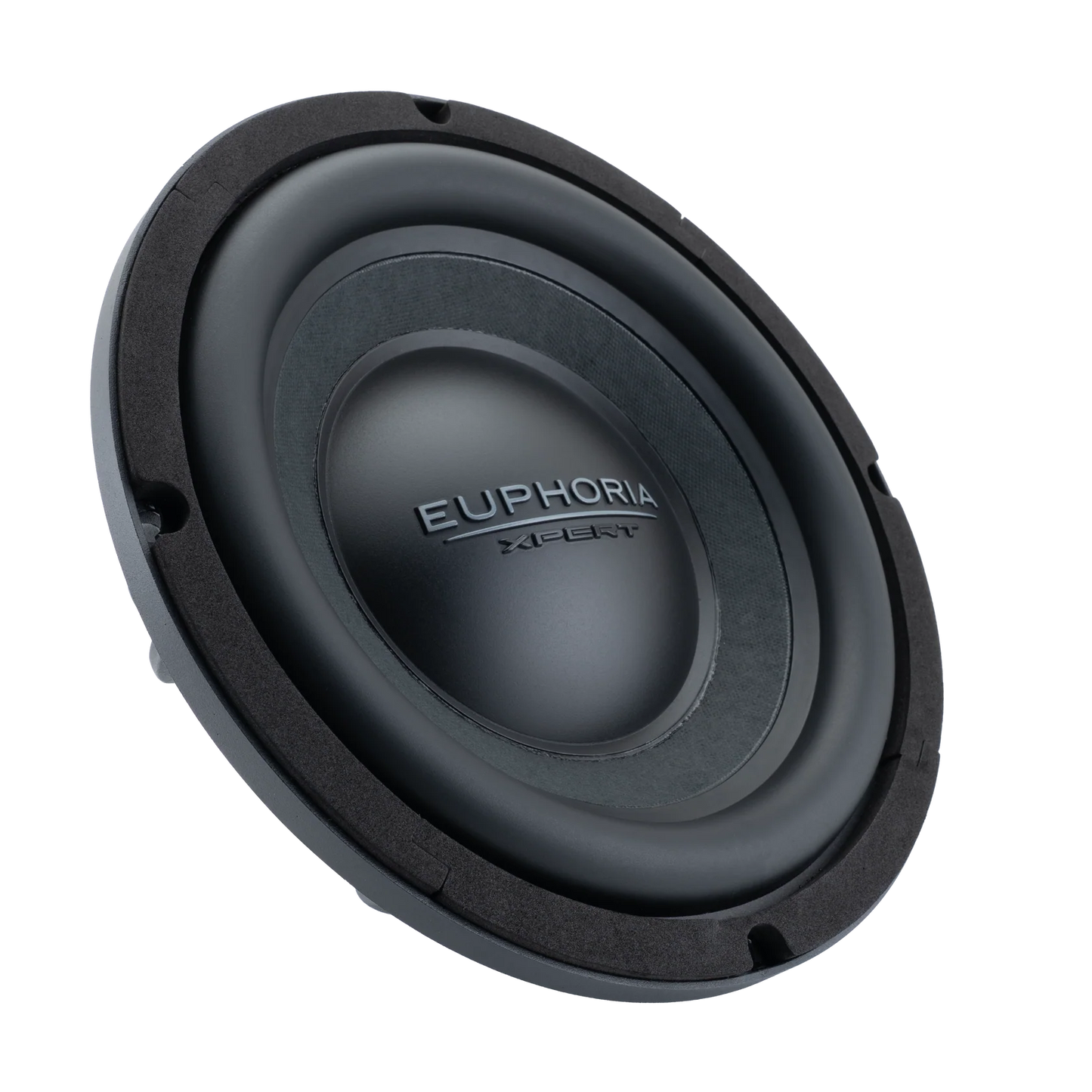

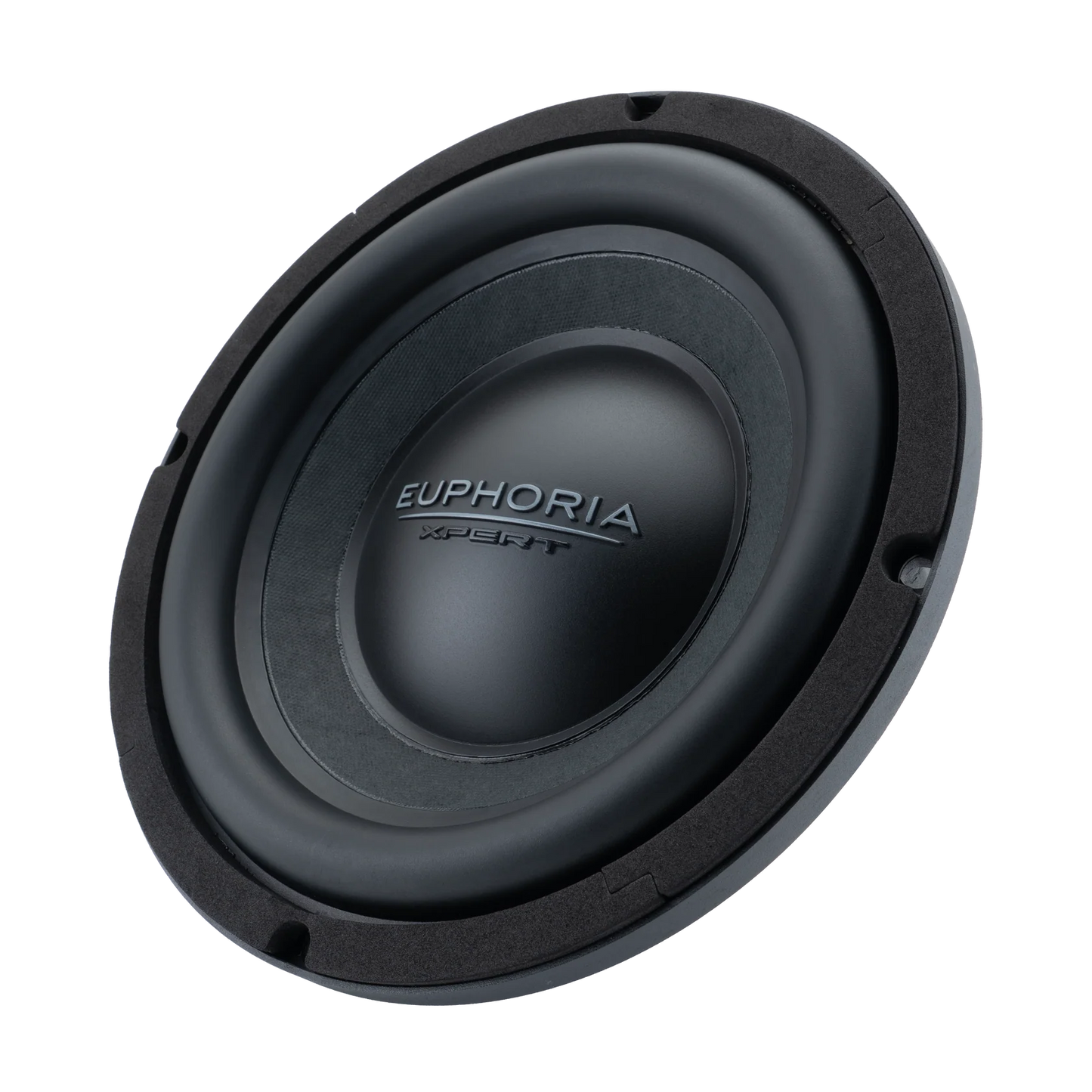

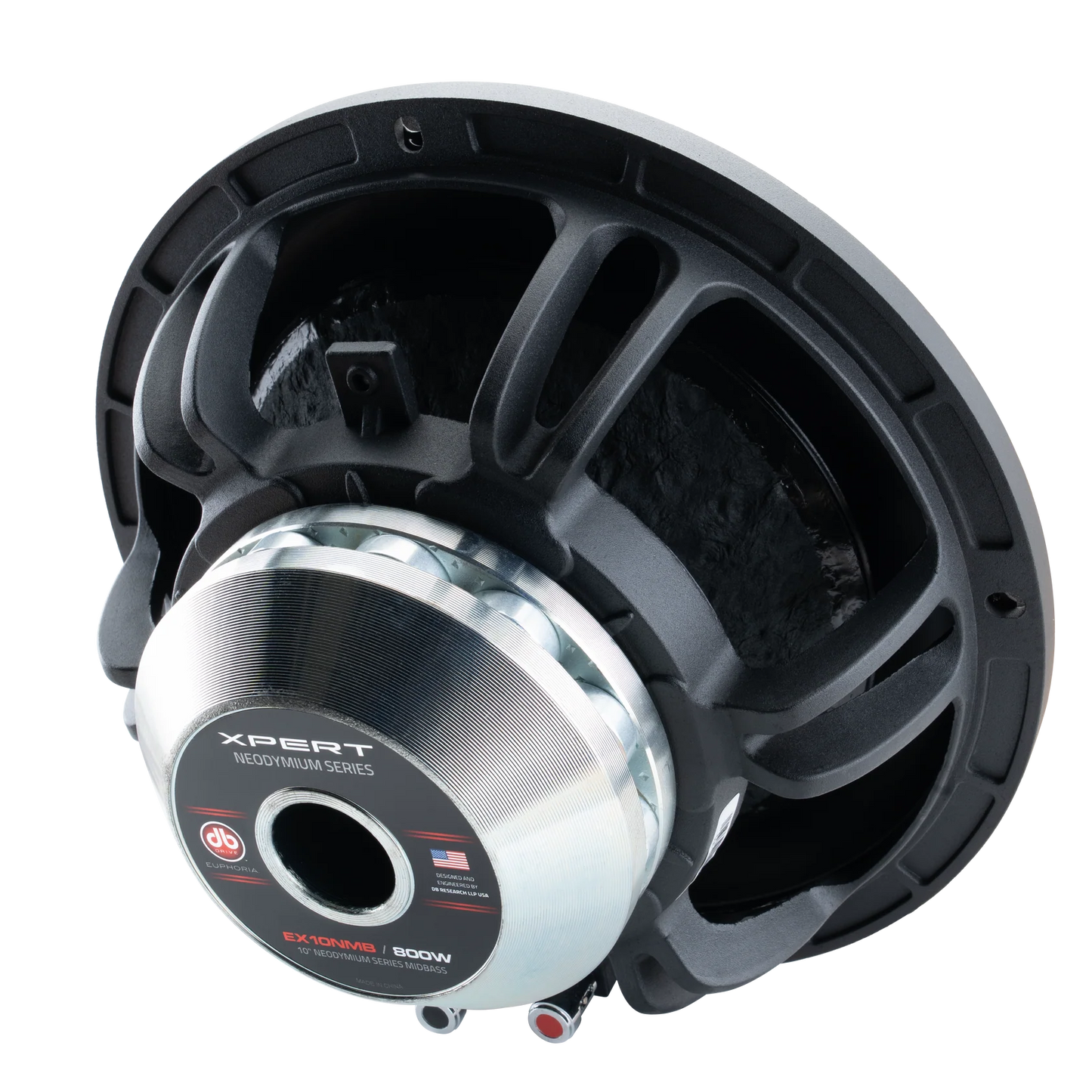

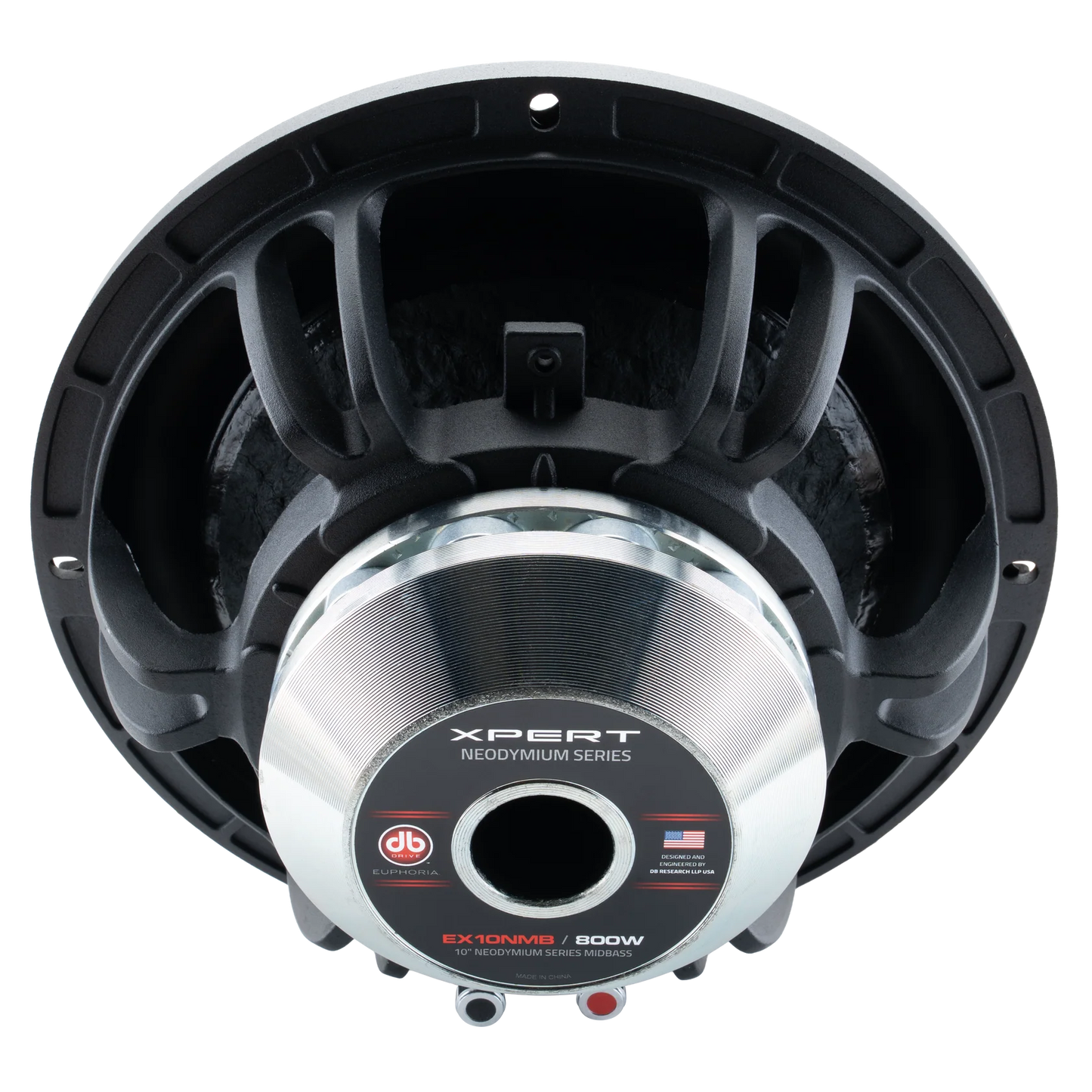

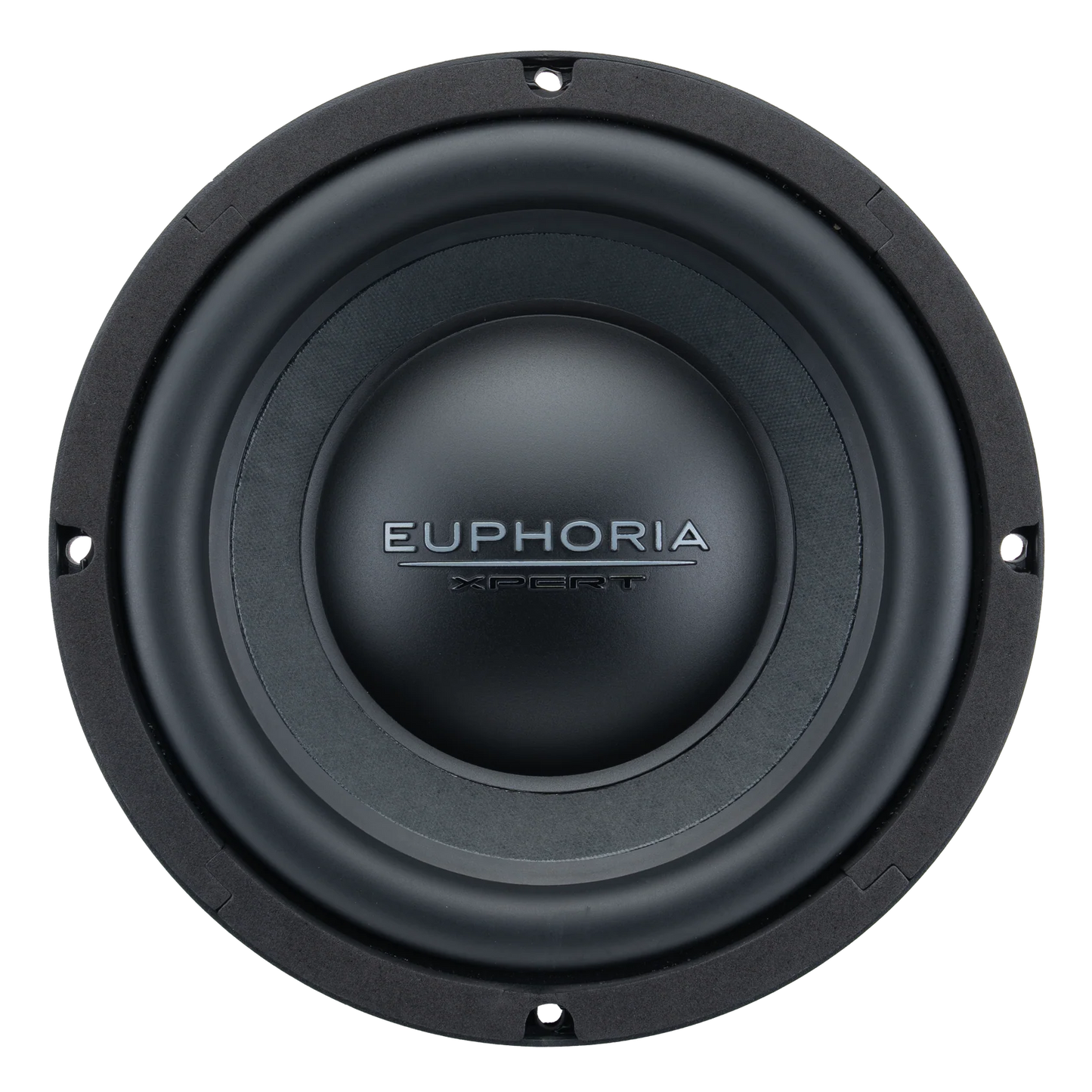

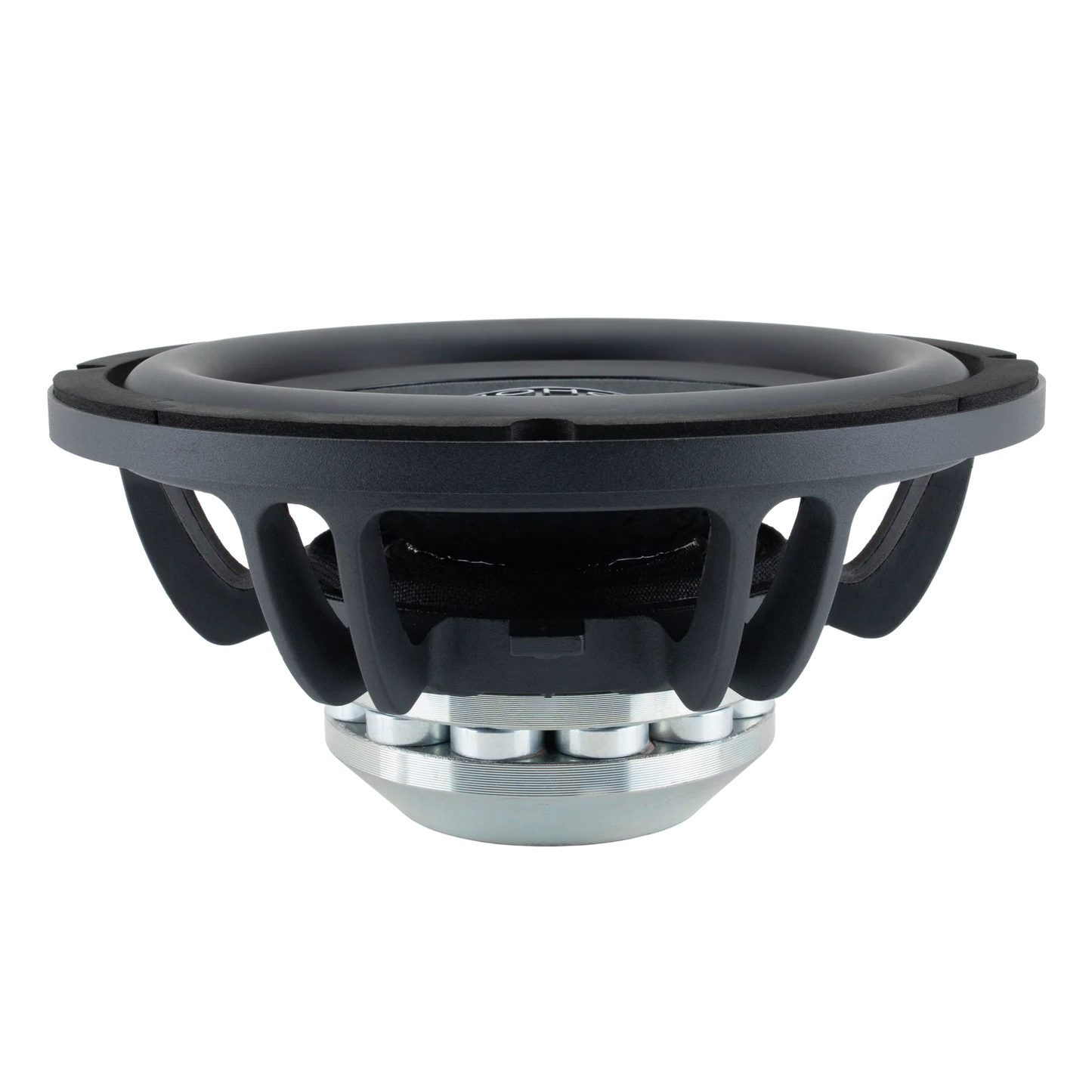

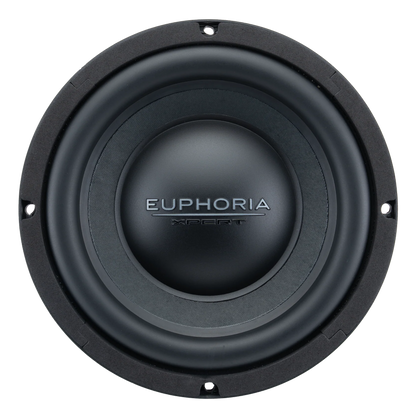

DB Drive Euphoria EX10NMB 10" Neodymium MidBass

Experience the XPERT sound revolution with the EX10NMB 10in Die-Cast NEO Mid bass Driver! Elevate your audio experience with the XPERT EX10NMB 10in Die-Cast NEO Mid bass Driver. This powerhouse of sound features a Neodymium 12 Piece Radially Equalized Magnet Assembly that ensures exceptional magnetic strength and clarity. With an IP52 Rated Paper Cone and Treated Rubber Surround, it promises durability and superior sound quality. The Die-Cast Aluminum Basket with Radial Venting enhances cooling and longevity. Boasting a Frequency Response of 45Hz - 2000KHz and a Sensitivity of 92dB, it delivers precise, powerful sound. Whether you're looking to amplify your music or upgrade your audio system, the EX10NMB offers unparalleled performance with its 800 Watts Max Power and 400 Watts Nominal Power. Embrace innovation with the XPERT NEO MID-BASS series and transform your sound experience today.

10″ Neodymium Series Mid Bass
2.5″ (63.5mm) Midrange Voice Coil
Neodymium 12 Piece Radially Equalized Magnet Assembly
IP52 Rated Paper Cone with Treated Rubber Surround
Die-cast aluminum Basket with Radial Venting Dimensions

T/S PARAMETERS
Resonant Frequency (fs)    40Hz
D.C. Voice Coil Resistance (Re)    3Ω
Mechanical Quality Factor (Qms)    2.913
Electrical Quality Factor (Qes)    0.485
Total Quality Factor (Qts)    0.416
Compliance Equivalent Volume (Vas)    25.94L
Mechanical Compliance (Cms)    167.735 mm/N
Efficiency (1W/1M)    92 dB
ADDITIONAL SPECS
Nominal Impedance    3Ω
Power Handling    400 Watts
Dynamic Wattage    800 Watts
Sensitivity (1w/1m)    92 dB
Voice Coil Diameter    2.5″ (63.5mm)

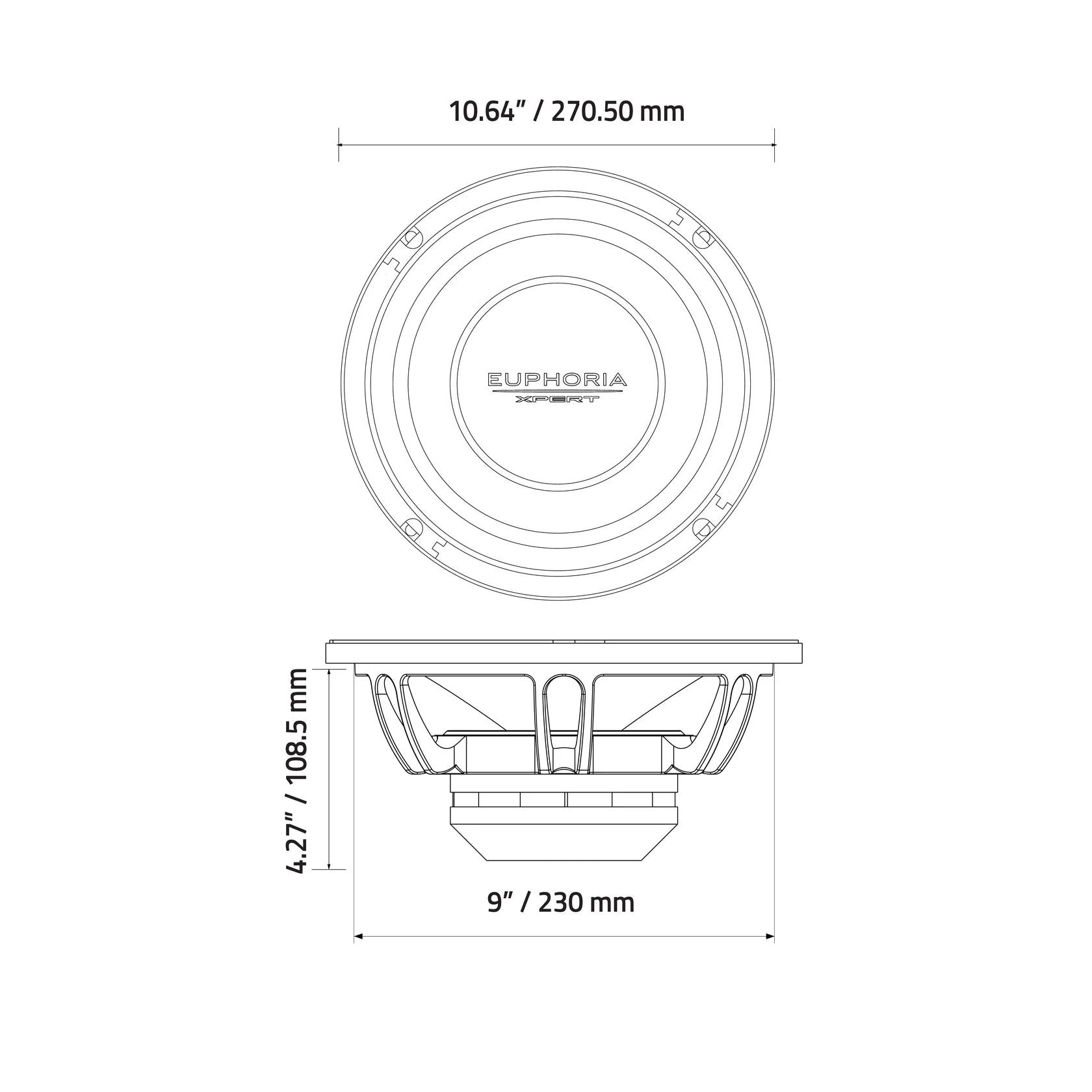

DIMENSIONS
Mounting Depth:    4.27″ (108.5mm)
Mounting Diameter:    9″ (230mm)
