DB Drive Euphoria EXM8SN 8" Stamped Basket MidRange

XPERT EXM8SN: The Midrange Marvel that Hits All the Right Notes! Introducing the XPERT EXM8SN, your new go-to for impeccable audio quality in the MIDRANGE category! This 8-inch NEO Midrange marvel is engineered to perfection and boasts a Neodymium 10 Piece Radially Equalized Magnet Assembly, ensuring your sounds are powerful and precise. With an IP52 Rated Paper Cone and Treated Cloth Surround, durability is a given, making it perfect for any environment. The heavy-gauge stamped steel basket provides a sturdy foundation, while the 2-inch (51mm) voice coil easily handles a wide frequency response of 85Hz to 11KHz. At an impedance of 4Ω, the EXM8SN guarantees compatibility with various setups. Elevate your audio experience with XPERT—the brand that knows no bounds!

EXM8SN - Sold individually

8″ midrange
2″ (51mm) Voice Coil
Neodymium 10 Piece Radially Equalized Magnet Assembly
IP52 Rated Paper Cone With Treated Cloth Surround
Heavy Gauge Stamped Steel Basket
T/S PARAMETERS
Resonant Frequency (fs)    71.8Hz
D.C. Voice Coil Resistance (Re)    3.2Ω
Mechanical Quality Factor (Qms)    4.02
Electrical Quality Factor (Qes)    0.39
Total Quality Factor (Qts)    0.36
Compliance Equivalent Volume (Vas)    24.4L
Mechanical Compliance (Cms)    0.36 mm/N
Efficiency (1W/1M)    99.6 dB
ADDITIONAL SPECS
Nominal Impedance    4Ω
Power Handling    300 Watts
Dynamic Wattage    600 Watts
Sensitivity (1w/1m)    99.6 dB
Voice Coil Diameter    2.0″ (51mm)

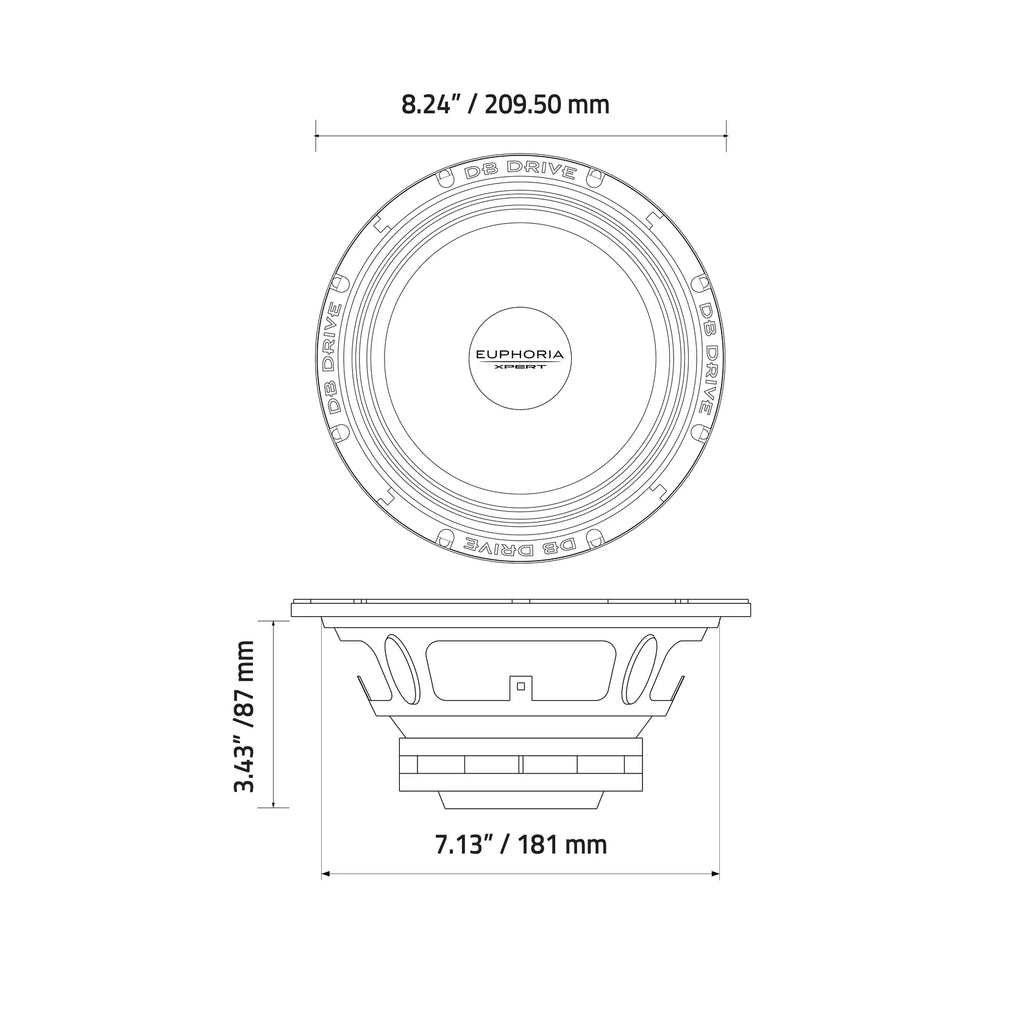

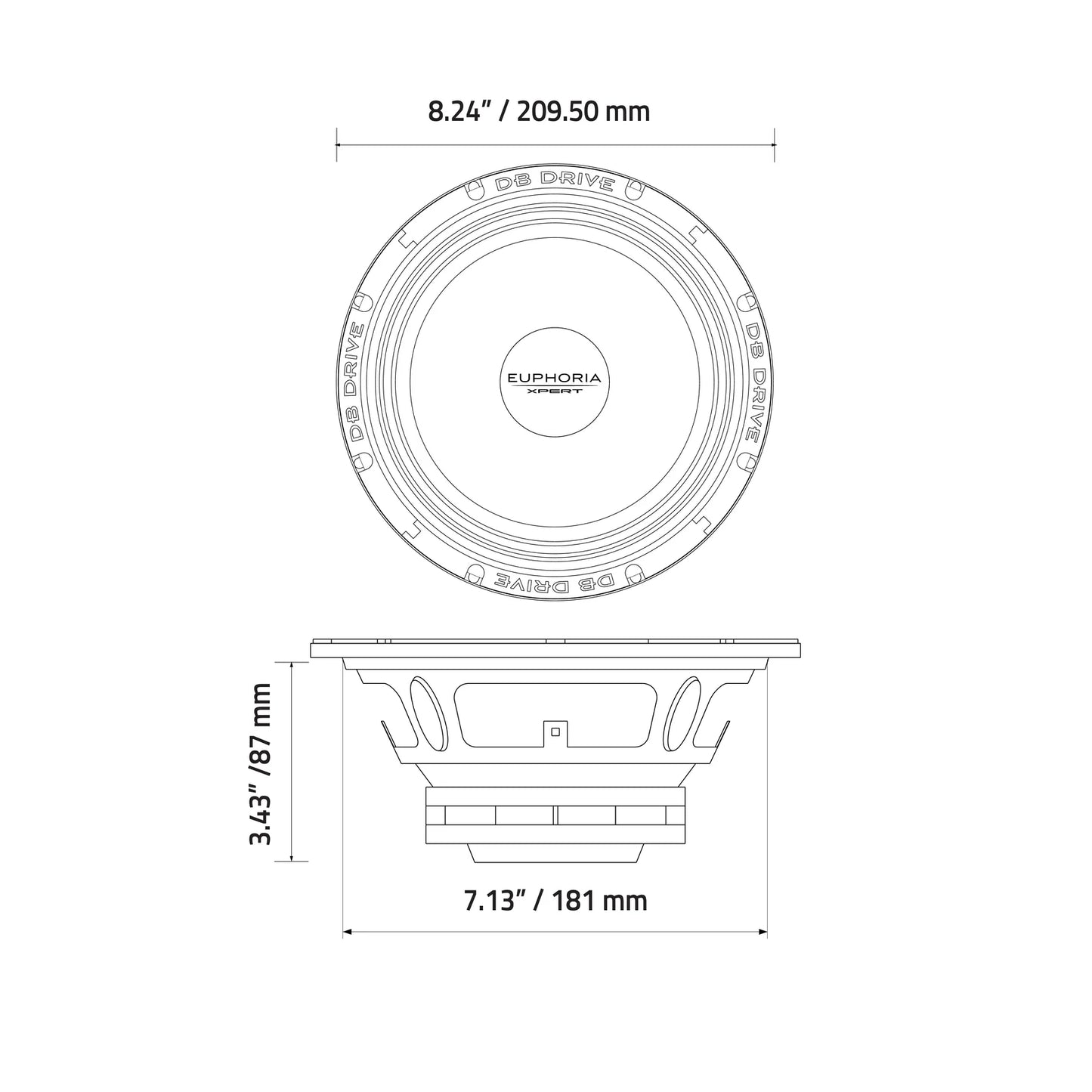

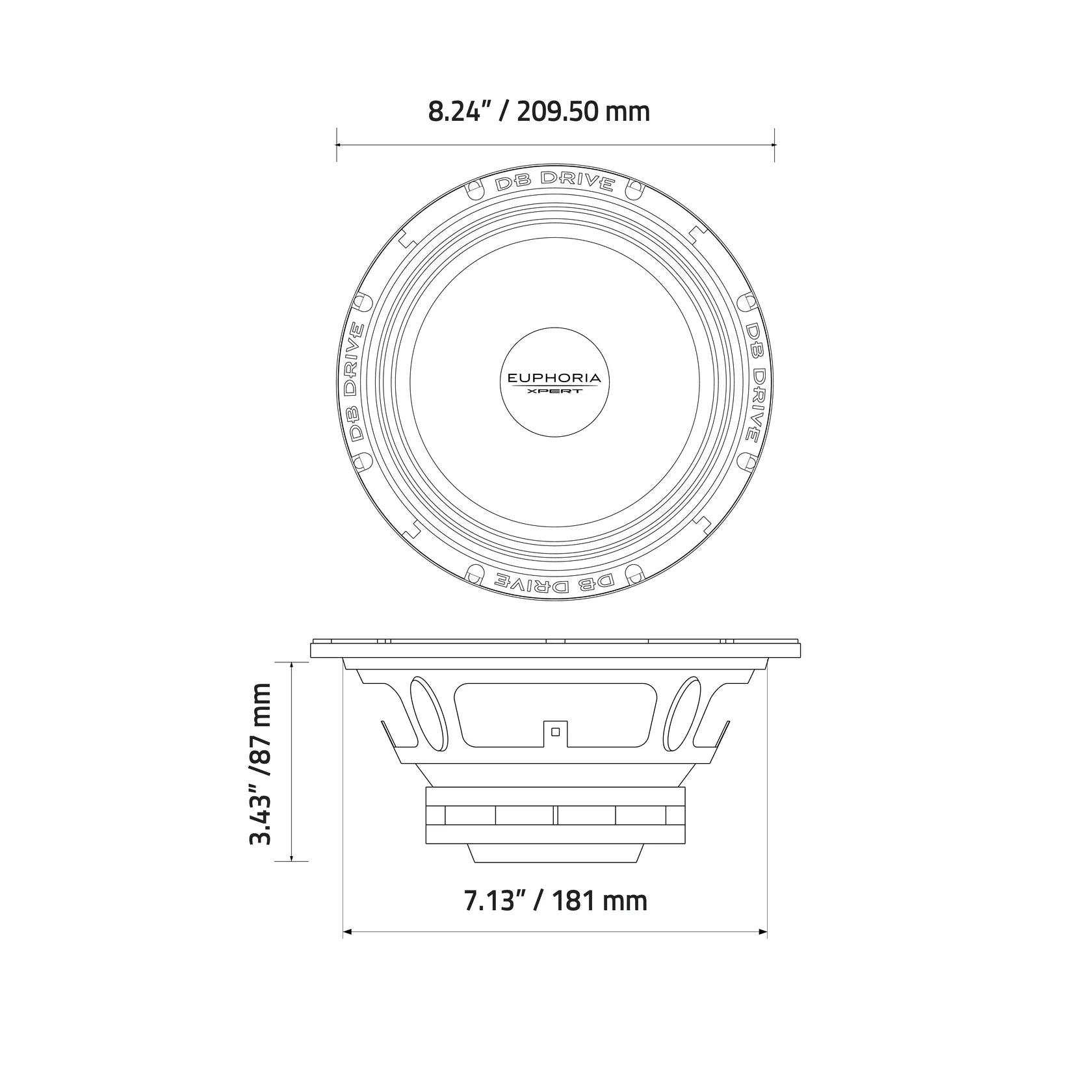

DIMENSIONS
Mounting Depth:    3.43″ (87mm)
Mounting Diameter:    7.13″ (181mm)
