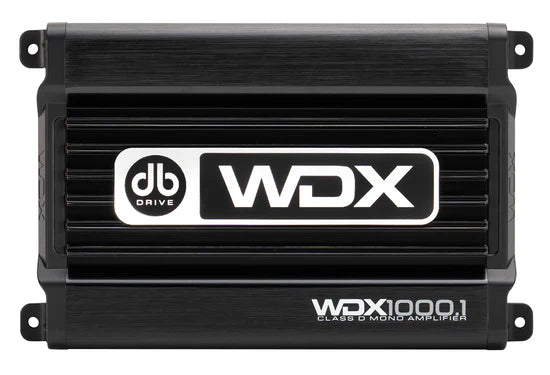

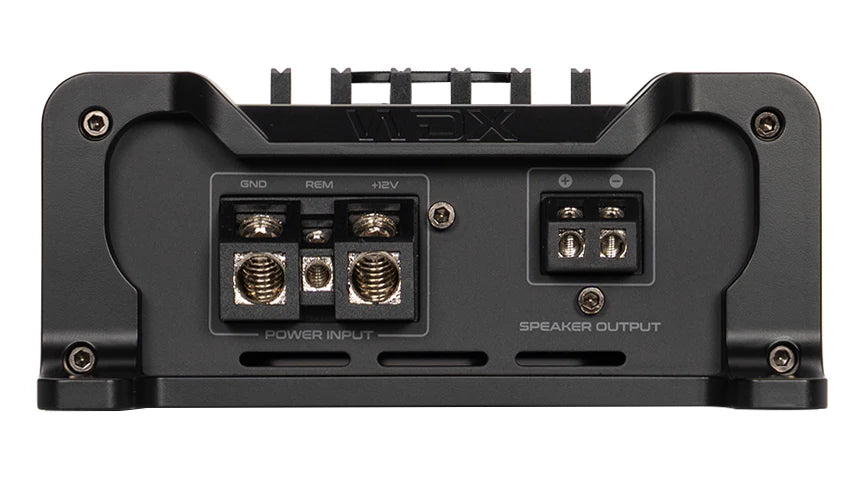

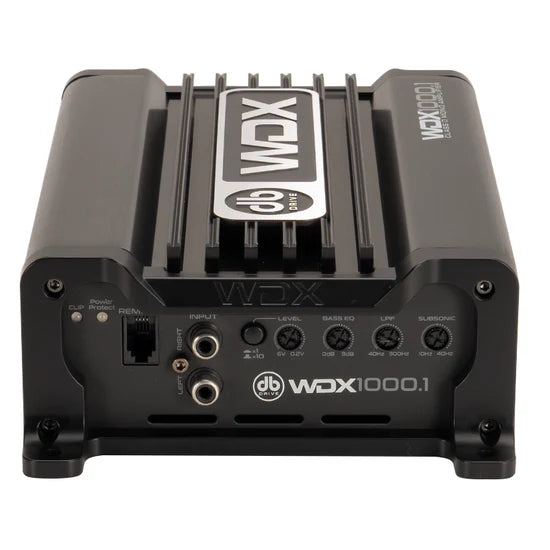

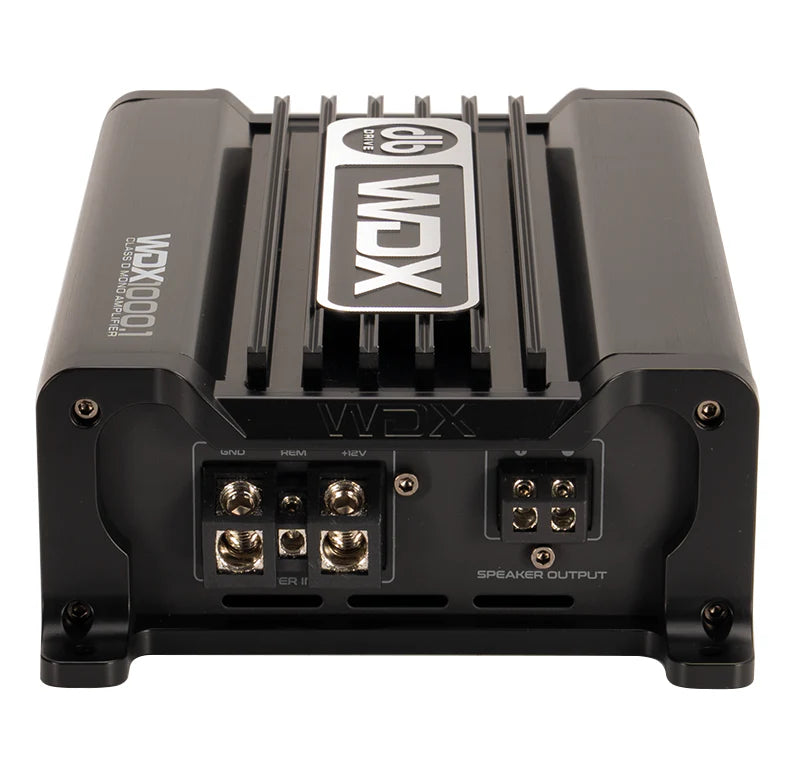

DB Drive WDX 1000.1 1000W 1-Channel Amplifier 1 ohm stable

Features:

CLASS “D” CIRCUITRY
Direct Connect Speaker Terminals
4 Gauge Power Wire Input
CHM- Collective Heat Management
ACT – Adaptive Crossover Technology
SESI – Signal Evaluation Status Indicator
APC – Audio Protection Circuit
Included Remote Level Control
Length: 9" Width: 5.50" Height: 2.38"
GENERAL SPECIFICATIONS
Rated Power @ 14.4 Volts
1 x 1000 Watts @ 1Ω
1 x 500 Watts @ 2Ω
1 x 250 Watts @ 4Ω
PARAMETERS
Frequency Response    20Hz ~ 300Hz
S/N Ratio    < 95 dB
Low Level Input    6V – 0.2V
Variable High Pass Filter (12DB Slope)    40Hz ~ 300Hz
Variable Low Pass Filter (12DB Slope)    10Hz ~ 40Hz
Bass Equalizer    0dB – 9dB
Working Voltage    12-15 Volts
