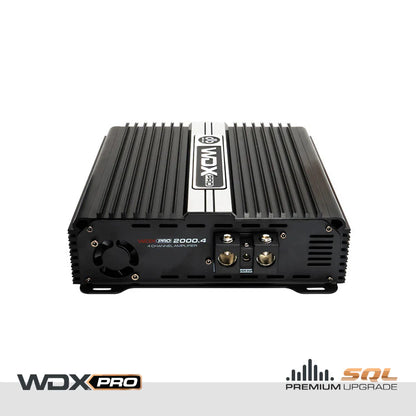

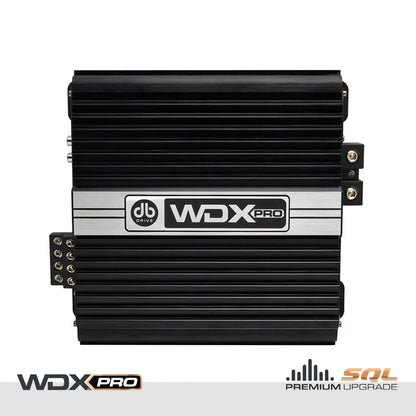

DB Drive WDX PRO2000.4 4-Channel Class D Amplifier
DB Drive WDX PRO2000.4 4-Channel Class D Amplifier
Couldn't load pickup availability
20 in stock
Give your system dedicated amplifier power
The DB Drive WDX PRO2000.4 4-Channel Class D Amplifier gives you four channels of amplification for a multi-speaker system. Match its output at your chosen impedance to the speakers you plan to run.
Key details
- Model / SKU: WDX PRO2000.4
- Frequency Response: 15 Hz - 20k Hz
Fitment & system matching

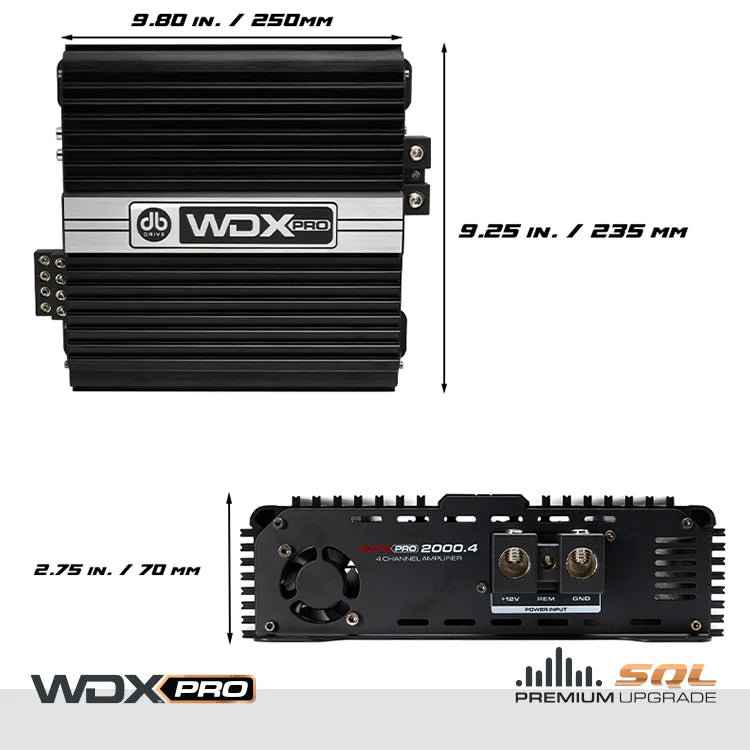

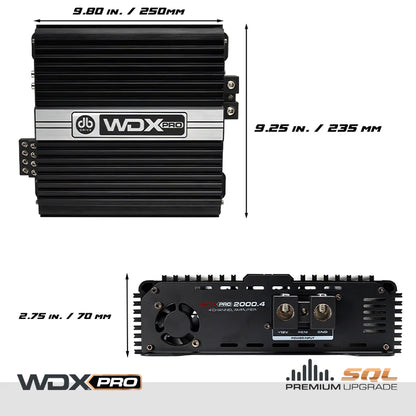

Match RMS output at the final wired impedance to your speakers or subwoofers. Check minimum impedance, mounting dimensions, fuse requirements and power-wire size. Peak/MAX ratings are not continuous RMS output.
Full product details & specifications
Maximize your car audio with the DB Drive WDX PRO2000.4, a powerful 4-channel Class D amplifier built for high output and superior sound. Key Features: • Adaptive Crossover: Optimizes performance for tweeters, mids, and midbass. • CHM: Keeps the amp cool during extended use. • SESI Circuit: Monitors output to prevent overdriving and protect your gear. • Large-Gauge Terminals: Support 4-gauge wiring for high-output systems. With 500 Watts per channel at 1Ω, the WDX PRO2000.4 delivers clear, powerful sound, elevating your audio experience.
4 x 125 Watts @ 4 ohms
4 x 250 Watts @ 2 ohms
4 x 500 Watts @ 1 ohm
4 ohms (Bridged): 2 x 1000 Watts
Working Voltage: 12-15 Volts
Frequency Response: 15 Hz - 20k Hz
Signal to Noise Ratio: 96dB

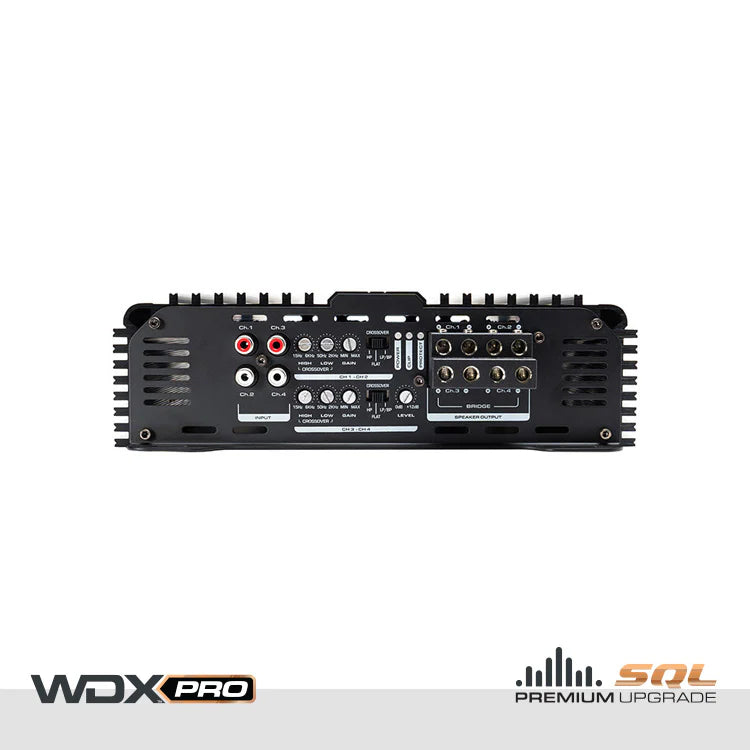

ACT - Variable Crossover HP/BP/LP
Damping Factor: ≥200
Low Level Input: 6V - 0.2mV
Ch 1/2 High Pass Filter Variable: 15 Hz - 6k Hz
Ch 1/2 Low Pass Filter Variable: 50 Hz - 2k Hz
Ch 3/4 High Pass Filter Variable: 15 Hz - 6k Hz
Ch 3/4 Low Pass Filter Variable: 50 Hz - 2k Hz
Minimum working Impedance: 1 ohm stereo / 2 Ohms bridged

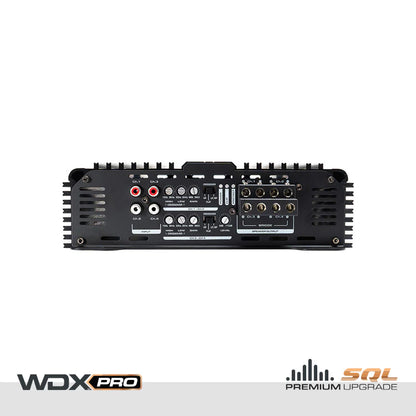

ATC - Audiophile RCA Connectors
ACT - Adaptive Crossover Technology
High efficiency Class Full Range Class D Technology
Direct Connect Speaker Terminals

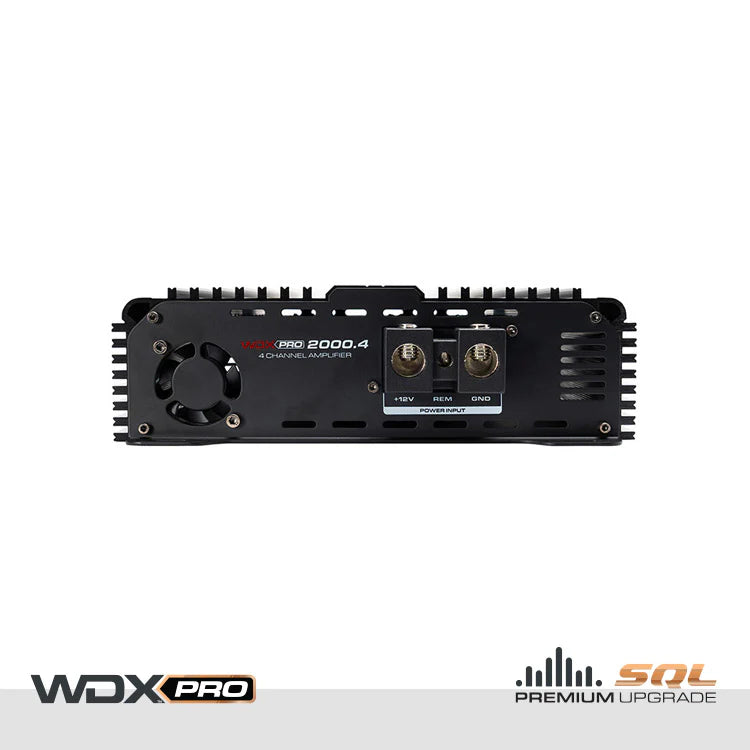

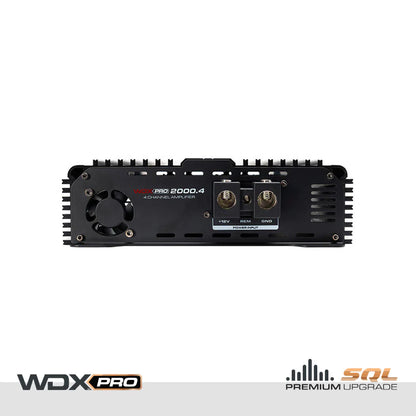

4 Gauge Power Wire Inputs
APC - Audio Protection Circuit
SESI - Signal Evaluation Status Indicator
CHM - Collective Heat Management
