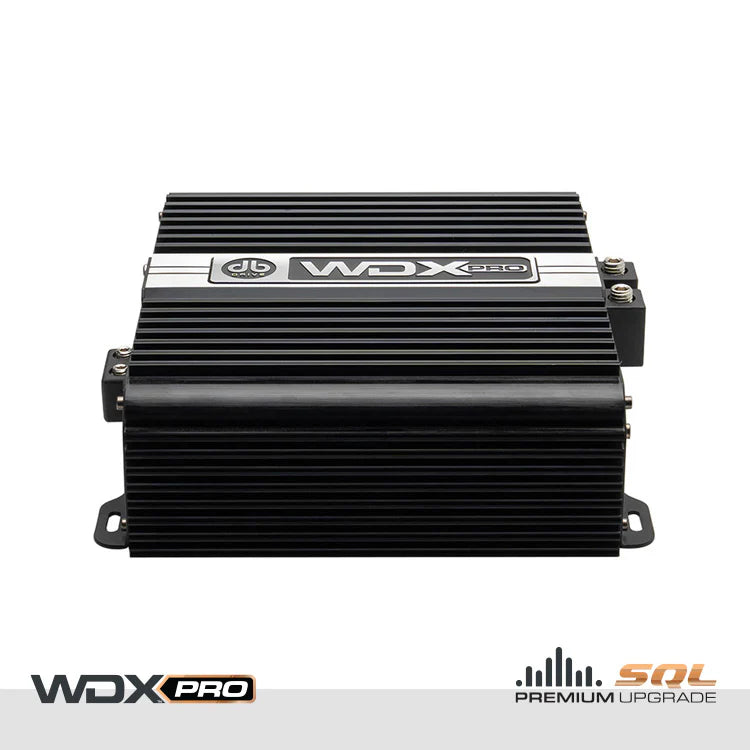

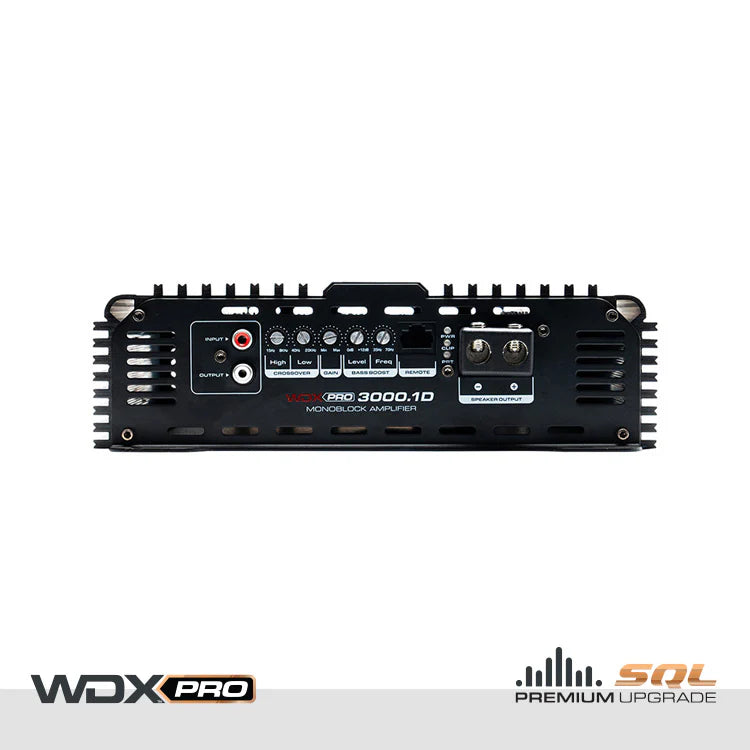

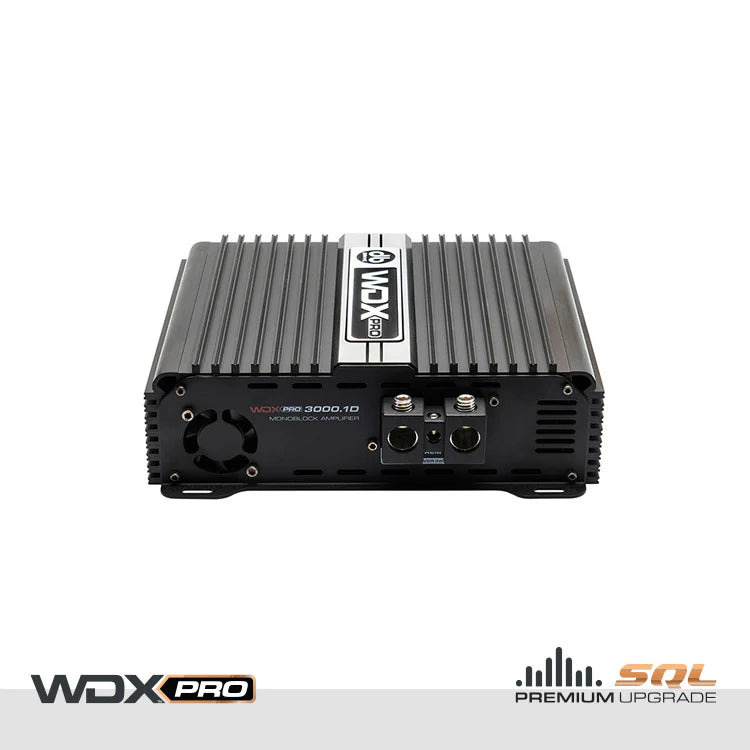

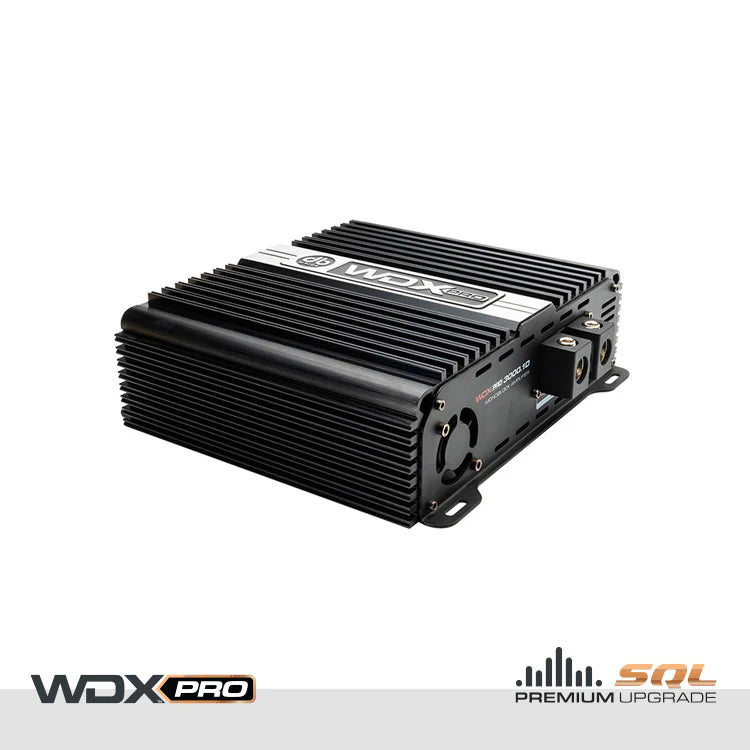

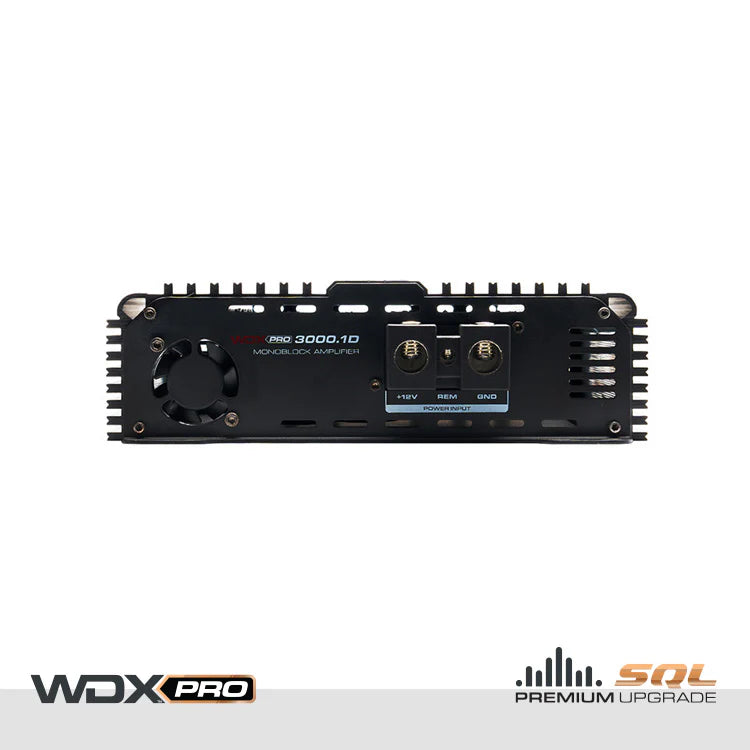

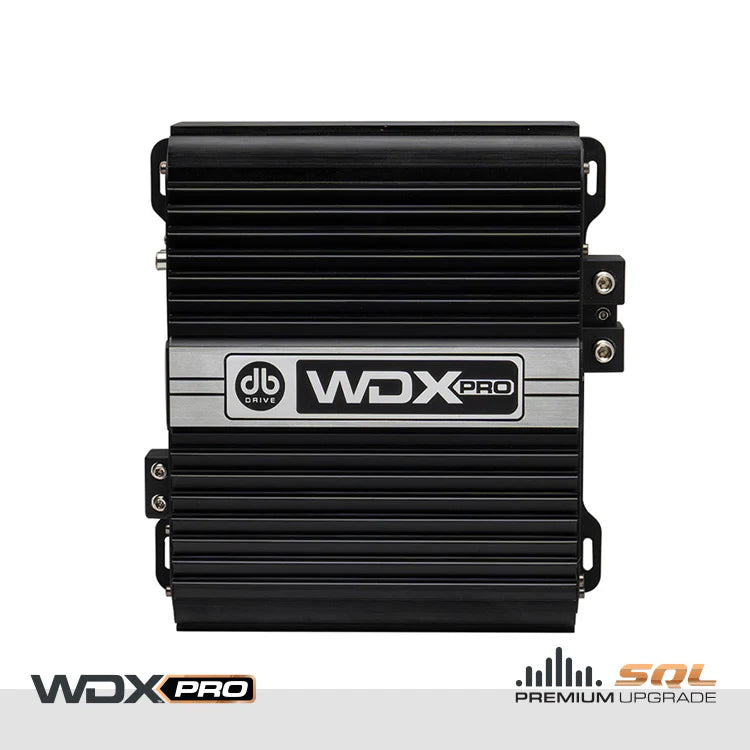

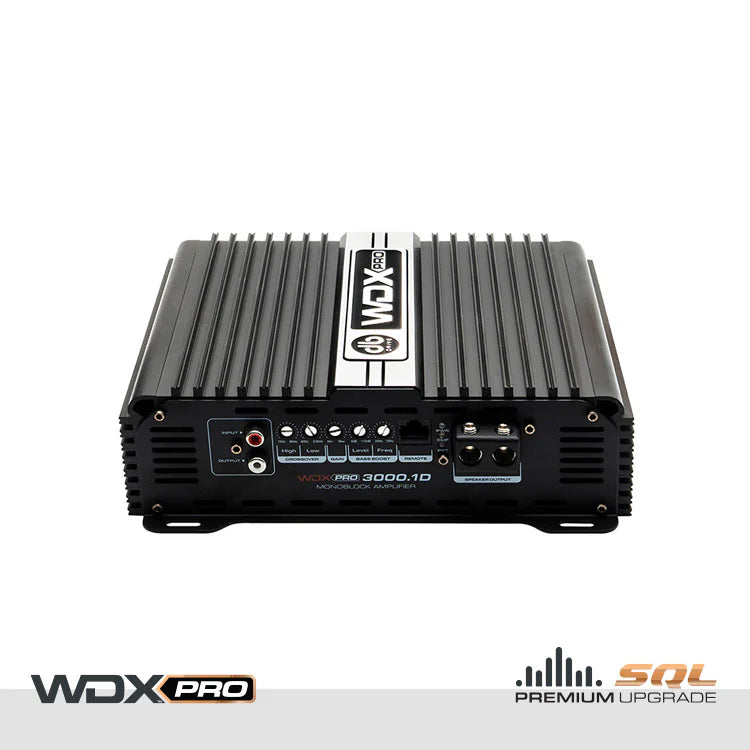

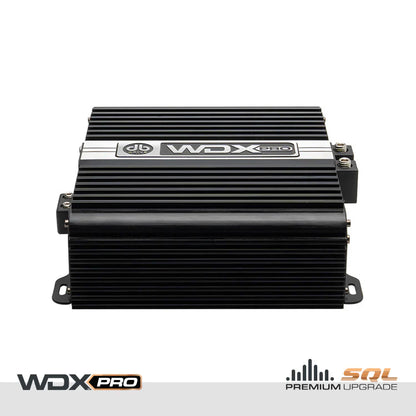

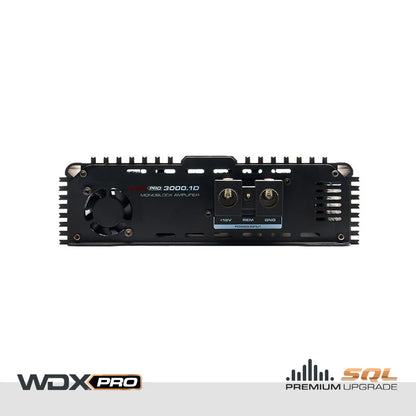

DB Drive WDX PRO3000.1D 3000W 1-Channel Amplifier 1 ohm stable

Superior audio performance with the DB Drive WDX PRO3000.1D a mono Class D full range amplifier designed for high output and crystal-clear sound. Easily power subwoofers or high power midbass drivers. Key Features: • Adaptive Crossover: Fine-tunes your system for optimal performance across compression drivers , midranges, or subwoofers. • CHM: Keeps the amp cool for consistent power without overheating. • SESI Circuit: Real-time monitoring to protect your system from overdriving. • Large-Gauge Terminals: Compatible with 4-gauge wiring for maximum efficiency. With 3000 Watts at 1Ω, the WDX PRO3000.1D provides extremely powerful, dynamic power taking your car audio system to the next level.

1 x 3000 Watts @ 1 ohm
1 x 1500 Watts @ 2 ohms
1 x 750 Watts @ 4 ohms
Working Voltage: 12-15 Volts
Frequency Response: 15Hz - 20KHz
Signal to Noise Ratio: 92dB
Damping Factor: ≥200
Low Level Input: 6V - 0.2mV
Variable Bass Boost Frequency:  35Hz - 70Hz
Bass Boost EQ Gain: 0dB - 12dB
High Pass Filter Variable: 15Hz - 8KHz
Low Pass Filter Variable: 40Hz - 20 KHz
Minimum working Impedance: 1Ohm
External fusing recommended: 250A

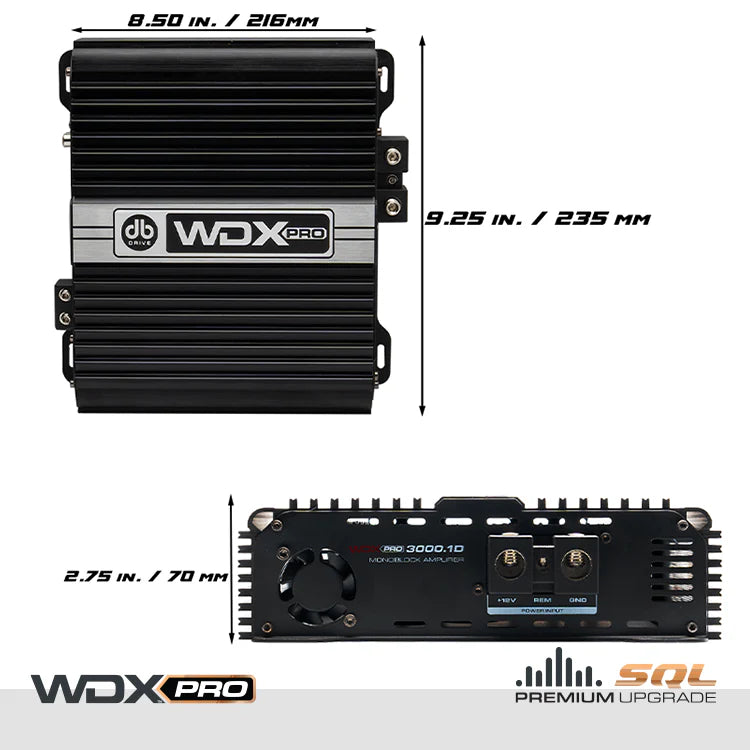

DIMENSIONS
L - 8.5 in / 216mm
H - 2.75 in / 70mm
W - 9.25 in/ 235mm

ATC - Audiophile RCA Connectors
ACT - Adaptive Crossover Technology
High efficiency  Class Full Range Class D Technology
0 Gauge Direct Connect Speaker Terminals
0 ga. Gauge Power Wire Inputs
APC - Audio Protection Circuit
SESI - Signal Evaluation Status Indicator

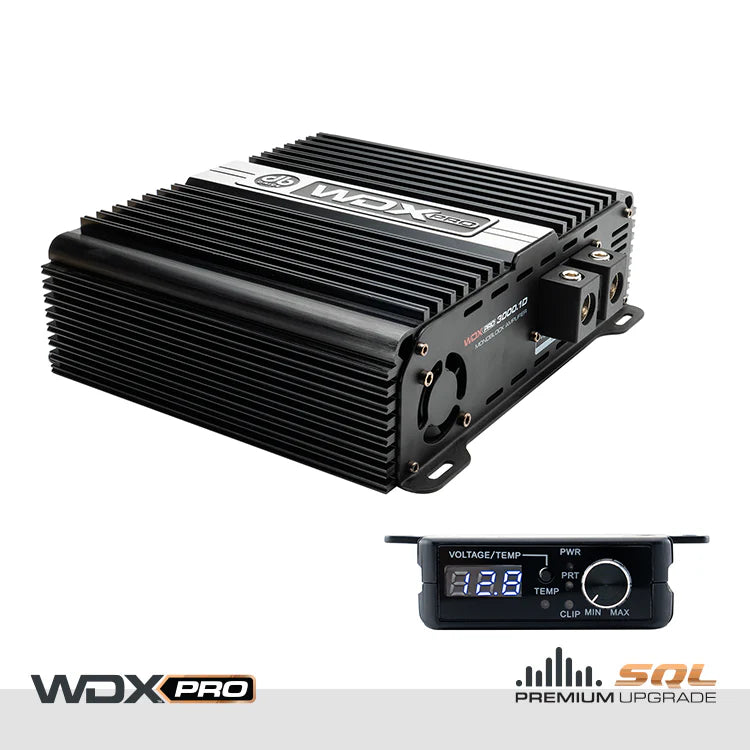

Bass Remote with voltage , temperature and signal status indicator
CHM - Collective Heat Management keeps the amp cool
