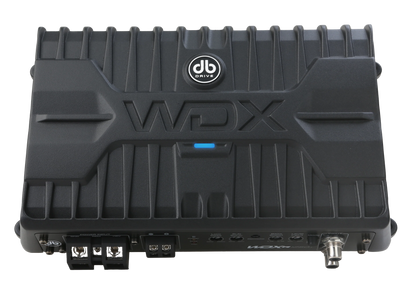

DB Drive WDX-R1250.1 1-Channel Amplifier
DB Drive WDX-R1250.1 1-Channel Amplifier
Couldn't load pickup availability
20 in stock
Give your system dedicated amplifier power
The DB Drive WDX-R1250.1 1-Channel Amplifier gives you a dedicated single channel of amplification. Match its supported frequency range and output to the driver configuration in your build.
Key details
- Model / SKU: WDX-R1250.1
Fitment & system matching
Match RMS output at the final wired impedance to your speakers or subwoofers. Check minimum impedance, mounting dimensions, fuse requirements and power-wire size. Peak/MAX ratings are not continuous RMS output.
Full product details & specifications
Rated Power: 1 x 1250 Watts @ 1Ω
Rated Power: 1 x 625 Watts @ 2Ω
Rated Power: 1 x 300 Watts @ 4Ω
Crossover Slope: @ 24dB
Low Pass Filter: 40Hz - 250Hz
Subsonic Filter: 10 - 50 Hz
Bass Boost @ 45Hz : 0-12dB
Input Sensitivity: .425Mv - 8.5V
Signal to Noise Ratio :>110dB
L: 9.24" W: 5.51" H: 1.97"
CLASS “D” CIRCUITRY
Direct Connect Speaker Terminals
Large Gauge Power Wire Input
PWM Mosfet Regulated Power Supply
APC - Audio Protection Circuit
SESI - Signal Evaluation Status indicator
CHM - Collective Heat Management
1Ω Capability
Remote Bass Control Included
