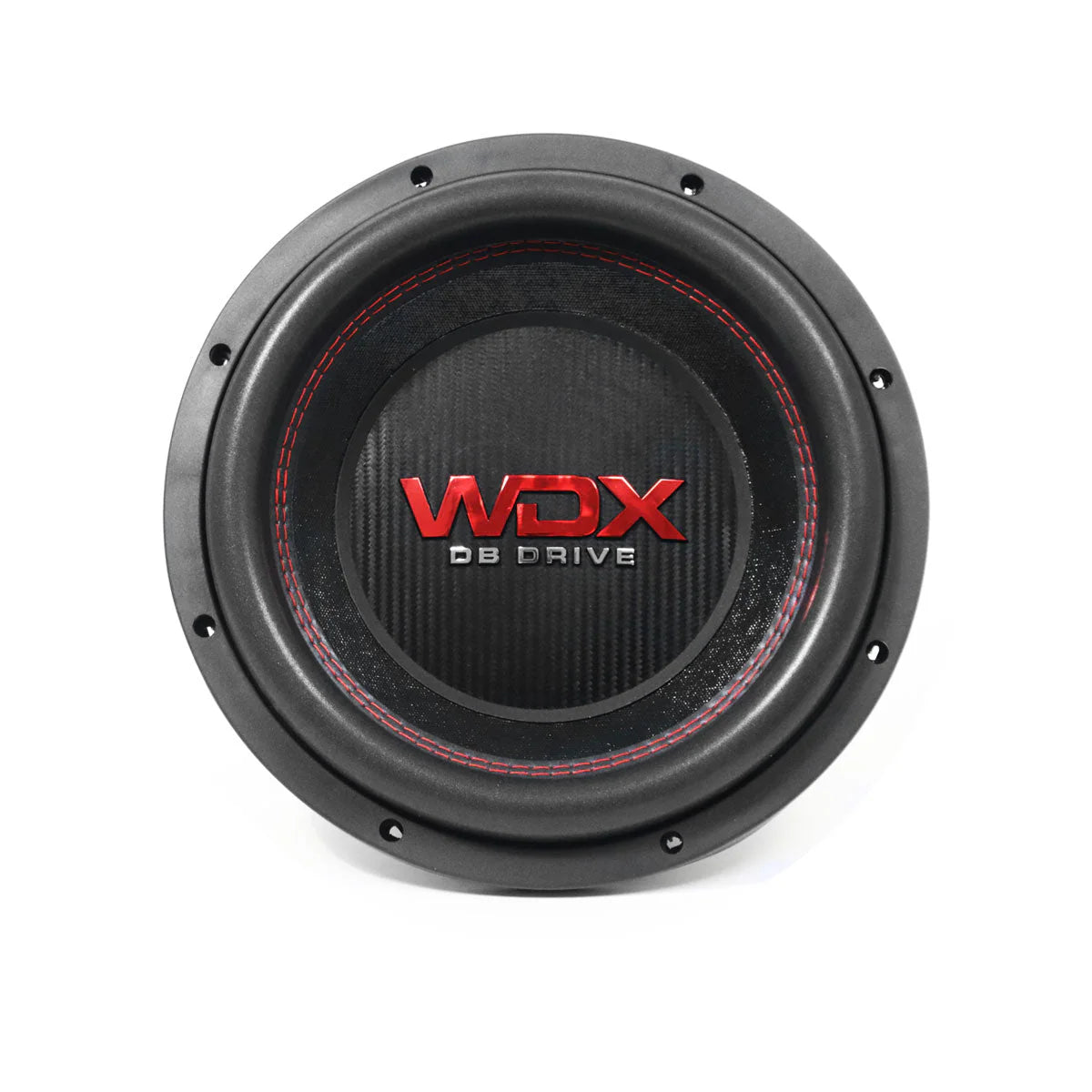

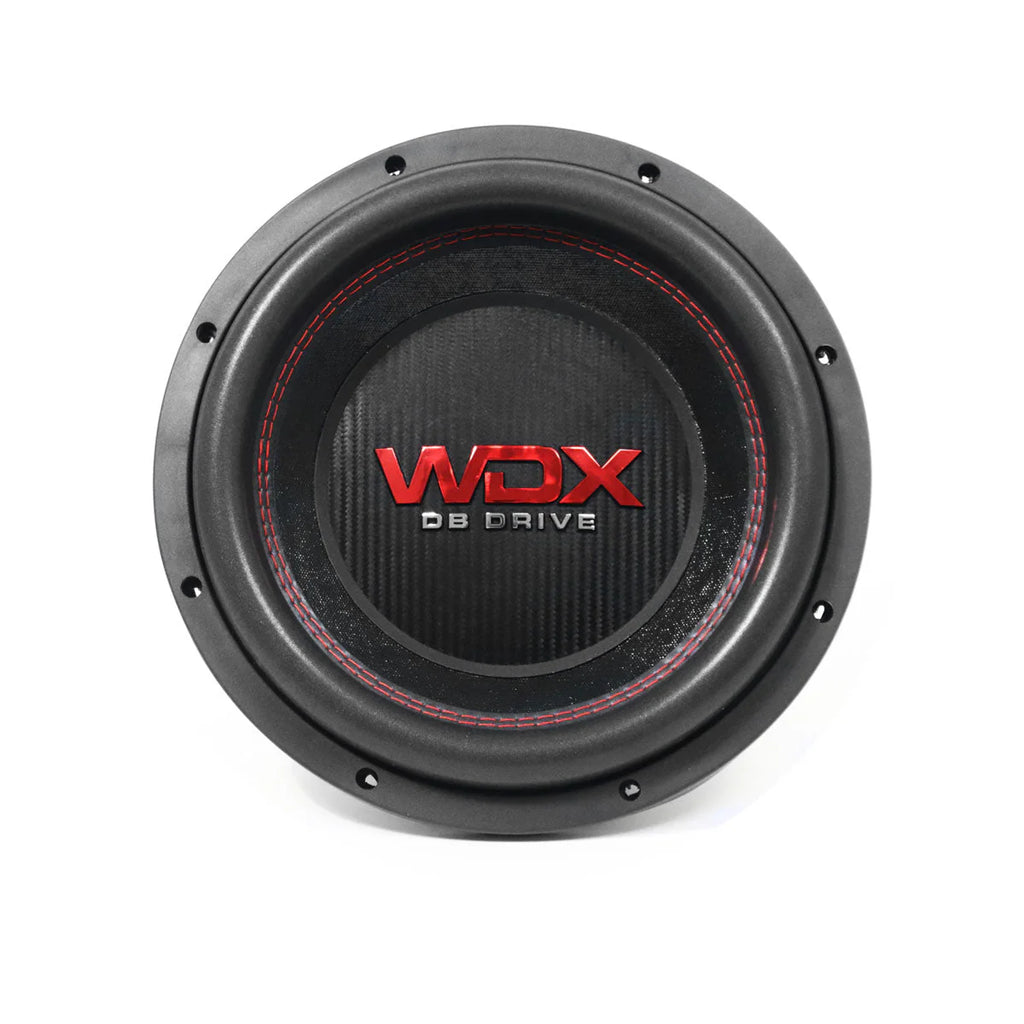

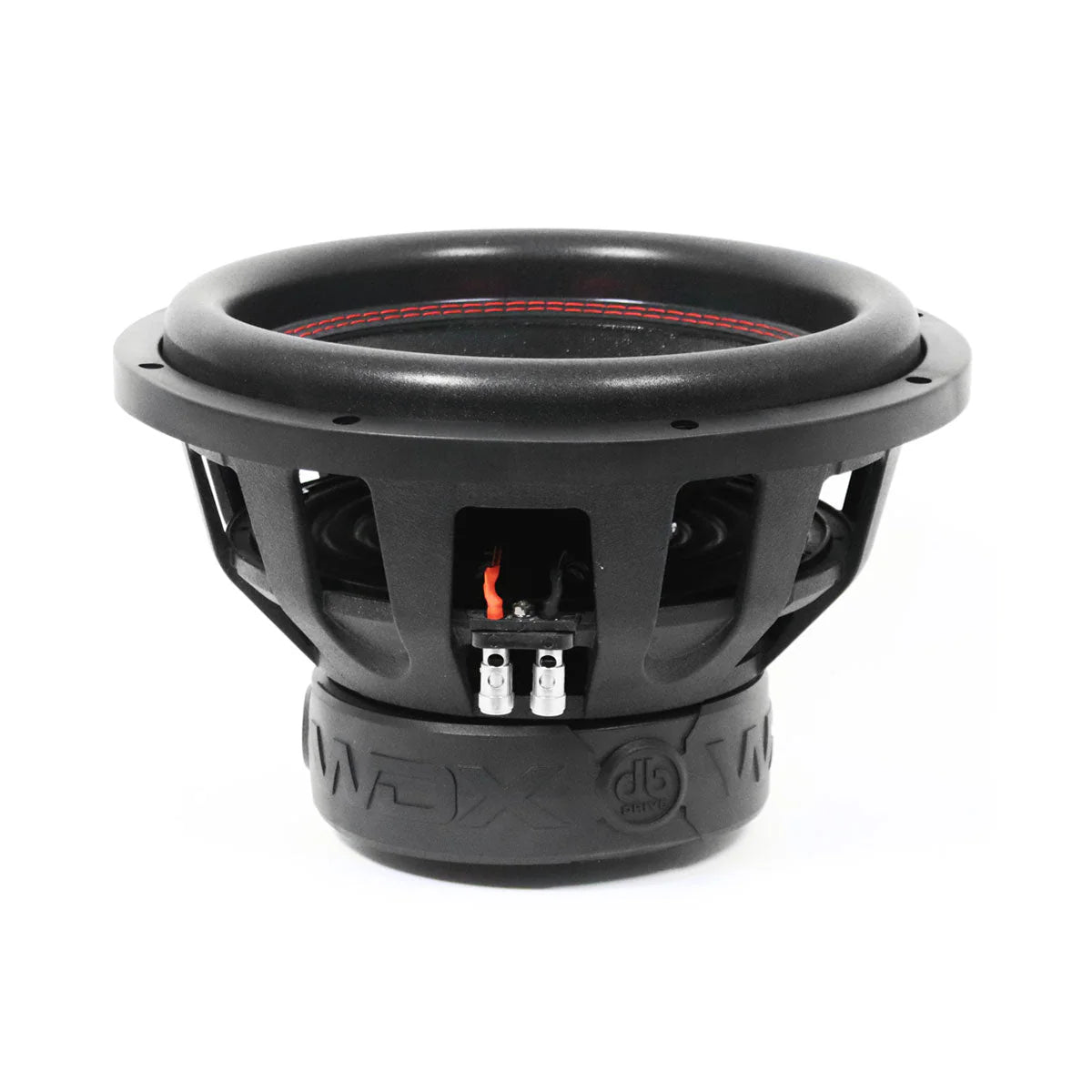

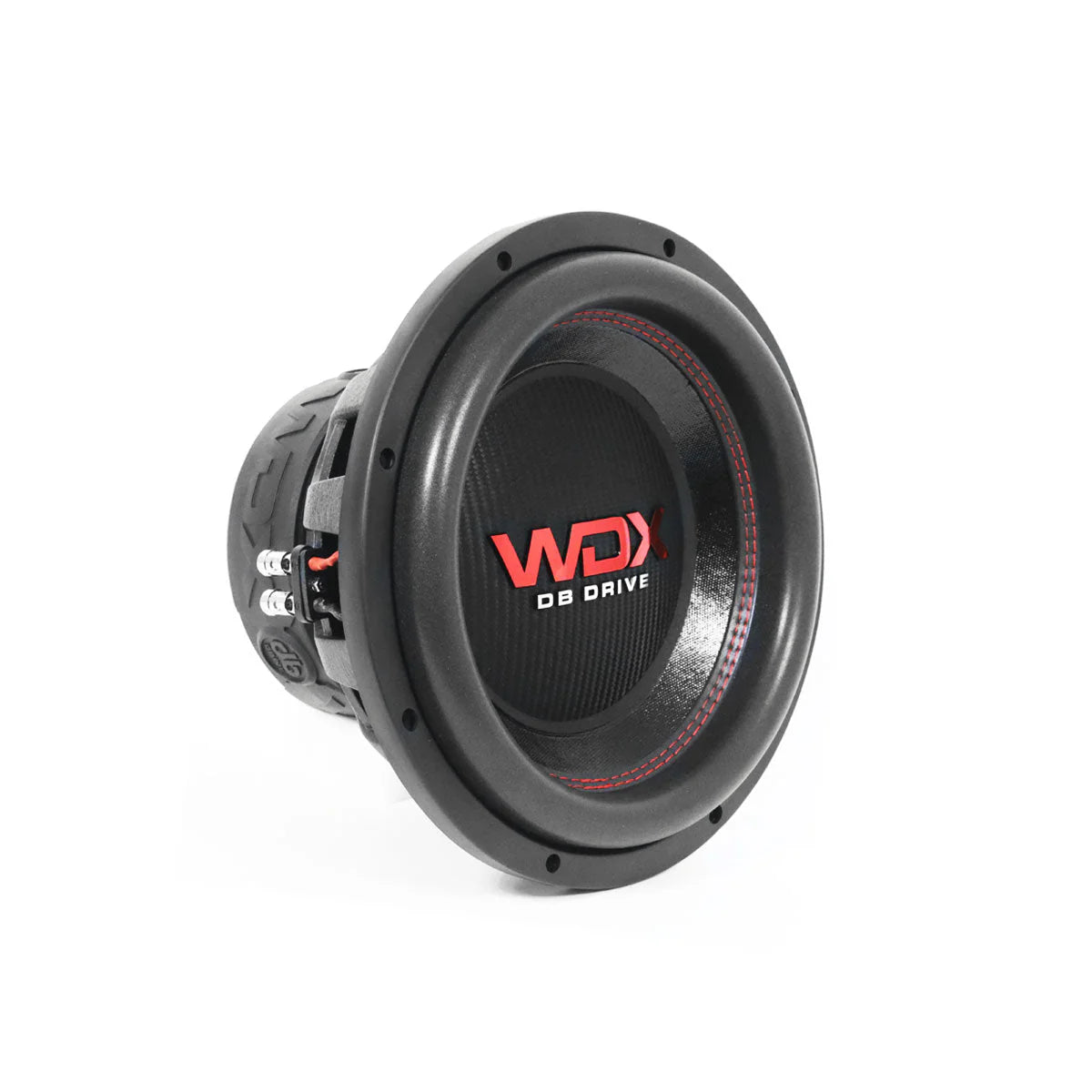

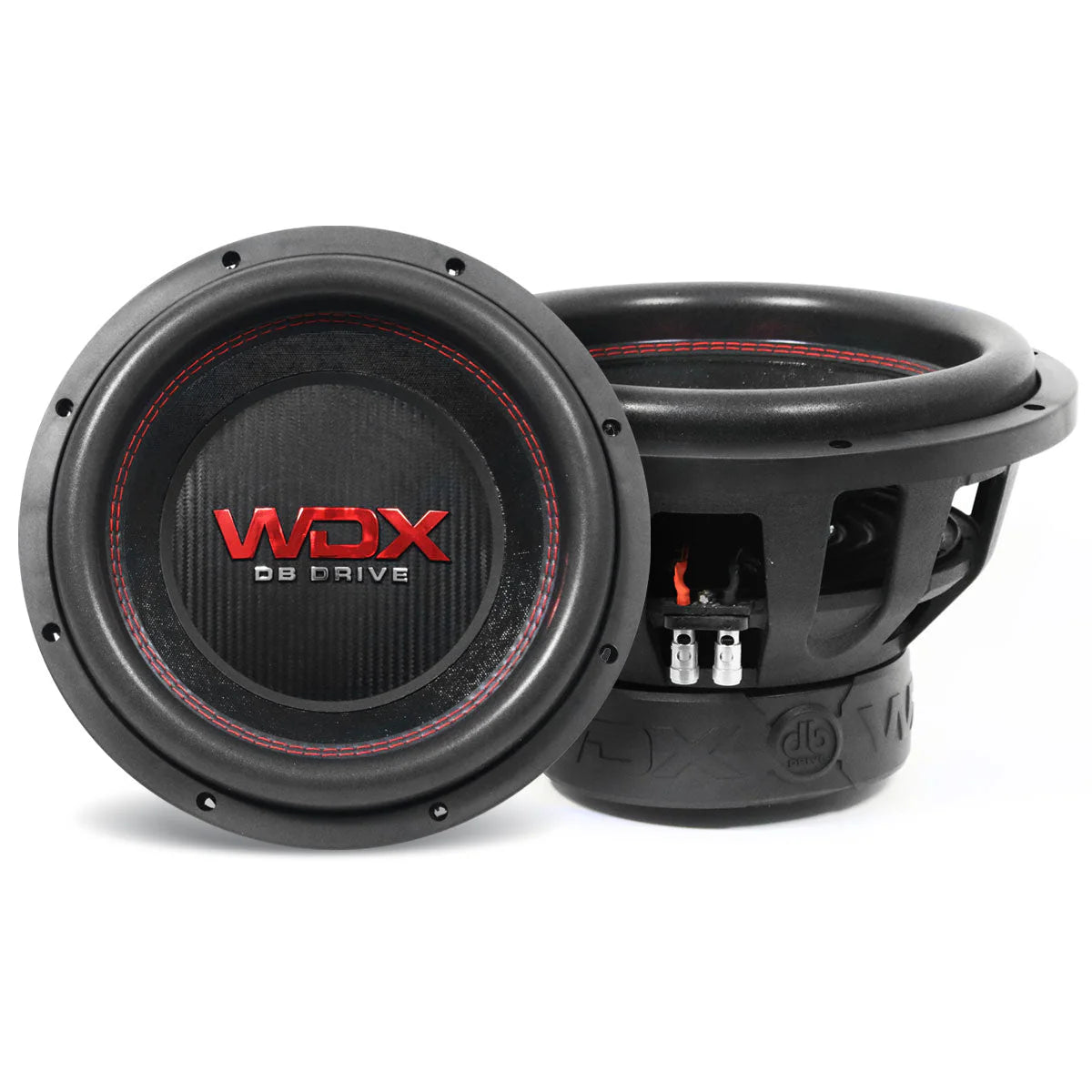

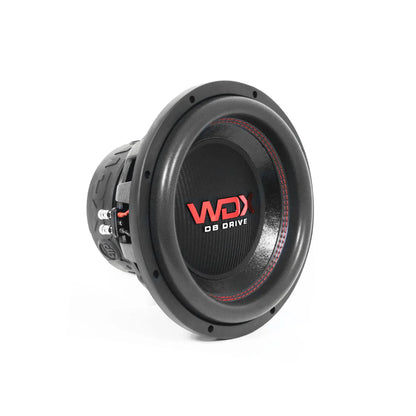

DB Drive WDX12G1.4 12" Dual 4-Ohm Subwoofer

Feel the Power of Sound with DB Drive's WDX12G1.4! Unleash the ultimate audio experience with the DB Drive WDX12G1.4, a 12-inch subwoofer that redefines power and precision. Boasting a high temperature voice coil and a non-pressed paper cone, this subwoofer is engineered for durability and exceptional sound clarity. The double stitched foam surround and dual poly-cotton dampeners ensure that every beat hits with perfect accuracy. Encased in a die-cast aluminum vented basket with a rubber gasket trim ring, this subwoofer not only performs exceptionally but also looks sleek and modern. With large gauge compression terminals and a protective magnet cover, installation is a breeze and longevity is guaranteed. The DB Drive WDX12G1.4 operates at a dual 4Ω impedance, delivering a staggering 2000 watts of max power and 1000 watts of nominal power. Get ready to transform your audio system and feel the power of sound like never before with the DB Drive WDX12G1.4 subwoofer.

• 3" BASV High Temperature Voice coil
• Non-Pressed paper cone
• Double stitched foam surround
• Dual poly-cotton dampeners
• Die-cast aluminum vented basket
• Rubber gasket trim ring
• Large gauge compression terminals
• Protective magnet cover

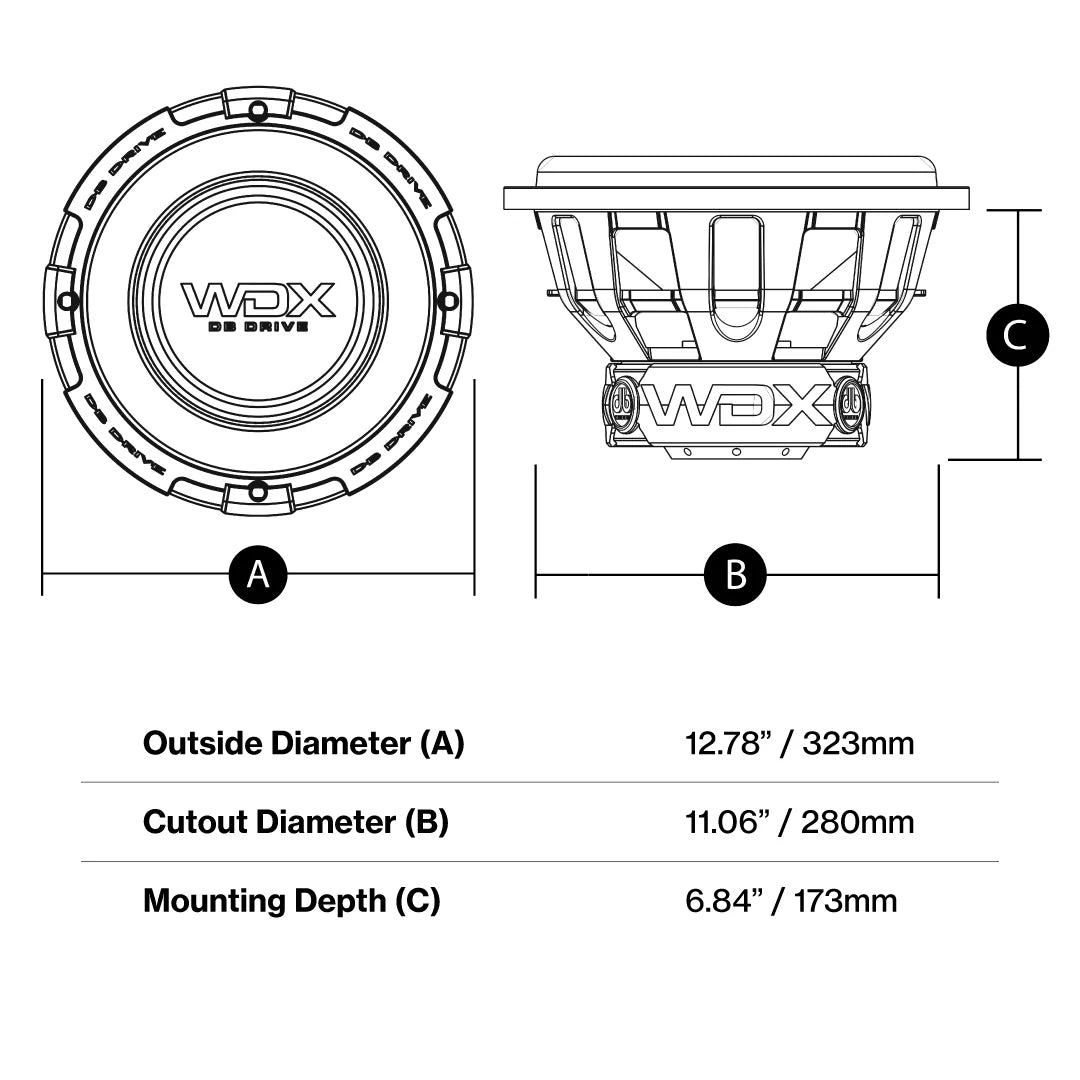

Outside Diameter    12.70″ (323.50mm)
Cutout Diameter     11.10″ (281.18mm)
Mounting Depth     6.85″ (173.80mm)
GENERAL SPECIFICATIONS
Structure    12″ (30.48cm) Woofer
Dynamic Power Handling    2000 Watts
Nominal Power Handling    1000 Watts
Impedance    Dual 4Ω Voice Coil
PARAMETERS
Resonant Frequency (fs)    40.93Hz
D.C. Voice Coil Resistance (Re)    3.2 x 3.2Ω
Mechanical Quality Factor (Qms)    3.885
Electrical Quality Factor (Qes)    0.739
Total Quality Factor (Qts)    0.621
Equivalent Air Volume to Cms (Vas)    18.014 L
Mass of Diaphragm/Coil (Mms)    335.972 g
Force Factor (Bl)    13.679
Sound Pressure Level (SPL)    84.1 dB
