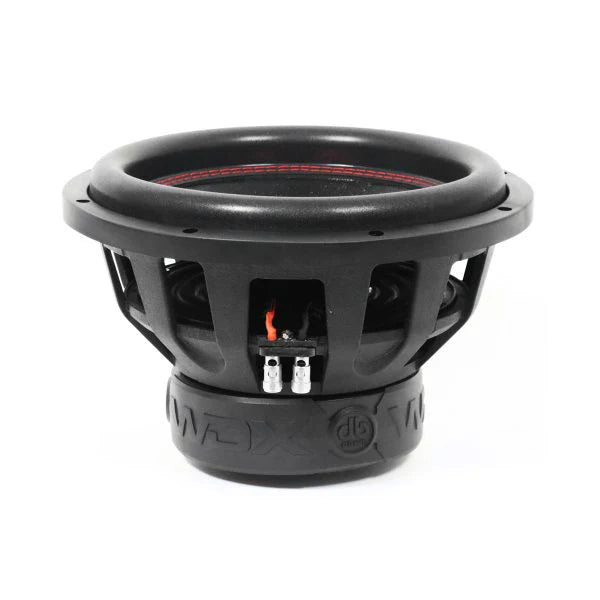

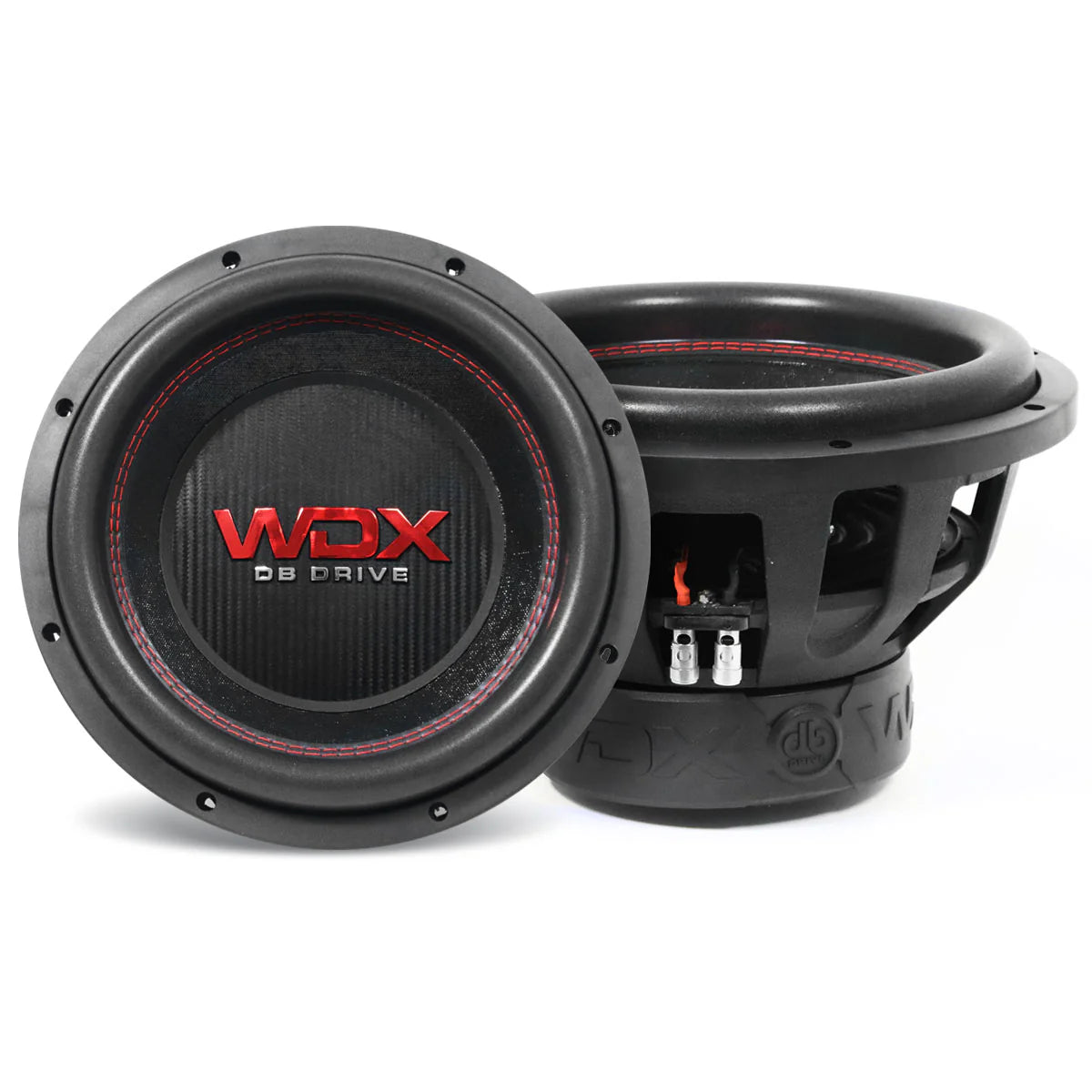

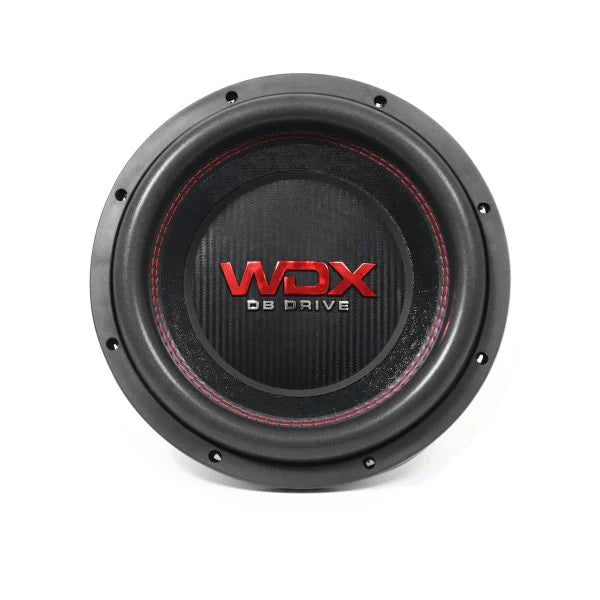

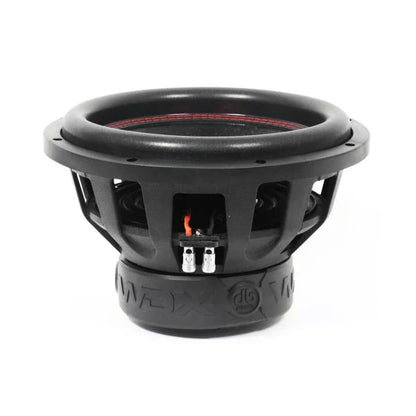

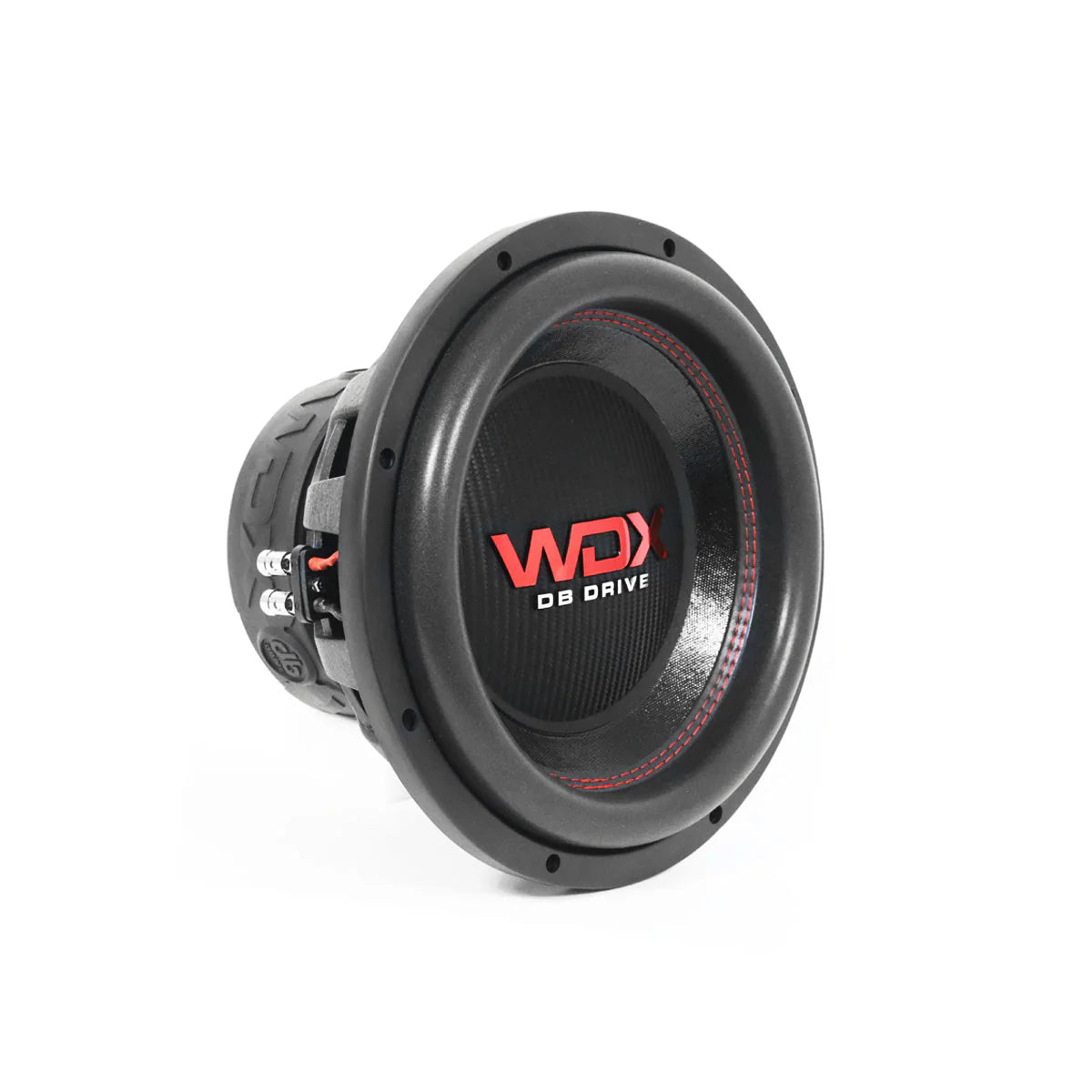

DB Drive WDX15G1.4 15" Dual 4-Ohm Subwoofer

Feel the Thunder with DB Drive's WDX G1 Subwoofers! Unleash the power of music with the WDX15G1.4, DB Drive's pinnacle of subwoofer engineering. Designed with precision and packed with features, this 15-inch woofer boasts a high-temperature voice coil and a non-pressed paper cone, ensuring durability and exceptional sound quality. The double-stitched foam surround and dual poly-cotton dampeners provide unmatched stability, while the die-cast aluminum vented basket and rubber gasket trim ring guarantee flawless performance. With a massive 135 oz. magnet and large gauge compression terminals, this subwoofer delivers an earth-shattering 2000 watts of peak power. Experience the deep, rich bass and elevate your audio experience to new heights with the WDX G1 series. Transform your sound system and feel the music like never before!

• 3" BASV High-Temperature Voice coil
• Non-pressed paper cone
• Double stitched foam surround
• Dual poly-cotton dampeners
• Die-cast aluminum vented basket
• Rubber gasket trim ring
• Large gauge compression terminals
• Protective magnet cover

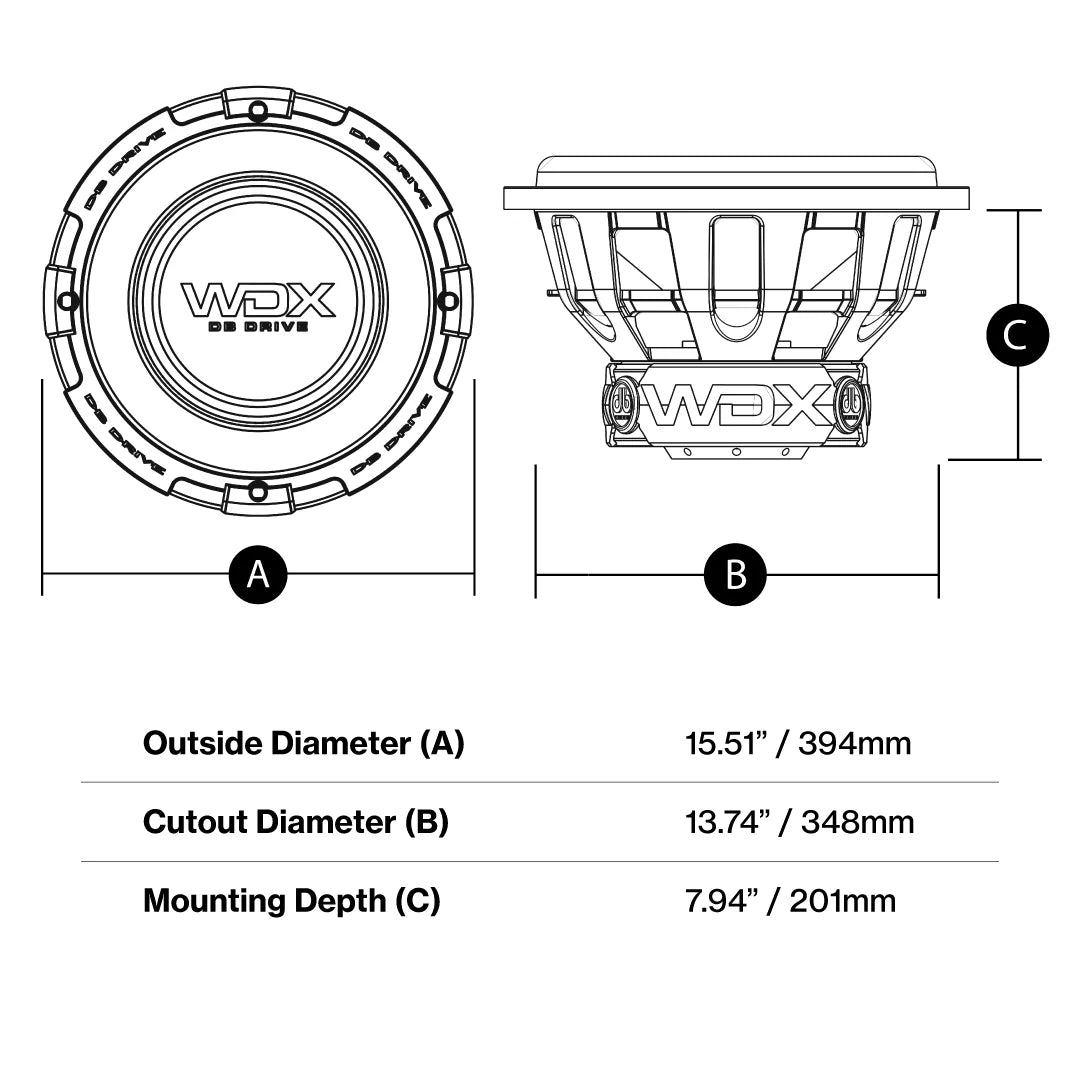

Outside Diameter    15.51″ (394mm)
Cutout Diameter    13.74″ (349mm)
Mounting Depth    7.94″ (201.8mm)
GENERAL SPECIFICATIONS
Structure    15″ (38.1cm) Woofer
Dynamic Power Handling    2000 Watts
Nominal Power Handling    1000 Watts
Impedance    Dual 4Ω Voice Coil
PARAMETERS
Resonant Frequency (fs)    36.85Hz
D.C. Voice Coil Resistance (Re)    3.2? x 3.2Ω
Mechanical Quality Factor (Qms)    3.506
Electrical Quality Factor (Qes)    0.809
Total Quality Factor (Qts)    0.657
Equivalent Air Volume to Cms (Vas)    43.332 L
Mass of Diaphragm/Coil (Mms)    431.039 g
Force Factor (Bl)    14.052
Sound Pressure Level (SPL)    86.2 dB
