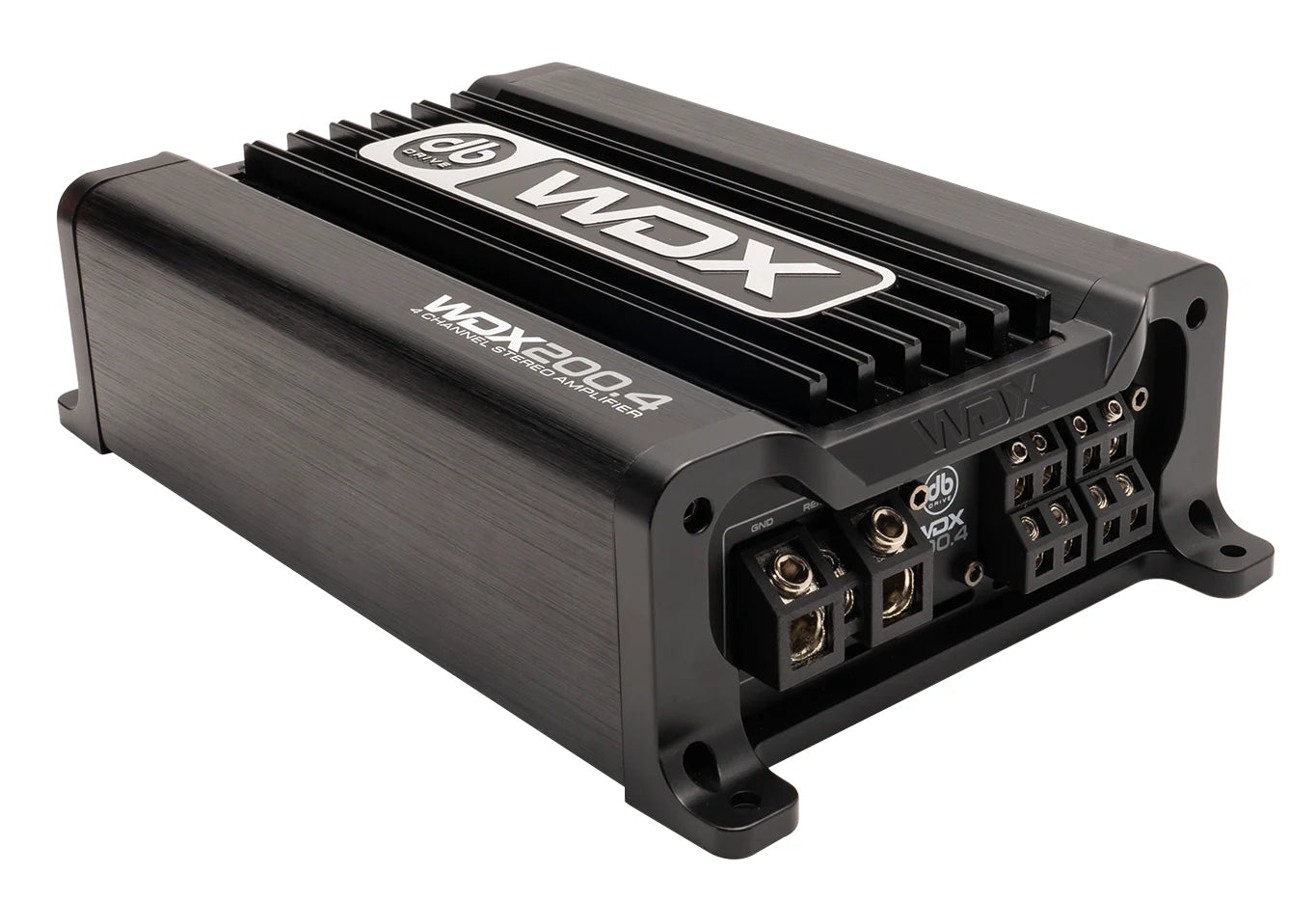

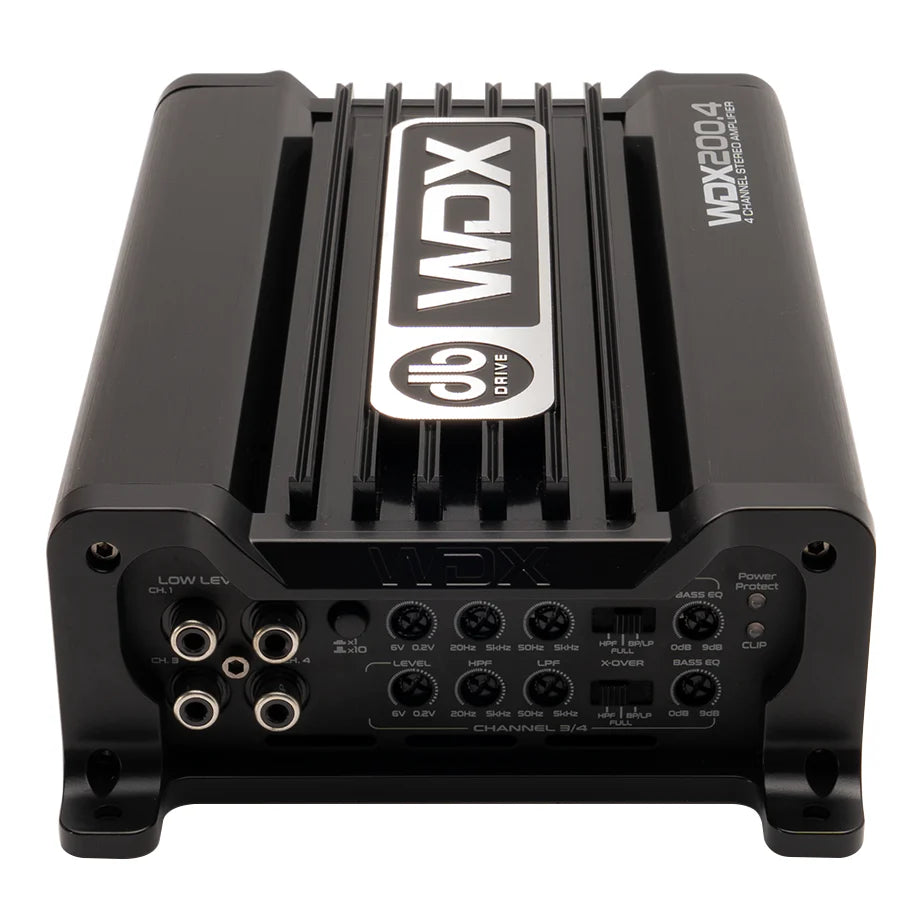

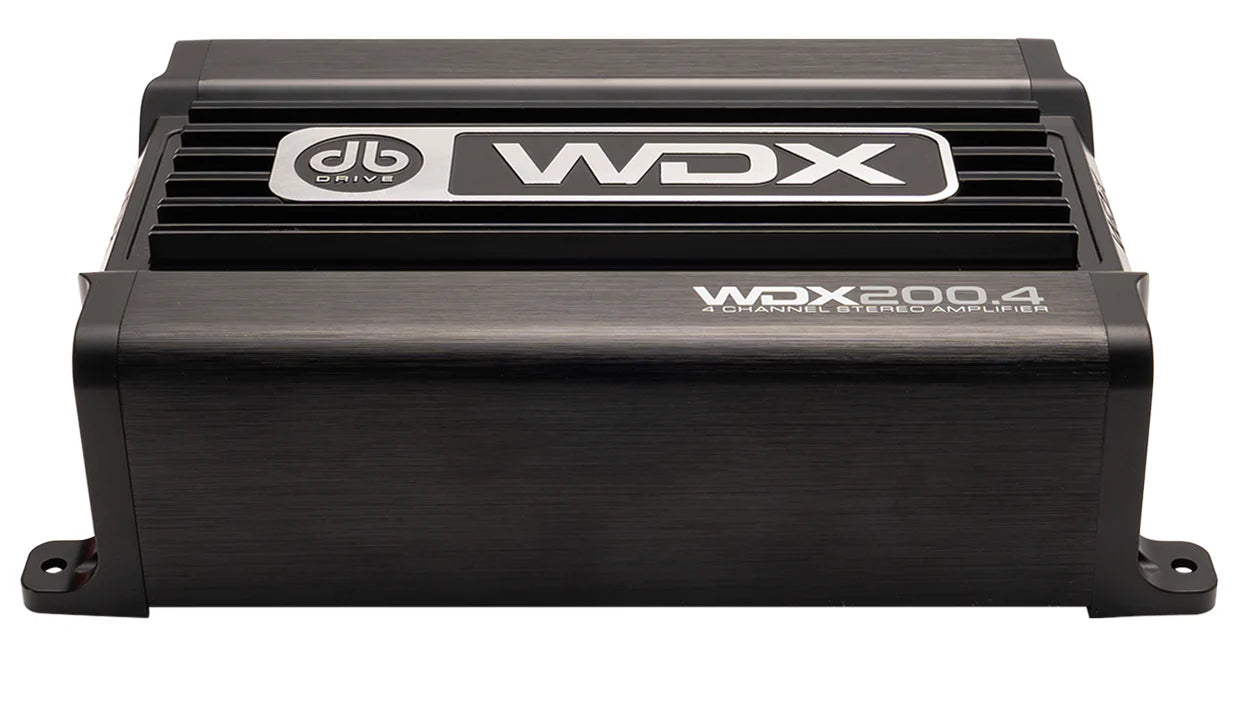

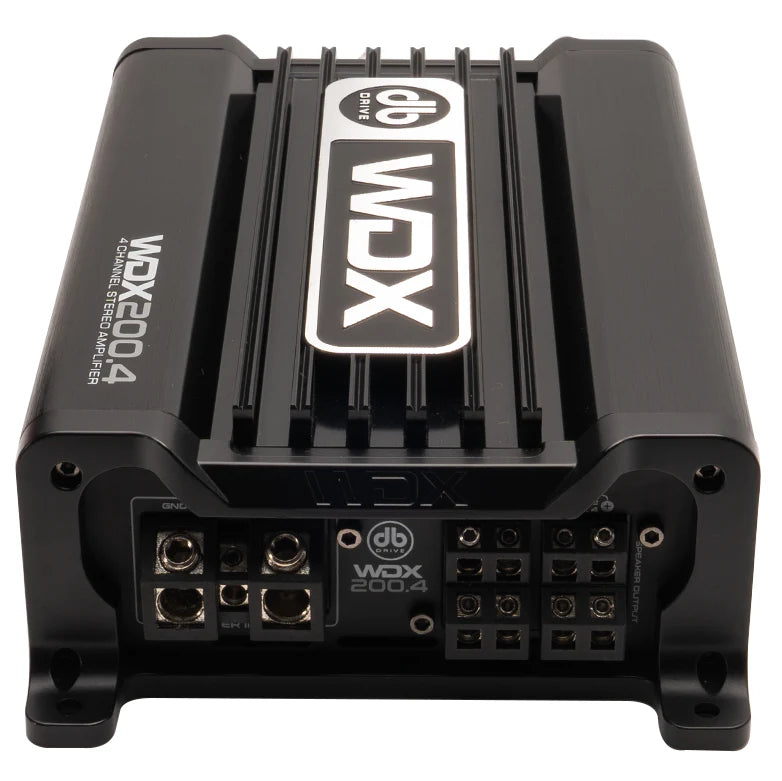

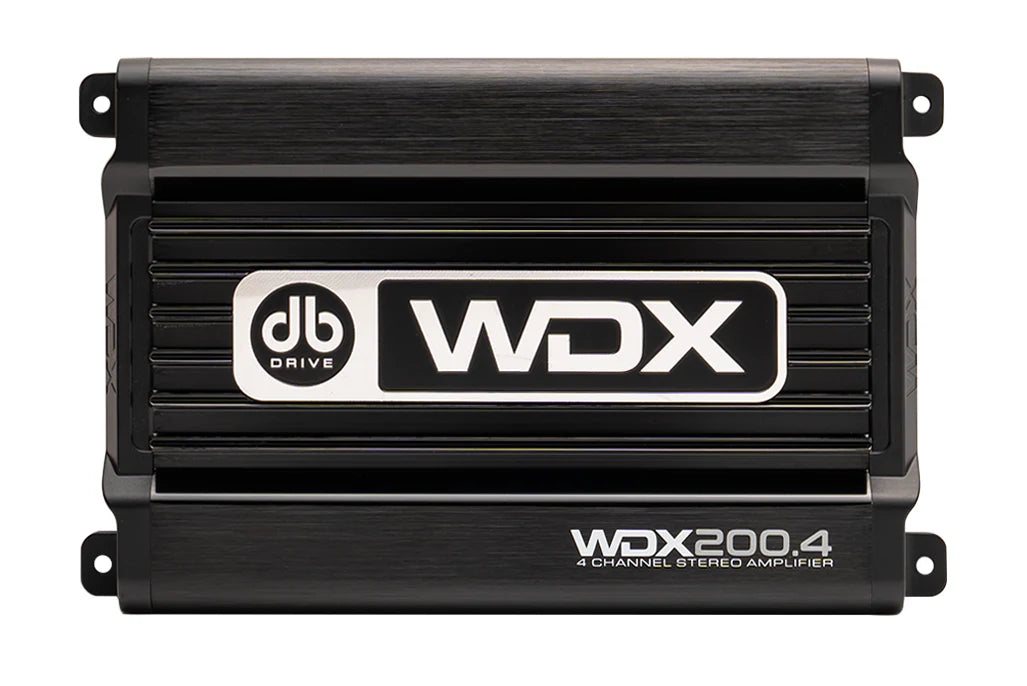

DB Drive WDX200.4 4-Channel Amplifier

Amplify Your Drive with DB Drive's WDX200.4! Unleash the full potential of your audio system with the DB Drive WDX200.4 4 Channel Class D Stereo Amplifier. This powerhouse of an amplifier is designed to deliver crystal clear sound with a rated power of 4 x 300W at 2Ω and 4 x 200W at 4Ω, ensuring every beat is felt. With features like Direct Connect Speaker Terminals, 4 Gauge Power Wire Input, and Collective Heat Management, you'll experience seamless connectivity and optimal performance. The Adaptive Crossover Technology and Signal Evaluation Status Indicator ensure your audio is always at its best, while the Audio Protection Circuit safeguards your investment. Compact yet mighty, the WDX MINI Amplifiers series is perfect for those who demand quality and reliability. Elevate your audio experience and drive with confidence, knowing that DB Drive has your back.

SPECS:

GENERAL SPECIFICATIONS
Rated Power @ 14.4 Volts
4 x 200 Watts @ 4Ω
4 x 300 Watts @ 2Ω
2 x 300 Watts @ 4Ω Bridged
PARAMETERS
Frequency Response    20Hz ~ 22KHz
S/N Ratio    < 105 dB
Low Level Input    6V – 0.2V

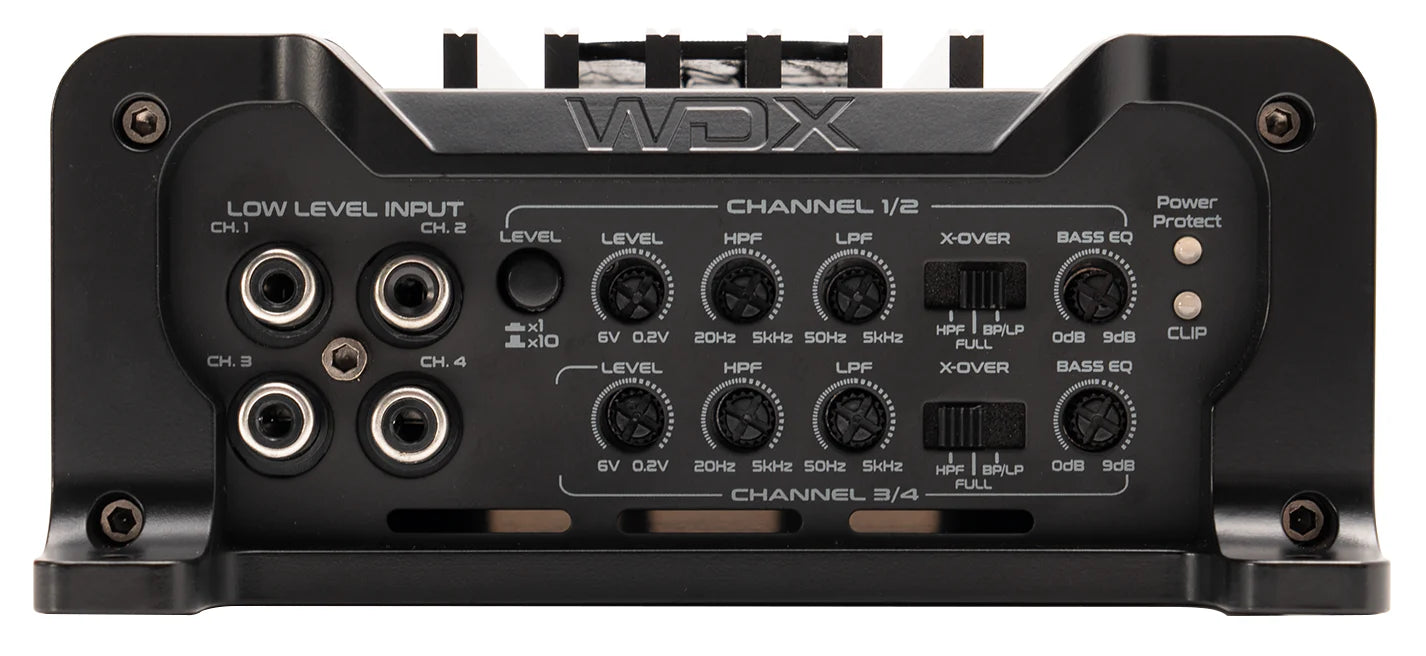

Independent Selectable X-Over F/R    HPF / LPF /BP/FULL
Variable High Pass Filter (12DB Slope)    20Hz ~ 5KHz
Variable Low Pass Filter (12DB Slope)    50Hz ~ 5KHz
Bass Equalizer    0dB – 9dB
Working Voltage    12-15 Volts
L: 9" W: 5.5" H: 2.38"

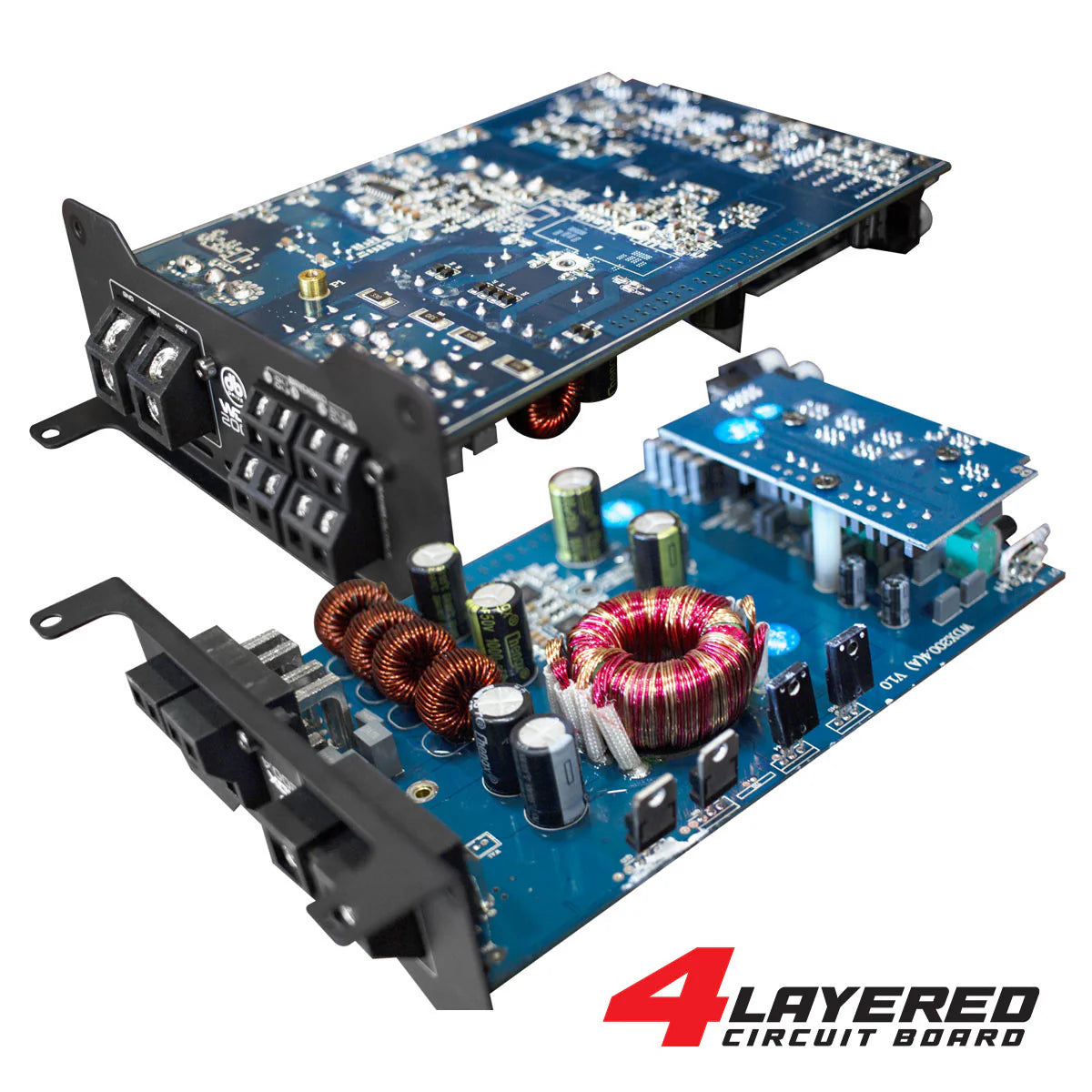

CLASS “D” CIRCUITRY

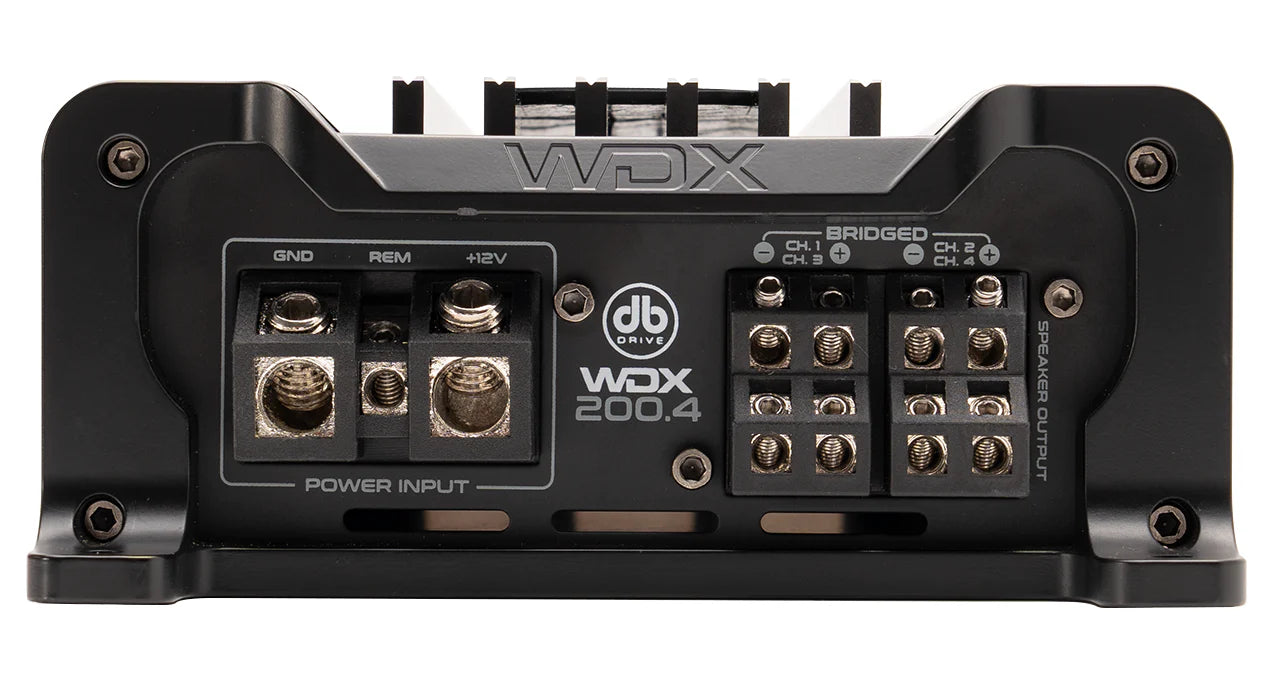

Direct Connect Speaker Terminals
4 Gauge Power Wire Input
CHM- Collective Heat Management
ACT – Adaptive Crossover Technology
SESI – Signal Evaluation Status Indicator
APC – Audio Protection Circuit
