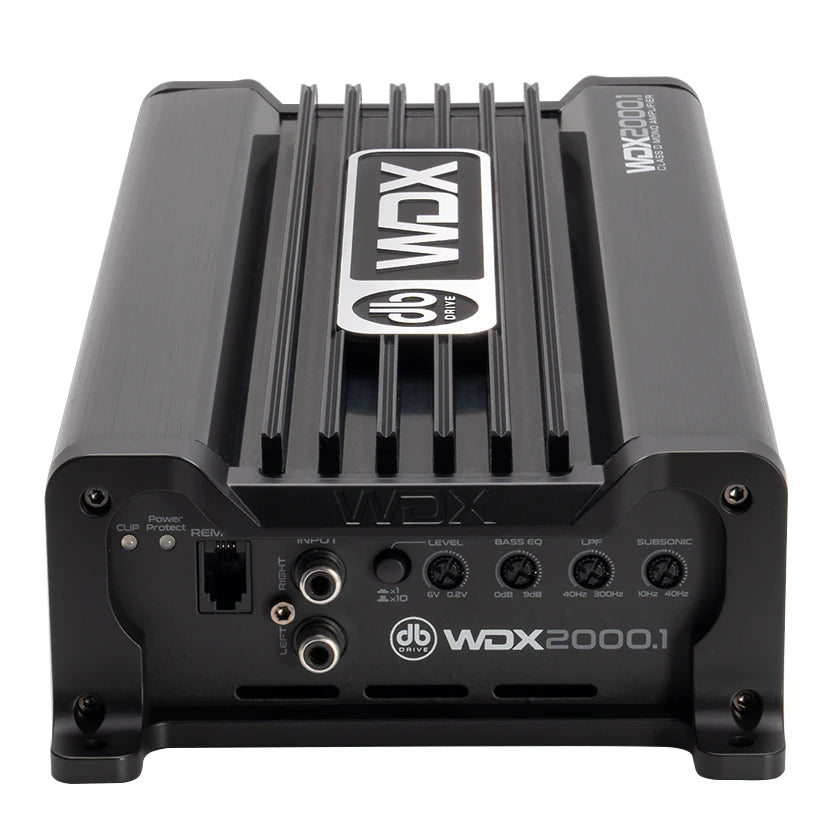

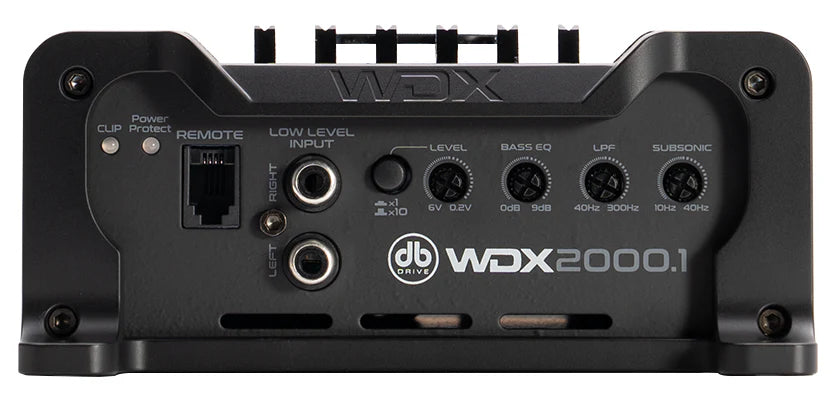

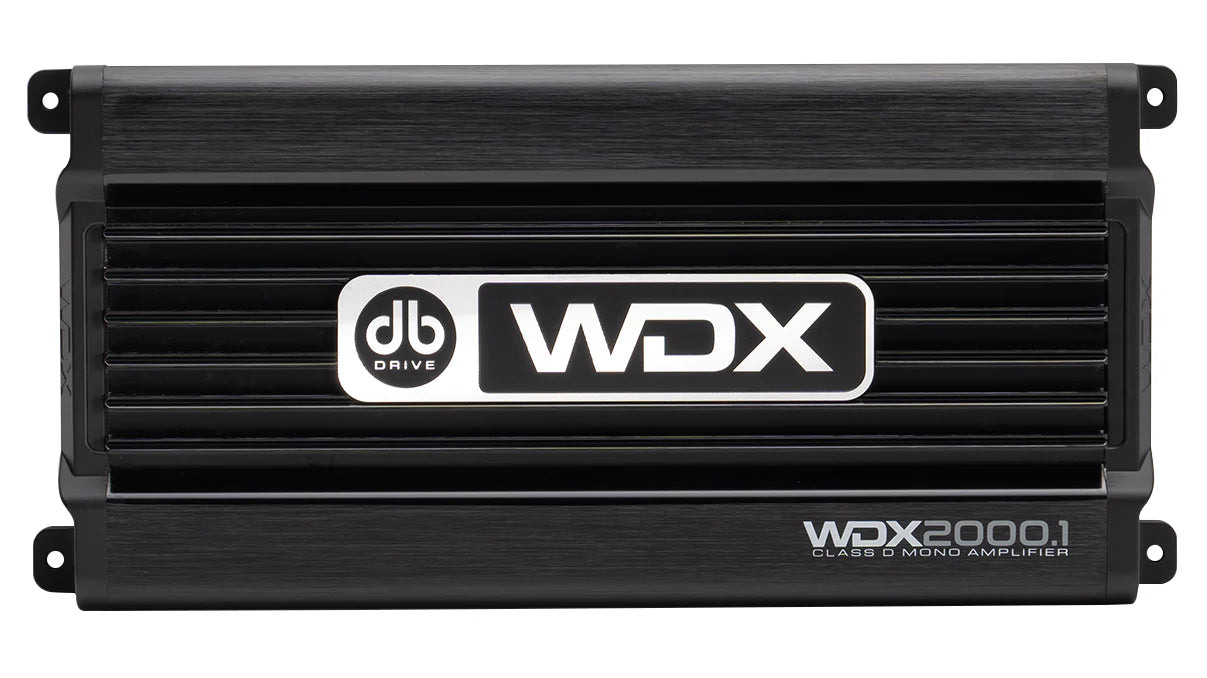

GENERAL SPECIFICATIONS Rated Power @ 14.4 Volts 1 x 2000 Watts @ 1Ω 1 x 1000 Watts @ 2Ω 1 x 500 Watts @ 4Ω PARAMETERS Frequency Response 20Hz ~ 300Hz S/N Ratio < 95 dB Low Level Input 6V – 0.2V Variable High Pass Filter (12DB Slope) 40Hz ~ 300Hz Variable Low Pass Filter (12DB Slope) 10Hz ~ 40Hz Bass Equalizer 0dB – 9dB Working Voltage 12-15 Volts L: 12.13" W: 5.5" H: 2.38"

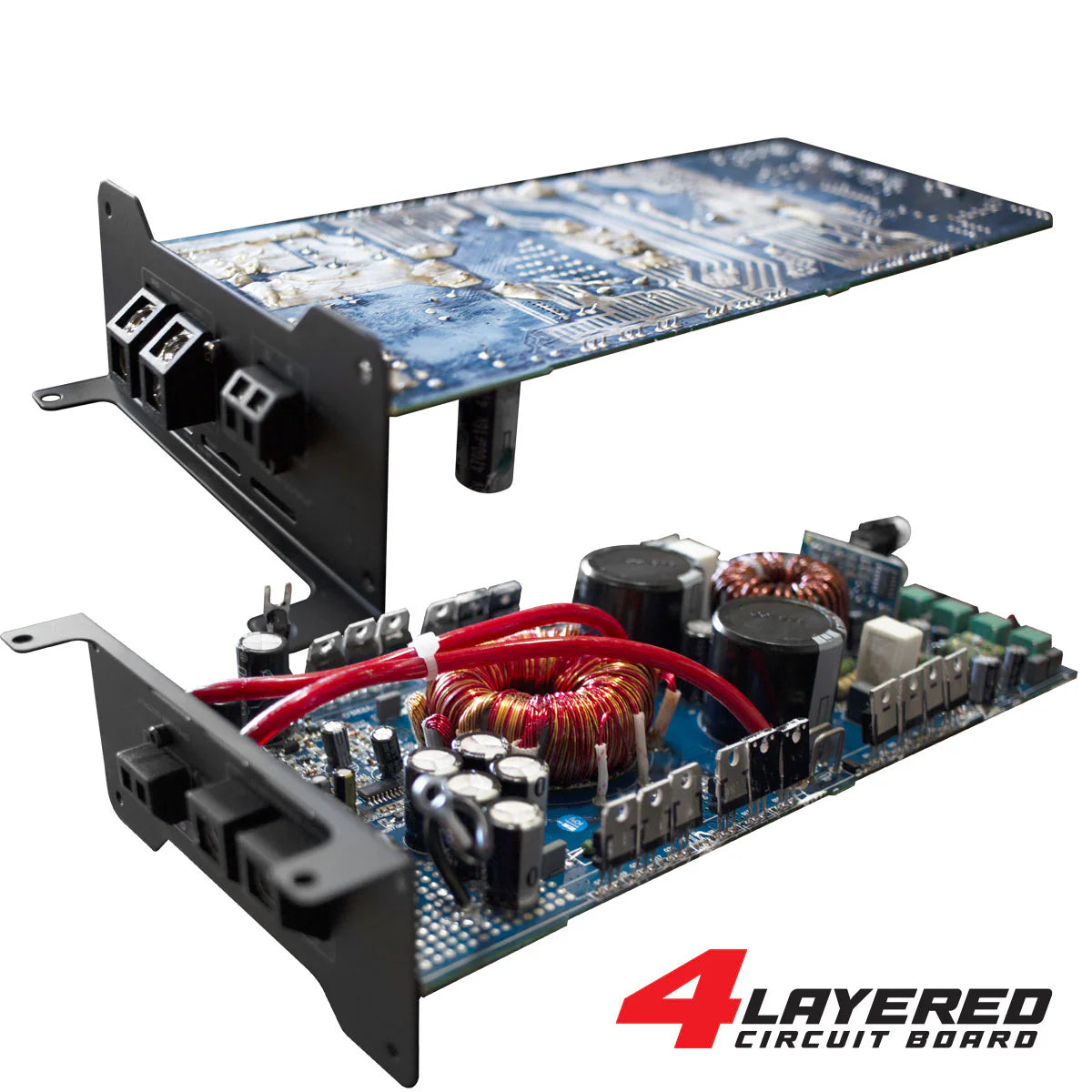

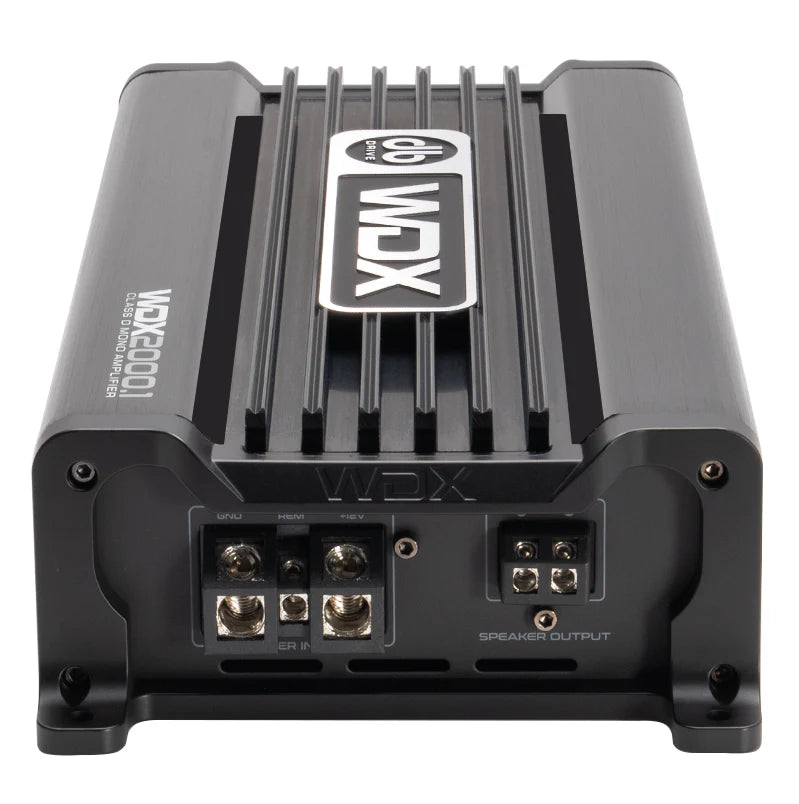

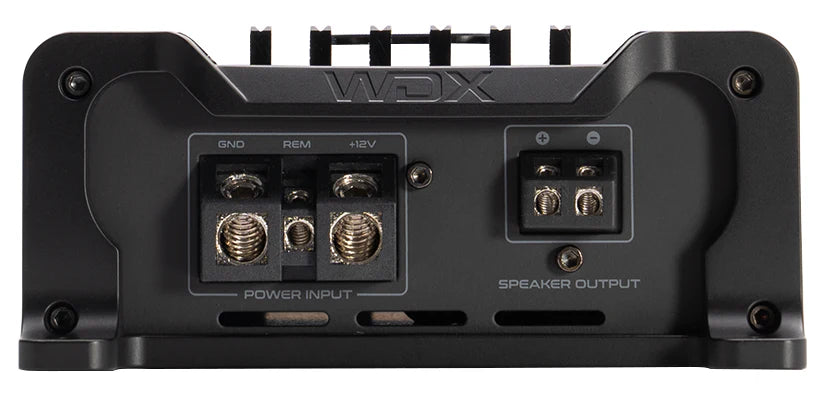

CLASS “D” CIRCUITRY Direct Connect Speaker Terminals 4 Gauge Power Wire Input CHM- Collective Heat Management ACT – Adaptive Crossover Technology SESI – Signal Evaluation Status Indicator APC – Audio Protection Circuit Included Remote Level Control
