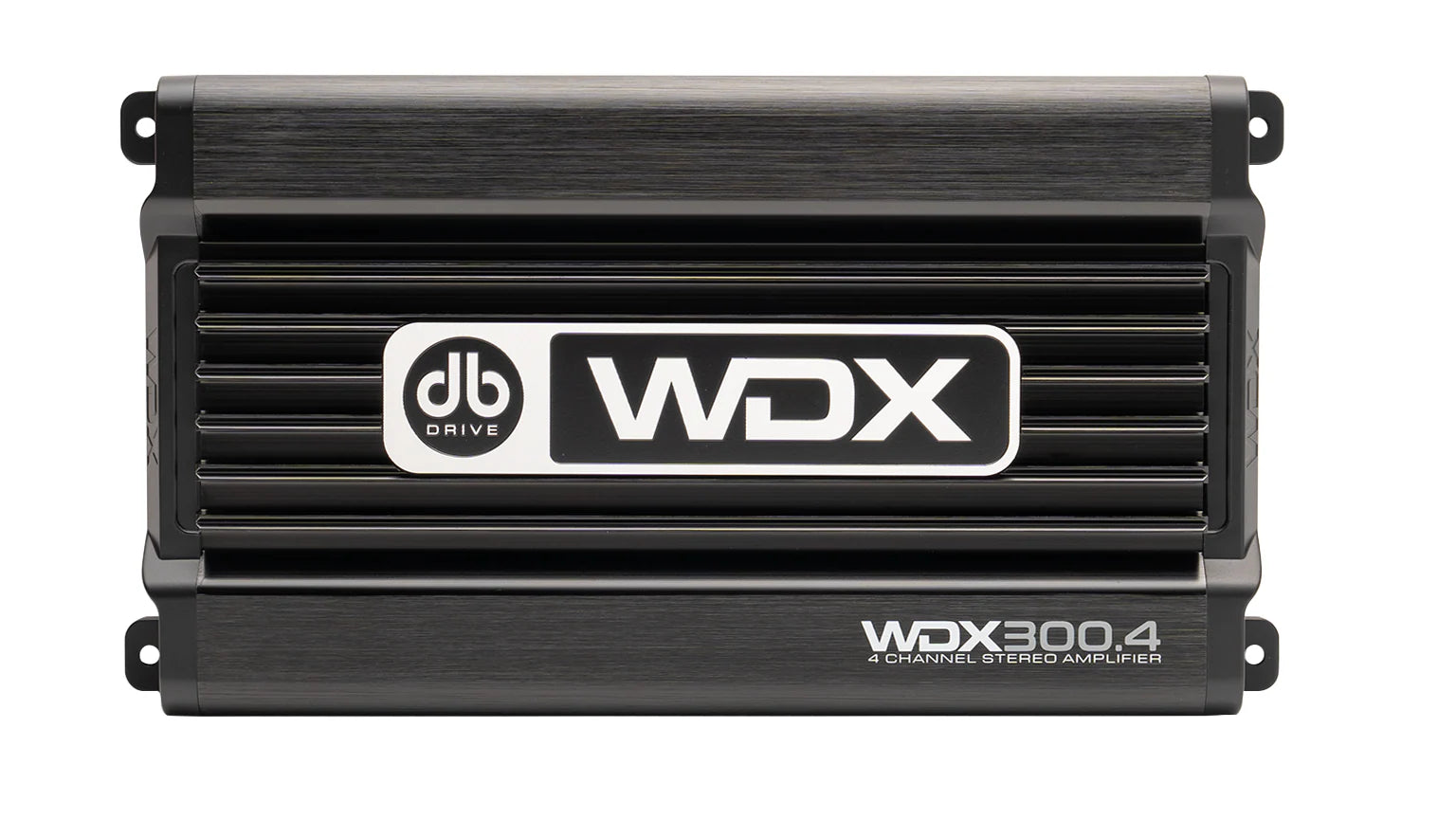

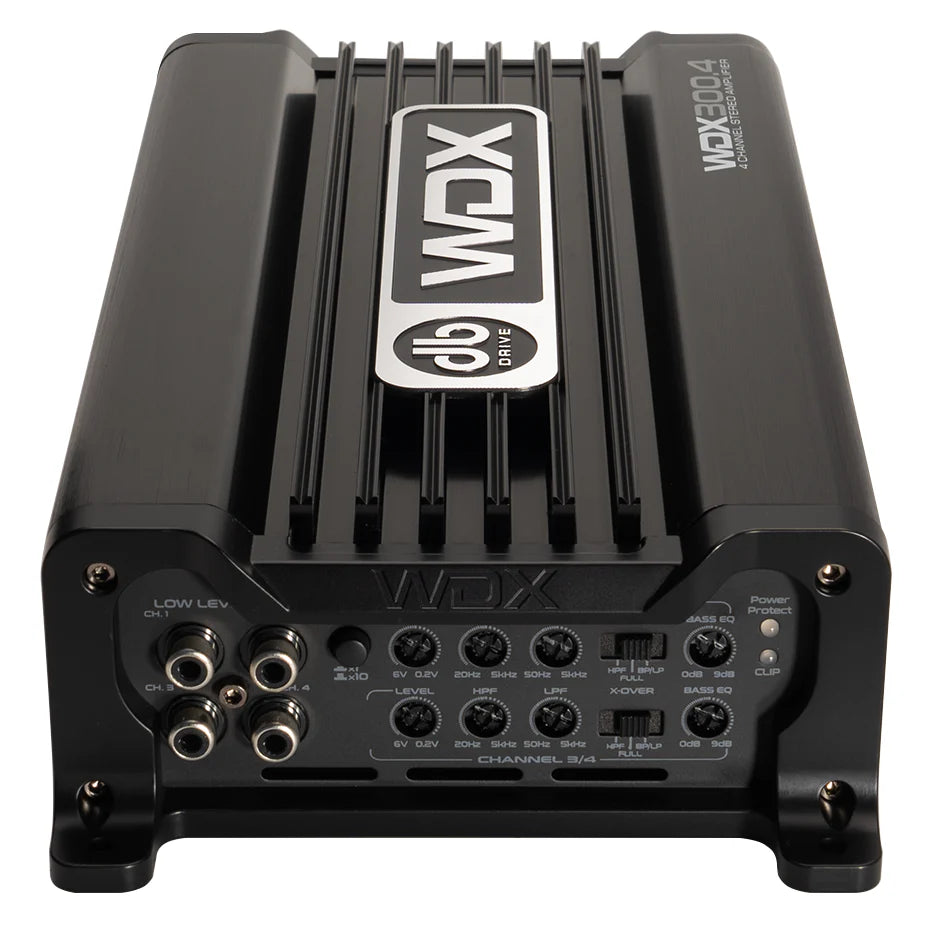

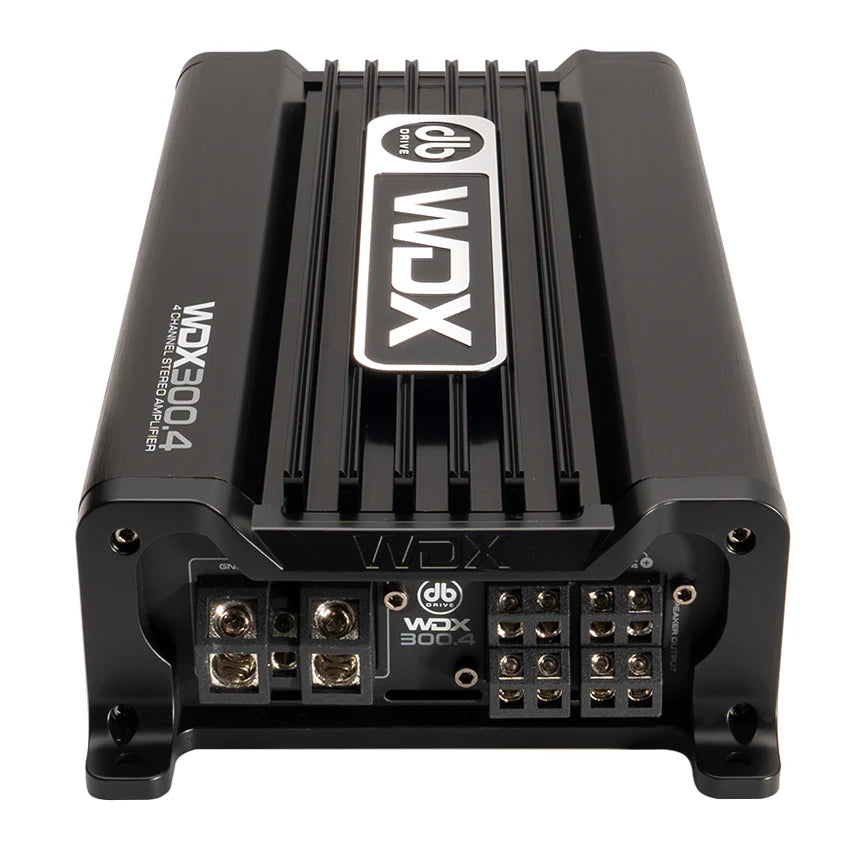

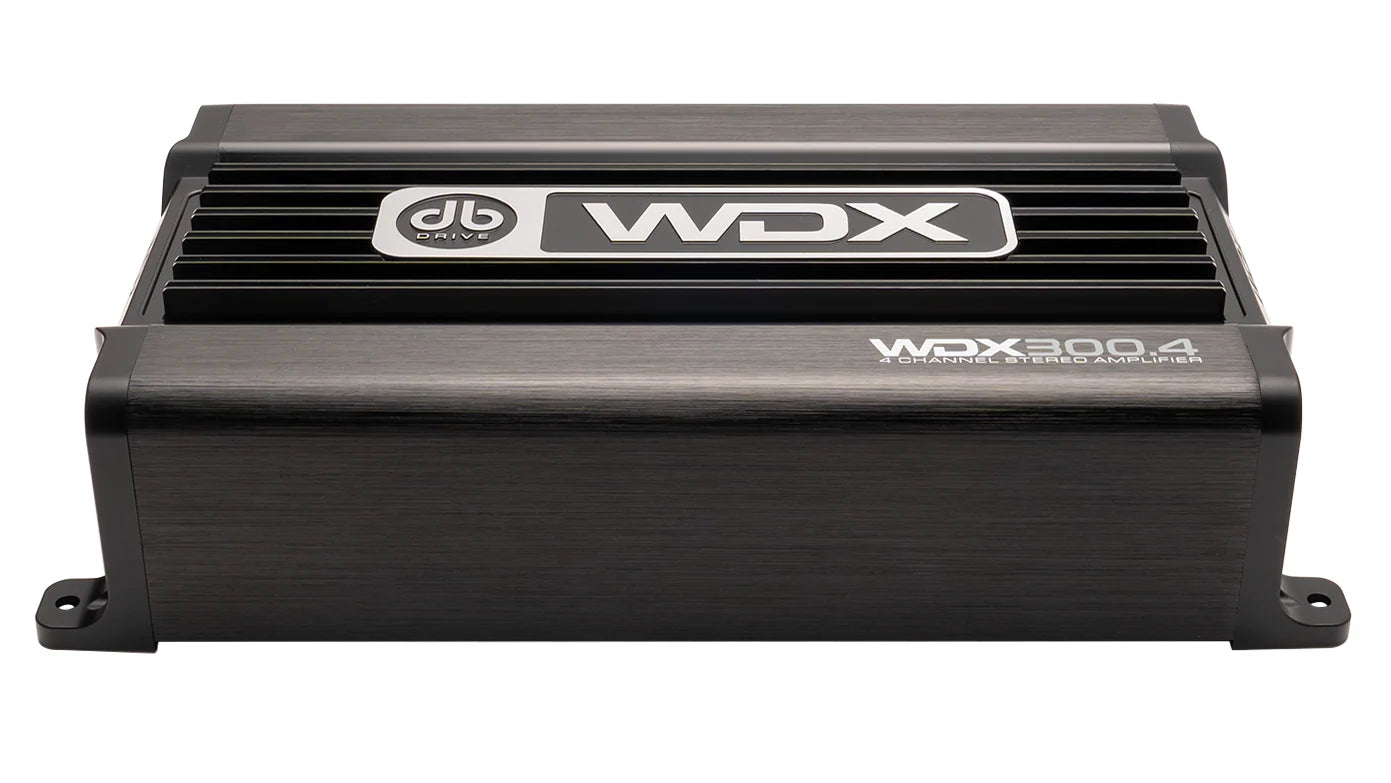

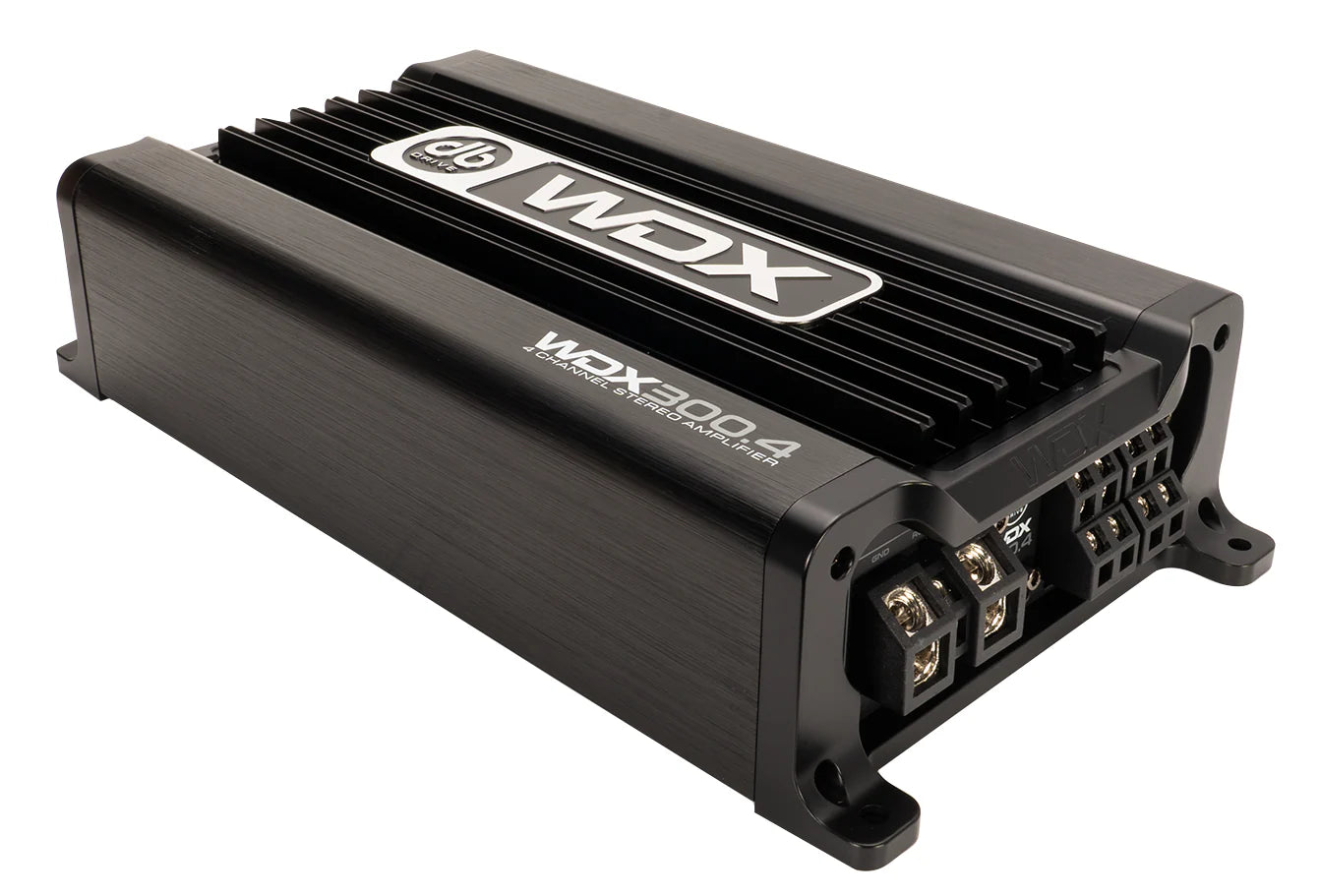

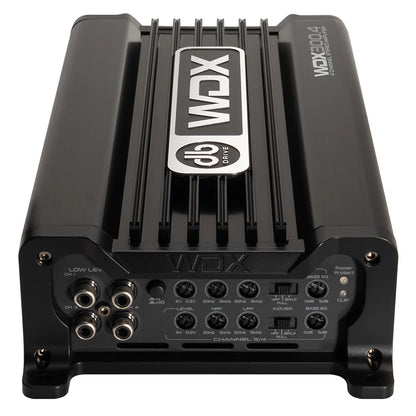

DB Drive WDX300.4 4-Channel Amplifier
DB Drive WDX300.4 4-Channel Amplifier
Couldn't load pickup availability
Out of stock
Give your system dedicated amplifier power
The DB Drive WDX300.4 4-Channel Amplifier gives you four channels of amplification for a multi-speaker system. Match its output at your chosen impedance to the speakers you plan to run.
Key details
- Model / SKU: WDX300.4
- Frequency Response 20Hz ~ 22KHz
Fitment & system matching
Match RMS output at the final wired impedance to your speakers or subwoofers. Check minimum impedance, mounting dimensions, fuse requirements and power-wire size. Peak/MAX ratings are not continuous RMS output.
Full product details & specifications
SPECS:
GENERAL SPECIFICATIONS
Rated Power @ 14.4 Volts
4 x 300 Watts @ 4Ω
4 x 400 Watts @ 2Ω
2 x 400 Watts @ 4Ω Bridged
PARAMETERS
Frequency Response 20Hz ~ 22KHz
S/N Ratio < 105 dB

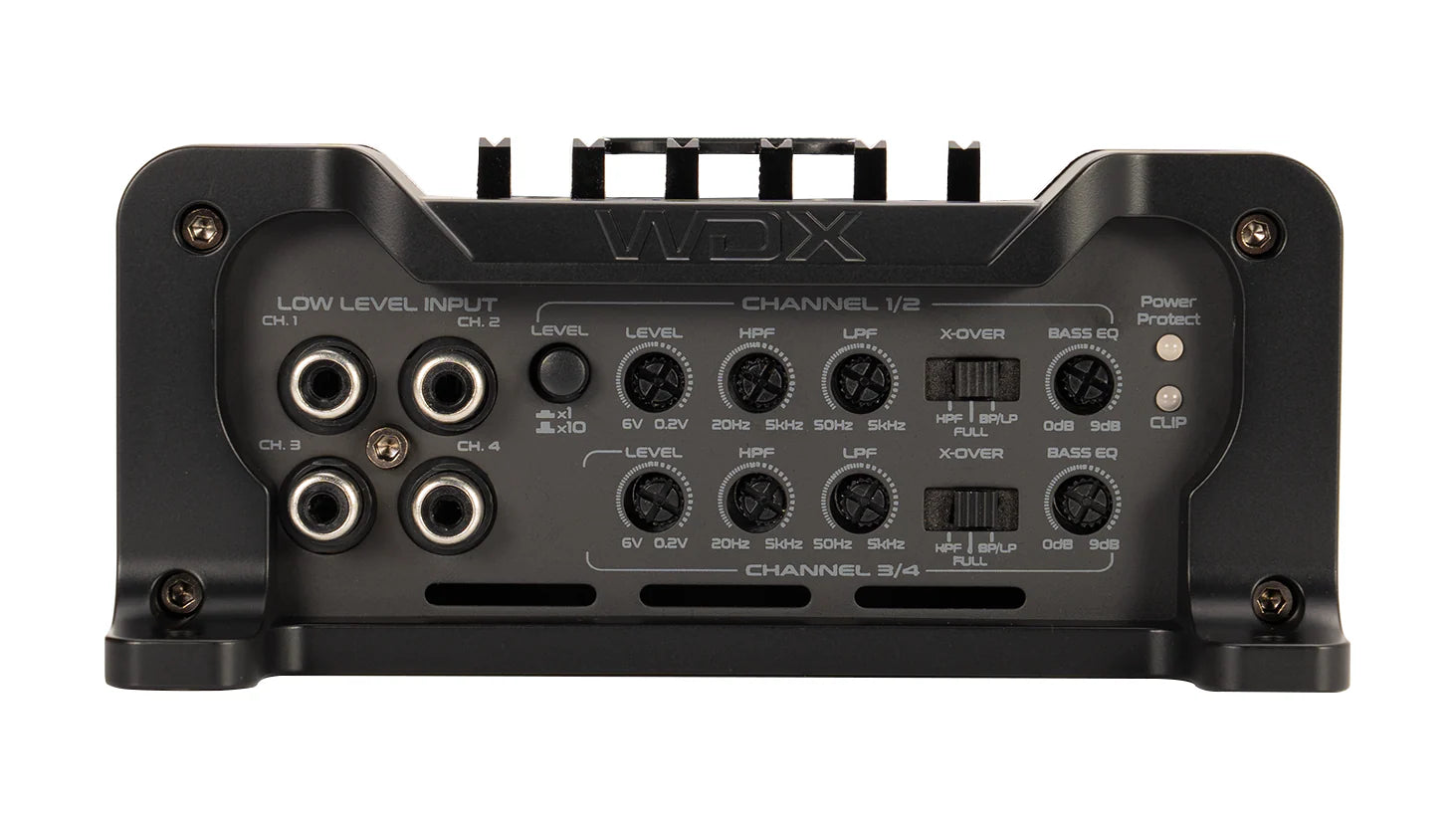

Low Level Input 6V – 0.2V
Independent Selectable X-Over F/R HPF / LPF /BP/FULL
Variable High Pass Filter (12DB Slope) 20Hz ~ 5KHz
Variable Low Pass Filter (12DB Slope) 50Hz ~ 5KHz
Bass Equalizer 0dB – 9dB
Working Voltage 12-15 Volts
L: 10" W: 5.5" H: 2.38"

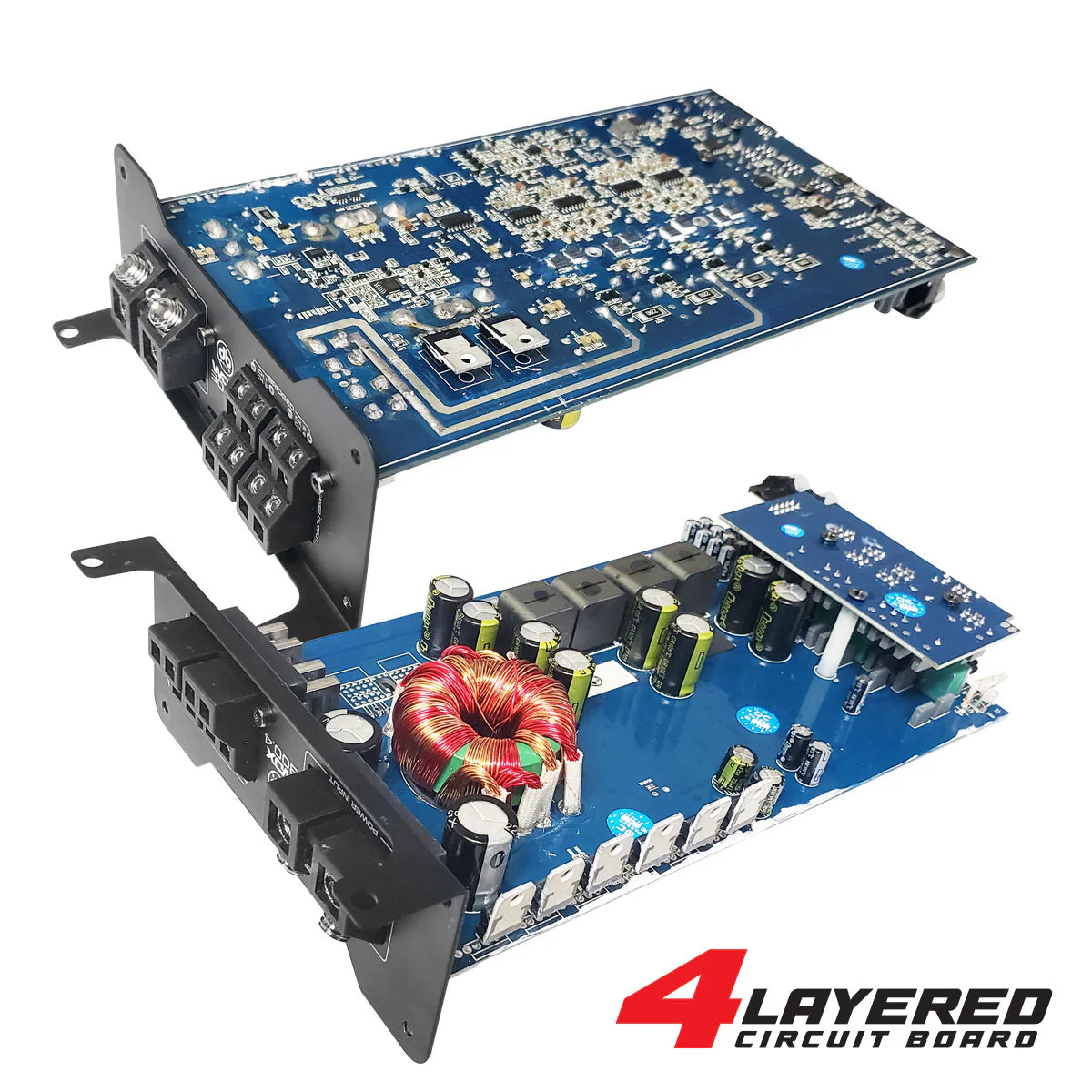

CLASS “D” CIRCUITRY

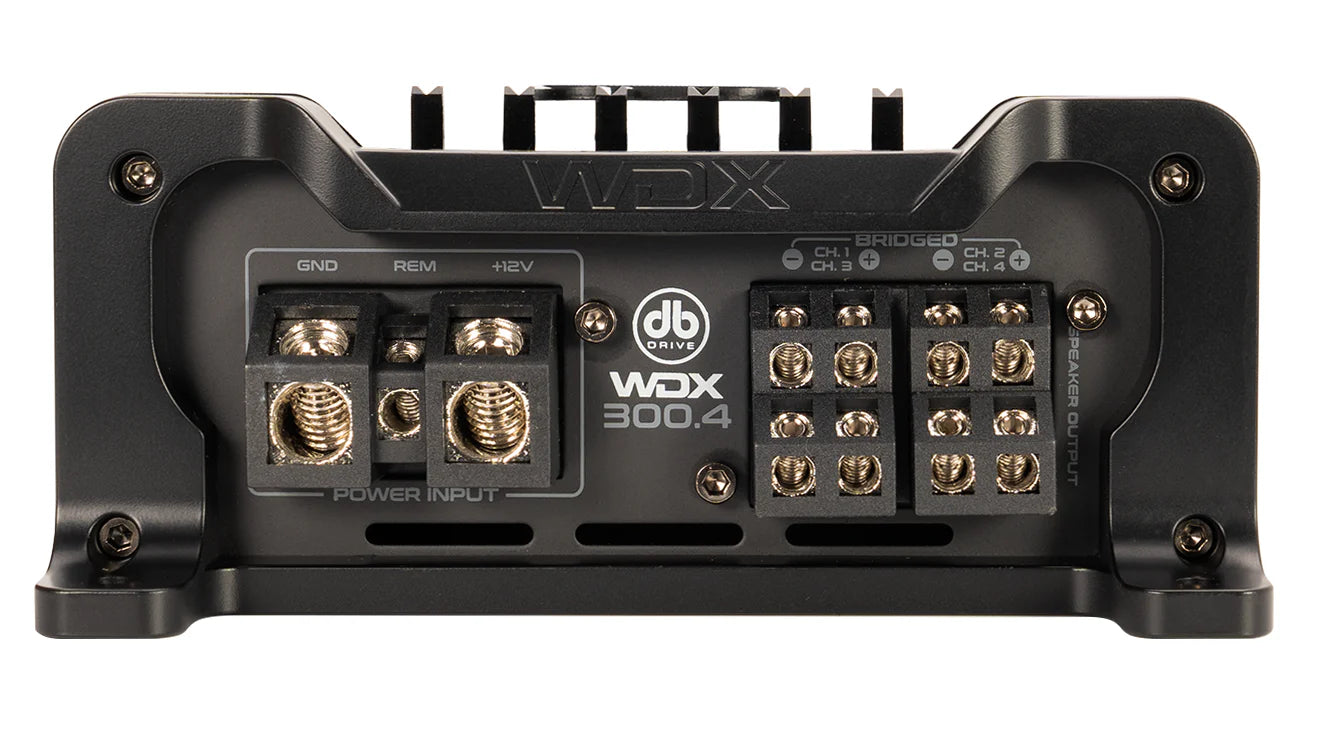

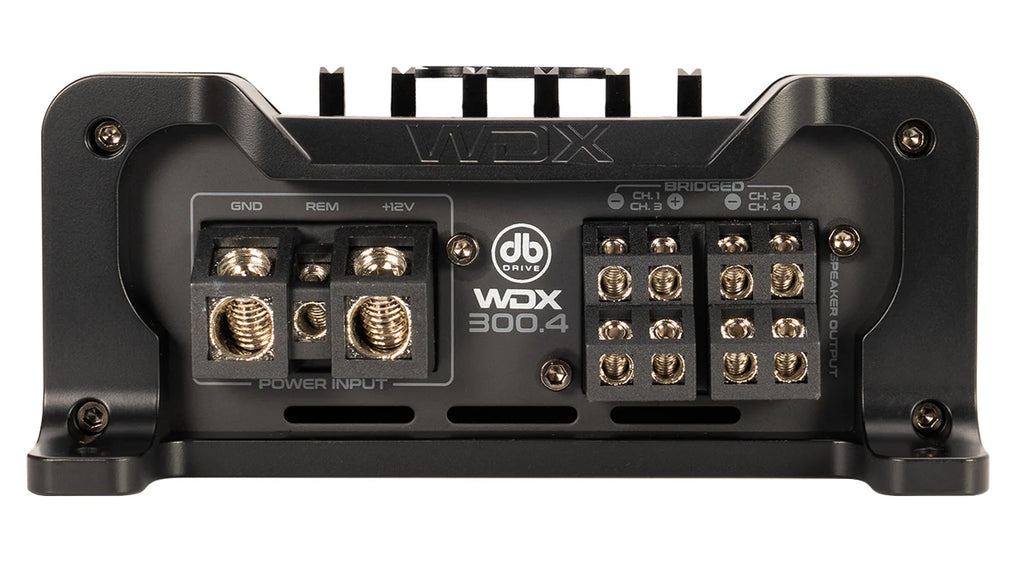

Direct Connect Speaker Terminals
4 Gauge Power Wire Input
CHM- Collective Heat Management
ACT – Adaptive Crossover Technology
SESI – Signal Evaluation Status Indicator
APC – Audio Protection Circuit
