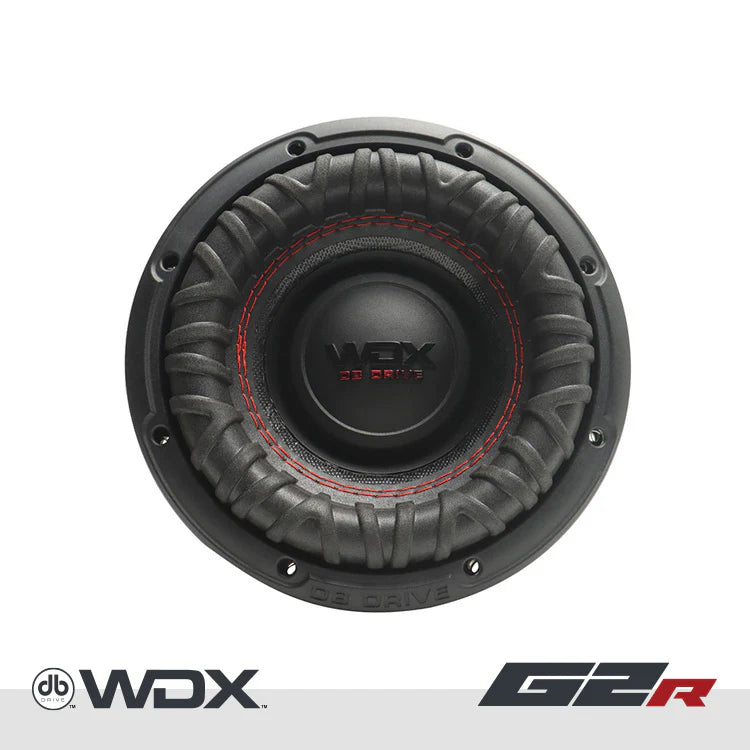

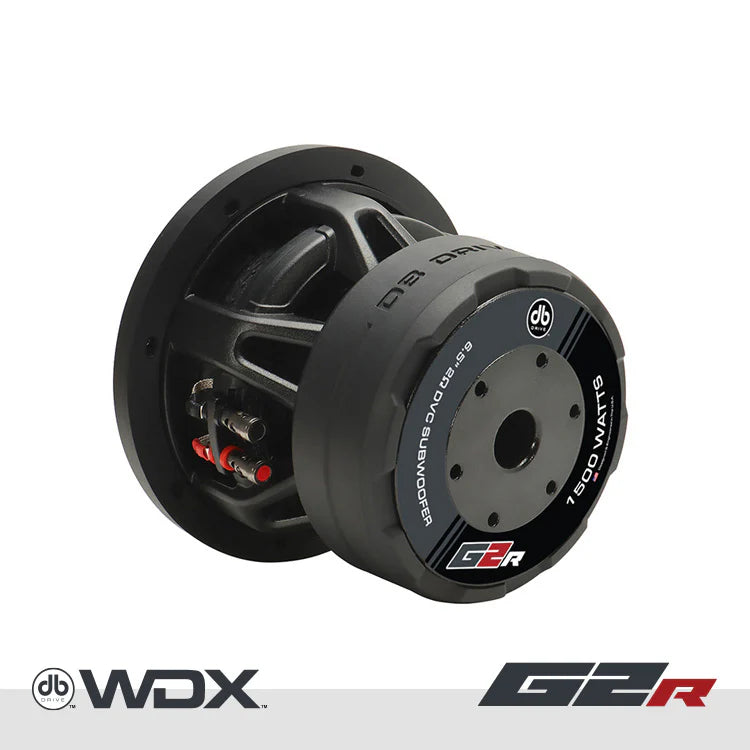

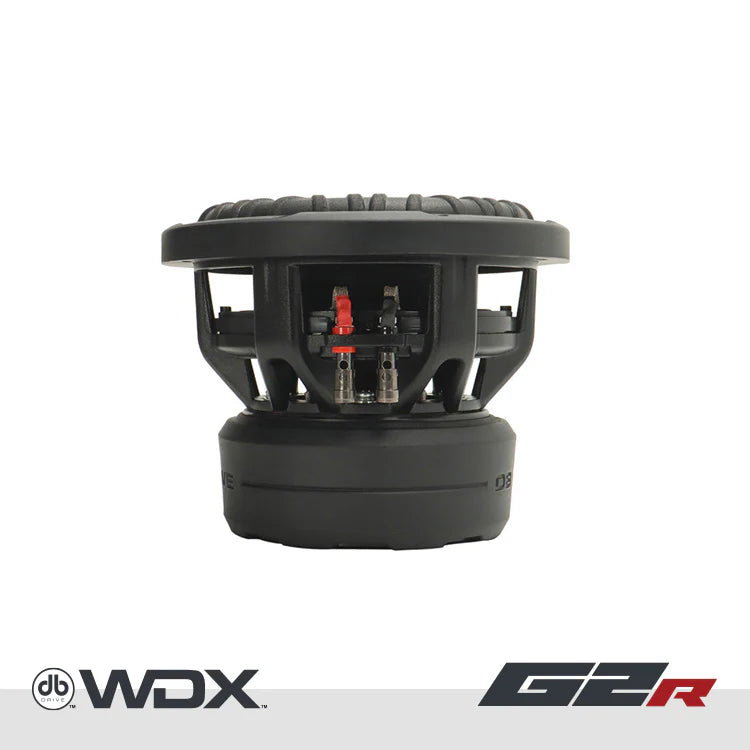

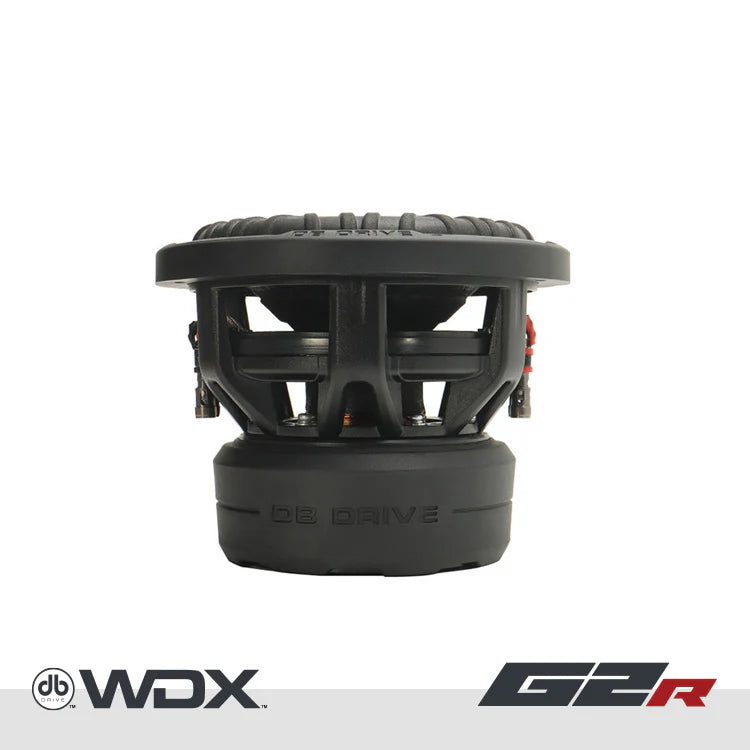

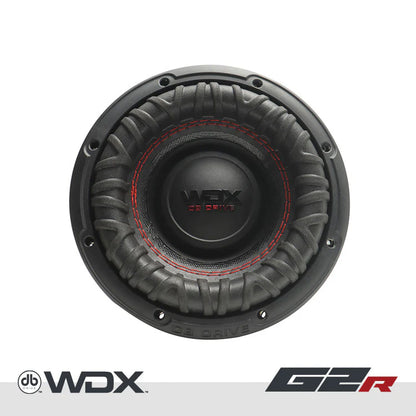

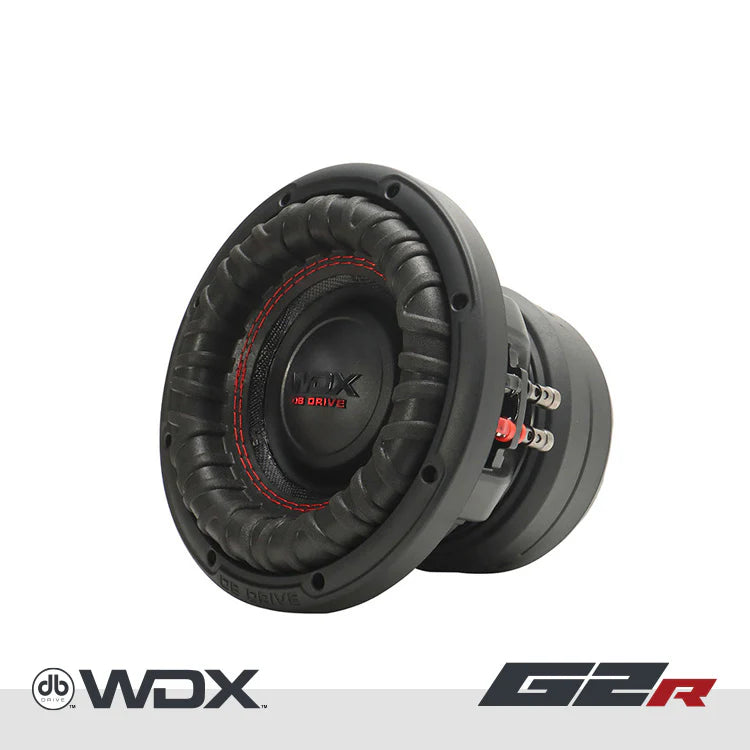

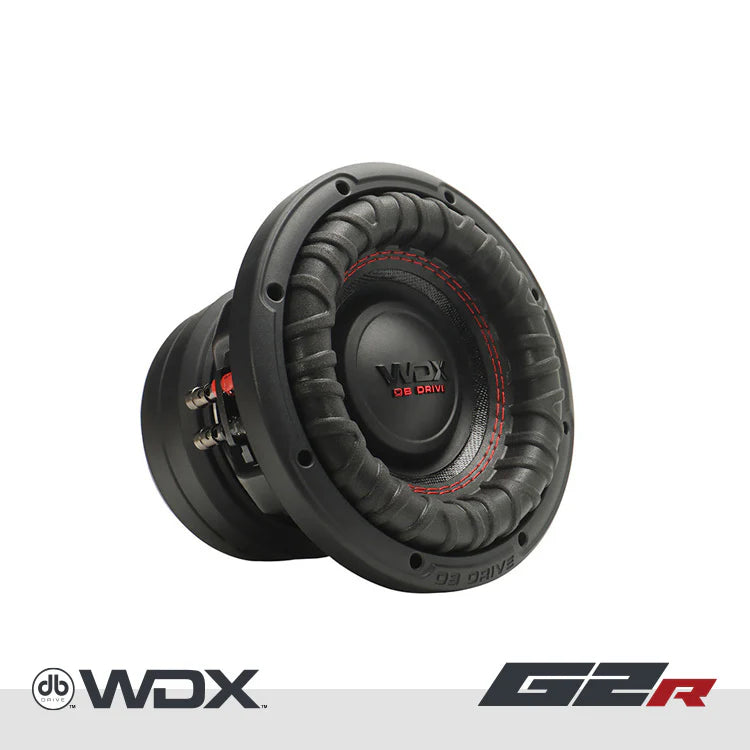

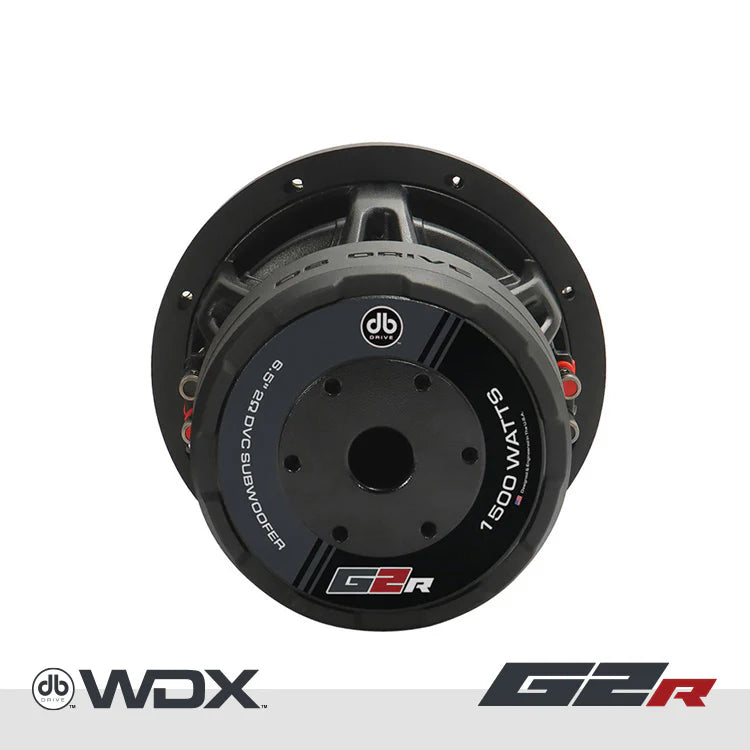

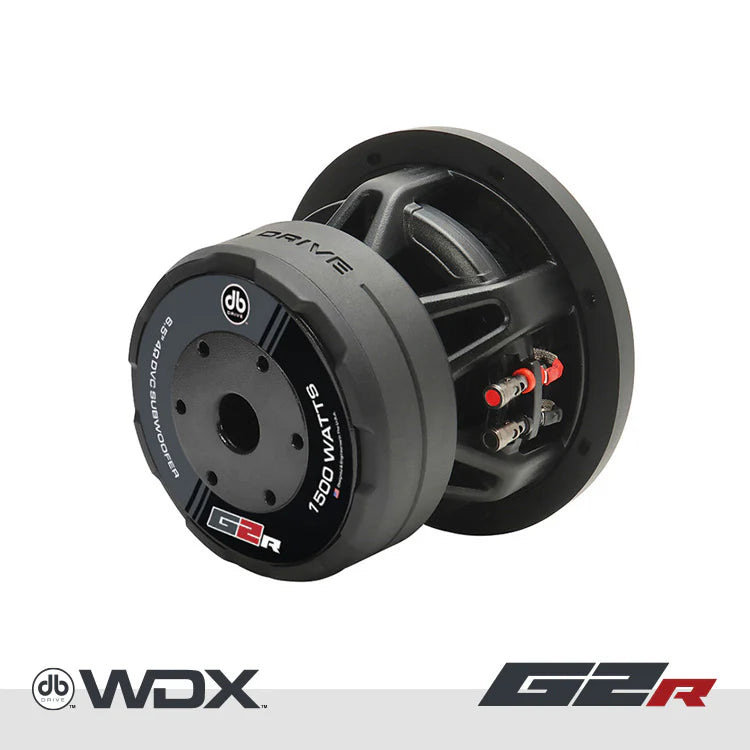

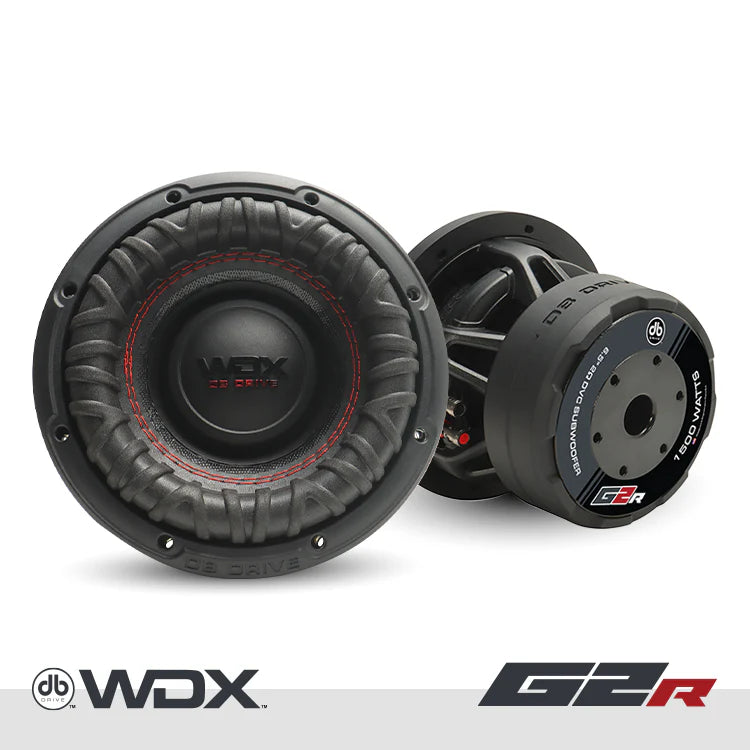

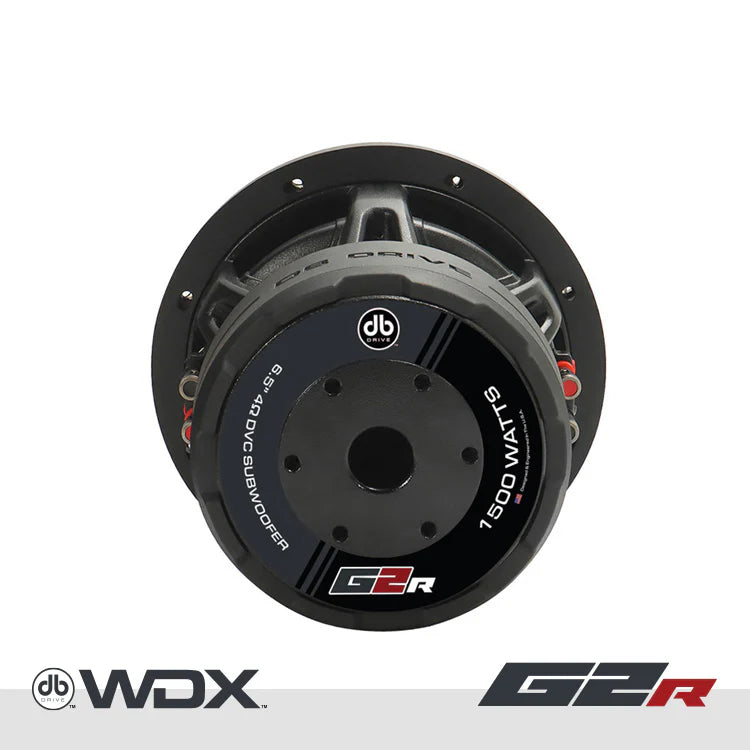

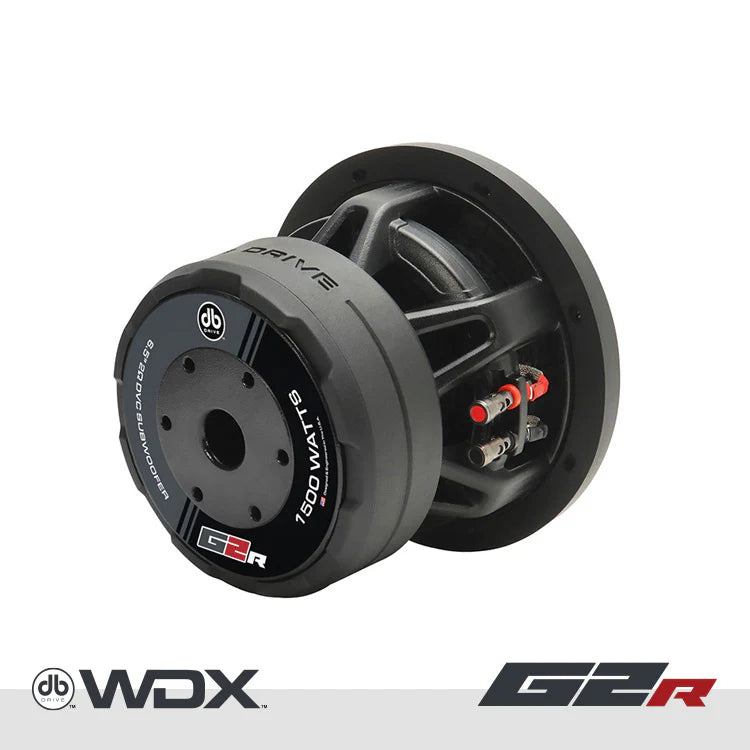

DB Drive WDX6.5G2R.2 : 6.5 in. Dual 2 or 4-Ohm Subwoofer
DB Drive WDX6.5G2R.2 : 6.5 in. Dual 2 or 4-Ohm Subwoofer
Regular price
$229.99 USD
Regular price
Sale price
$229.99 USD
Quantity
Couldn't load pickup availability
20 in stock
Add a dedicated foundation for bass
Build your low end around the DB Drive WDX6.5G2R.2 : 6.5 in. Dual 2 or 4-Ohm Subwoofer. Pair it with a correctly sized enclosure and compatible amplifier for a bass system tailored to your vehicle and listening goals.
Key details
- Model / SKU: WDX6.5G2R.2
- Dual voice coils: choose the correct impedance option and plan the final amplifier load before wiring.
- Mounting Depth: 4.76 in
Fitment & system matching
Match voice-coil configuration and final wired impedance to your amplifier. Check RMS power handling, mounting depth and recommended enclosure volume. Peak/MAX power is not continuous RMS power.
Full product details & specifications
Designed for true bass enthusiasts, the WDX6.5G2R.2 subwoofers offer unmatched power and precision. • Featuring a custom mounting gasket for a perfect seal, eliminating rear-canceling waves for pure bass. • All-new dust caps and a custom-tooled aluminum basket provide durability, rigidity, and optimal heat dissipation. • The custom ribbed surround and High Excursion motor with Y35 ferrite magnets and high-temperature voice coils deliver deep, distortion-free bass. • Built for Bass: Power handling up to 1500 watts dynamic (750 watts nominal) The WDX6.5G2R.2 sets a new standard for earth-shaking bass. Ready to feel the difference?
- Dynamic Power Handling: 1500 Watts
- Nominal Power Handling: 750 Watts
- Impedance: Dual 2 or 4Ω Voice Coil
- Resonant Frequency (fs): 44.272 Hz
- D.C. Voice Coil Resistance (Re): 2 x 3.2Ω
- Mechanical Quality Factor (Qms): 3.123
- Electrical Quality Factor (Qes): 0.788
- Total Quality Factor (Qts): 0.629
- Equivalent Air Volume (Vas): 3.459 L
- Mechanical Compliance of Suspension (CMS): 118.883 mm/N
- Mass of Diaphragm/Coil (Mms): 108.710 g
- Force Factor (BL): 15.671
- Sound Pressure Level (SPL): 77.7dB
- 2″ Anodized aluminum high-temperature voice coil
- Non-pressed paper cone
- Double-stitched reinforced foam surround
- Dual poly-cotton dampeners
- Die-cast aluminum vented basket
- Rubber gasket trim ring
- Large gauge compression terminals
- Protective magnet cover
- Frame Diameter: 7.16 in
- Mounting Depth: 4.76 in
- Cutout Diameter: 6 in
