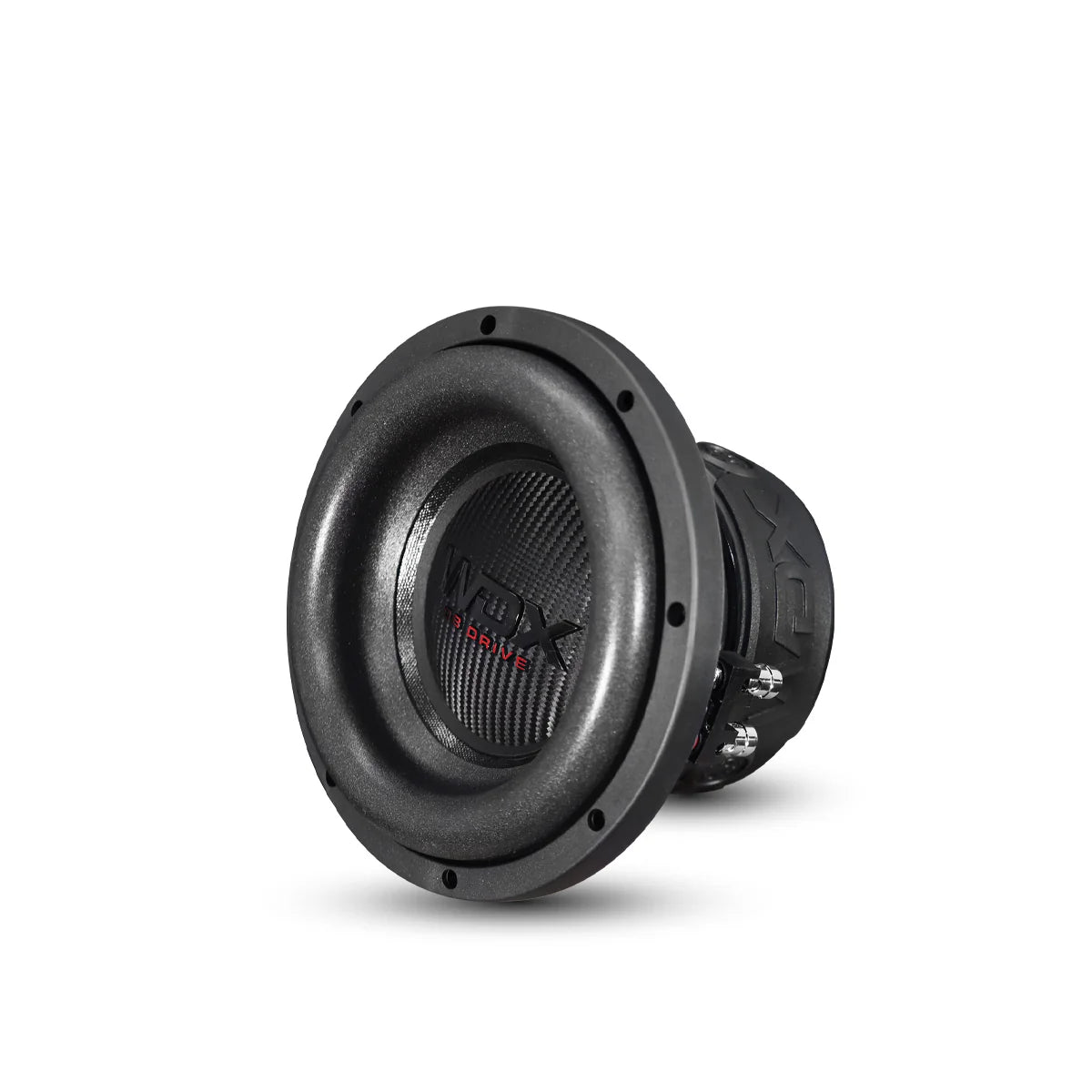

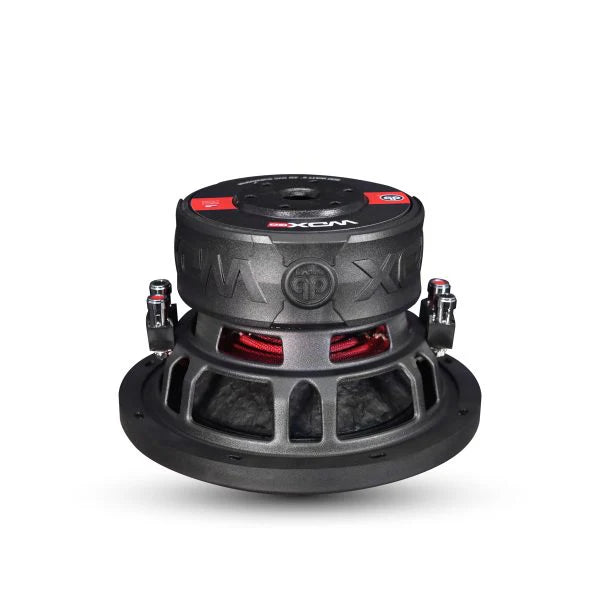

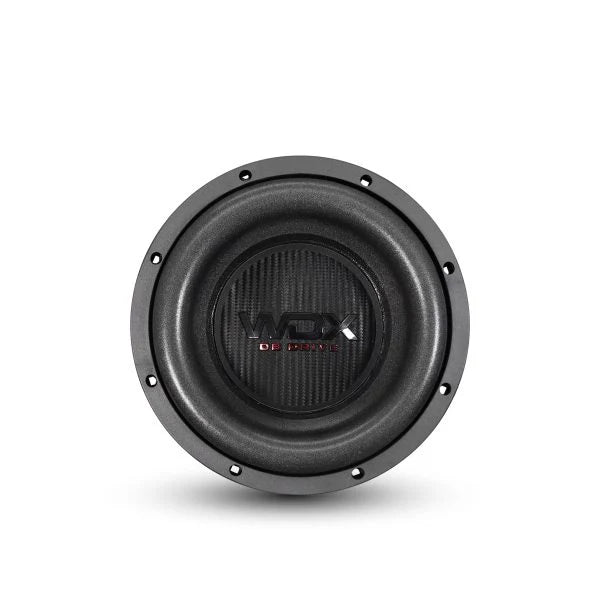

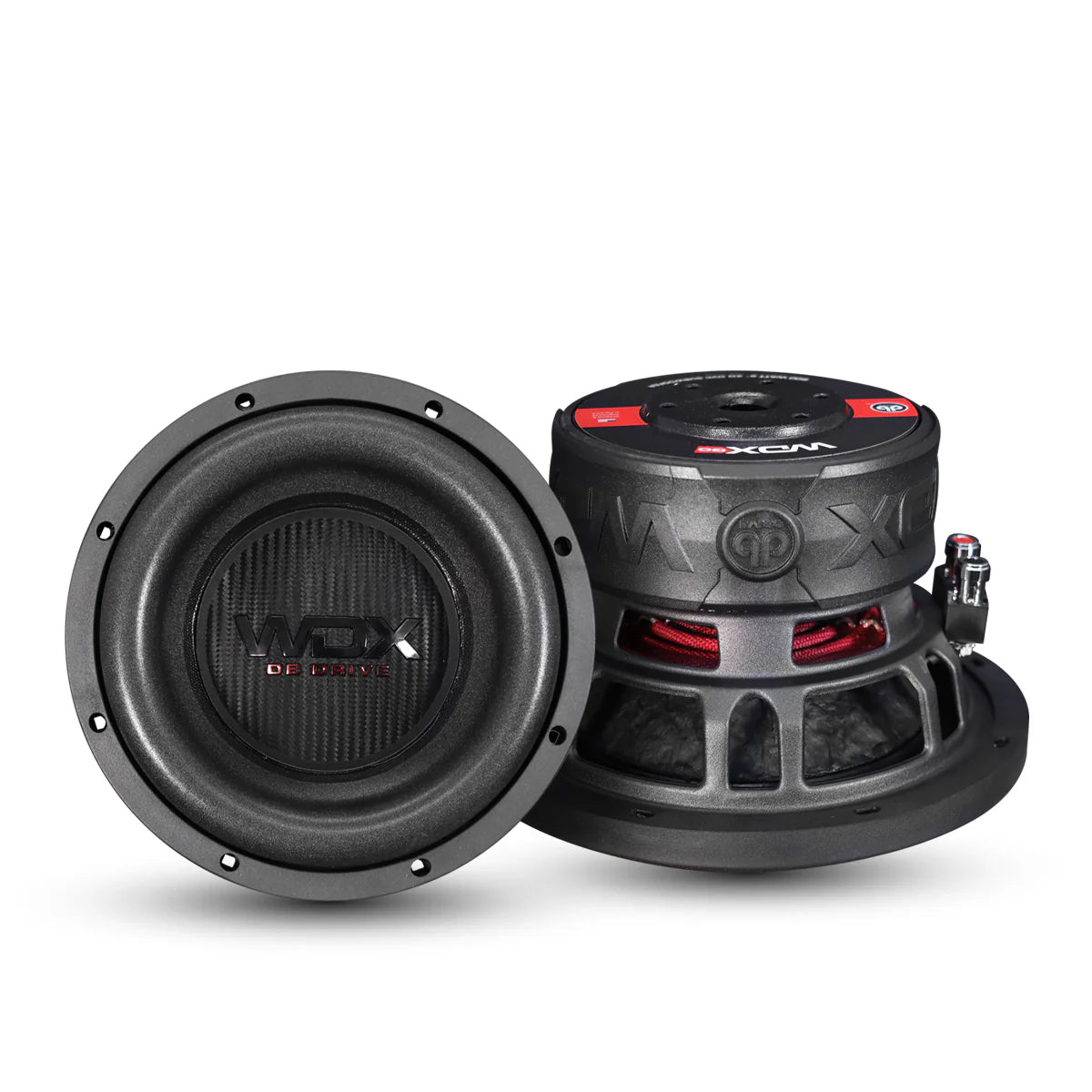

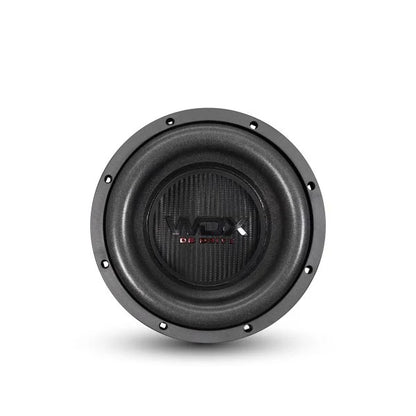

DB Drive WDX8G0.4 : 8" Dual 4-Ohm Subwoofer

Feel the Bass, Embrace the Power with DB Drive WDX8G0.4! Unleash the full potential of your audio system with the DB Drive WDX8G0.4 8in Stamped Frame Woofer. Designed for those who crave powerful, high-quality sound, this subwoofer features a high-temperature voice coil and a reinforced paper cone, ensuring durability and exceptional performance. With its dual 4Ω voice coil, you get maximum flexibility in wiring configurations. The 800-watt max power and 400-watt nominal power ratings mean it can handle even the most demanding audio tracks with ease. The double-stitched foam surround and dual poly-cotton dampeners provide superior control and reduced distortion, while the large gauge compression terminals and protective magnet cover ensure longevity and reliability. Whether you're setting up a new system or upgrading an existing one, the DB Drive WDX8G0.4 is the perfect choice for delivering deep, rich bass that you can feel.

• 2″ High Temperature Voice coil
• Reinforced paper cone
• Dual poly-cotton dampeners
• Stamped Cast basket
• Rubber gasket trim ring
• Large gauge compression terminals
• Protective magnet cover

Structure    8” (20.3cm) Woofer
Dynamic Power Handling    800 Watts
Nominal Power Handling    400 Watts
Impedance    Dual 4Ω Voice Coil

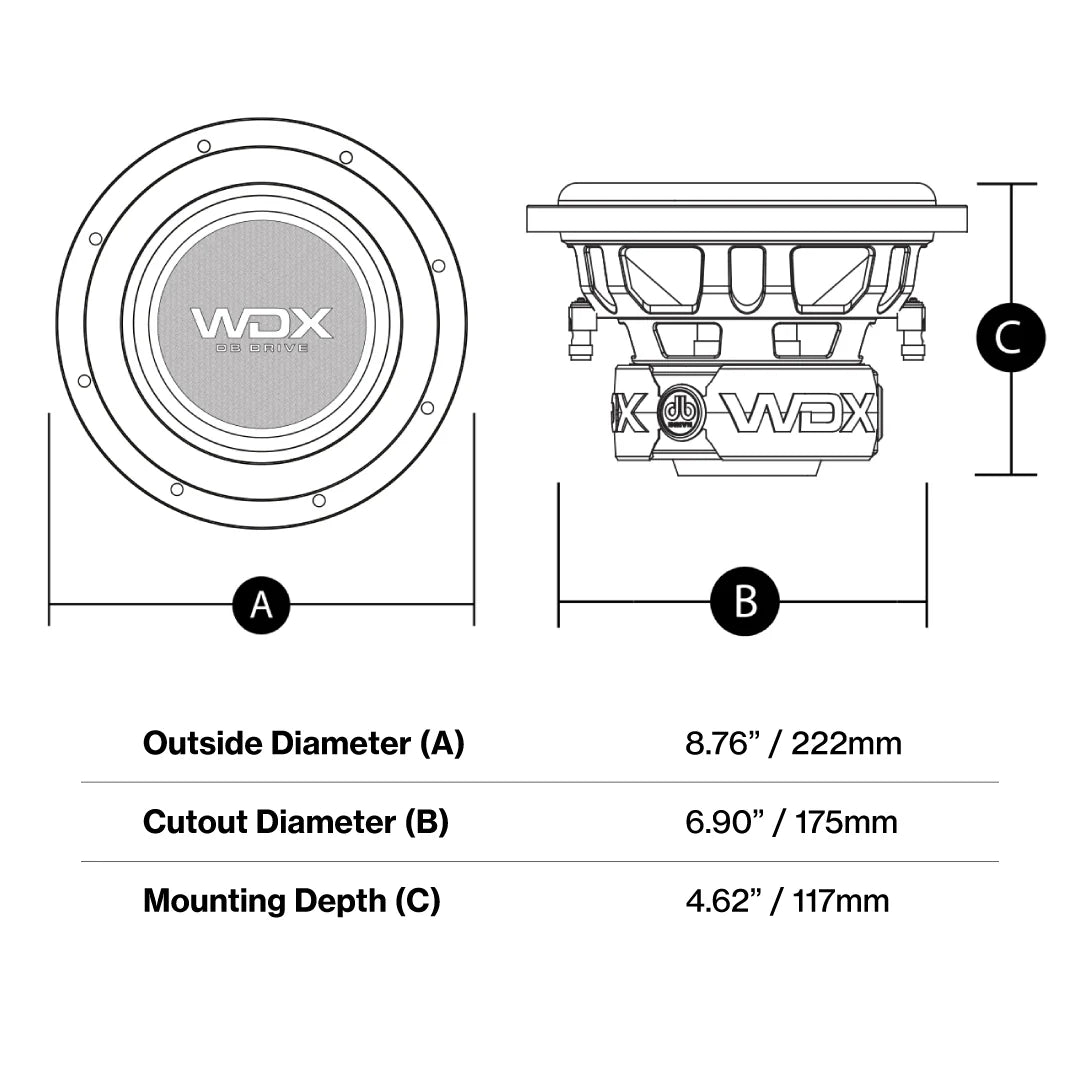

Mounting Depth: 4.62"

Frame Diameter: 8.42"

Resonant Frequency (fs)    41.702Hz
D.C. Voice Coil Resistance (Re)    3.2Ω x 2
Mechanical Quality Factor (Qms)    2.230
Electrical Quality Factor (Qes)    0.447
Total Quality Factor (Qts)    0.372
Equivalent Air Volume to Cms (Vas)    8.417 m
Mass of Diaphragm/Coil (Mms)    93.321 g
Force Factor (Bl)    9.745
Sound Pressure Level (SPL)    84.3dB
