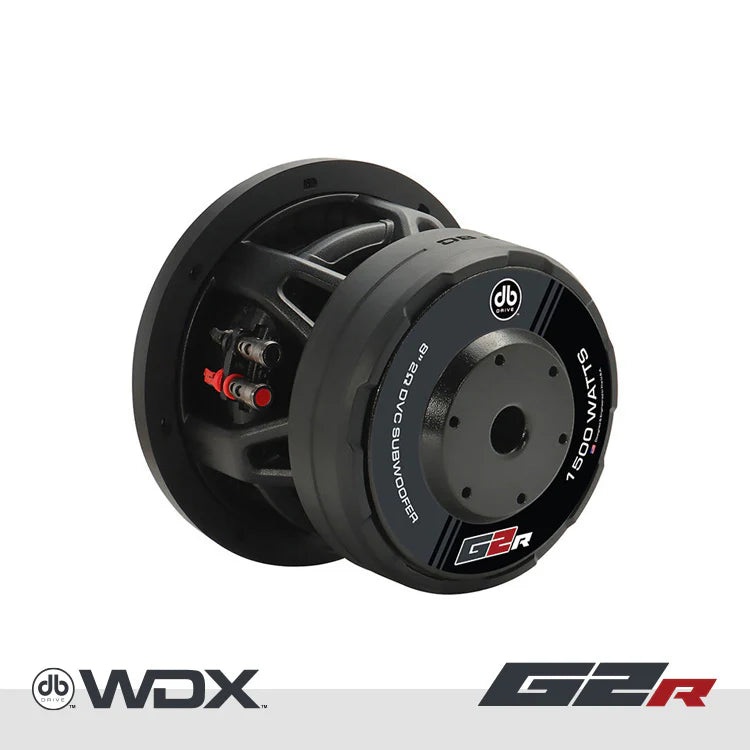

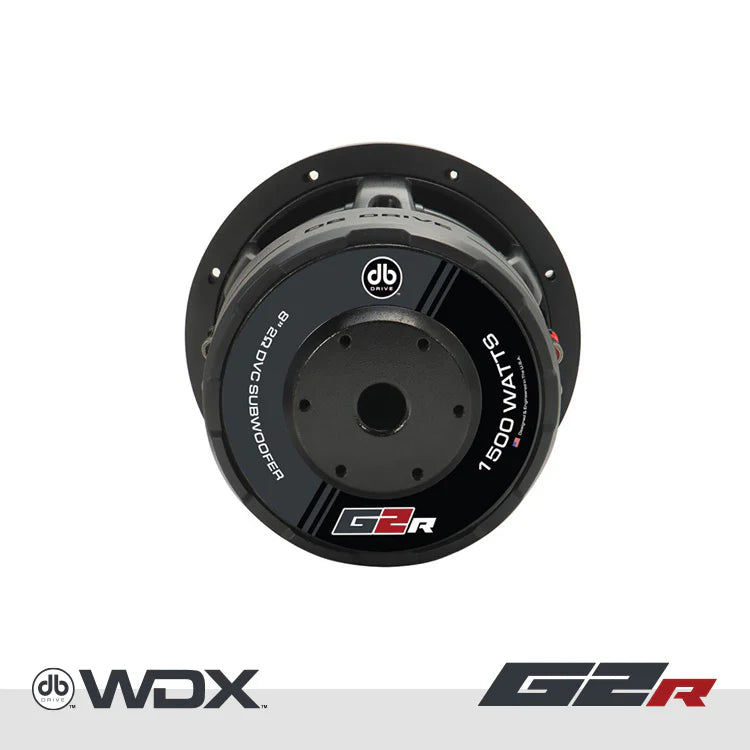

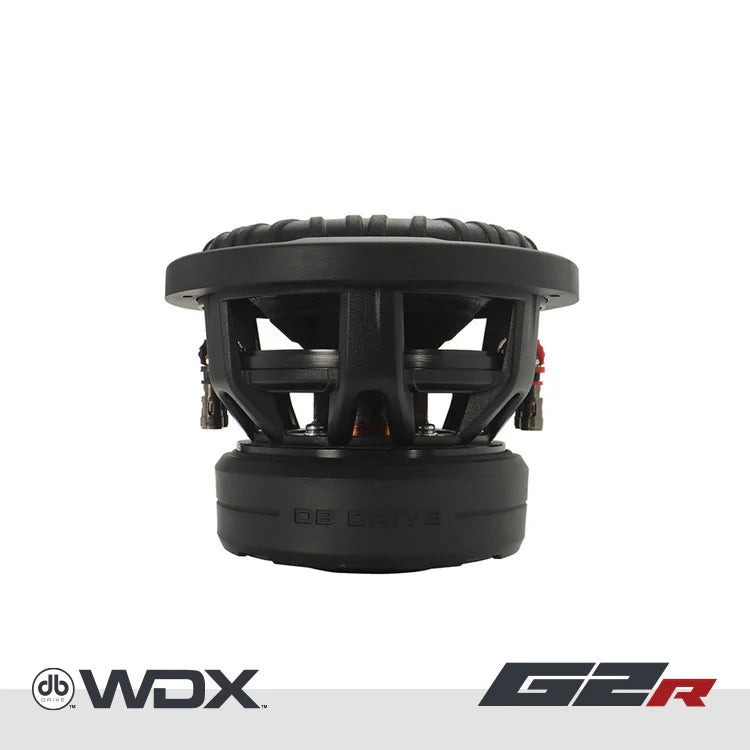

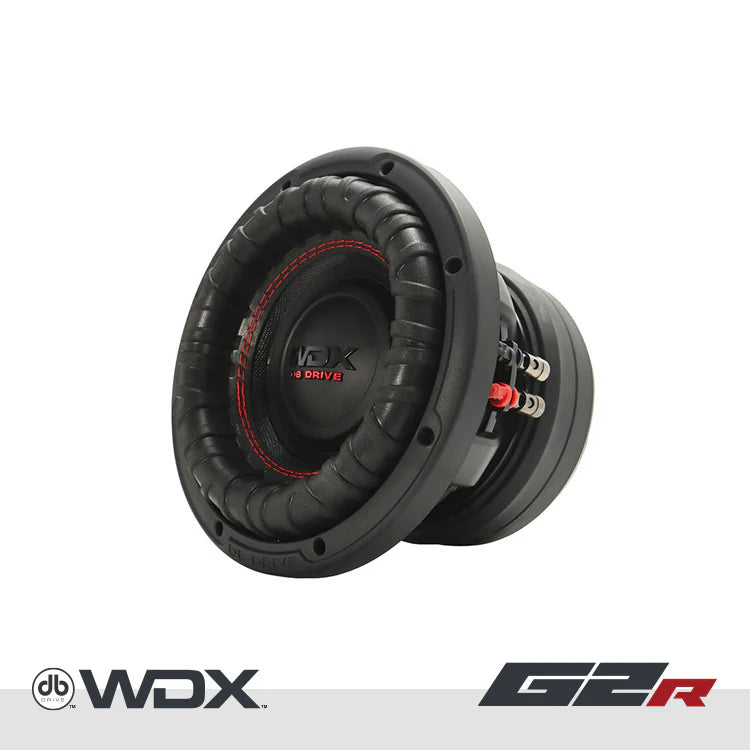

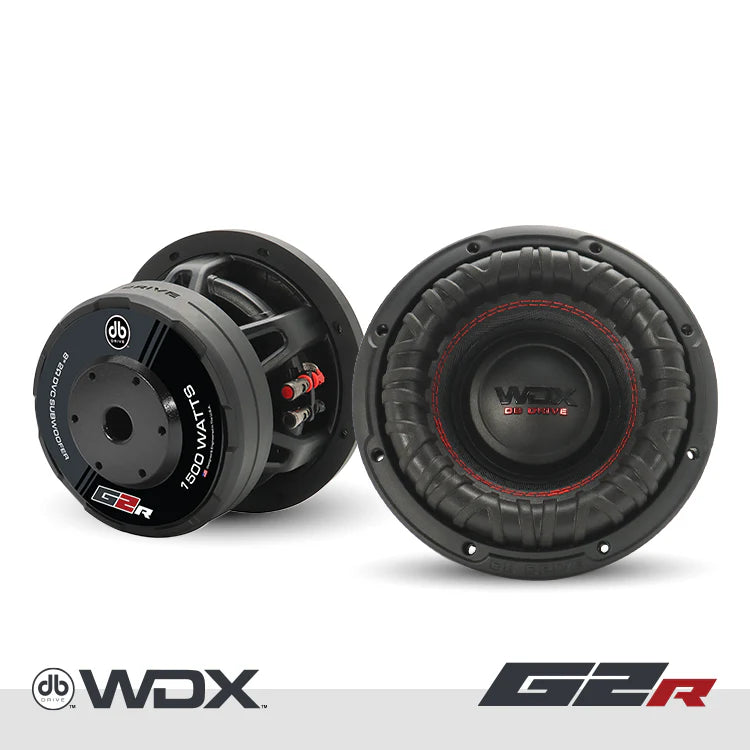

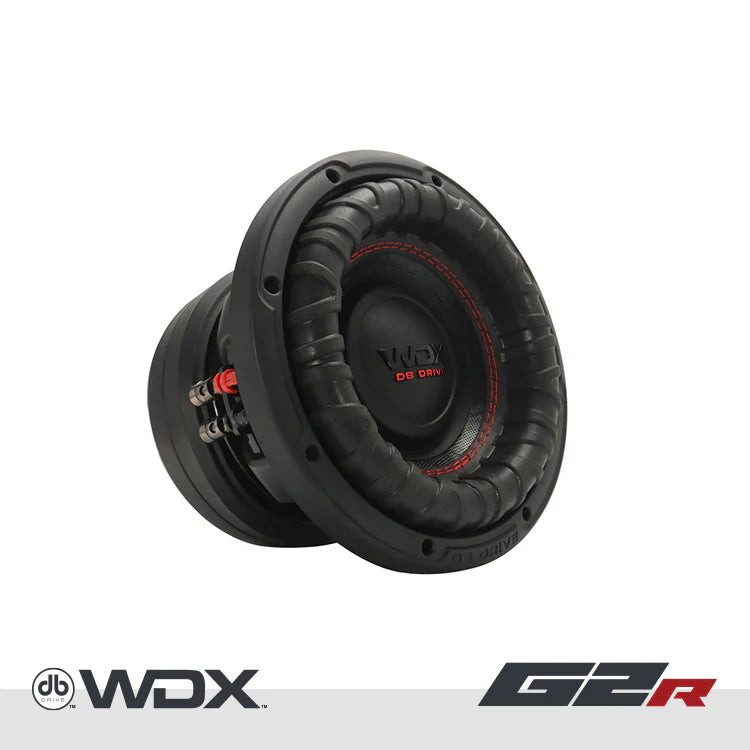

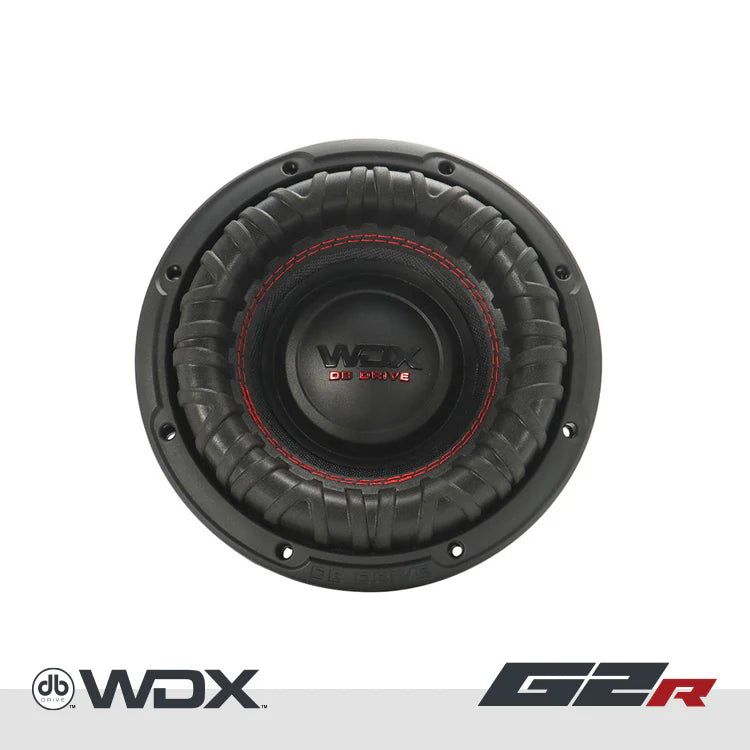

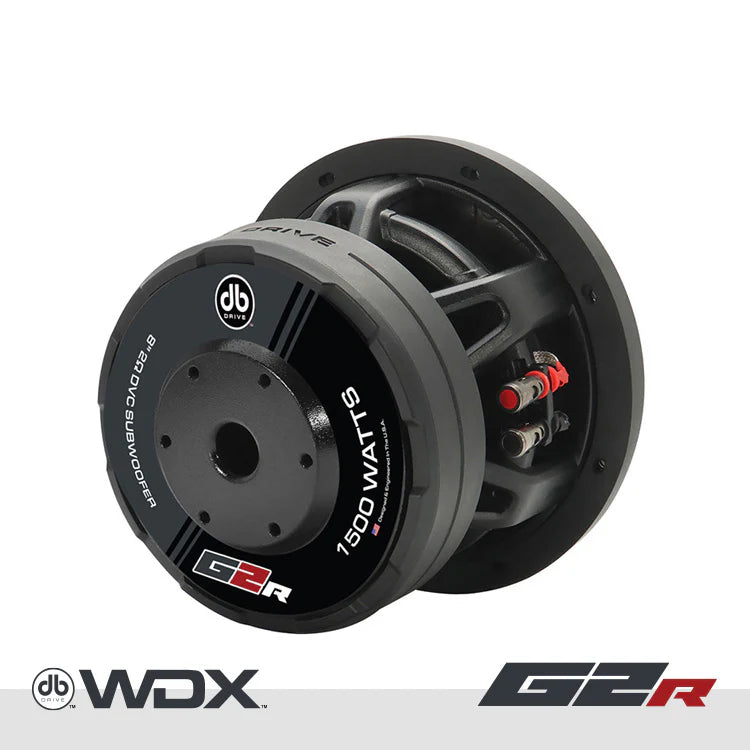

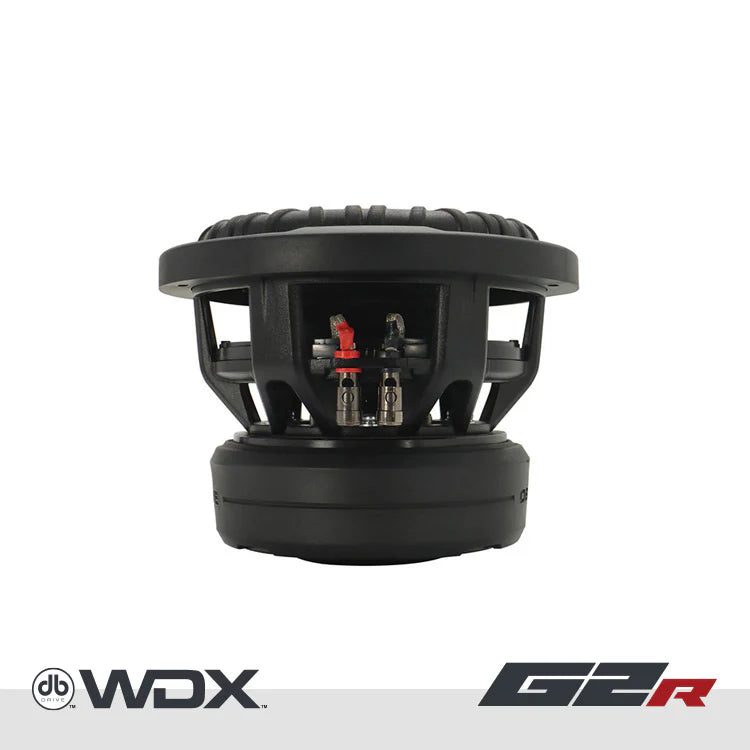

DB Drive WDX8G2R.2 : 8 in. Dual 2 or 4-Ohm Subwoofer

Designed for true bass enthusiasts, the WDX8G2R.2 subwoofers offer unmatched power and precision. • Featuring a custom mounting gasket for a perfect seal, eliminating rear-canceling waves for pure bass. • All-new dust caps and a custom-tooled aluminum basket provide durability, rigidity, and optimal heat dissipation. • The custom ribbed surround and High Excursion motor with Y35 ferrite magnets and high-temperature voice coils deliver deep, distortion-free bass. • Built for Bass: Power handling up to 1500 watts dynamic (750 watts nominal) The WDX8G2R.2 sets a new standard for earth-shaking bass. Ready to feel the difference?

• 2.5″ Anodized aluminum high temperature voice coil

• Non-Pressed paper cone

• Double-stitched reinforced foam surround

• Dual poly-cotton dampeners

• Die-cast aluminum vented basket

• Rubber gasket trim ring

• Large gauge compression terminals

• Protective magnet cover

Dynamic Power Handling: 1500 Watts
Nominal Power Handling: 750 Watts
Impedance: Dual 4Ω or Dual 2Ω Voice Coil
Resonant Frequency (fs): 39.479 Hz

Mechanical Quality Factor (Qms): 3.892
Electrical Quality Factor (Qes): 0.793
Total Quality Factor (Qts): 0.659
Equivalent Air Volume (Vas): 7.051 L
Mechanical Compliance of Suspension (CMS): 122.833 mm/N
Mass of Diaphragm/Coil (Mms): 132.307 g
Force Factor (BL): 16.277
Sound Pressure Level (SPL): 79.3 dB
Dimensions
Outside Diameter: 8.78"/ 223 mm
Cutout Diameter: 7.36"/ 187.5 mm
Mounting Depth: 5.55"/ 141 mm
