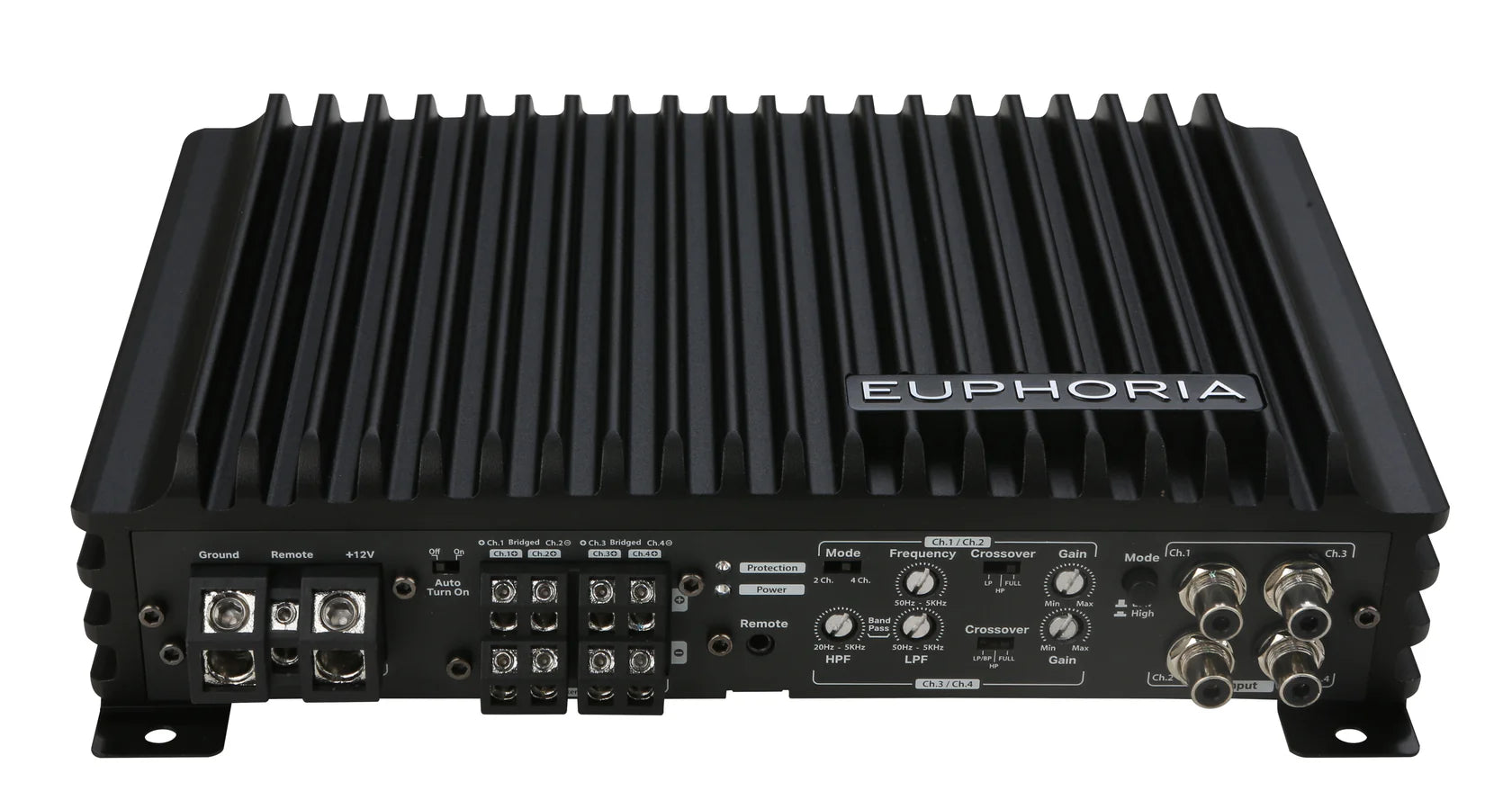

DB Euphoria EA4.900 4-Channel Class D Amplifier
DB Euphoria EA4.900 4-Channel Class D Amplifier
Couldn't load pickup availability
20 in stock
Give your system dedicated amplifier power
The DB Euphoria EA4.900 4-Channel Class D Amplifier gives you four channels of amplification for a multi-speaker system. Match its output at your chosen impedance to the speakers you plan to run.
Key details
- Model / SKU: EA4.900
- Frequency Response: 20Hz - 20KHz
Fitment & system matching
Match RMS output at the final wired impedance to your speakers or subwoofers. Check minimum impedance, mounting dimensions, fuse requirements and power-wire size. Peak/MAX ratings are not continuous RMS output.
Full product details & specifications
For those who demand premium sound, the Euphoria EA4.900 4-channel amplifier is your ultimate solution. Designed for both audiophiles and casual listeners, it offers dynamic, high-performance audio. Key Features: • Power Output: 165W x 4 at 4 ohms, 250W x 4 at 2 ohms, delivering clear, full-range sound. • Bridgeable Design: Easily drive a subwoofer for enhanced low-end performance. • High-Efficiency Class D Design: Ideal for modern electrical systems. • Adaptive Crossover: Fine-tune your audio for optimal sound. • Precision Tuning: Metal potentiometers ensure stable settings. • 4-Layer PCB: Delivers cleaner, more accurate sound. • Compact Design: Easy to install without compromising on power. Elevate your car audio experience with the Euphoria EA4.900 for sound like never before
High efficiency full range Class D Technology
Audiophile Grade tiffany RCA connectors
ACT- adaptive Low-Pass, High-Pass filter on Ch 1-2
ACT - adaptive Low-Pass, Band-Pass, High-Pass filter on Ch 3-4
SESI- Operation status indicator
Direct Connect Speaker Outputs
Large Gauge Power Wire Inputs
APC - Audio Circuit Protection
4 x 165 Watts @ 4 ohms
4 x 250 Watts @ 2 ohms
2 x 350 Watts @ 4ohms (Bridged)
Ch 1/2 High Pass Filter Variable: 50 Hz - 5K Hz
Ch 1/2 Low Pass Filter Variable: 50 Hz - 5K Hz
Ch 3/4 High Pass Filter Variable: 20 Hz - 5K Hz
Ch 3/4 Low Pass Filter Variable: 50Hz - 5K Hz
Working Voltage: 9- 16 Volts
Frequency Response: 20Hz - 20KHz
Signal to Noise Ratio: <92dB
Damping Factor @ 100Hz - 4volts/4-ohms <66
Selectable Low Level Input ranges : 450MV - 8V

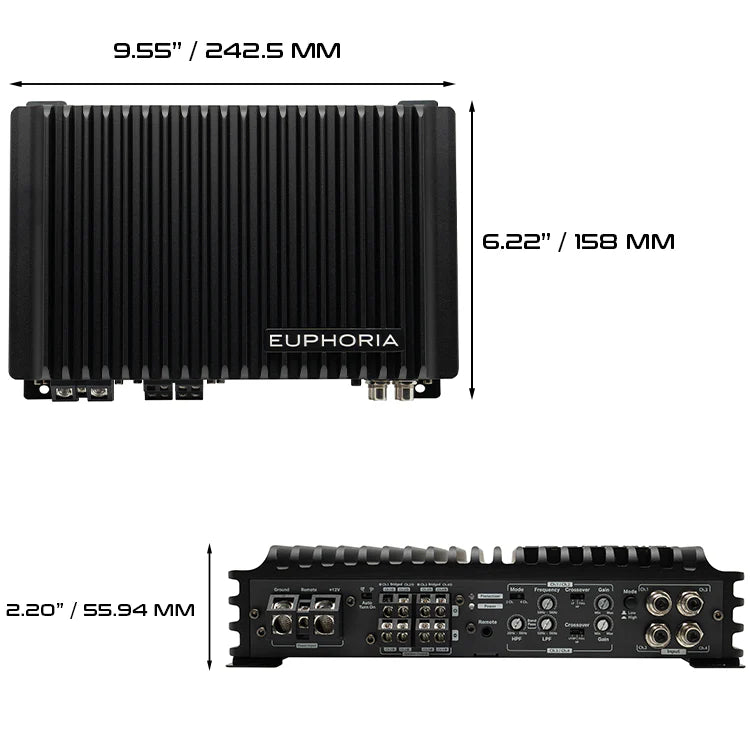

9.55" x 6.22" x 2.20"
