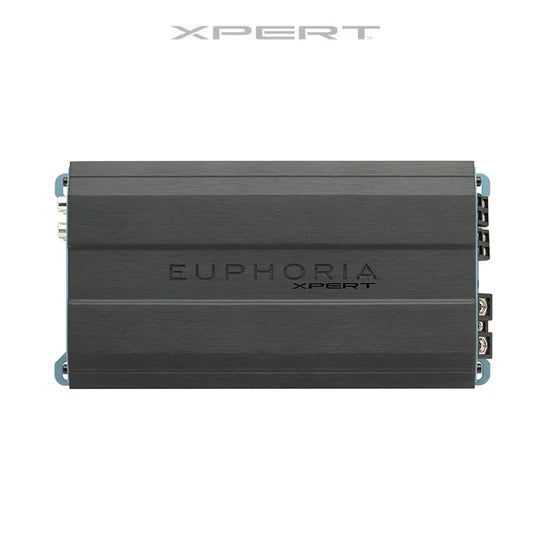

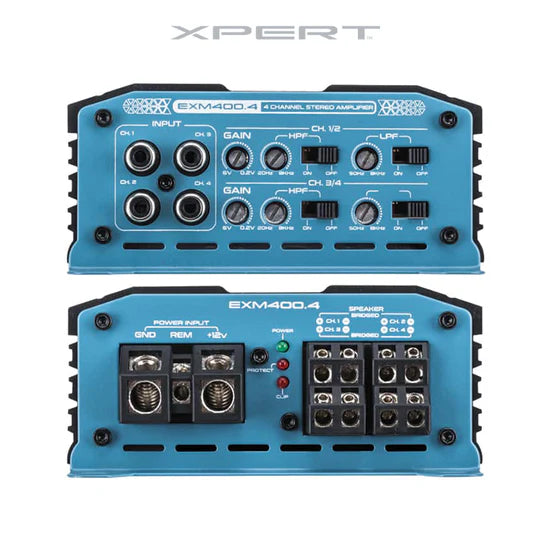

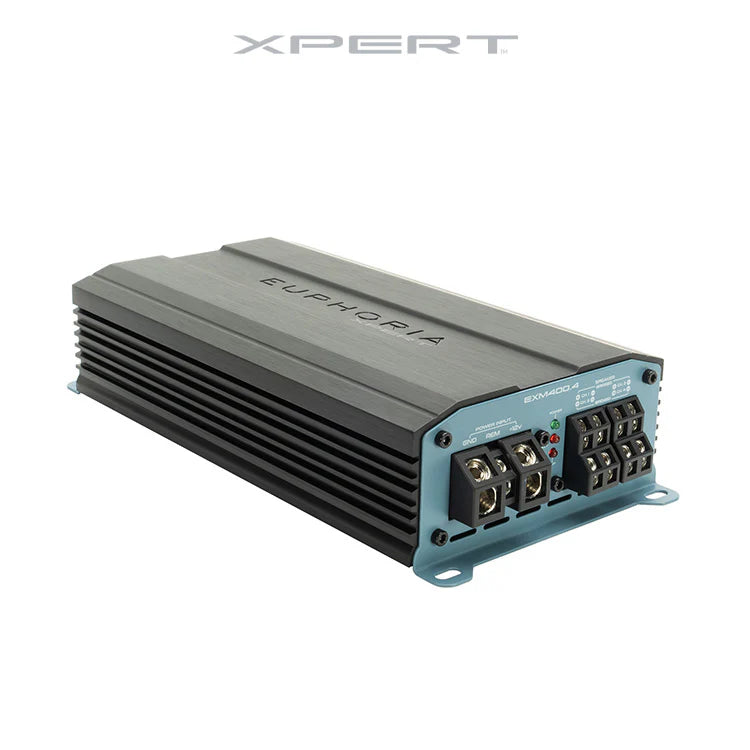

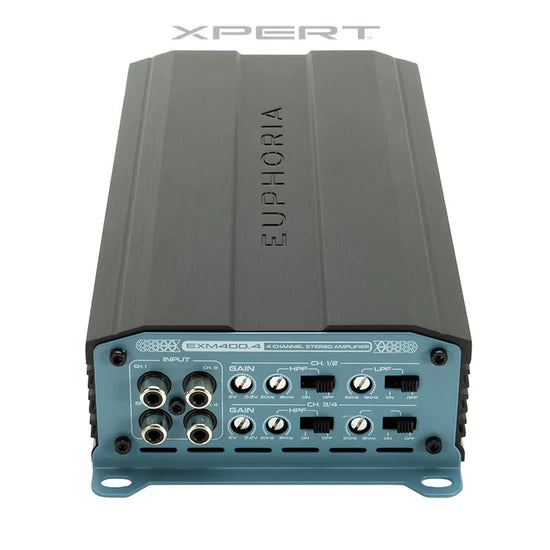

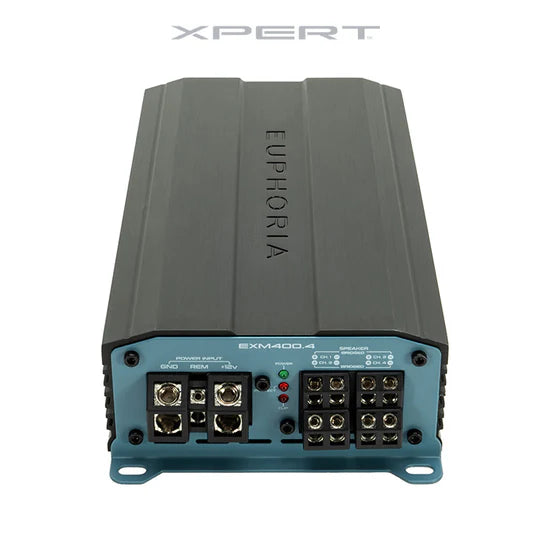

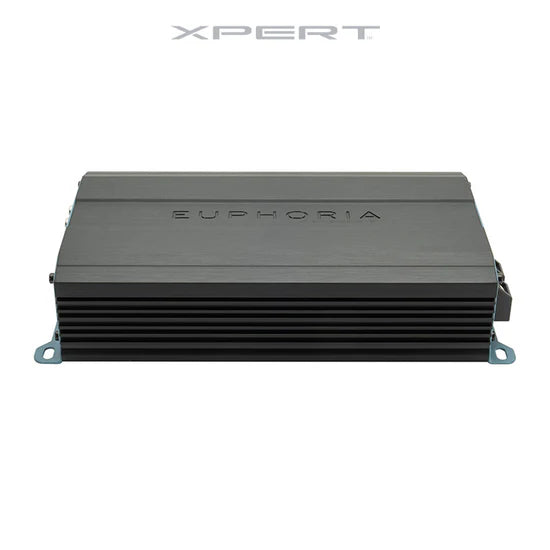

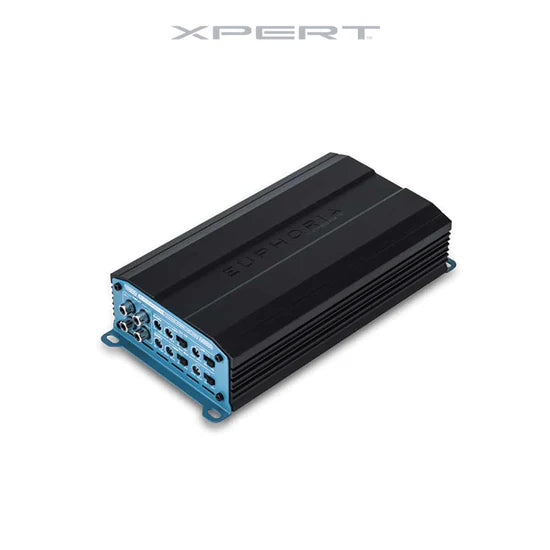

DB Euphoria EXM400.4 4-Channel Compact Amplifier
DB Euphoria EXM400.4 4-Channel Compact Amplifier
Couldn't load pickup availability
20 in stock
Give your system dedicated amplifier power
The DB Euphoria EXM400.4 4-Channel Compact Amplifier gives you four channels of amplification for a multi-speaker system. Match its output at your chosen impedance to the speakers you plan to run.
Key details
- Model / SKU: EXM400.4
- Compact format: check the listed dimensions to plan your mounting location.
- Frequency Response 10-24KHz
Fitment & system matching
Match RMS output at the final wired impedance to your speakers or subwoofers. Check minimum impedance, mounting dimensions, fuse requirements and power-wire size. Peak/MAX ratings are not continuous RMS output.
Full product details & specifications
GENERAL SPECIFICATIONS
Rated Power @ 14.4 Volts 4 x 200 Watts @ 4Ω
4 x 400 Watts @ 2Ω
2 x 800 Watts @ 4Ω Bridged
PARAMETERS
Frequency Response 10-24KHz
S/N Ratio <85dB
Working Voltage 10-16 Volts
Damping Factor 100dB

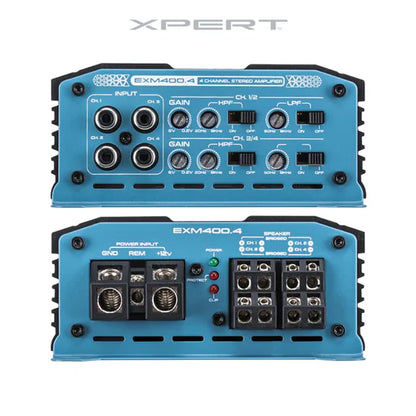

Low Level Input 6V – 0.2V

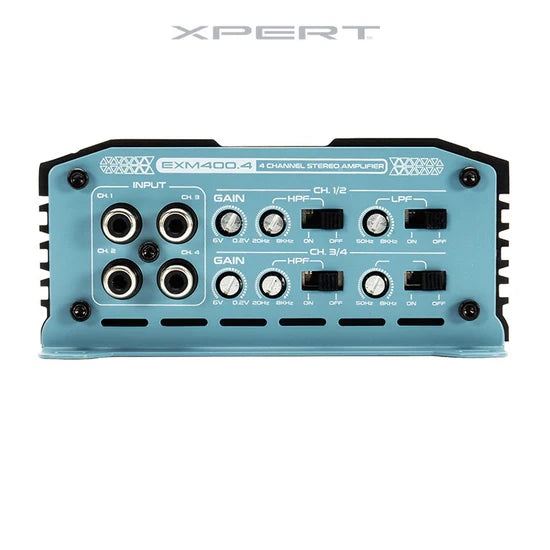

Ch 1/2 High Pass Filter Variable 20Hz – 8KHz
Ch 1/2 Low Pass Filter Variable 50Hz – 8KHz
Ch 3/4 High Pass Filter Variable 20Hz – 8KHz
Ch 3/4 Low Pass Filter Variablee 50Hz – 8KHz
Minimum working Impedance 2 Ohm Stereo

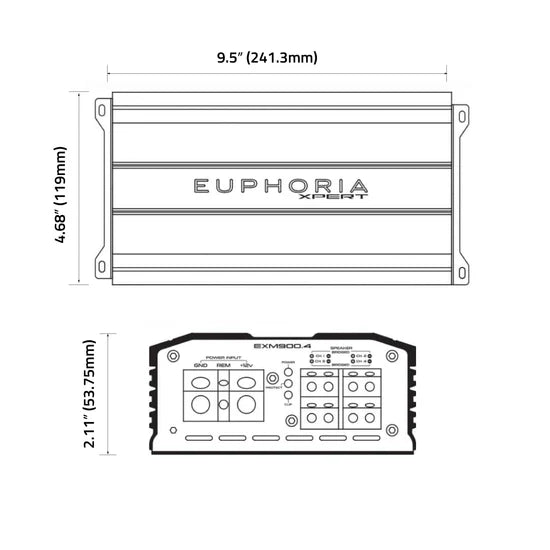

LENGTH: 9.5" x WIDTH: 4.68" x HEIGHT: 2.11"
4 Channel full range class D circuitry
SESI – Signal Evaluation Status Indicator
ACT- Adaptive Crossover Technology
High-efficiency Full Range Class D Technology

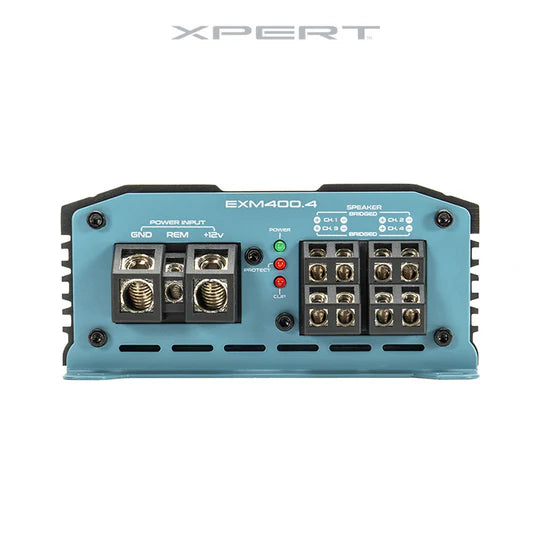

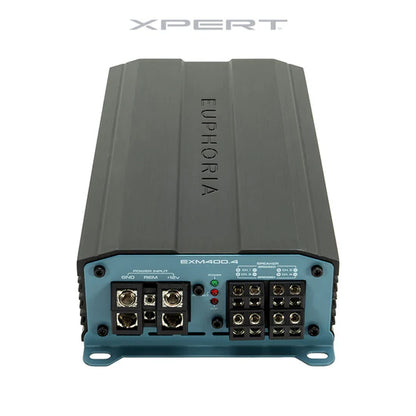

Direct Connect Speaker Terminals
Large Gauge Power Wire Inputs
APC – Audio Protection Circuit
