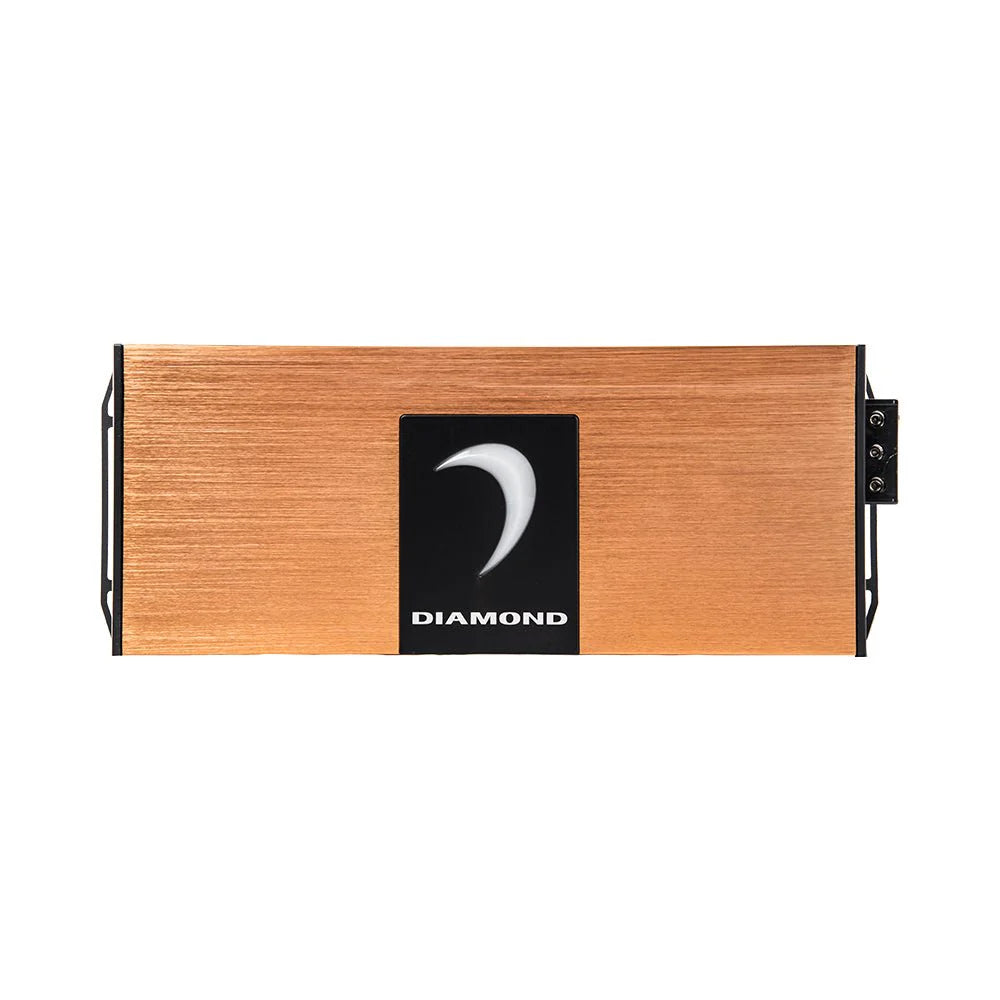

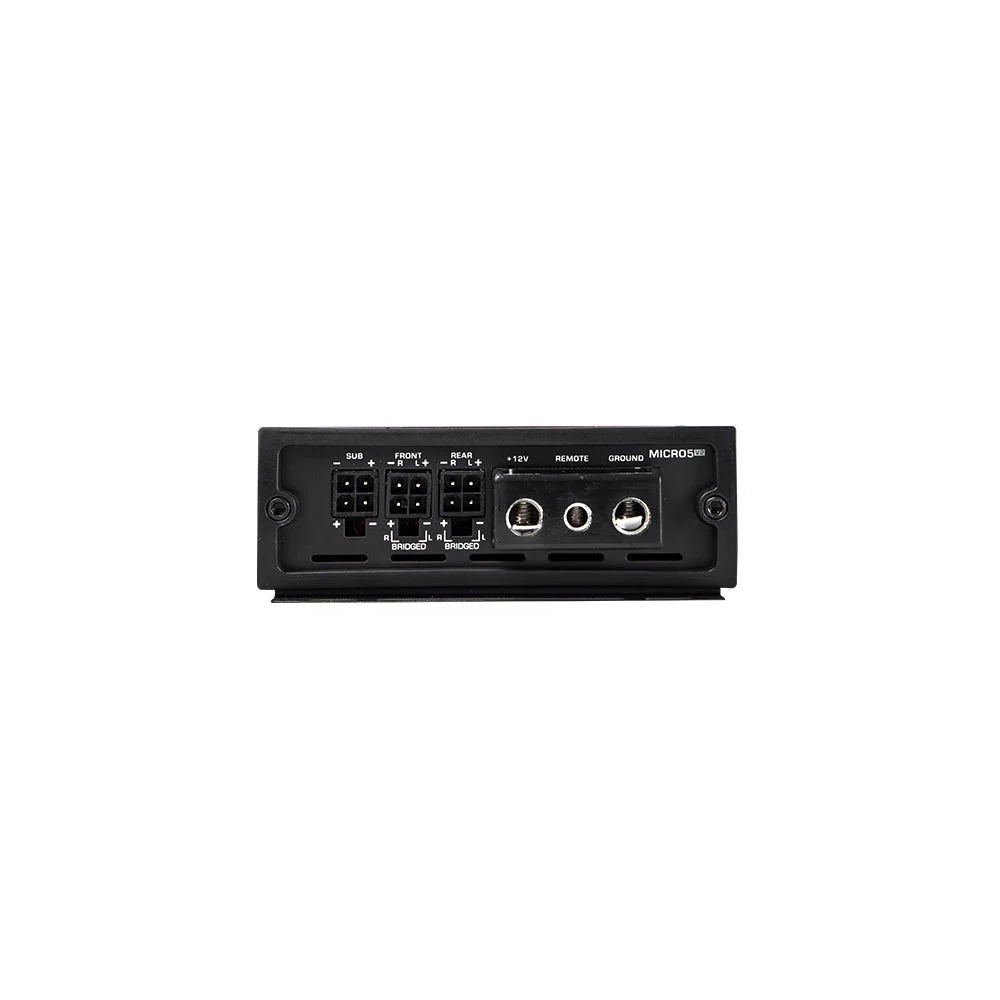

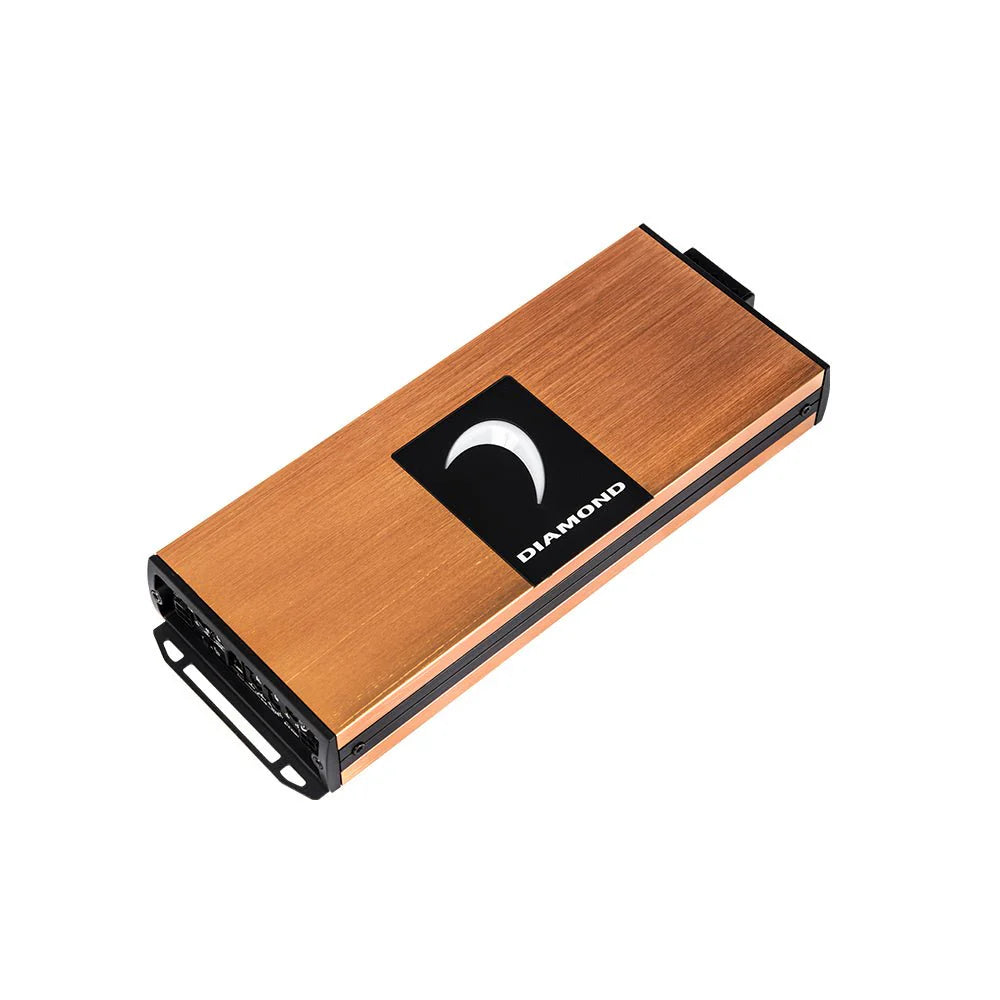

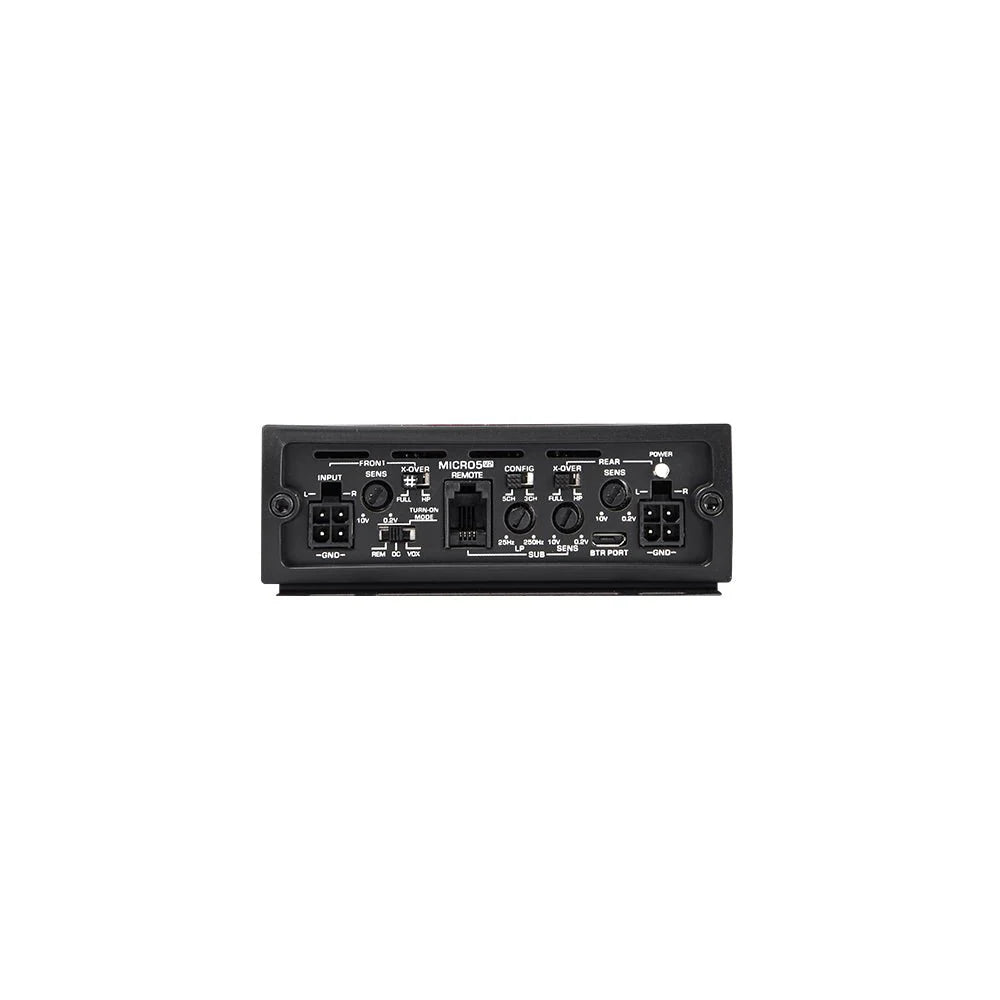

Diamond Audio MICRO5V2 Micro 5-Channel Amplifier
Diamond Audio MICRO5V2 Micro 5-Channel Amplifier
Regular price
$599.99 USD
Regular price
Sale price
$599.99 USD
Quantity
Couldn't load pickup availability
20 in stock
Give your system dedicated amplifier power
The Diamond Audio MICRO5V2 Micro 5-Channel Amplifier lets you build around a five-channel amplifier, bringing speaker and subwoofer amplification into one unit.
Key details
- Model / SKU: MICRO5V2
- Compact format: check the listed dimensions to plan your mounting location.
- RMS Power Rating: RMS Power (2Ω): 150W x 4/350W x 1
- RMS Power (2Ω): 150W x 4/350W x 1
- RMS Power (4Ω): 80W x 4/200W x 1
Fitment & system matching
Match RMS output at the final wired impedance to your speakers or subwoofers. Check minimum impedance, mounting dimensions, fuse requirements and power-wire size. Peak/MAX ratings are not continuous RMS output.
Full product details & specifications
-
RMS Power Rating
- RMS Power (2Ω): 150W x 4/350W x 1
- RMS Power (4Ω): 80W x 4/200W x 1
- Bridged (mono 1Ω): N/A
- Bridged (mono 2Ω): N/A
- Bridged (mono 4Ω): 300W x 2/200W x 1
-
Type
- Topology: Full Range Class D
-
Power Supply
- Power Supply: Full PWM
- Power Supply Threshold: 10.0VDC - 17.0VDC
- Idle Current: (0.7A)
-
Distortion
- THD 4 (1KHx @ 4Ω): 0.5%
- S/N Ratio (A weighted @1W): -85dBA
- S/N Ratio (A weighted @FP): -101.1dBA
-
Input Sensitivity
- Low Input Level: 200mV - 10.0V
- High Input Level: N/A
-
Input Impedance
- Low Input Level: 20KΩ
- High Input Level: 20KΩ
-
Output Stage
- Output Impedance: 0.018Ω
- Damping Factor (50Hz@4Ω): >70
- Bandwidth (-3dB): 10Hz - 35Hz
-
Crossover (-12dB/Oct)
- Variable High-Pass: Flat or Fixed 70Hz
- Variable Low-Pass: 40Hz - 400Hz
- Variable Sun-Sonic: N/A
-
Fuse Ratings
- ATC: 60A
-
Dimensions
- Length x Width x Height (Inches): 10.65 x 4.0 x 1.46
- Length x Width x Height (mm): 270.5 x 103 x 37.2
Need help choosing? Explore our installation services before planning your build.
