Bring definition to the high frequencies
The Diamond M01T 1" PRO Audio High-Frequency Drivers adds a dedicated high-frequency driver to your audio build. Pair it with compatible midrange drivers and the correct crossover settings for a balanced system.
Key details
- Model / SKU: M01T
- RMS: 100 watts per pair / 50 watts each
- Frequency Response: 3000 - 20000 Hz
Fitment & system matching
Confirm impedance, mounting dimensions and the recommended high-pass crossover. Check whether the listing is for one driver or a pair before ordering.
Full product details & specifications
Diamond Audio never rests on its laurels! The Motorsport series continues its path of success by expanding its high compression super tweeter assortment for this year. Introducing an array of super tweeters to comply with any installation and/or fabrication work, Diamond Audio's solution-driven Motorsport series tweeters will complete any high-end audio performance system build!
The Motorsport series super tweeter portfolio consists of standard and short horn version designs, proprietary phase plug technology for ultimate off-axis sound performance and response, shallow-depth tweeter casing, swivel feature function, and flexible mounting options for that custom build! Never settle for less, look to Motorsport series by Diamond Audio for the ultimate sound system experience!
Product Details:
- 1" Motorsport Series High-Frequency Tweeters
- Power Handling:
- Peak: 200 watts per pair / 100 watts each
- RMS: 100 watts per pair / 50 watts each
- High-frequency tweeters
- Compression extreme output
- Shallow-depth tweeter casing
- Surface and flush mounting options

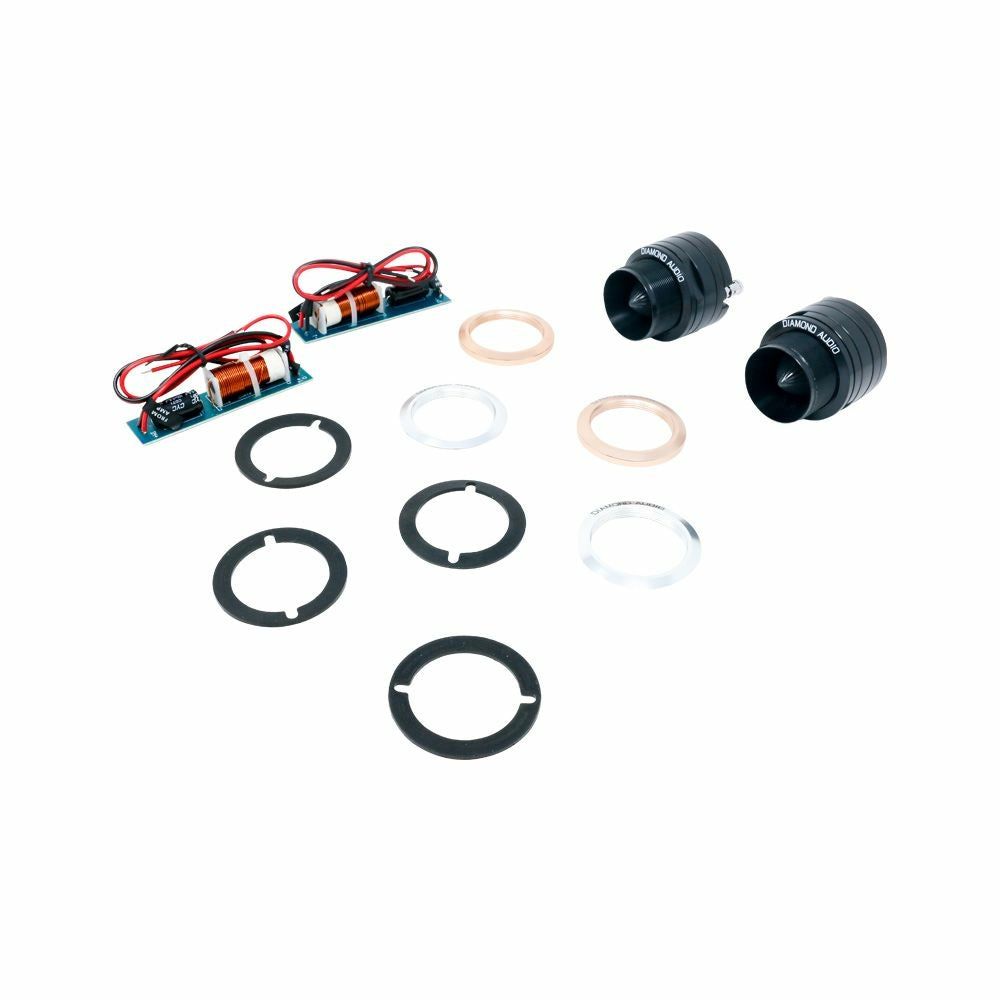

- Includes mounting rings for custom built
- Composite rubber mounting frame
- Rebuildable diaphragm replacement design
- Diamond Audio MRD (sold separately)
- Radial slit phase plug for better response
- 12dB crossover for maximum protection
- Impedance: 4 ohm
- Sensitivity: 107 dB
- Frequency Response: 3000 - 20000 Hz
- Overall Depth: 2.22"
- Overall Diameter: 2.28"
Need help choosing? Explore our installation services before planning your build.
