DS18 3" High Compression Neodymium Hybrid Driver/Tweeter 140 Watts 1" Pen 4-Ohm Vc
DS18 3" High Compression Neodymium Hybrid Driver/Tweeter 140 Watts 1" Pen 4-Ohm Vc
Couldn't load pickup availability
20 in stock
Bring definition to the high frequencies
The DS18 3" High Compression Neodymium Hybrid Driver/Tweeter 140 Watts 1" Pen 4-Ohm Vc adds a dedicated high-frequency driver to your audio build. Pair it with compatible midrange drivers and the correct crossover settings for a balanced system.
Key details
- Model / SKU: PRO-TWN4
- RMS Power: 140 Watts
- Frequency Response: 1.5KHz - 20KHz
- Mounting Depth 1.13"
- Sold individually; select the quantity your build requires.
Fitment & system matching
Confirm impedance, mounting dimensions and the recommended high-pass crossover. Check whether the listing is for one driver or a pair before ordering.
Full product details & specifications
3" High Compression Neodymium Hybrid Driver/Tweeter
The PRO-TWN4 handles 70W AES, 140W Program, and 280W MAX, offering dynamic highs that cut through any mix. Its 1-inch PEN (Polyarylene Ether Nitrile) voice coil offers clean, distortion-free sound at all volume levels.
Lightweight Neodymium Magnet Efficiency
Built with a strong but lightweight neodymium magnet, this tweeter’s sensitivity has been maximized (105dB). This means louder, clearer sound with less power: making it ideal for a wide range of setups.
Safe & Reliable with Included Bass Blocker

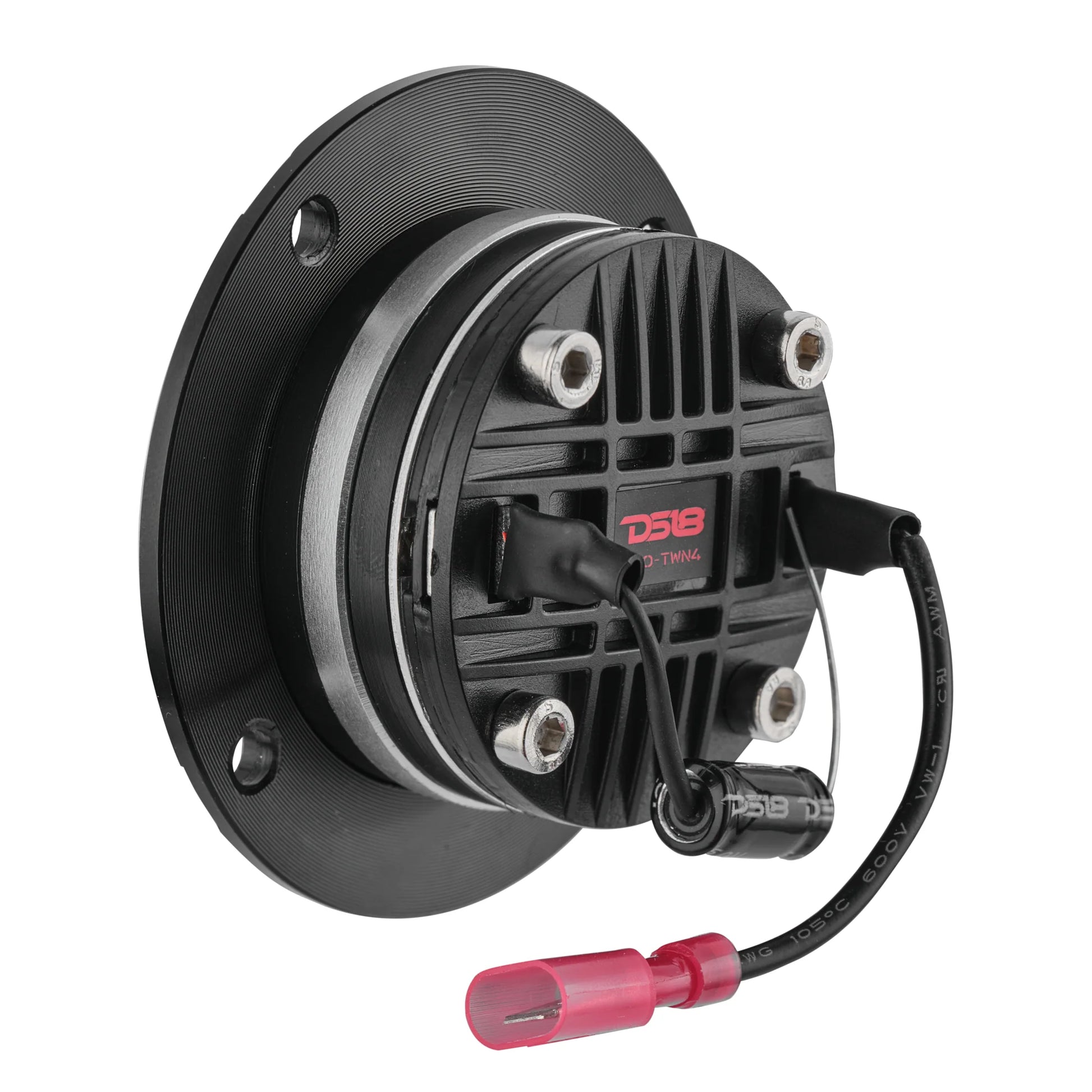

Each PRO-TWN4 includes a bass blocker to guard the tweeter from damaging low frequencies. This safeguards your system and guarantees longevity, letting you push your audio to the limits worry-free.
The PRO-TWN4 combines power and clarity to elevate your soundstage. Upgrade to high performance today!
Sold individually
Model: PRO-TWN4
Type: Super Bullet Tweeter
RMS Power: 140 Watts
MAX Power: 280 Watts
Voice Coil Diameter: 1"
Diaphragm Material: PEN
Sensitivity: 105 dB
Impedance: 4 Ohms
Frequency Response: 1.5KHz - 20KHz
Package Quantity: 1
Replacement Diaphragm: PRO-TWN4VC
Magnet Neodymium

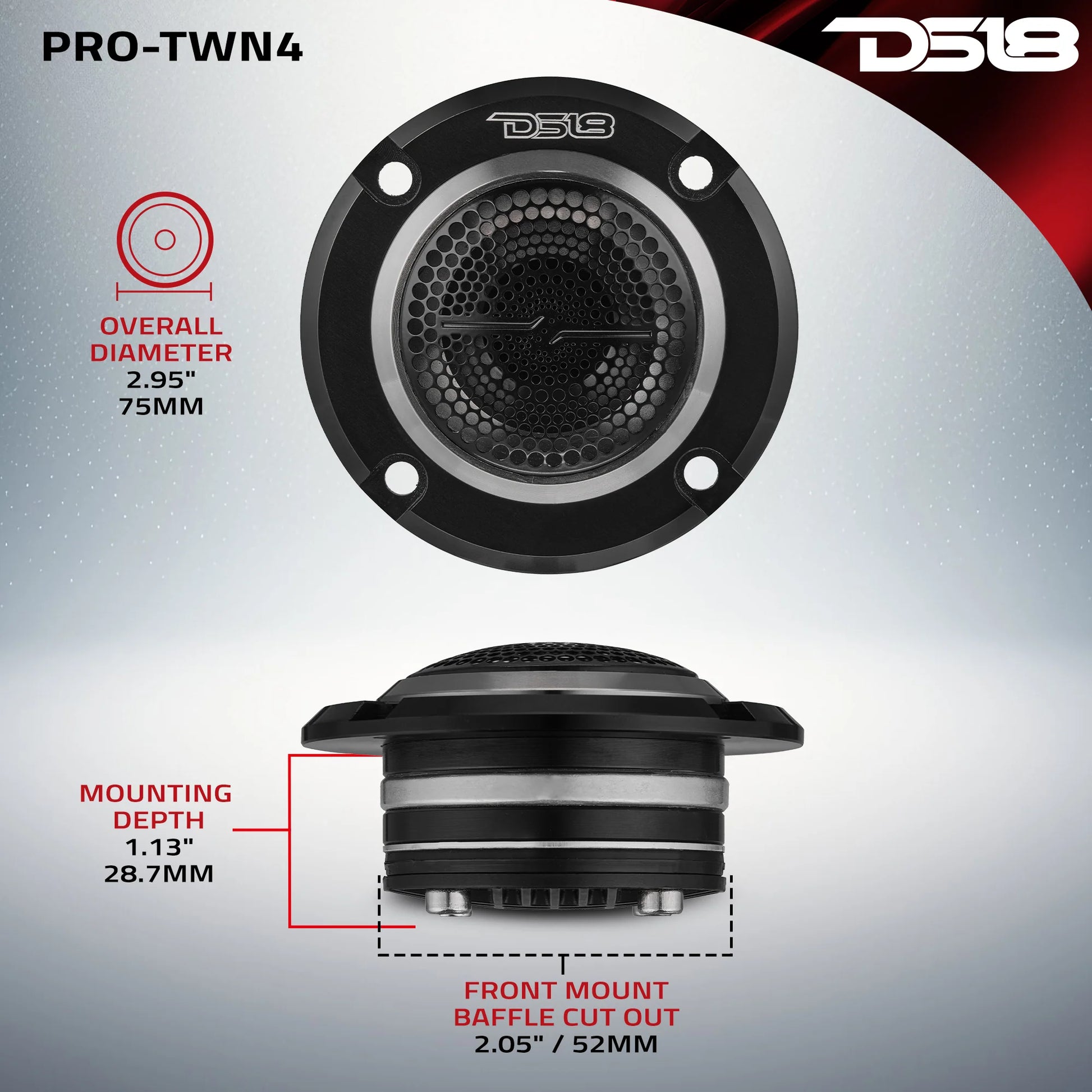

Measurement
Overall Diameter 2.95"
Overall Depth 1.81"
Front Mount Baffle Cutout 2.04"
Mounting Depth 1.13"
