3” High Compression Neodymium Slim Super Bullet Tweeter 240W 1” Titanium 4-Ohm VC
Introducing the DS18 PRO-TWN1, a balanced fusion of power, precision, and elegance that sets the stage for an immersive car audio experience.
Small, sleek, and LOUD - these three words encapsulate the essence of DS18's PRO-TWN1. Crafted towards perfection, the PRO-TWN1 is engineered for crystal-clear high frequency reproduction that expands your soundstage’s sensibility.
The expert construction of the PRO-TWN1 is a testament to DS18’s professional construction of all our audio components. The robust aluminum frame is meant to aid in withstanding the rigors of demanding audio environments, ensuring longevity and performance.
With its 1-inch titanium voice coils, the PRO-TWN1 effortlessly handles an impressive 120W RMS, allowing you to push the boundaries of auditory excellence. Its peak power handling of 240W, coupled with a frequency response ranging from 3KHz to 20KHz, guarantees an audio experience that transcends boundaries. The 4-ohm impedance ensures efficient power utilization and seamless integration with your existing setup, maximizing the potential of your car audio system. Equipped with cutting-edge Neodymium magnets, the PRO-TWN1 has unrivaled power handling and breathtaking sensitivity.
Embrace the PRO-TWN1's versatility, as it seamlessly integrates into your car audio setup. Its compact size and thoughtful design allow it to fit into most spaces with minimal modification or fabrication, enabling you to achieve optimal sound distribution throughout your vehicle. Furthermore, the built-in grills provide an additional layer of protection, shielding the inner workings of this super tweeter from potential damage, so you can enjoy your music worry-free.
Sold individually
- 3" High Compression Slim Bullet Tweeter
- RMS Power: 120 Watts(240 Watts Peak)
- Impedance: 4 Ohm ~ 104dB
- Neodymium Magnet
- Flush Style Mount
SPECS
SKU
PRO-TWN1
Nominal Diameter
3"
Nominal Impedance
4 OHMS
AES Power Handling
60 Watts
Program Power Handling
120 Watts
Peak Power Handling
240 Watts
Sensitivity (1w/1m)
104 dB
Frequency Response
3KHz - 20KHz
Recommended Hi Pass Crossover
3 KHz
MOTOR
Voice Coil Diameter
1" / 25.4 mm
Voice Coil Former Material
NSV
Winding Material
Pure Aluminum Round Wire
Diaphragm Material
Titanium
Magnet Material
Neodymium
Magnet Size
0.96" x 0.27"
Body Material
Aluminum
Bullet Material
CNC Aluminum

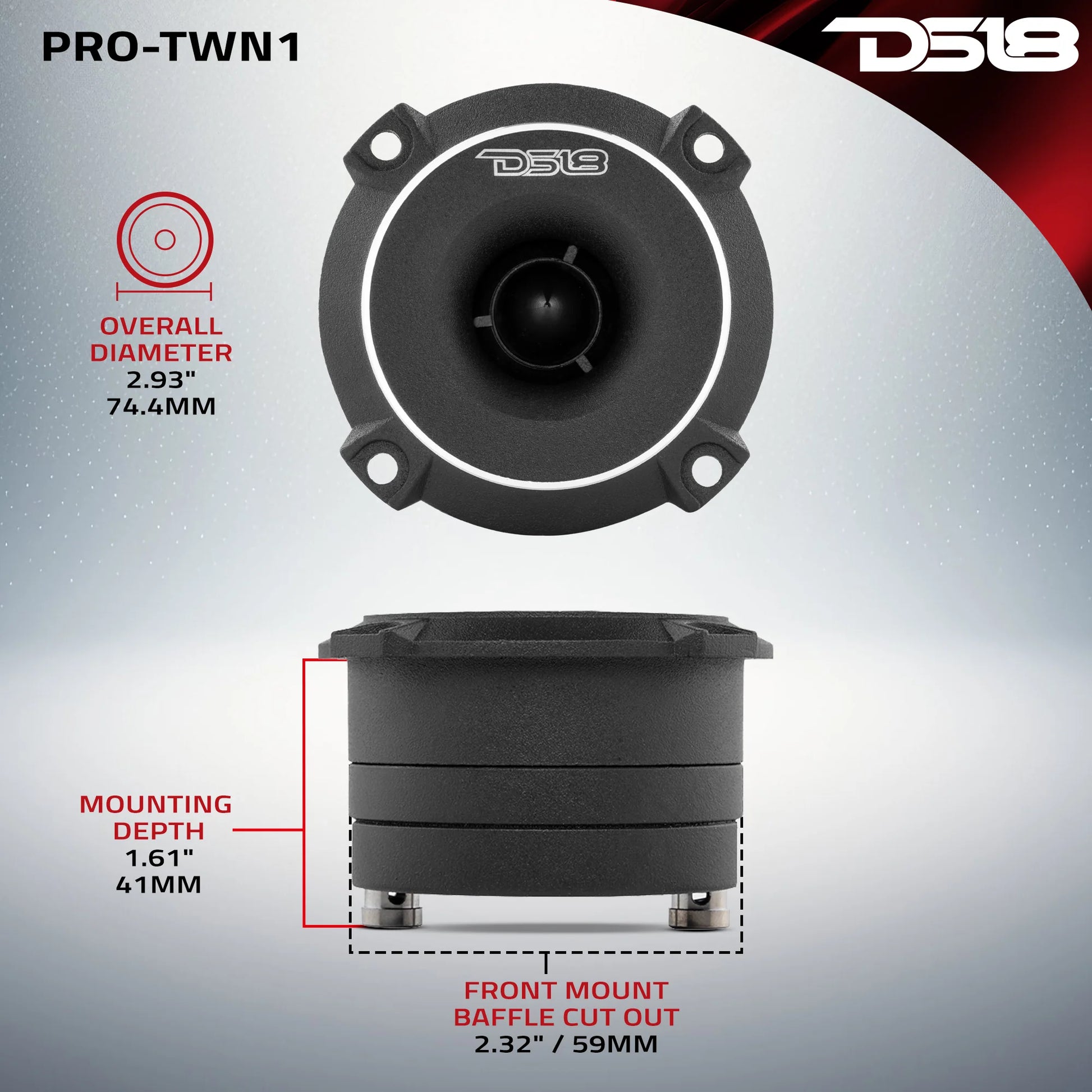

MEASUREMENTS
Overall Diameter
2.93" /74.4mm
Overall Depth
1.87" /47.5mm
Front Mount Baffle Cutout
2.32" /59mm
Mounting Depth
1.61" /41mm
