DS18 4.5" Super Bullet Tweeter 280 Watts 1.75" Titanium 4-Ohm Vc

4.5” Super Bullet Tweeter 560W 1.75” Titanium 4-Ohm VC

Engineered and designed in the US, DS18’s PRO-TWX4’s is a testament to DS18's commitment to audio excellence in the Pro Audio/Voceteo market.
Imagine the power and precision of a major concert’s sound system packed into a single tweeter. That's exactly what DS18’s PRO-TWX4 delivers. Handling a staggering 560W of MAX Power, the PRO-TWX4’s will take your car audio experience to new heights. But what sets them apart from the competition?
Our team of dedicated audio experts poured months of relentless tests and experiments into perfecting the PRO-TWX4. From the demands of our customers to the obstacles we had to overcome, every step of the development process was driven by a non-stop innovative attitude. The result? An award-winning super tweeter that has been seen in countless shows and competitions, in the loudest vehicles in the world.
DS18’s PRO-TWX4 is designed to emphasize extreme high notes with amazing precision and clarity. The 1.75-inch 4-ohm titanium voice coil ensures that every detail in your music is brought to life, guarantees optimal performance and compatibility with your car audio system. DS18’s PRO-TWX4’s delivers insane highs at extreme volumes, creating an immersive audio experience that will leave you in awe.
But it's not just about power. DS18’s PRO-TWX4 is built to last. The aluminum body and bullet material ensure durability and longevity, while the ferrite magnet and CCAW winding material provide reliable and consistent performance. DS18’s PRO-TWX4 is designed to handle the demands of the most discerning car audio enthusiasts and the system’s they love.

Sold individually

Nominal Diameter    4.53” / 115mm
Nominal Impedance    4 Ohms
AES Power Handling    140W
Program Power Handling    280W
Peak Power Handling    560W
Sensitivity (1w/1m)    108 dB
Frequency Response    1.5KHz-20KHz
Recommended Hi Pass Crossover    2KHz
Pair or Single    Single
MOTOR
Voice Coil Diameter    1.75” / 44.4mm
Voice Coil Former Material    Kapton
Winding Material    CCAW
Diaphragm Material    Titanium
Magnet Material    Ferrite
Magnet Weight    16 oz
Body Material    Aluminum
Bullet Material    Aluminum

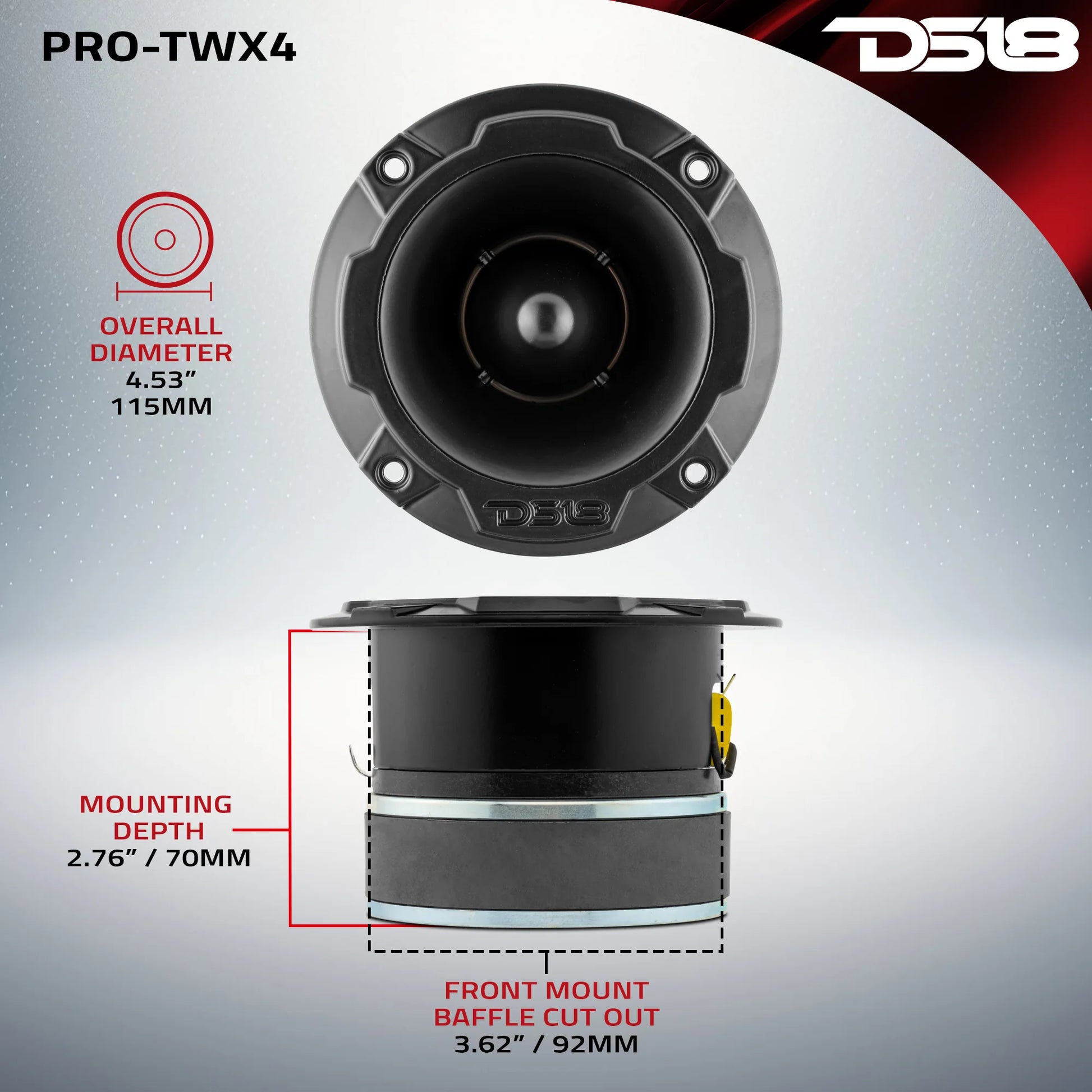

MEASUREMENTS
Overall Diameter    4.53” / 115mm
Overall Depth    3.01“ / 76.5mm
Front Mount Baffle Cutout    3.62” / 92mm
Mounting Depth    2.76” / 70mm
Motor Diameter    3.56” / 90mm
