DS18 4" High Compression Tweeter | Neodymium Magnet | 4-Ohm

DS18 4" High Compression Tweeter | Neodymium Magnet | 4-Ohm

Regular price $155.99 USD
Regular price Sale price $155.99 USD
Sale Sold out
Quantity

20 in stock

4" High-Compression Tweeter with 1.5" PEI Voice Coil & Neodymium Magnet

The PRO-TW850CN-4 is laser-sharp: this 4” compression tweeter brings crystal-clear clarity at extreme volumes so you hear everything.

High-Performance Frequency Range
Covering 700Hz–20KHz, the PRO-TW850CN-4 slices through noise with ultra-detailed reproduction and smooth definition across the top end.

Built for Power, Tuned for Precision
Built around a 1.5” PEI voice coil paired with a neodymium magnet — this lightweight powerhouse has incredible sensitivity and perfect response. All at 170W AES and 250W Program Power.

CNC Aluminum Construction
Machined from durable CNC aluminum, the bullet and body are as sleek as they are strong. Available in black or silver to match your setup perfectly.

Hear what your system’s been missing with DS18’s PRO-TW850CN-4!

Sold individually

  • 4" High Compression Tweeter
  • RMS Power: 250 Watts(500 Watts Peak)
  • Impedance: 4 Ohm ~ 111dB
  • Neodymium Magnet

Specifications

SKU
PRO-TW850CN-4/BK
Nominal Diameter
4" / 101mm
Nominal Impedance
4 ohms
AES Power Handling
170W
Program Power Handling
250W
Peak Power Handling
500W
Sensitivity (1w/1m)
111dB
Frequency Response
700Hz-20KHz
Recommended Hi Pass Crossover
1KHz
Sold In Pair or Single
Single


Body / Features

Filter (Bass Blocker)
4.7uf / 100V
Body Material
Aluminum
Bullet Material
CNC Aluminum

Voice Coil Diameter
1.5" / 38mm
Voice Coil Former Material
KSV
Winding Material
CCAR
Diaphragm Material
PEI
Magnet Material
Neodymium
Magnet Size
3.42"x0.25" / 87x6mm
Magnet Weight
7.4 Oz

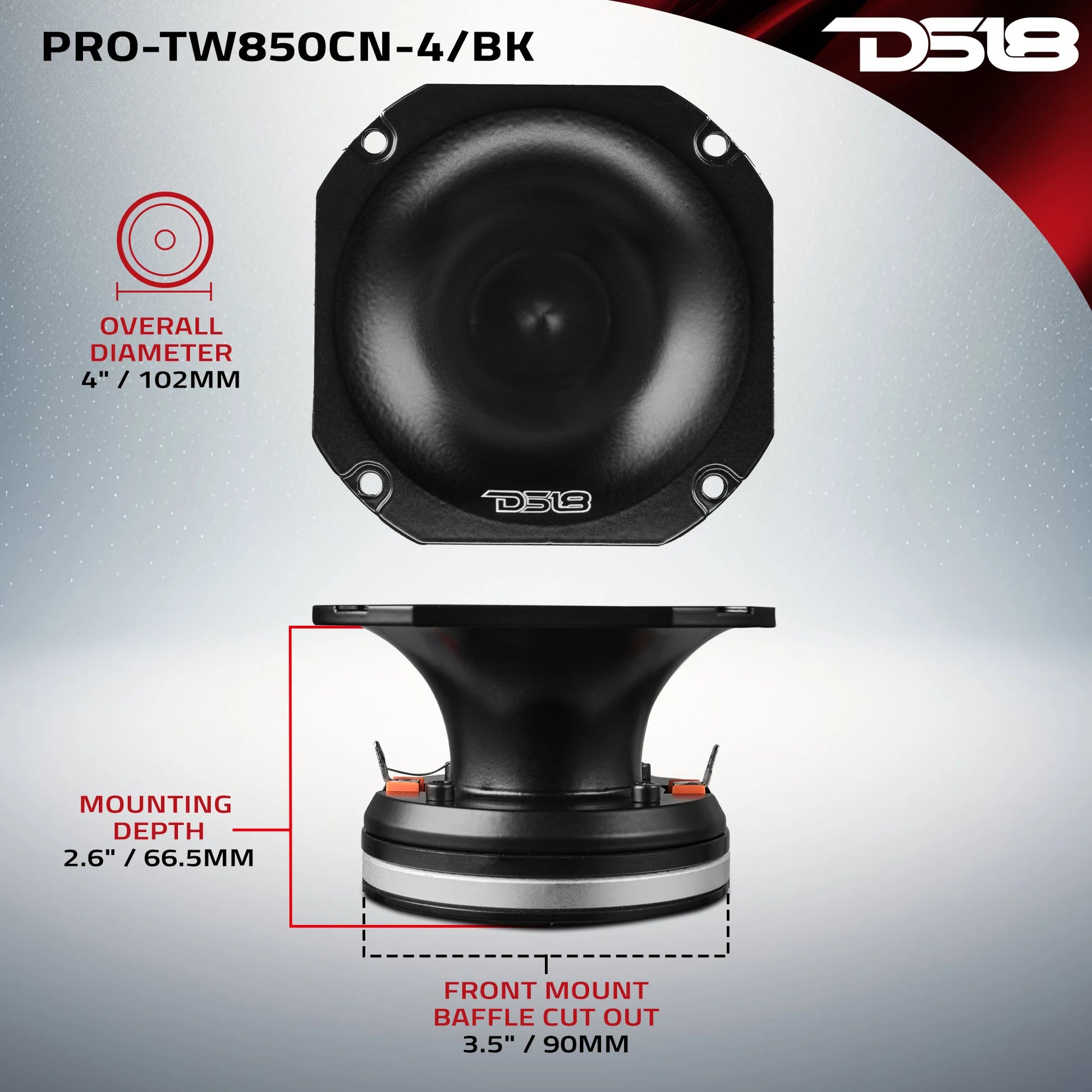

Measurement

Overall Diameter
4" / 102mm
Overall Depth
2.8" / 71.5mm
Front Mount Baffle Cutout
3.5" / 90mm
Mounting Depth
2.6" / 66.5mm
