DS18 EQX7 7 Band Equalizer with High Level Input and Auto Turn On

High Volt 7-Band Equalizer with High Level Input, Auto Turn On

The EQX7 allows you to take complete control of your audio system, pushing it past its limits with unparalleled precision and clarity. This high-strength 7-band stereo equalizer/crossover is the upgrade needed to achieve your audio dreams.
Harnessing the power of its seven bands, including frequencies of 50Hz, 125Hz, 320Hz, 750Hz, 2.2KHz, 6KHz, and 16KHz, the EQX7 ensures the most precise audio reproduction. With adjustable frequencies ranging from -12 to +12dB (-15 to +15dB for subwoofer frequencies), you have the power to fine-tune your sound to perfection.

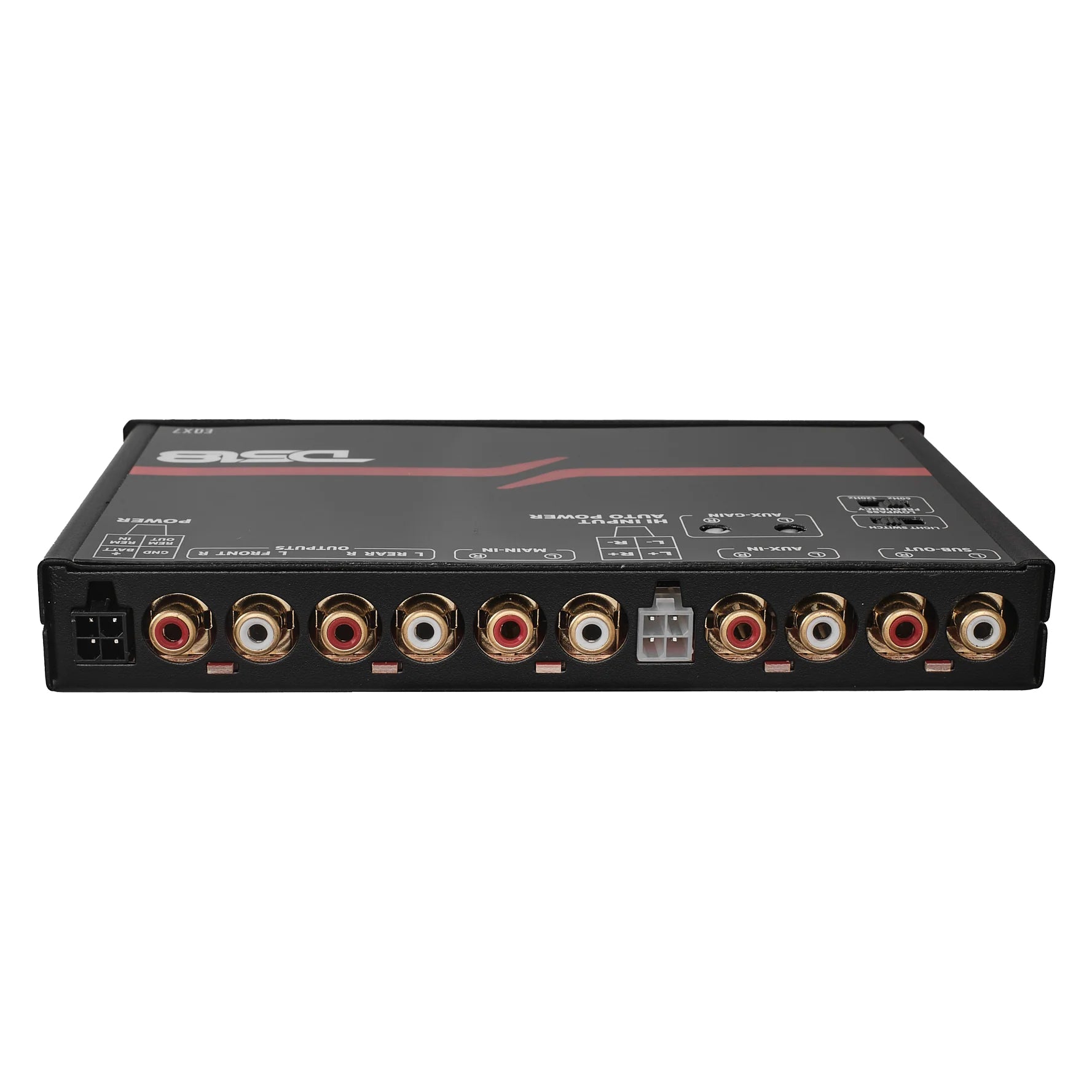

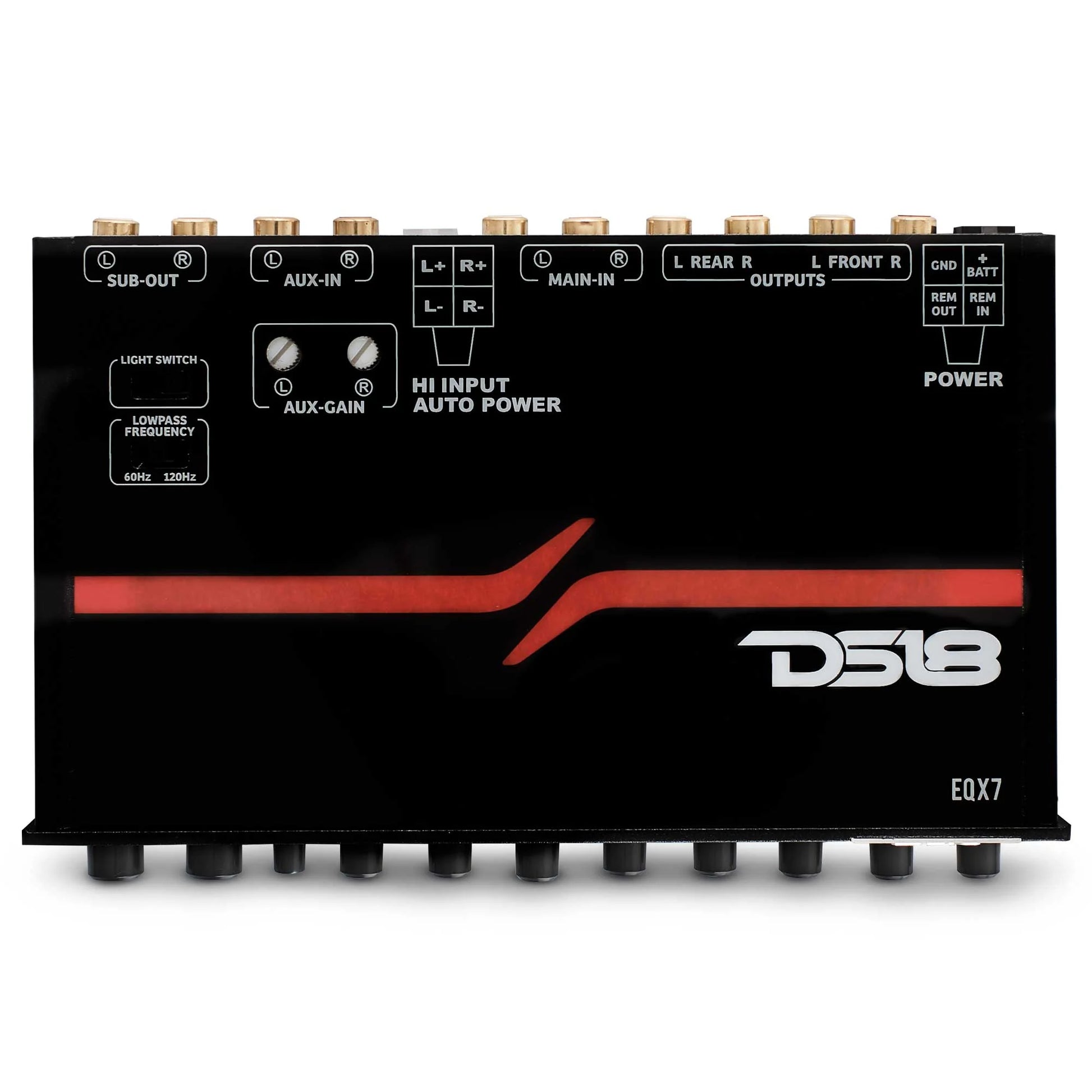

The EQX7 offers three stereo RCA outputs, dedicated to driving your front, rear, and subwoofer audio amplifiers. Take control of your audio experience with separate controls for master volume, subwoofer volume (sub level), front/rear fade, and the choice between main or auxiliary inputs. The integrated speaker Hi-Level Converter ensures low-level RCA output for seamless integration with your existing system. With the Auto Turn-On feature, the EQX7 activates automatically when connected directly to the factory radio source, eliminating the need for manual intervention.
DS18 understands the importance of delivering audio with unmatched precision. That's why the EQX7 offers an extended frequency response from 20Hz to 30KHz, boasting exceptional 100 dB signal-to-noise performance.
The EQX7 can be mounted next to your source unit or discreetly underneath your dash, thanks to the included mounting brackets. This ensures easy access to the front panel controls right from the driver's seat, giving you full command of your audio system at your fingertips. It's time to shape your sound exactly how you envision it.

Model    EQX7
Boost / Cut    12dB
S/N ratio    100dB
Frequency Response    10Hz-50KHz +/-1dB
Maximum Output voltage    8V
THD    0.005%
Input impedance    50mV- 3 V
Head Room    20 dB
Output impedance    2K Ohms
Input impedance    20K Ohms
Stereo Separation    82 dB/1 KHz
Operating voltage    11V-15V Negative Ground
Dimension(L x W x H)    7" x 4.40" x 1.18"
