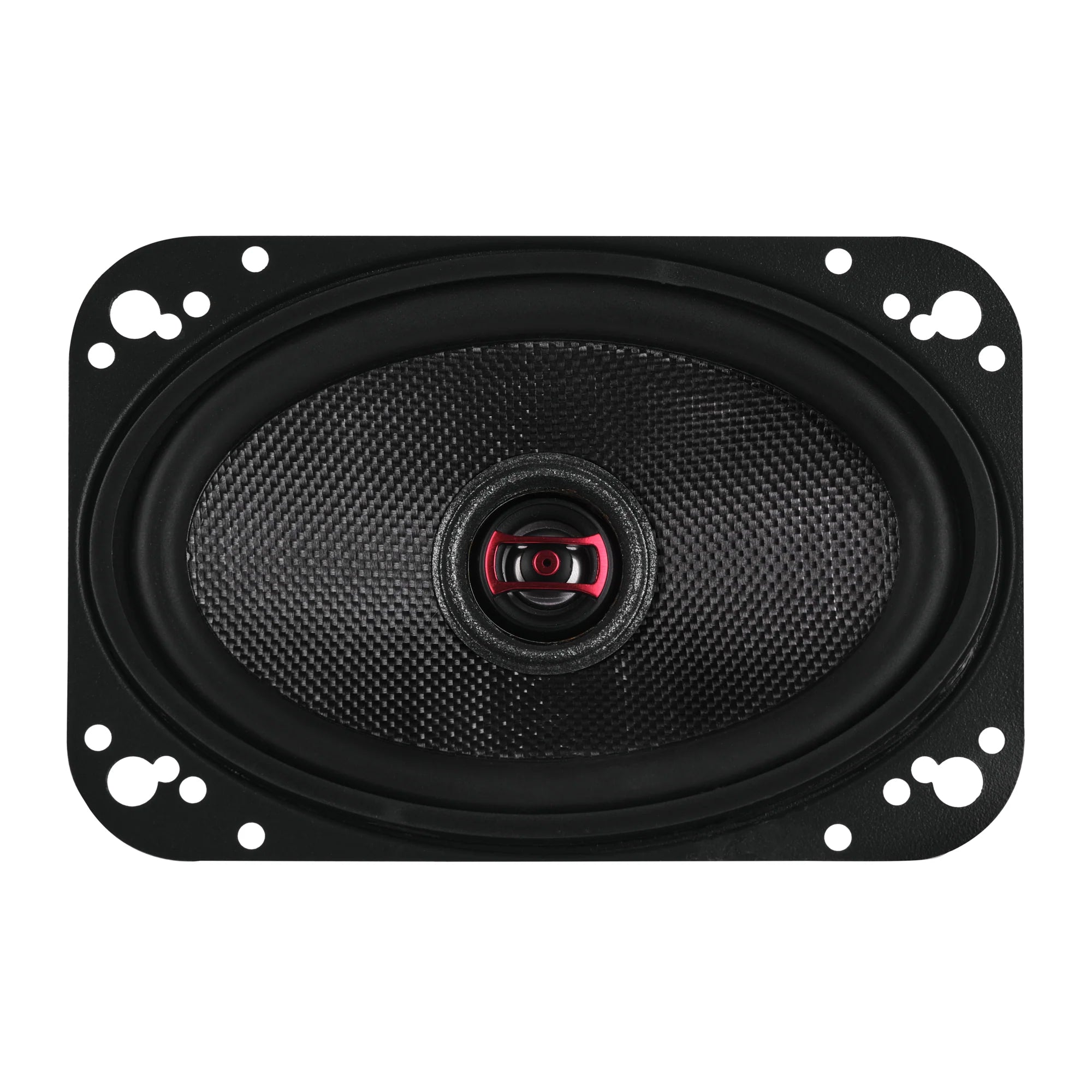

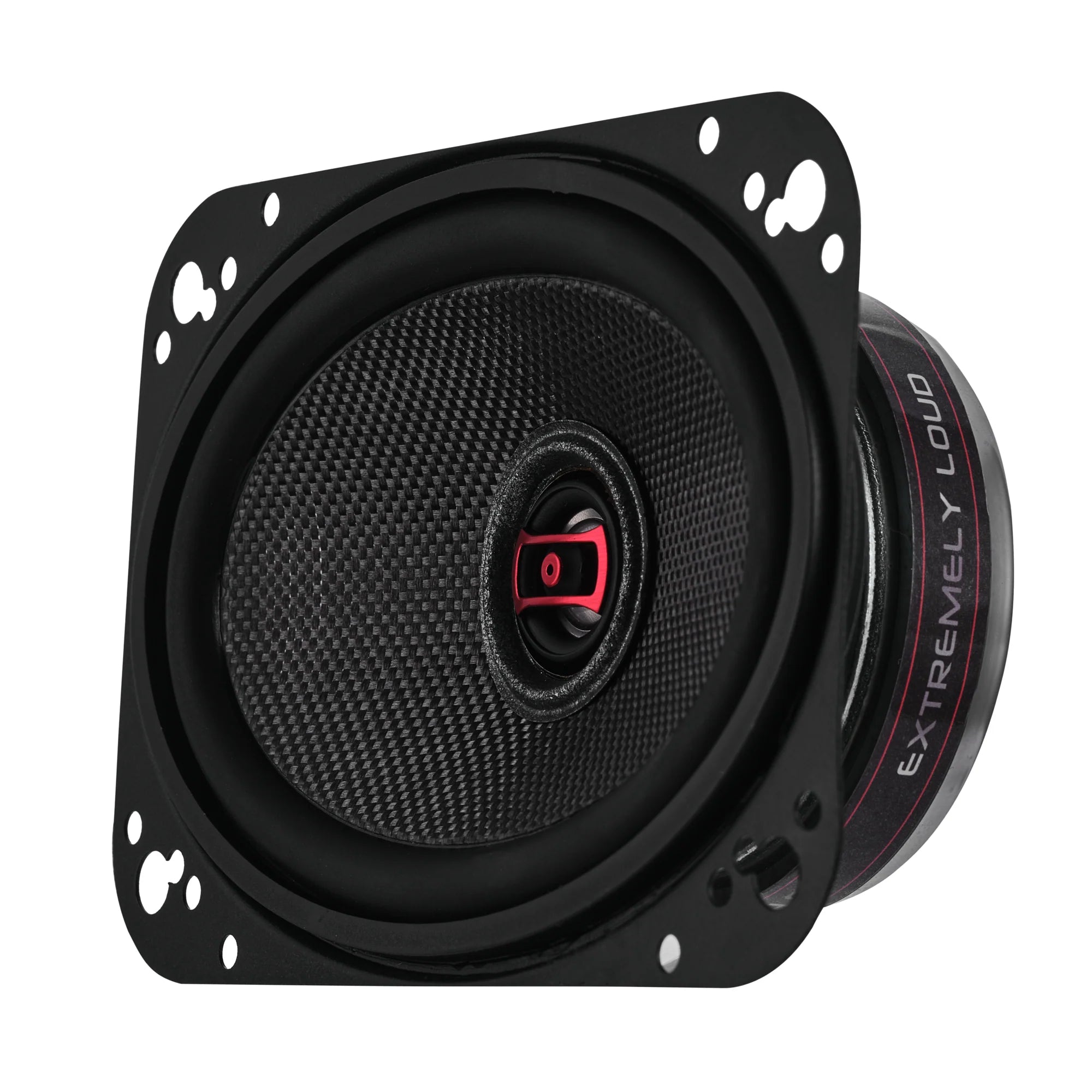

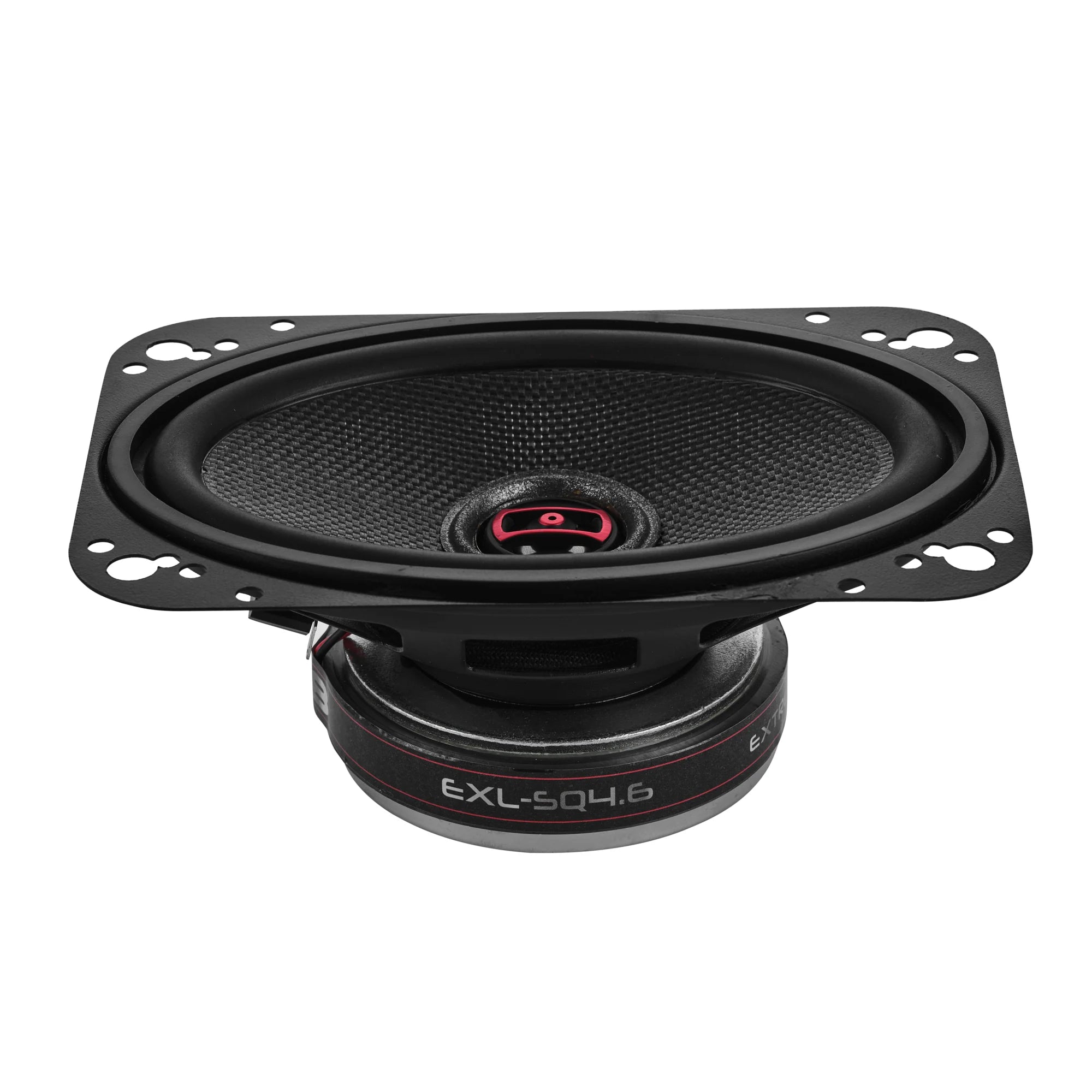

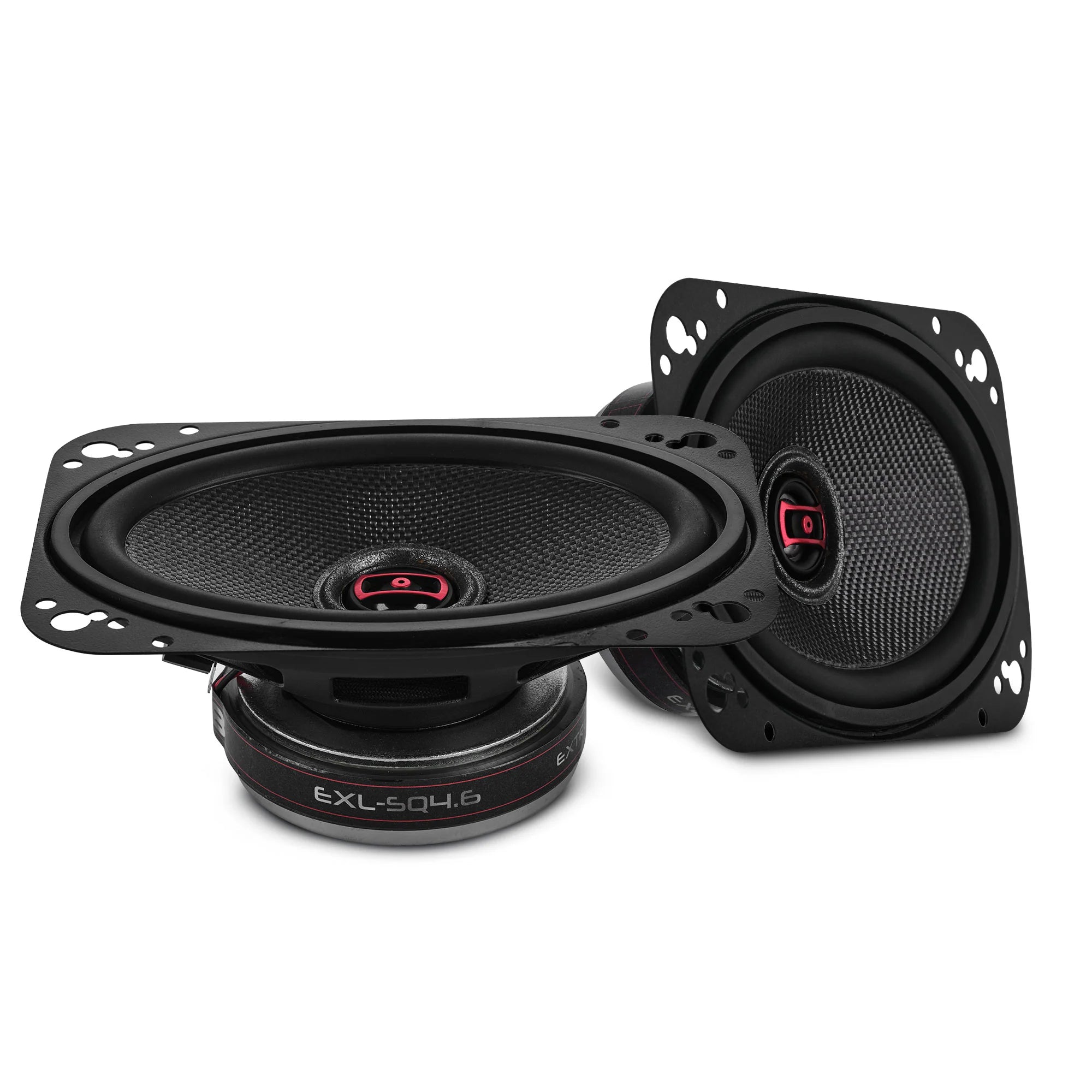

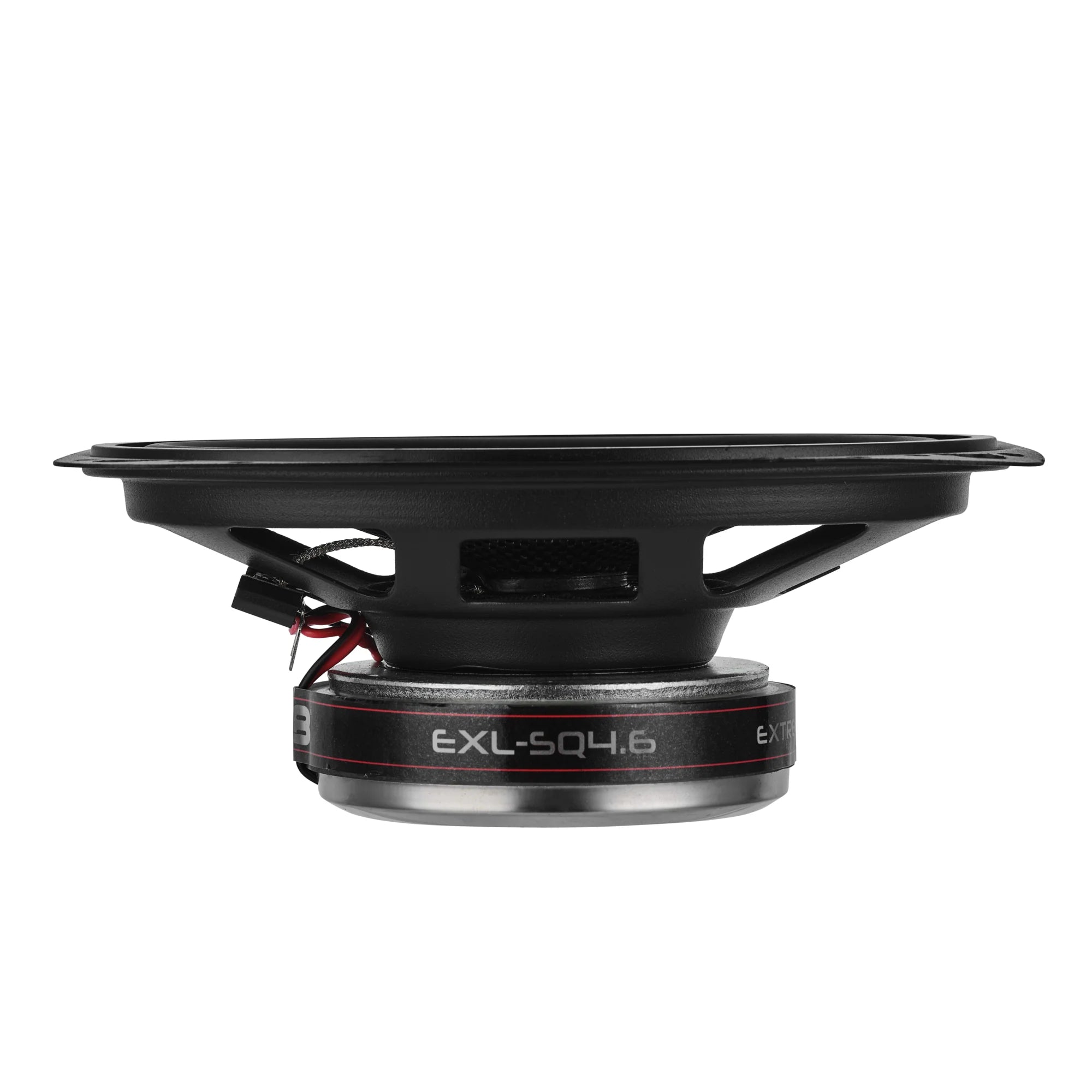

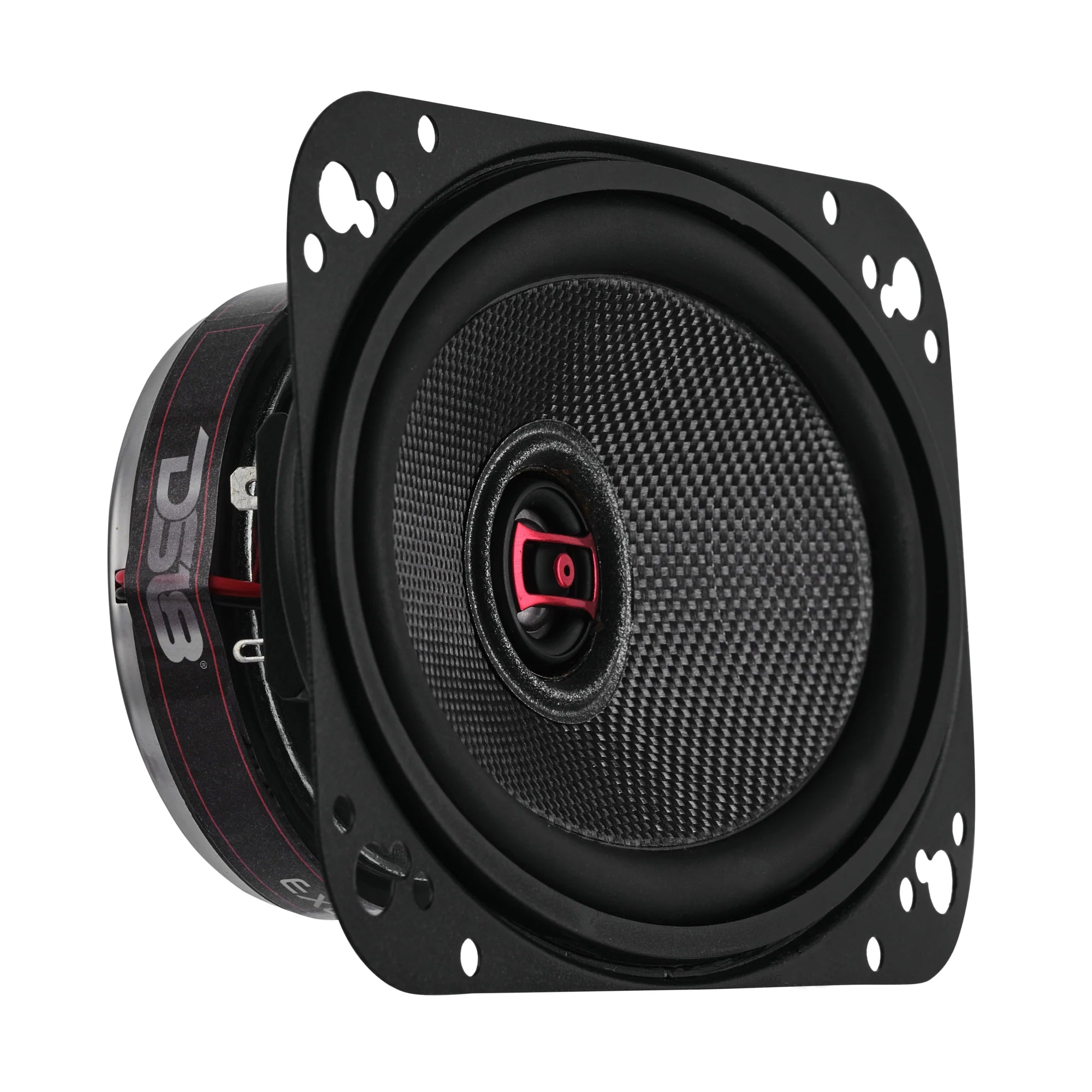

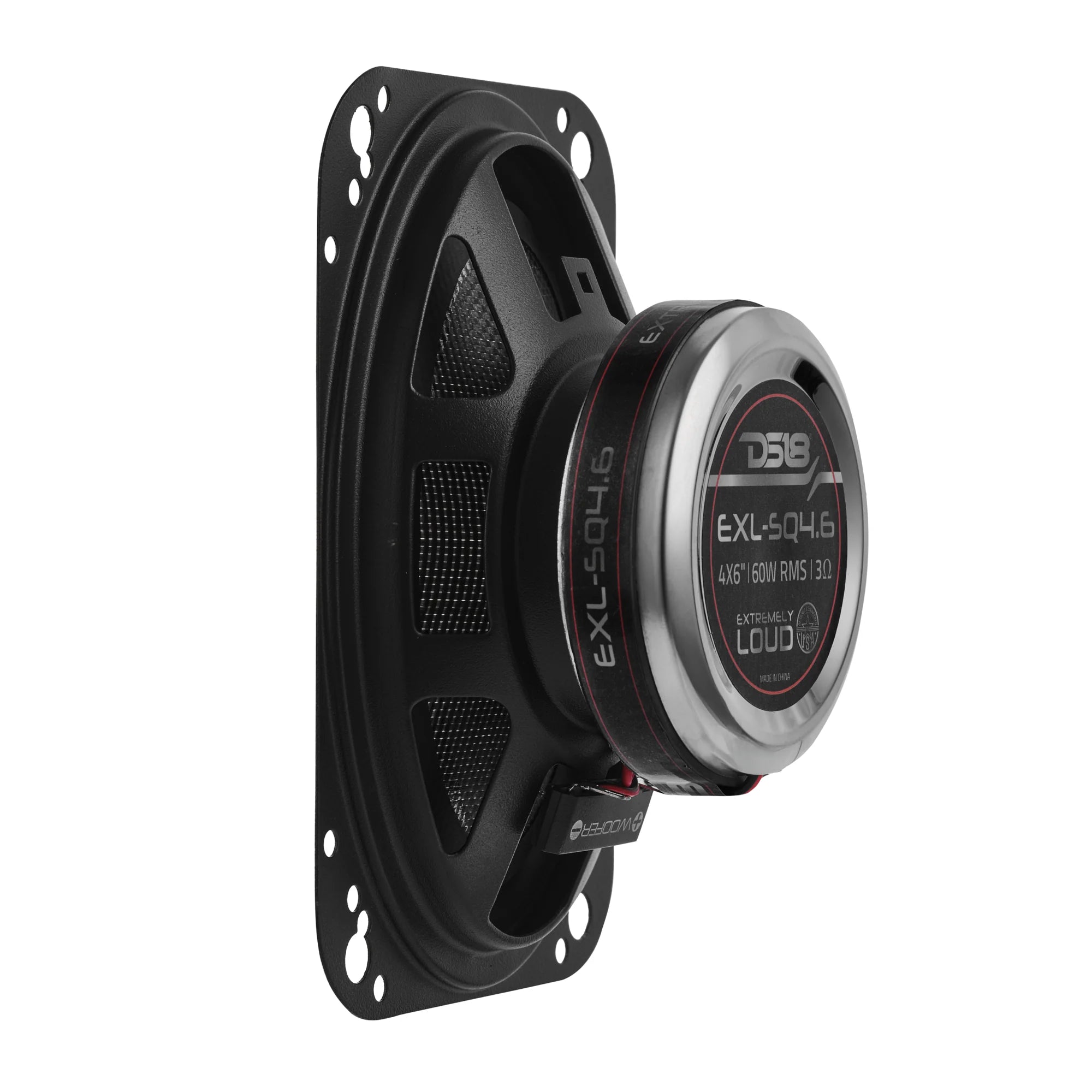

DS18 EXL 4x6” 2-Way Coaxial Speaker with Fiber Glass Cone | 60W RMS 3-Ohm

4x6” 2-Way Coaxial Speaker

The EXL-SQ4.6 is your new weapon of choice for smooth detail that slices through road noise with ease.

Tuned for Precision
Handling up 60W RMS and 260W MAX, the EXL-SQ4.6 transforms any ride into a rolling soundstage. With a frequency response from 80Hz to 22kHz, you’ll hear every detail like never before.

Built with Purpose
The EXL-SQ4.6’s glass fiber cone and rubber surround deliver responsive low-end with pro-grade clarity. The 1” ASV voice coil stays cool under pressure, while the 9oz barium magnet drives smooth, consistent sound.

Clear Highs That Cut Through
Equipped with a 0.8” neodymium tweeter and a Mylar diaphragm, the highs stay bright and distortion-free — even at high speeds.

Rugged by Design
Housed in a black steel basket, the EXL-SQ4.6 is built tough for the road. And yes, the grilles are included.

Level up your setup with DS18’s EXL-SQ4.6!

General Specifications

Nominal Diameter
4x6" / 101.6x152.4mm
Nominal Impedance
3 ohm
RMS Power Handling
60W
MAX Power Handling
260W
Sensitivity (1w/1m)
87 dB
Frequency Response
80Hz - 22KHz
Recommended HI Pass Crossover
100Hz
Number of ways
2-way
Pair or Single
Pair
Grill Included
No

Woofer Specifications

Voice Coil Diameter
1? / 25.5mm
Voice Coil Former Material
ASV
Winding Material
Copper
Cone Material
Glass Fiber
Surround Material
Rubber
Basket Material
Steel
Basket Color/Finish
Black
Magnet Material
Barium
Magnet Weight
9 Oz

Thiele & Small Parameters

Equivalent Volume
3.6L / 0.12ft3
Free Air Resonance
96Hz
Mechanical Factor
4.964
Electrical Factor
1.136
Total Factor
0.924
DC Resistance
2.8 ohm

Tweeter Specifications

Nominal Diameter
0.8? / 20.3mm
Voice Coil Diameter
0.5" / 13mm
Diaphragm Material
Mylar
Magnet Material
Neodymium

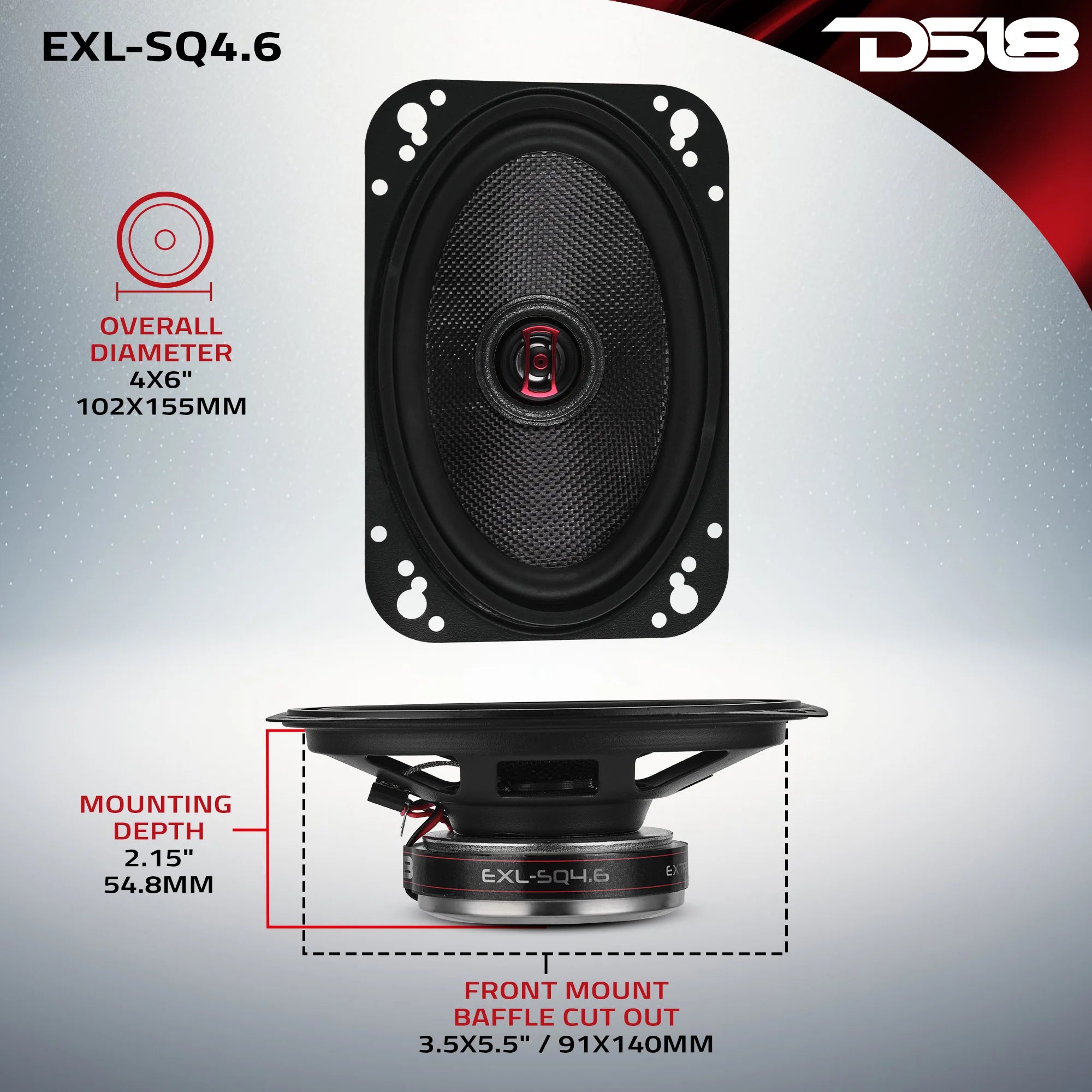

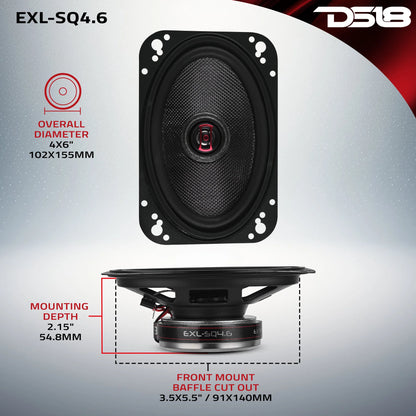

Speaker Measurement

Overall Diameter
4x6" / 102x155mm
Overall Depth
2.37" / 60.4mm
Front Mount Baffle Cutout
3.5x5.5" / 91x140mm
Mounting Depth
2.15" / 54.8mm
Motor Diameter
3.14" / 80mm
