DS18 EXL 5x7" 2-Way Coaxial Speaker | 120W RMS 3-Ohm

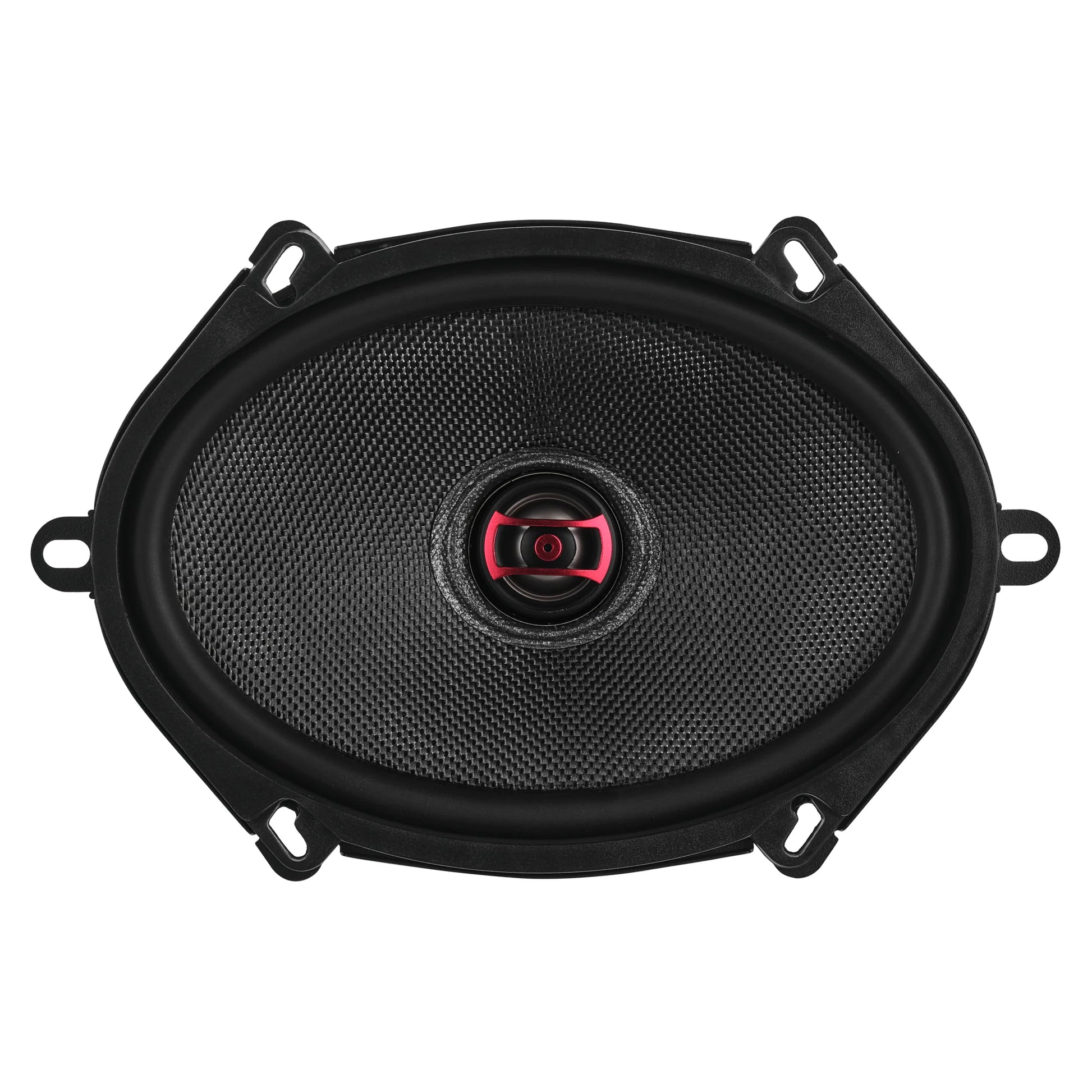

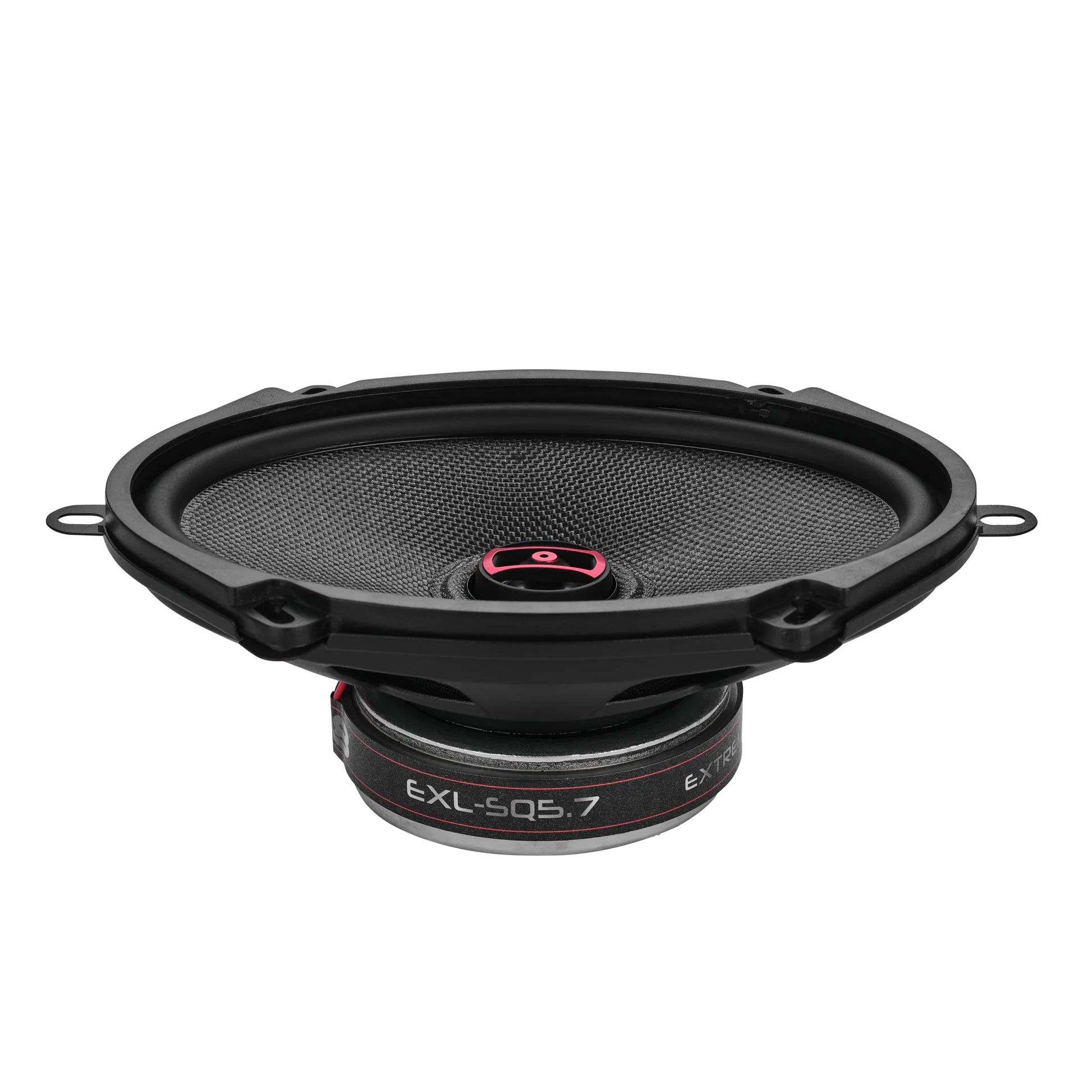

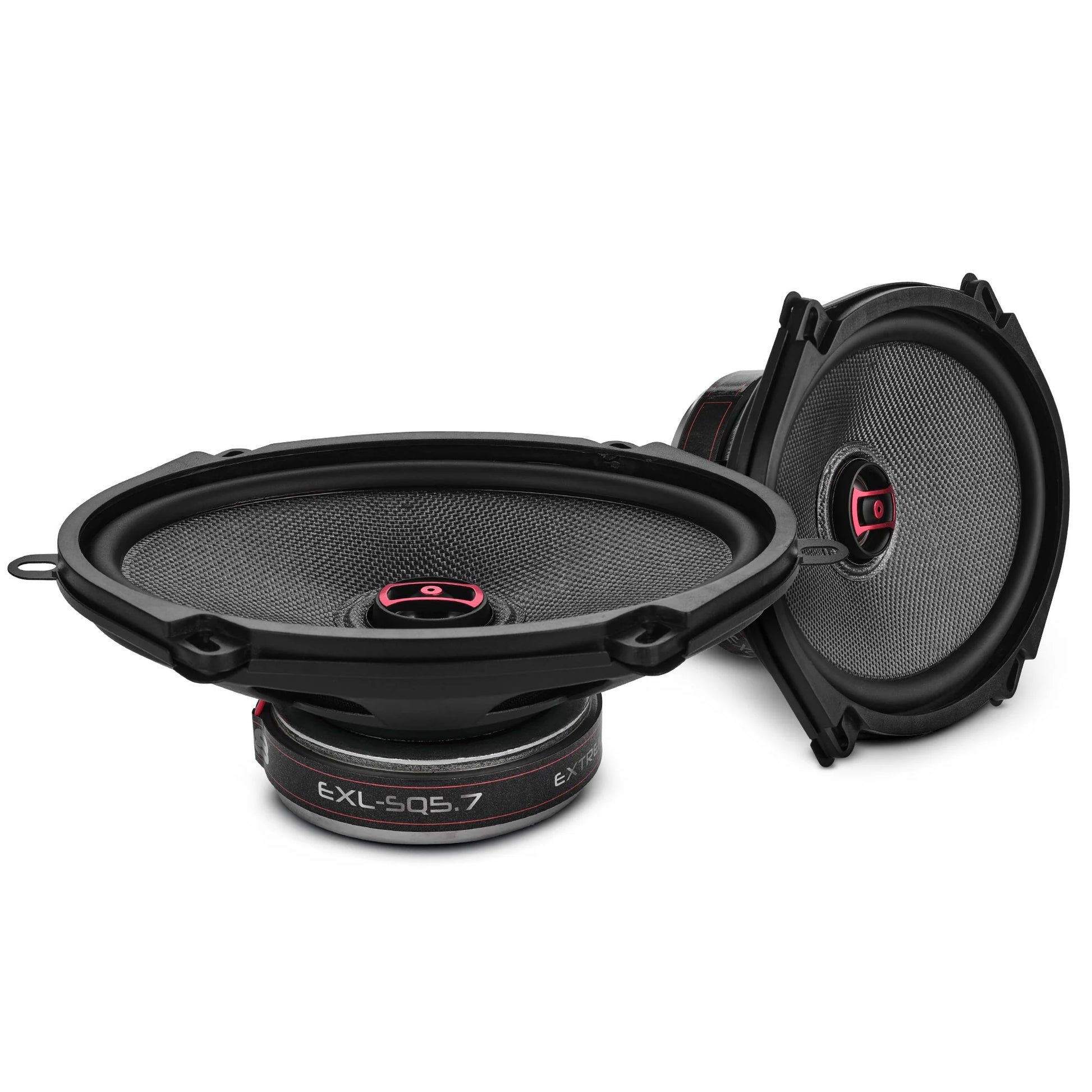

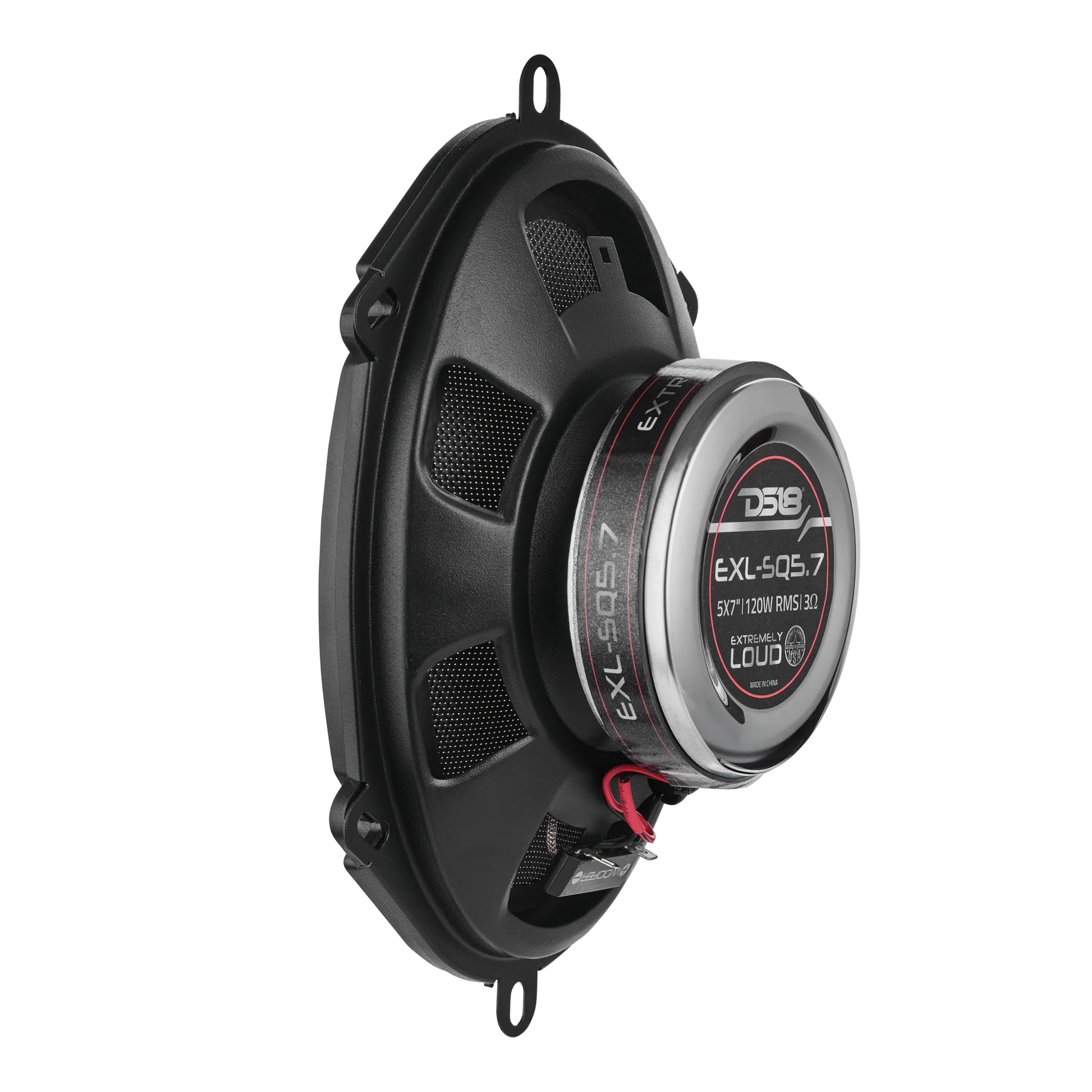

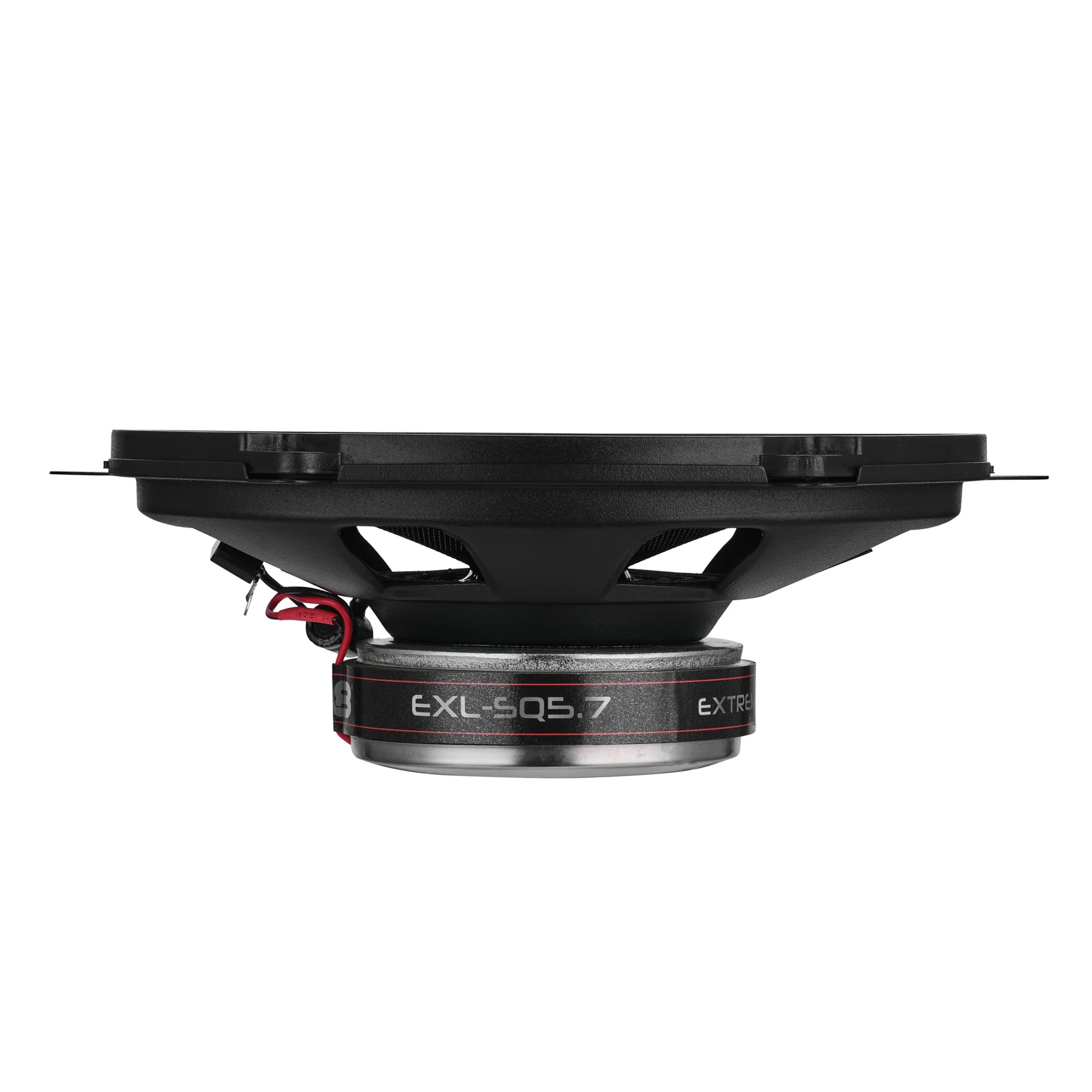

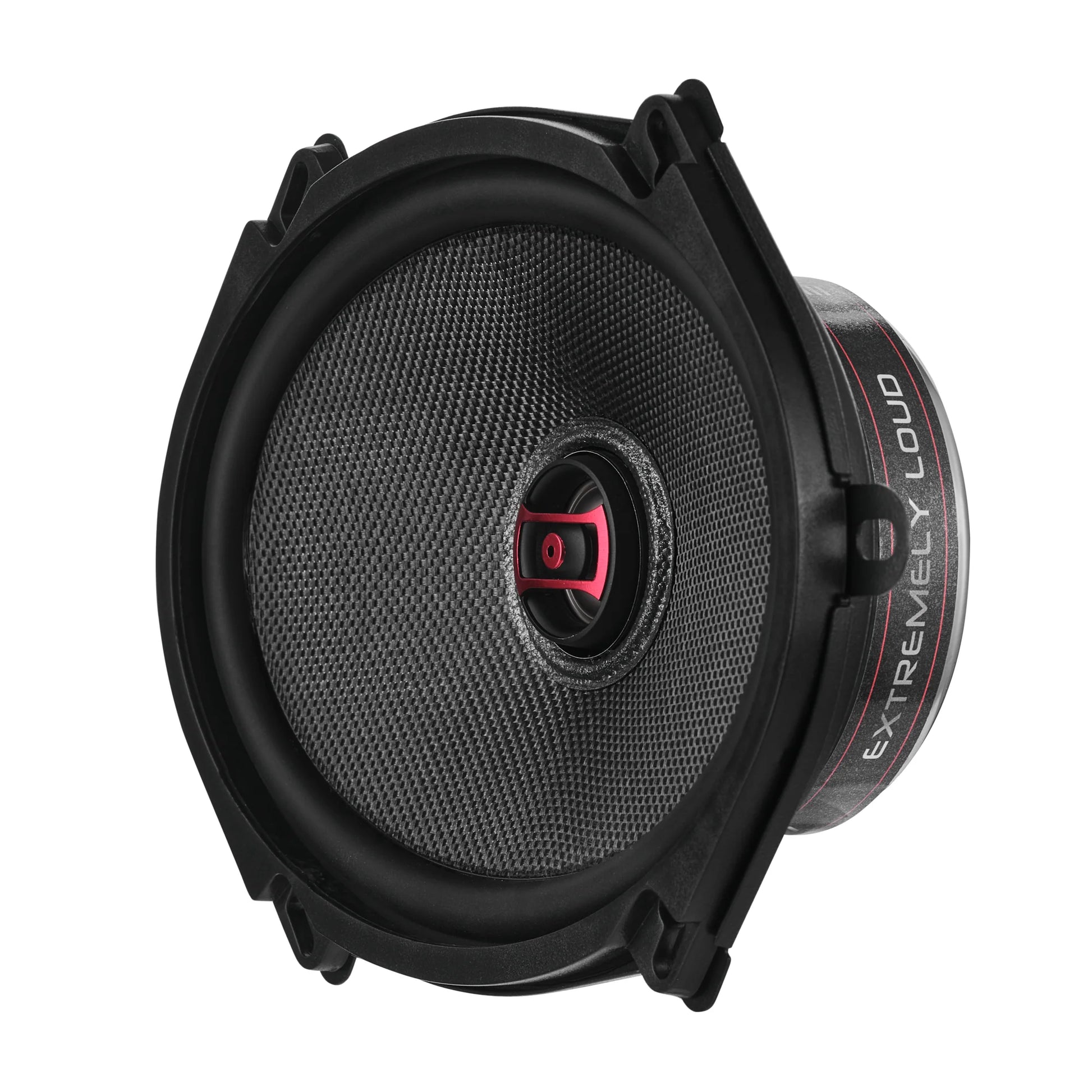

5x7" 2-Way Coaxial Speaker

The EXL-SQ5.7 pushes 120W RMS at 3 ohms, and handles a MAX of 400 watts. This speaker details sound from 60Hz up to 22kHz and cuts through any mix easy!

Advanced Speaker Components
Featuring a durable glass fiber woofer cone with rubber surround, the EXL-SQ5.7 ensures longevity and accurate reproduction. The 1.3-inch ASV voice coil handles heat effectively for consistent performance. A barium magnet weighing powers the system for tight, controlled response.

High-Performance Tweeter
The included 1.14-inch PEI dome neodymium tweeter delivers sharp, clear highs. The built-in crossover protection smoothly integrates with the woofer and decreases distortion.

Built to Last
Constructed with a robust steel basket finished in black, the EXL-SQ5.7 is built for durability and long-term use in demanding automotive environments.

Upgrade to DS18’s EXL-SQ5.7 for pro-grade quality and power that will bring your audio to life!

Specifications

SKU
EXL-SQ5.7
Nominal Diameter
5x7" / 127x177.8mm
Nominal Impedance
3 ohm
RMS Power Handling
120W
MAX Power Handling
400W
Sensitivity (1w/1m)
90 dB
Frequency Response
60Hz - 22KHz
Recommended HI Pass Crossover
80Hz
Number of ways
2-way
Pair or Single
Pair
Grill Included
No

Woofer Specifications

Voice Coil Diameter
1.3" / 33mm
Voice Coil Former Material
ASV
Winding Material
CCAW
Cone Material
Glass Fiber
Surround Material
Rubber
Basket Material
Steel
Basket Color/Finish
Black
Magnet Material
Barium
Magnet Weight
13.5 Oz

Thiele & Small Parameters

Equivalent Volume
14.11L / 0.498ft3
Free Air Resonance
78Hz
Mechanical Factor
3.219
Electrical Factor
1.466
Total Factor
1.144
DC Resistance
2.8 ohm

Tweeter Specifications

Nominal Diameter
1.14? / 29mm
Voice Coil Diameter
0.8" / 20.3mm
Diaphragm Material
PEI Dome
Magnet Material
Neodymium

Speaker Measurement

Overall Diameter
5.5x7.5" / 139x190mm
Overall Depth
2.87" / 73mm
Front Mount Baffle Cutout
5"x7.1" / 127x181mm
Mounting Depth
2.5" / 63.4mm
Motor Diameter
3.54" / 90mm
