DS18 GEN-X 6x9" 3-Way Coaxial Speakers | 60W RMS 4-Ohm

3-Way Coaxial Speakers 180 Watts 4-Ohm

The power, clarity, and range everyone who likes it LOUD loves about the GEN-X series returns in a speaker equipped with an extremely durable steel basket to outlast any vehicle it’s installed in. Making it the perfect choice for anyone looking for a long-lasting and reliable speaker. This is particularly important in the case of car audio systems, as the constant vibrations and movement of a car can cause damage to less robust speakers.

The G6.9Xi was made for amplifiers but can be used in factory settings with 4-ohm factory amplifiers in most cases for great sound and clarity over factory OEM speakers.

The G6.9Xi is notable for its 3-way design consisting of a woofer, a mid-range driver, and a tweeter. The different drivers are each responsible for reproducing sounds within a specific frequency range, allowing for a more accurate and full-sounding audio experience. The G6.9Xi's 3-way design also ensures that the speaker does not require a large amount of power to operate, making it suitable for use with a variety of amplifiers.
The Mylar Balanced Dome Tweeters included in this coaxial help it achieve the highest range of frequencies possible, while the speaker itself reaches frequencies as low as 35Hz.

These speakers get loud extremely easily with a MAX Power Handling of 180W and RMS Power Handling of 60W.

Whether you’re turning up the volume or appreciating the nuances in your favorite tracks, the G6.9Xi will deliver. Order yours today and take the first step towards audio perfection on the road.

Sold in pairs

GENERAL SPECIFICATIONS
Nominal Diameter     6X9" / 152x228mm
Nominal Impedance     4 Ohms
RMS Power Handling     60W
MAX Power Handling     180W
Sensitivity (1w/1m)     86dB
Frequency Response    35Hz-20KHz
Recommended HI Pass Crossover    50Hz
Number of ways    3
Pair or Single    Pair
Grill Included    Yes
WOOFER SPECIFICATIONS
Voice Coil Diameter    1" / 25.5mm
Voice Coil Former Material     ASV
Winding Material     EISV
Cone Material    Paper
Surround Material    Rubber
Basket Material     Steel
Basket Color/Finish    Black Matte
Magnet Material    Barium Ferrite
Magnet Weight    15.7Oz / 445g
TWEETER SPECIFICATIONS
Nominal Diameter    Tw1: 2.3" / 59mm       Tw2: 1.1" / 29mm
Voice Coil Diameter    Tw1: 0.6" / 17mm       Tw2: Peizo
Voice Coil Former Material     Tw1: PESV                 Tw2: N/A
Winding Material     Tw1: EISVM               Tw2: N/A
Diaphragm Material    Tw1: Mylar                  Tw2: Mylar
Magnet Material    Tw1: Barium Ferrite    Tw2: N/A
Magnet Weight    Tw1: 34g                      Tw2: N/A
SPEAKERS MEASUREMENT

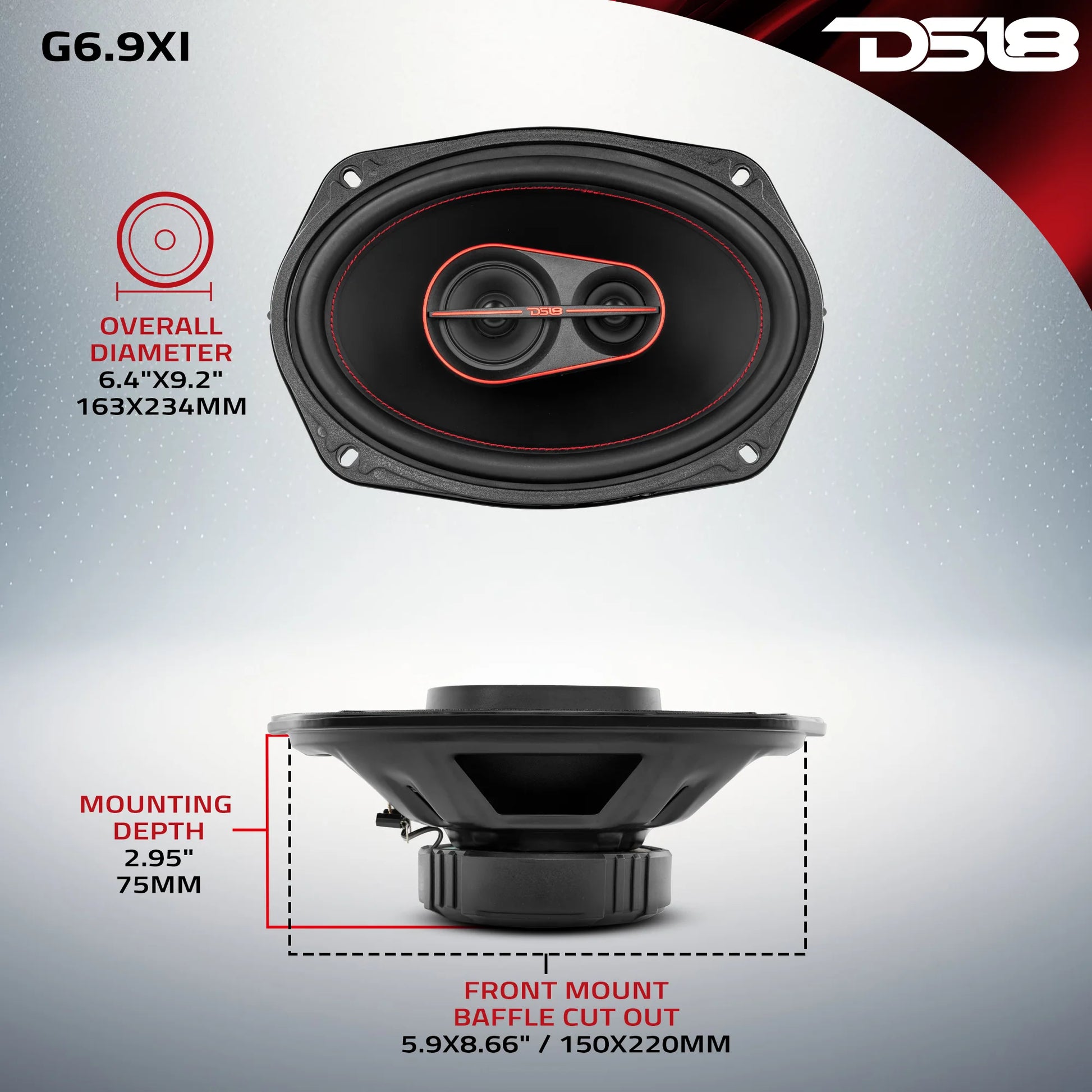

Overall Diameter    6.4"x9.2" / 163x234mm
Overall Depth     3.85" / 97.8mm
Overall Diameter (With Grill)    7.24"x10.4" / 184x264mm
Overall Depth (With Grill)    4.15" / 105.5mm
Front Mount Baffle Cutout    5.9x8.66" / 150x220mm
Mounting Depth    2.95" / 75mm
Motor Diameter    4.17" / 106mm
Tweeter Protrusion     0.9" / 22.8mm
