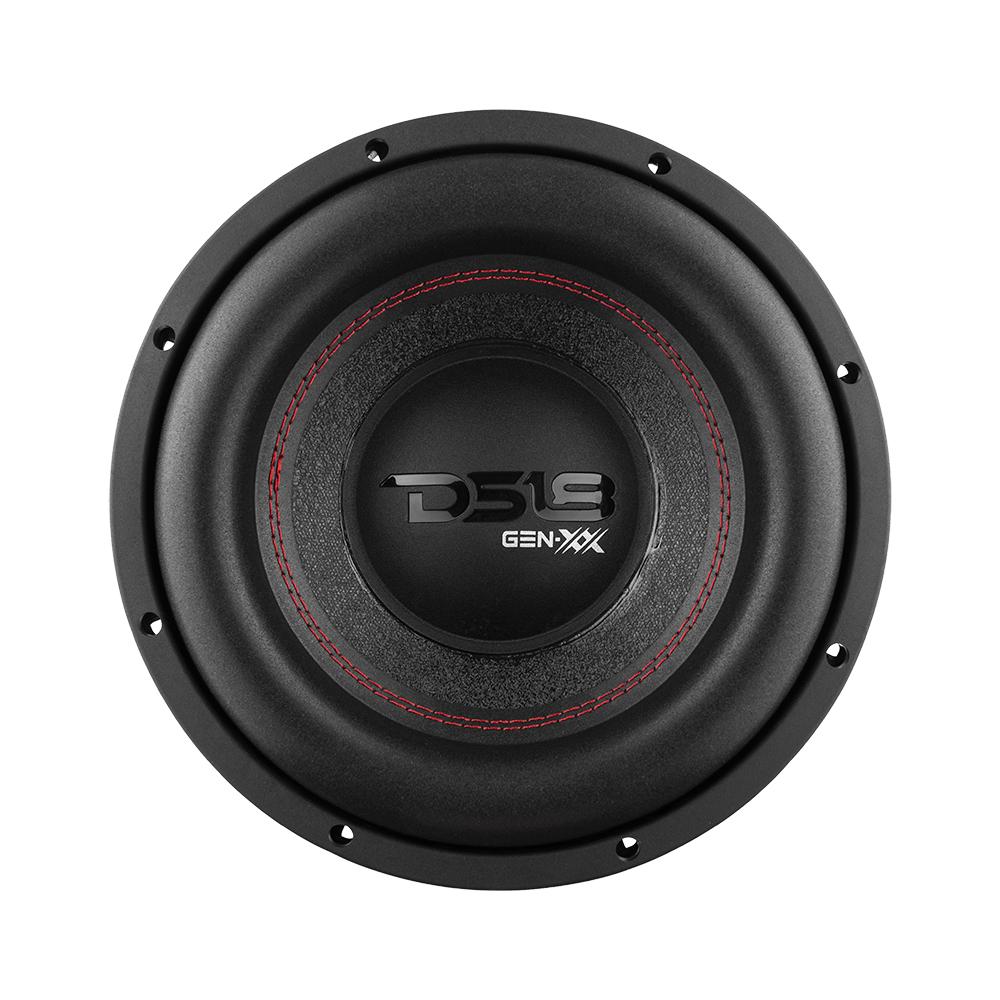

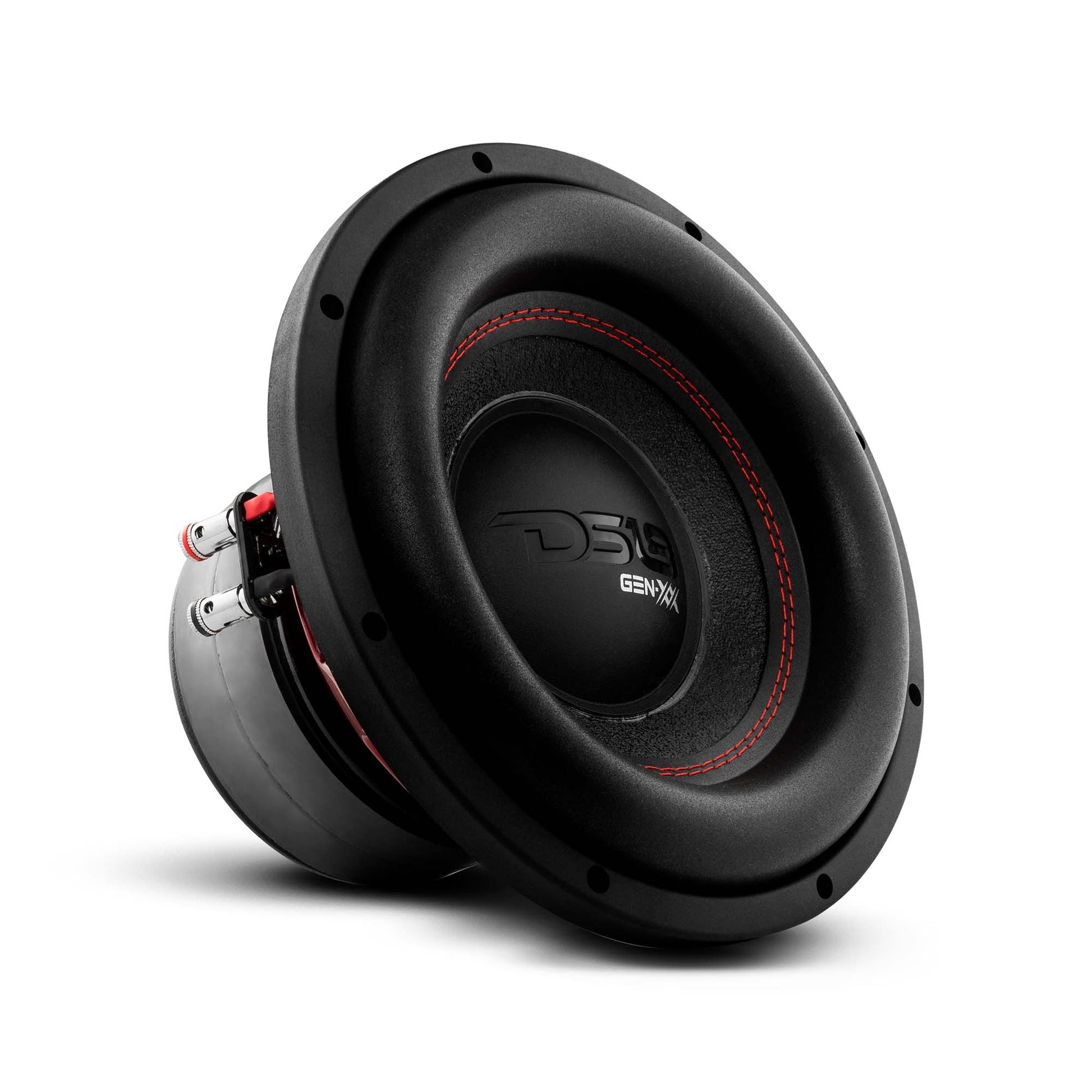

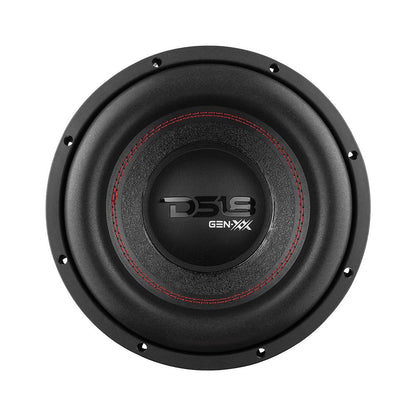

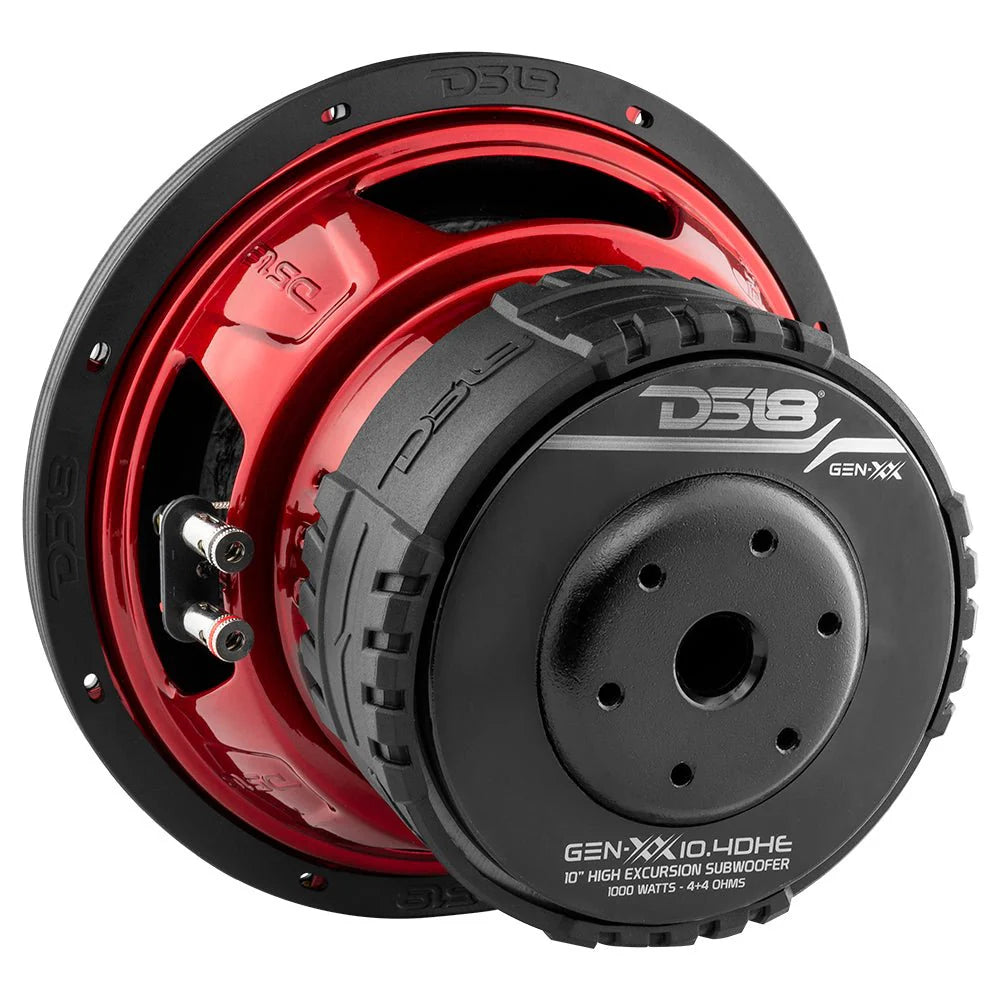

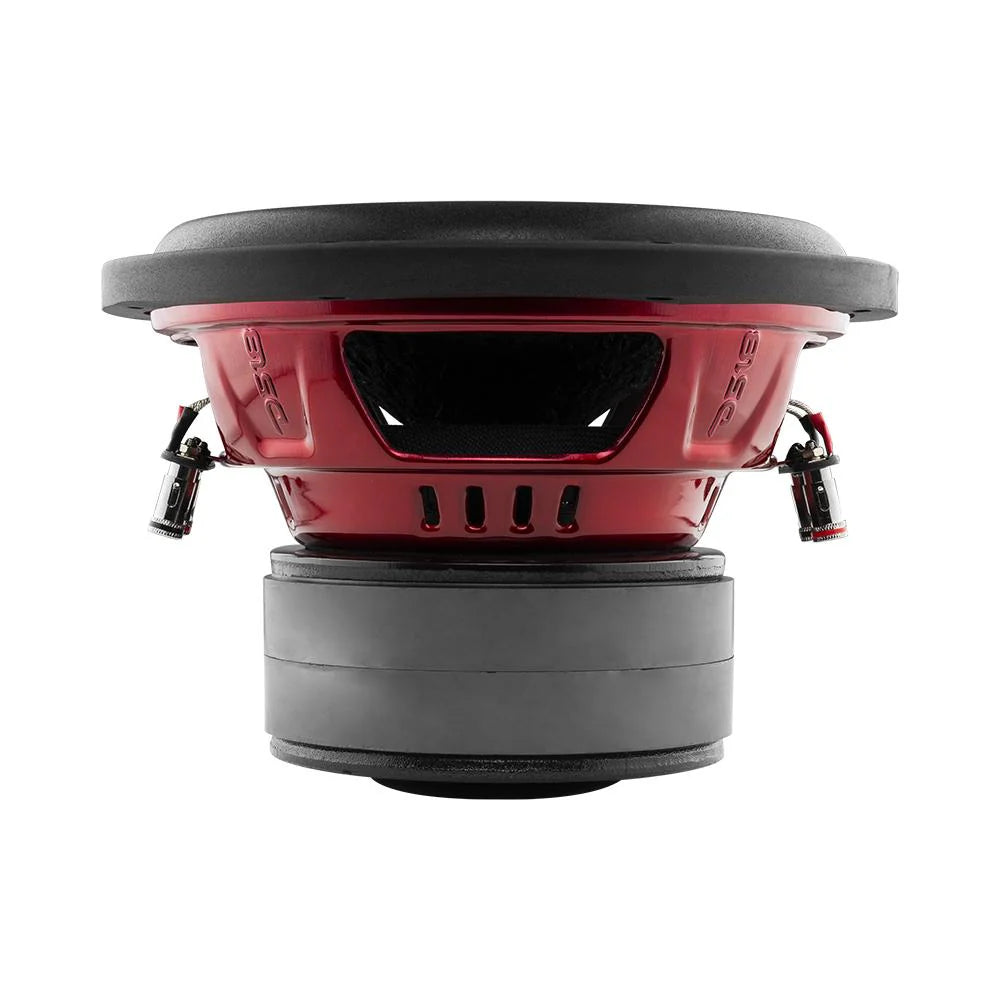

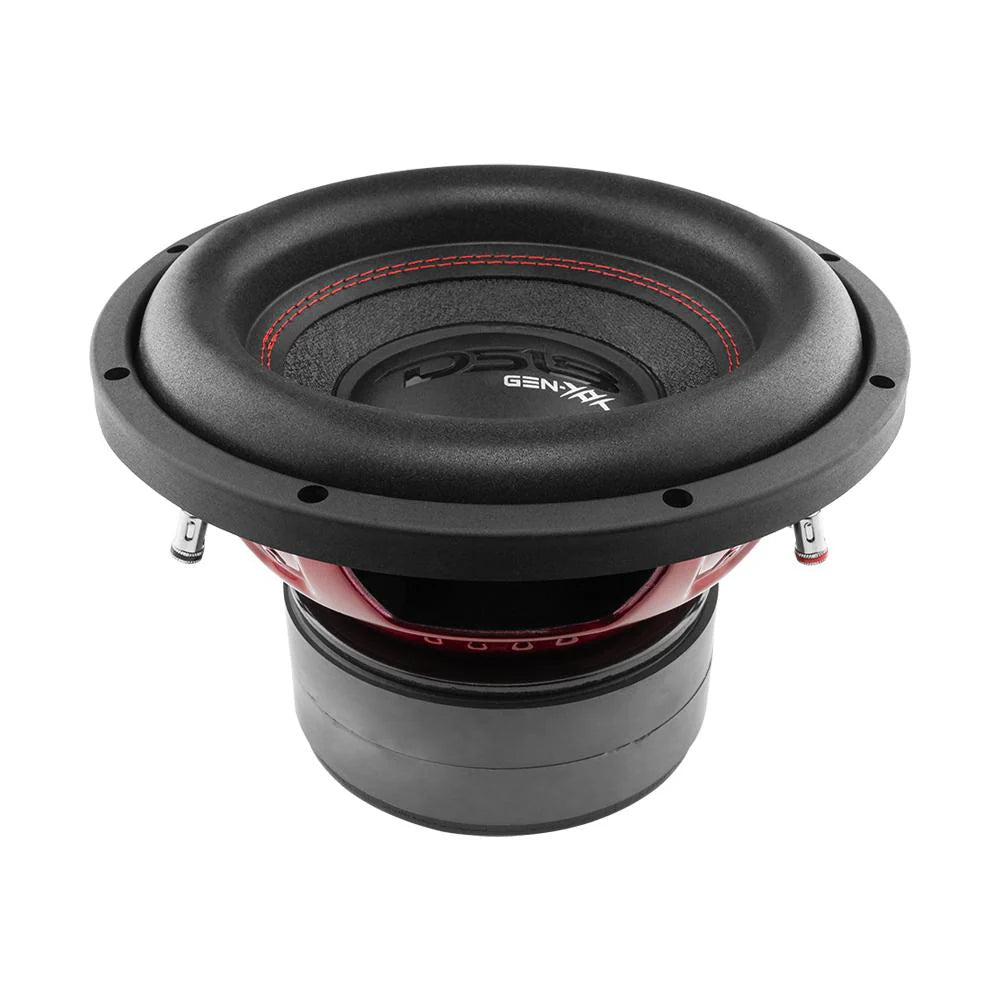

DS18 GEN-XX 10" High Excursion Subwoofer Double Stacked Magnets 500 Watts Rms DVC 4-Ohm

10" High Excursion Car Subwoofer 1000 Watts 4-Ohm DVC Double Magnet

Introducing the DS18 GEN-XX10.4DHE, a game-changer in the world of car audio, offering unparalleled low-frequency performance at an affordable price. With the GEN-XX10.4DHE, you can now experience that heart-pounding sensation of concert-quality deep thumping bass right in the comfort of your car.
Crafted with the finest materials, the GEN-XX10.4DHE exemplifies professional quality and unmatched durability. The black aluminum voice coil former, paper cone, and foam surround work harmoniously to deliver exceptional performance and withstand the test of time. The glossy red steel basket adds a touch of elegance to your car's interior.
Featuring a remarkable power rating of 500W RMS and 1000W maximum, the GEN-XX10.4DHE doesn't require massive amounts of power to deliver a mind-blowing performance. You'll be able to shake the neighborhood and turn heads wherever you go without breaking the bank. The GEN-XX10.4DHE’s frequency response of 20Hz to 1.1KHz guarantees a wide range of bass reproduction, allowing you to hear every detail and nuance of your favorite tracks.
The long 2-inch voice coil and double magnet are specifically designed to ensure every note is reproduced with exceptional clarity and precision. With a low FS of 37.6 Hz, the GEN-XX10.4DHE effortlessly reaches into the subsonic range, giving you the ability to experience those earth-shaking frequencies without any issues, if your box is correctly tuned.
Get ready to redefine what you thought was possible in car audio – the GEN-XX10.4DHE is here to make your dreams a reality.

Nominal Diameter    10
Nominal Impedance    4+4 ohms
RMS Power Handling    500W
MAX Power Handling    1000W
Sensitivity (1w/1m)    84.6 dB
Frequency Response    20-1.1KHz
Recommended Lo Pass Crossover    90 Hz
Motor:
VC Diameter    2
VC Former Material    Black Aluminum
Winding Material    SV
Cone Material    Paper
Dust Cap Material    PPI
Surround Material    Foam
Basket Material    Steel
Basket Color/Finish    Glossy Red
Magnet Material    Ferrite
Magnet Weight    136 Oz
Displacement Volume    1.82L
Thiele & Small Parameters
Equivilant Vol    Vas 16.583L
Excursion (one way)    Xmax 25 mm
Free Air Resonance    Fs 37.6 Hz
Mechanical Factor    Qms 4.705
Electrical Factor    Qes 0.476
Total Factor    Qts 0.432
Moving Mass    Mms 166.794g
Compliance    Cms 0.107mm/N
Bl Factor    BL 23.041N/A
VC Inductance    Le 0.6741mH
Diaphragm Area    Sd 330.64cm2
Dc Resistance    Re 3.2+3.2 ohms
Efficiency Bandwidth Product    EBP 78.99

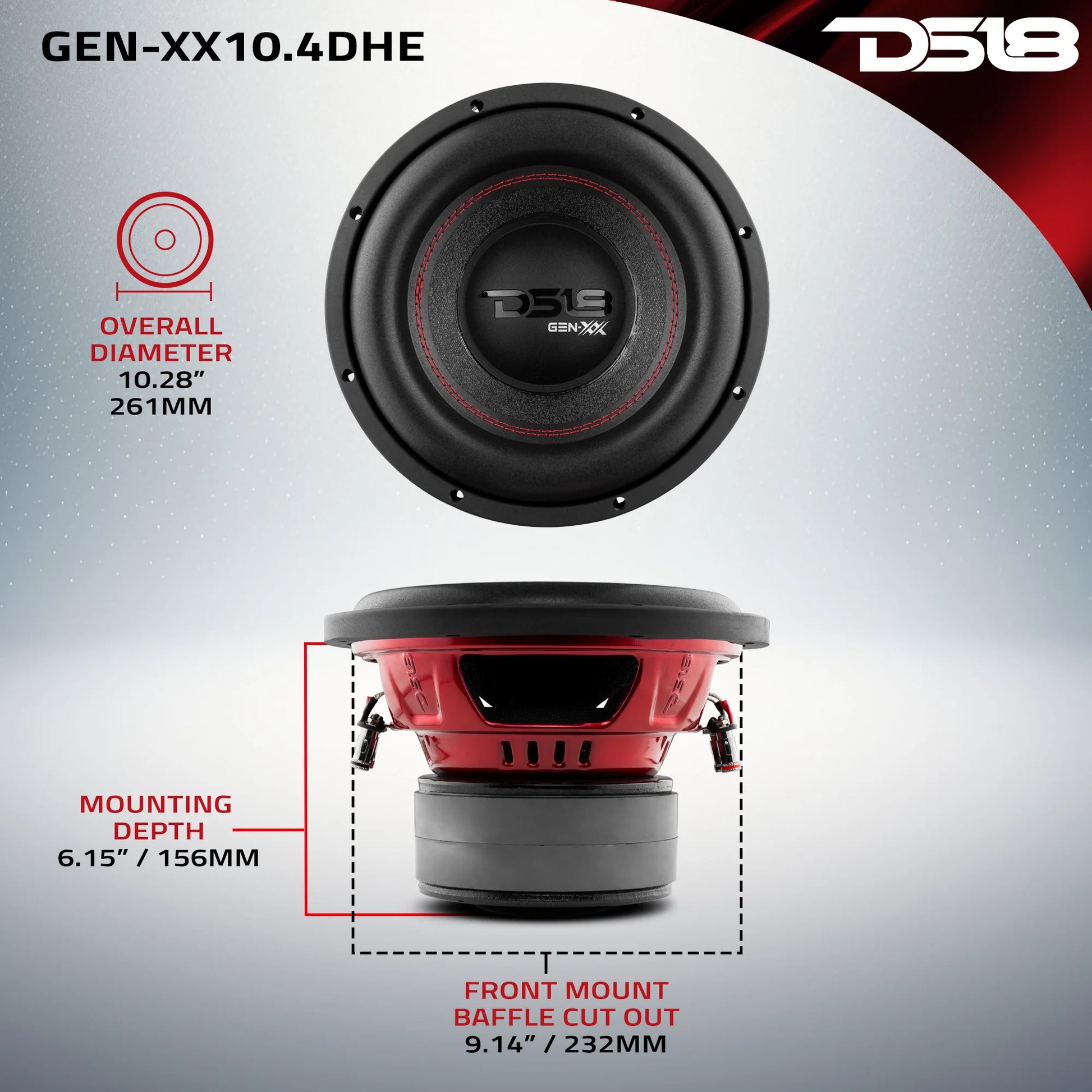

Measurements
Overall Diameter    10.28" / 261mm
Overall Depth    7.21" / 183mm
Front Mount Baffle Cutout    9.14" / 232mm
Mounting Depth    6.15" / 156mm
Motor Diameter
6.15/ 156 mm
