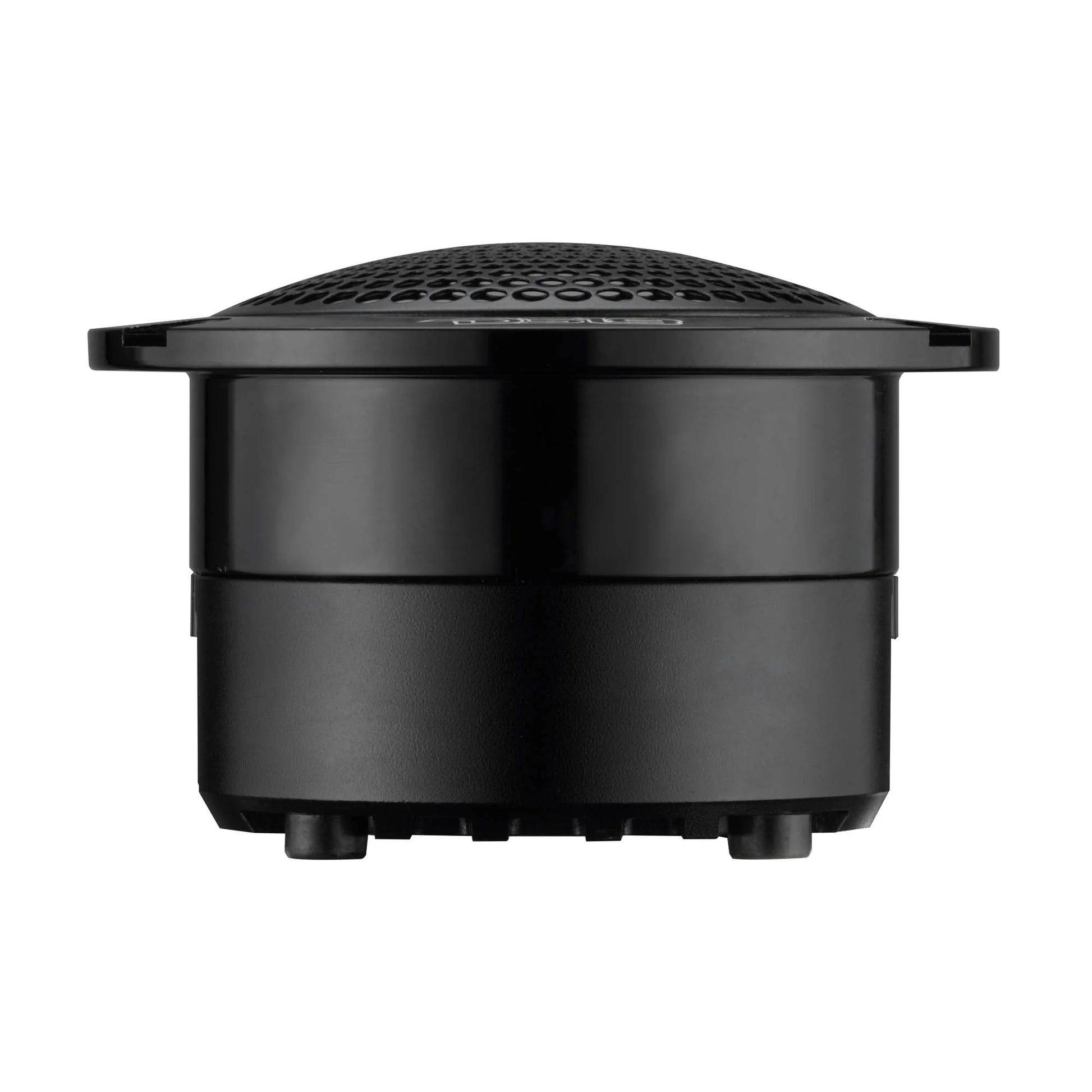

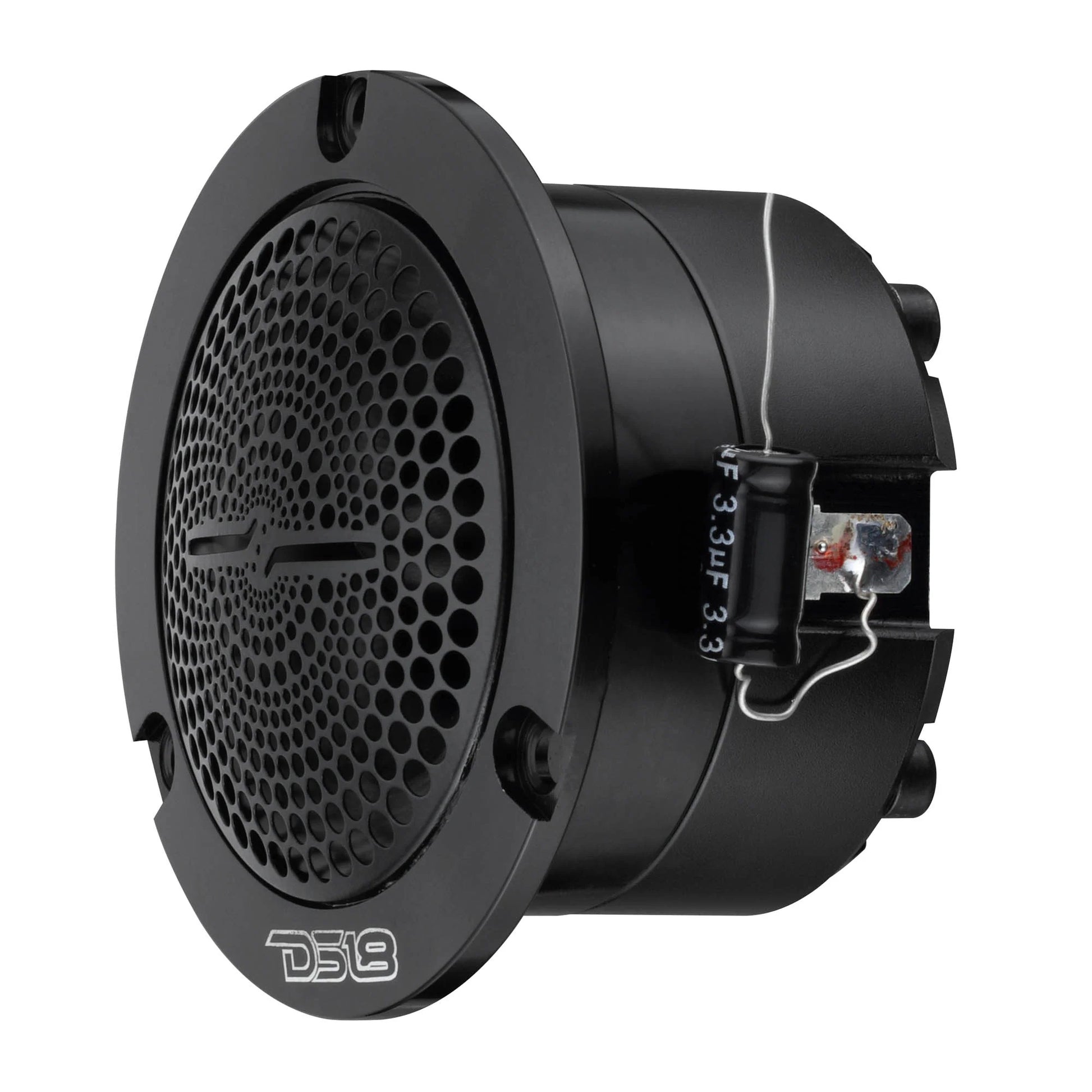

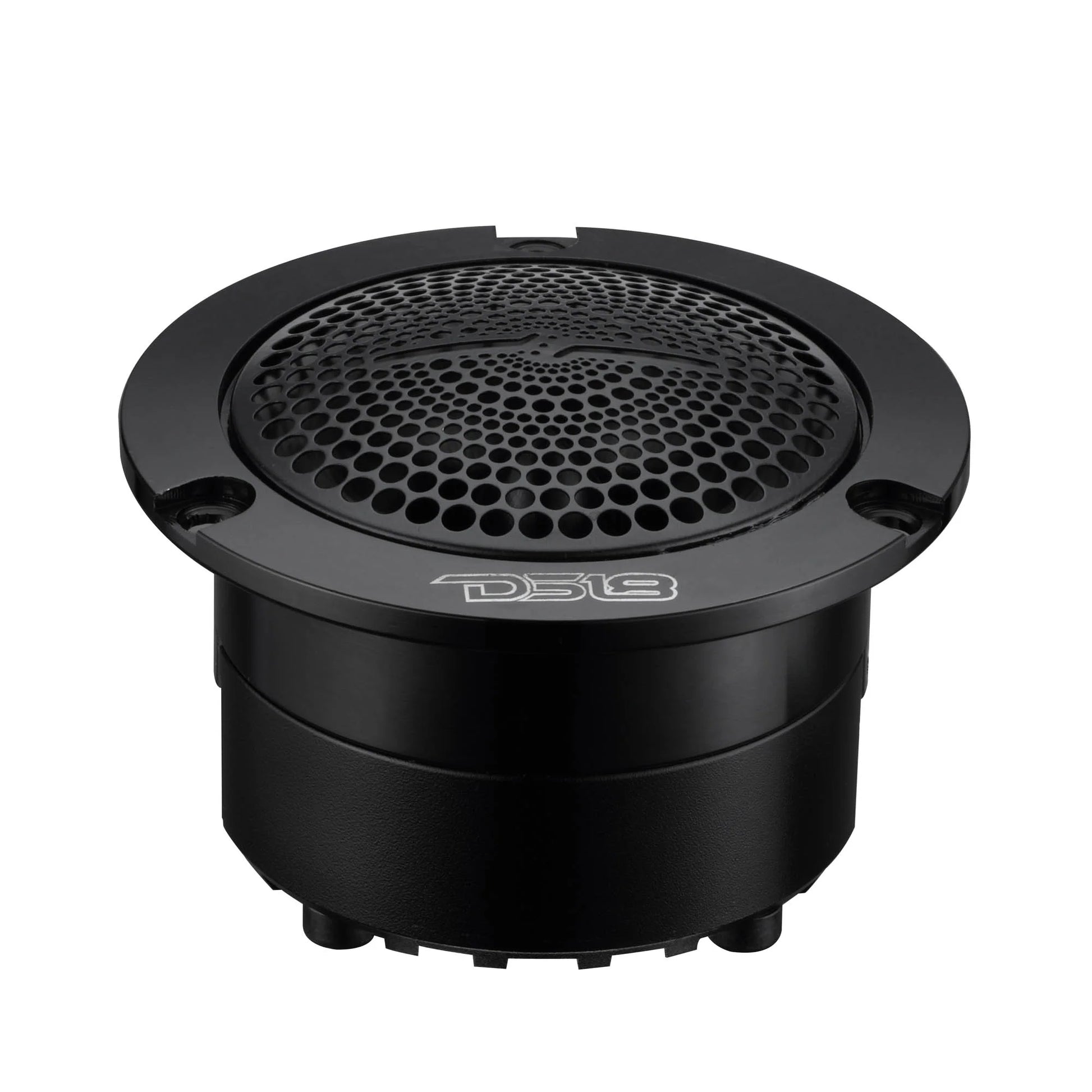

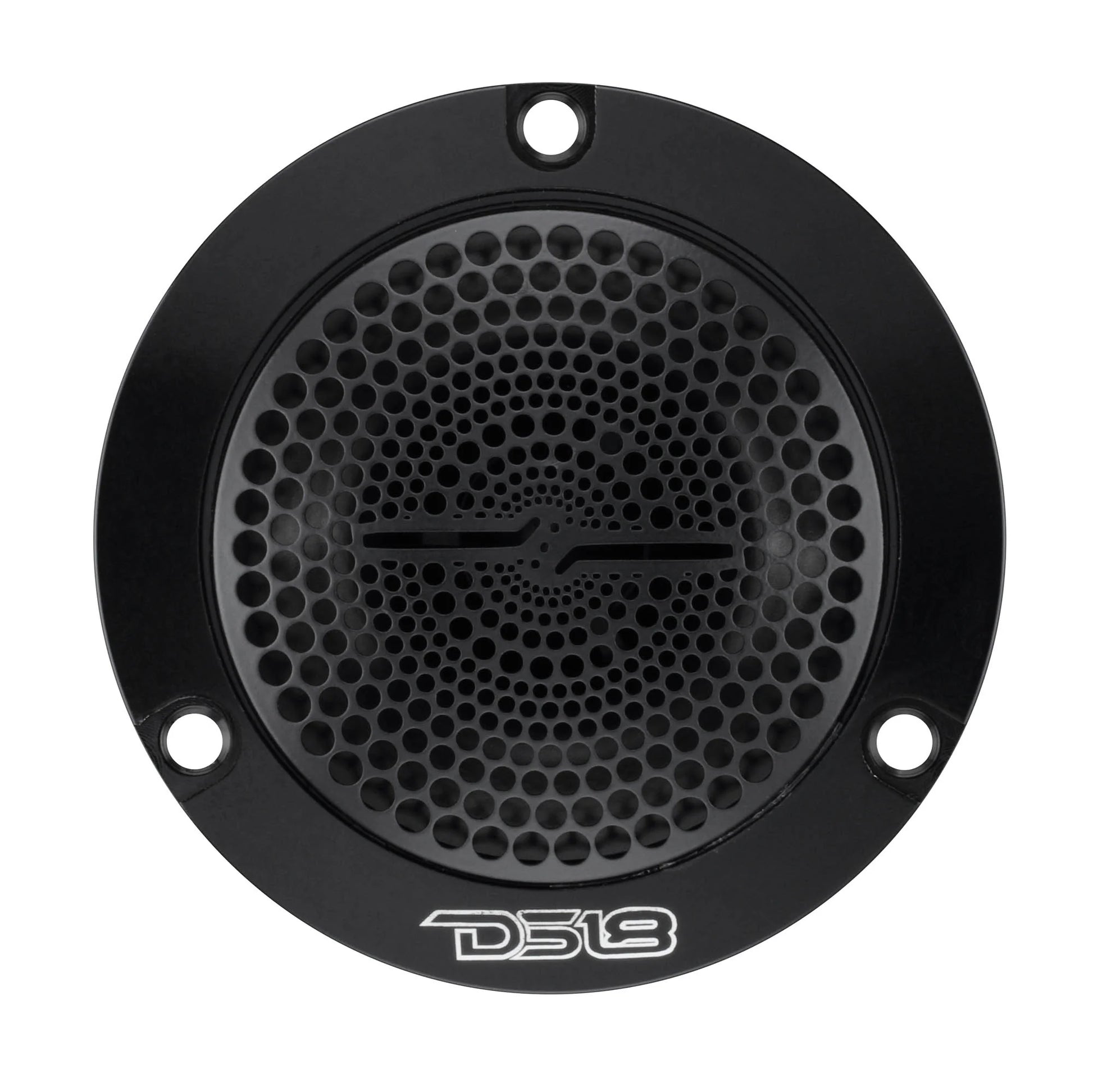

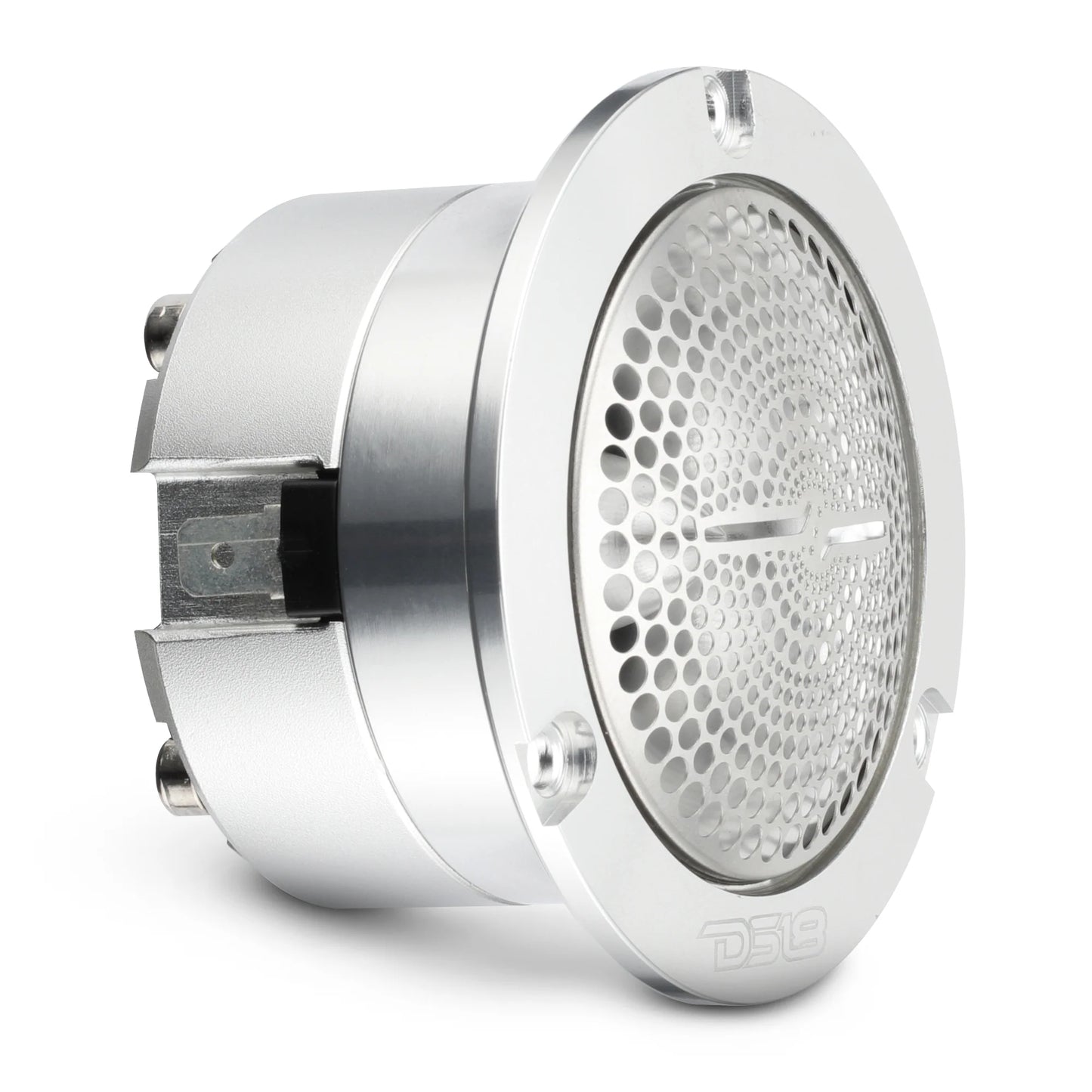

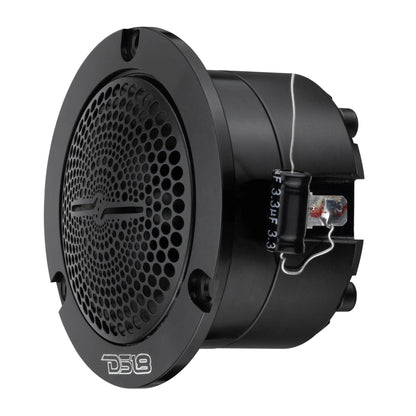

DS18 GTX2 3" Super Bullet Tweeter with Neodymium Magnet -Silver or Black

DS18 GTX2 3" Super Bullet Tweeter with Neodymium Magnet -Silver or Black

Regular price $53.99 USD
Regular price Sale price $53.99 USD
Sale Sold out
Color: Black
Quantity

20 in stock

Sold individually, available in silver or black

3” Super Bullet Tweeter With 1” Titanium Voice Coil and Neodymium Magnet

The GTX2 is DS18’s compact 3" super bullet tweeter, built to slice through any mix with clean, piercing highs!

Titanium Clarity
A 1" titanium voice coil and KSV former deliver ultra-clean treble at high volume, with 100dB sensitivity. Rated at 60W AES, 120W program, and 240W peak, the GTX2 brings pro-level output in a compact footprint.

Light, Efficient, Powerful
The 38x14mm neodymium magnet delivers high magnetic force with low weight—giving you explosive high-frequency response without adding bulk to your build.

Built to Fit Any Custom Build
At just 1.46” mounting depth and 2.9” overall diameter, the GTX2 fits almost anywhere, dash pods, A-pillars, custom enclosures: making it perfect for cars, and SPL builds.

Wide Frequency Range
Plays from 650Hz to 20kHz, giving you coverage across mid-high and super-high frequencies. A 2kHz high-pass crossover is recommended for max protection and performance.

Perfect For Any System

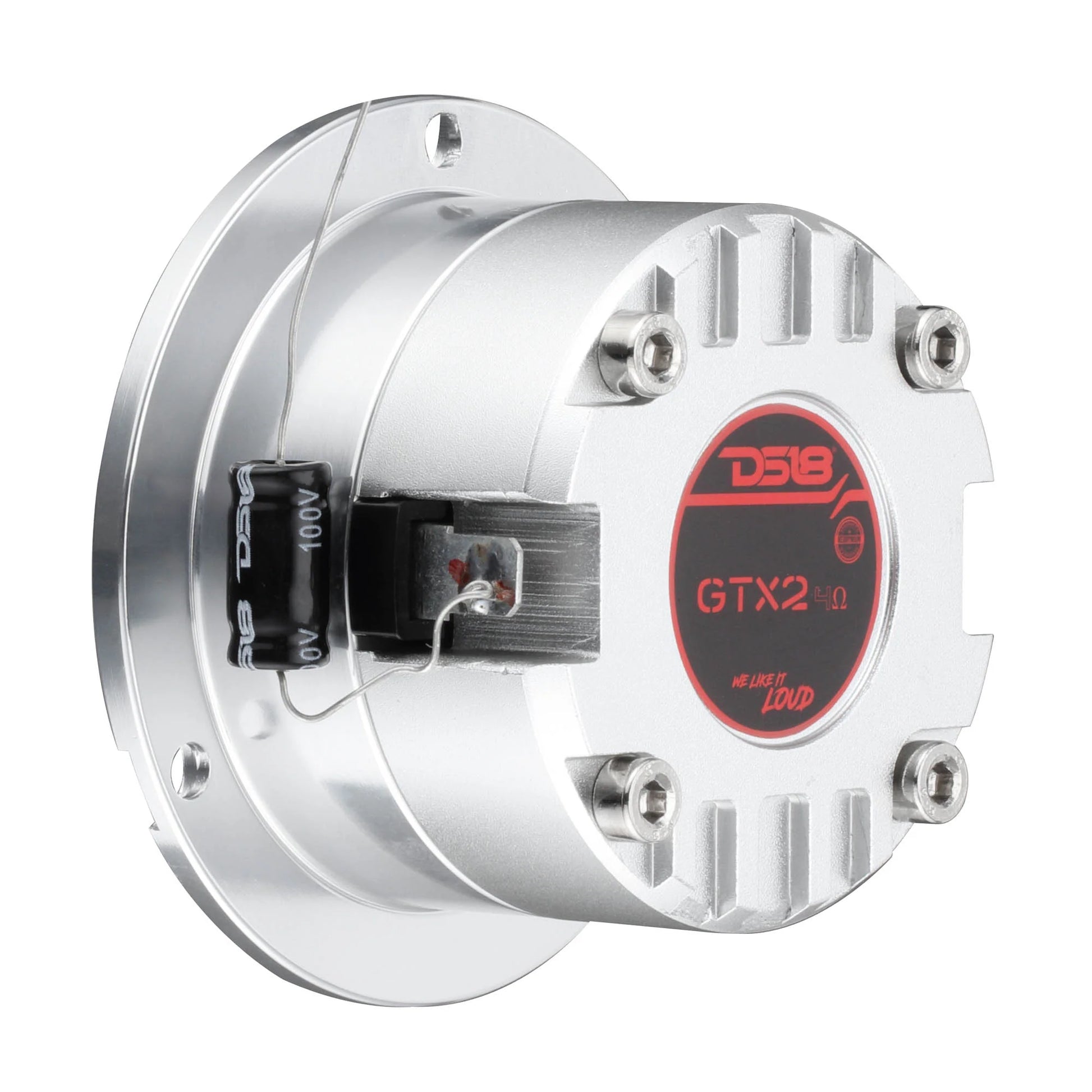

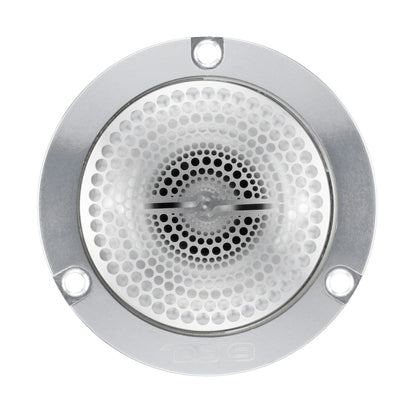

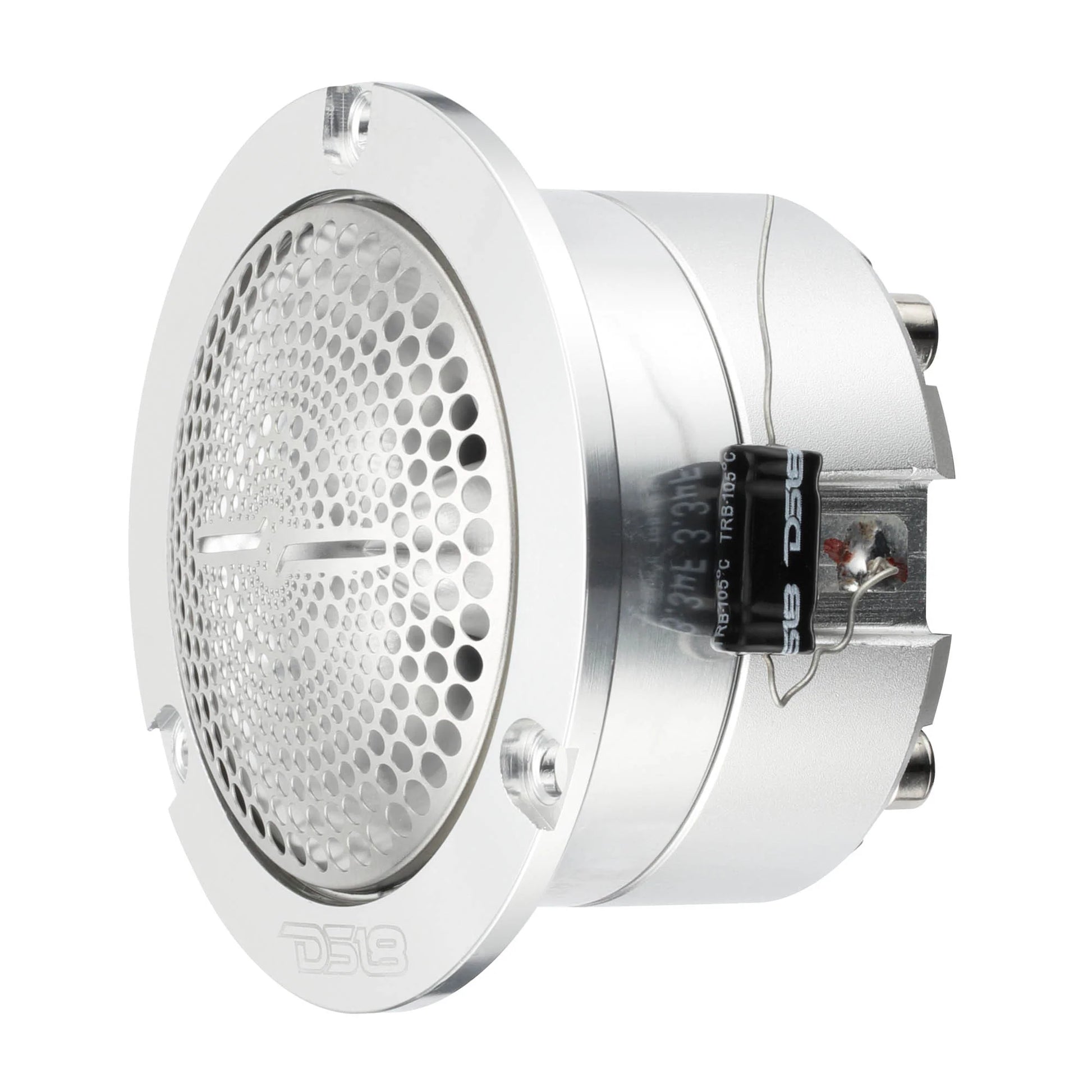

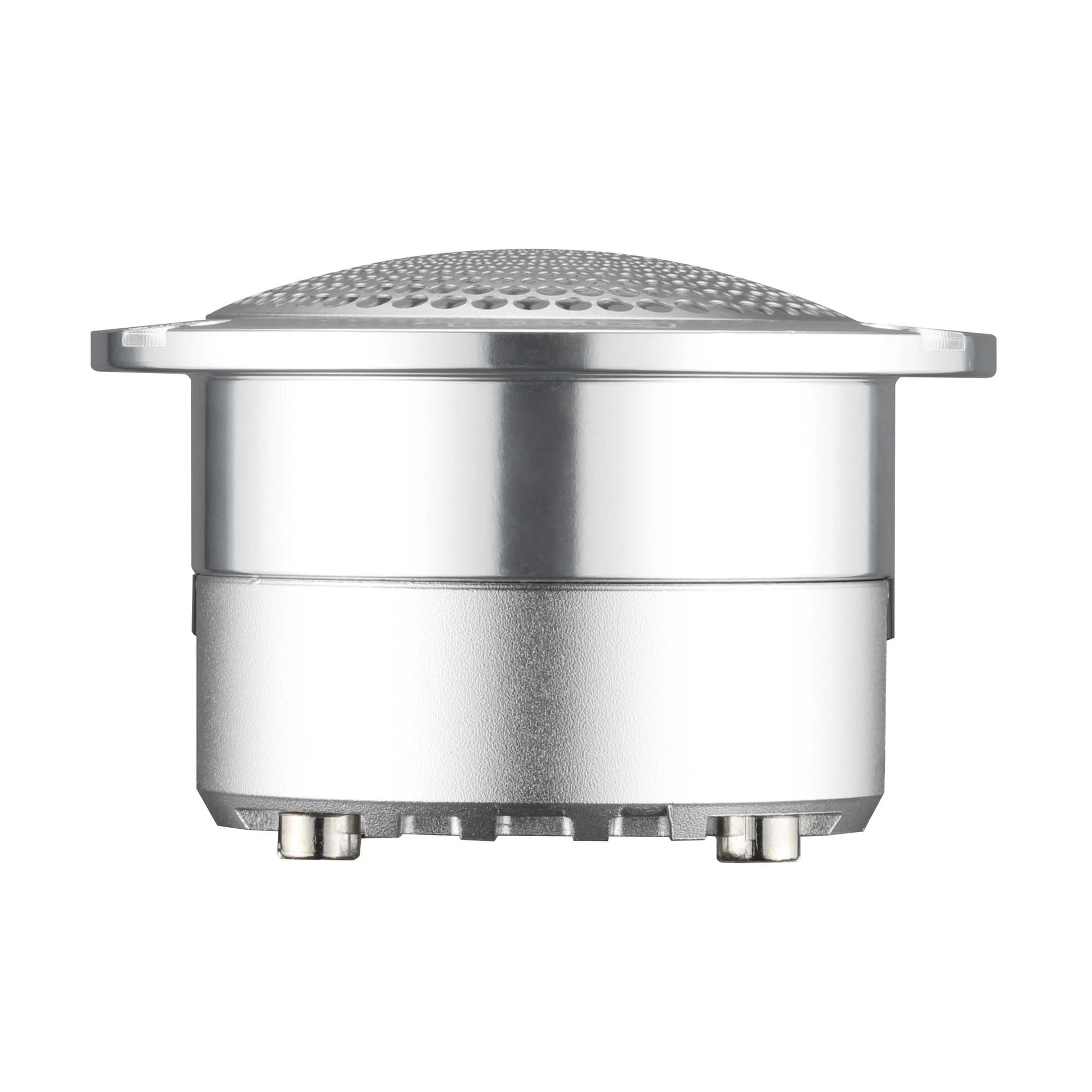

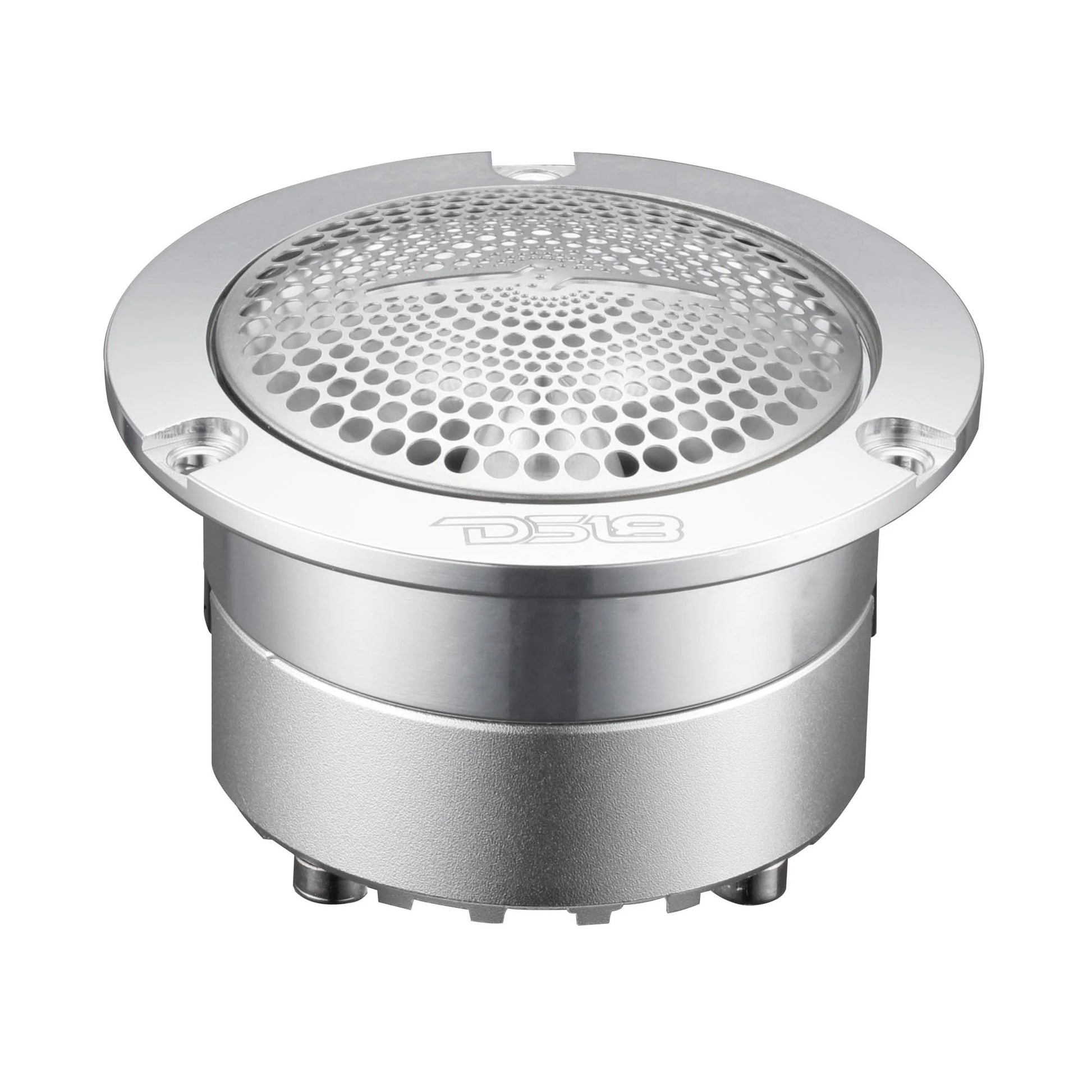

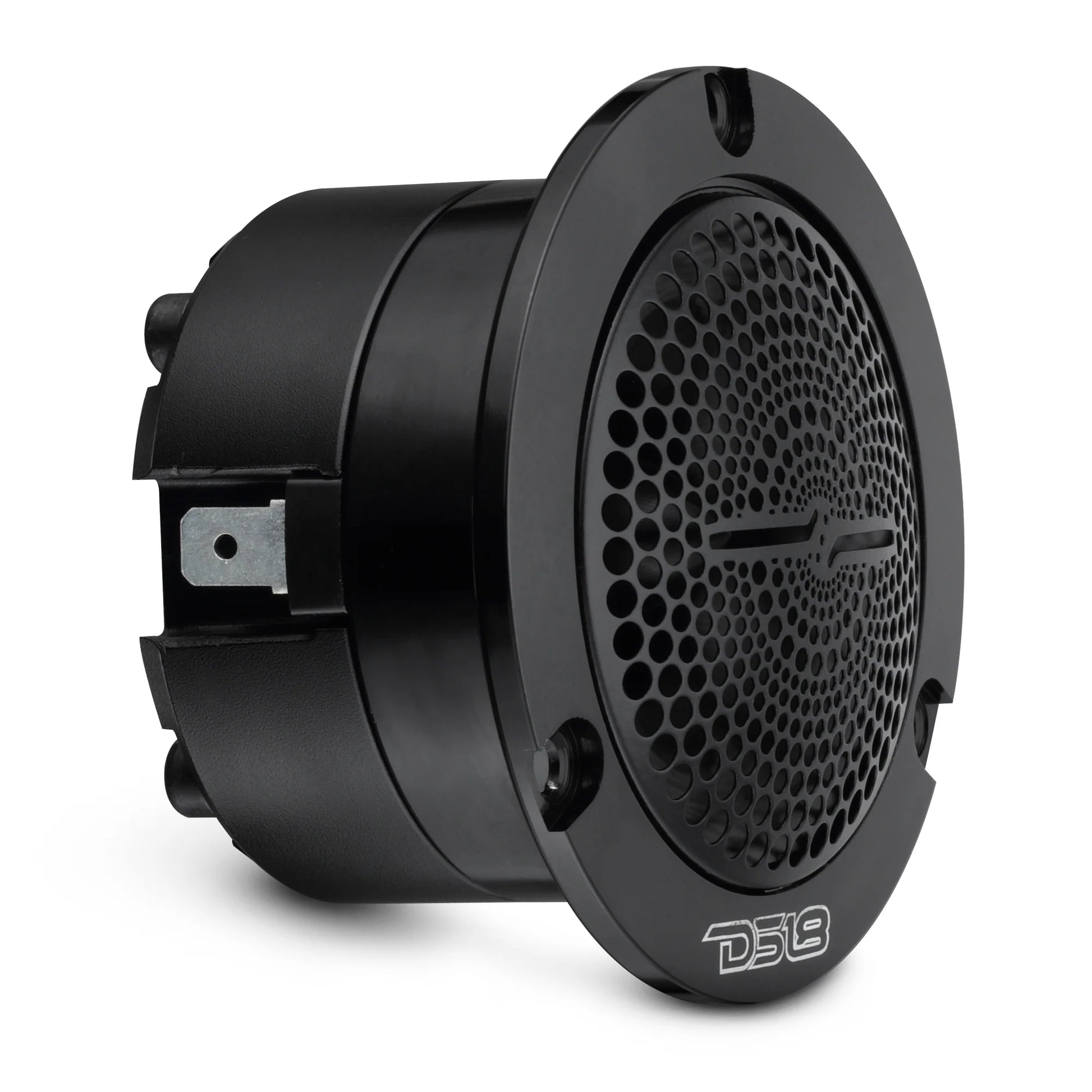

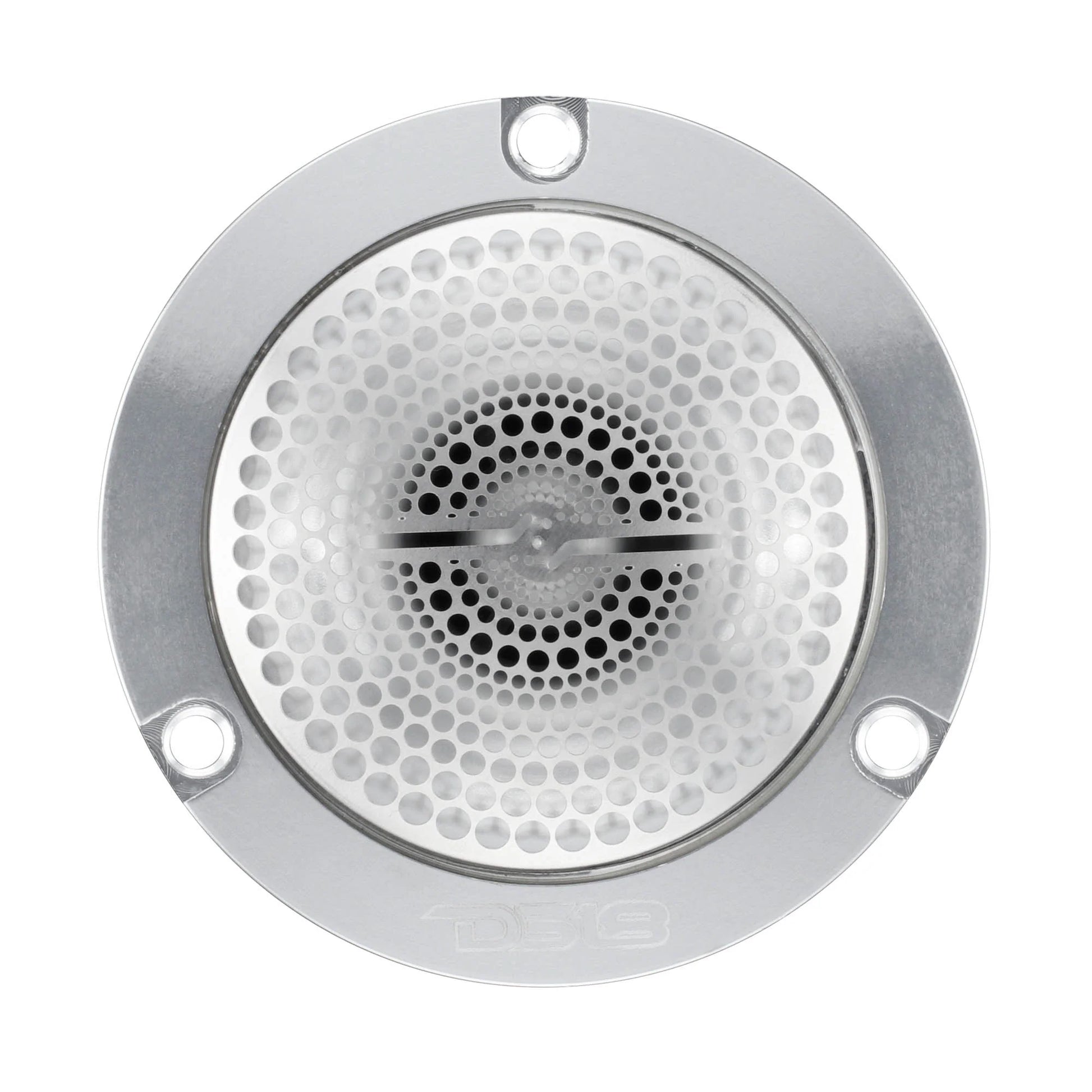

Pick your style, GTX2/BK (Black) or GTX2/SL (Silver), for the perfect match to your aesthetic and system theme.

The DS18 GTX2 is compact, clean, and made to scream. Add it to your setup for high-output treble that cuts through anything.


Specifications

Nominal Diameter
3" / 76mm
Nominal Impedance
4 Ohms
AES Power Handling
60W
Program Power Handling
120W
Peak Power Handling
240W
Sensitivity (1w/1m)
100dB
Frequency Response
650Hz-20KHz
Recommended Hi Pass Crossover
2KHz
Pair or Single
Single


Motor

Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
KSV
Winding Material
CCAW
Diaphragm Material
Titanium
Magnet Material
Neodymium
Magnet Size
38x14mm
Body Material
Aluminum

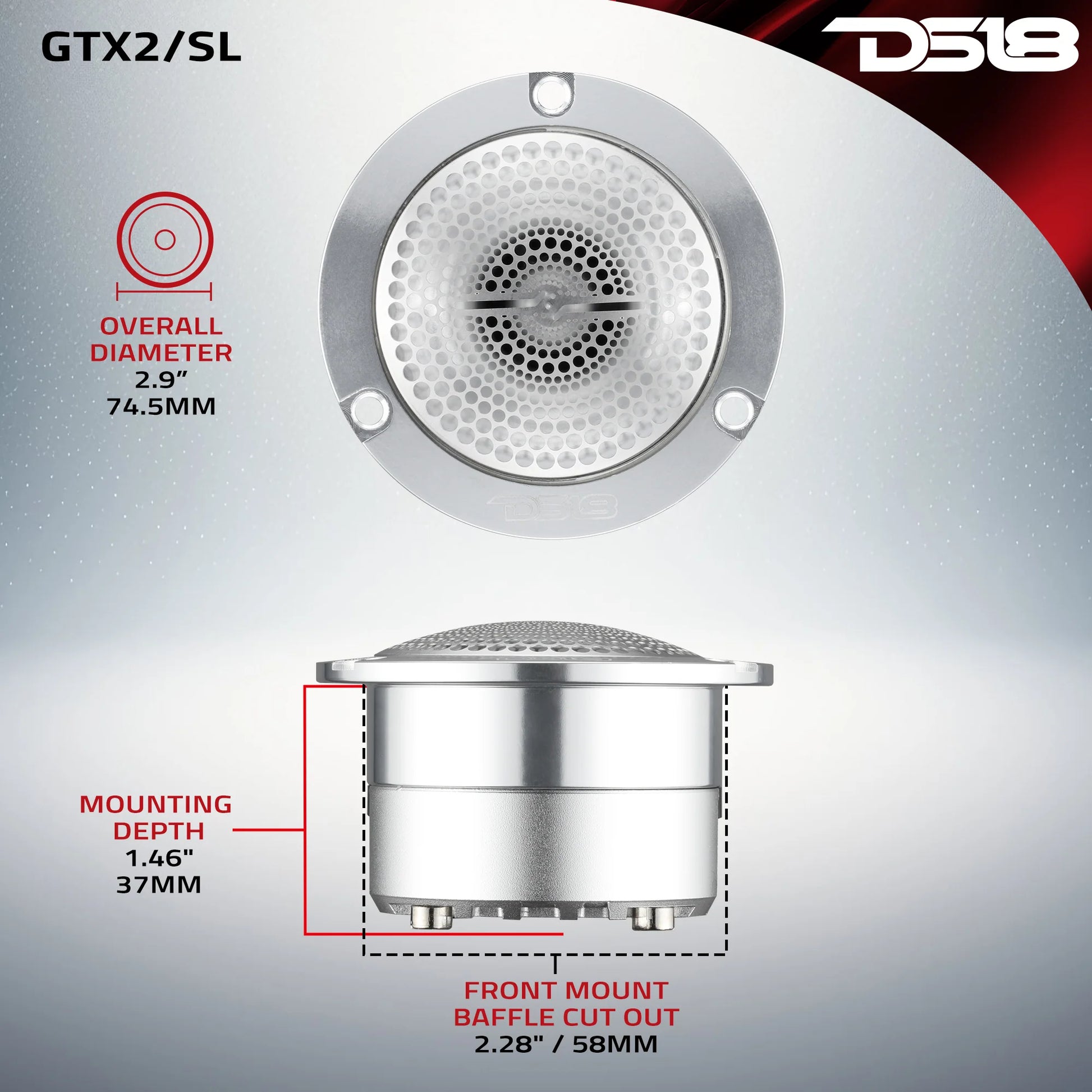

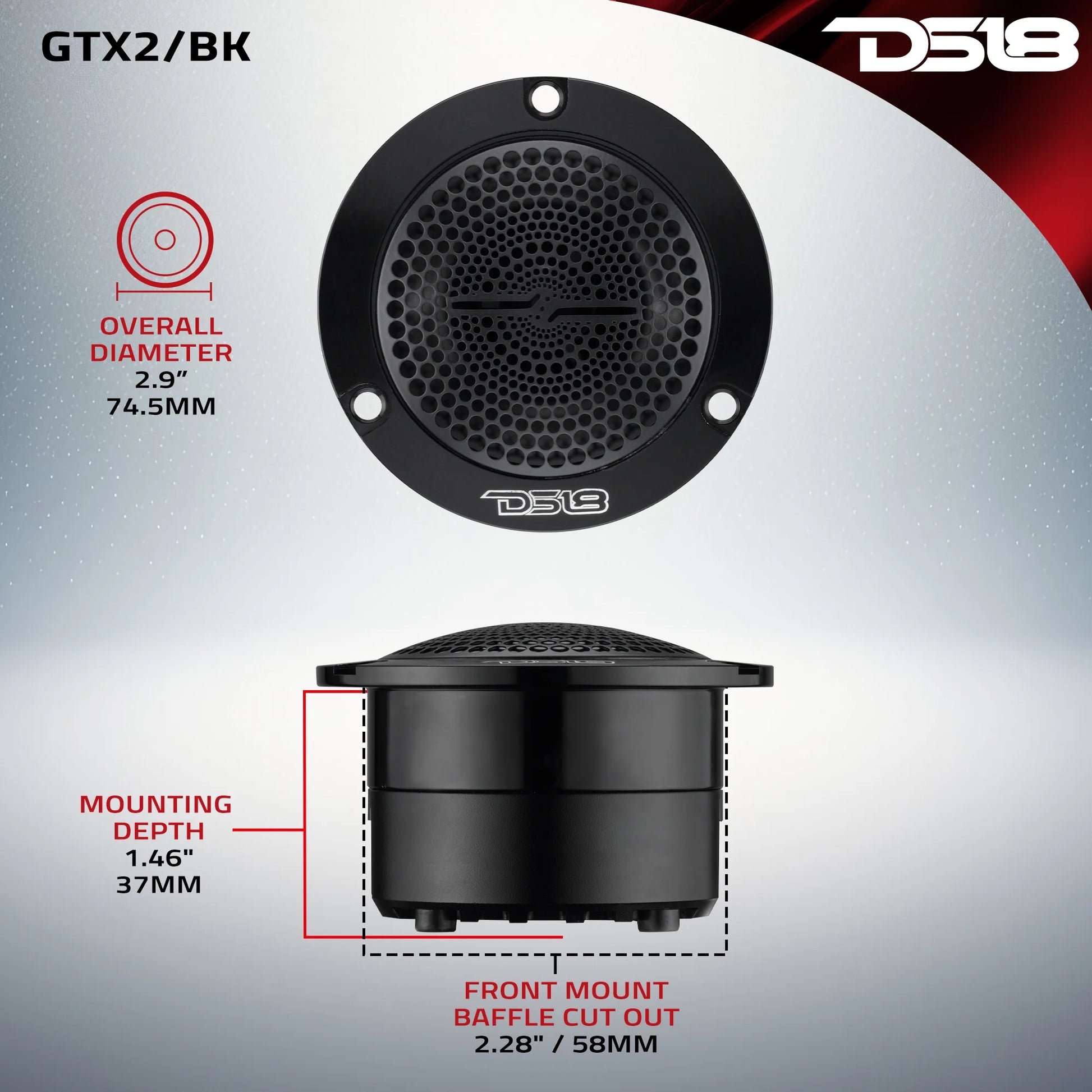

Measurement

Overall Diameter
2.9" / 74.5mm
Overall Depth
1.8" / 48mm
Front Mount Baffle Cutout
2.28" / 58mm
Mounting Depth
1.46" / 37mm
