DS18 ION1600.4D 4-Channel Compact Amplifier

DS18 ION1600.4D 4-Channel Compact Amplifier

$419.99 USD
$419.99 USD
Sale Sold out

20 in stock

Give your system dedicated amplifier power

The DS18 ION1600.4D 4-Channel Compact Amplifier gives you four channels of amplification for a multi-speaker system. Match its output at your chosen impedance to the speakers you plan to run.

Key details

  • Model / SKU: ION1600.4D
  • Compact format: check the listed dimensions to plan your mounting location.
  • 4 X 240 Watts RMS @ 4 Ohm
  • RMS Power @ 4 ohm
  • RMS Power @ 2 ohm
  • RMS Power @ 1 ohm
  • RMS Power @ 4 ohm Bridge

Fitment & system matching

Match RMS output at the final wired impedance to your speakers or subwoofers. Check minimum impedance, mounting dimensions, fuse requirements and power-wire size. Peak/MAX ratings are not continuous RMS output.

Full product details & specifications
  • 4 Channel Full Range
  • Class D
  • 2 - 4 Ohm Stable
  • 4 X 240 Watts RMS @ 4 Ohm
  • Power / Clip / Protection Indicator
  • Compact




SPECS

SKU
ION1600.4D
Total Watts (Peak)
4800W
RMS Power @ 4 ohm
4 x 240W
RMS Power @ 2 ohm
4 x 400W
RMS Power @ 1 ohm
N/A
RMS Power @ 4 ohm Bridge
2 x 800W


AUDIO

Frequency Response
10Hz-20KHz
Signal to Noise Ratio
>95dB
Efficiency @ 4 ohm
88%
Damping Factor
210
Input Impedance
27Kohms
Channel Separation
59dB
Total Harmonic Distortion (THD)
0.01%
Low Level Input Range
0.2-6V
High Level Input
Yes

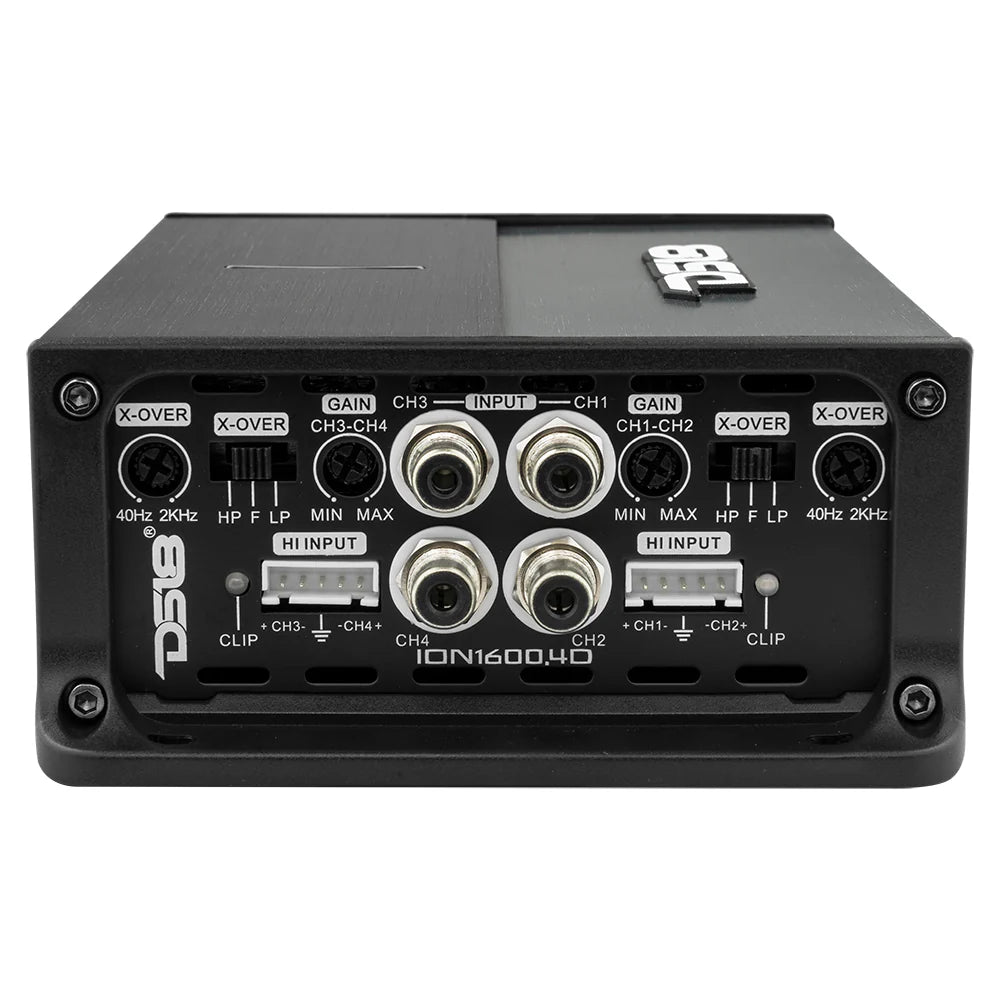

Selectable X-Over
LPF/HPF/FULL
X-Over Filter Range
40Hz-2KHz
Bass Boost Range
0~12dB
Bass Boost Frequency
45Hz


FEATURES

Amplifier Class
Digital
Amplifier Type
Full-Range Stereo
Number of Channels
4
Minimum Impedance
2 Ohm (St) / 4 Ohms (Bridge)
Led Indicator
Power / Protect / Clipping

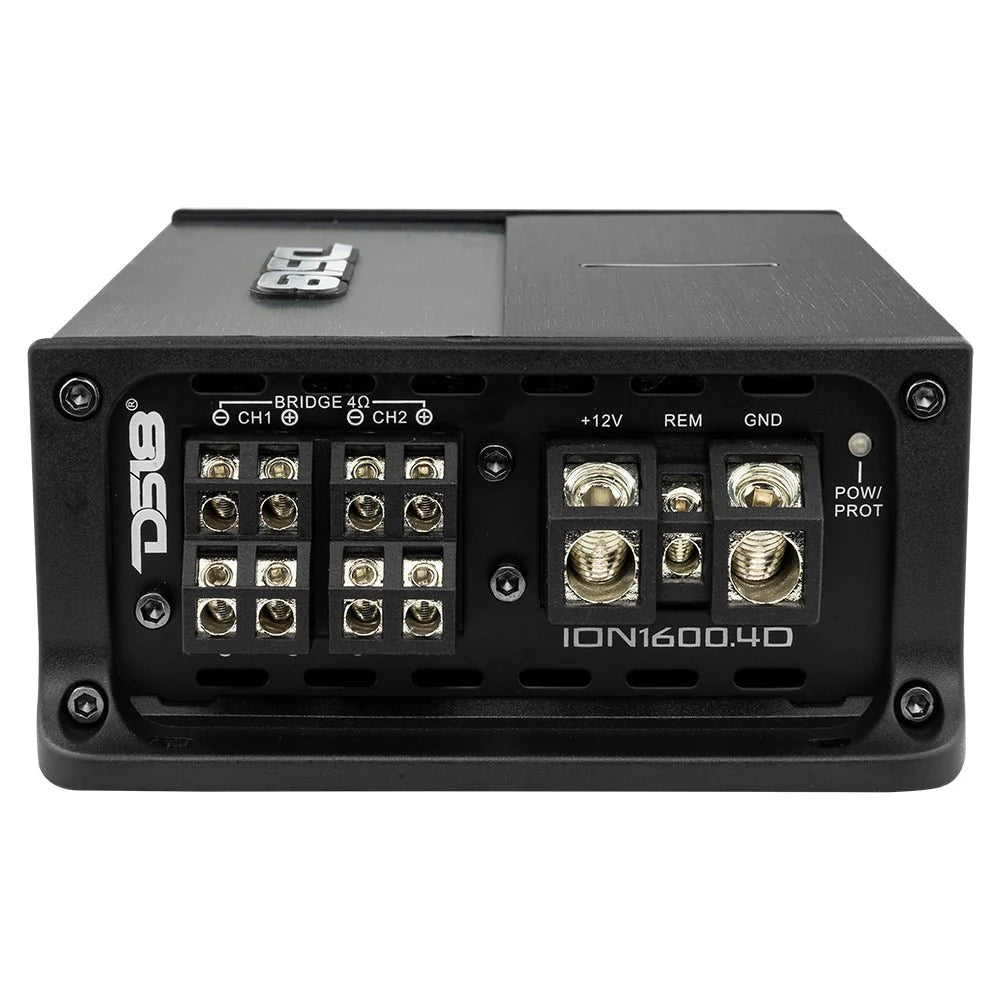

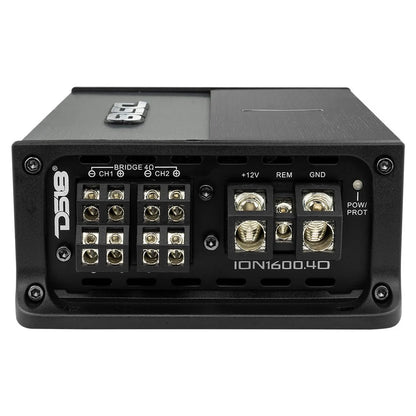

Power Input Terminal Size
4 AWG
Fuse Size
140A (external)
Remote Level Control
No
Cooling Fan
Yes
Thermal Protection
Yes
Over-Load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes
Clipping Protection
Yes
Body Color / Finish
Aluminum Black / Silver


EXTRA FEATURES

Hi-Level Speaker connector
Yes
Tiffany RCA Terminal
Yes
LED Clip Indicator
Yes
High Efficiency Micro Digital Design
Yes


MEASUREMENT

Overall Length
7.32" / 186mm
Overall Wide
4.72" / 120mm
Overall Height
2" / 52mm
Heatsink Length
6" / 153mm
