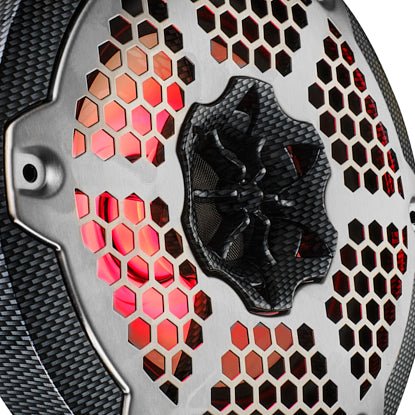

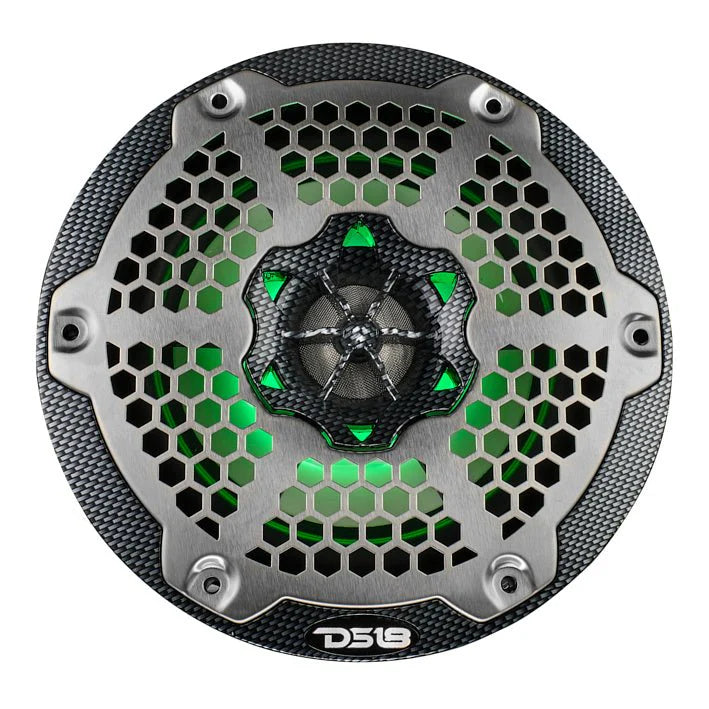

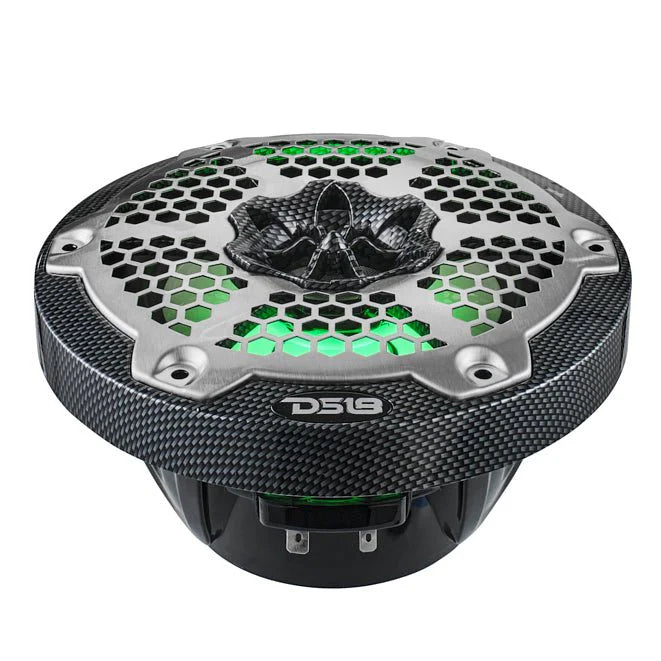

DS18 NXL 6.5" 2-Way Coaxial Marine Speaker With LED RGB Lights 100 Watts Rms 4-Ohm - Black Carbon Fiber

HYDRO 6.5” 2-Way Marine Speakers with RGB LED Lights

The CF-65M is DS18’s 6.5” 2-way marine speaker built for boats, UTVs, and outdoor vehicles that don’t back down. With 100W RMS and 300W peak power, you can pump high-quality audio that cuts through all noise.

Carbon Fiber Strength

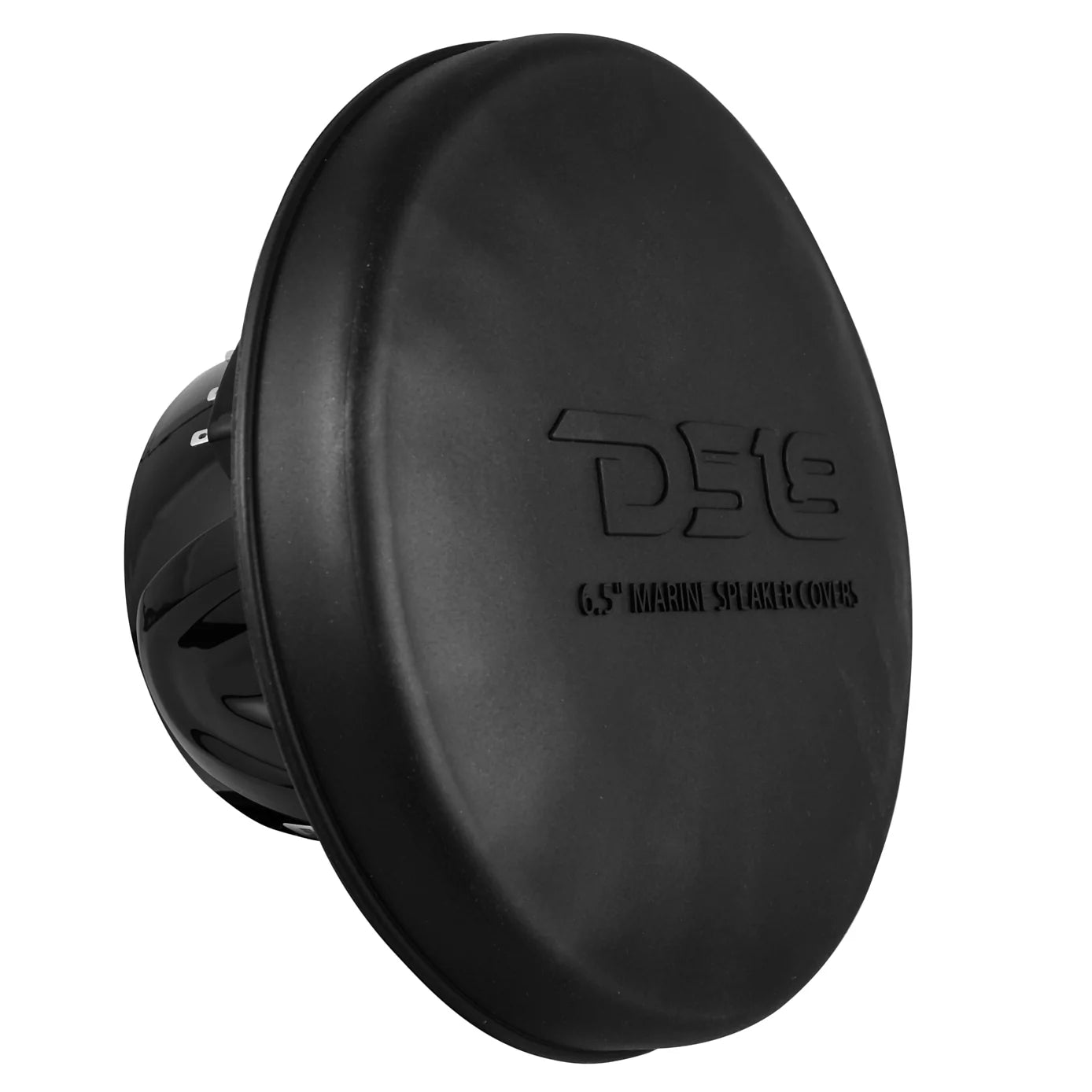

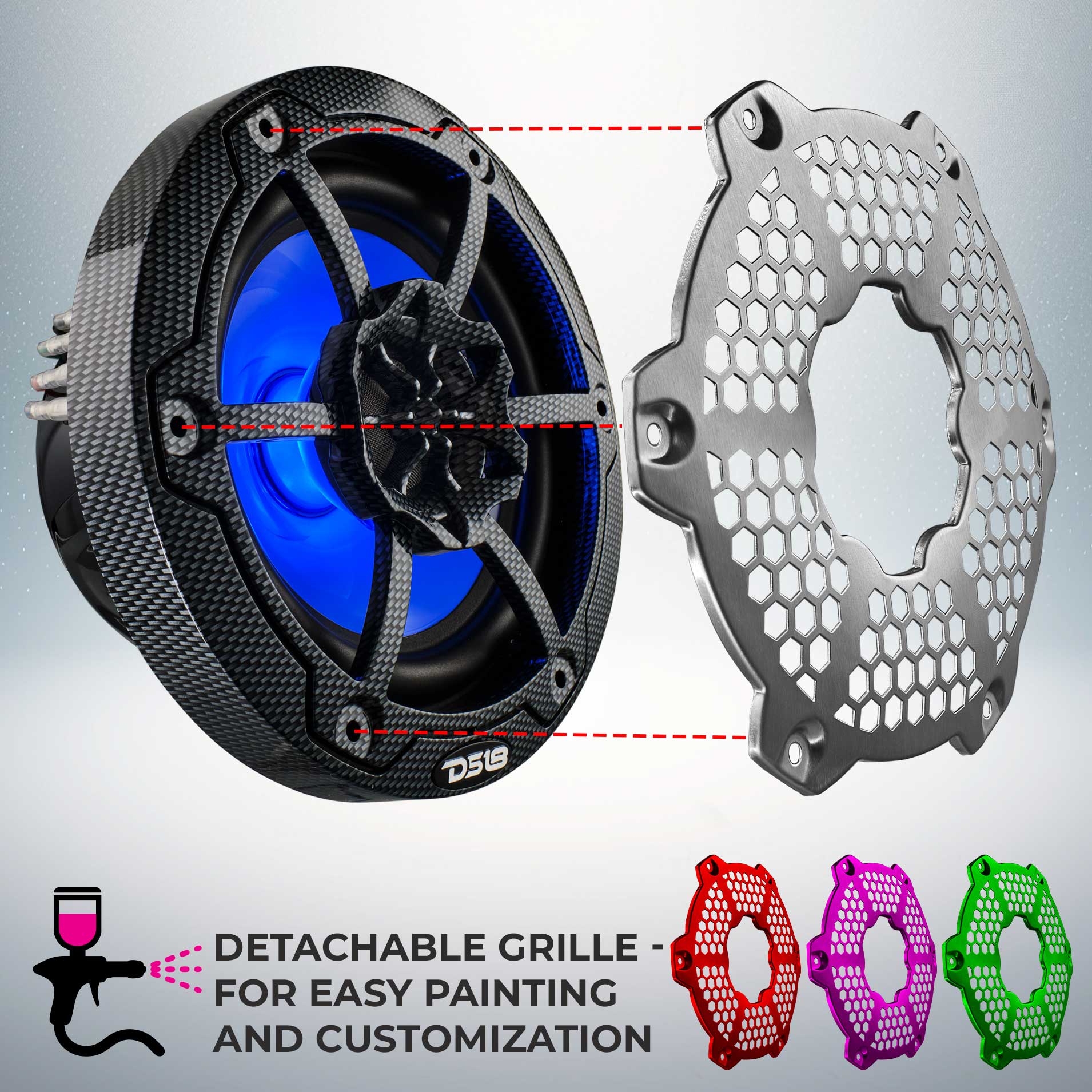

Crafted with a rugged carbon fiber texture and 316 stainless steel mesh grill, the CF-65M is built to thrive in all environments. The high-temp UV-coated basket and new silicone cover boost durability so your sound never quits.

Always Ready

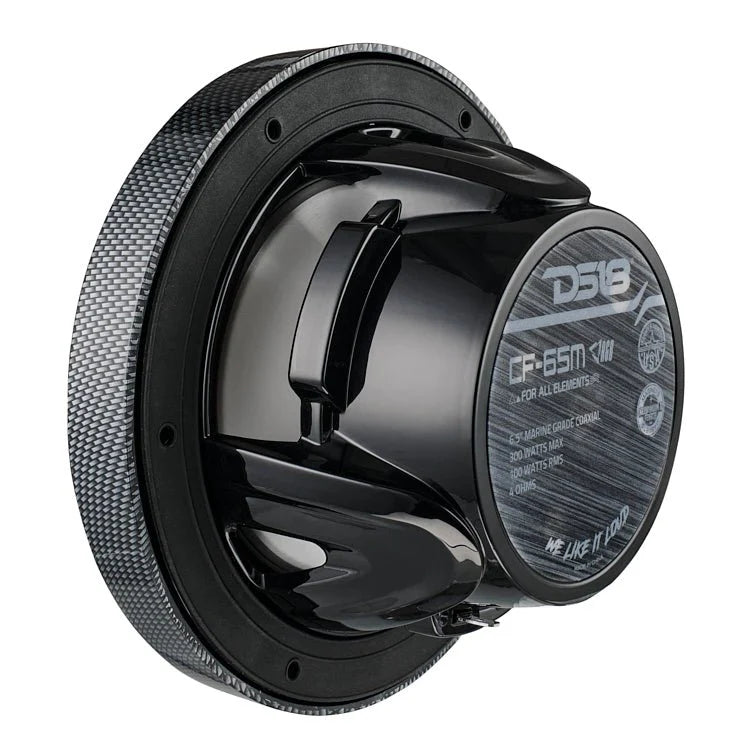

Backed by a Y35 ferrite main magnet and reverse neodymium motor, the CF-65M brings 91dB sensitivity and a wide 45Hz–23kHz range. Every detail rings true when they matter most.

RGB Style That Syncs With You
Integrated RGB LED lights let you match your mood or set the scene. Control them with DS18’s LED-BTC or any compatible RF/BT/WiFi system (sold separately) for custom colors that look as good as your system sounds. Download the DS18 LED-BTC app on iOS or Android to take full control of your RGB setup.

Take your marine or powersports build to the next level with the CF-65M!

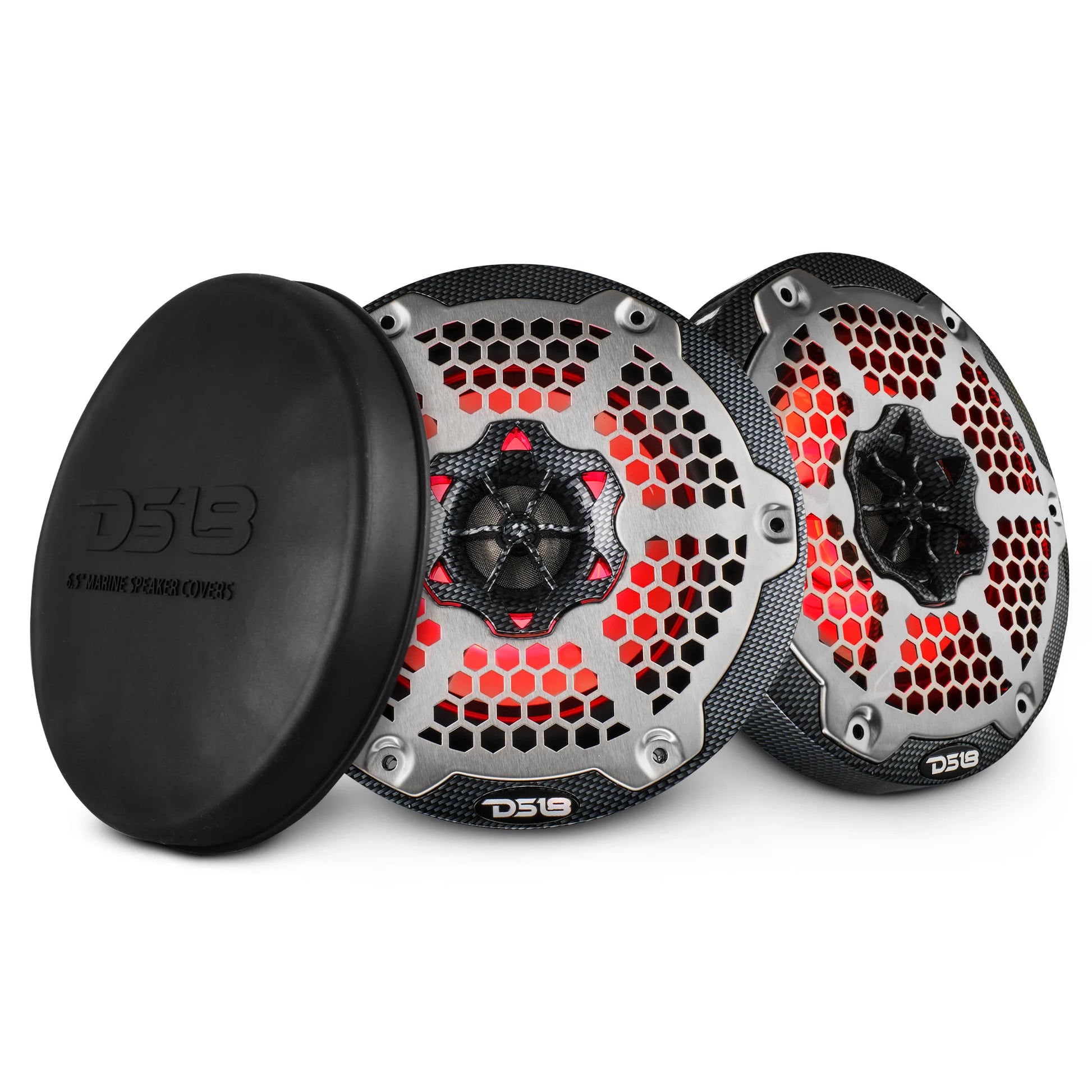

6.5" 2-Way Coaxial Marine Speaker With LED RGB Lights and Silicone Cover

6.5" 2-Way Marine Speaker
RMS Power: 100 Watts
Impedance: 4 Ohm
Ferrite & Neodymium Magnet
RGB LED Light ~  Metal Mesh Grill
Water Resistant IP65

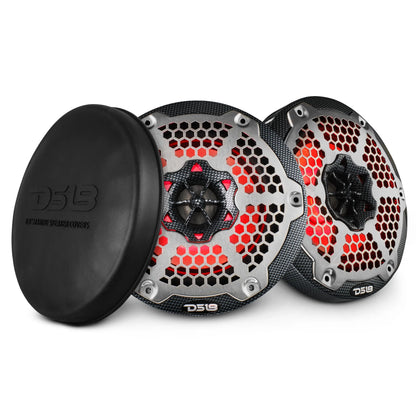

Sold in pairs

SPECS

SKU
CF-65M
Nominal Diameter
6.5" / 165mm
Nominal Impedance
4 ohms
RMS Power Handling
100W
MAX Power Handling
300W
Sensitivity (1w/1m)
91dB
Frequency Response
45Hz-23KHz
Recommended HI Pass Crossover
65 Hz

Body / Features

UV Compliant
Yes, 100% Stable
Marine Grade Type
IP65
RGB LED
Yes, RGB integrated

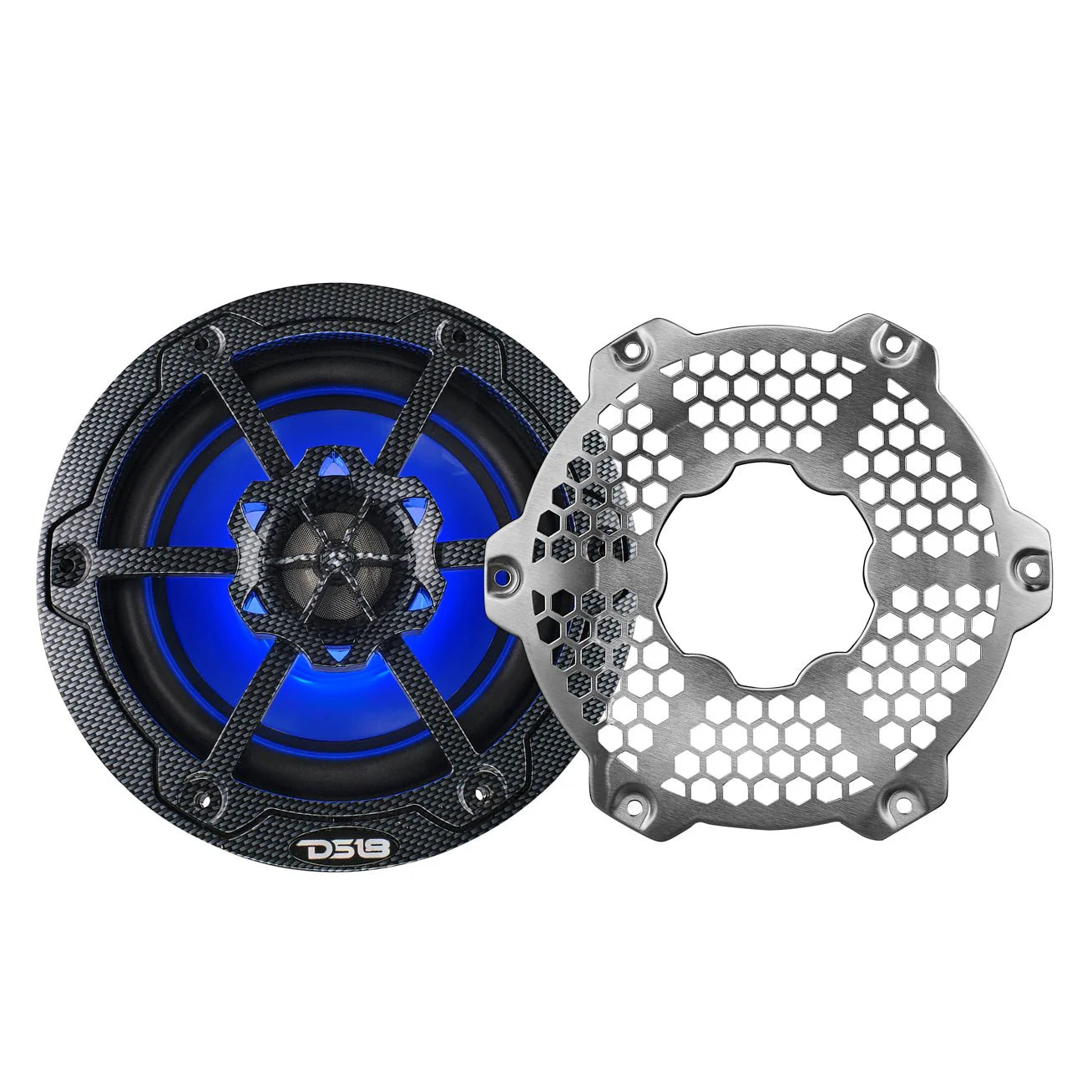

Grill Type
Injection Molded Composite (ASA) with 316 Stainless Steel mesh
Pair
Yes
Color / Finish
Carbon Fiber Texture / Gloss

Woofer Specifications

Voice Coil Diameter
1.2" / 30.5mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Cone Material
Injection Molded Polypropylene + UV Compliant
Surround Material
Butyl (Rubber)
Basket Material
High Temp Injection Molded Composite (ASA) with UV Protection coating
Magnet Material
Ferrite (Y35) + Neodymium (N35)
Magnet Weight
14oz+0.32oz

Tweeter Specifications

Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
PEI
Magnet Material
NEODYMIUM(N38H)
Magnet Weight
0.54oz

Thiele & Small Parameters

Equivalent Volume Vas
20L / 0.708ft3
Excursion (one way) Xmax
8.5 mm
Free Air Resonance Fs
75Hz
Mechanical Factor Qms
7.823
Electrical Factor Qes
1.057
Total Factor Qts
0.931
Moving Mass Mms
4.122g
Compliance Cms
1.081mm/N
Bl Factor Bl
2.41
Voice Coil Inductance Le
0.543mH
Cone Area Sd
114.99cm2
DC Resistance Re
3.14 ohms
Efficiency Bandwidth Product EBP
70.9

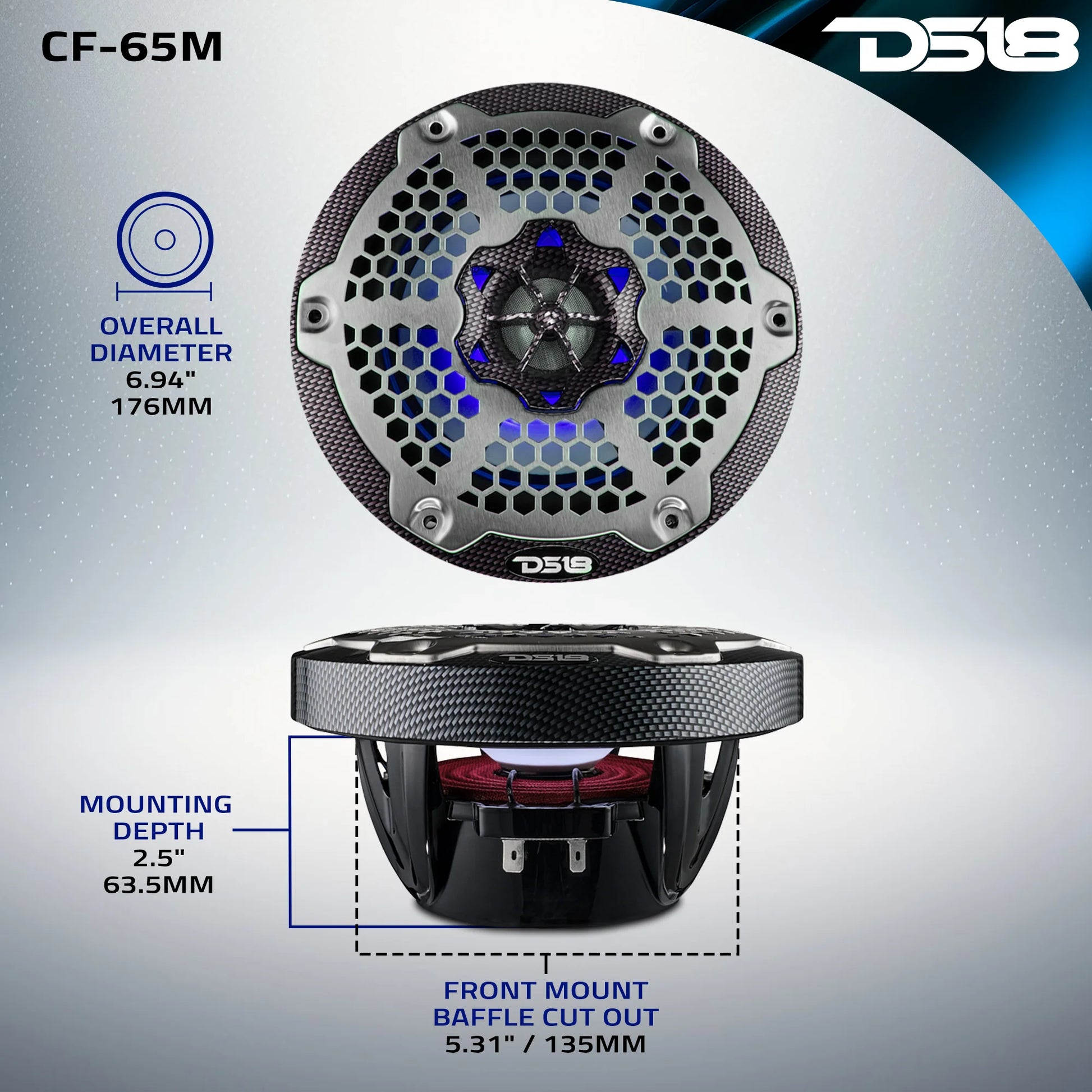

Speaker Measurement

Overall Diameter
6.94" / 176mm
Overall Depth
3.72" / 94.4mm
Front Mount Baffle Cutout
5.31" / 135mm
Mounting Depth
2.5" / 63.5mm
Motor Diameter
3.54" / 90mm
