6x9” 2-Way Marine Coaxial Speaker With RGB LED Lights | 125W RMS | 4-Ohm

DS18’s NXL-69 brings full-range audio performance to any marine or outdoor build. The NXL-69 delivers the quality and durability demanded by real-world marine environments.

Marine-Ready Performance
With IP65 marine-grade compliance and 100% UV-stable materials, the NXL-69 withstands any conditions without fading or failing. The woofer cone is made from injection-molded polypropylene with UV protection, paired with a butyl rubber surround to deliver long-lasting performance in harsh environments.

Full-Range Sound
With a frequency response of 40Hz–20kHz and a sensitivity of 92dB, the NXL-69 delivers strong midbass, clean vocals, and bright highs that carry clearly across open water. The coaxial tweeter uses a Neodymium N38H magnet and PEN diaphragm for precise high-frequency performance.

Updated Weather-Resistant Protection

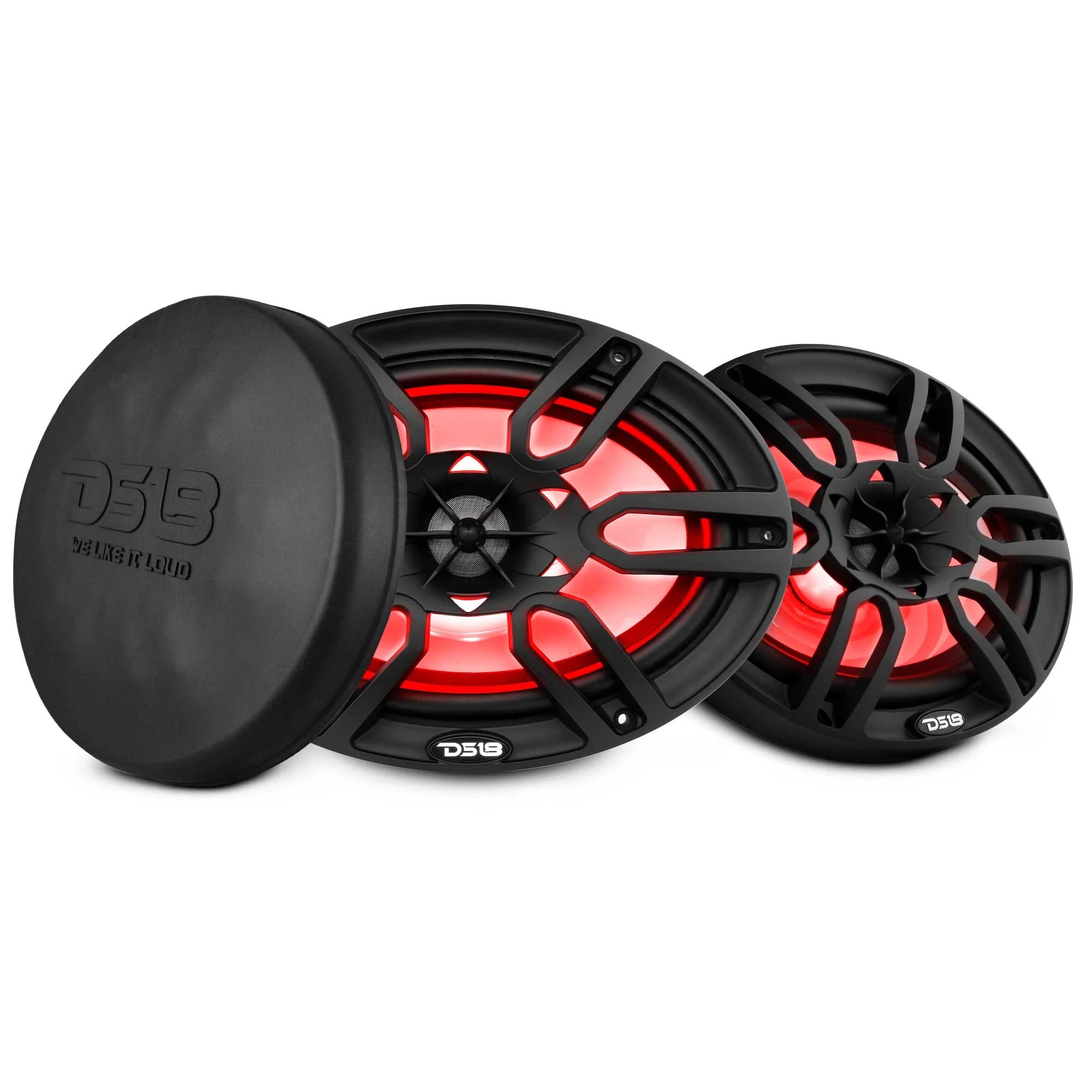

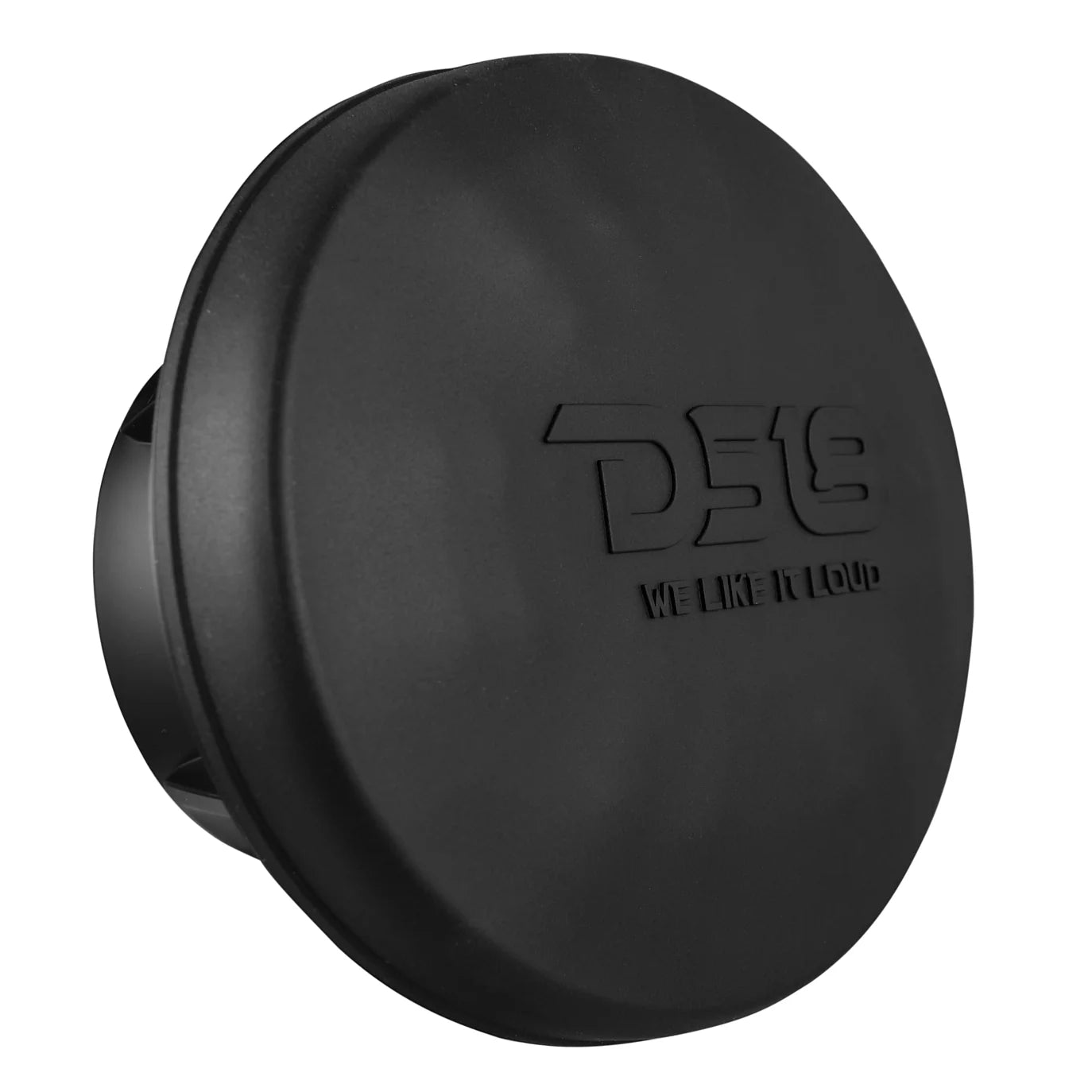

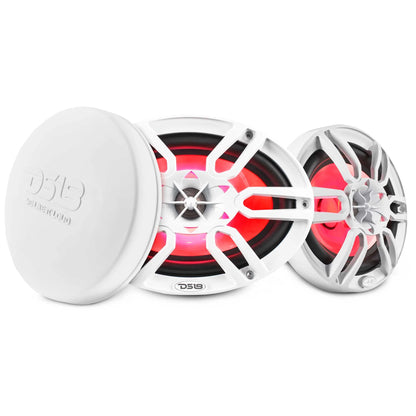

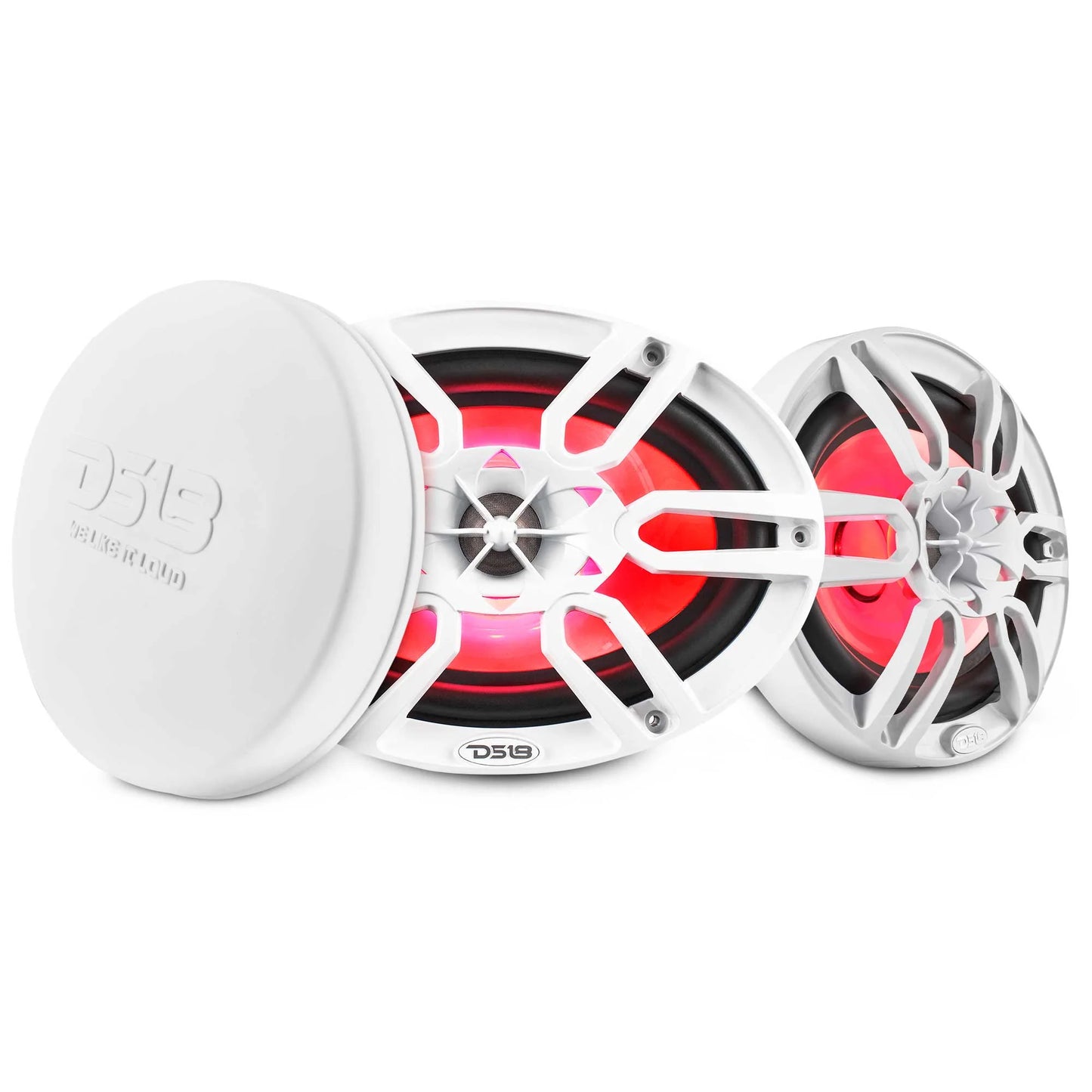

This latest model includes DS18’s protective cone cover, adding an extra layer of environmental shielding while keeping the original sleek HYDRO styling. UV-coated ASA grills maintain strength and color even under constant sun exposure.

RGB Lighting That Moves With Your Music

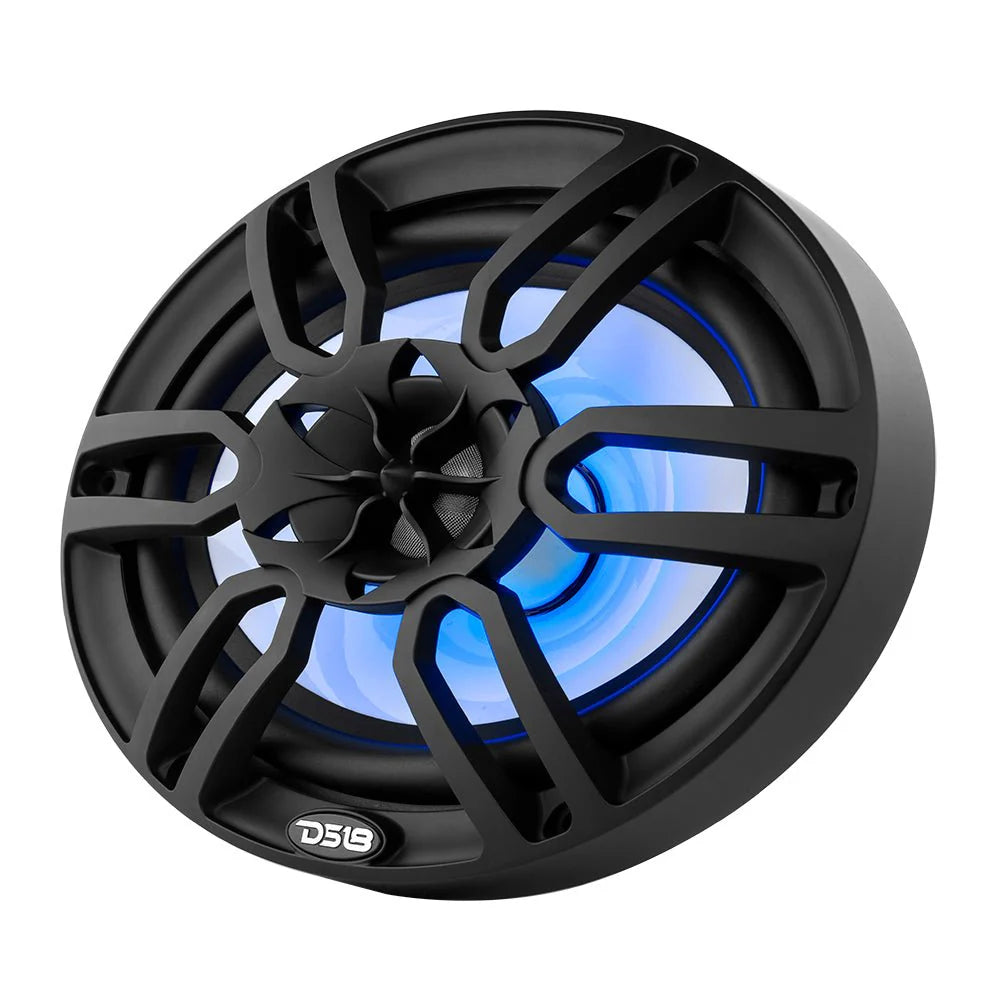

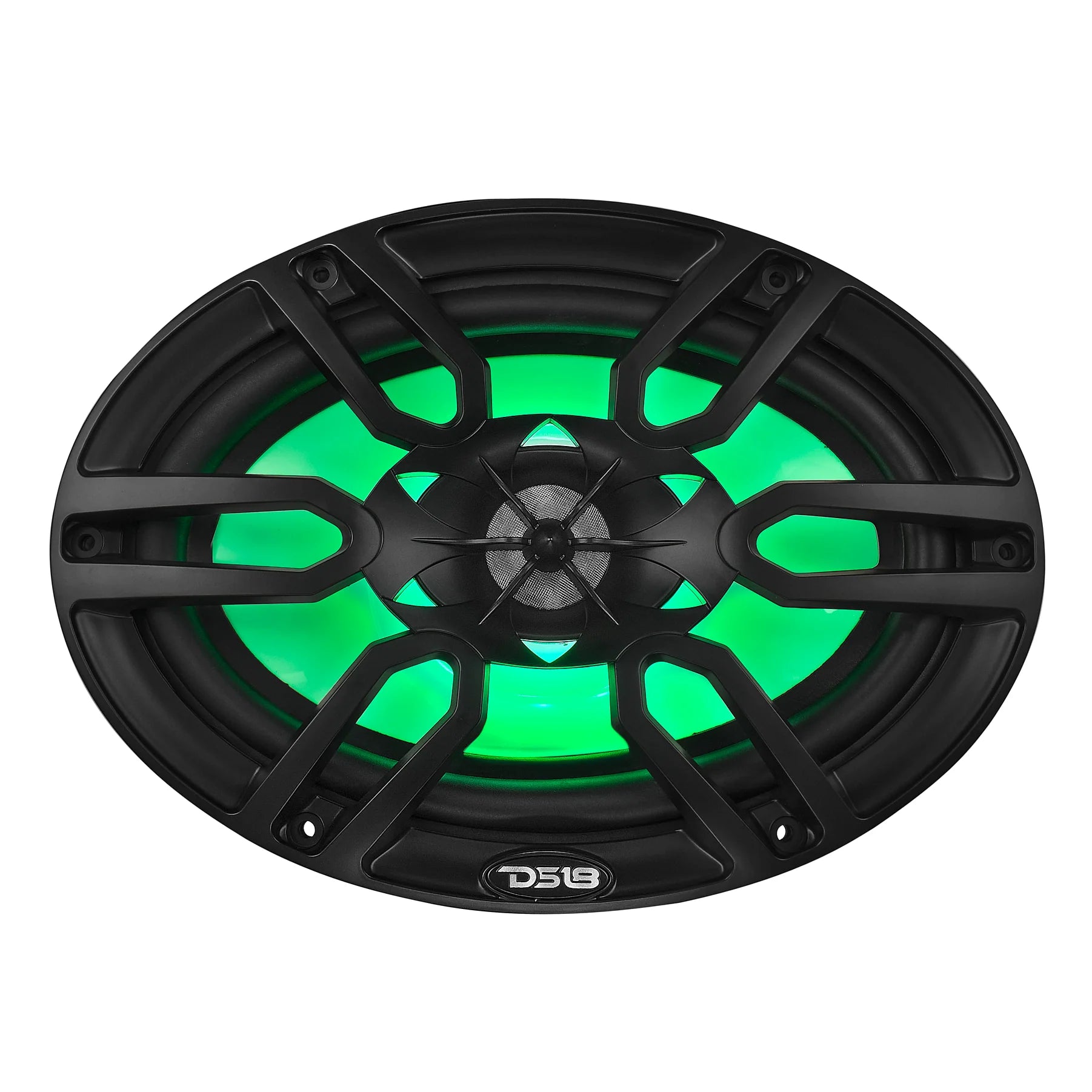

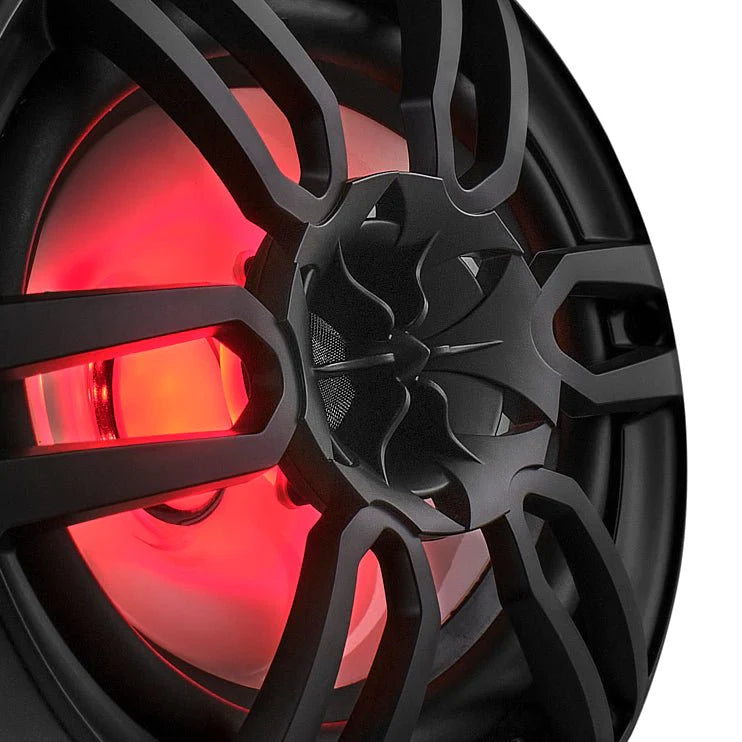

Built-in RGB LED lighting behind the speaker grille lets you sync your audio with vibrant, multi-color lighting effects. Pair it with DS18’s LED-BTC Bluetooth® controller (sold separately) for full lighting control right from your phone.

Upgrade to DS18’s NXL-69 today and experience bold, marine-grade sound built for every adventure.

SPECS

SKU
NXL-69/WH or NXL-69/BK
Nominal Diameter
6x9" / 152.4x228.6mm
Nominal Impedance
4 ohms
RMS Power Handing
125 watts
Maximum Power Handing
375 watts
Sensitivity (1w/1m)
92 dB
Frequency Response
40Hz-20KHz
Recommended Hi Pass Crossover
60Hz


SPECS

Voice Coil Diameter
1.4" / 35.5mm
Voice Coil Former Material
Kapton
Winding Material
SV
Basket Material
High Temp injection Molded composite whit UV protection coating
Magnet Weight
24 OZ +0.75 OZ


THIELE & SMALL PARAMETERS

Vas
51.43L / 1.8ft3
Xmax
6 mm
Fs
49 Hz
Qms
7.66
Qes
0.704
Qts
0.644
Re
3.1 OHM

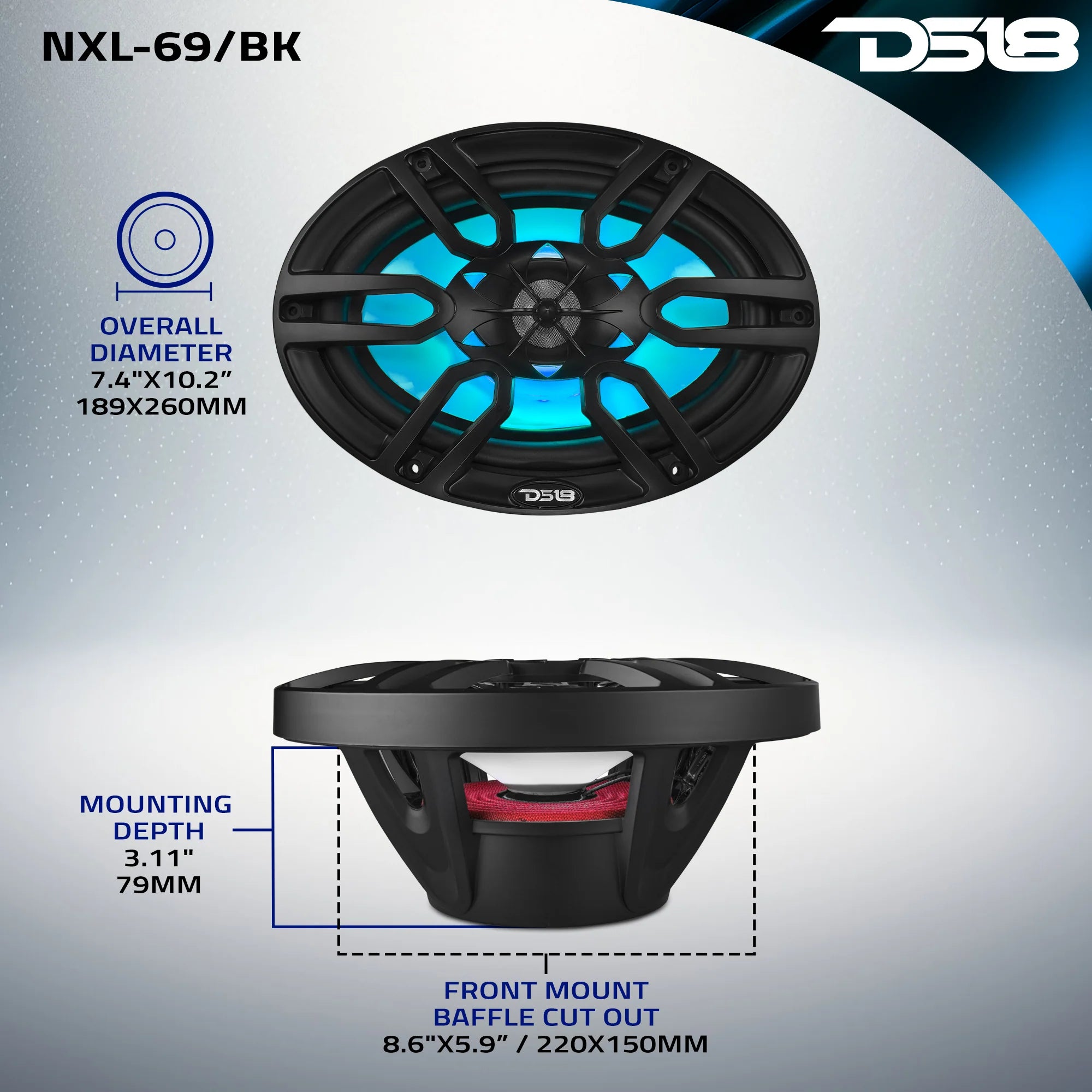

MEASUREMENTS

Overall Diameter
7.4" x 10.2" / 189 x 260mm
Front Mount Baffle Cutout
8.6" x 5.9" / 220 x 150 mm
Mounting Depth
3.11" / 79 mm
Overall Depth
4.52" / 115 mm
Product Weight
10.5 lbs
Product Dimensions
17.75 x 12 x 5.5
