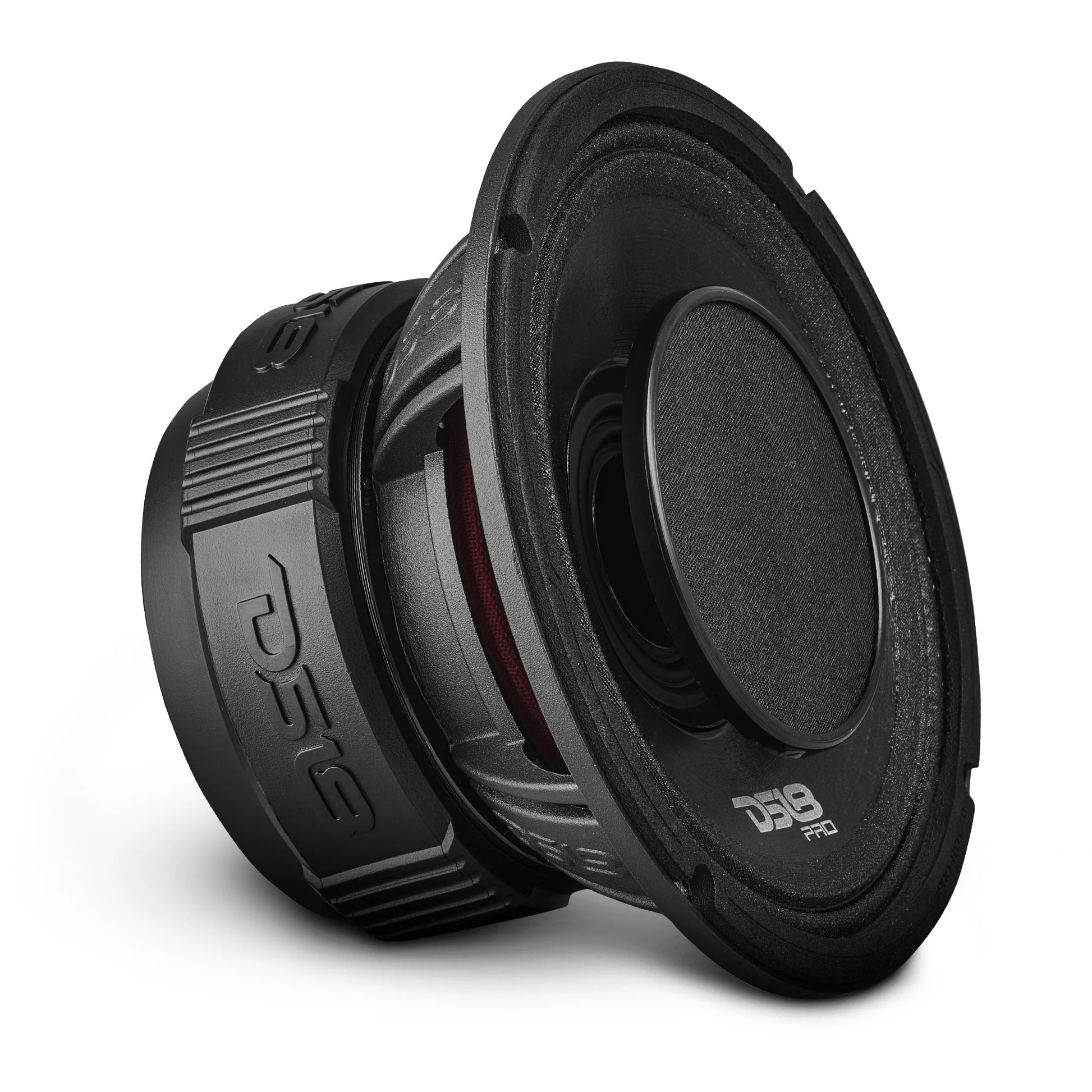

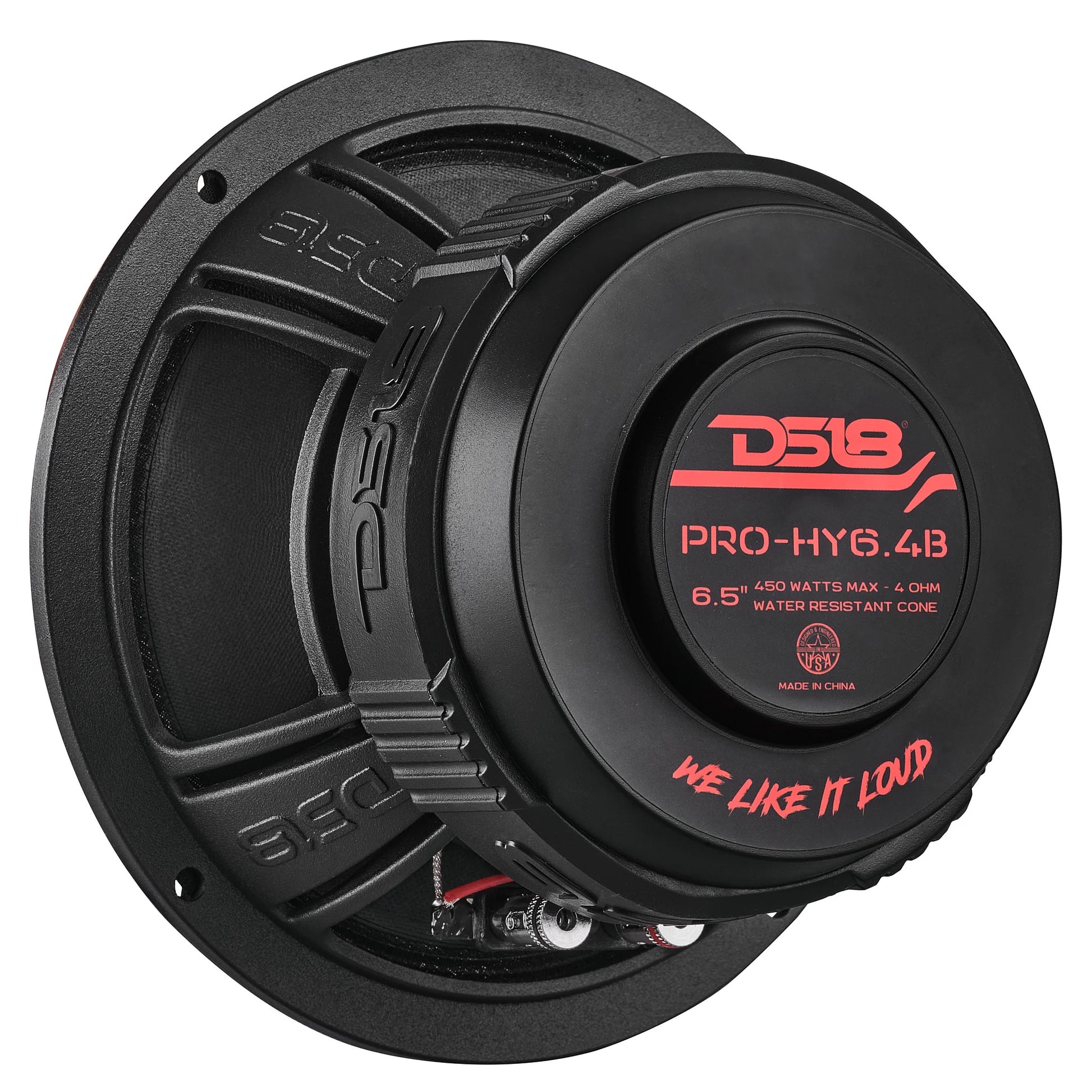

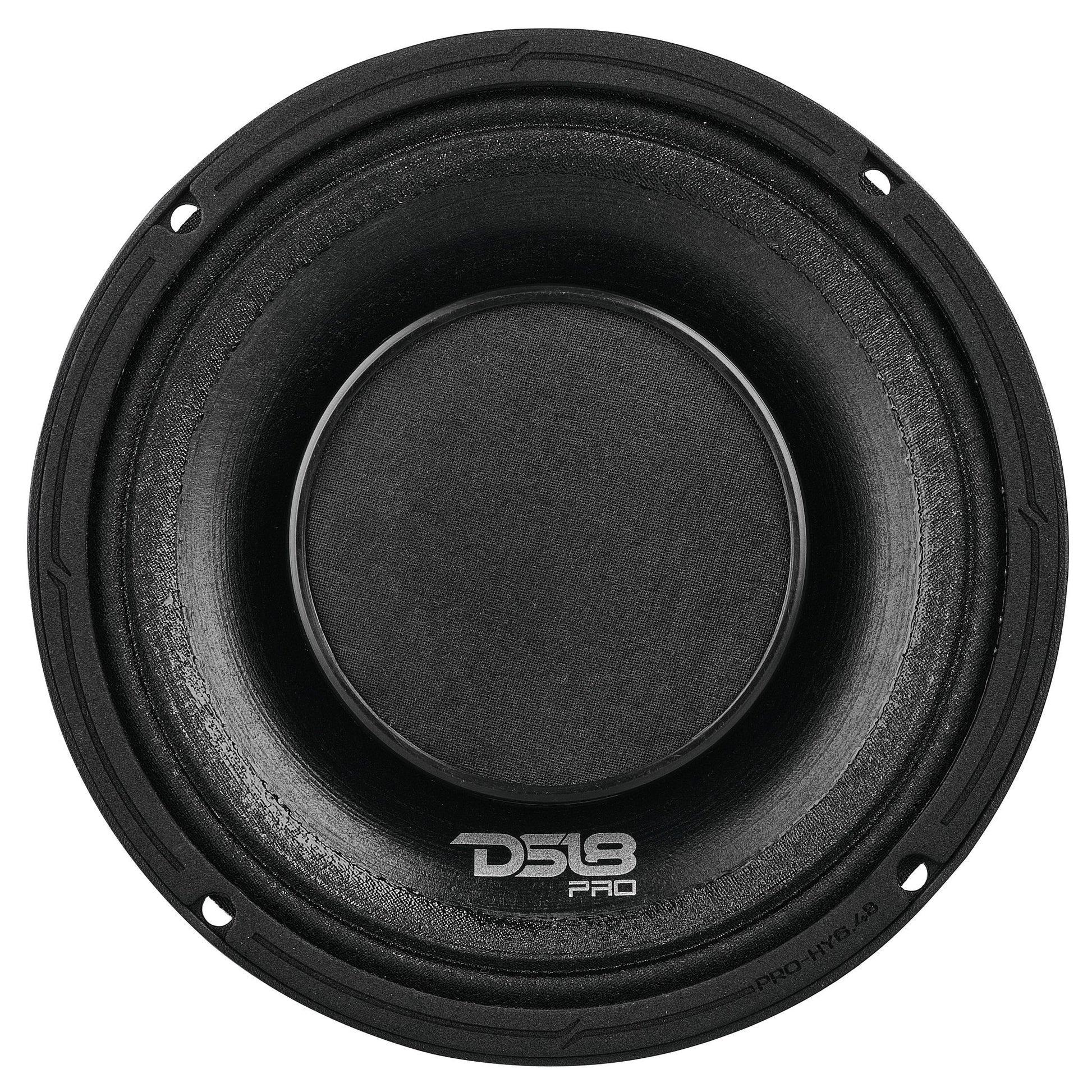

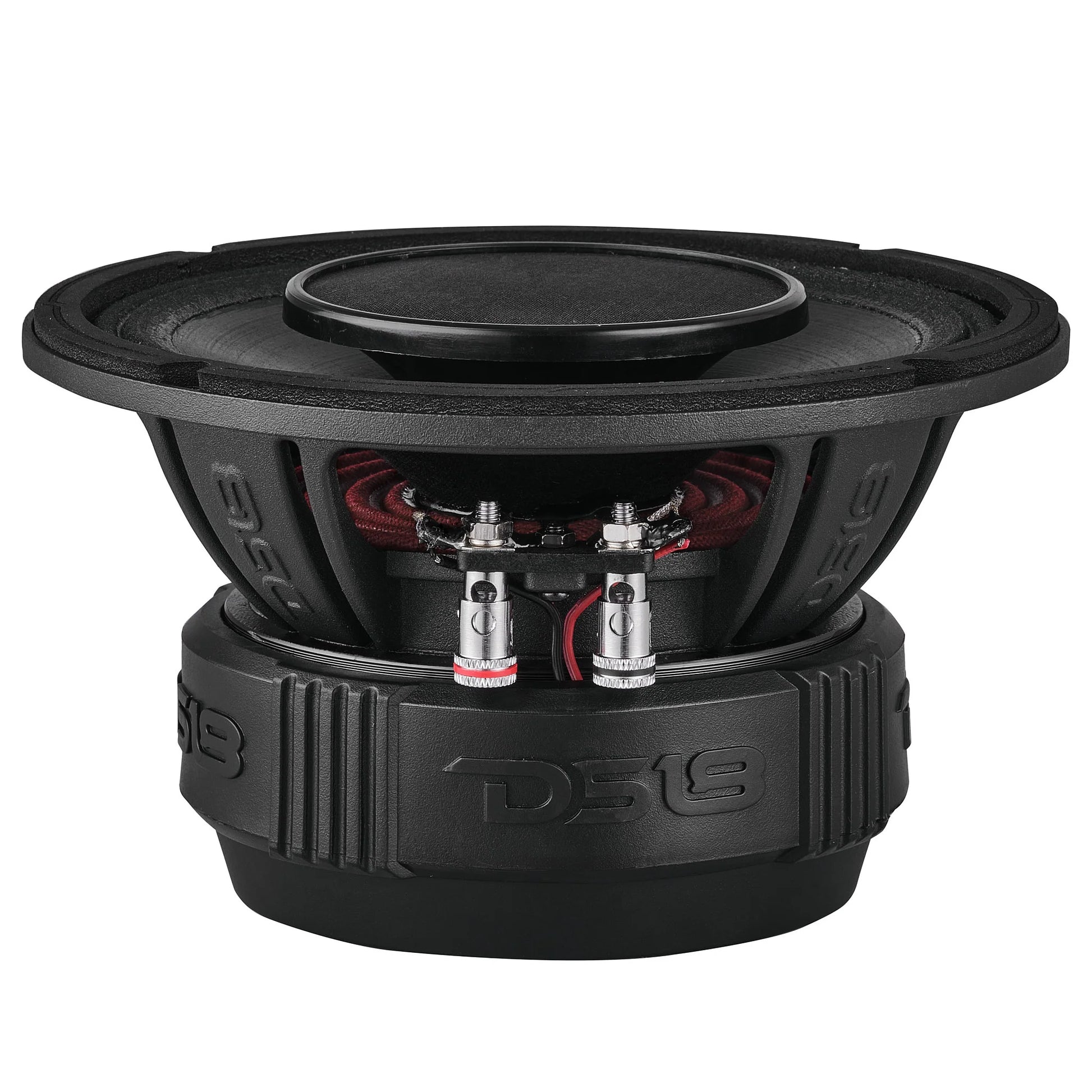

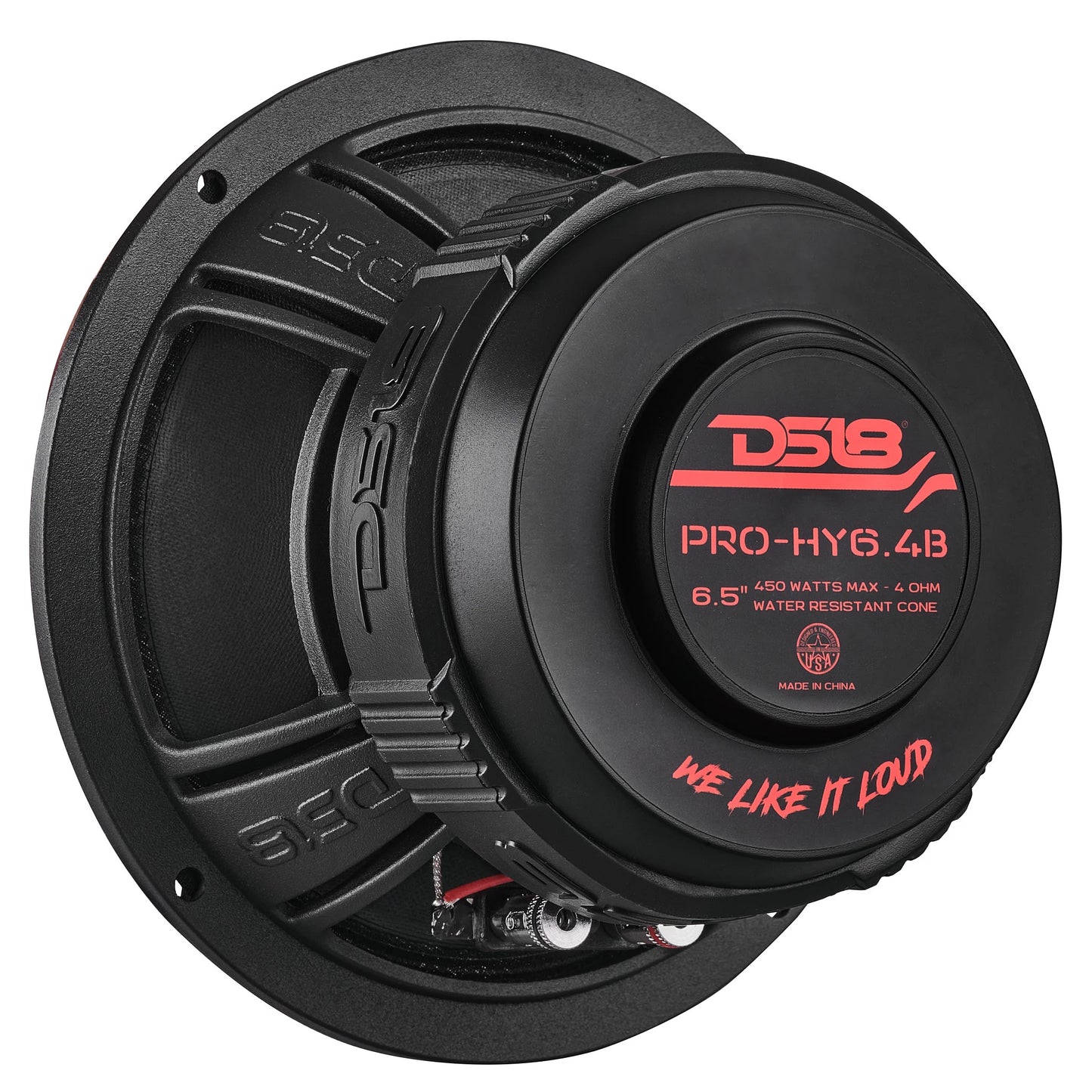

DS18 PRO 6.5" Coaxial Hybrid Mid-Range Water resistant Cone Loudspeaker with Built-in Driver 225 Watts Rms 4-Ohm

6.5" Water Resistant Mid-Range Loudspeaker with Built-in Driver 450 Watts 4-Ohm

DS18's PRO-HY6.4B Hybrid speakers break barriers to bring you the best of both worlds.
Designed to conquer the elements, the PRO-HY6.4B is built with water-resistant paper cones to get LOUD against nature's forces! These speakers are built to withstand the harshest conditions, all while maintaining peak performance.
The PRO-HY6.4B’s feature a high-volume 6.5" speaker and a 1" voice coiled driver, both rated at an astonishing 225W RMS and 450W MAX power handling. With a sensitivity of 96dB and a frequency response ranging from 100Hz to 20KHz, these speakers deliver crystal-clear sound across the entire audible spectrum.
DS18's PRO-HY6.4B driver features a diaphragm crafted from titanium, renowned for its remarkable stiffness-to-weight ratio. This premium material guarantees extraordinary clarity, allowing you to hear every nuance and detail in your favorite music with pristine accuracy. The driver's magnet material is none other than neodymium, a powerful and lightweight material that ensures superior control and response.
Every detail matters in the construction of the PRO-HY6.4B’s: its voice coil diameter of 1.5" and former made of glass fiber guarantee impeccable performance and durability. The cone, crafted from water-resistant paper, ensures longevity and resistance against the elements. The cloth surround, and retooled aluminum basket all contribute to an exquisite aesthetic that perfectly complements the exceptional audio quality.
Elevate your car audio system to new heights and let the PRO-HY6.4B redefine your audio expectations.

Sold individually

SPECIFICATIONS
Nominal Diameter    6.5”
Nominal Impedance    4 OHMS
RMS Power Handling    225W
MAX Power Handling    450W
Sensitivity (1w/1m)    96dB
Frequency Response    100Hz-20KHz
Recommended Hi Pass Crossover    120 Hz
Number of Ways    2
Pair or Single    Single
MID-RANGE SPECIFICATIONS
Voice Coil Diameter    1.5” / 38.6 mm
Voice Coil Former Material    Glass Fiber
Winding Material    CCAW
Cone Material    Water Resistant Paper
Surround Material    Cloth
Basket Material    Aluminum
Basket Color/Finish    Glossy Red
Magnet Material    Ferrite
Magnet Weight    27 oz
Displacement volumen    0.047L
THIELE & SMALL PARAMETERS
Equivalent Volume    Vas 2.211L
Excursion (one way)    Xmax 9.2 mm
Free Air Resonance    FS 199Hz
Mechanical Factor    Qms 5.96
Electrical Factor    Qes 1.524
Total Factor    Qts 1.214
Mechanical Mass    Mms 8.654g
Mechanical Compliance    Cms 73.792 mm/N
BL Factor    BL 4.769
Voice Coil Inductance    Le 4.22mH
Cone Area    Sd 145.26 Cm2
DC Resistance    Re 3.2 ohms
Mechanical Mass w/o Air    Mmd   6.7g
DRIVER SPECIFICATIONS
Voice Coil Diameter    1” / 25.4 mm
Voice Coil Former Material    Kapton
Winding Material    CCAW
Diaphragm Material    Titanium
Magnet Material    Neodymium
Horn Diameter    3.26"
MEASUREMENTS
Overall Diameter    6.85" / 174 mm
Overall Depth    4.28" / 108.8 mm
Front Mount Baffle Cutout    5.91" / 150 mm
Mounting Depth    3.92" / 99.5 mm
Motor Diameter    4.65" / 118 mm
