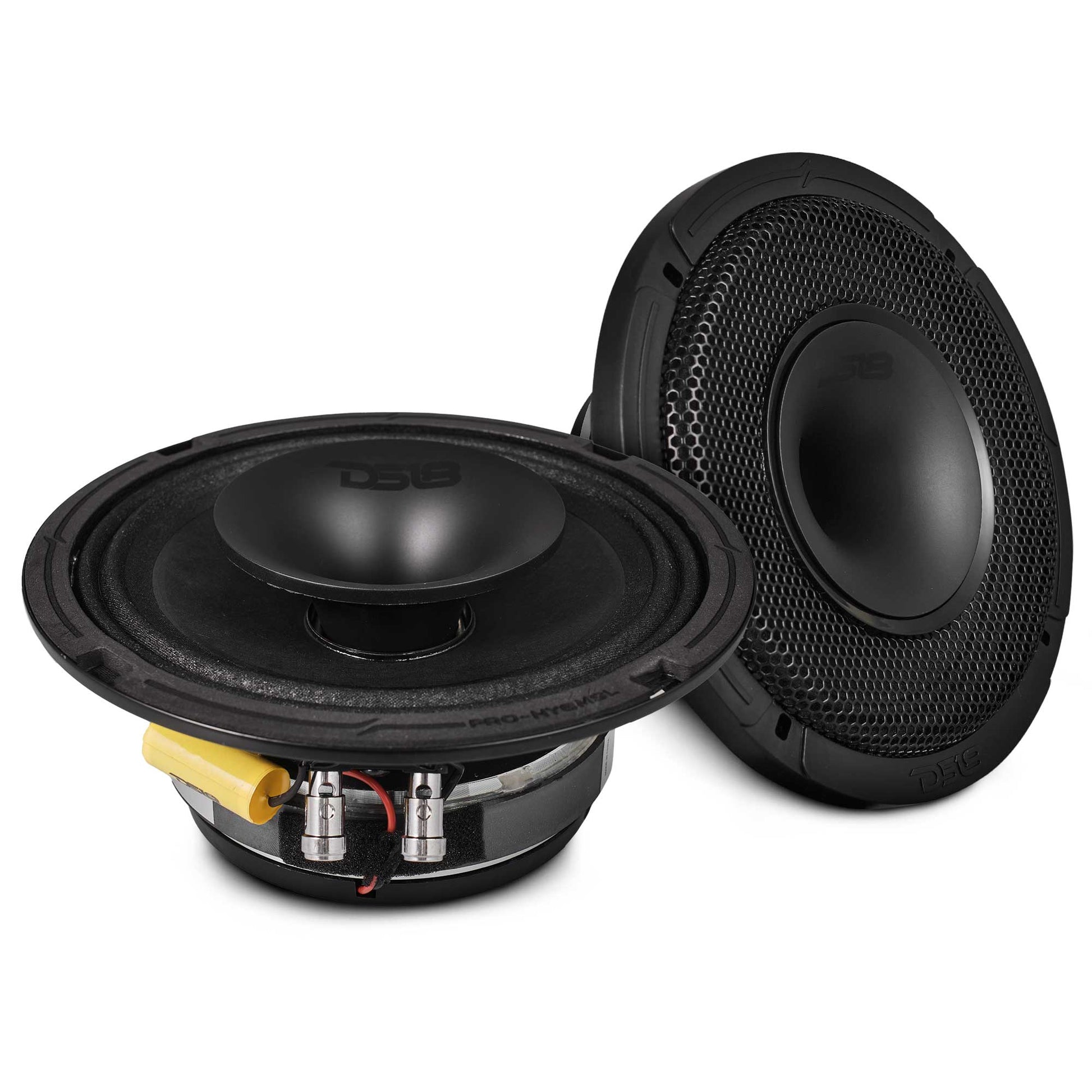

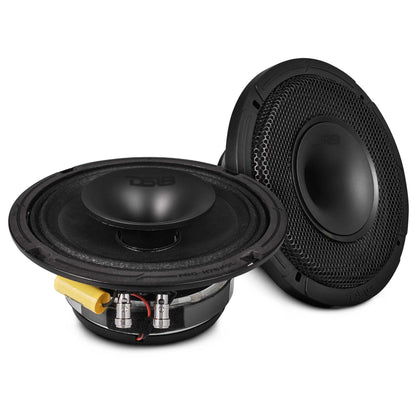

DS18 PRO 6.5" Shallow Coaxial Hybrid Mid-Range Loudspeaker with Built-in Driver | 150W RMS 8-Ohm

6.5” Hybrid Slim Loudspeaker With 1” Compression Driver Horn

Get LOUD in tight spaces with DS18’s PRO-HY6MSL—the slim-mount hybrid speaker made for motorcycles, ATVs, Slingshots, and more.

Hybrid Power in a Compact Package

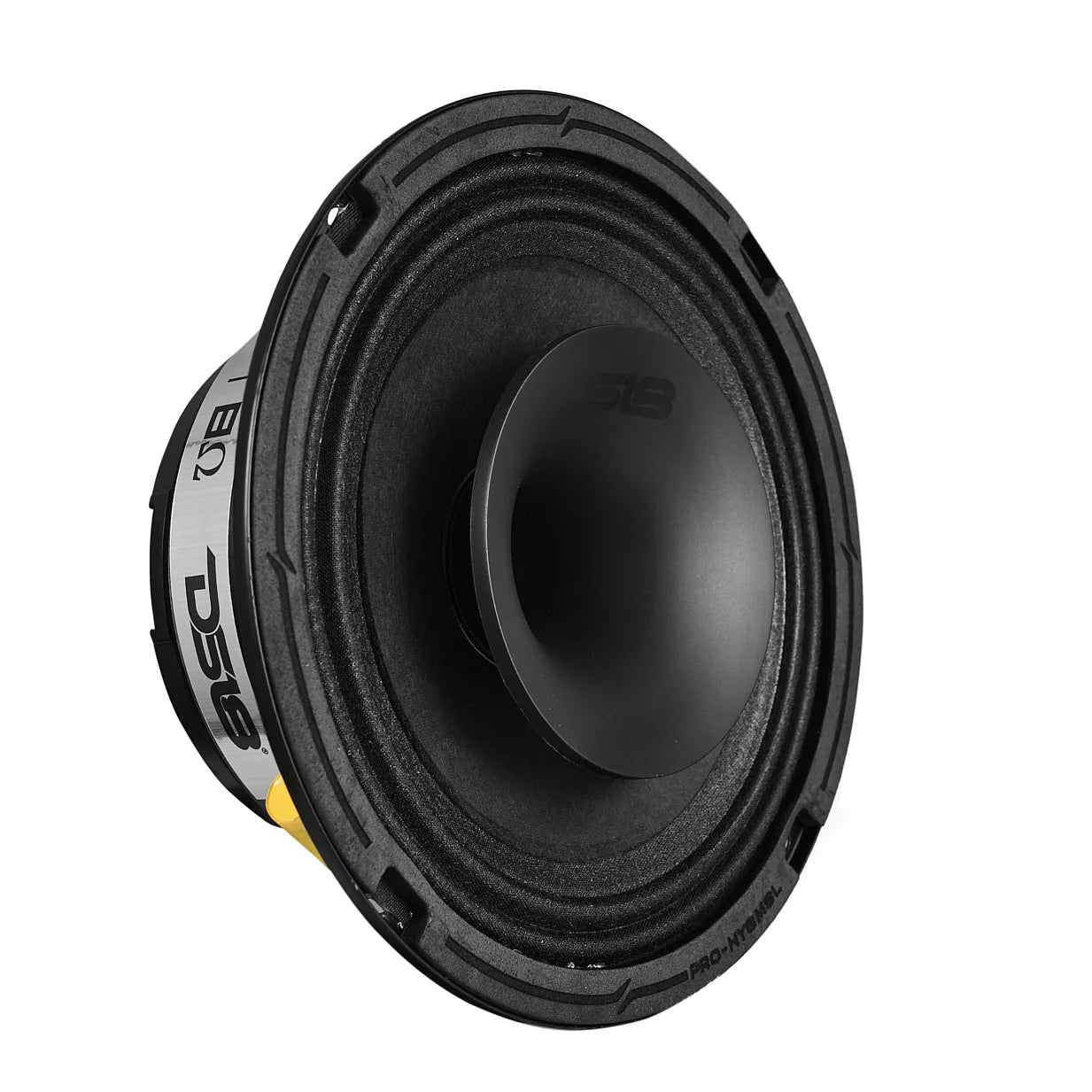

The PRO-HY6MSL combines a powerful 6.5” midrange woofer with a 1” titanium compression driver horn, packing serious output into a slim 2.77” mounting depth. This speaker cuts through wind noise or engine rumble LOUD and clear with 150W RMS / 300W MAX power handling and a bold 93dB sensitivity across 120Hz-20KHz.

High-End Components, No Compromise

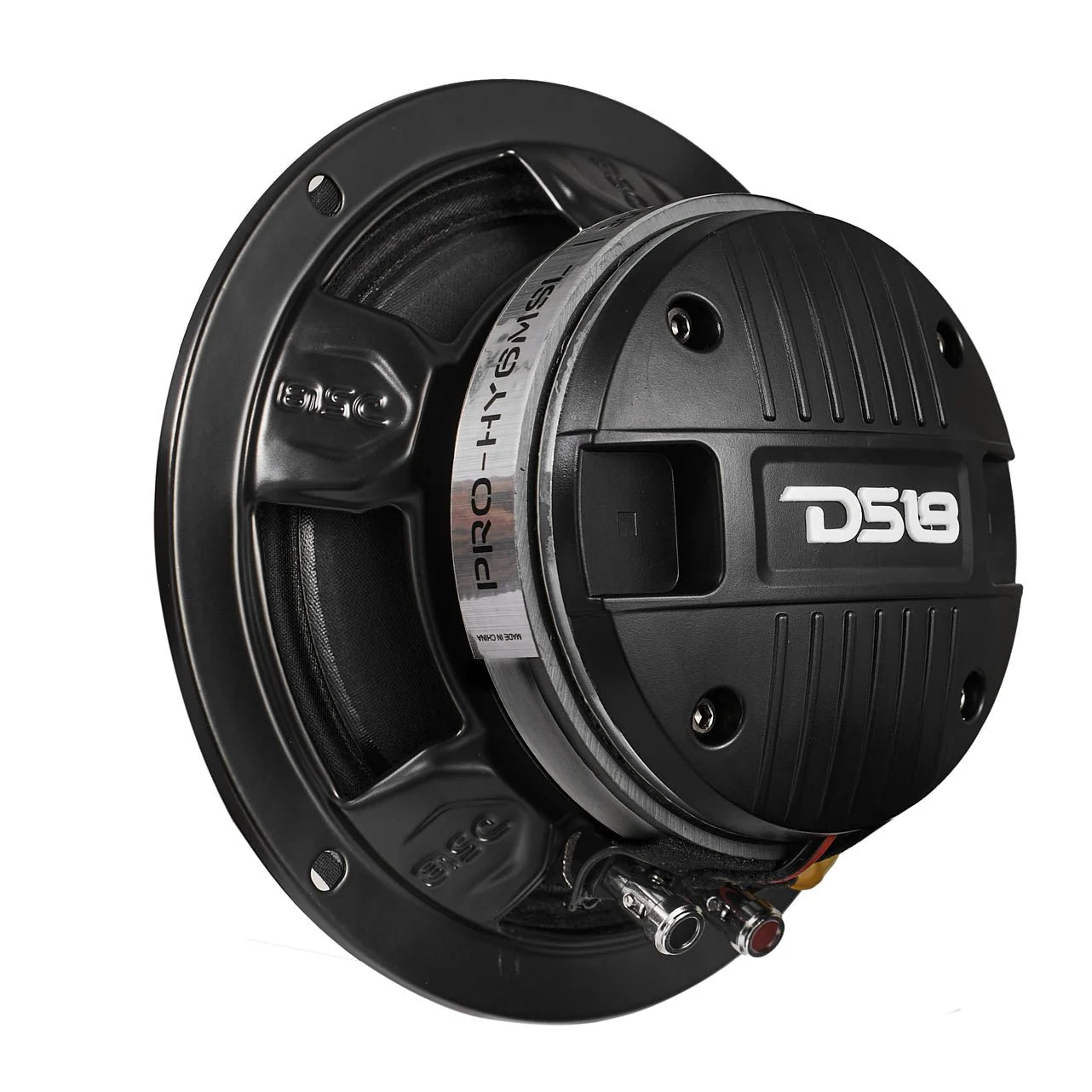

Crafted with a paper cone, cloth surround, and a 1.5” KSV voice coil, this loudspeaker delivers smooth midrange and vocal response. The steel basket and 17.5oz ferrite magnet give it structure and strength, while the titanium diaphragm and neodymium motor in the horn ensure razor-sharp highs that carry far and stay crisp. This 8-ohm setup gives you more flexibility when building or expanding multi-speaker systems.

Designed for Real Riders
This speaker is for real riders who want clean sound in performance machines. If your vehicle has room for 6.5’s, the PRO-HY6MSL belongs in it.

Sold individually

 SPECIFICATIONS
Nominal Diameter     6.5" / 165.1mm
Nominal Impedance     8 ohms
RMS Power Handling     150W
MAX Power Handling     300W
Sensitivity (1w/1m)     93dB
Frequency Response    120Hz-20Khz
Recommended HI Pass Crossover    140Hz
Number of ways    2 ways
Pair or Single    Single

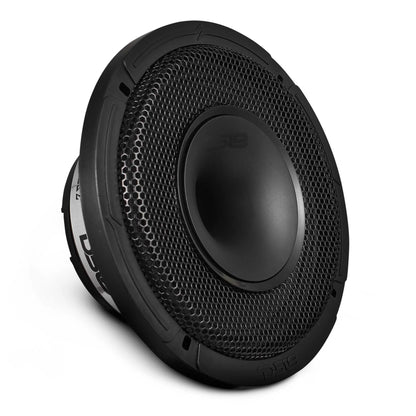

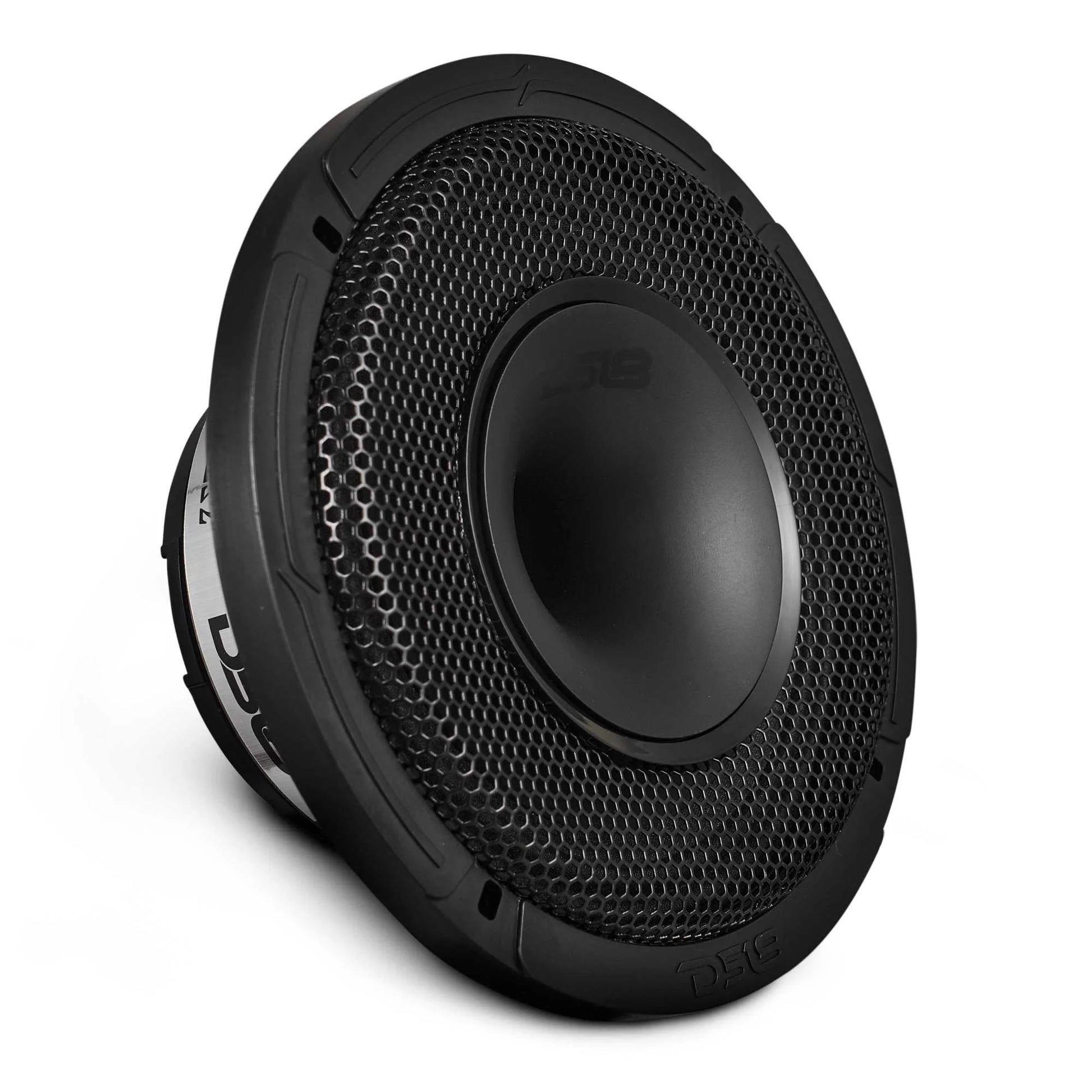

Grill Included    Yes
WOOFER SPECIFICATIONS
Voice Coil Diameter    1.5" / 38.6mm
Voice Coil Former Material     KSV
Winding Material     CCAW
Cone Material    Paper
Surround Material    Cloth
Basket Material     Steel
Basket Color/Finish    Glossy Red
Magnet Material    Ferrite
Magnet Weight    17.5 Oz

DRIVER SPECIFICATIONS
Voice Coil Diameter    1" / 25.4mm
Voice Coil Former Material     Kapton
Winding Material     CCAW
Diaphragm Material    Titanium
Magnet Material    Neodymium
Horn Diameter    3" / 76.2mm

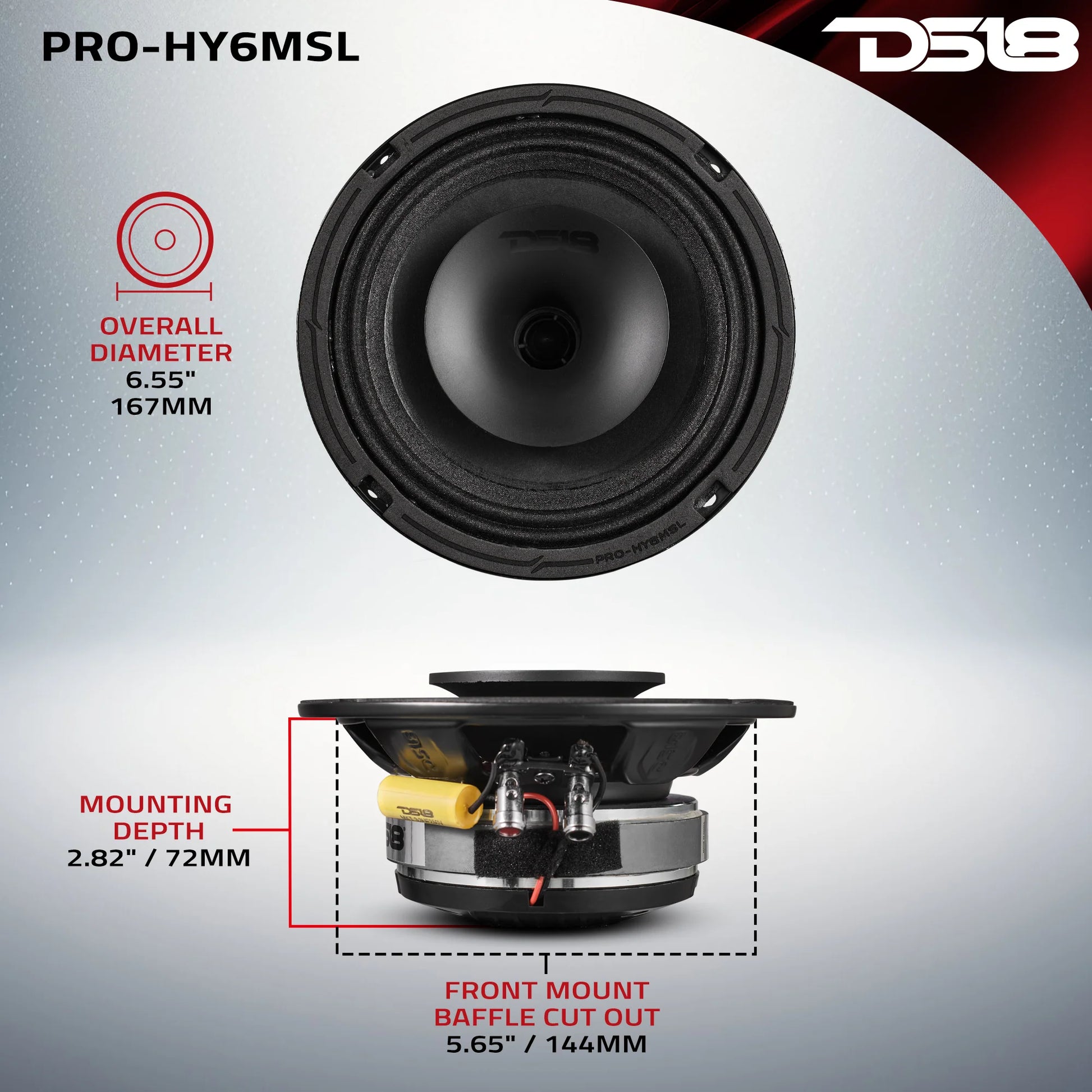

SPEAKER MEASUREMENT
Overall Diameter    6.92" / 176mm
Overall Depth    3.52" / 89.5mm
Front Mount Baffle Cutout    5.6" / 142mm
Mounting Depth    2.77" / 70.5mm
Motor Diameter    4.33" / 110mm
