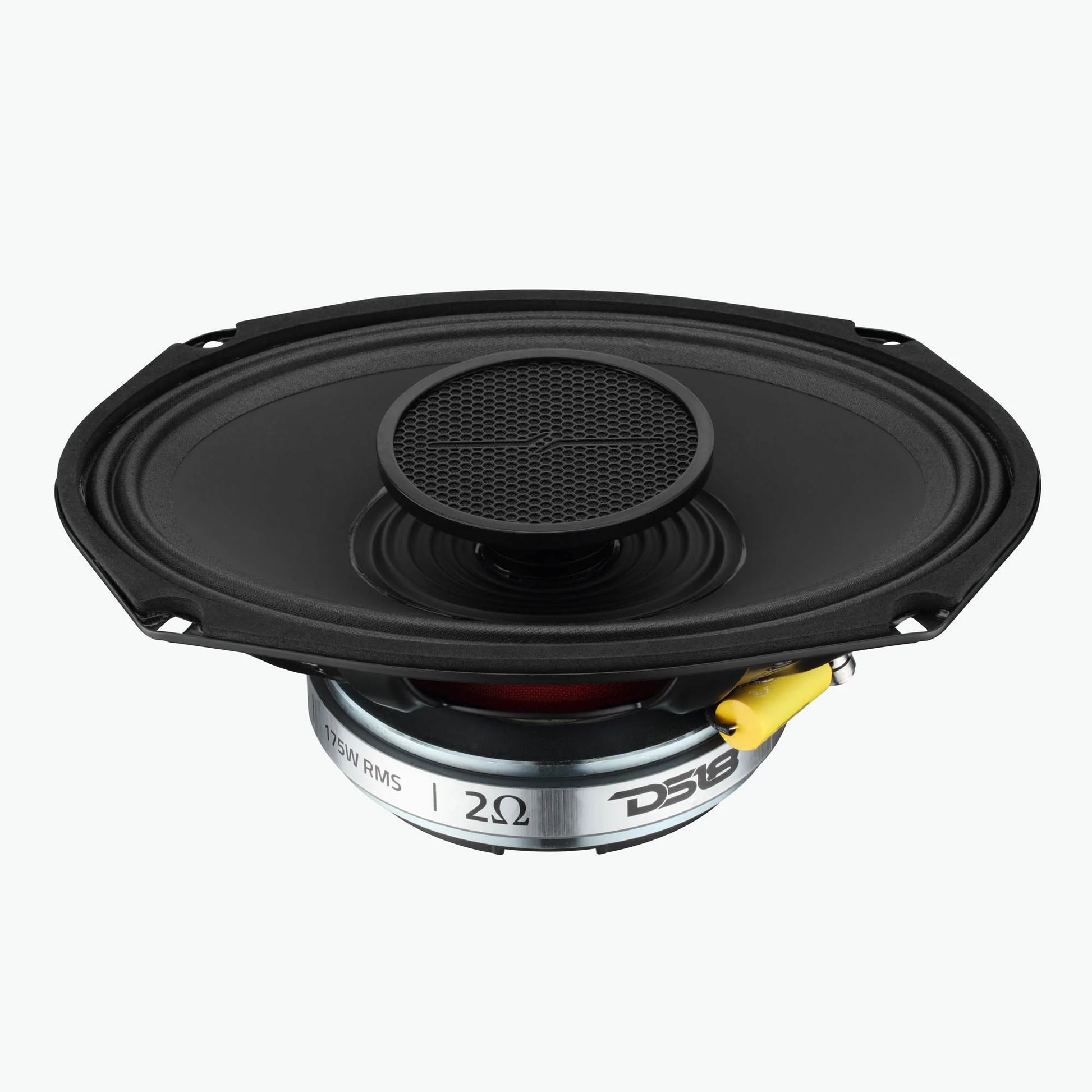

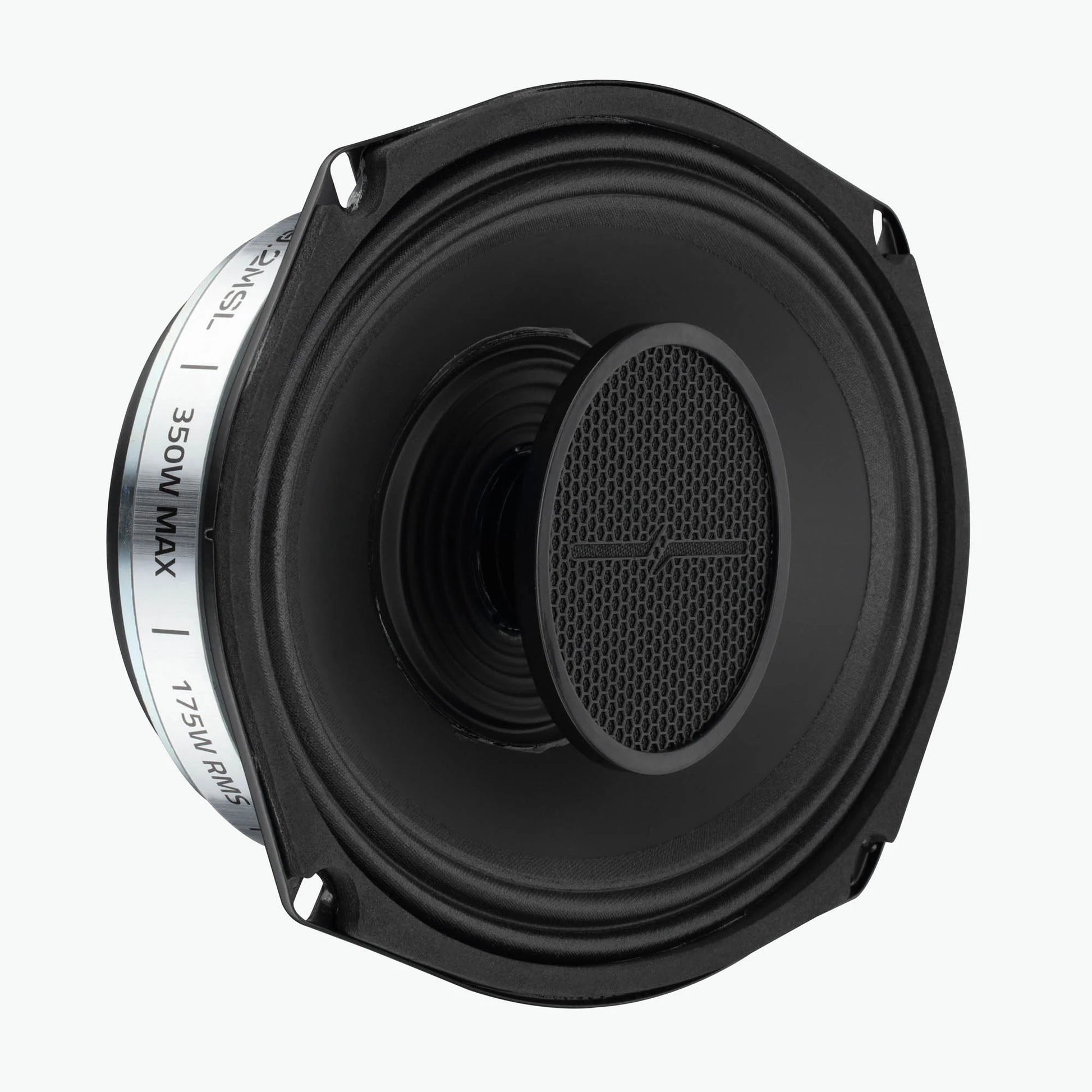

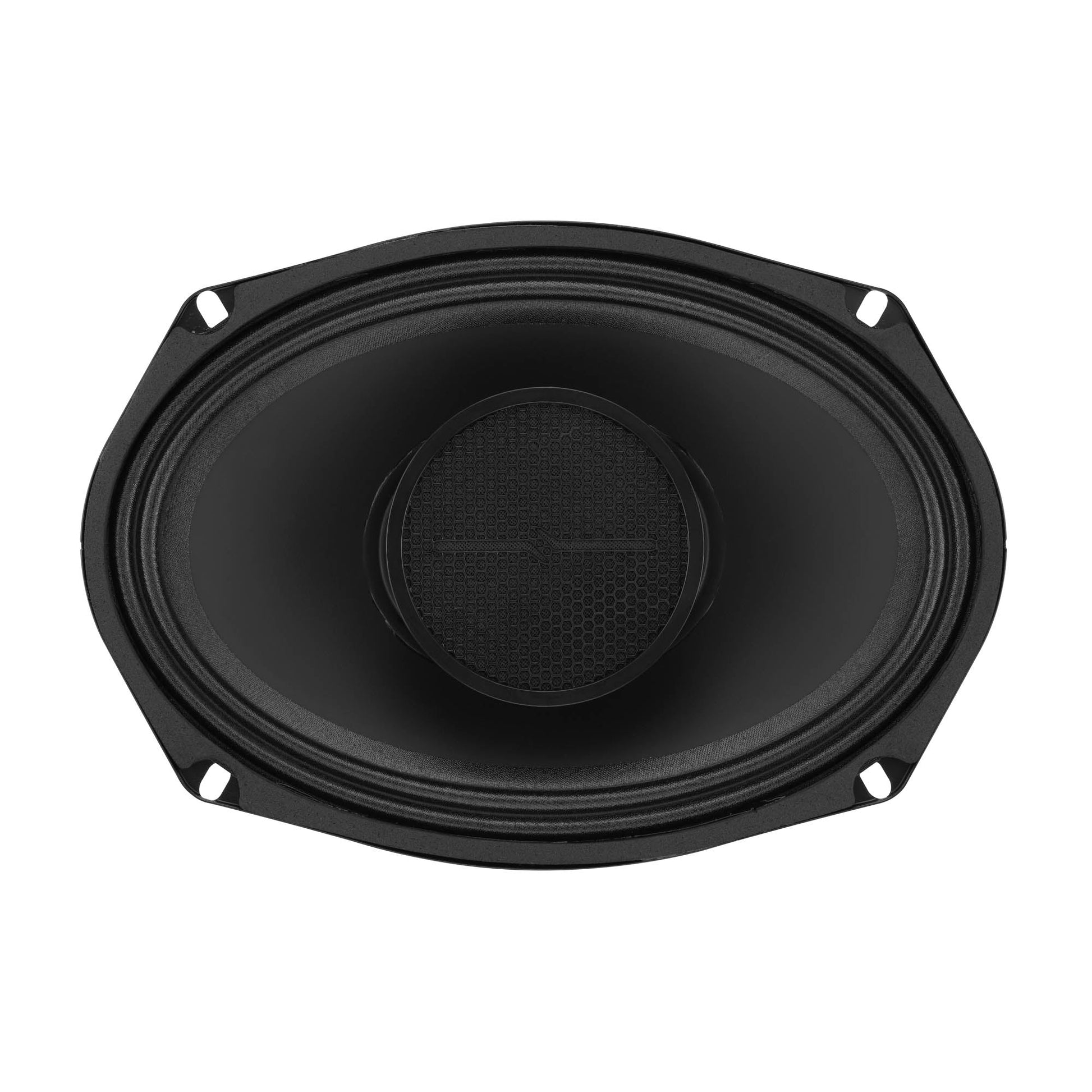

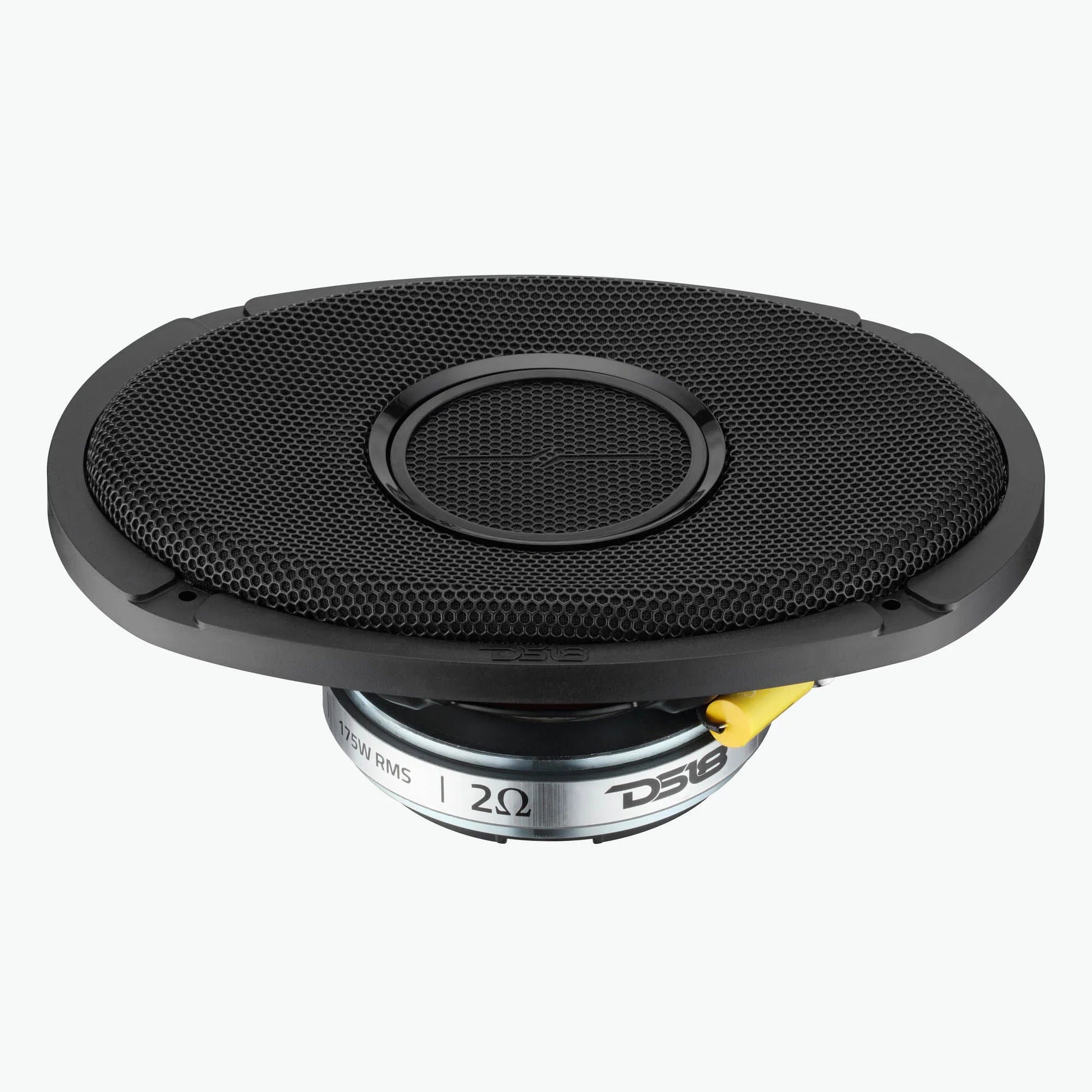

6x9” Hybrid Slim Loudspeaker With Water-Resistant Cone and Compression Driver Horn
The PRO-HY69.2MSL is a slim hybrid 6x9” speaker made to give riders the best of both worlds: big volume that fits and is extremely durable.

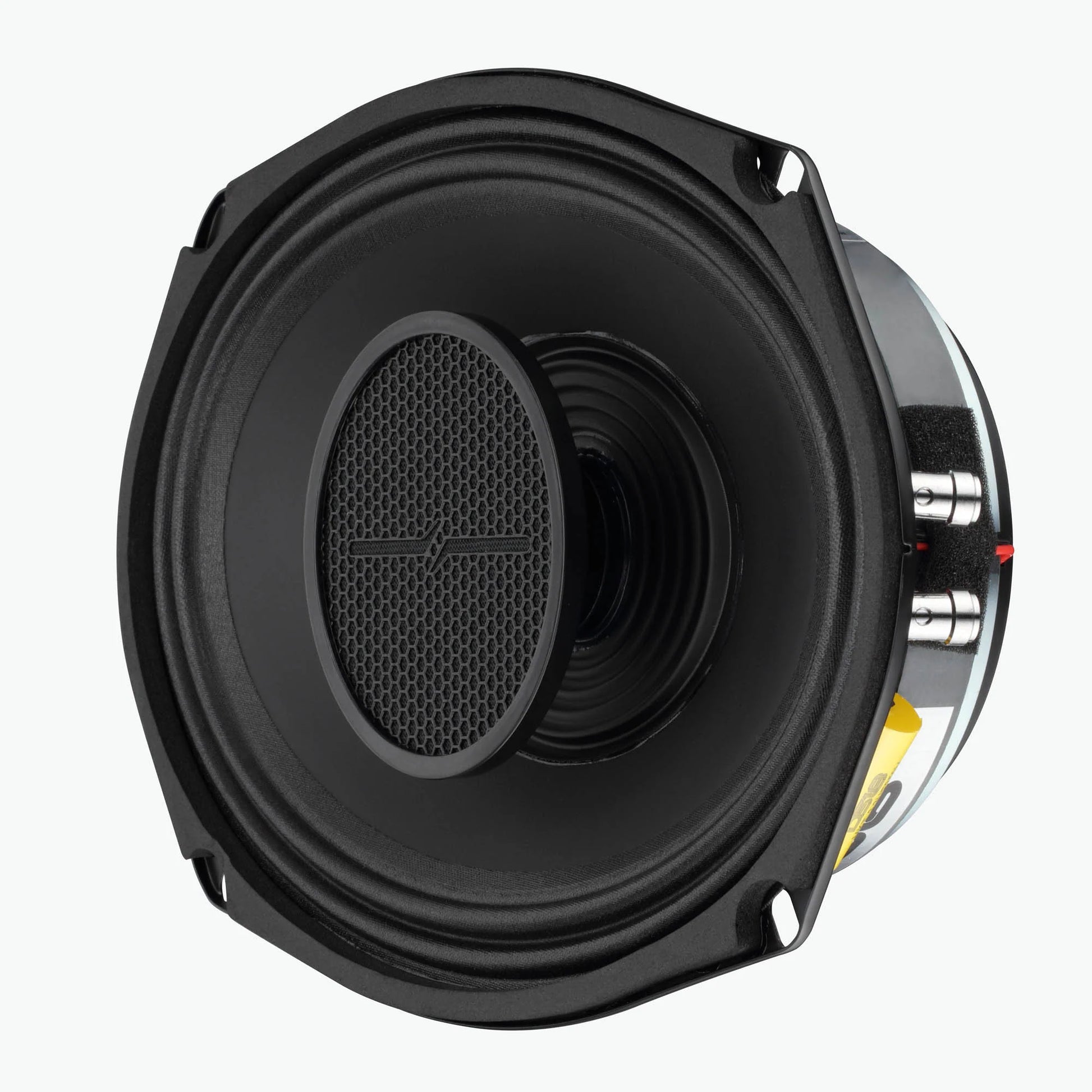

2-Way Hybrid = Full-Range Output
We’ve combined a water-resistant woofer with a 1” titanium compression driver—all in one slim speaker. This combination delivers wide-bandwidth sound from 60Hz to 20kHz with 97dB sensitivity.
Easy Fit
At just 3.4” mounting depth, the PRO-HY69.2MSL installs cleanly in fairings, pods, or panels—especially in motorcycles, UTVs, Slingshots, and Jeeps where space is tight.
IP65-Rated Water Resistance
Rain, washdowns, and trail spray are no threat. The water-resistant paper cone and cloth surround hold up against the elements, while the grille’s built-in sun/water protection cloth keeps your internals safe.
Ferrite + Neodymium = Lightweight Power

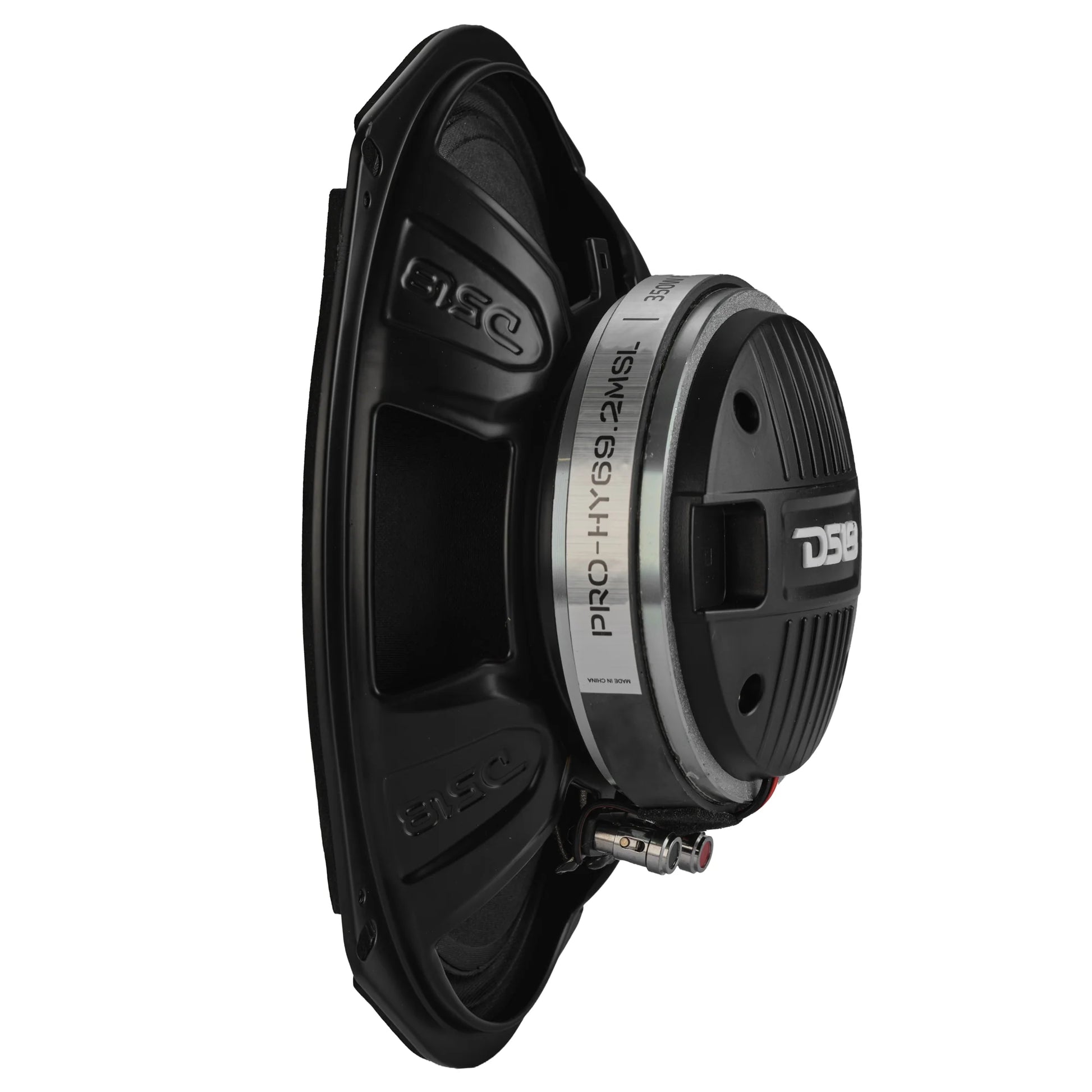

A 25.5 oz ferrite magnet drives the woofer, while a neodymium motor powers the compression driver. This combo gives you the output of a full-size system in a lighter, tighter form.
Ready for Real Builds
With a 2Ω impedance, it’s easy to load multiple drivers or match with your amp. Build a full audio wall or upgrade your factory pods with a driver that drops in and turns heads.
The PRO-HY69.2MSL is a hybrid speaker made to play LOUD, stay tough, and fit where others can’t: order yours today and get the best of both worlds!
Sold individually, available in 2, 4, or 8 ohm
SPECS
General Specifications
Nominal Diameter
6x9" / 152x228mm
Nominal Impedance
2,4, or 8 Ohms
RMS Power Handling
175W
MAX Power Handling
350W
Sensitivity (1w/1m)
97dB
Frequency Response
60Hz - 20kHz
Recommended High-Pass Crossover
80Hz
Number of Ways
2 ways
Water-Resistant Rating
IP65
Pair or Single
Single

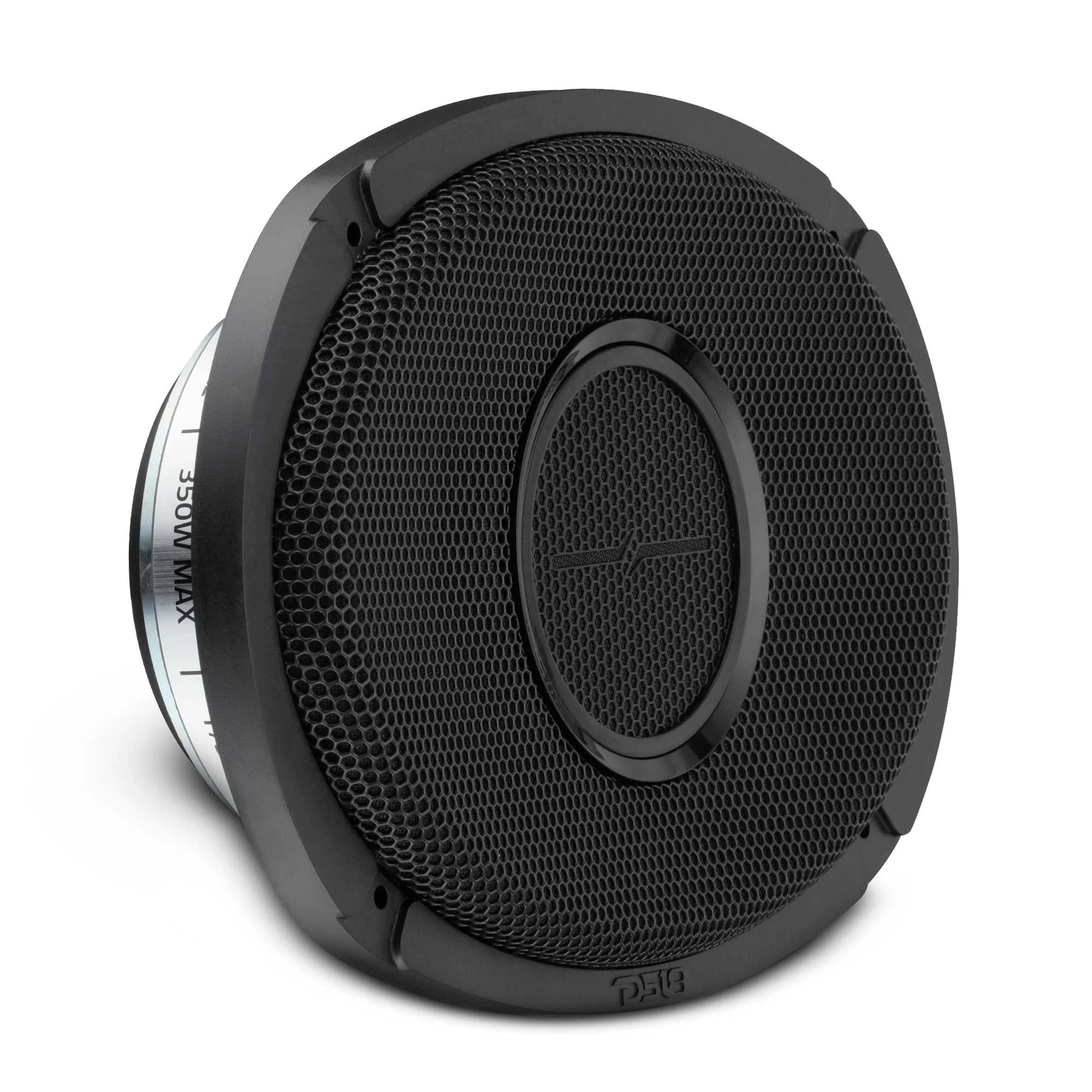

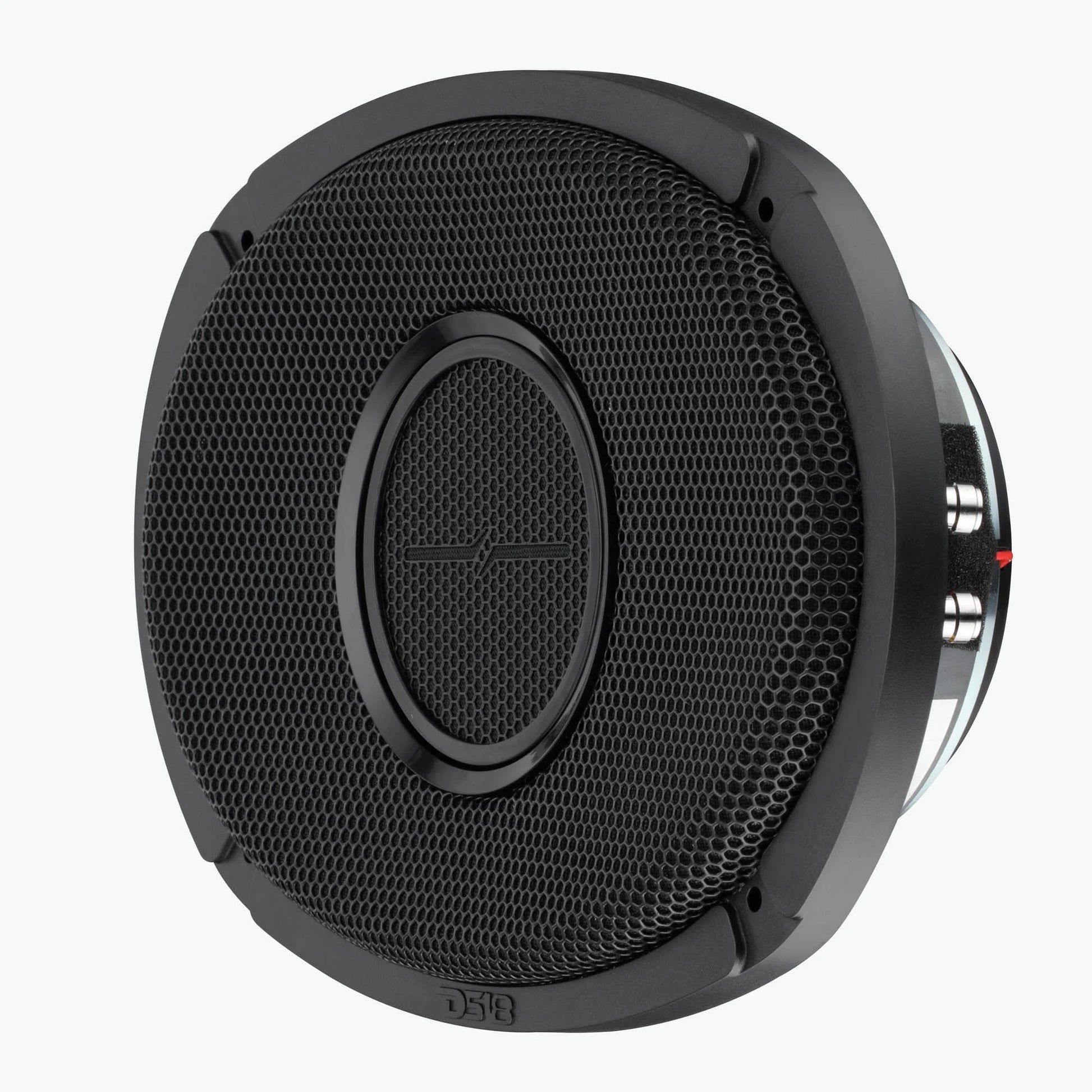

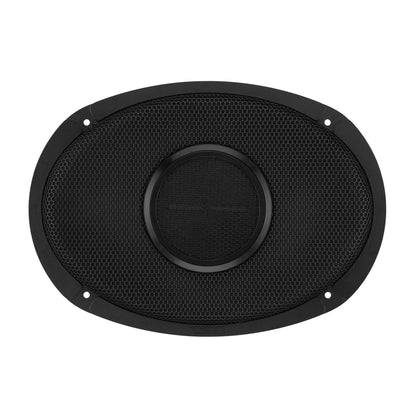

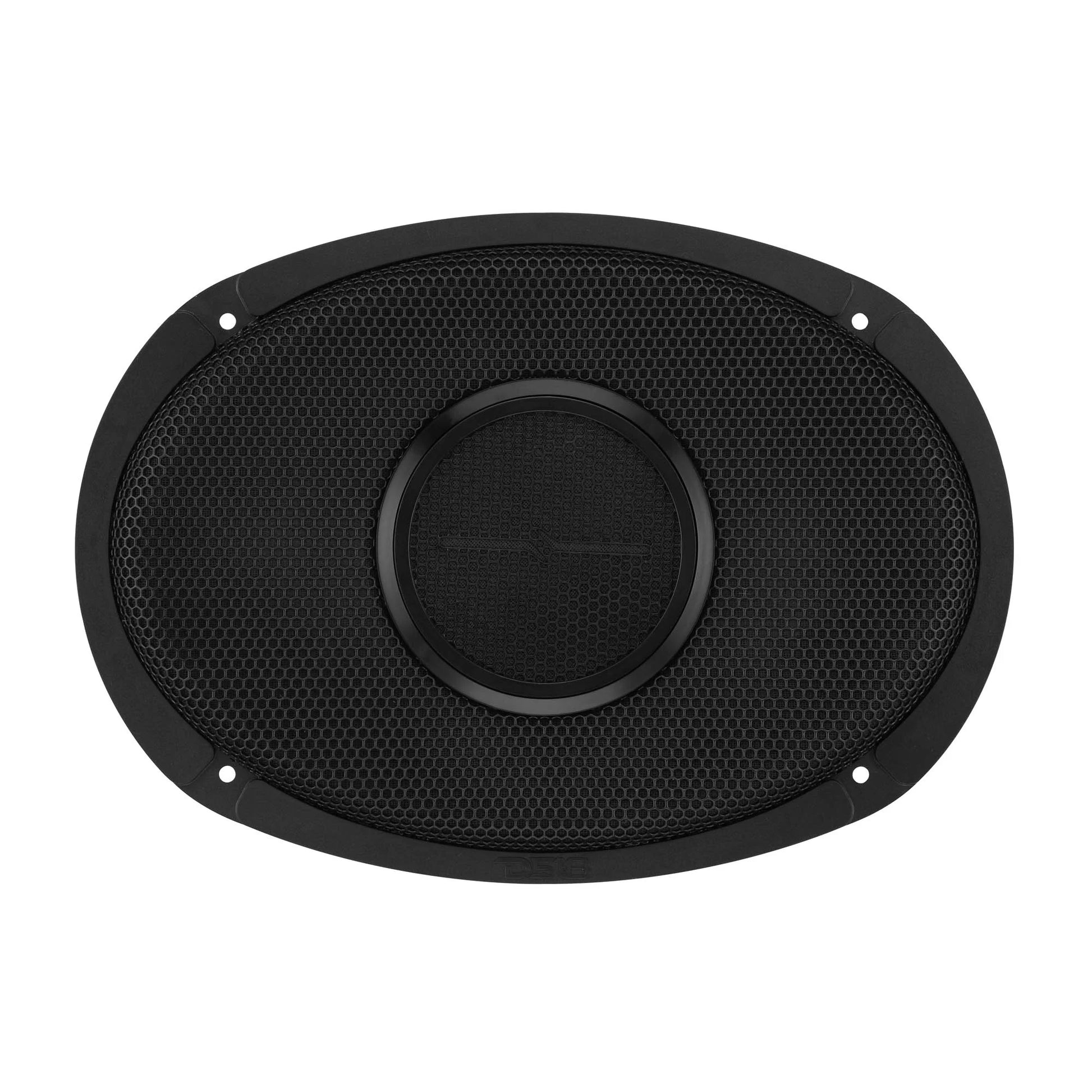

Grille Included
Yes, With Water and Sun Protection Cloth
Woofer Specifications
Voice Coil Diameter
1.5" / 38.6mm
Voice Coil Former Material
KSV
Winding Material
CCAW
Cone Material
Water-Resistant Paper
Surround Material
Treated Cloth
Basket Material
Steel
Basket Color/Finish
Black
Magnet Material
Ferrite
Magnet Weight
25.5 Oz
Thiele & Small Parameters
Equivalent Volume
5.68L / 0.2ft3
Excursion (one way)
2mm
Driver Specifications
Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
Titanium
Magnet Material
Neodymium
Horn Diameter
3.15" / 80mm

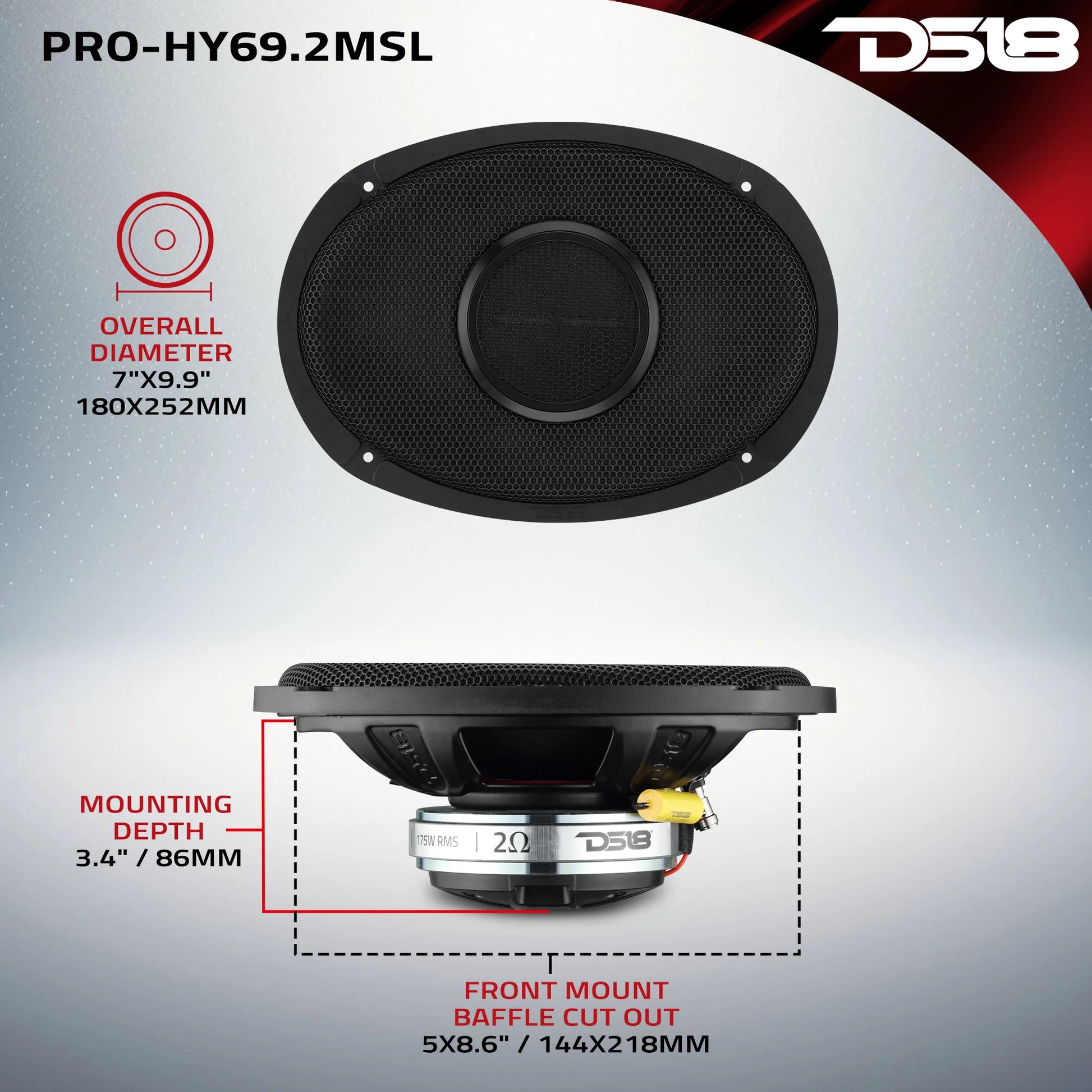

Speaker Measurement
Overall Diameter (Without Grill)
6.4"x9.2" / 164x234mm
Overall Diameter (With Grill)
7"x9.9" / 180x252mm

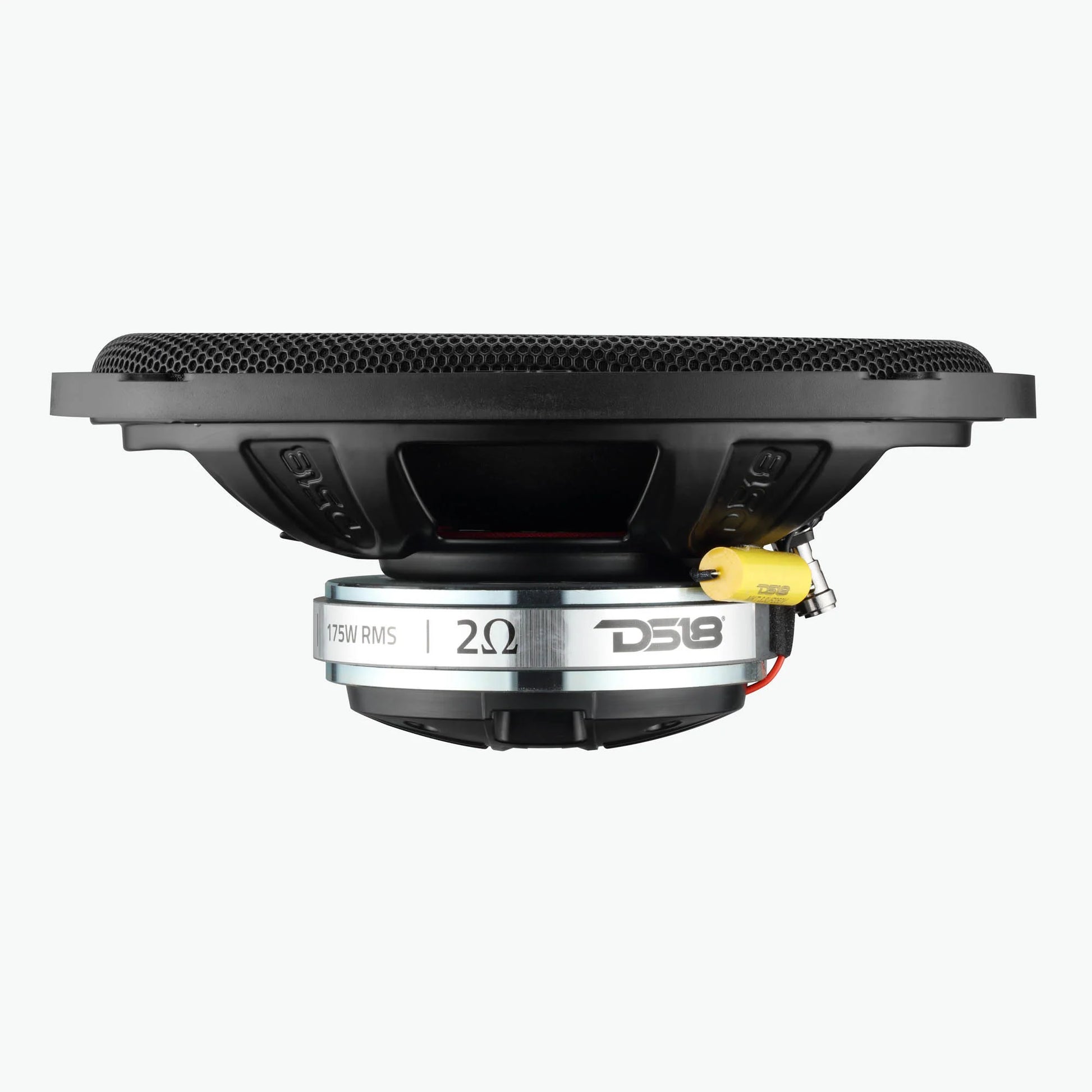

Overall Depth (Without Grill)
3.9" / 100mm
Overall Depth (With Grill)
4.2" / 107mm
Front Mount Baffle Cutout
5.7"x8.6" / 144x218mm
Mounting Depth
3.4" / 86mm
Motor Diameter
4.7" / 120mm
