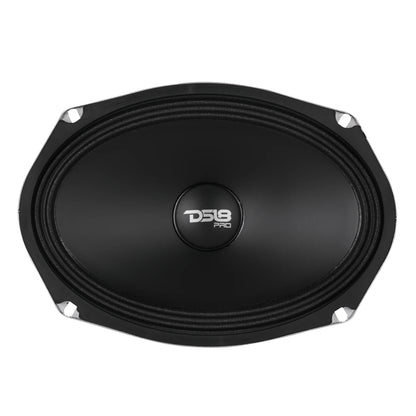

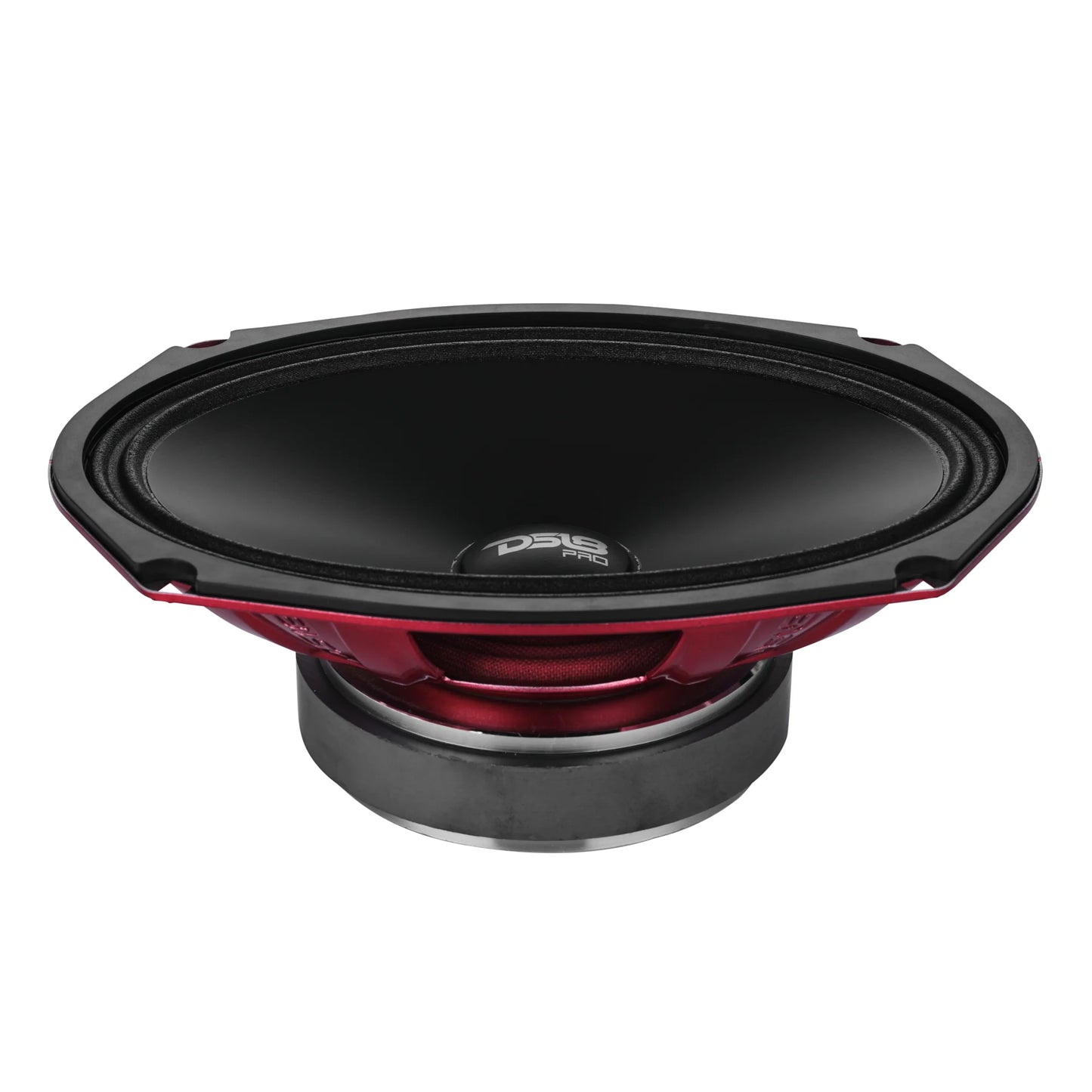

DS18 PRO 6x9" Slim Water-Resistant Mid-Range Loudspeaker | 250W RMS 2-Ohm
DS18 PRO 6x9" Slim Water-Resistant Mid-Range Loudspeaker | 250W RMS 2-Ohm
Couldn't load pickup availability
20 in stock
Make the midrange a dedicated part of your build
The DS18 PRO 6x9" Slim Water-Resistant Mid-Range Loudspeaker | 250W RMS 2-Ohm is designed for the midrange portion of a custom audio system, where vocals and much of a track’s musical detail sit. Pair it with the appropriate tweeters and bass drivers.
Key details
- Model / SKU: PRO-SM69.2
- Water-resistant design: check the stated protection level for your intended installation.
- With a shallow 2.83” mounting depth and 5.7” x 8.6” cutout diameter, the PRO-SM69.2 drops easily into most fairings, doors, or custom pods.
- Nominal Impedance 2 OHMS
- RMS Power Handling 250w
- Frequency Response 100Hz-5KHz
- Mounting Depth 68mm/2.68"
- Sold individually; select the quantity your build requires.
Fitment & system matching
Confirm the cutout, mounting depth, grille clearance and impedance for your vehicle. Match amplifier RMS output to speaker RMS handling; Peak/MAX ratings are not continuous power. Vehicle-specific adapters may be needed.
Full product details & specifications
6x9” Shallow Water-Resistant Midrange Loudspeaker

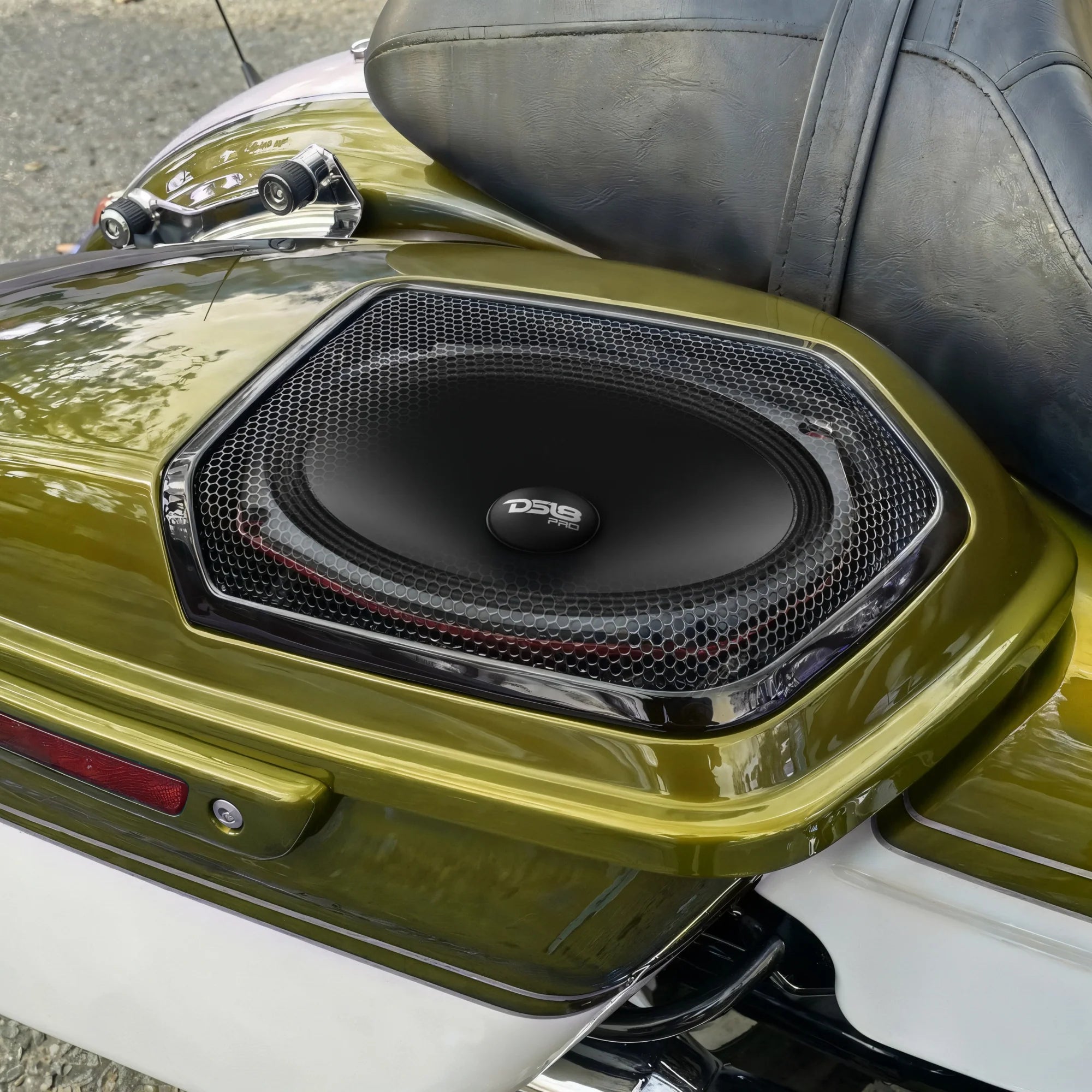

Our PRO-SM69.2 is tuned to cut through all noise in motorcycle and off-road applications: where volume, clarity, and durability matter most.
All-Weather Midrange Muscle
Rated at 250W RMS and 500W MAX with an ultra-efficient 96dB sensitivity, the PRO-SM69.2 delivers full-range midbass and sharp vocals. Its wide 60Hz–5KHz frequency response ensures everything from low punch to clean midrange comes through accurately.
Durable by Design
Built with a water-resistant paper cone, coated dust cap, and cloth edge surround, the PRO-SM69.2 is made to handle the abuse of the road.
Fits Just Right
With a shallow 2.83” mounting depth and 5.7” x 8.6” cutout diameter, the PRO-SM69.2 drops easily into most fairings, doors, or custom pods.
No matter what you ride, the PRO-SM69.2 keeps your sound LOUD and CLEAR!
Sold Individually
Nominal Diameter 6x9
Nominal Impedance 2 OHMS
RMS Power Handling 250w
MAX Power Handling 500w
Sensitivity (1w/1m) 94dB
Frequency Response 100Hz-5KHz
Recommended HI Pass Crossover 120Hz
Motor
Voice Coil Diameter 1.5"
Voice Coil Former Material Kapton
Winding Material CCAW
Cone Material Water Resistant Paper
Dust Cap Material Water Resistant Paper
Surround Material Coated Cloth
Basket Material Steel
Magnet Material Ferrite
Magnet Weight 33 Oz
Displacement Volume 0.0524L

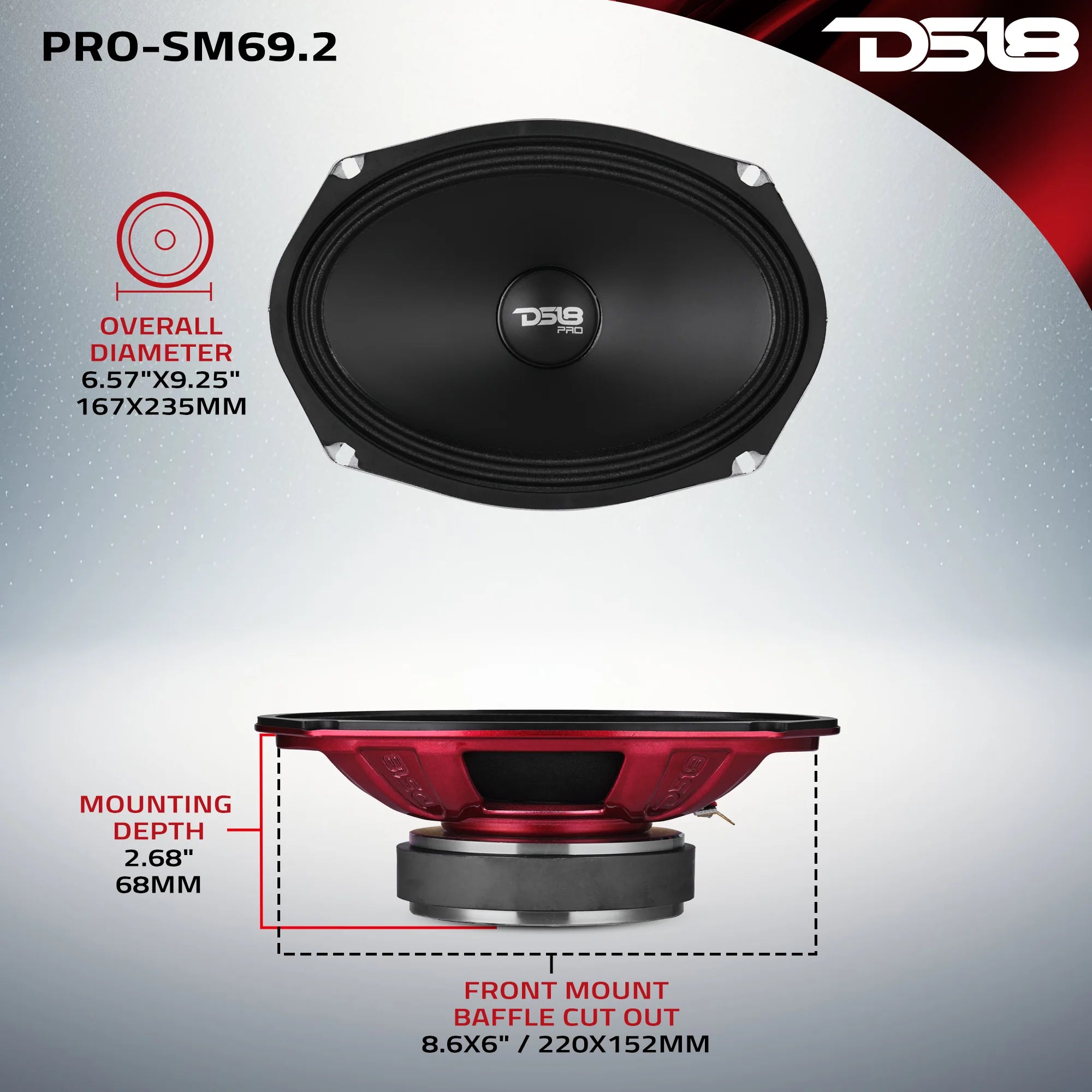

Measurements
Overall Diameter 9.25X6.56"/ 235X167mm
Overall Depth 2.91"/ 74mm
Front Mount Baffle Cutout 8.70X5.97"/ 220X152mm
Mounting Depth 68mm/2.68"
Motor Diameter 120mm/4.72"
Need help choosing? Explore our installation services before planning your build.
