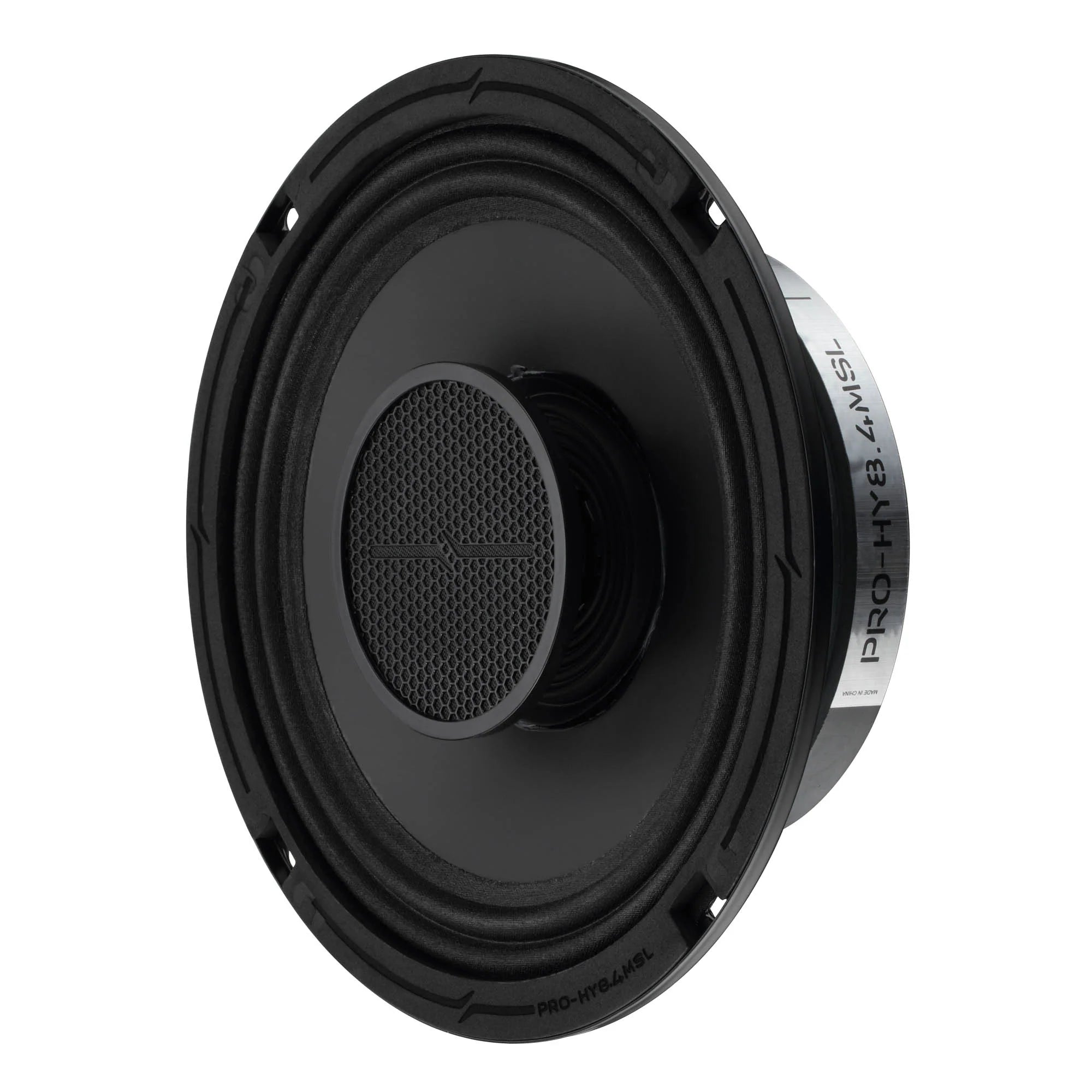

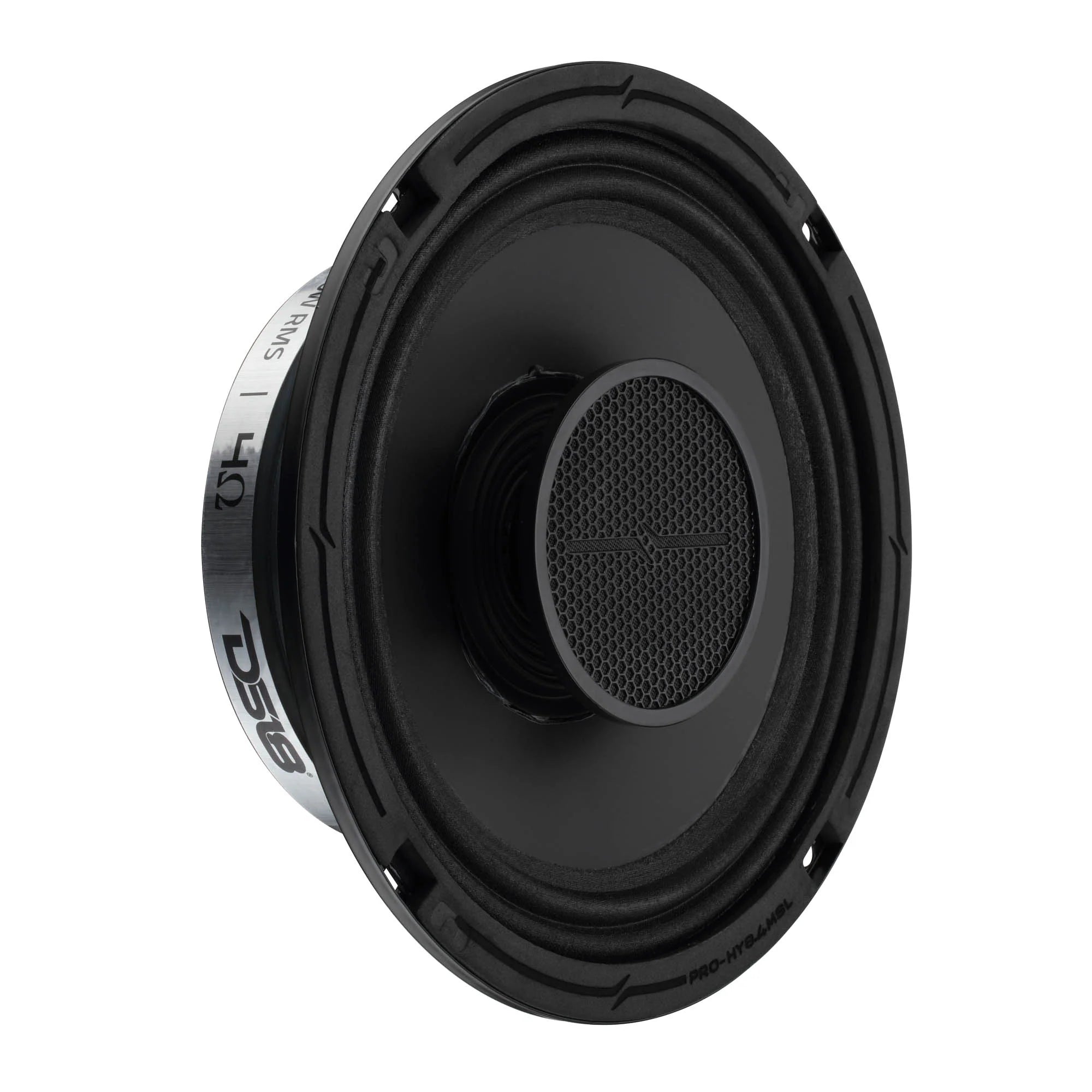

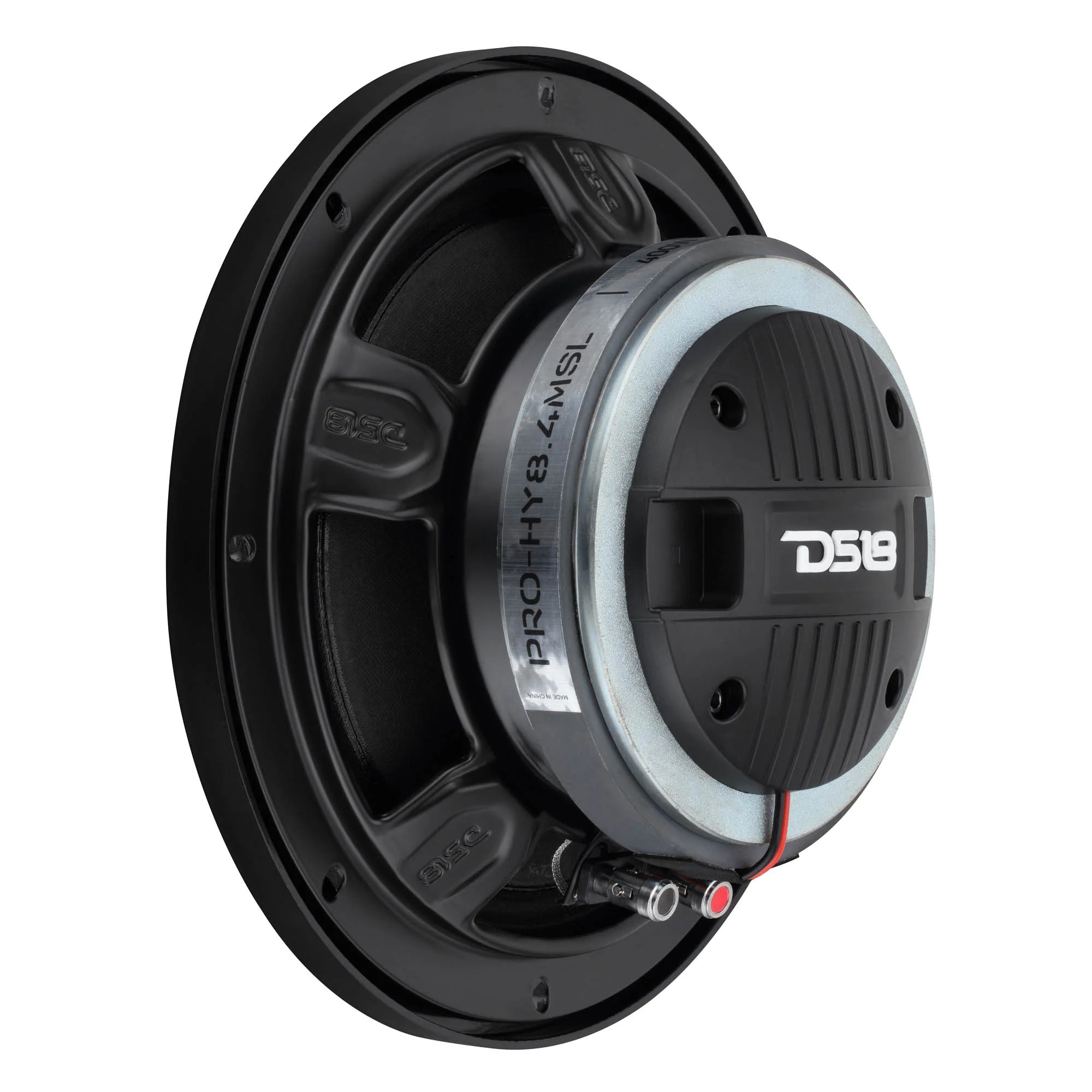

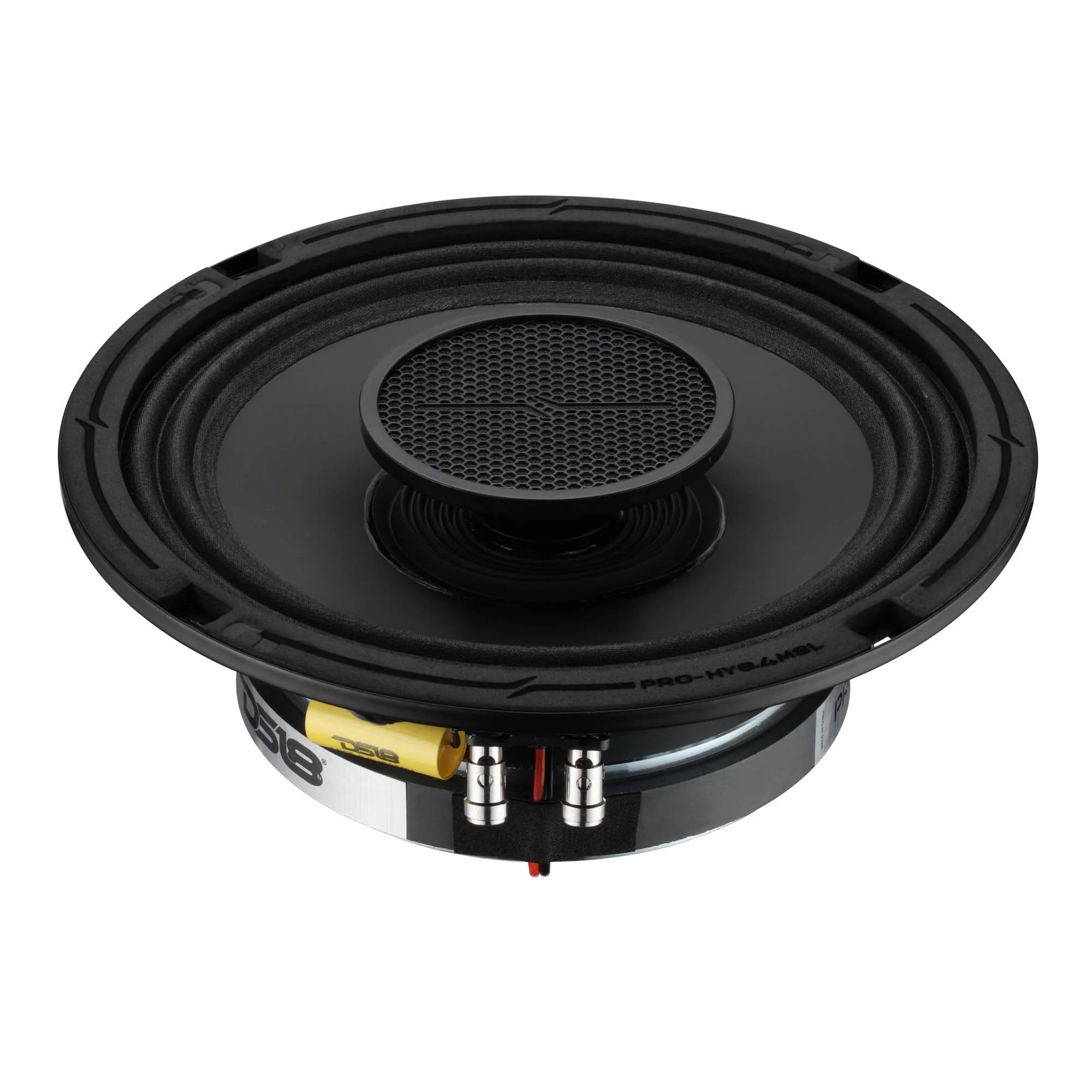

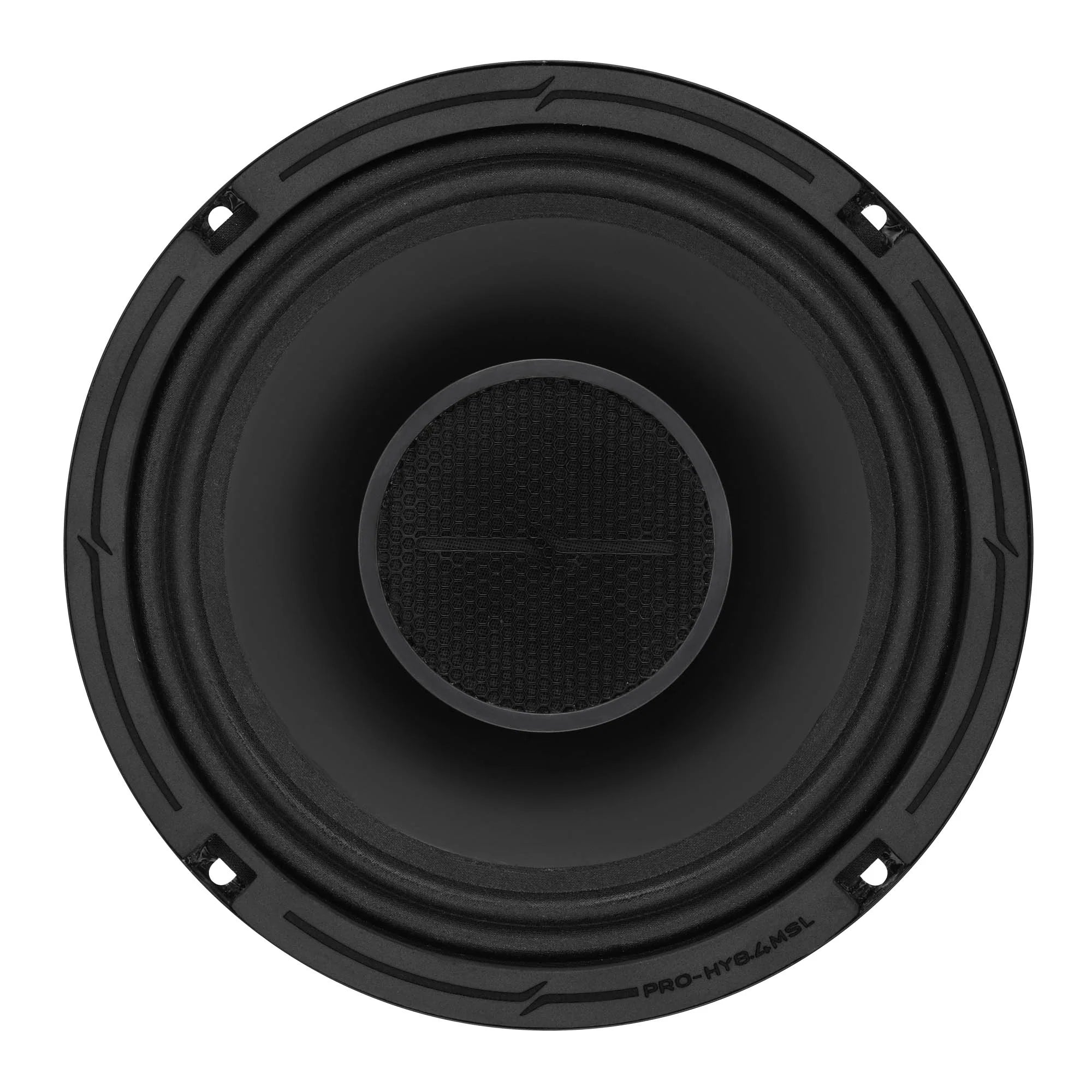

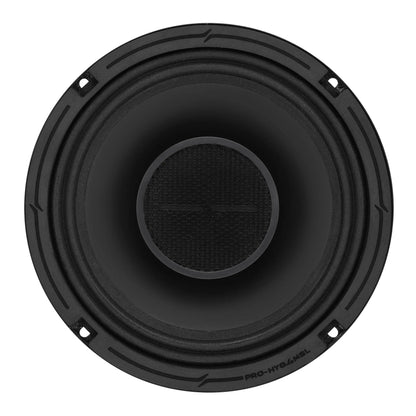

DS18 PRO 8" Shallow Coaxial Hybrid Mid-Range Loudspeaker with Built-in Driver | 200W RMS 4-Ohm

8” Hybrid Slim Loudspeaker With 1” Compression Driver Horn

The PRO-HY8.4MSL brings full-range power to tight installs. We’ve given you the best of both worlds: a high-output midrange AND compression driver, packed into a water-resistant, off-road–ready design that fits where others can’t.

HYBRID DESIGN FOR FULL-RANGE SOUND
This speaker pairs a treated cloth surround + water-resistant paper cone midrange with a titanium compression driver for powerful highs and rich mid clarity. Rated at 200W RMS with a 100Hz–20kHz response range, you get high SPL output across a wide bandwidth.

SHALLOW MOUNT. BIG SOUND.

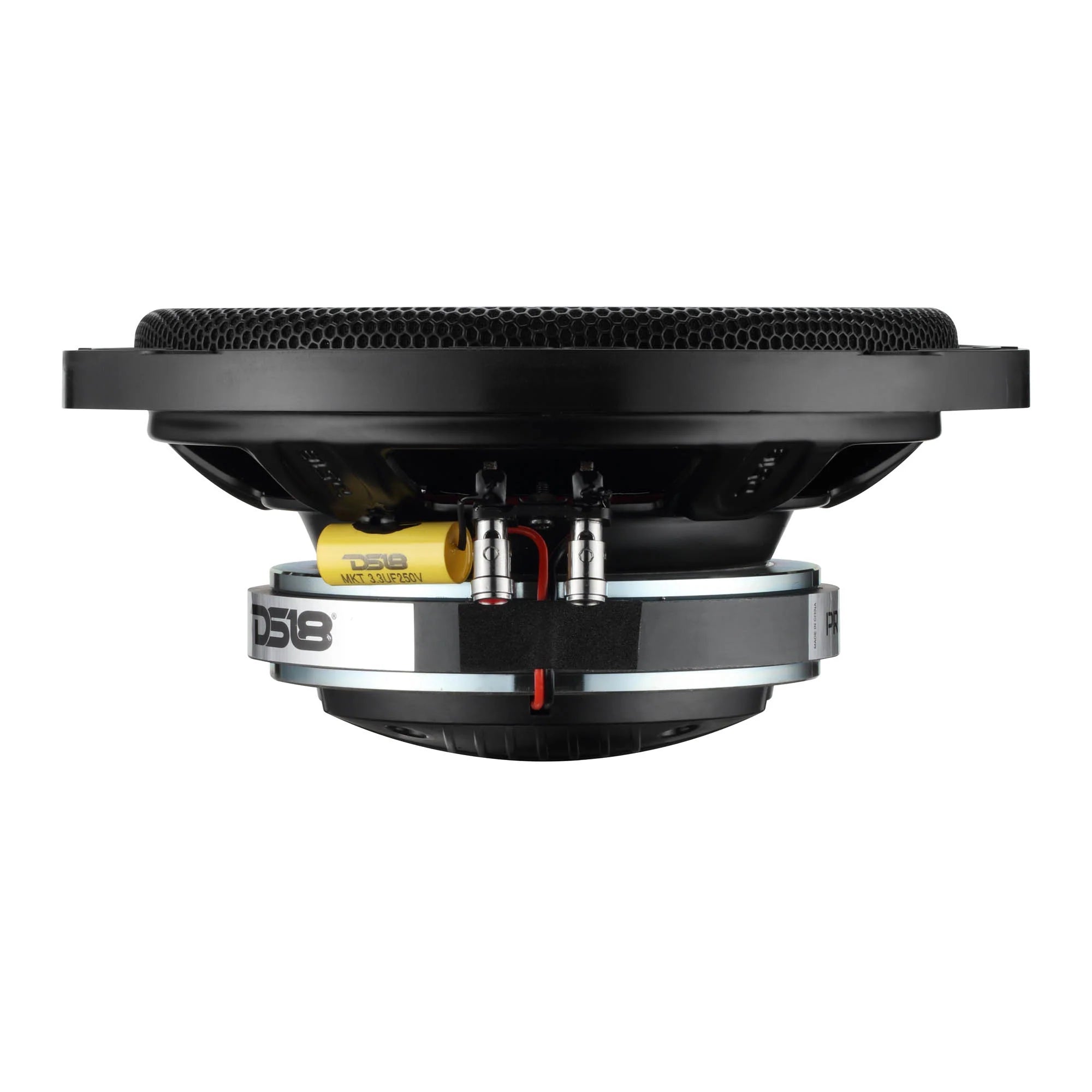

With a mounting depth of only 3.15”, the PRO-HY8.4MSL is perfect for motorcycles, UTVs, SXS, Slingshots, and Jeep pods. It fits in tight panels and fairings while still delivering 97dB sensitivity for serious volume at any power level.

IP65 WATER-RESISTANT + SUN PROTECTED

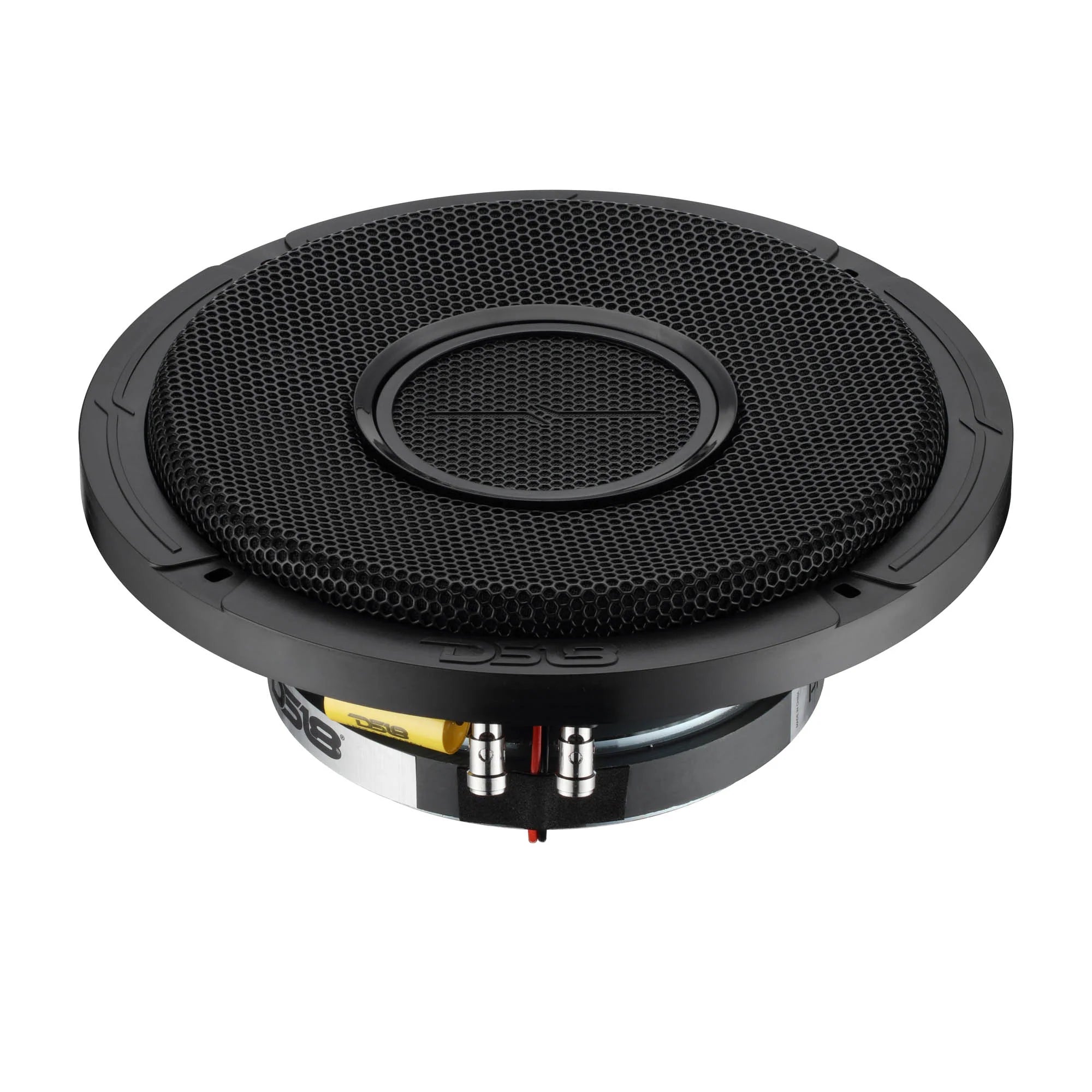

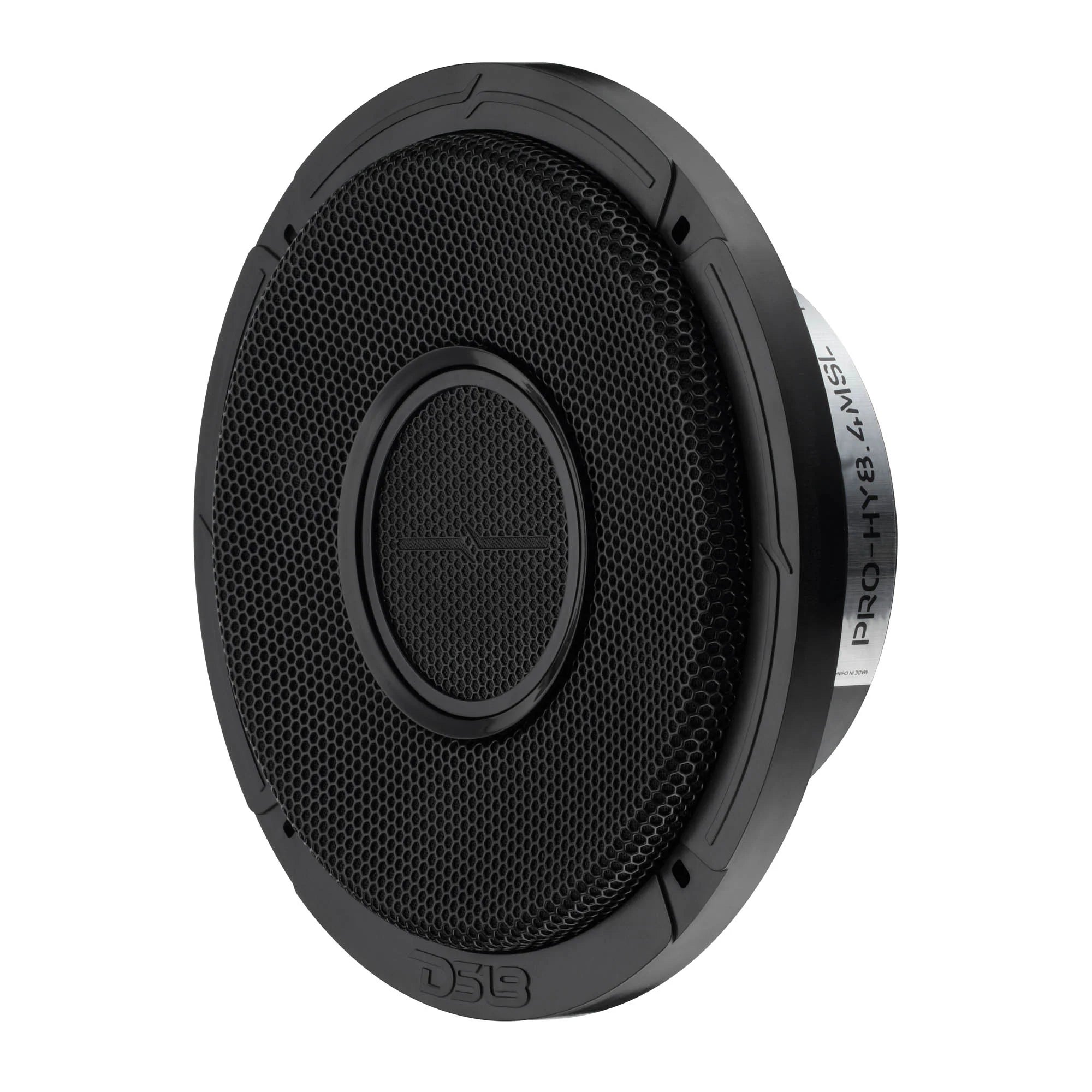

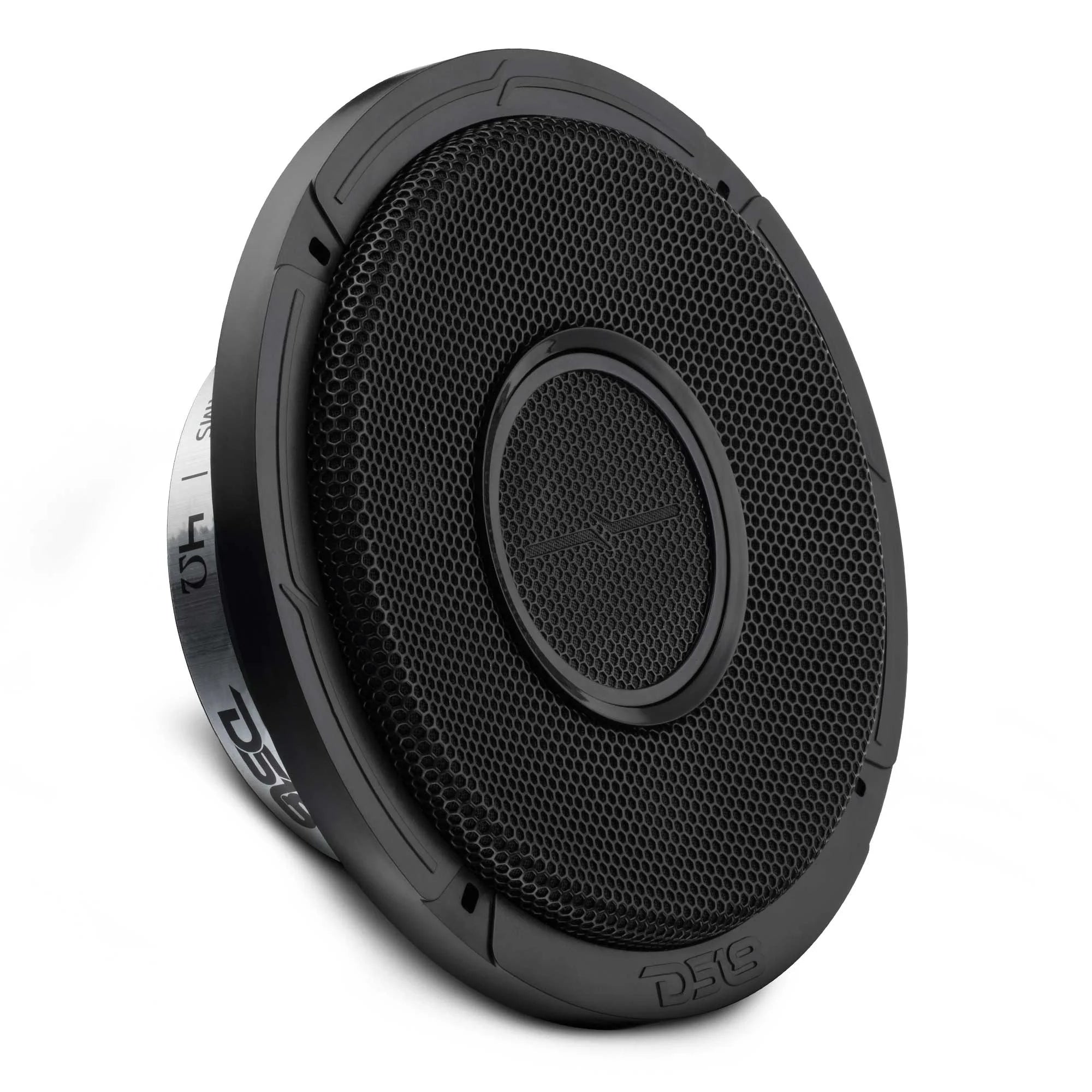

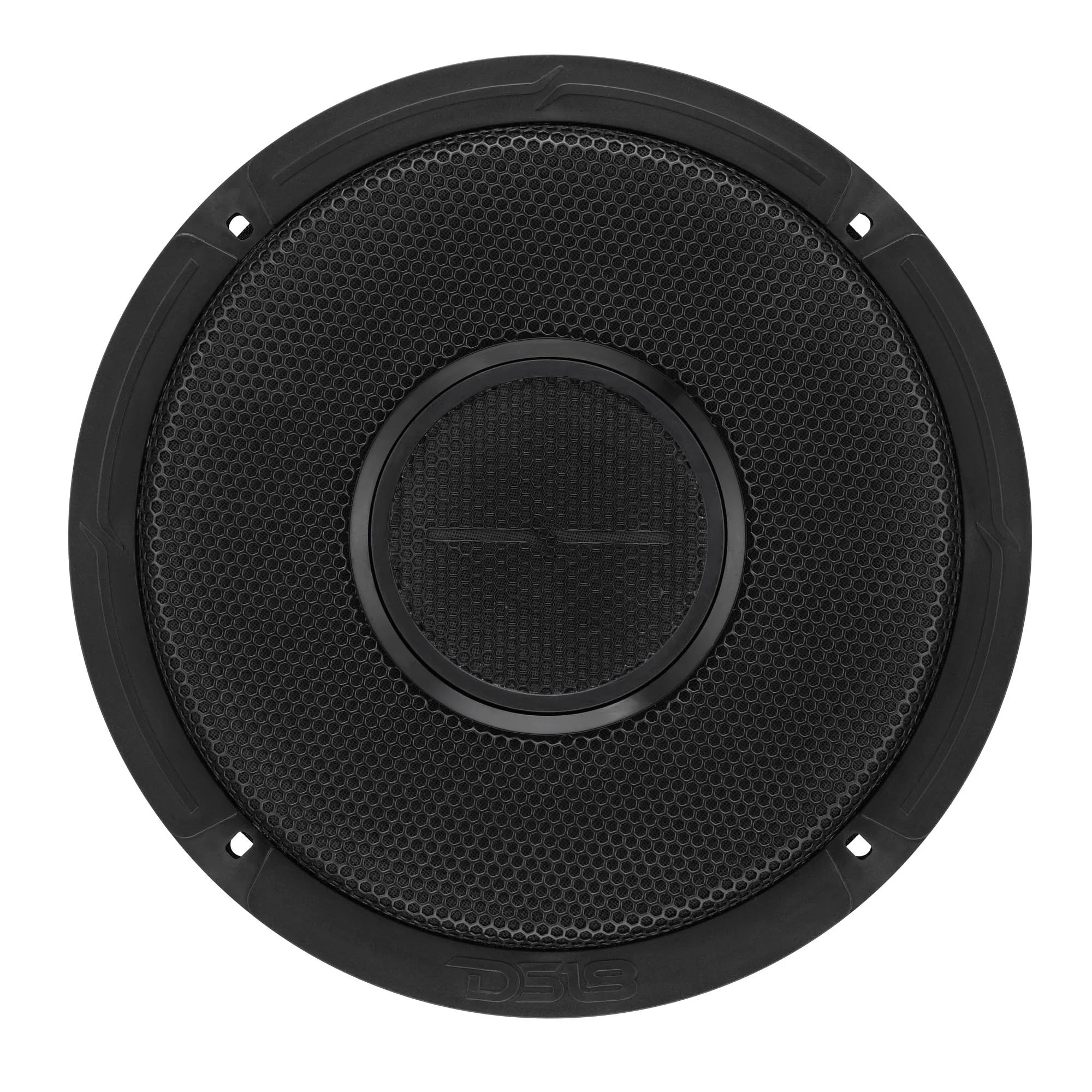

The PRO-HY8.4MSL features upgraded treated cloth surrounds and a water-resistant cone. The included grille now has a sun- and water-protective cloth backing, and the entire speaker is IP65 rated to withstand anything you run into on- or off-road.

NEODYMIUM DRIVER + 3” HORN FOR MAX OUTPUT
Inside the 1” titanium compression driver is a neodymium motor, giving you fast, accurate highs in a compact form. The 3” horn helps project sound clearly through wind and road noise so your music cuts through—on the move or at full throttle.

4Ω COMPATIBILITY FOR EASY SYSTEM MATCHING
With a 4Ω impedance, the PRO-HY8.4MSL is easy to pair with aftermarket amps and crossovers. Upgrading your factory pods or building a custom system? It’s ready to get loud!

The PRO-HY8.4MSL is slim enough to fit anywhere, loud enough to lead, and built tough enough to survive your wildest rides.

Sold individually

SPECIFICATIONS
Nominal Diameter     8" / 203.2mm
Nominal Impedance     4 ohms
RMS Power Handling     200W
MAX Power Handling     400W
Sensitivity (1w/1m)     94dB
Frequency Response    100Hz - 20Khz
Recommended HI Pass Crossover    120Hz
Number of ways    2 ways
Pair or Single    Single
Grill Included    Yes
WOOFER SPECIFICATIONS
Voice Coil Diameter    1.5" / 38.6mm
Voice Coil Former Material     KSV
Winding Material     CCAW
Cone Material    Paper
Surround Material    Cloth
Basket Material     Steel
Basket Color/Finish    Glossy Red
Magnet Material    Ferrite
Magnet Weight    29.5 Oz
DRIVER SPECIFICATIONS
Voice Coil Diameter    1" / 25.4mm
Voice Coil Former Material     Kapton
Winding Material     CCAW
Diaphragm Material    Titanium
Magnet Material    Neodymium
Horn Diameter    3" / 76.2mm

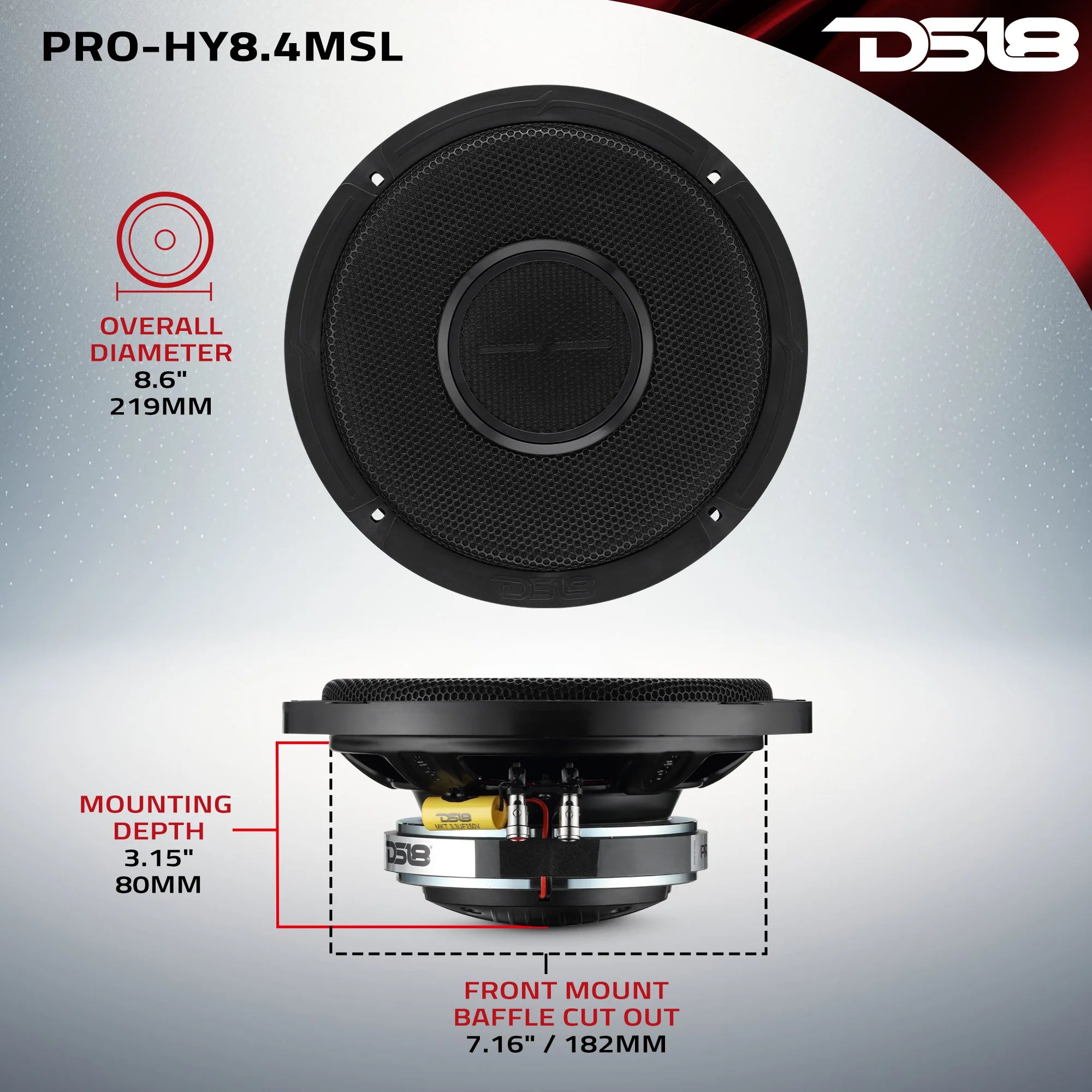

SPEAKER MEASUREMENT
Overall Diameter    8.62" / 219mm
Overall Depth    4" / 102.5mm
Front Mount Baffle Cutout    7.12" / 181mm
Mounting Depth    3.11" / 79mm
Motor Diameter    5.27" / 134mm
