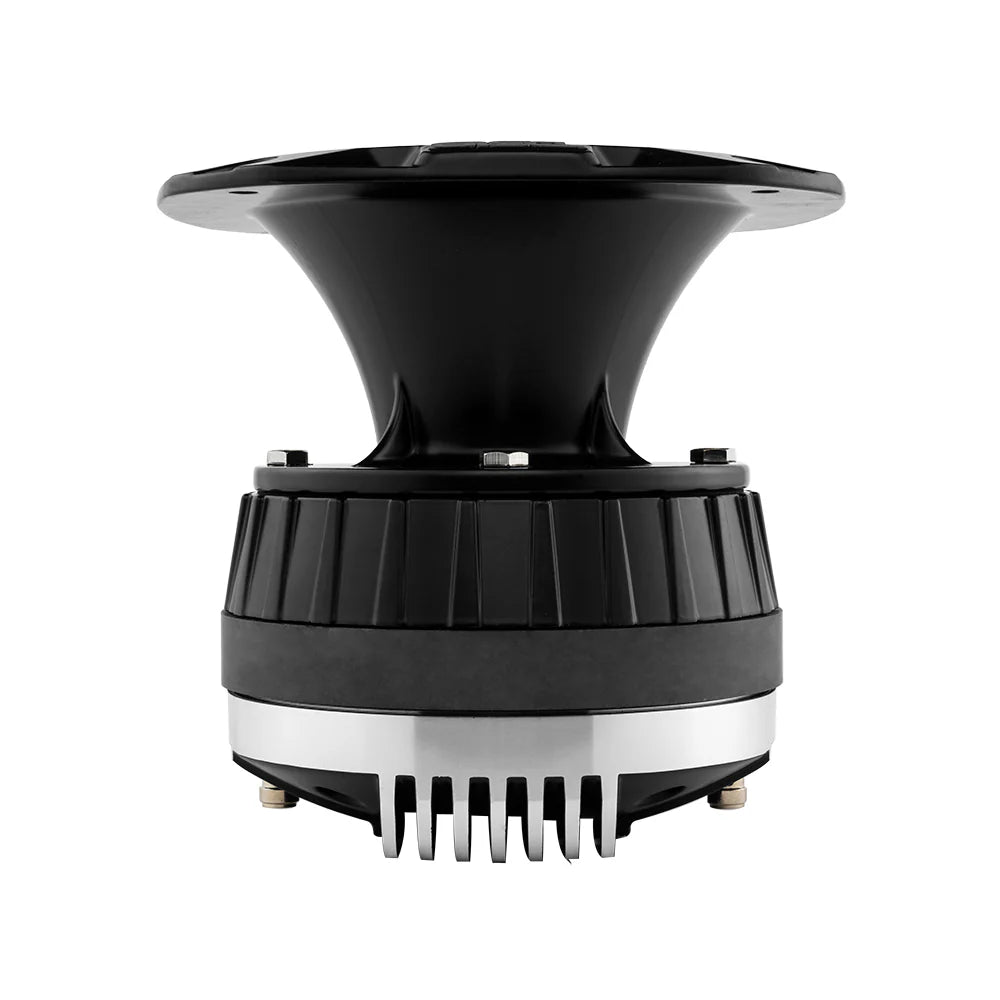

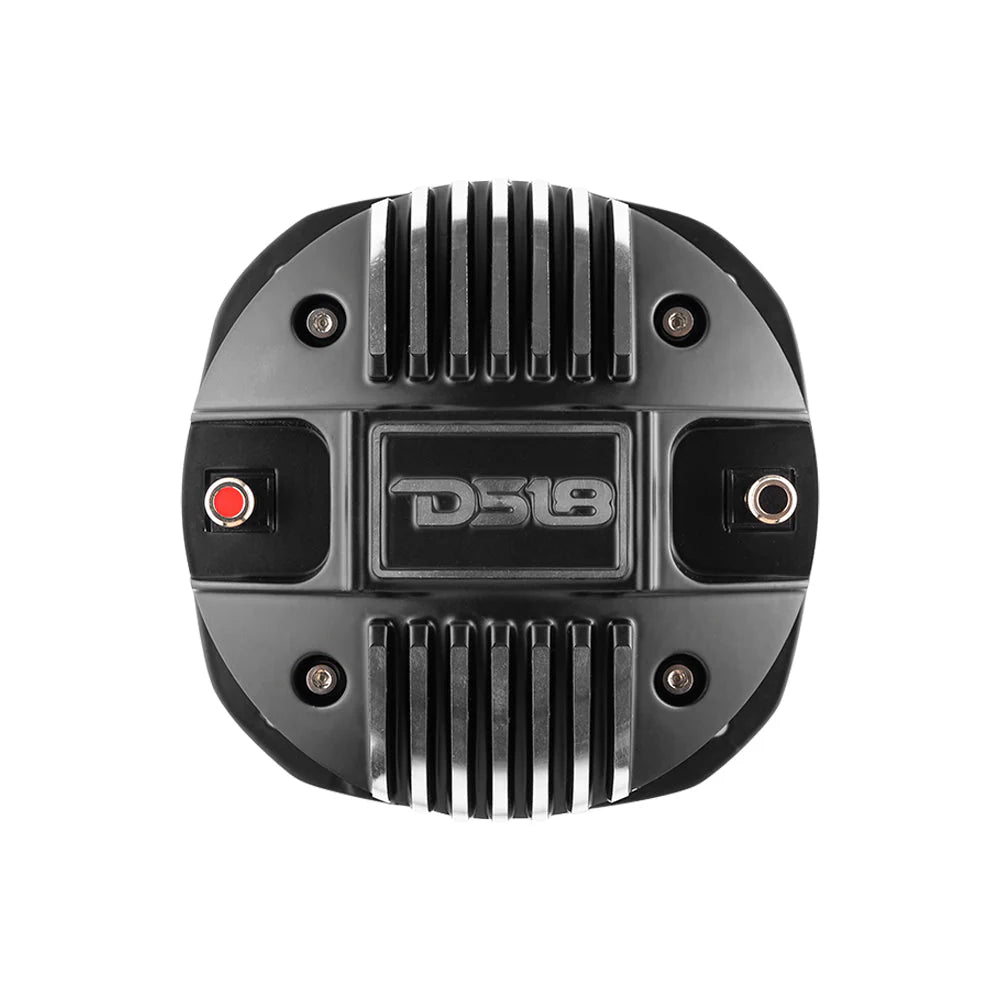

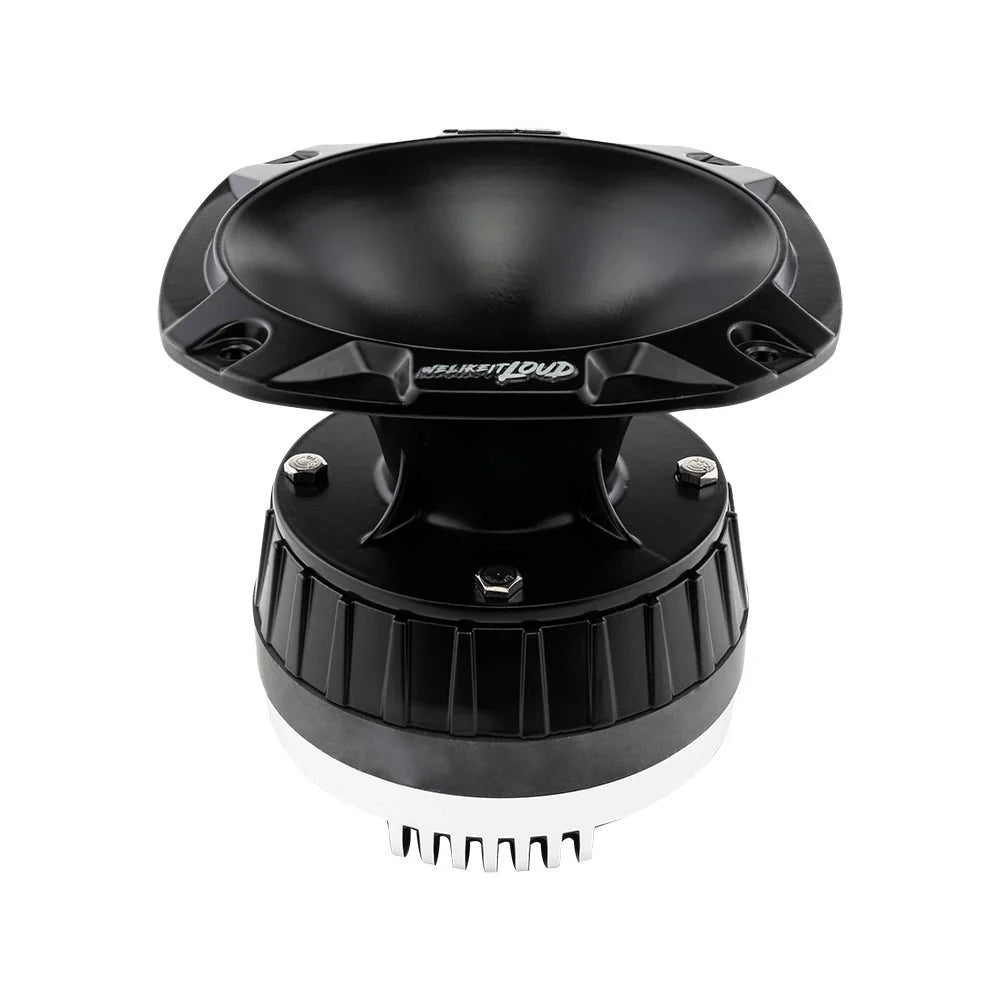

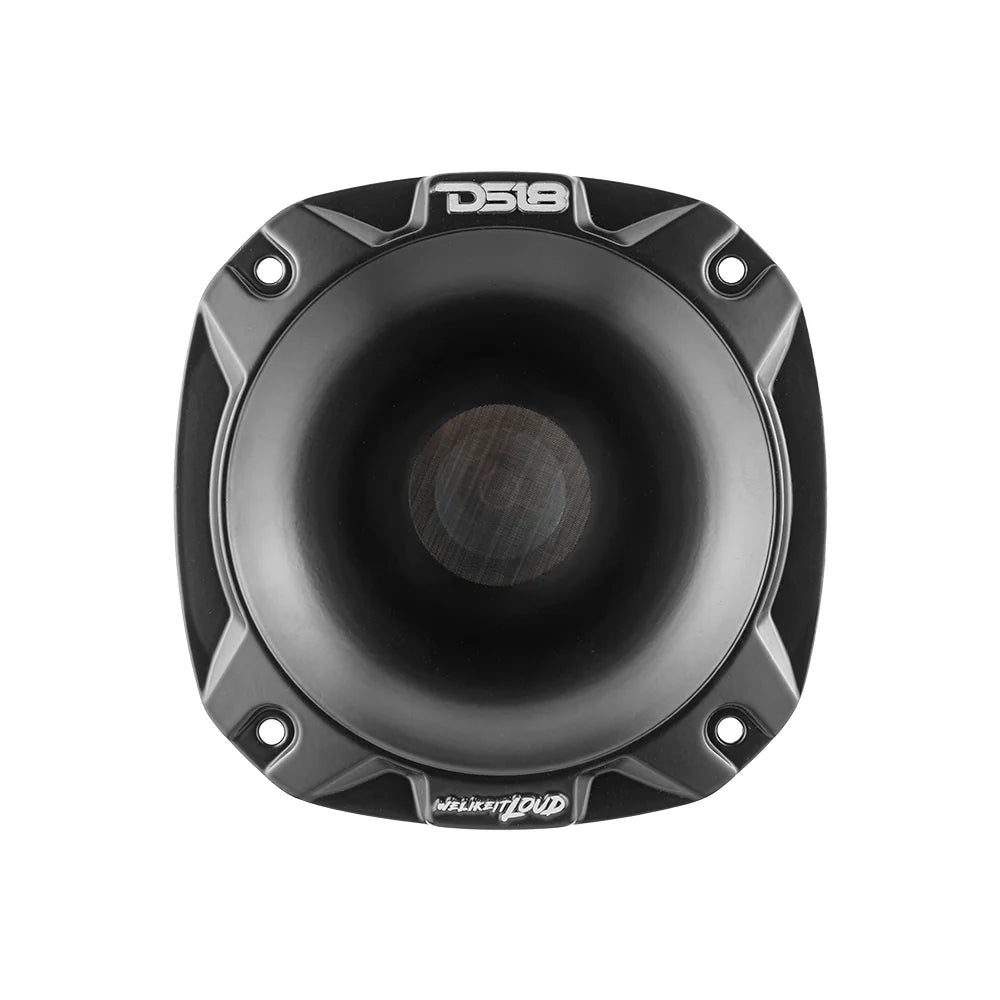

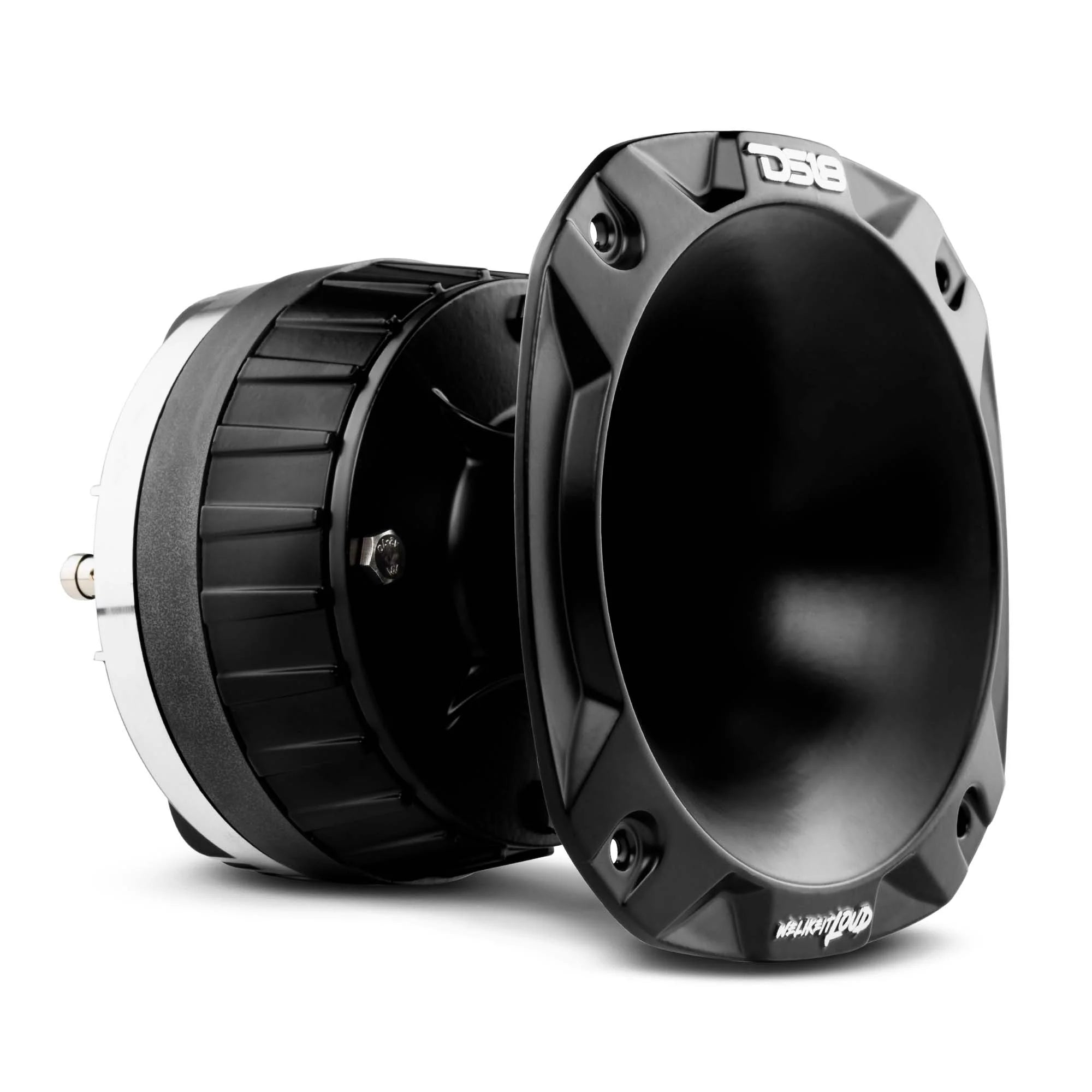

DS18 PRO-DKH1XS 2" Throat Bolt On Compression Driver 2" Throat Titanium Voice Coil and Horn 640 Watts

2" Driver With Spacer And Short Horn Kit 320 Watts 2" Titanium 8-Ohm Vc (PRO-D1+PRO-HA102/BK)

Introducing DS18’s PRO-DKH1XS, the ultimate solution for car audio enthusiasts seeking unparalleled sound quality. Crafted with precision, DS18’s DKH1XS combines a 2" bolt-on throat compression driver and a PRO-HA102/BK horn, to help deliver a rich, powerful, and immersive sound experience.
Built with a titanium voice coil and diaphragm, DS18’s PRO-DKH1XS is capable of handling Peak Powers of up to 640W, making it one of the most powerful compression drivers in the market. The PRO-DKH1XS is not just about power, but also about delivering crystal clear and distortion-free sound. With a sensitivity of 115 dB and a frequency response of 630Hz-20KHz, the PRO-DKH1XS guarantees an EXTREMELY LOUD and exceptional listening experience.
Everyone is looking for louder horns and what they can do to tweak them. DS18’s DKH1XS takes all the guesswork out of finding yours. This full-size driver combines DS18’s DKH1 with the included dB spacer to increase the driver’s overall sensitivity. Plus, our newly redesigned shorty throat so you only need 4.9 inches of depth to mount these ear ripping drivers. The new throat is aluminum with brilliantly brushed DS18 logos and made for maximum directional efficiency.
The DS18 PRO-DKH1XS is built to last. The product has been meticulously tested and optimized to deliver the best possible performance. The 2.03" voice coil ensures that the product operates efficiently and reliably, even at high volumes and extended playtimes.
Whether you're a professional audio installer or a car enthusiast, DS18’s PRO-DKH1XS is the perfect addition to your sound system. The PRO-DKH1XS is bolt on so you can spend less time in installation, and more time enjoying your system.

Throat Diameter    2"/50.8mm
Installation Type    Bolt-on
Nominal Impedance    8 Ohms
Program Power Handling    320W
Peak Power Handling    640W
AES Power Handling    160W
Sensitivity    111dB
Frequency Response    630Hz-20KHz
Recommended HI Pass Crossover    900 Hz
Motor    PRO-D1X
Voice Coil Diameter    2.03"/51mm
Voice Coil Former Material    Kapton
Winding Material    CCA
Diaphragm Material    Titanium
Magnet Material    Ferrite
Magnet Weight    35oz
Measurements
Overall Diameter    7"/180mm
Overall Depth    6"
Bolt Pattern/Type    5.5mm hole-6.3"/161 mm Diameter
Mounting Depth    5.7"/145 mm
Mounting Hole Diameter    5.7"/145mm
