DS18 PRO-X 6X9" Mid-Range Loudspeaker with Bullet | 200W RMS 4 or 8-Ohm

6x9” Mid-Range Loudspeaker With Bullet | 200W RMS | 4-Ohm

The PRO-X694BM is a 6x9” dynamo that delivers 200W RMS and 400W MAX of pure mid-range with absolute clarity.

Aggressive Style Meets Precision Sound

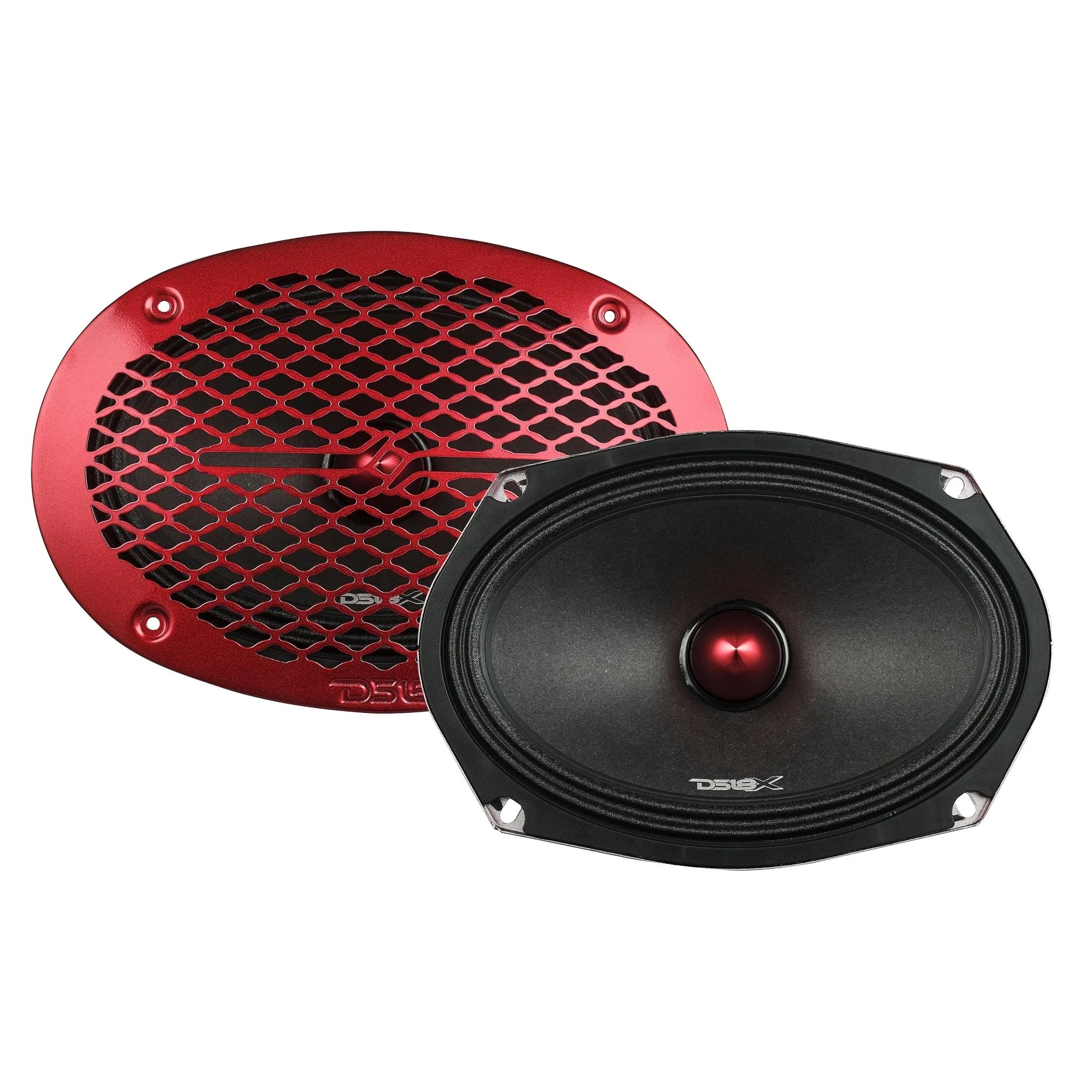

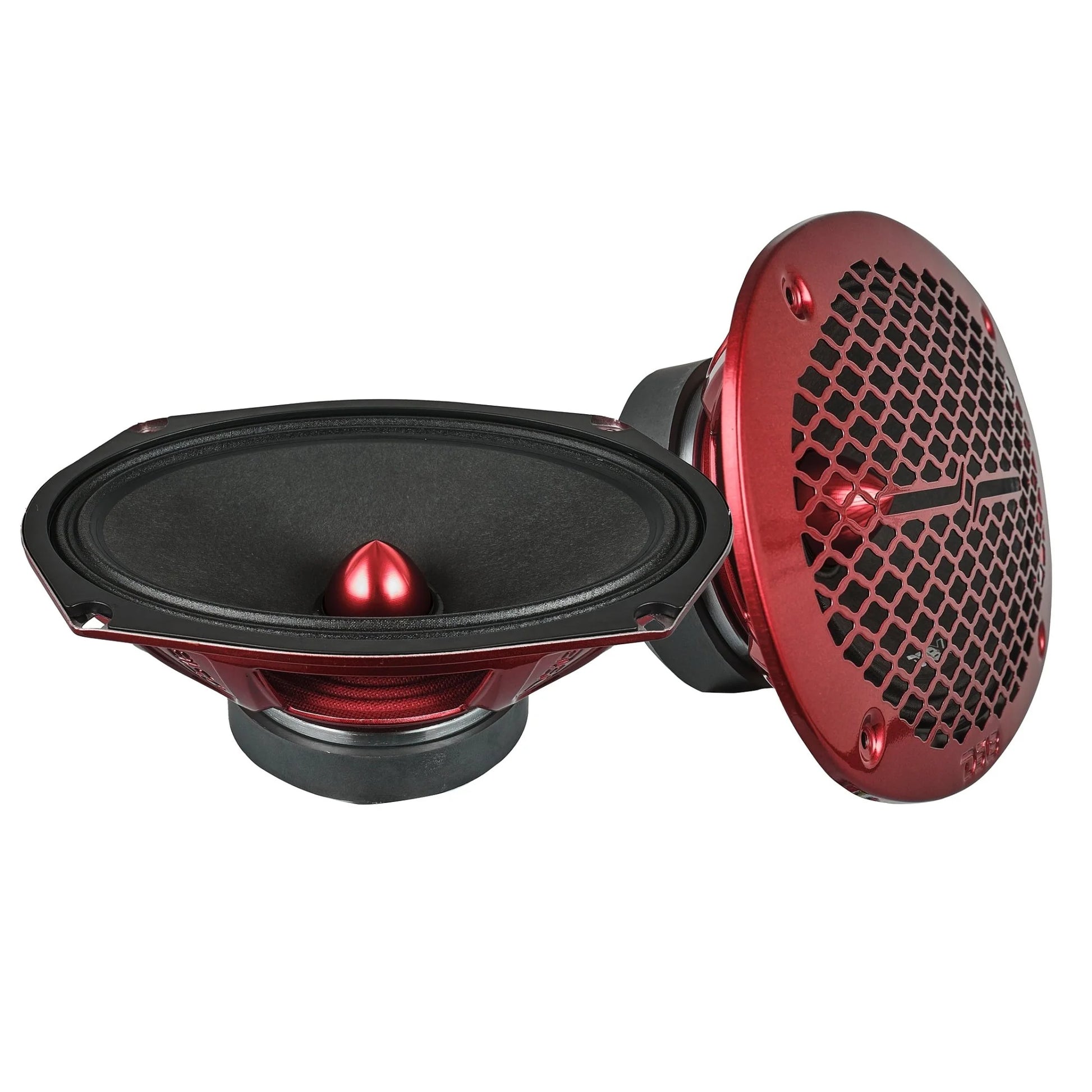

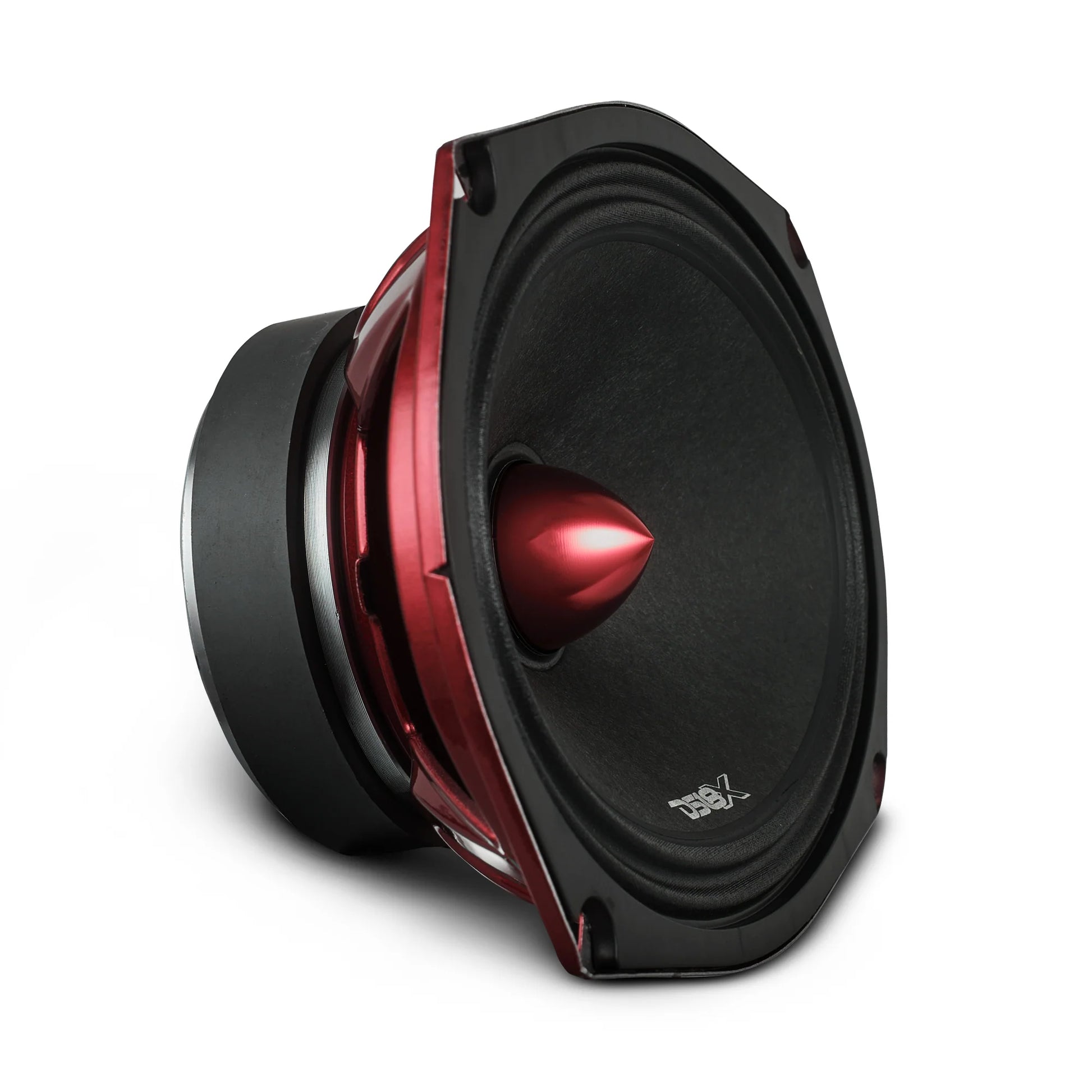

The newly designed glossy red honeycomb grill, bold bullet dust cap, and red steel basket give this speaker a stylish edge. Inside, a 1.5” Kapton voice coil, 27 oz ferrite magnet, and non-pressed paper cone deliver clean, punchy mids with 96dB sensitivity and a frequency range of 100Hz–12.5KHz.

Engineered to Keep Up

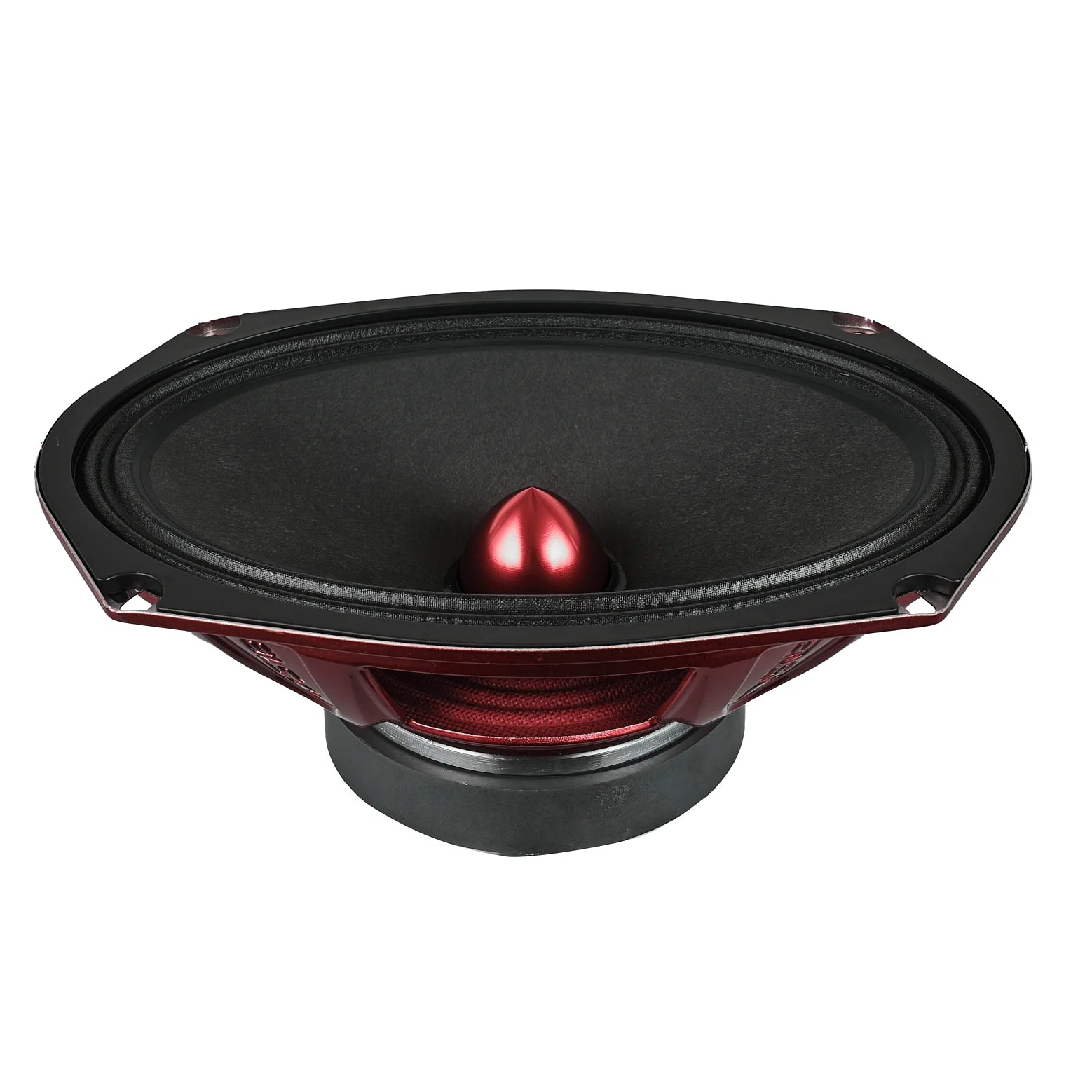

The PRO-X694BM was built for performance and endurance. The bullet aluminum phase plug widens frequency dispersion and adds structural strength. A 3.27” mounting depth makes it compatible with most standard vehicle installs, so upgrading is quick and easy.

Upgrade your door panels or build a full pro audio setup with the PRO-X694BM and feel the DS18 difference for yourself!

Sold individually

Model:
PRO-X698BM / PRO-X694BM

Type:    Midrange Loudspeaker
Size:    6X9"
RMS Power:    200W
MAX Power:    400W
Frequency Response:    65Hz-12KHz
Impedance:    8 ohm or 4 Ohm
Sensitivity:    98dB
Materials
Surround:    Cloth Edge
Frame:    Red Steel Basket
Cone:    Non-Pressed Paper Cone
Magnet:    Ferrite
Voice Coil Wire:    CCAW
Diameters
Voice Coil Size:    1.5"
Magnet Size:    27 oz.

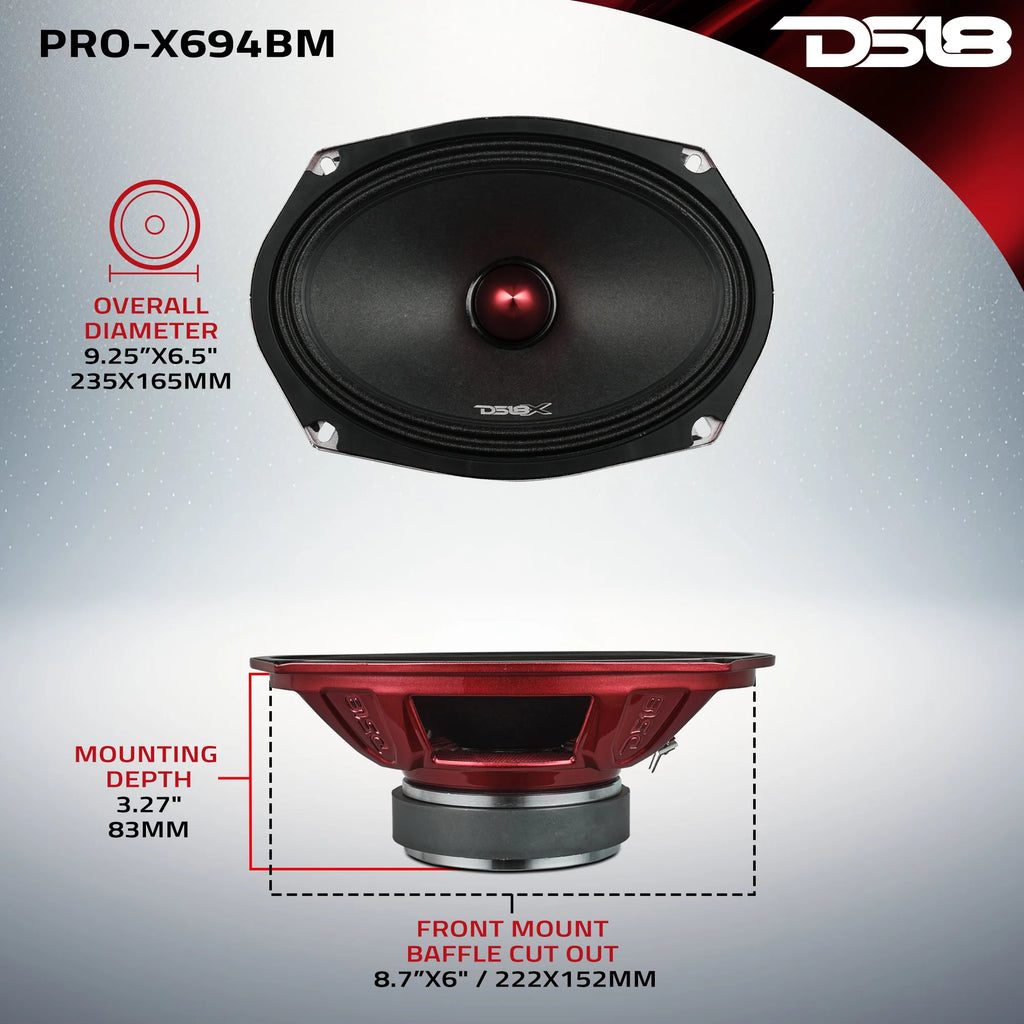

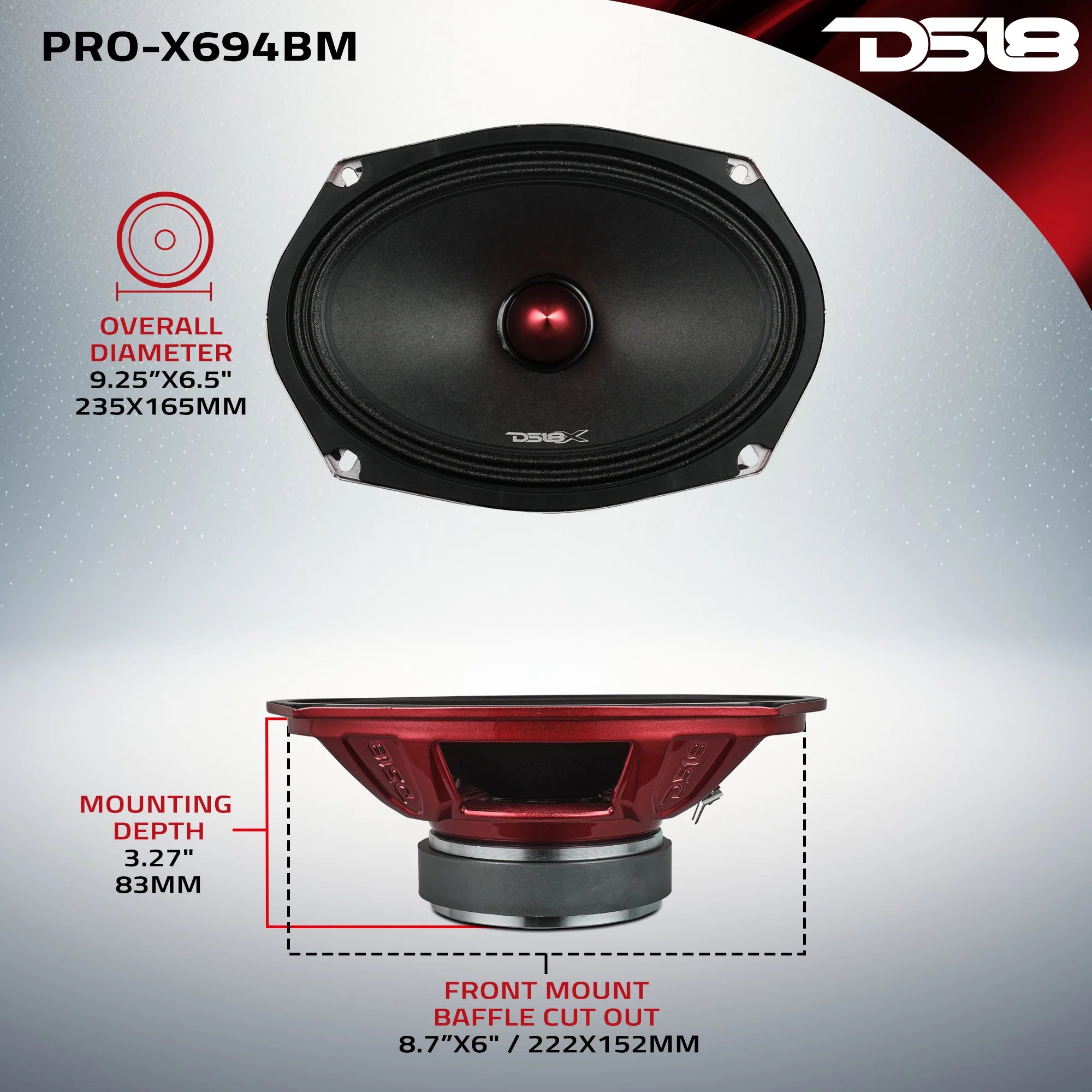

Mounting Depth:    3.27"
Cut-Out Dimension:    8.7" x 6"
Parameters
Equivalent Volume
27.34L / 0.965ft3
Excursion (one way)
7.7mm
Free Air Resonance
120Hz
Mechanical Factor
5.342
Electrical Factor
0.768
Total Factor
0.687
Mechanical Mass
8.21g
Mechanical Compliance
0.234mm/N
BL Factor
6.84
Voice Coil Inductance
4.11mH
Cone Area
207.34cm2
