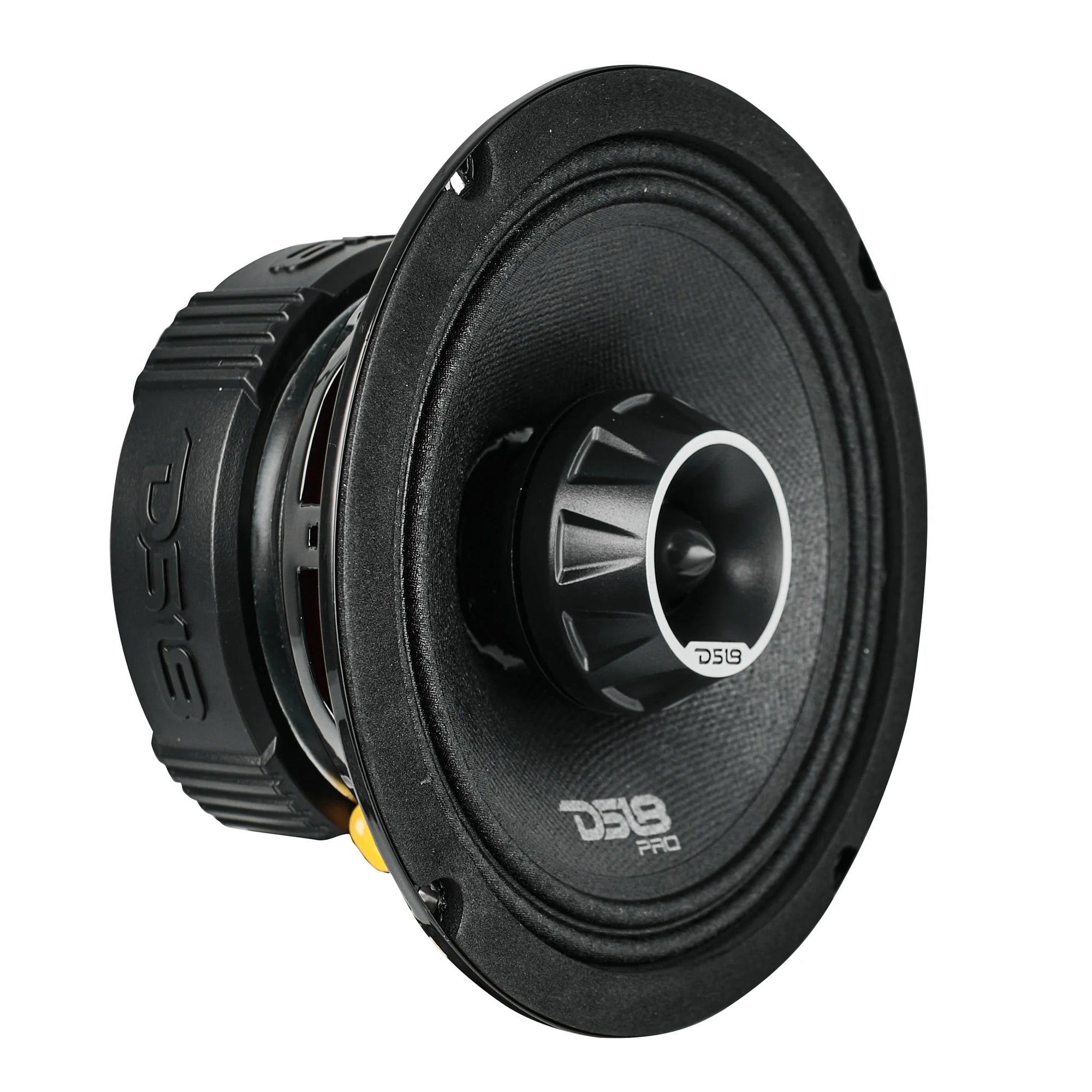

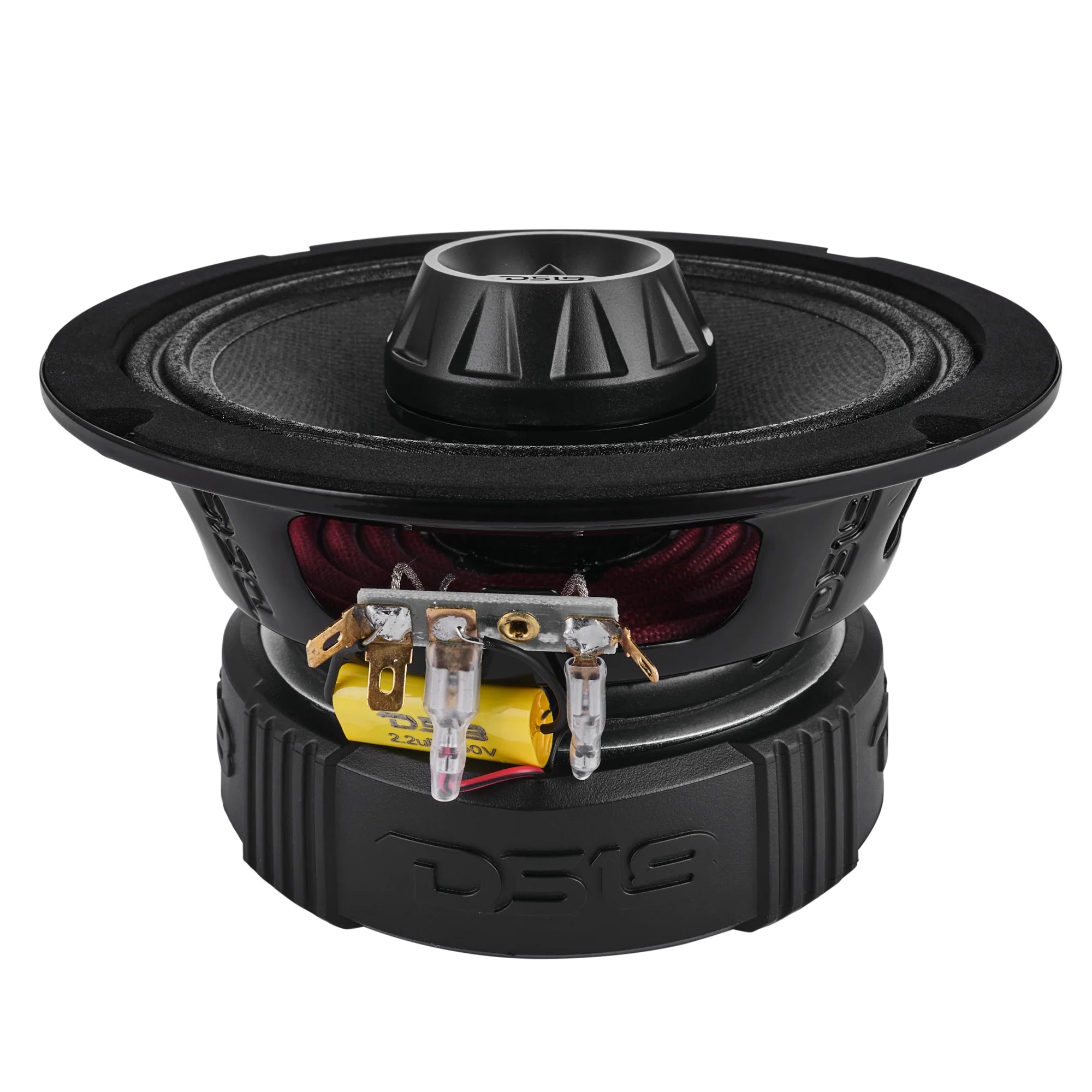

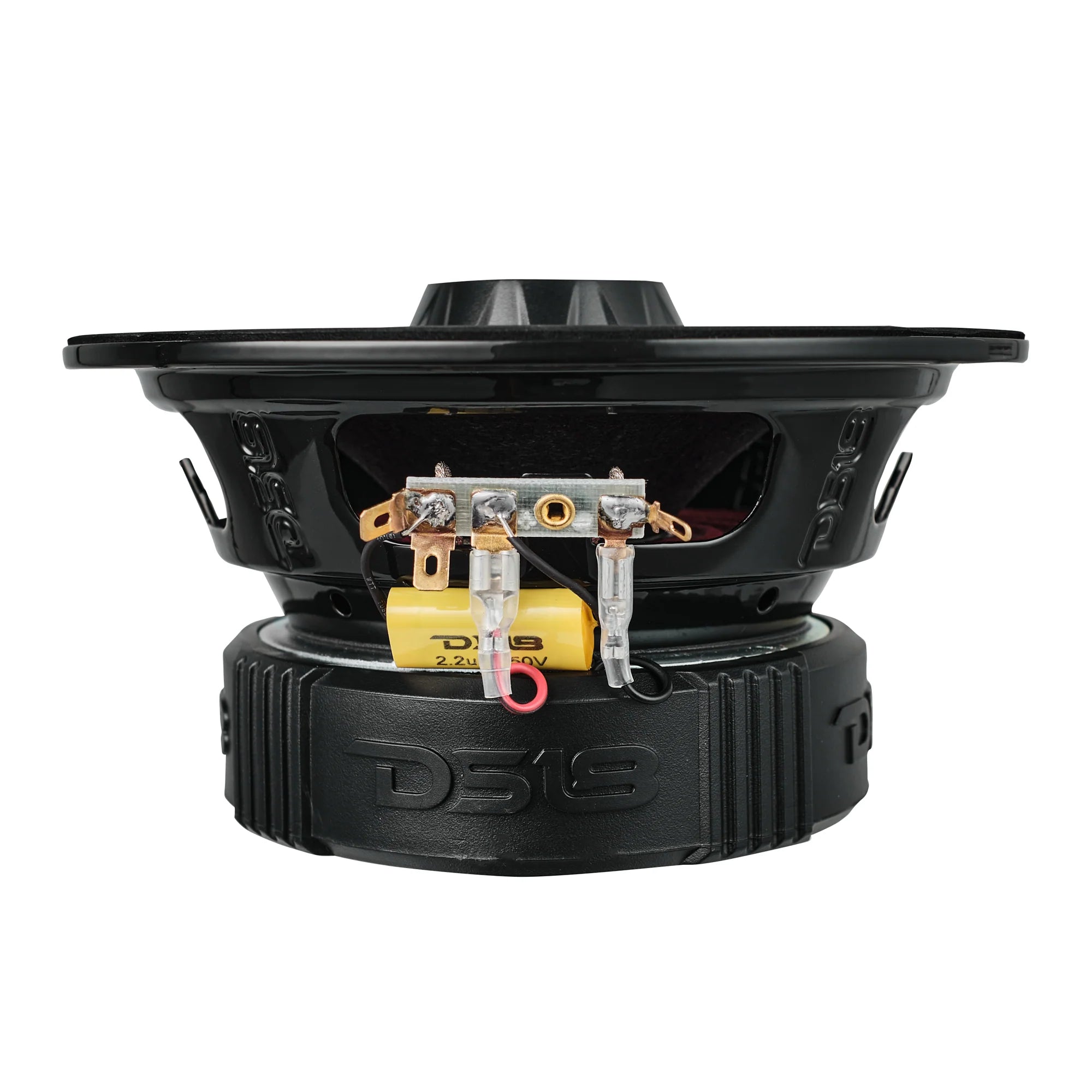

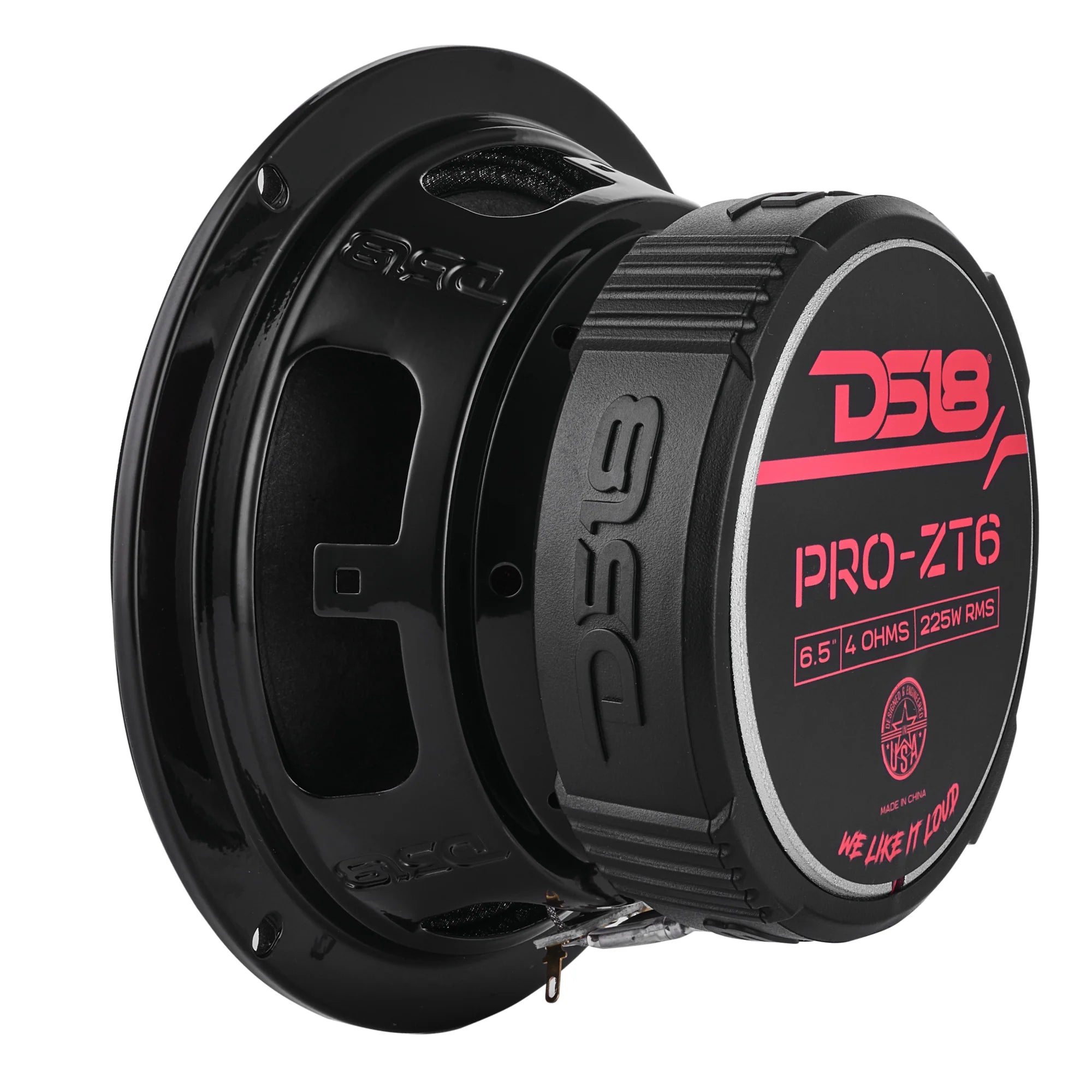

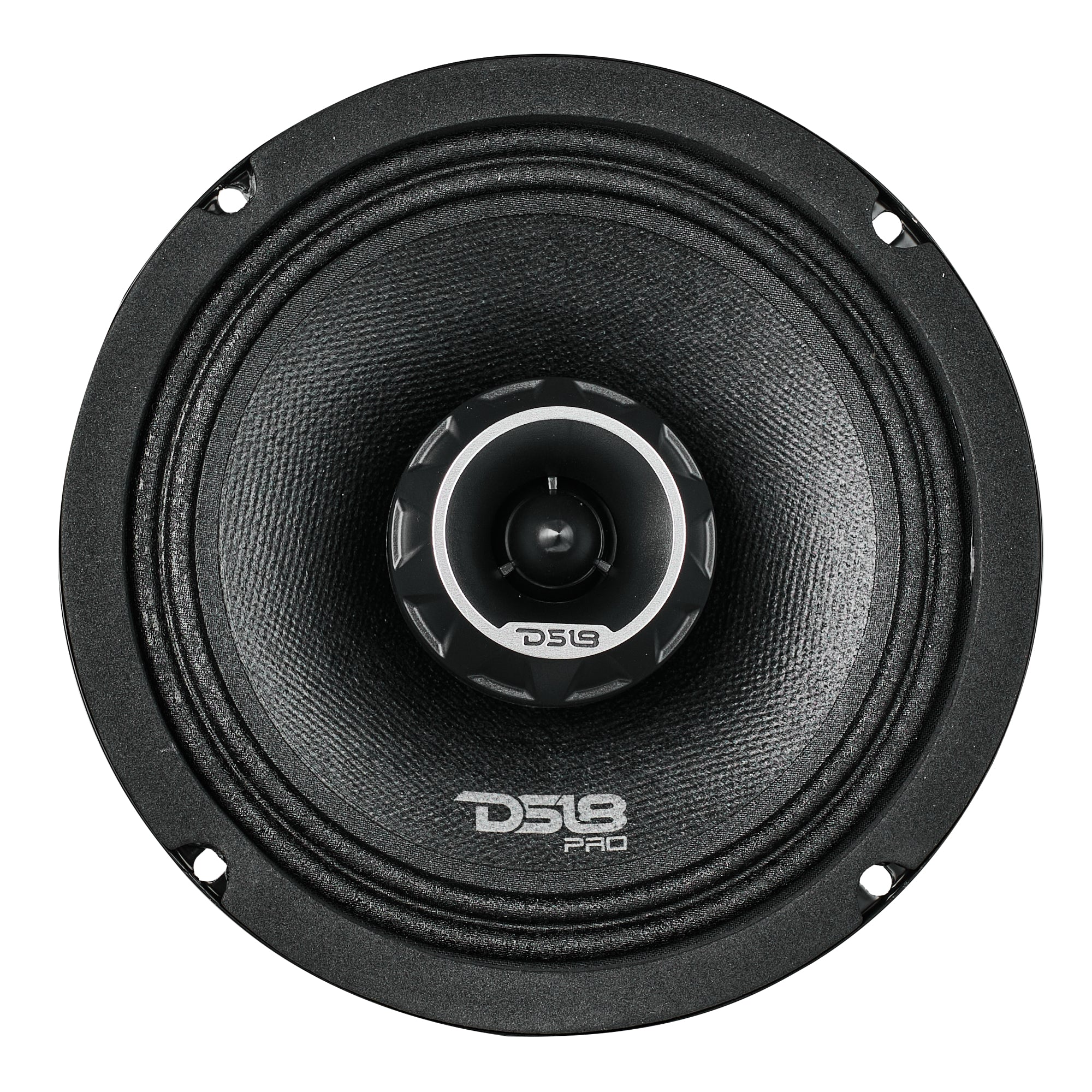

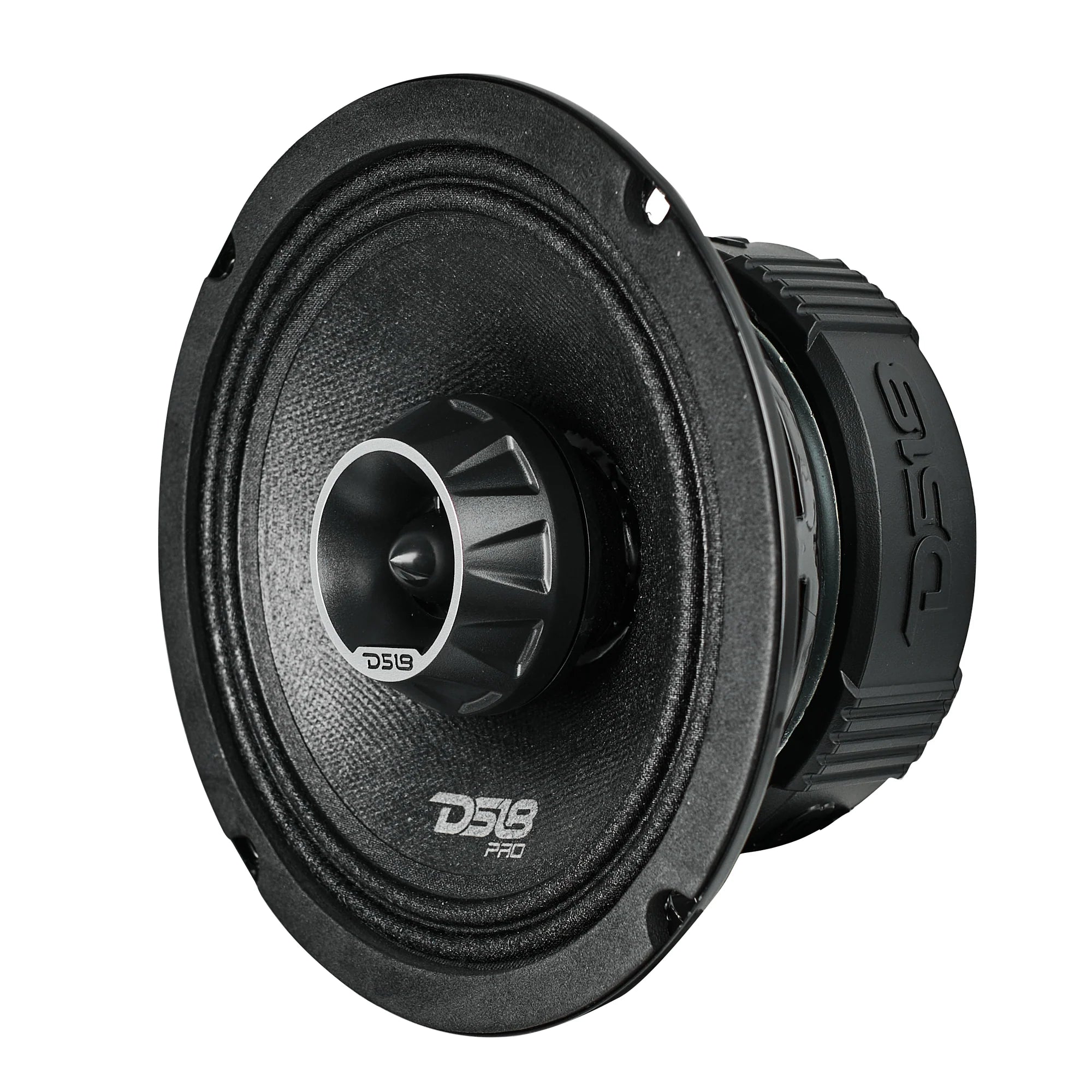

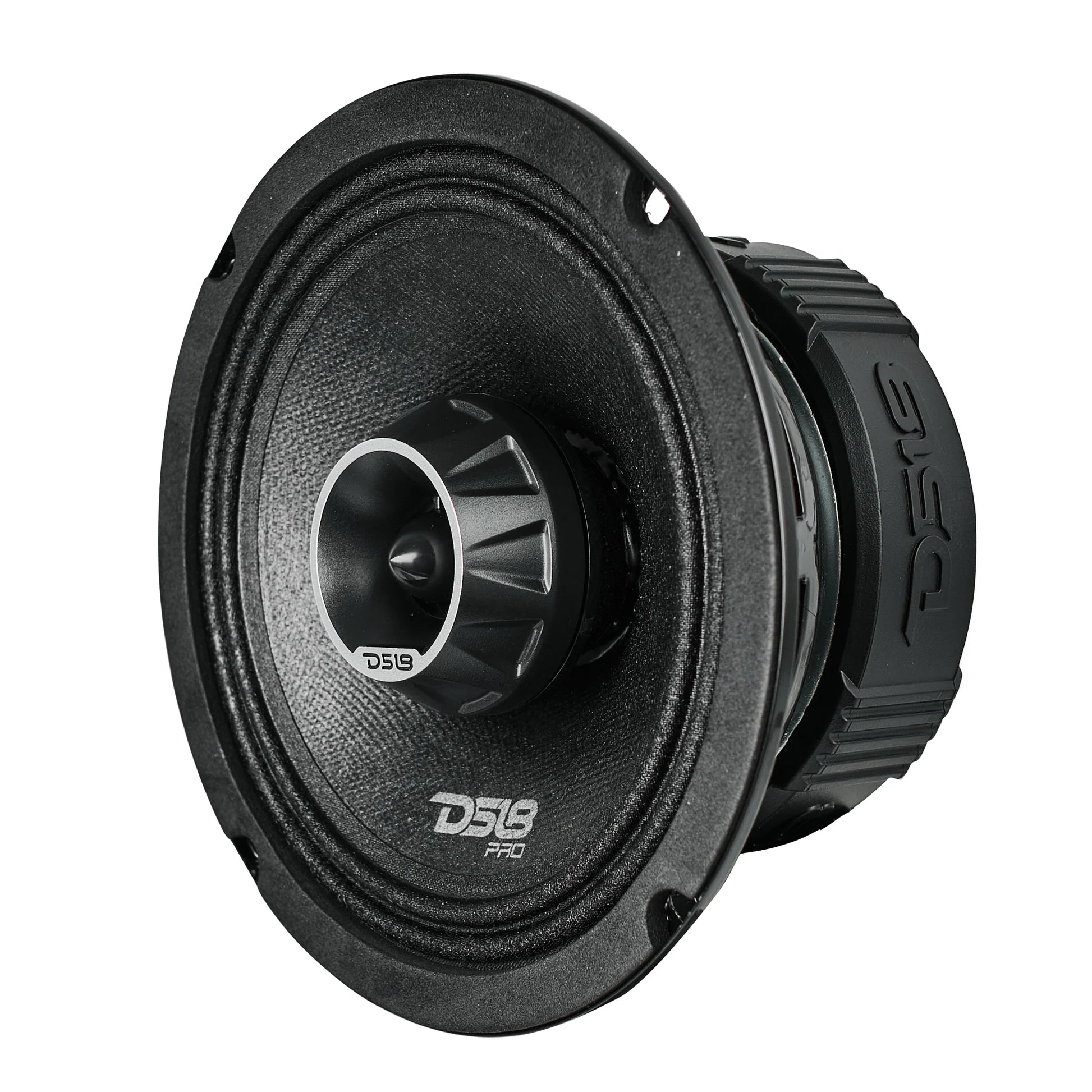

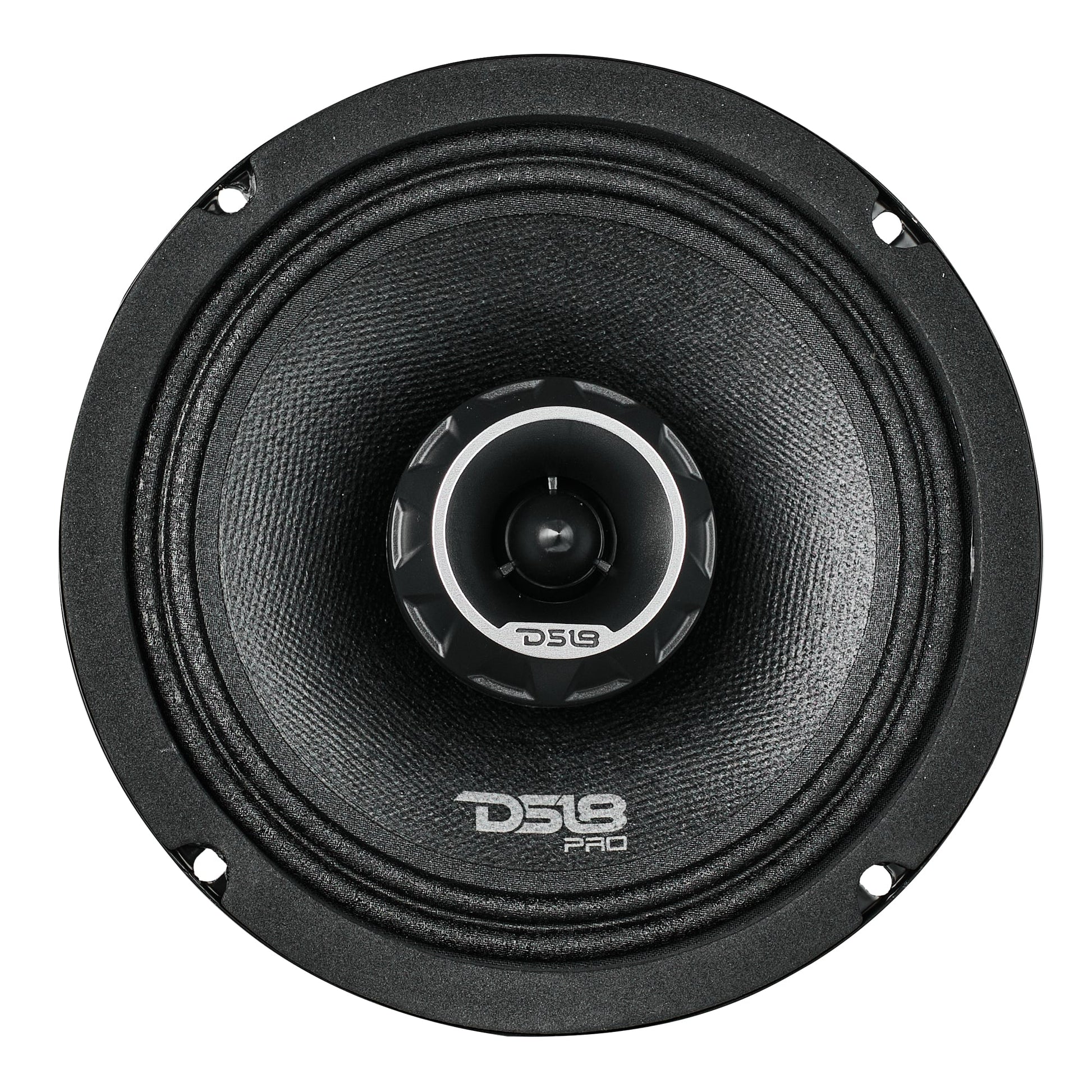

DS18 PRO-ZT 6.5" Coaxial Mid-Range Loudspeaker with Water-Resistant Cone Built-in Bullet Tweeter and Grill | 225W RMS 4-Ohm

Experience earth-shaking sound with the PRO-ZT6: a 2-way mid-range built for raw power, and full-range functionality. Packed into a rugged, water-resistant coaxial build.

Insane Power
Handling an RMS power of 225W and a MAX power of 450W, the PRO-ZT6 delivers breathtaking volume and precision. With a 4-Ohm impedance for easy installation and an ultra-high sensitivity rating of 96dB, you’re guaranteed powerful sound output even at lower volumes.

Wide Frequency Range
With an impressive frequency response range of 65Hz - 22KHz, the PRO-ZT6 captures every nuance across the entire audio spectrum. The integrated neodymium tweeter refines the balance between highs and lows, ensuring you hear every detail of your music.

Deep, Impactful Bass
Engineered with a robust ferrite magnet, the 6.5" mid-range woofer generates a deep low-end punch, for immersive bass response. This powerful magnet structure enhances voice coil action for dynamic impact every session.

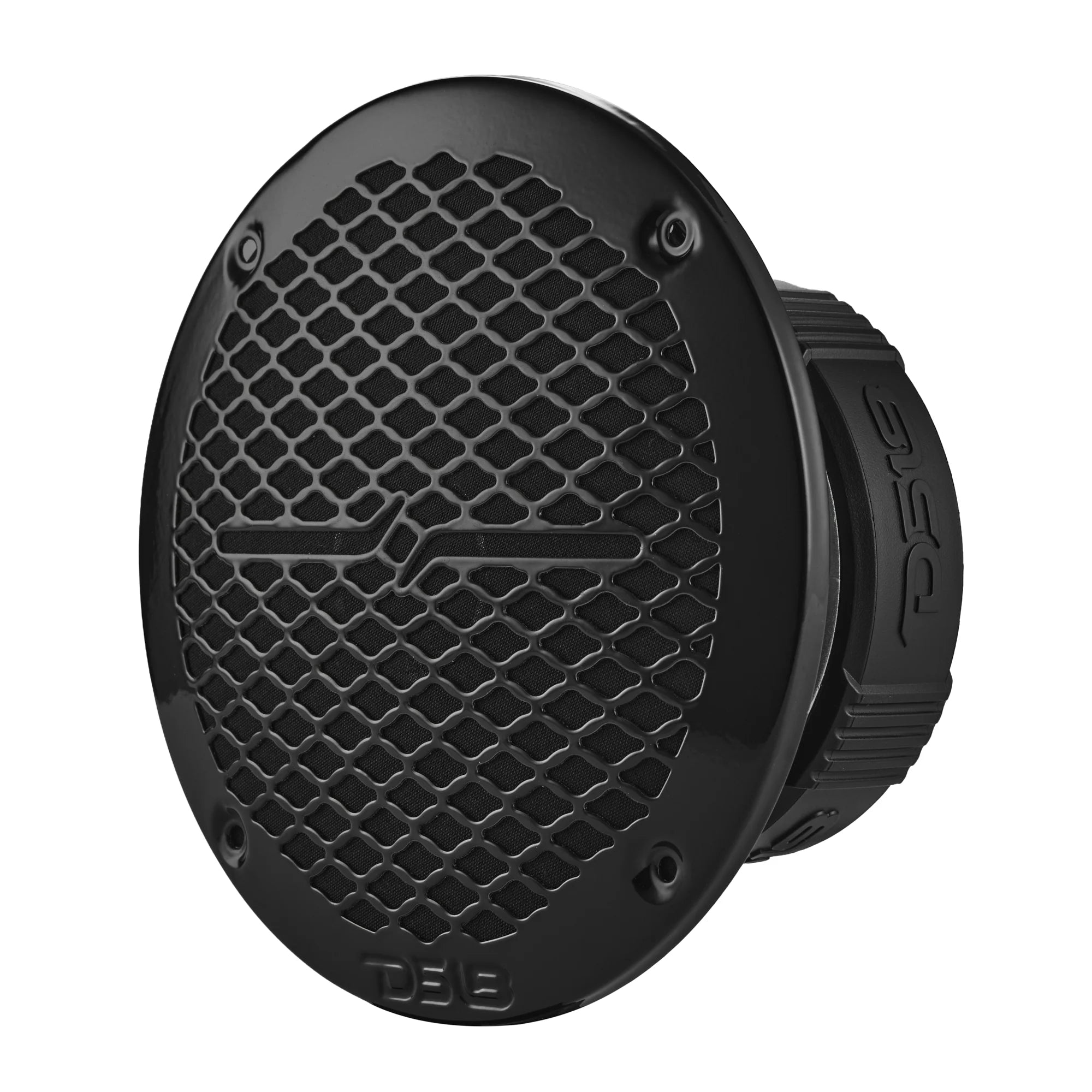

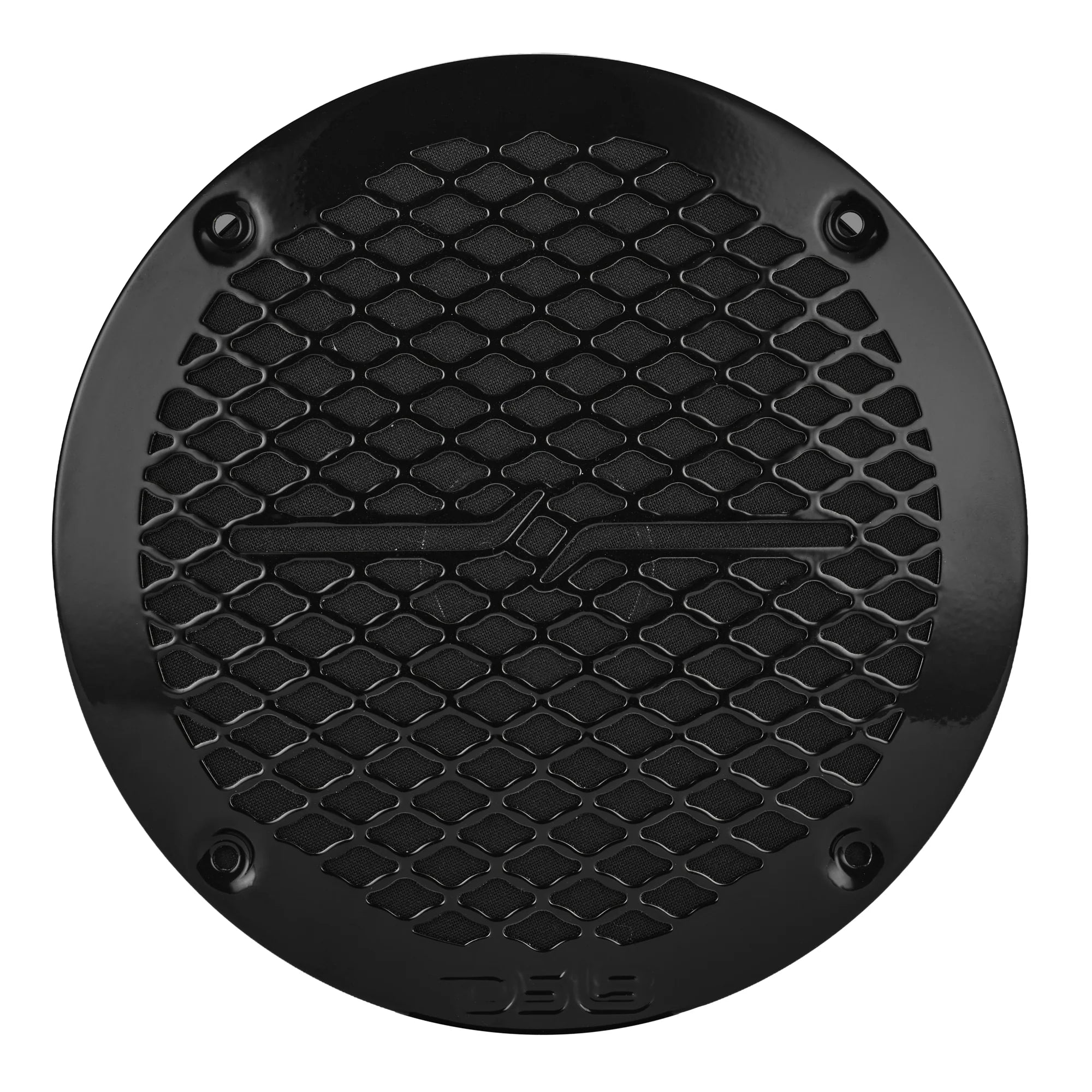

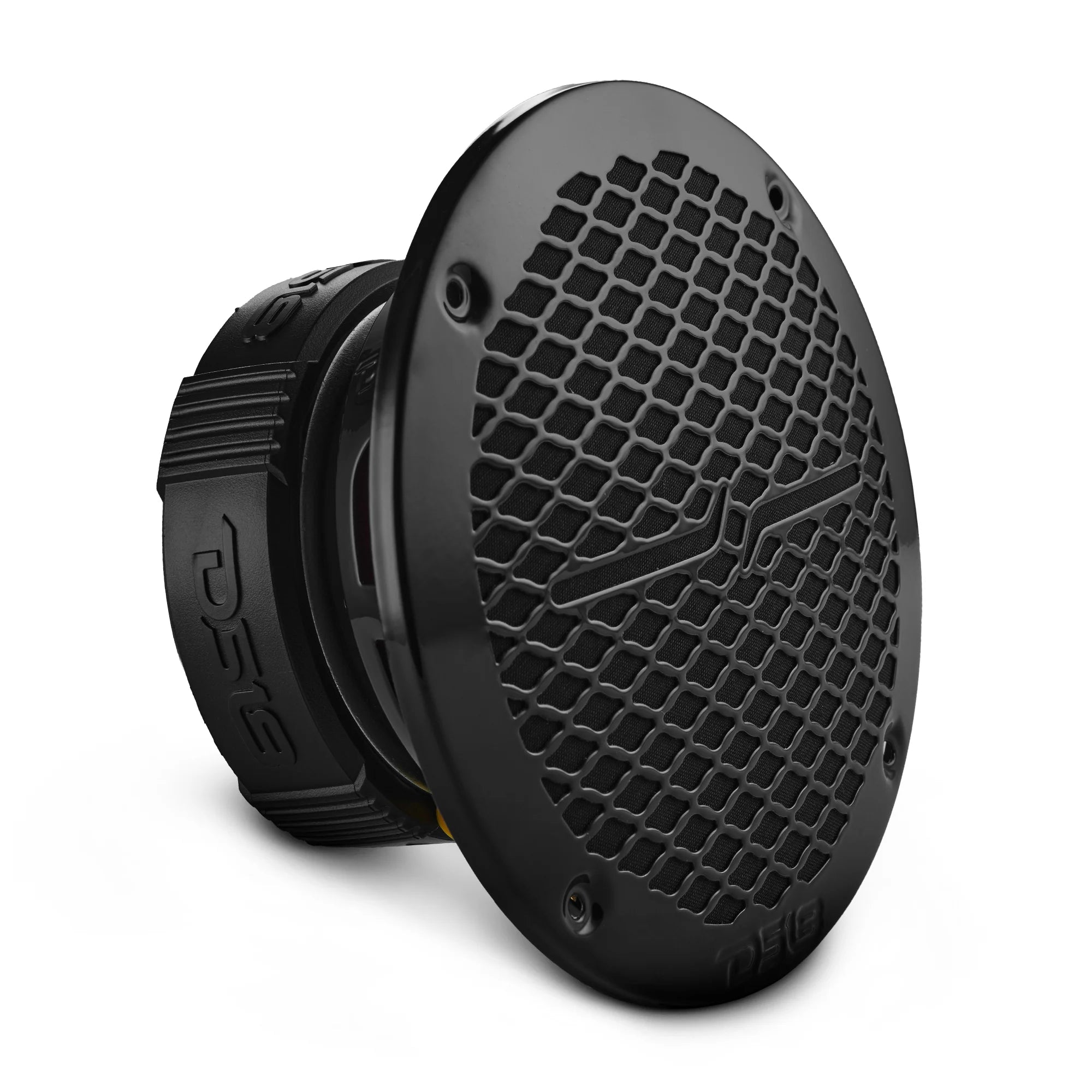

Protective Grill Included
The rugged steel mesh grille now comes with an integrated cloth shade. This added layer helps block dust, water spray, and direct sunlight from reaching the cone, protecting internal components and maintaining performance in any conditions.

Transform your system with the PRO-ZT6 and experience music the way it was meant to be heard!

SOLD INDIVIDUALLY

Nominal Diameter: 6.5" (1651.1mm)
Nominal Impedance: 4 ohms
RMS Power Handing: 225 Watts
MAX Power Handing: 450 Watts
Sensitivity (1w/1m): 96dB
Frequnecy Response: 65Hz - 22KHz
Recommended Hi Pass Crossover 120Hz
Midrange
Voice Coil Diameter: 1.5" (38.1mm)
Voice Coil Former Material: Kapton
Winding Material: CCAW
Basket Material: Steel
Magnet Weight: 27 oz
Tweeter
Voice Coil Diameter: 1"
Voice Coil Material: Kapton
Winding Material: CCAW
Diaphragm Material: Aluminum Alloy
Magnet Weight: 0.44 oz
Magnet Material: Neodymium
Thiele & Small Parameters
Equivalent Volume / Vas 2.917 LTR
Excursion / Xmax 1.6mm
Free Air Resonance / Fs 150Hz
Mechanical Factor / Qms 3.906
Electrical Factor / Qes 0.747
Total Factor / Qts 0.701
DC Resistance / Re 3.2
Measurements
Overall Diameter: 178mm (7")
Front Mount Baffle Cutout: 144mm (5.67")
Mounting Depth: 77mm (3.03")
Overall Depth: 97mm (3.81)
