DS18 SRW Shallow-Mount 10" Subwoofer 200 Watts Rms DVC 4-Ohm

10" Car Subwoofer 400 Watts 4-Ohm DVC Shallow Mount

Introducing the SRW10.4D: DS18’s ultimate solution for car audio enthusiasts craving exceptional bass performance in tight areas.
Crafted as part of the renowned SRW bass series, this subwoofer epitomizes the perfect blend of power, performance, and affordability. Designed to excel in shallow sub frames, the SRW10.4D outshines its competitors, delivering booming bass that will leave you astounded. The large surround with flexible spider packs and the high-quality aluminum voice coil former work in perfect unison, maximizing the excursion capability and ensuring a deep, full-bodied bass response that will leave you craving for more.
DS18’s SRW10.4D subwoofer effortlessly delivers phenomenal bass response, boasting an impressive 400W of MAX power and 200W RMS power handling with absolute precision. What truly sets the SRW10.4D apart from the competition is its exceptional sensitivity rating of 87dB. This shallow mount subwoofer achieves an outstanding level of volume and power while operating within its compact frame.
Coming in both dual voice coil (DVC) and single voice coil (SVC) options, the SRW10.4D caters to your specific amplifier setup, ensuring you can maximize the power delivery to breathe life into every note of your favorite tunes.
Versatility is at the core of the SRW10.4D's design, allowing you to install it effortlessly in compact places and requiring less box space compared to other subs. Its compact size provides you with countless placement options, enabling you to customize your car audio setup to perfection. Whether you choose a ported or sealed box, DS18’s SRW10.4D consistently delivers incredible bass that fills your vehicle's interior, transforming every drive into an immersive concert-like experience.

Nominal Diameter    10"
Nominal Impedance    DVC 4 ohm
RMS Power Handling    200 Watts
Maximum Power Handling    400 Watts
Sensitivity (1w/1m)    87dB
Frequency Response    23-250Hz
Recommended Lo Pass Crossover    90Hz
Voice Coil Diameter    50.8mm / 2"
Voice Coil Former Material    Aluminum
Winding Material    SV
Basket Material    Steel Basket
Frame Material    Steel Basket
Magnet Weight    Ferrite 45oz

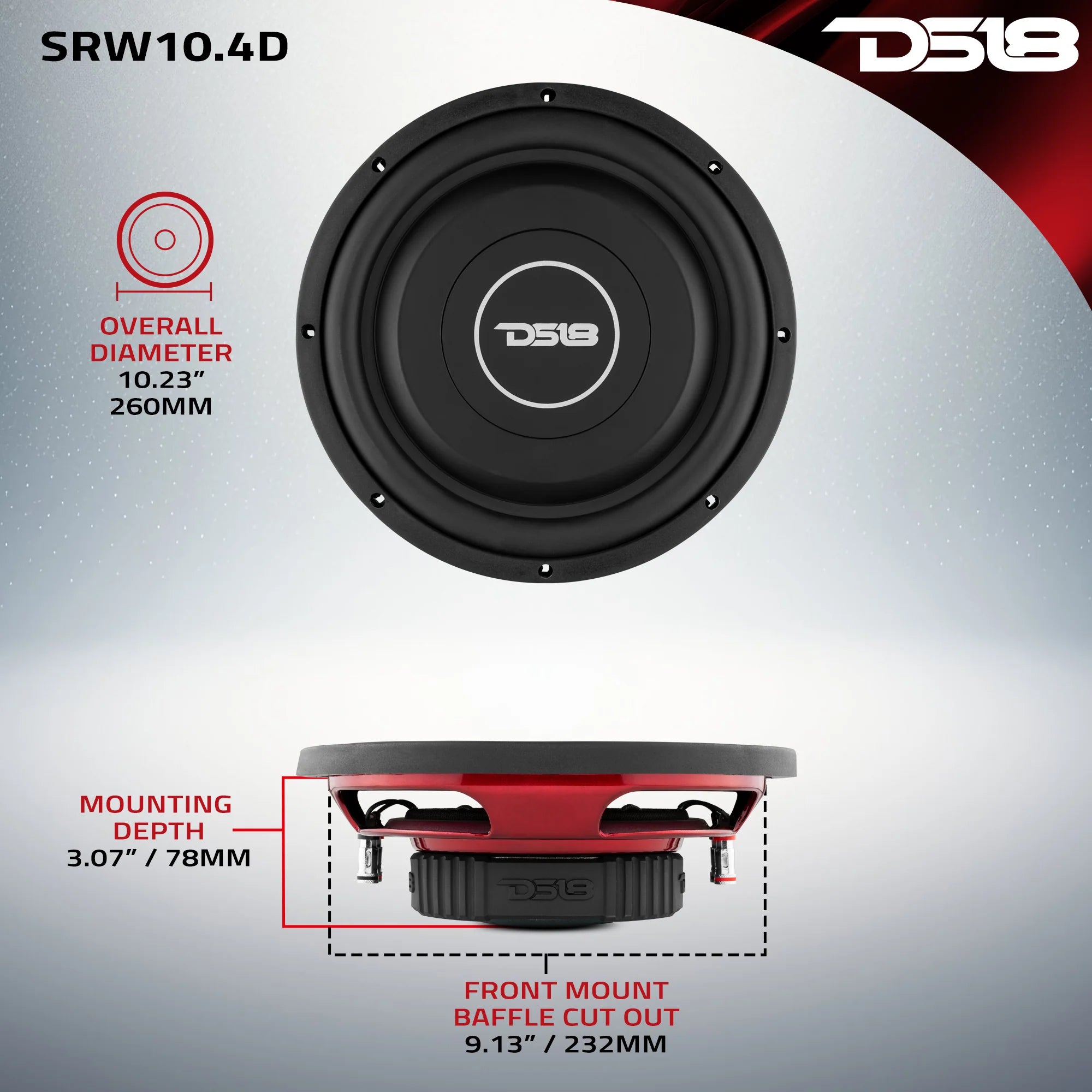

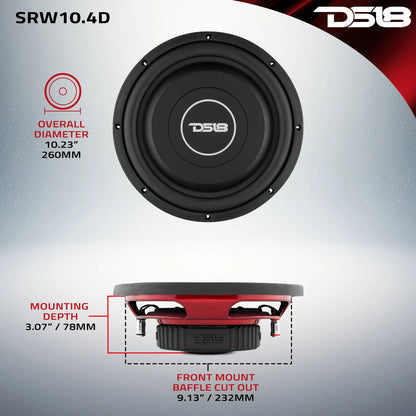

Measurements
Overall Diameter    260mm / 10.23"
Front Mount Baffle Cutout    232mm / 9.13"
Overall Depth    93mm / 3.62"
Mounting Depth    78mm / 3.07"
