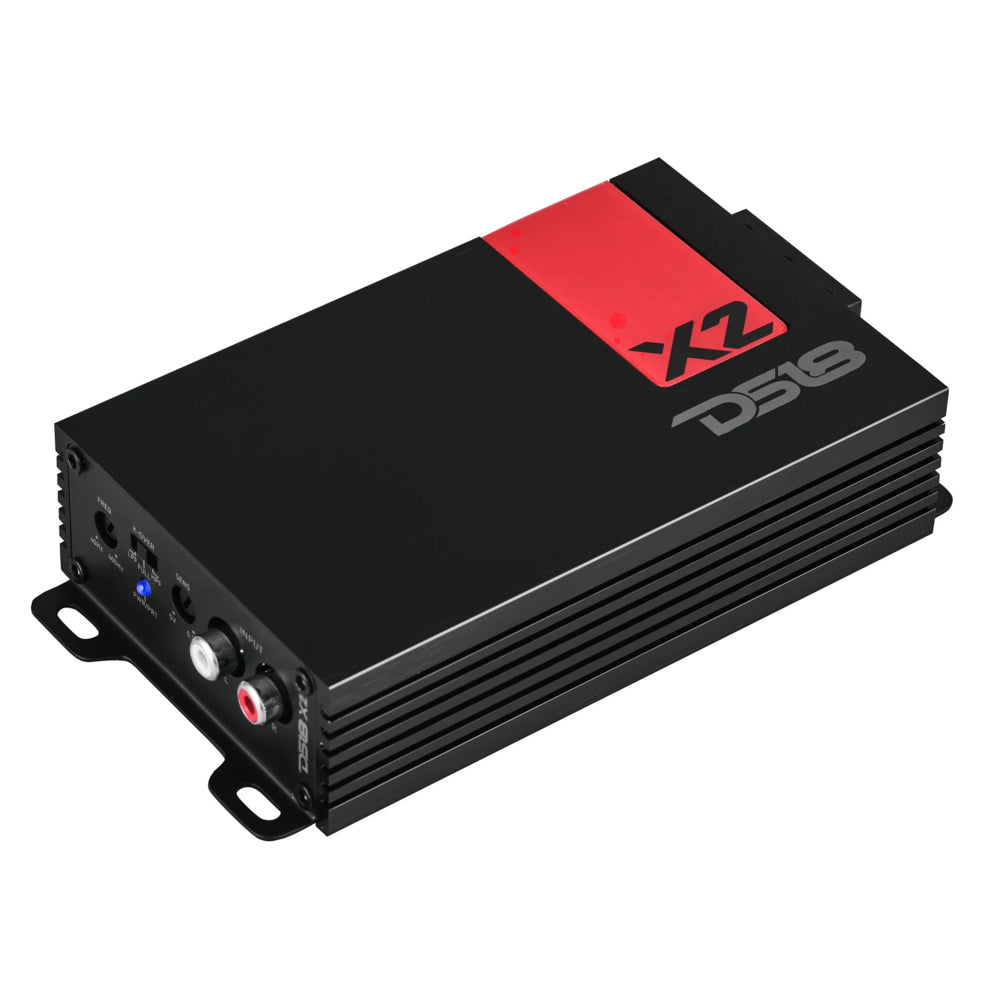

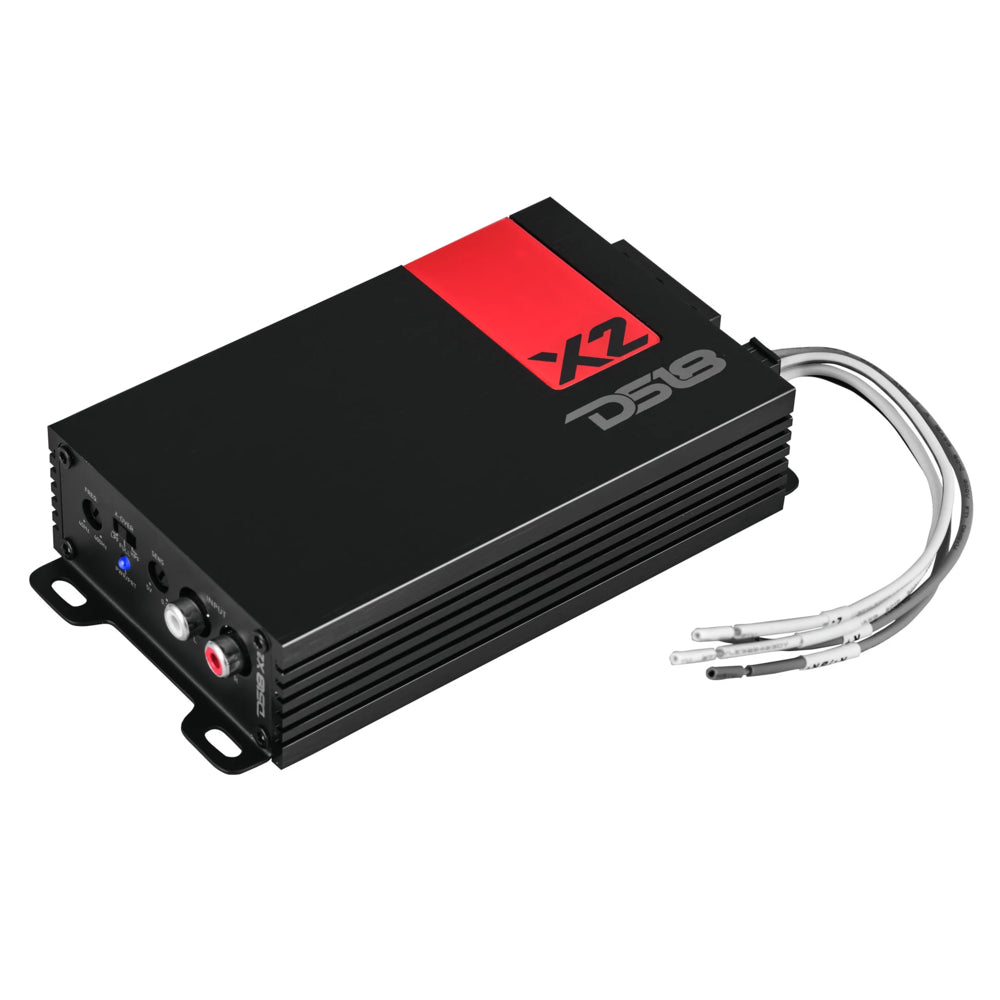

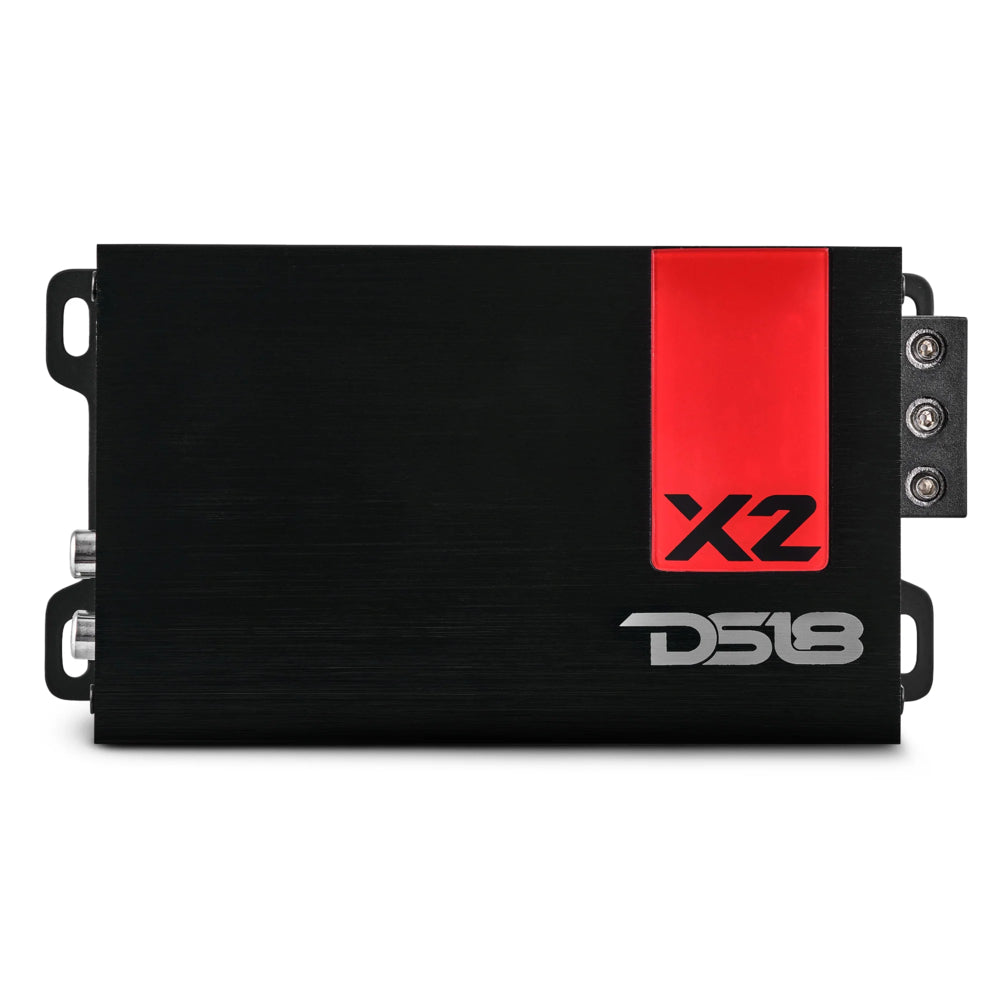

DS18 X2 2-Channel Ultra Compact Amplifier
DS18 X2 2-Channel Ultra Compact Amplifier
Couldn't load pickup availability
20 in stock
Give your system dedicated amplifier power
The DS18 X2 2-Channel Ultra Compact Amplifier gives you two channels of amplification for a focused audio upgrade. Use the supported configuration that matches your speakers and wiring.
Key details
- Model / SKU: X2
- Compact format: check the listed dimensions to plan your mounting location.
- DS18 X2 2-Channel Ultra Compact Class D Amplifier 2 x140 Watts Rms @ 4-ohm
- RMS POWER @ 4 OHMS 140W x 2CH
- RMS POWER @ 2 OHMS 230W x 2CH
- Rms power @ 1 ohms -
- RMS POWER @ 4 OHMS BRIDGE 380W x 1CH
Fitment & system matching
Match RMS output at the final wired impedance to your speakers or subwoofers. Check minimum impedance, mounting dimensions, fuse requirements and power-wire size. Peak/MAX ratings are not continuous RMS output.
Full product details & specifications
DS18 X2 2-Channel Ultra Compact Class D Amplifier 2 x140 Watts Rms @ 4-ohm
CLASS CLASS-D
AMPLIFIER TYPE MICRO STEREO FULL RANGE AMP
CHANNELS 2
TOTALWATTS (PEAK) 1140W
RMS POWER @ 4 OHMS 140W x 2CH
RMS POWER @ 2 OHMS 230W x 2CH
RMS POWER @ 1 OHMS -
RMS POWER @ 4 OHMS BRIDGE 380W x 1CH
FREQUECY RESPONSE 20Hz - 20KHz
SIGNAL/NOISE RATIO >90 dB
EFFICIENCY @ 4 OHMS >80%
DAMPING FACTOR >201
THD % <0.2%
LOW LEVEL INPUT RANGE 0.2-5V
SELECTABLE X-OVER LPF/FLAT/HPF
X-OVER FILTER RANGE 40Hz - 400Hz
BASS BOOST RANGE -
BASS BOOST FREQUENCY -
INFRASONIC FILTER -
PHASE SELECTOR -
MINIMUM IMPENDANCE 2 OHMS
LED INDICATOR POWER/PROTECTION
POWER INPUT SIZE 12GA
FUSE RATING 40A
REMOTE LEVEL CONTROL -
THERMAL PROTECTION YES
OVER-LOAD PROTECTION YES
DC OUTPUT PROTECTION YES
SHORT CIRCUIT OUTPUT PROTECTIONVOLTAGE INPUT PROTECTION YES
VOLTAGE INPUT PROTECTION YES
DIMENSIONS LxWxH (INCHES) 5.54 x 3.24 x 1.37"
HEATSINK LENGTH 4.75"
COMPACT SIZE TO EASY INSTALLATION FOR ANY APLICATIONS YES
STABLE/RELIABLE FOUR LAYERS TRACES PCB DESIGN YES
SURFACE MOUNT COMPONENT TECHNOLOGY YES
AUDIO PRECISION QUALITY CONTROL VERIFICATION YES
CONFIGURATION 2CH/4CH INPUT SELECTOR NO
