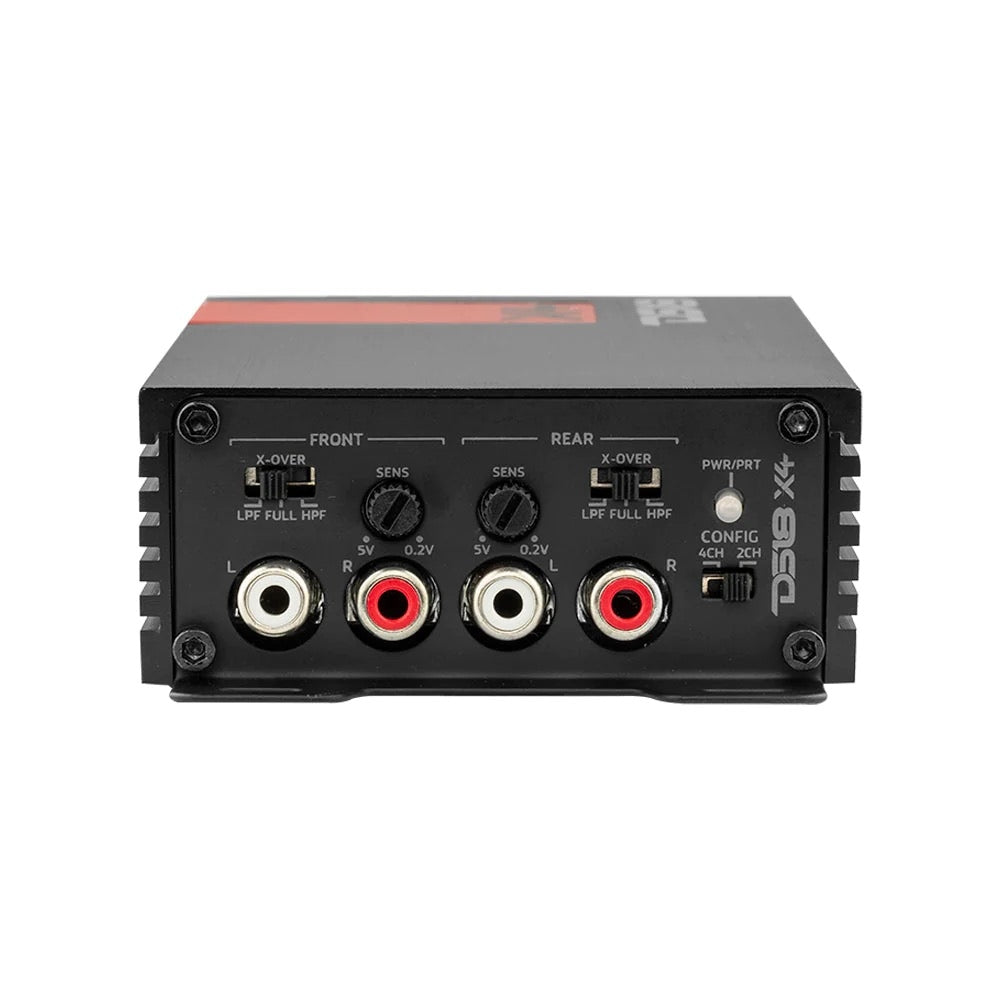

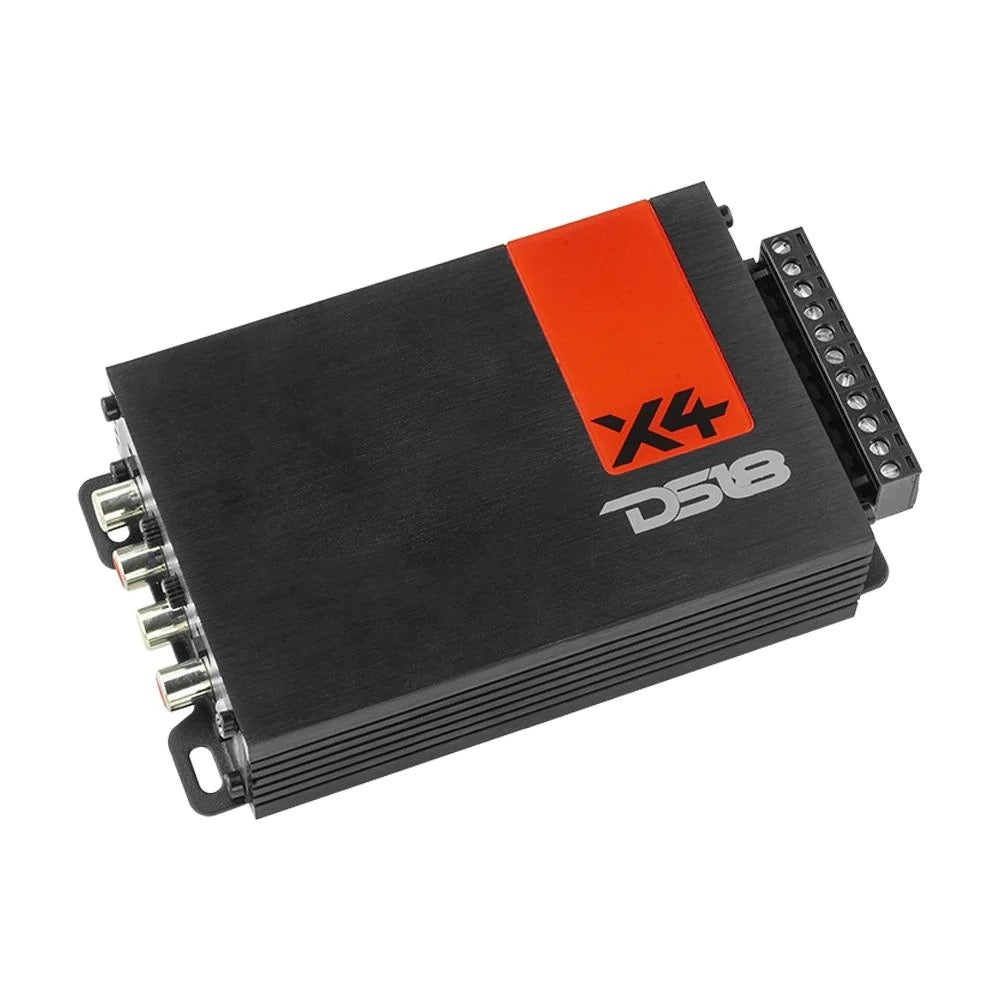

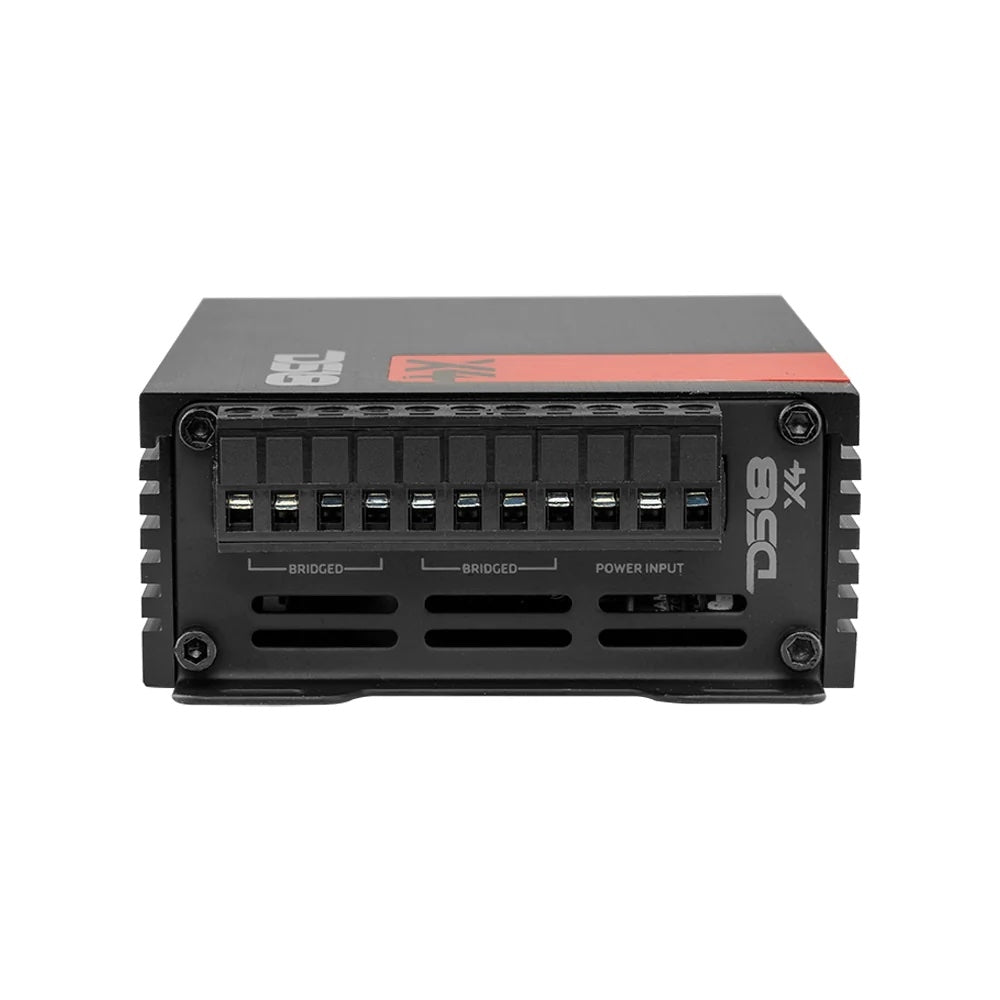

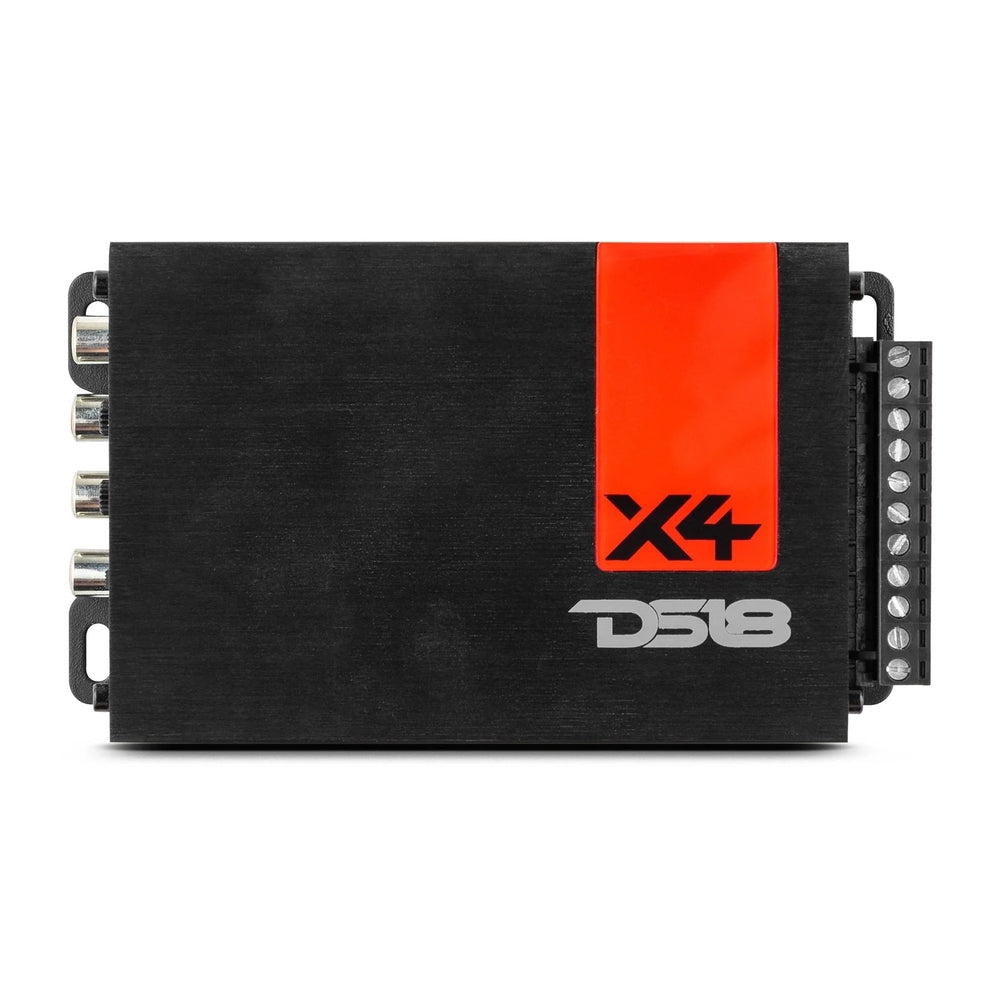

DS18 X4 4-Channel Ultra Compact Amplifier
DS18 X4 4-Channel Ultra Compact Amplifier
Couldn't load pickup availability
20 in stock
Give your system dedicated amplifier power
The DS18 X4 4-Channel Ultra Compact Amplifier gives you four channels of amplification for a multi-speaker system. Match its output at your chosen impedance to the speakers you plan to run.
Key details
- Model / SKU: X4
- Compact format: check the listed dimensions to plan your mounting location.
- DS18 X4 4-Channel Ultra Compact Class D Amplifier 4 x 70 Watts Rms @ 4-ohm
- Rms Power @ 2 Ohms
- Rms Power @ 4 Ohms
- Rms Power @ 4 Ohms Bridge
- Frequency Response: 20Hz - 20KHz
Fitment & system matching
Match RMS output at the final wired impedance to your speakers or subwoofers. Check minimum impedance, mounting dimensions, fuse requirements and power-wire size. Peak/MAX ratings are not continuous RMS output.
Full product details & specifications
DS18 X4 4-Channel Ultra Compact Class D Amplifier 4 x 70 Watts Rms @ 4-ohm
Model
X4
Rms Power @ 2 Ohms
140w x 4 CH
Rms Power @ 4 Ohms
70w x 4 CH
Rms Power @ 4 Ohms Bridge
220w x 2 CH
Frequency Response
20Hz - 20KHz
Signal/Noise Ratio
>90db
Selectable X-Over
Lpf/Flat/Hpf
Fixed Lpf Frequency
80Hz
Low Lever Input Range
0.2-5v
Input Configuration
2CH / 4CH
LEDs Indicate Working Status
Power/Protection
Dimensions
140.8 L X 82.4 W X 34 H (Mm)
Need help choosing? Explore our installation services before planning your build.
