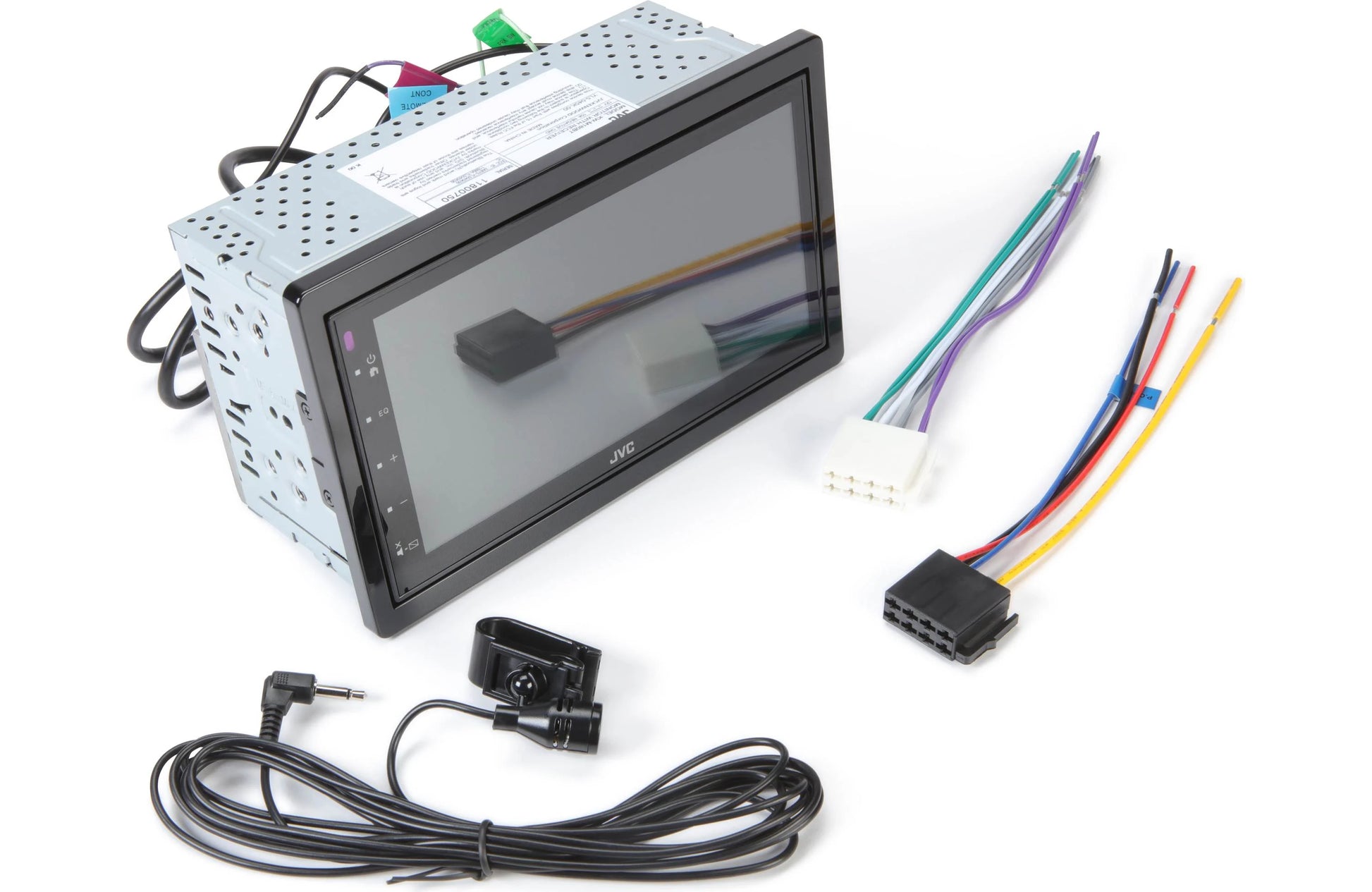

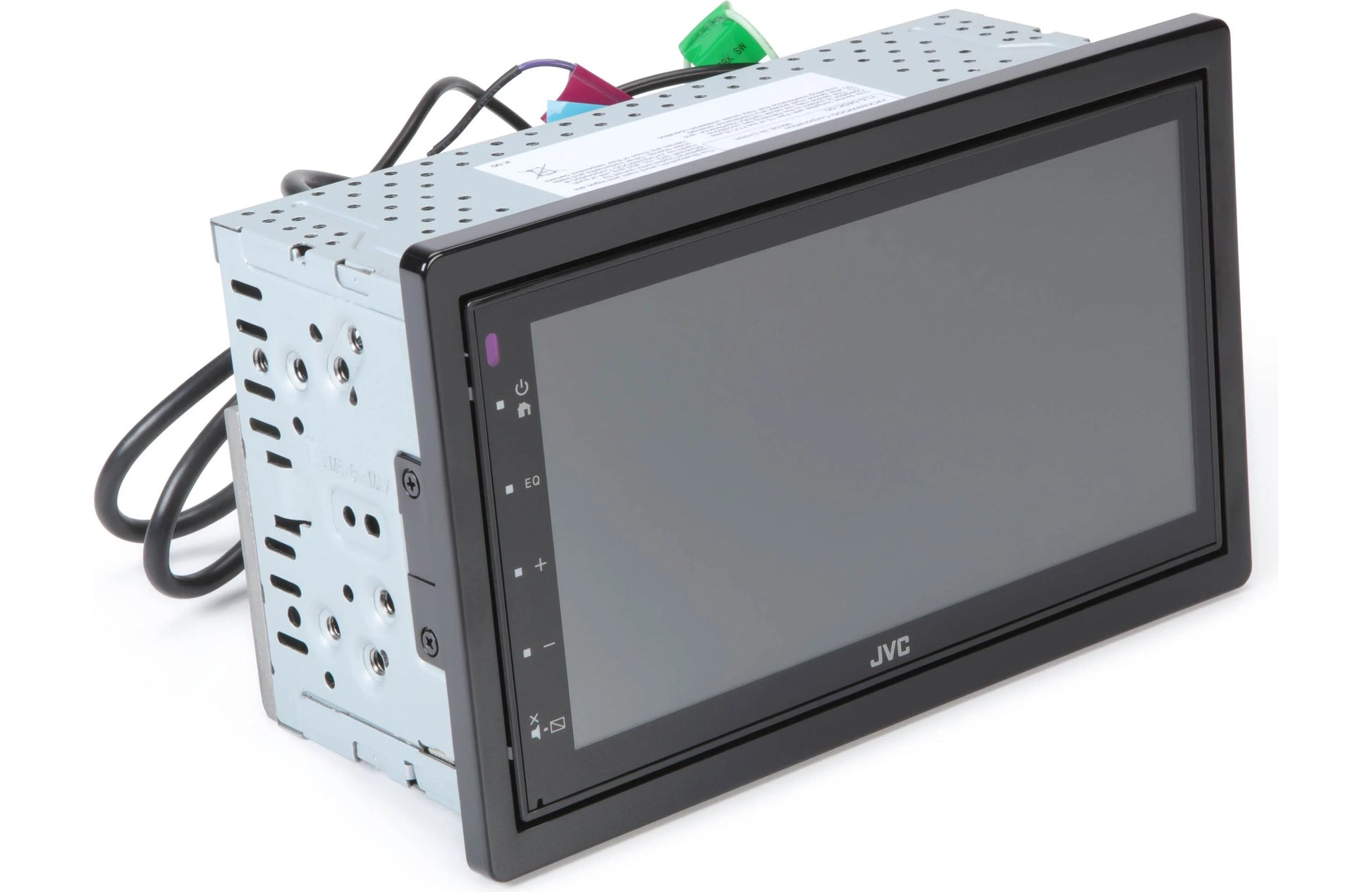

JVC KWM180BT Double-Din Mechless Receiver with Bluetooth

Digital Media Receiver featuring 6.8" WVGA Capacitive Monitor / USB Mirroring for Android™ / Bluetooth® / 13-Band EQ / Short Chassis / Fast Bootup

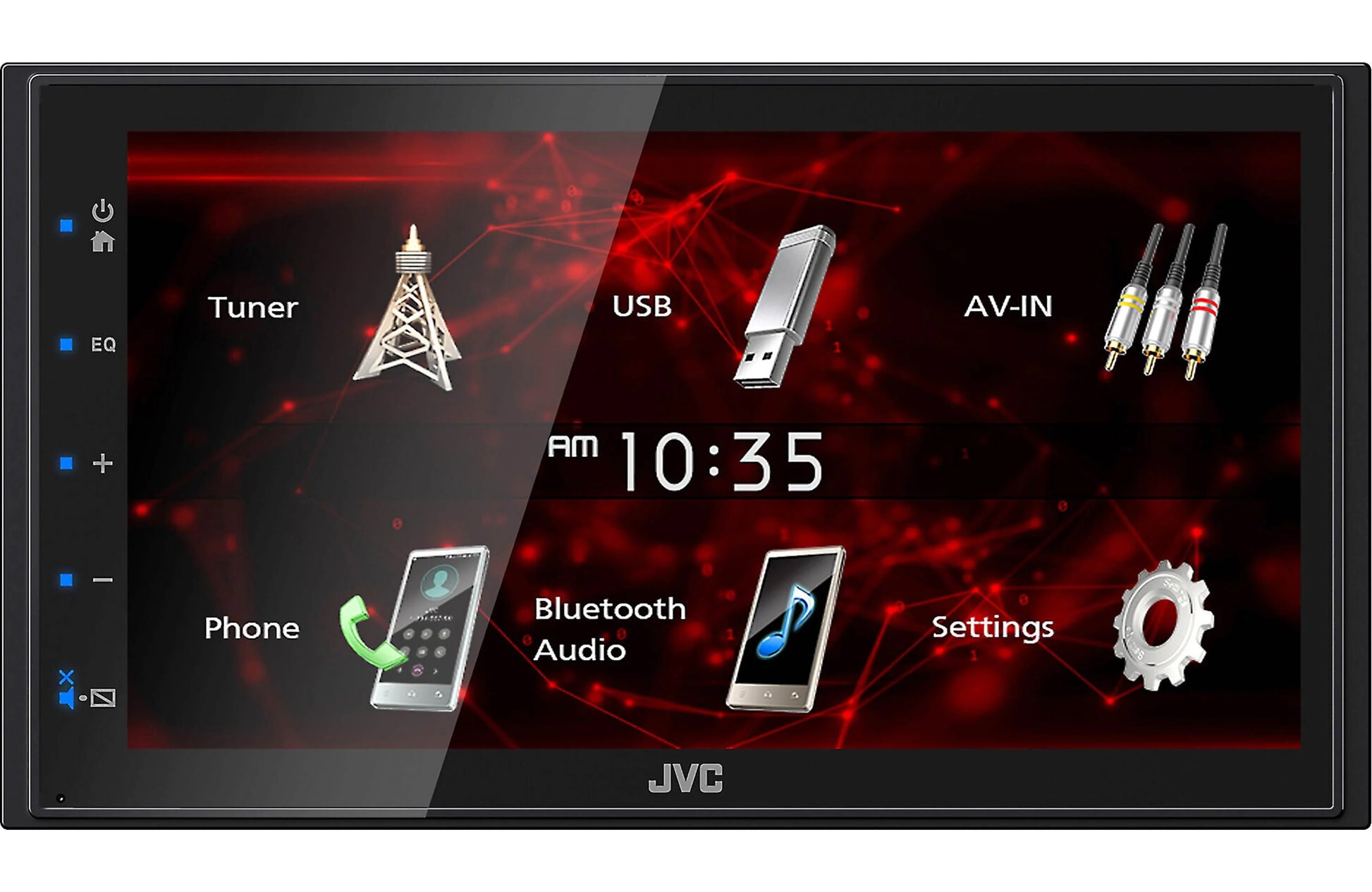

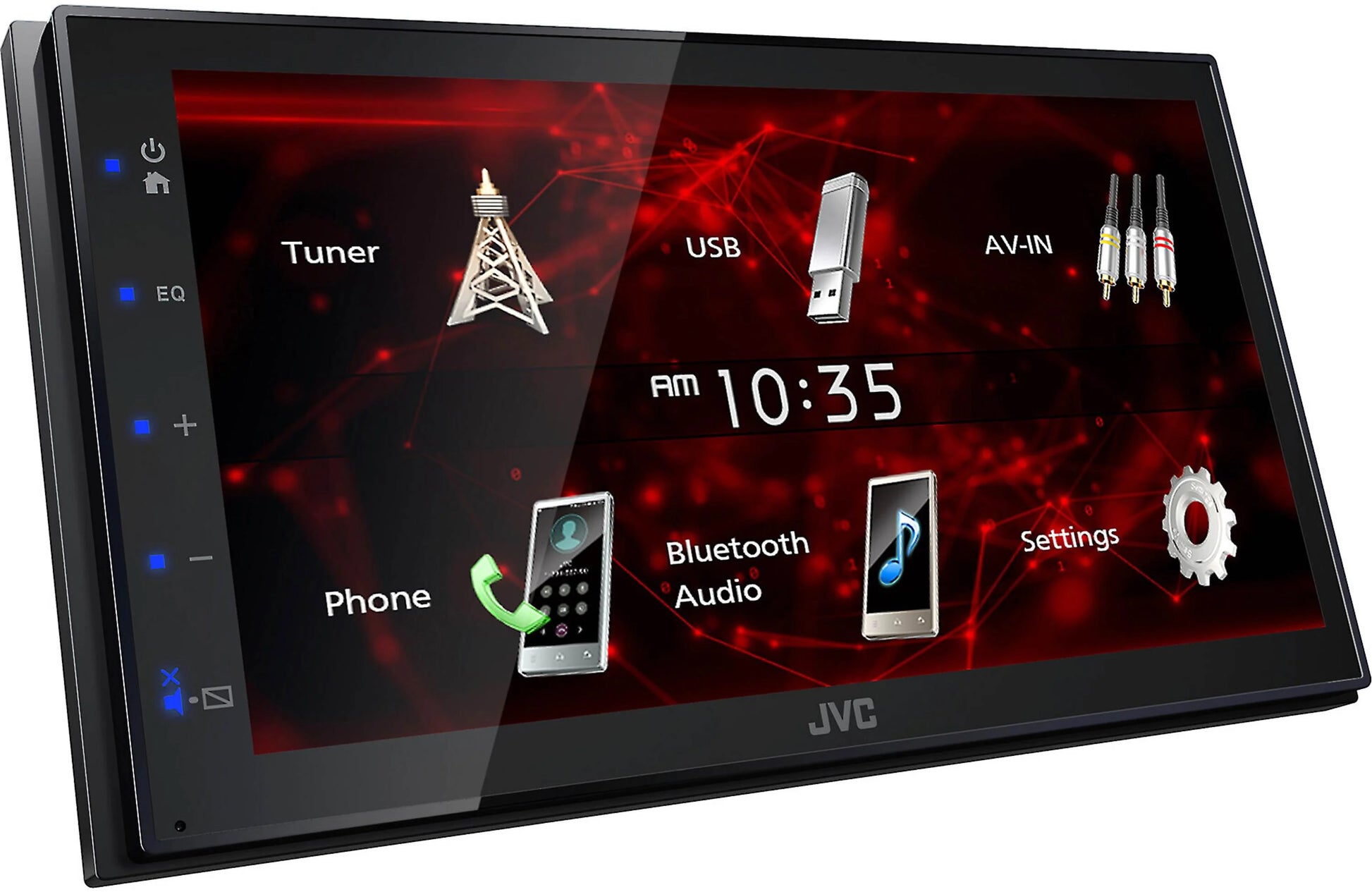

Monitor
Screen Size
6.8"Wide VGA
Touch Panel
Capacitive
Key Illumination Color
Blue
Dimmer
Yes
Multilingual Display
Yes[2]
Media Playback
MP3 Compatible with Tag
USB
WMA Compatible with Tag
USB
WAV Compatible with Tag
USB
AAC Compatible with Tag
USB
FLAC Compatible with Tag
USB
H.264 Compatible
USB
MPEG 1/2 Compatible
USB
MPEG 4 Compatible
USB
MKV Compatible
USB
Bluetooth Control
Built-in Bluetooth[1]

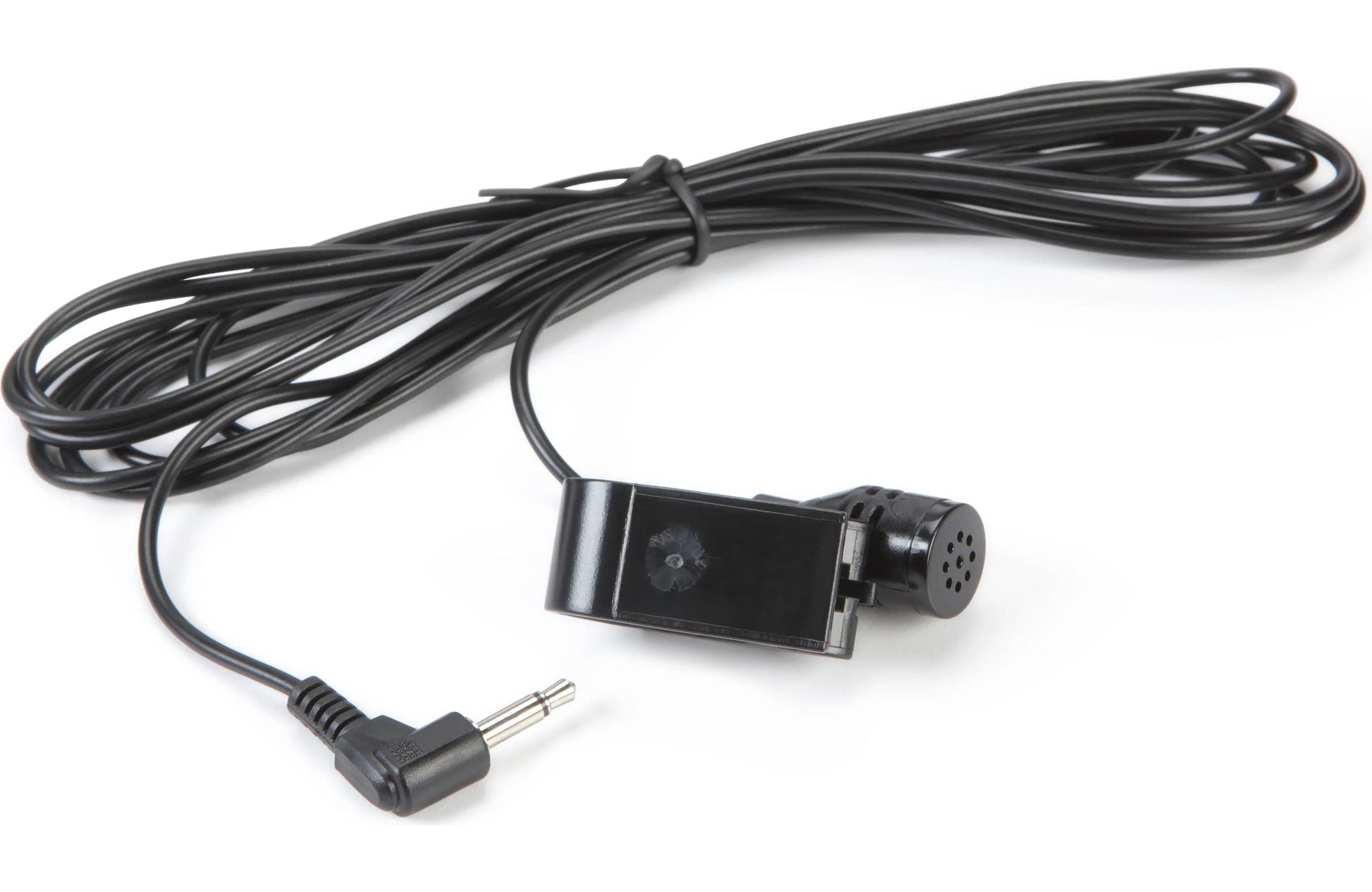

Yes (Wired-Mic included)
Hands Free Call
Yes (HFP1.6 Wideband Speech)
Audio Streaming & Control (A2DP, AVRCP)
Yes
Supported Audio Formats
AAC / SBC
Voice Dialing (voice recognition compatible mobile phone required)
Yes
Phone Book Access Profile (PBAP)
Yes
Android Control

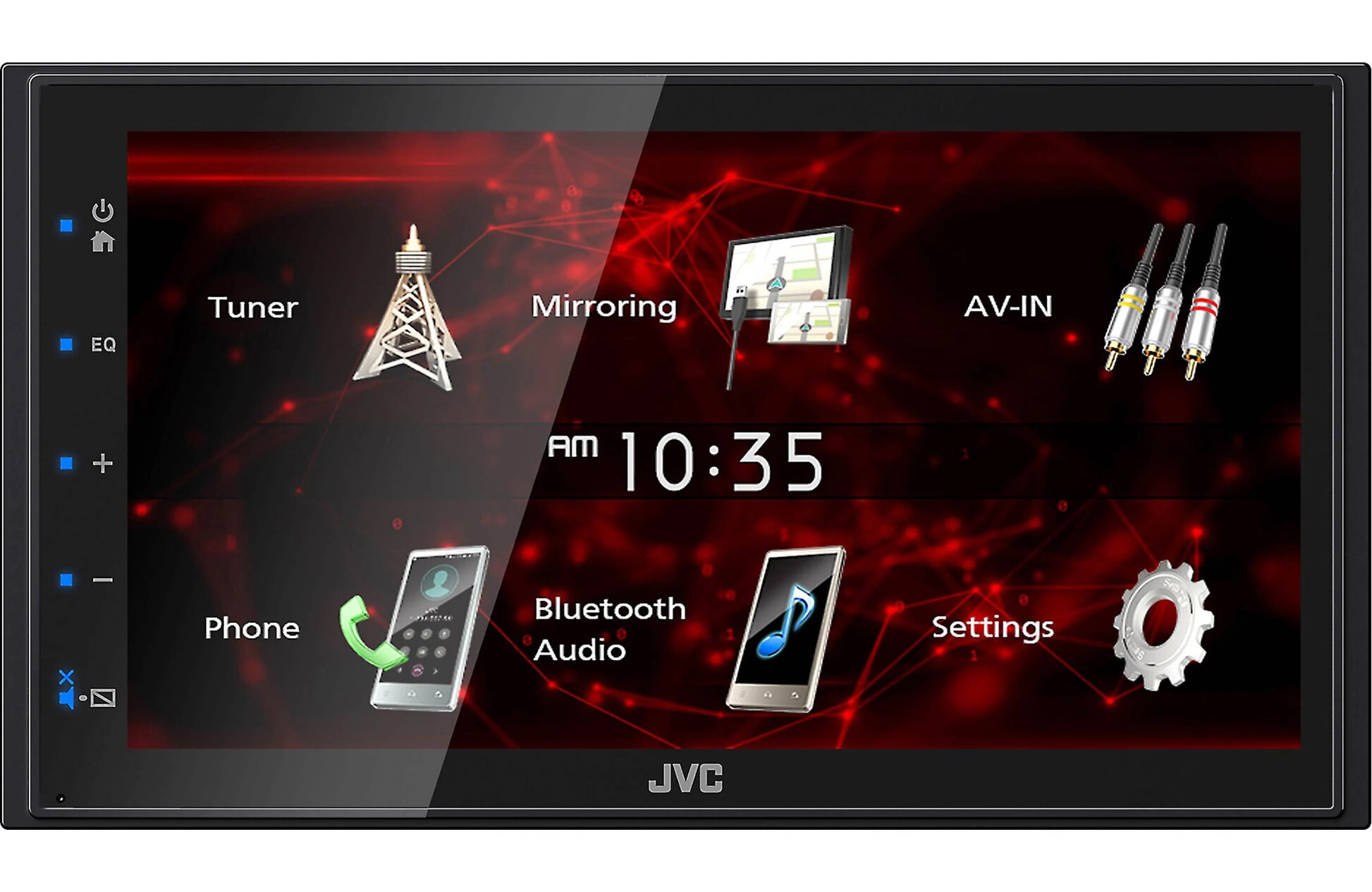

Mirroring for Android
Yes (via USB)
Android Music Playback
Yes (via Bluetooth(R))
iPod/iPhone Control
iPhone Music Playback
Yes (via USB or Bluetooth(R))
USB
USB Port
x 1 (High speed)
Position
Rear
USB Power Supply
Yes (1.5A)
Radio Tuner
Radio Broadcast Data System (RBDS)
Yes
Preset Stations
30 (6ch x 5band)
Auto Memory Entry
Yes
FM
Frequency Range
87.9-107.9MHz
AM
Frequency Range
530-1,700kHz
Audio
Maximum Power Output (Front & Rear)
45W x 4
EQ
Yes (13-Band Graphic EQ)
Preset EQ
Yes (7Preset + 3user)
Bass Boost
Yes
High-Pass Filter/Low-Pass Filter
Yes/Yes
Time Alignment
Yes

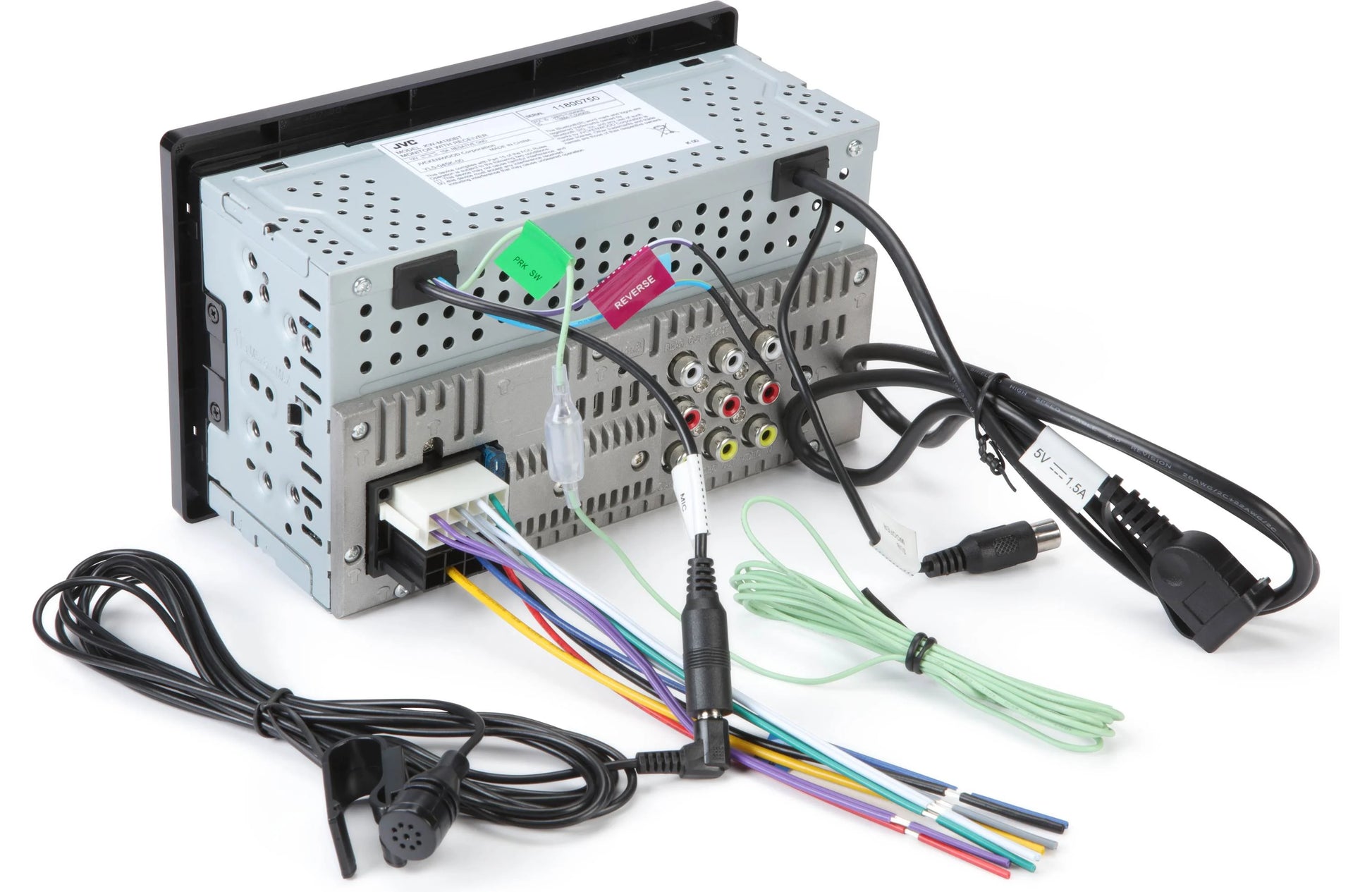

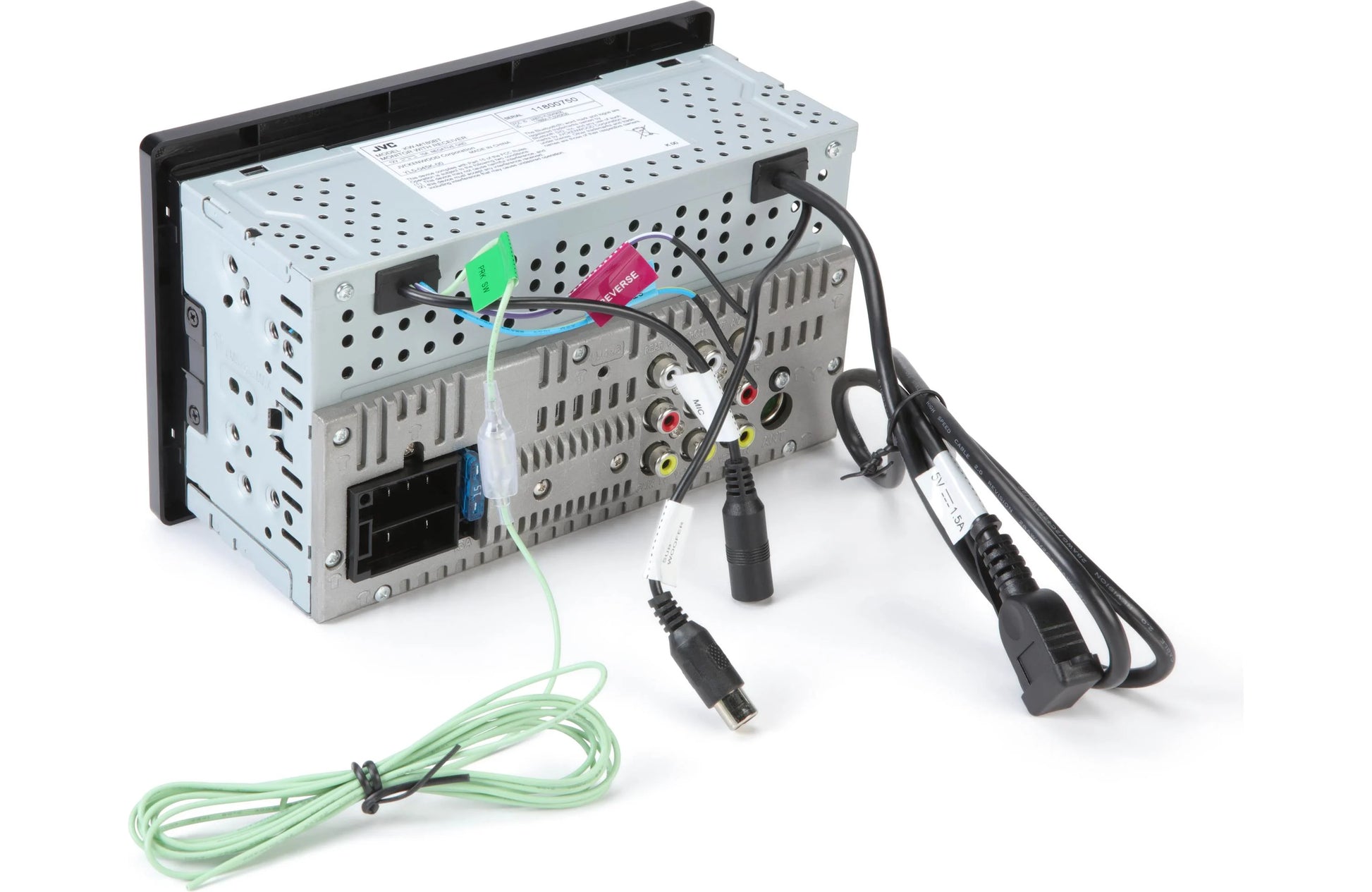

Inputs and Outputs
AV Input
RCA x 1
Video Out
RCA x 1
Rear view camera Input
Yes
Line Output Terminals
3 Pairs (Front (L/ R), Rear (L/ R), Sub.W (Mono) x1)
Pre-output Level/Impedance
2V / 10k ohms
Subwoofer Output with Level/Frequency Control
Yes
General
Face Type
Fixed
Short Chassis
Yes (75mm)
Wireless Remote Control
Ready (RM-RK258 required)
Steering Remote Control Ready
Yes

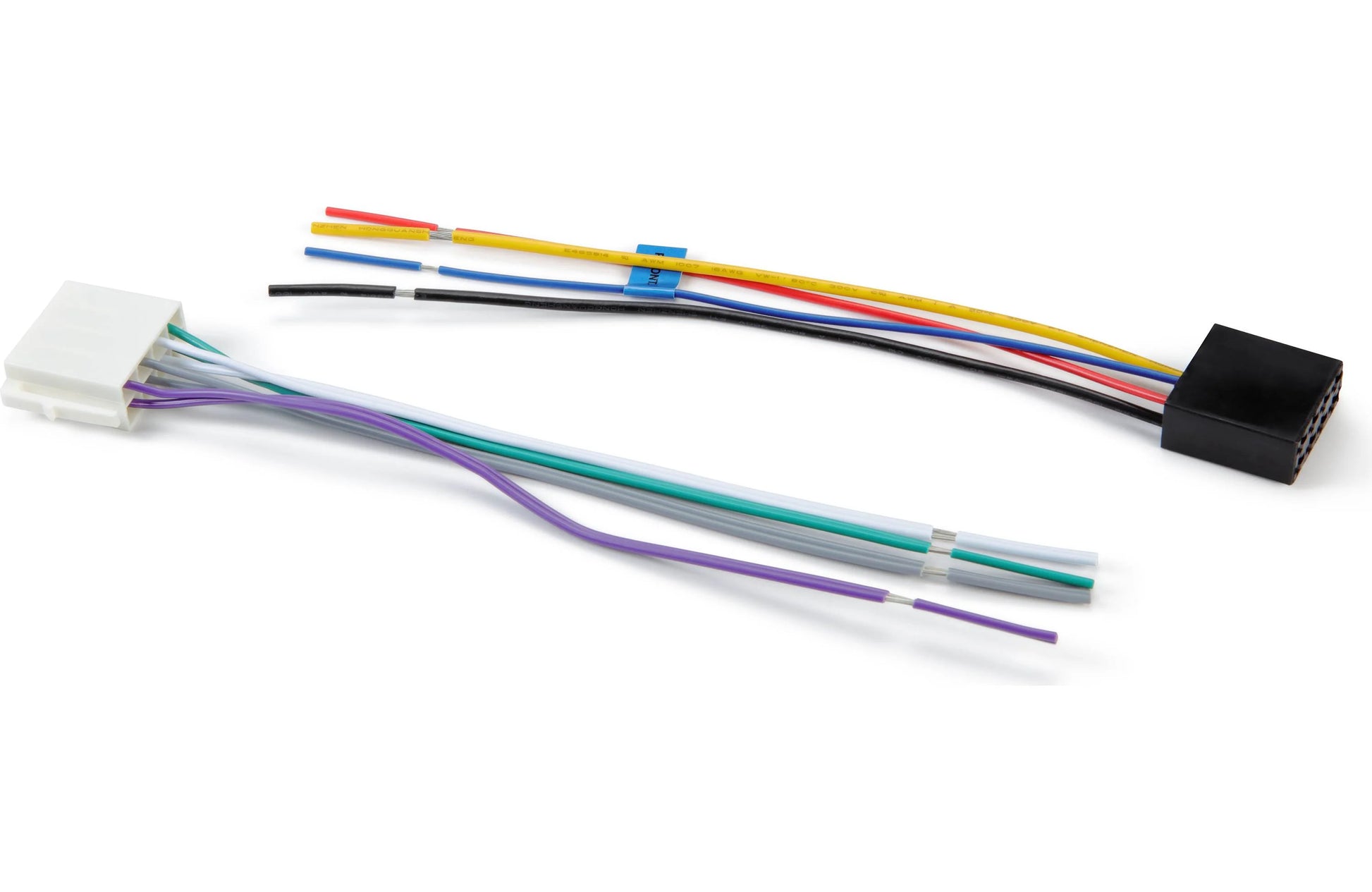

ISO Connector
Yes
