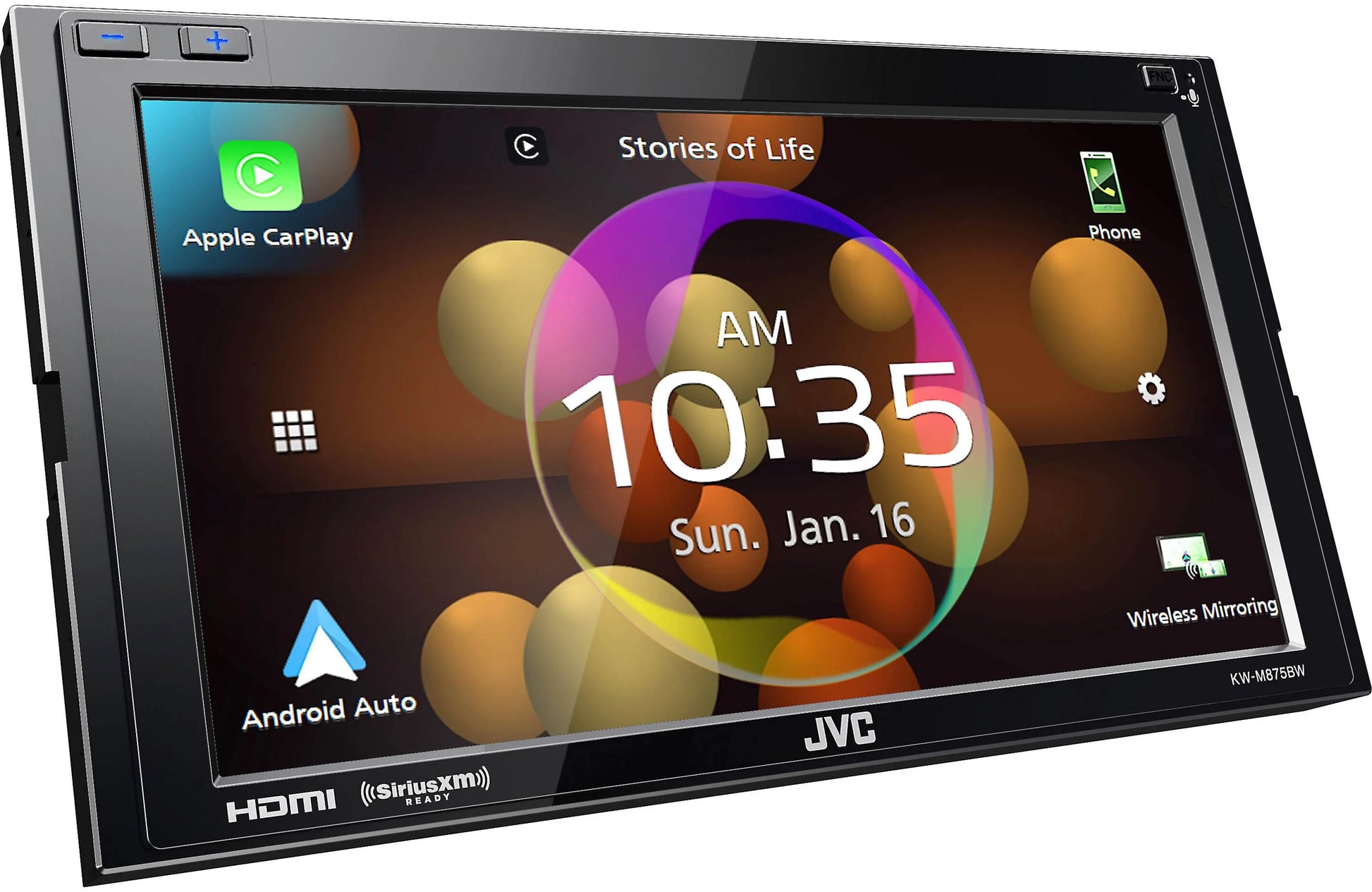

JVC KWM875BW Double-Din Mechless Receiver, BT, Wireless Carplay/Android Auto, SXM Ready, HDMI, Hi-Res Audio

Multimedia Receiver featuring 6.8" Clear Resistive Touch Monitor / Wireless Apple CarPlay / Wireless Android Auto / HDMI Input / 4-Cam Input / High-Resolution Audio / iDatalink Maestro Ready / Bluetooth® / 13-Band EQ / USB Type-C

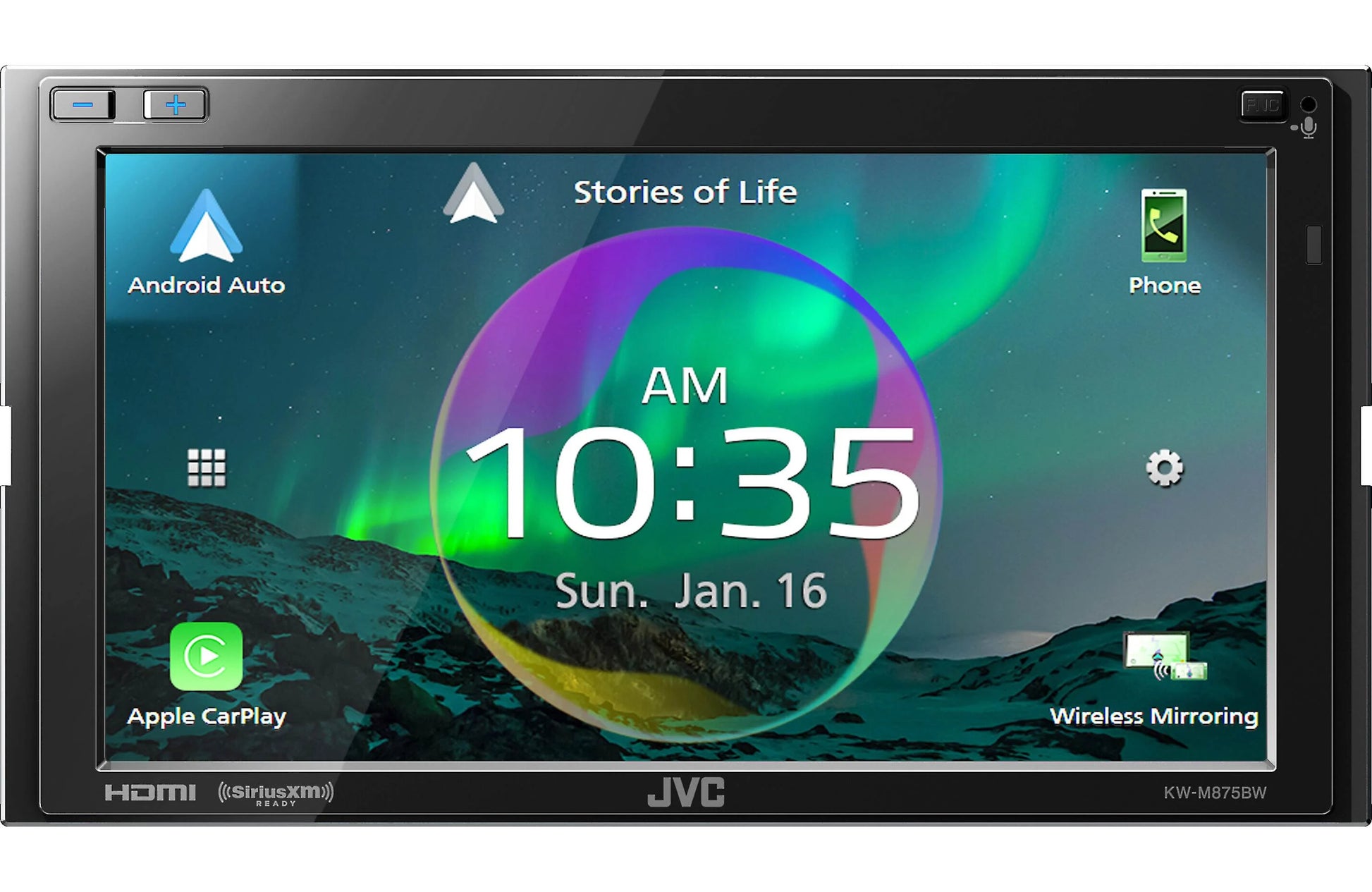

Monitor

Screen Size

6.8" Wide VGA

Touch Panel

Clear Resistive

Gesture Touch Control

Yes

Customizable GUI

Yes

Key Illumination Color

Blue

Dimmer

Yes

Multilingual Display

Yes[4]

Wallpaper Capture

Yes

Live Wallpaper

Yes

Media Playback

MP3 Compatible with Tag

USB

WMA Compatible with Tag

USB

WAV Compatible with Tag

USB

AAC Compatible with Tag

USB

FLAC Compatible with Tag

USB

H.264 Compatible

USB

WMV Compatible

USB

MPEG 1/2 Compatible

USB

MPEG 4 Compatible

USB

AVI/MKV Compatible

USB

JPEG File Playback

USB

PNG File Playback

USB

BMP File Playback

USB

Bluetooth Control

Built-in Bluetooth[1]

Yes (Version 5.0, Wired-Mic included)

Hands Free Call

Yes (HFP1.7 Wideband Speech)

2 Phones Full-Time Connection

Yes

Audio Streaming & Control (A2DP, AVRCP)

Yes

Supported Audio Formats

LDAC / AAC / SBC

5 BT-Audio Connection

Yes

Voice Dialing (voice recognition compatible mobile phone required)

Yes

Phone Book Access Profile (PBAP)

Yes

Alphabetical Search for Phone Book

Yes

Auto Pairing for iPhone/Android

Yes

Wi-Fi Control

Built-in Wi-Fi

Yes

Android Control

Android Auto[2]

Yes (via Wi-Fi or USB)

Mirroring for Android

Yes (via Wi-Fi or HDMI)

Android Music Playback

Yes (via Bluetooth(R))

iPod/iPhone Control

CarPlay[3]

Yes (via Wi-Fi or USB)

iPod/iPhone Music Playback

Yes (via USB or Bluetooth(R))

USB

USB Port

x 1 (Type-C)

Position

Rear

USB Power Supply

5V / 3A (USB type-C Current 3A) or 5V / 1.5A (USB BC1.2)

Drive Change Mode for Mass Storage Class (selectable from internal/external memory)

Yes

Radio Tuner

SiriusXM Ready

Yes

Radio Broadcast Data System (RBDS)

Yes

Preset Stations

20(FM:15ch, AM:5ch)

Auto Memory Entry

Yes

FM

Frequency Range

87.9 - 107.9MHz

AM

Frequency Range

530-1,700kHz

Audio

Maximum Power Output (Front & Rear)

50Wx4

Full Bandwidth Power (Front & Rear)

22W x 4 (Full Bandwidth Power, at less than 1% THD)

EQ

Yes (13-Band Graphic EQ)

Preset EQ

Yes (8Preset + 4user)

Bass Boost

Yes

High-Pass Filter/Low-Pass Filter

Yes/Yes

3-Way X'over

Yes

High-Resolution Audio

Yes

K2 Technology

Yes

Space Enhancement

Yes

Sound Response

Yes

Sound Lift

Yes

Volume Link EQ

Yes

Time Alignment

Yes

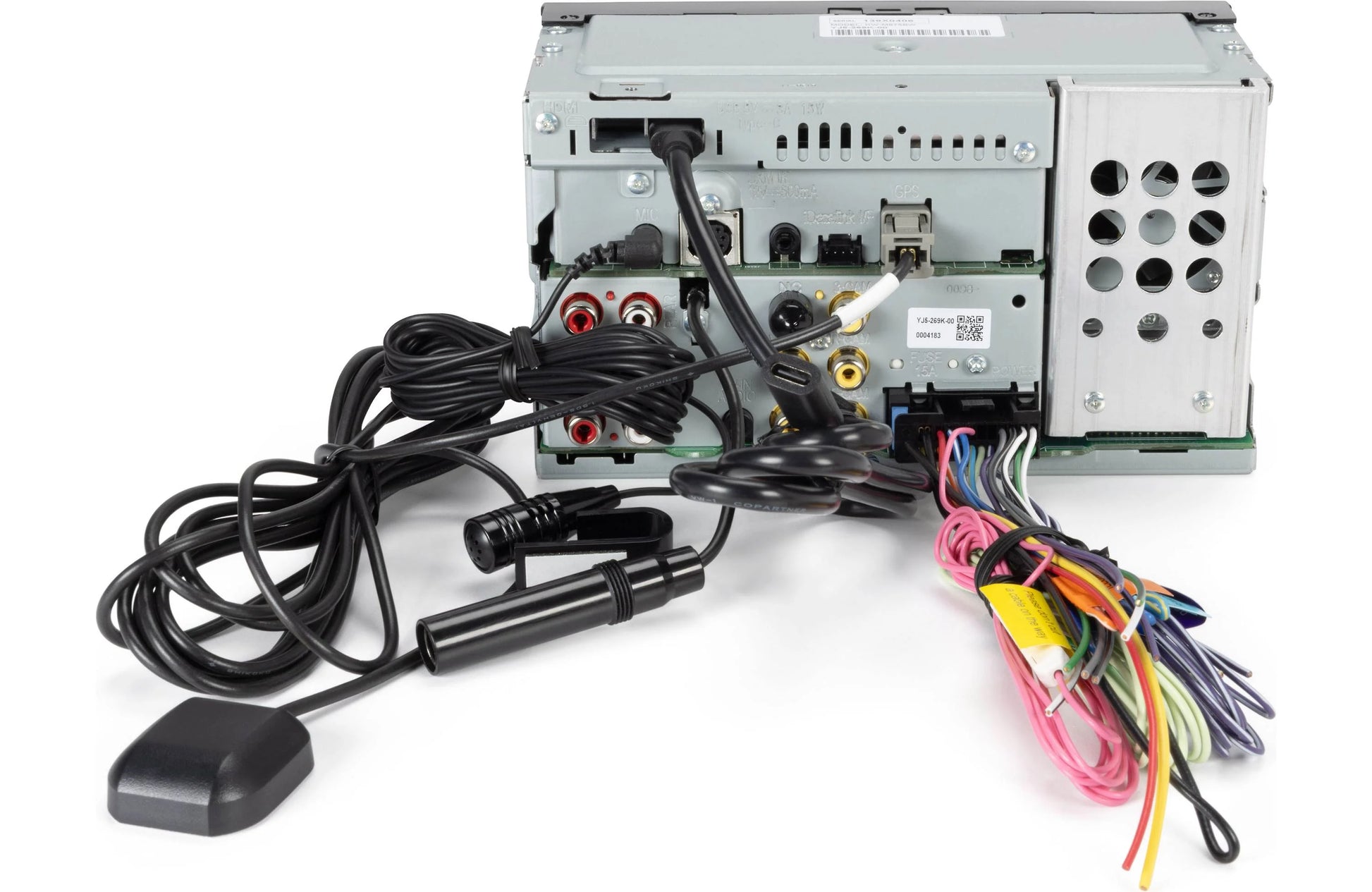

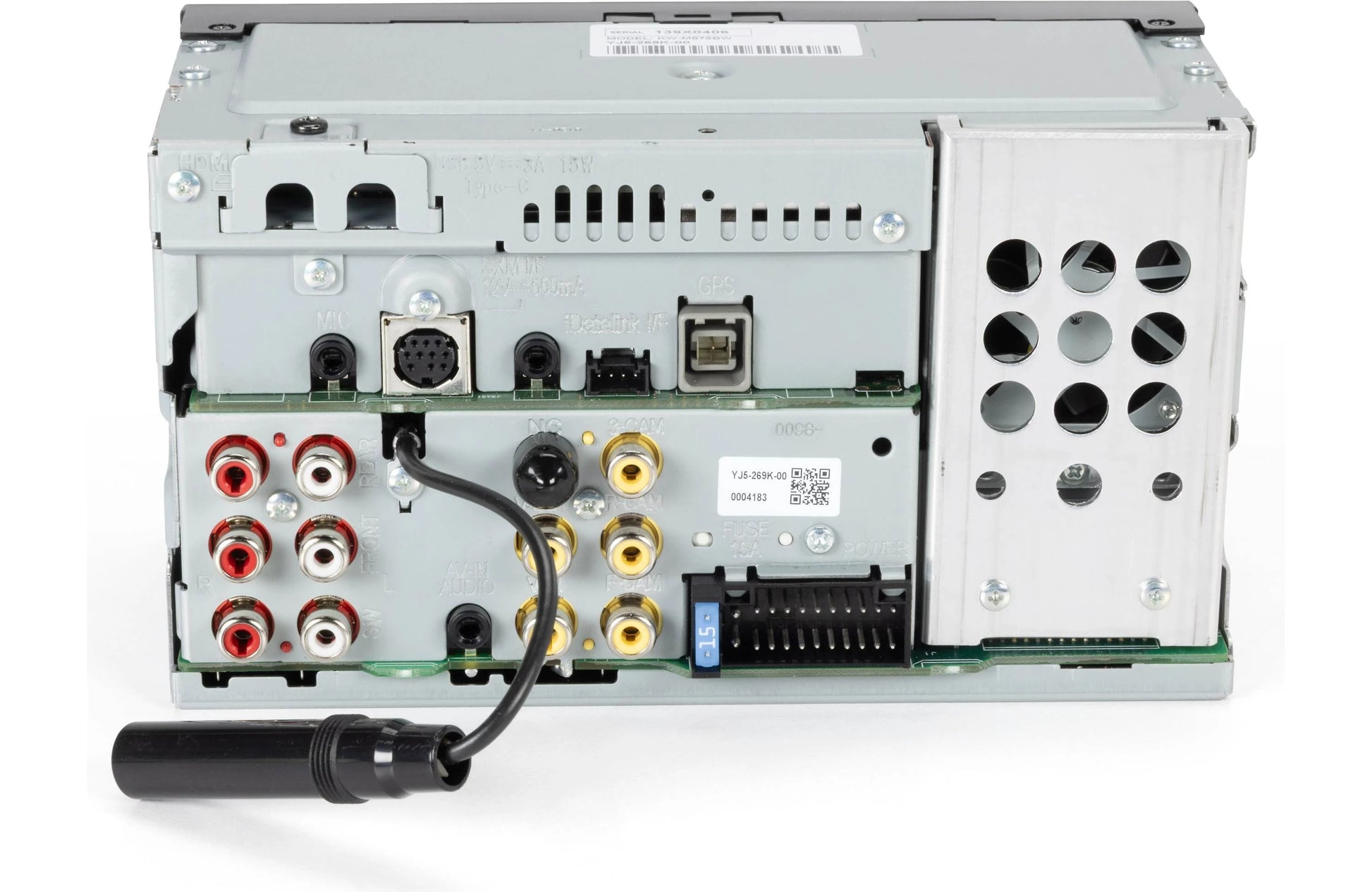

Inputs and Outputs

AV Input

Video:RCA, Audio:mini-jack (AV-IN or CAM4 switchable)

Video Out

RCA

HDMI Terminal

Yes

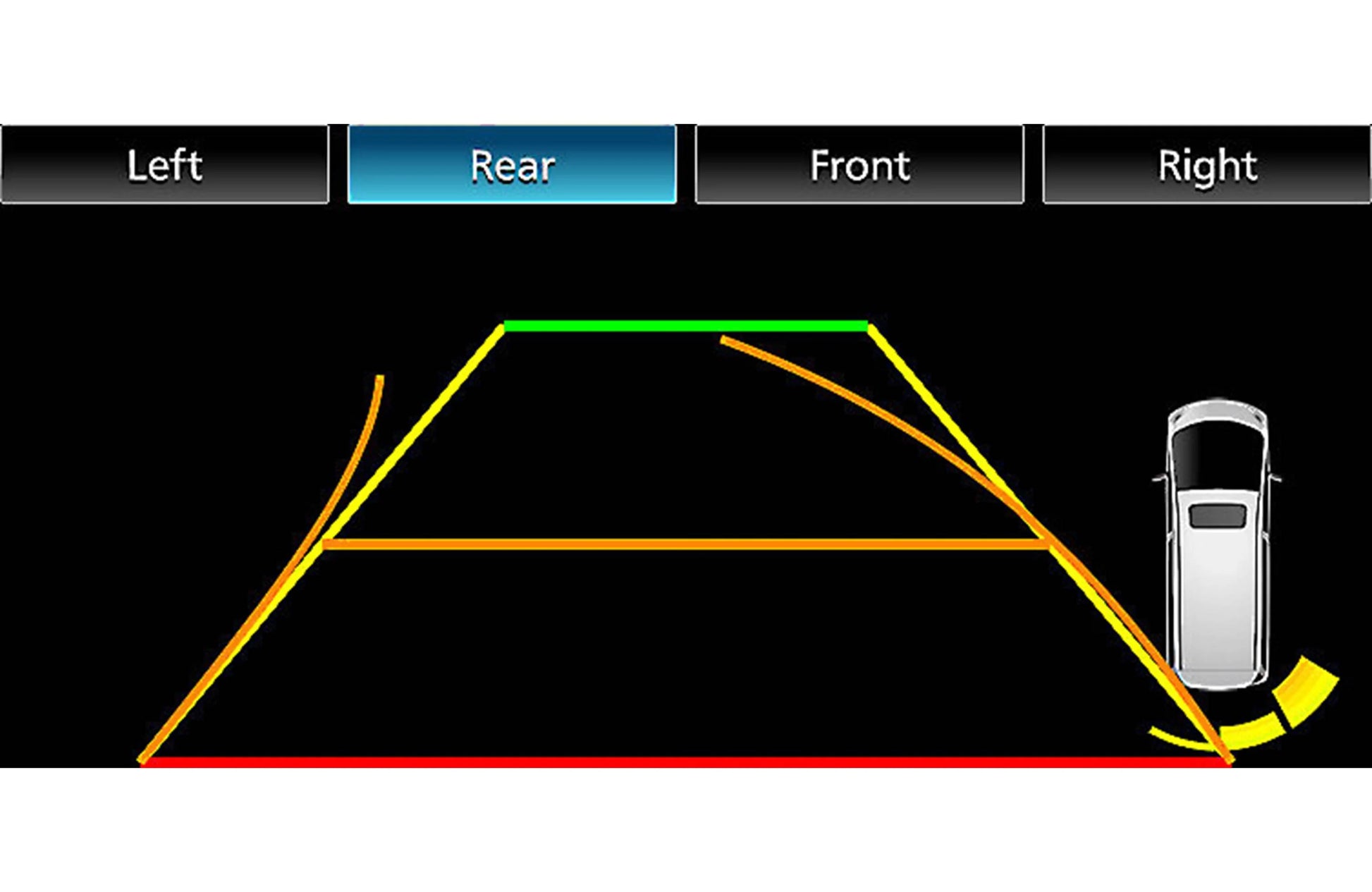

Rear view camera Input

Yes

Front view camera Input

Yes

3rd Camera Input

Yes

Line Output Terminals

3 Pairs (Front + Rear + Subwoofer)

Pre-output Level/Impedance

5.0V / 10k ohms

Subwoofer Output with Level/Frequency Control

Yes

General

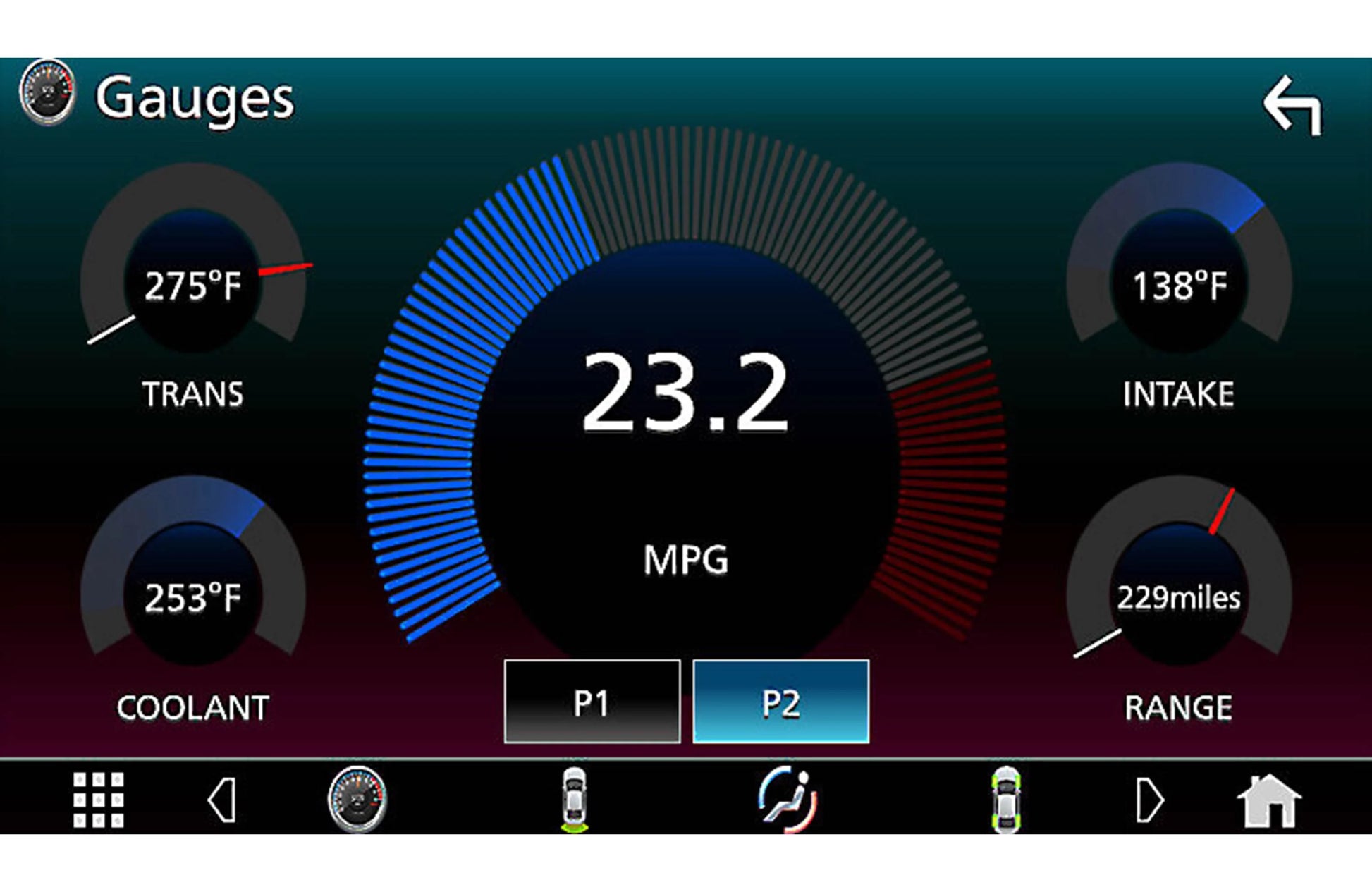

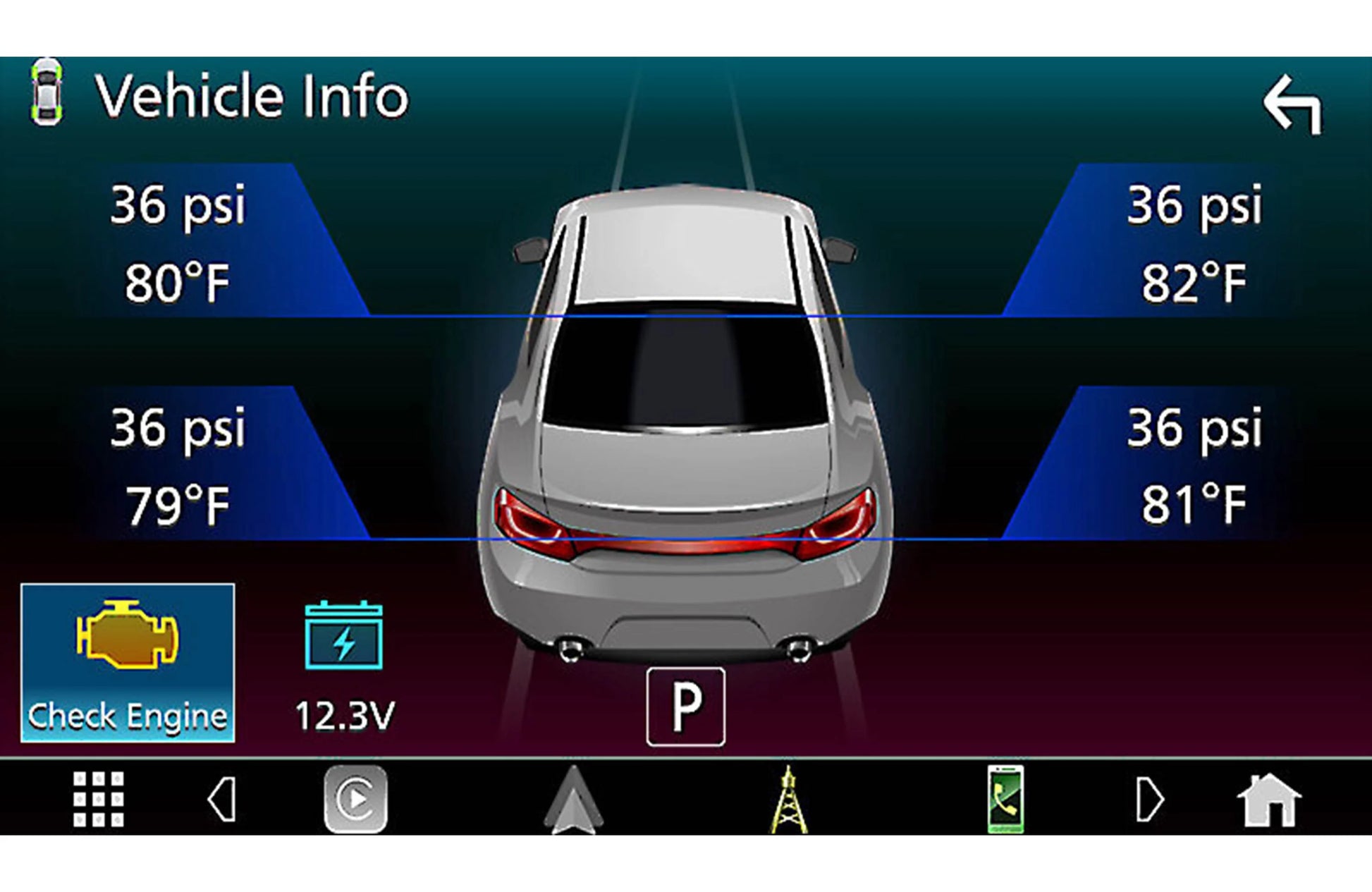

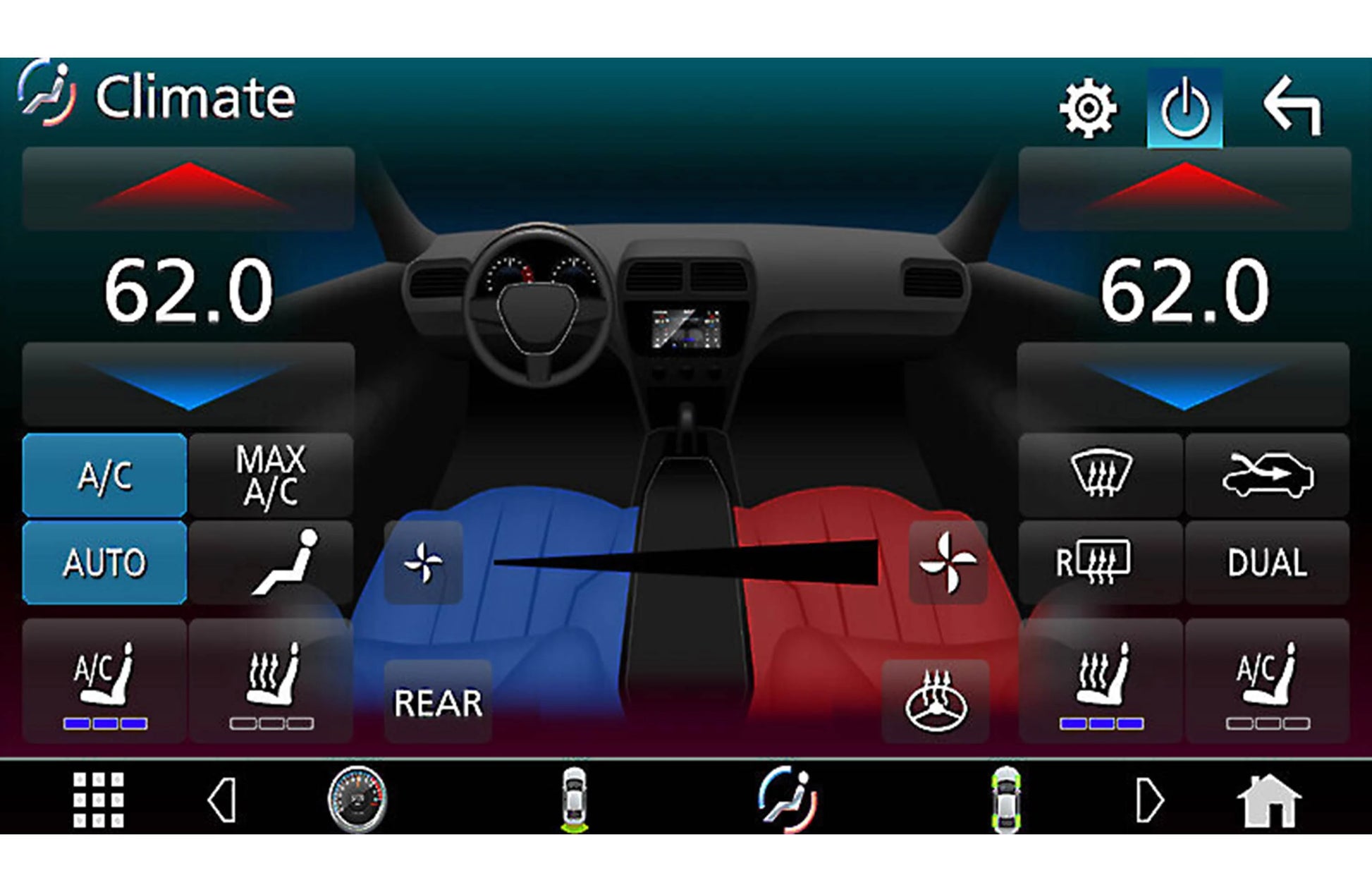

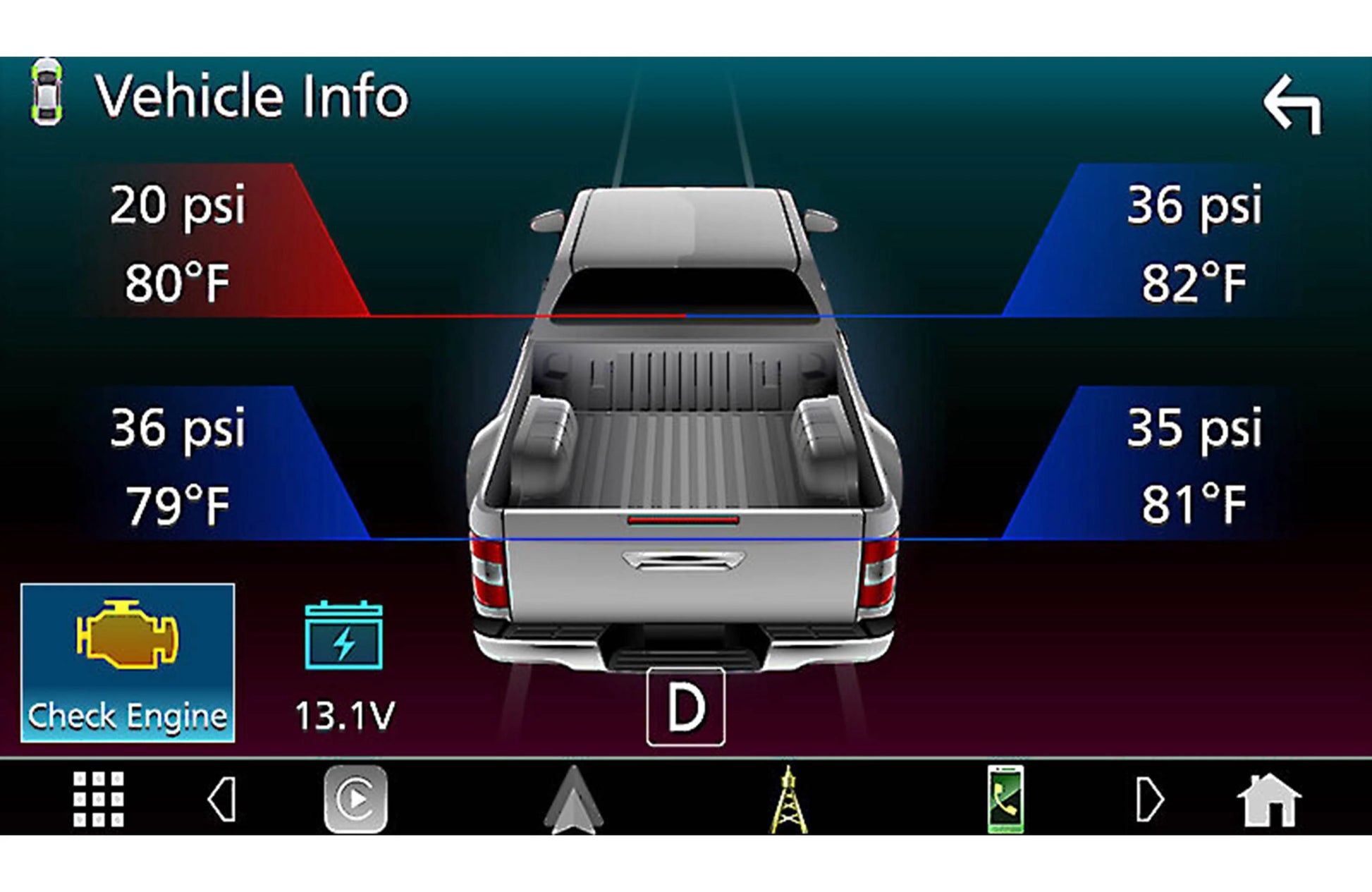

iDatalink Maestro Ready

Yes

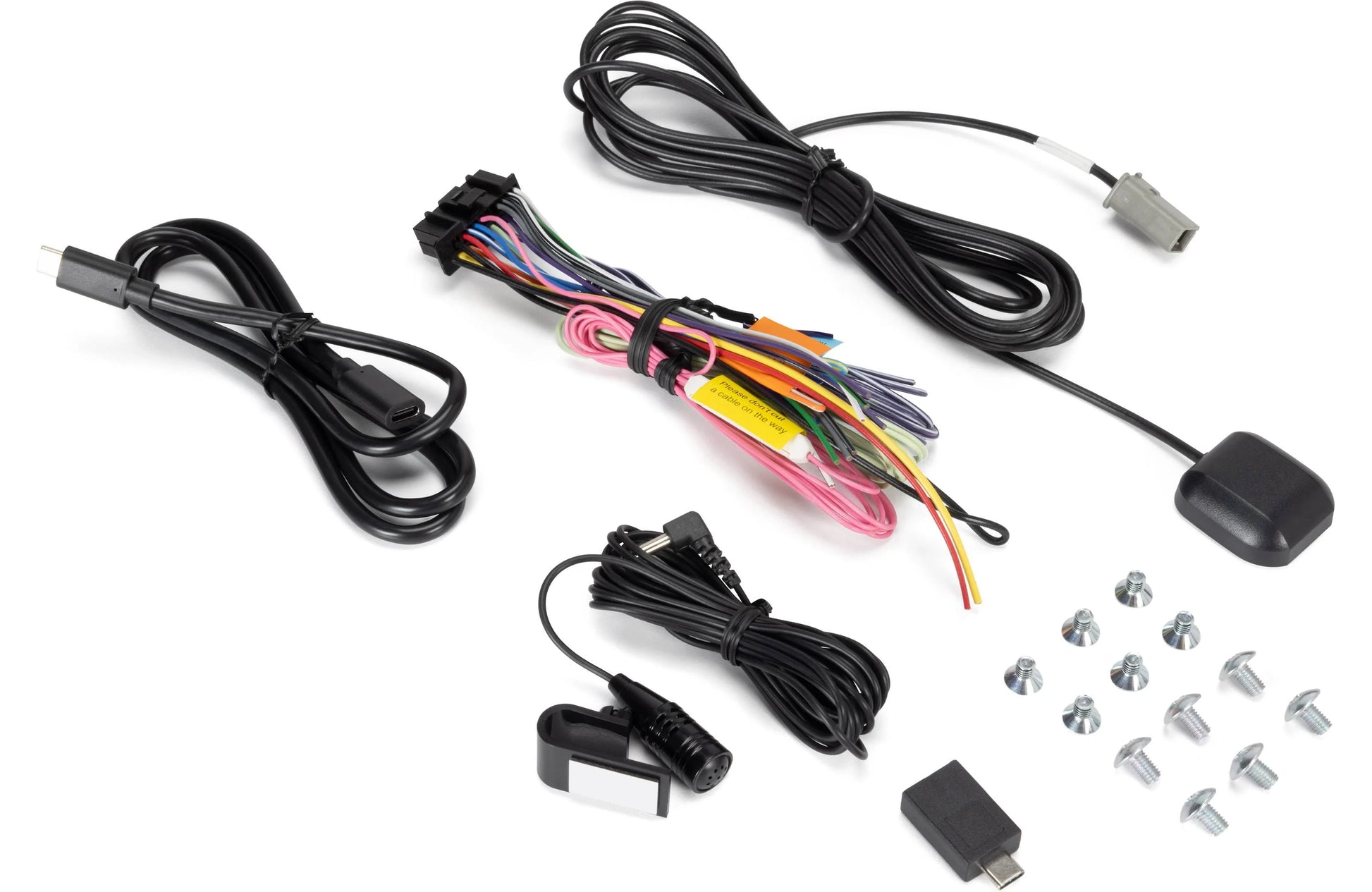

USB Extension Cable

x 1 (Type-C)

USB Type-C to USB Type-A adaptor

Yes

JVC Portal App

Yes

Remote Control Application

Yes

Back Up Memory

Yes

Face Type

Viewing Angle Adjustment

Yes (0 - 20 degree, default : 0 degree) 4 steps

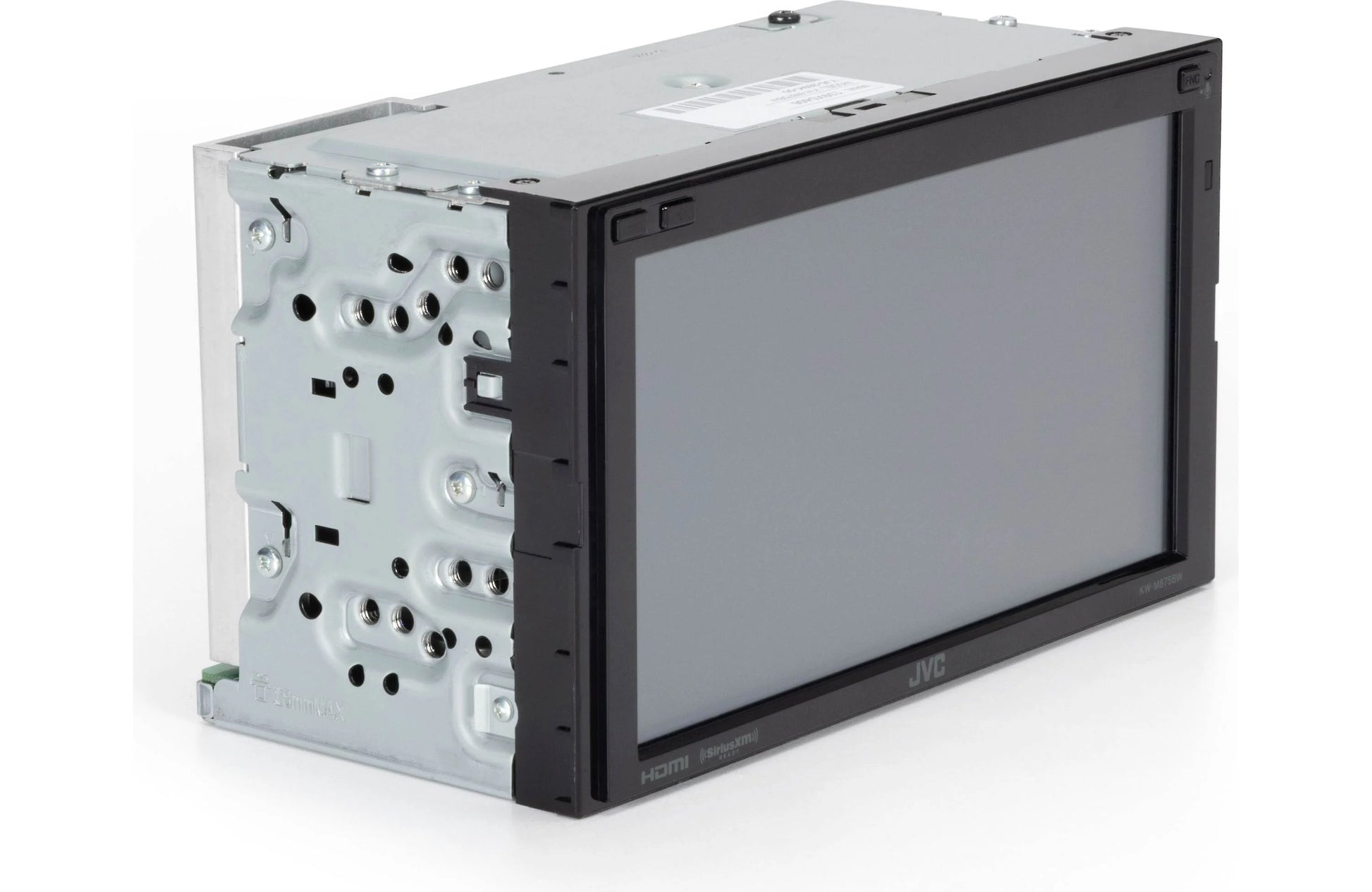

Short Chassis

Yes

Wireless Remote Control

Ready (RM-RK258 required)

Steering Remote Control Ready

Yes

Dimensions (W x H x D)

Installation Size

7" x 3-15/16" x 3-3/8" (178 x 100 x 85 mm)

Weight

2.9 lbs. (1.3kg) Including Sleeve and Trim plate

Unit weight in individual package

1.9kg
