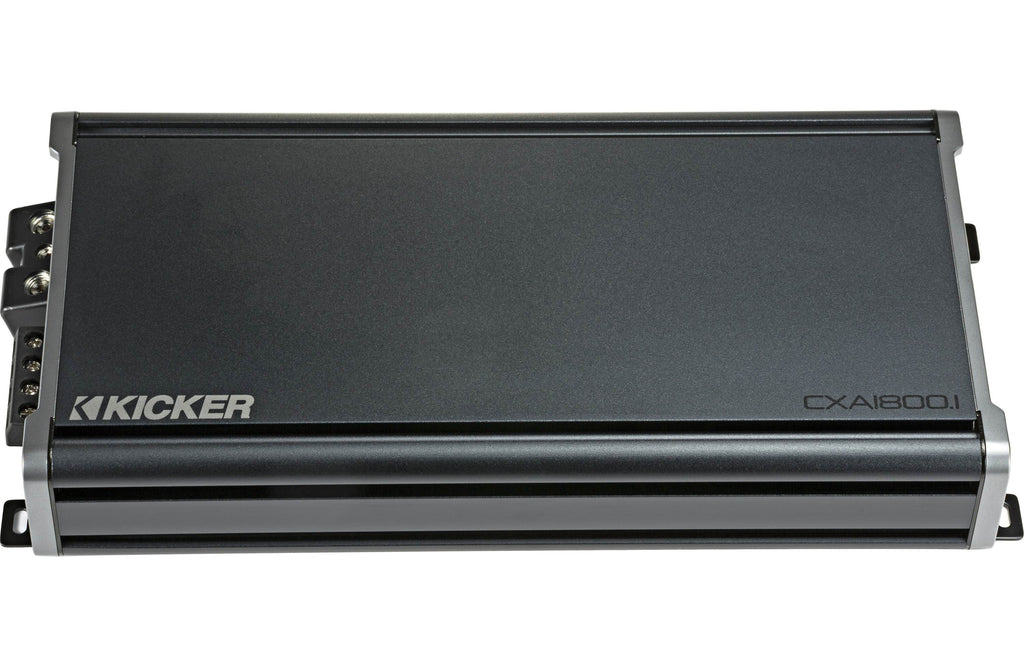

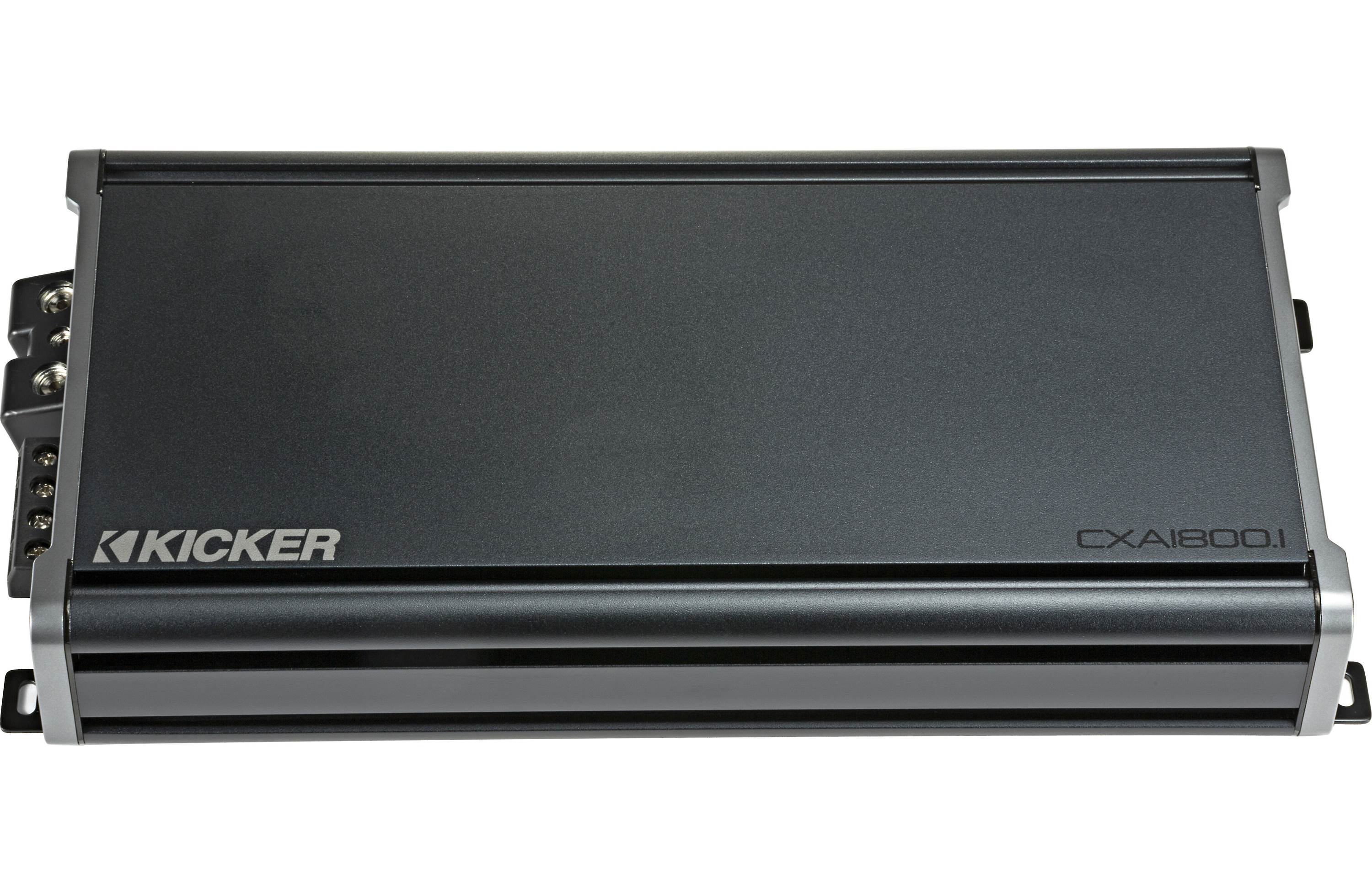

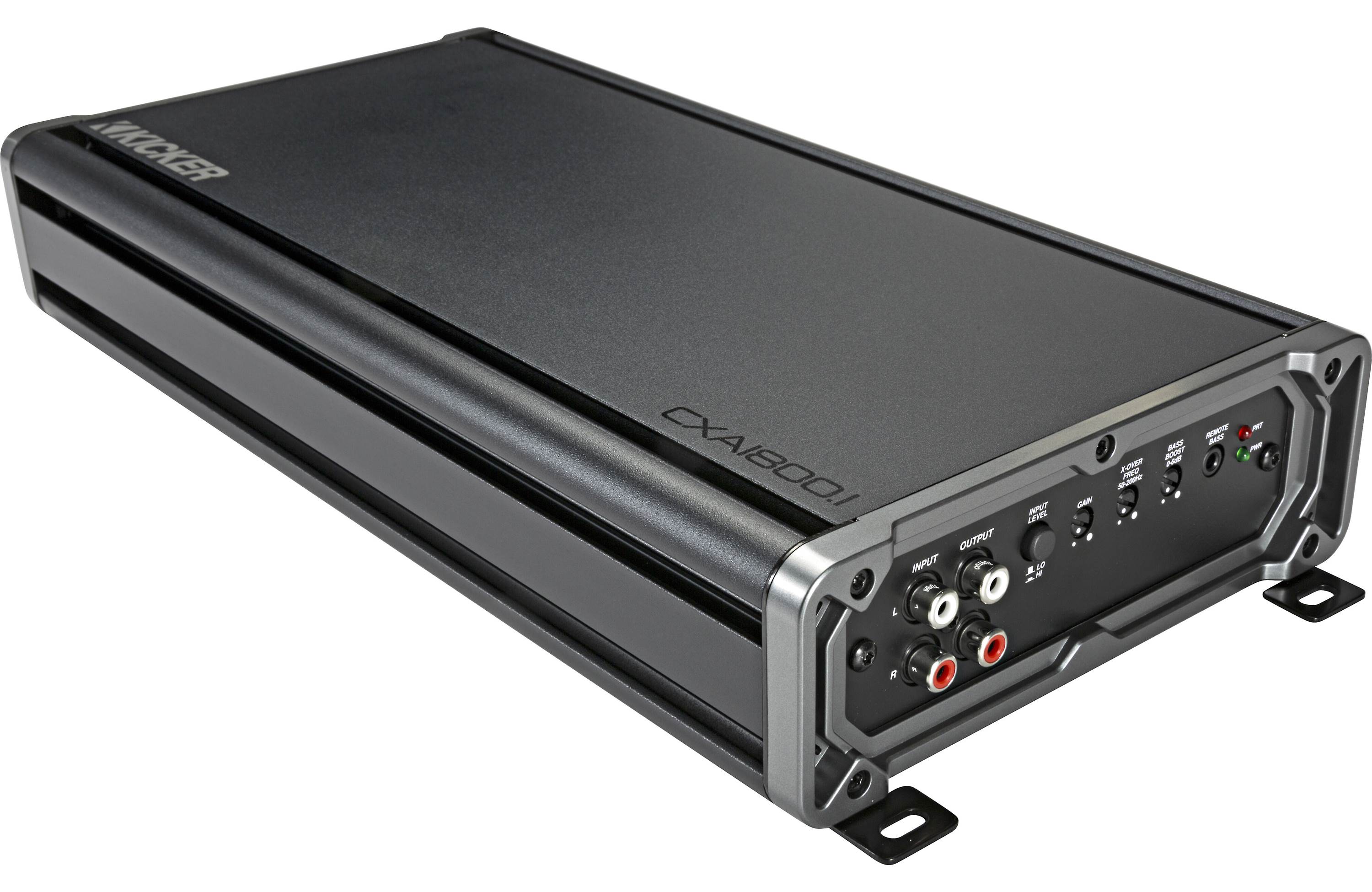

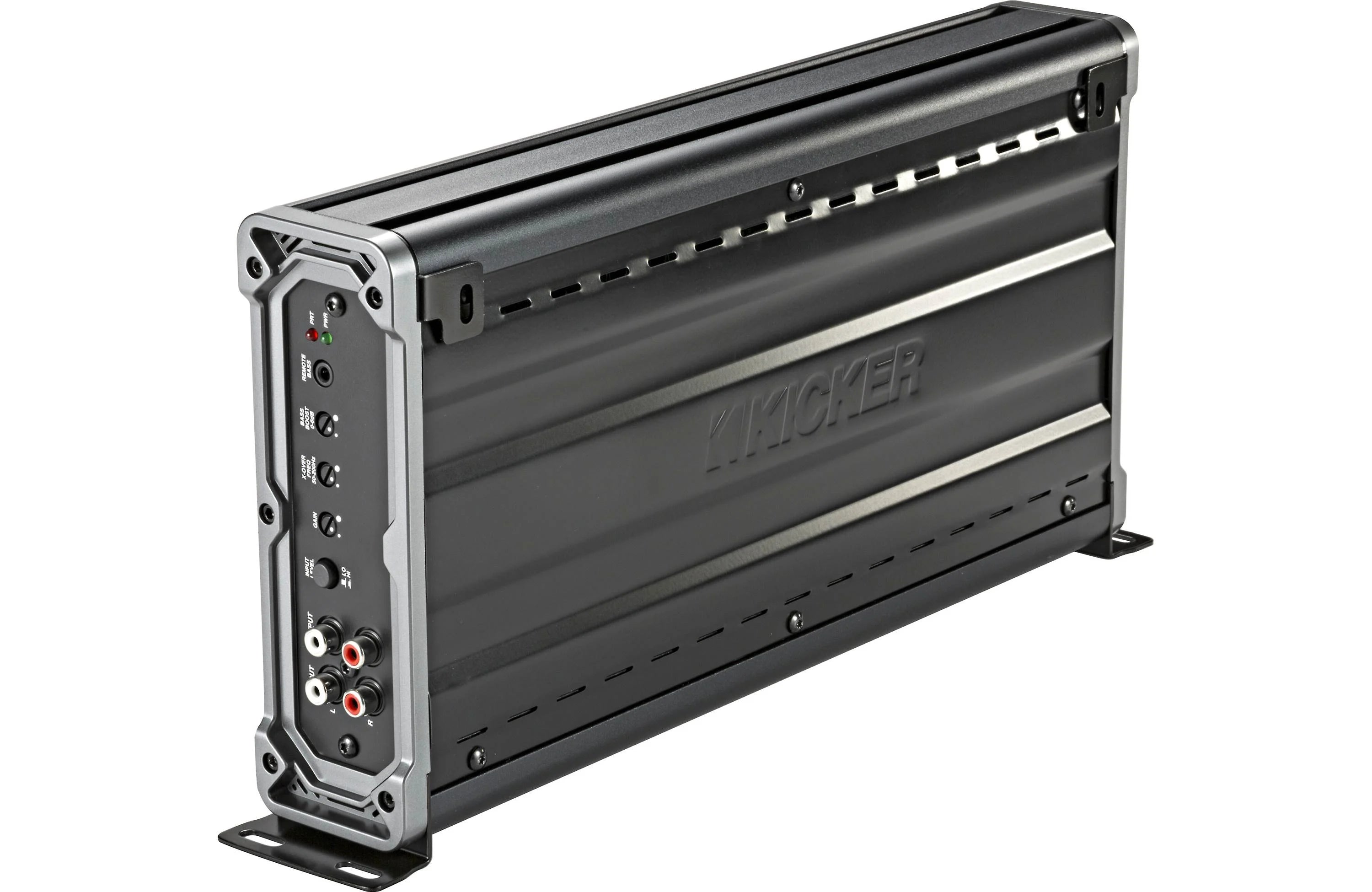

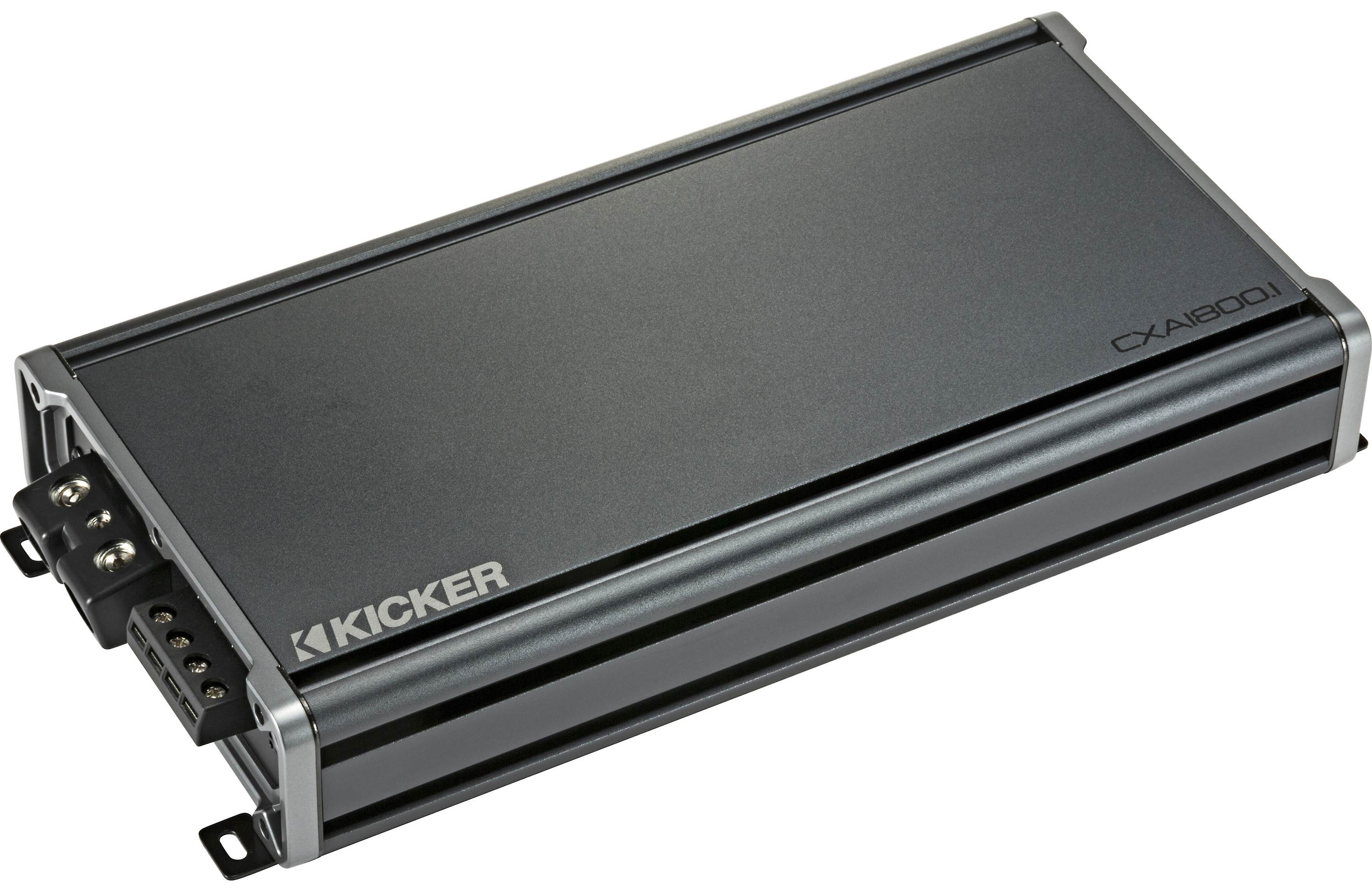

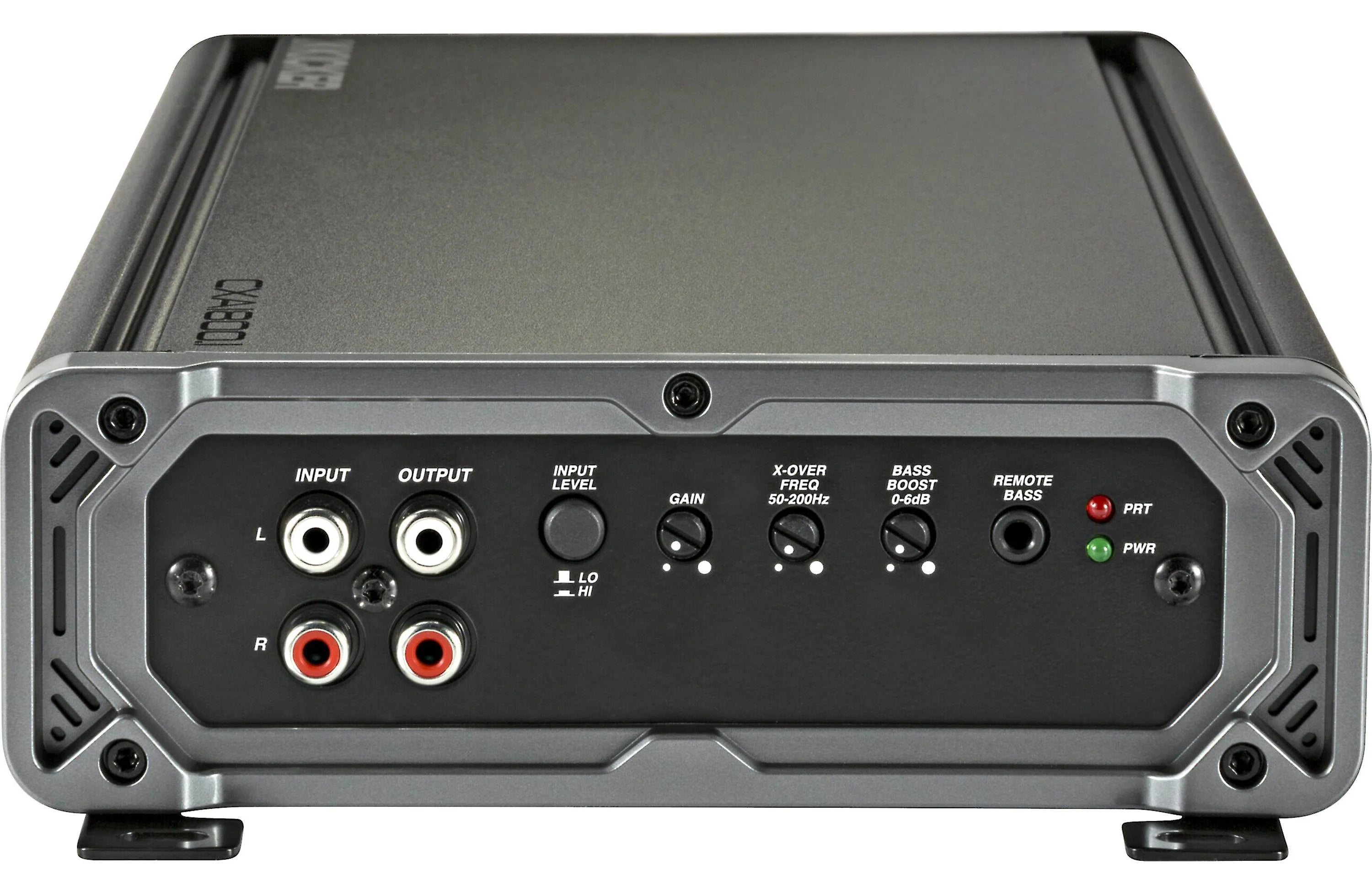

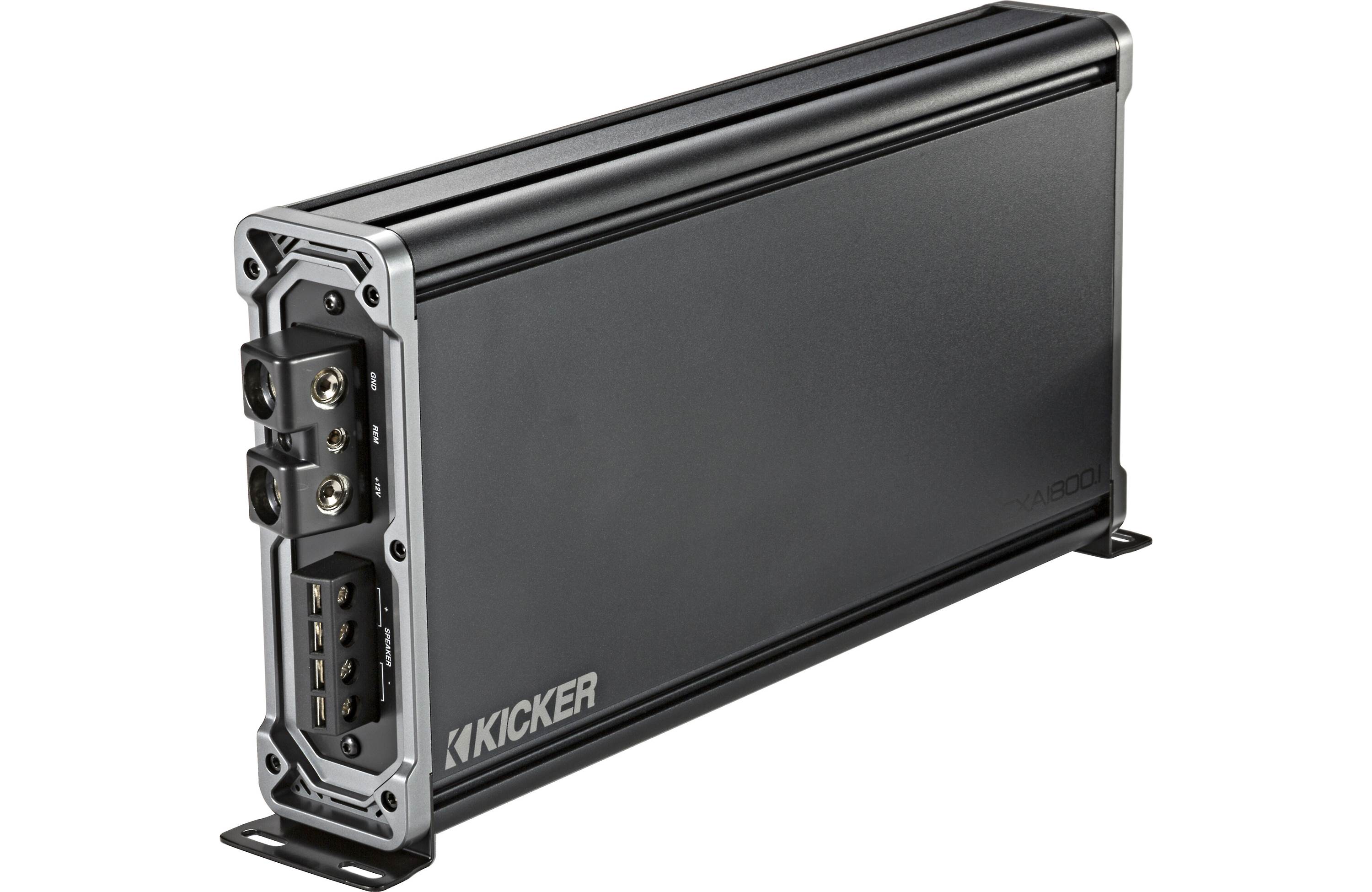

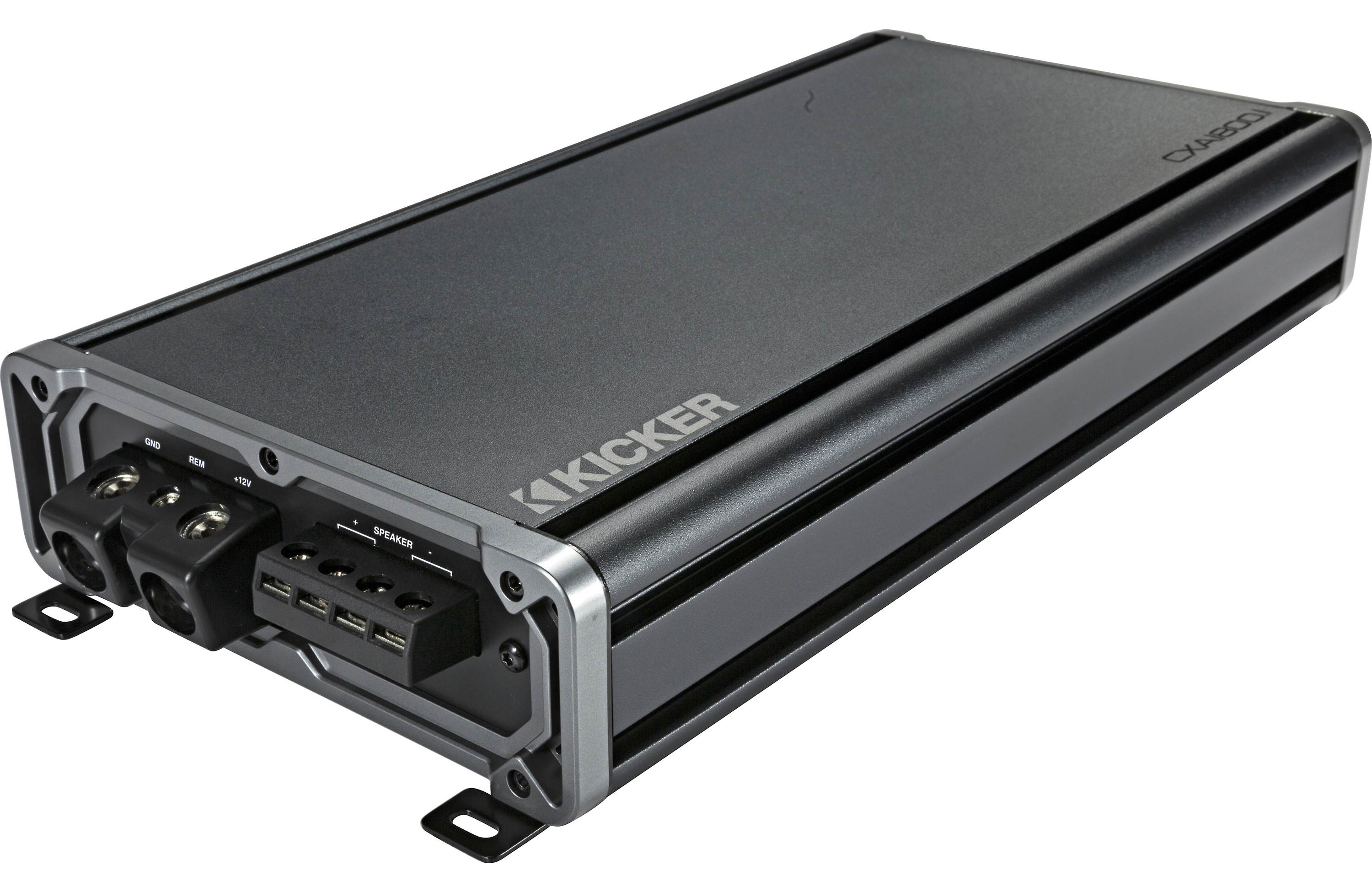

Kicker CXA1800.1 Mono Class D Amplifier
Kicker CXA1800.1 Mono Class D Amplifier
Couldn't load pickup availability
20 in stock
Give your system dedicated amplifier power
The Kicker CXA1800.1 Mono Class D Amplifier gives you a dedicated single channel of amplification. Match its supported frequency range and output to the driver configuration in your build.
Key details
- Model / SKU: CXA 1800.1
- Frequency Response (Hz):: 25-200, +0/-1dB
Fitment & system matching
Match RMS output at the final wired impedance to your speakers or subwoofers. Check minimum impedance, mounting dimensions, fuse requirements and power-wire size. Peak/MAX ratings are not continuous RMS output.
Full product details & specifications
Specifications
MODEL
CX-SERIES MONOBLOCK
AMPLIFIERS CXA1800.1
Power (watts/ch), 2 Ohm stereo
-
Power (watts/ch), 4 Ohm bridged mono
900x1
Power (watts/ch), 2 Ohm mono
1800x1
CXRC Remote Bass Capable (sold sep.)
yes
Dimensions
(in.) 2-3/8H x 7-3/16W x 13-5/8
(cm) 6.0H x 18.0W x 34.5
Frequency Response (Hz):
25-200, +0/-1dB
Input Sensitivity:
high level 250mV-10V,
low level 125mV-5V
Signal-to-Noise Ratio:
>95dB, a-weighted, re: rated power
Active Crossover:
12dB/octave, variable 50-200Hz, low pass only
Subsonic Filter
24dB/octave high-pass fixed @ 25Hz
KickEQ™ Boost
variable to +12dB, centered @ 40Hz
