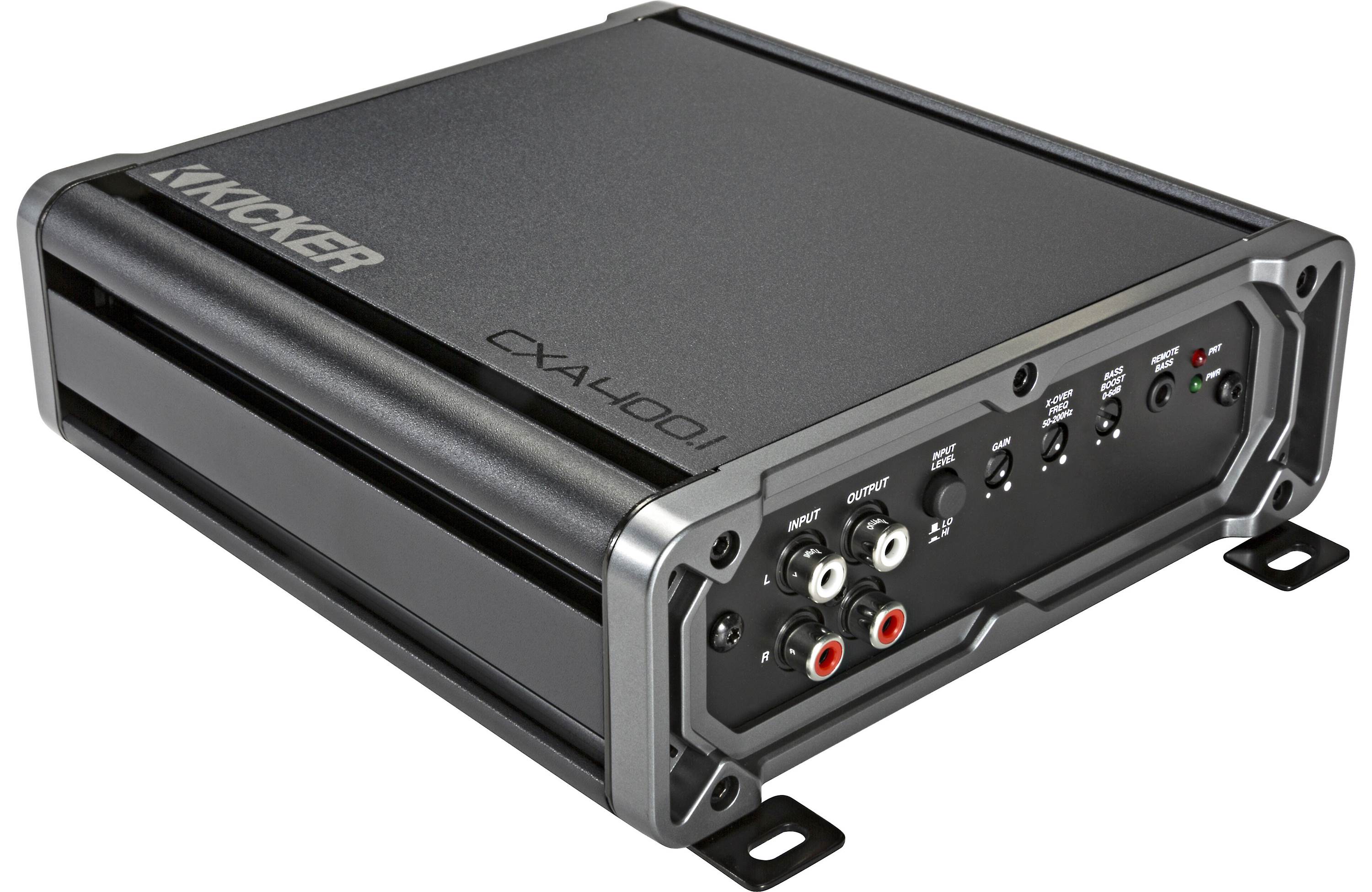

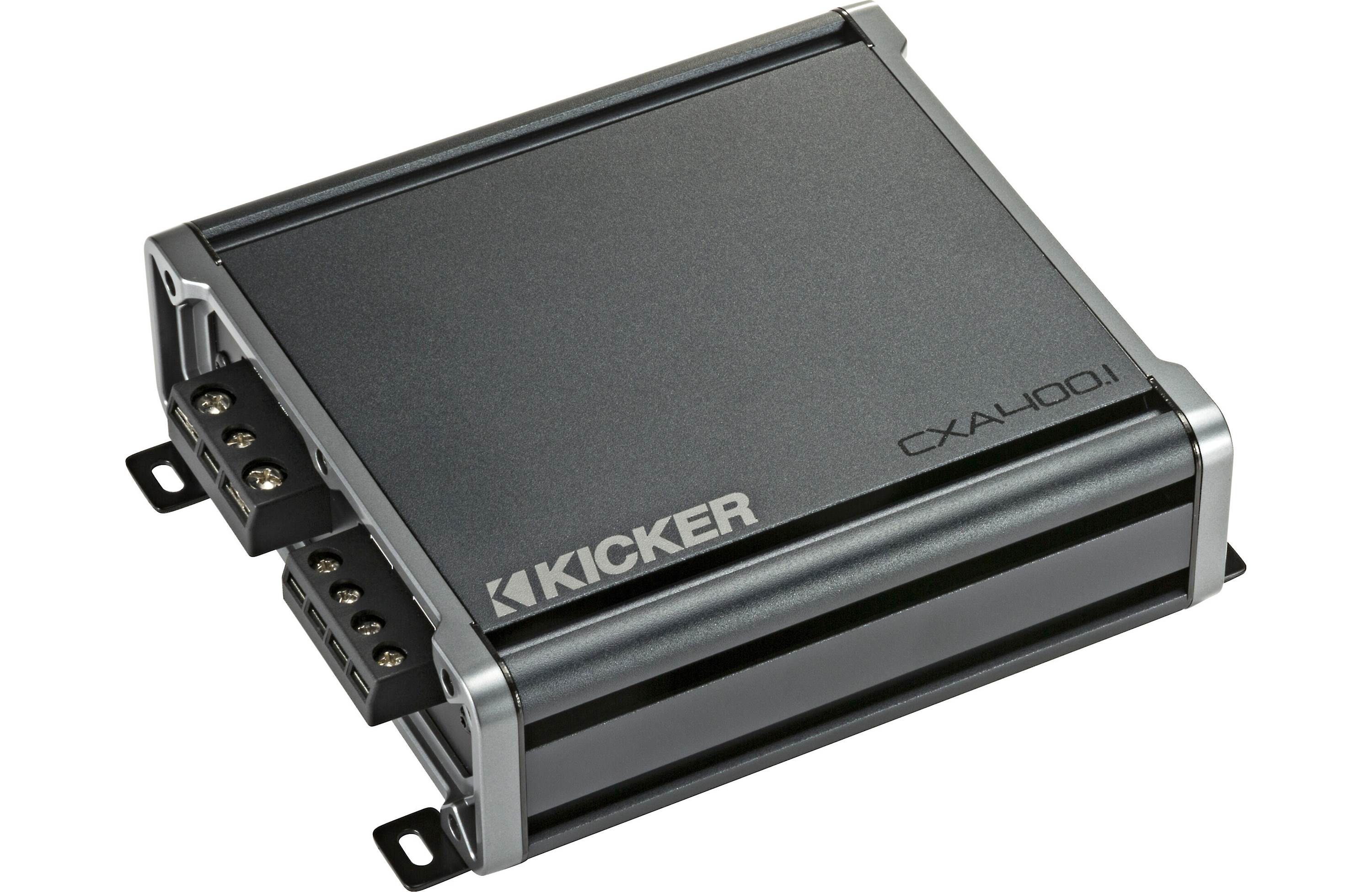

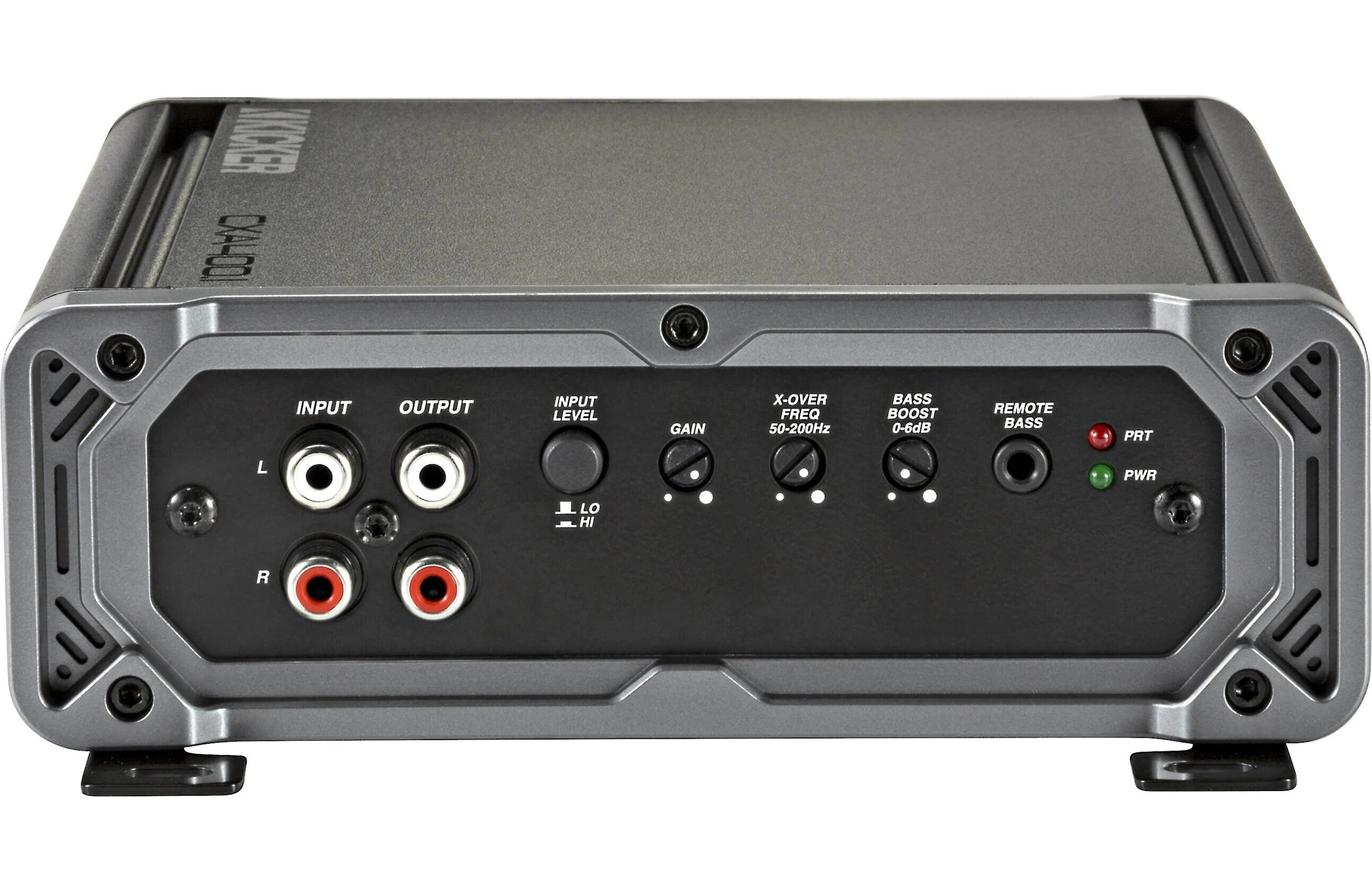

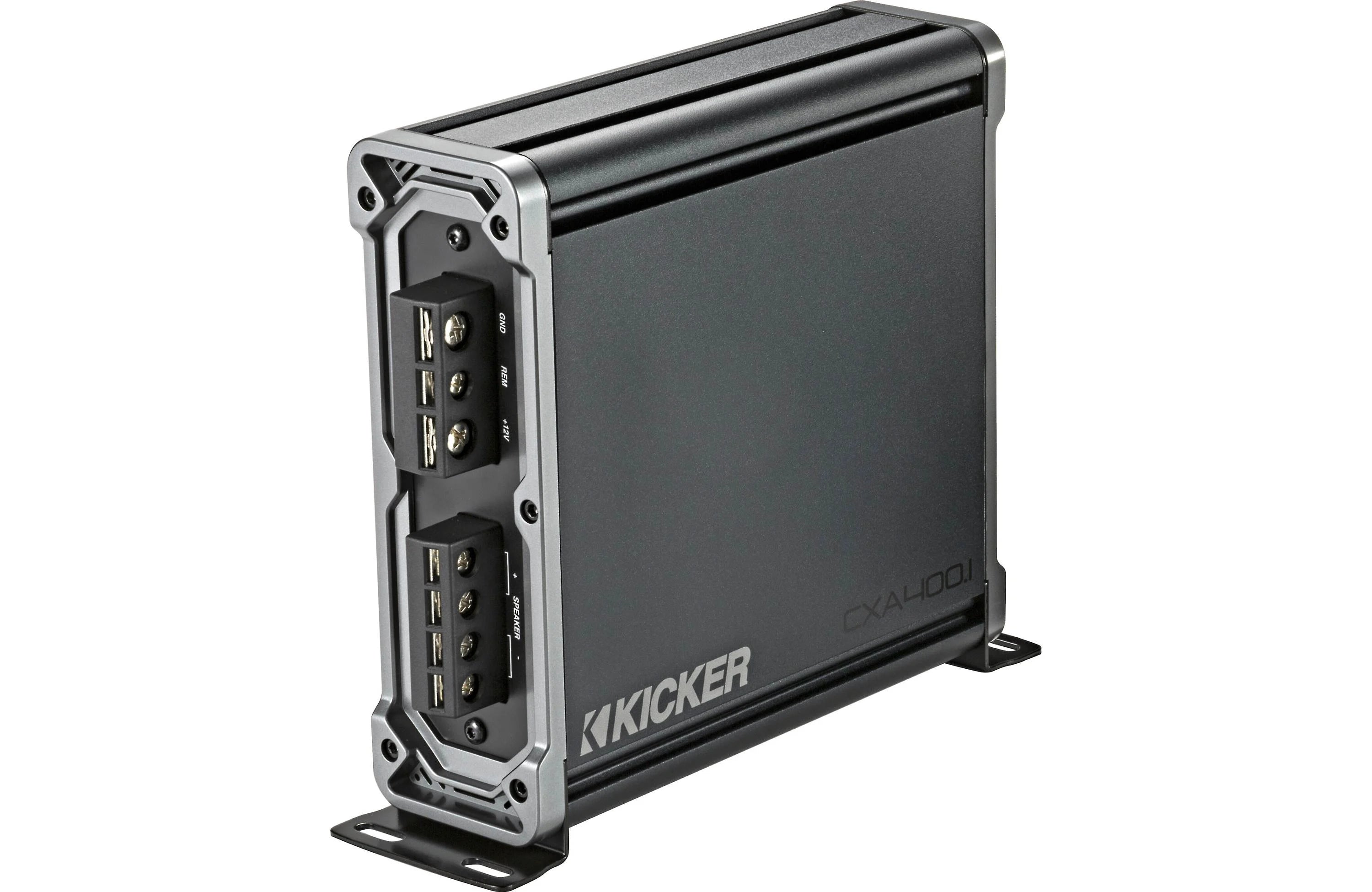

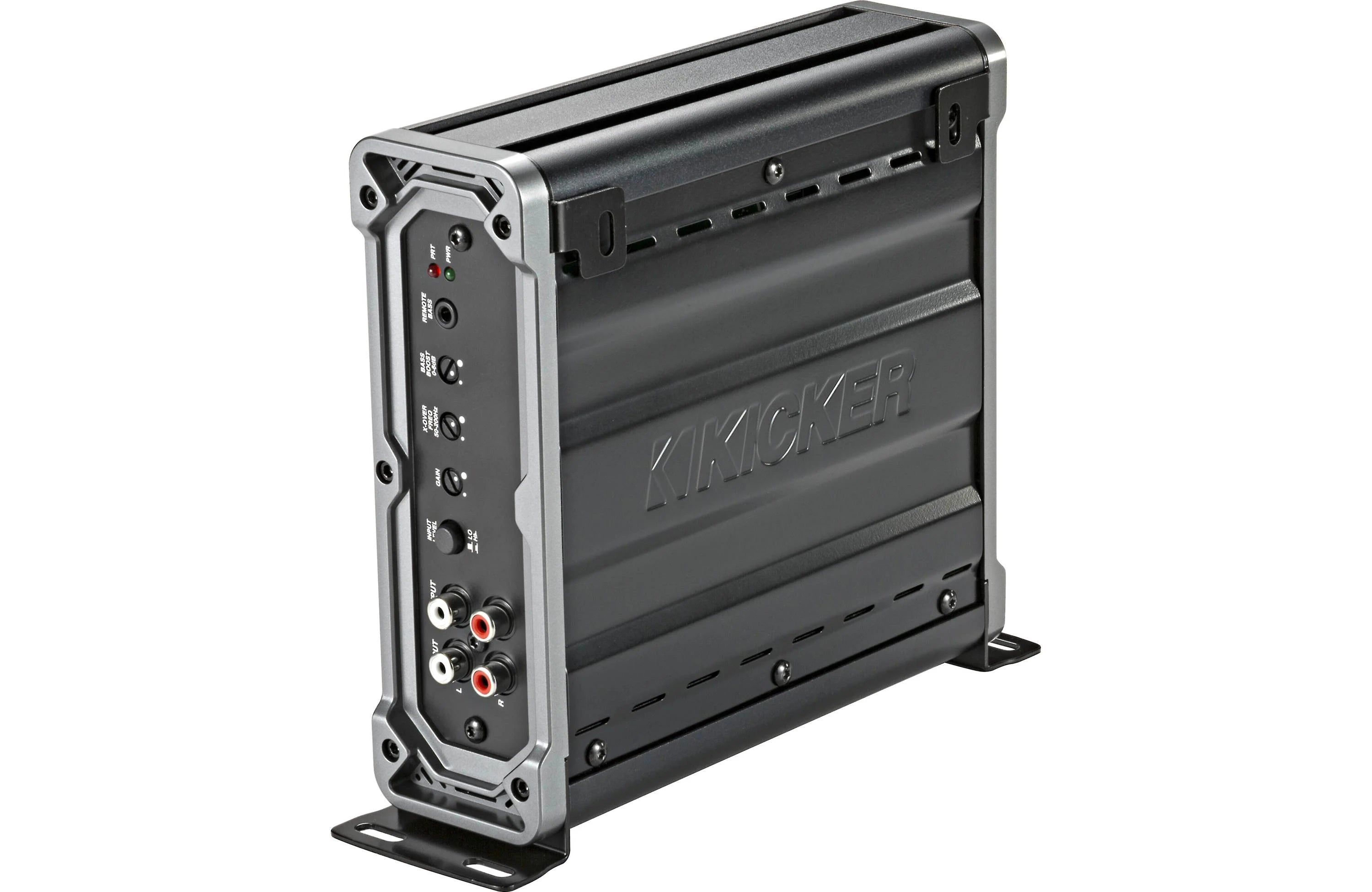

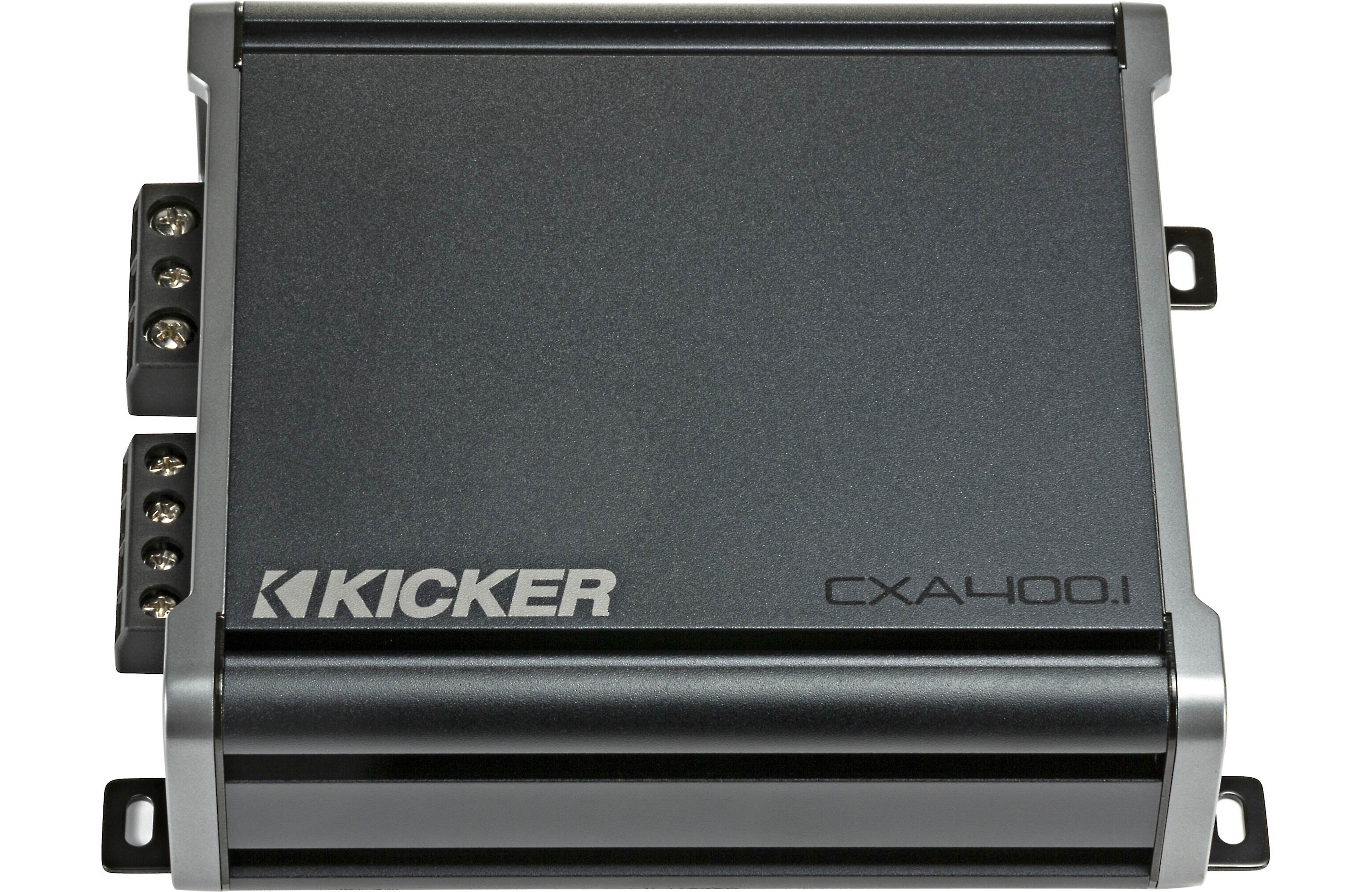

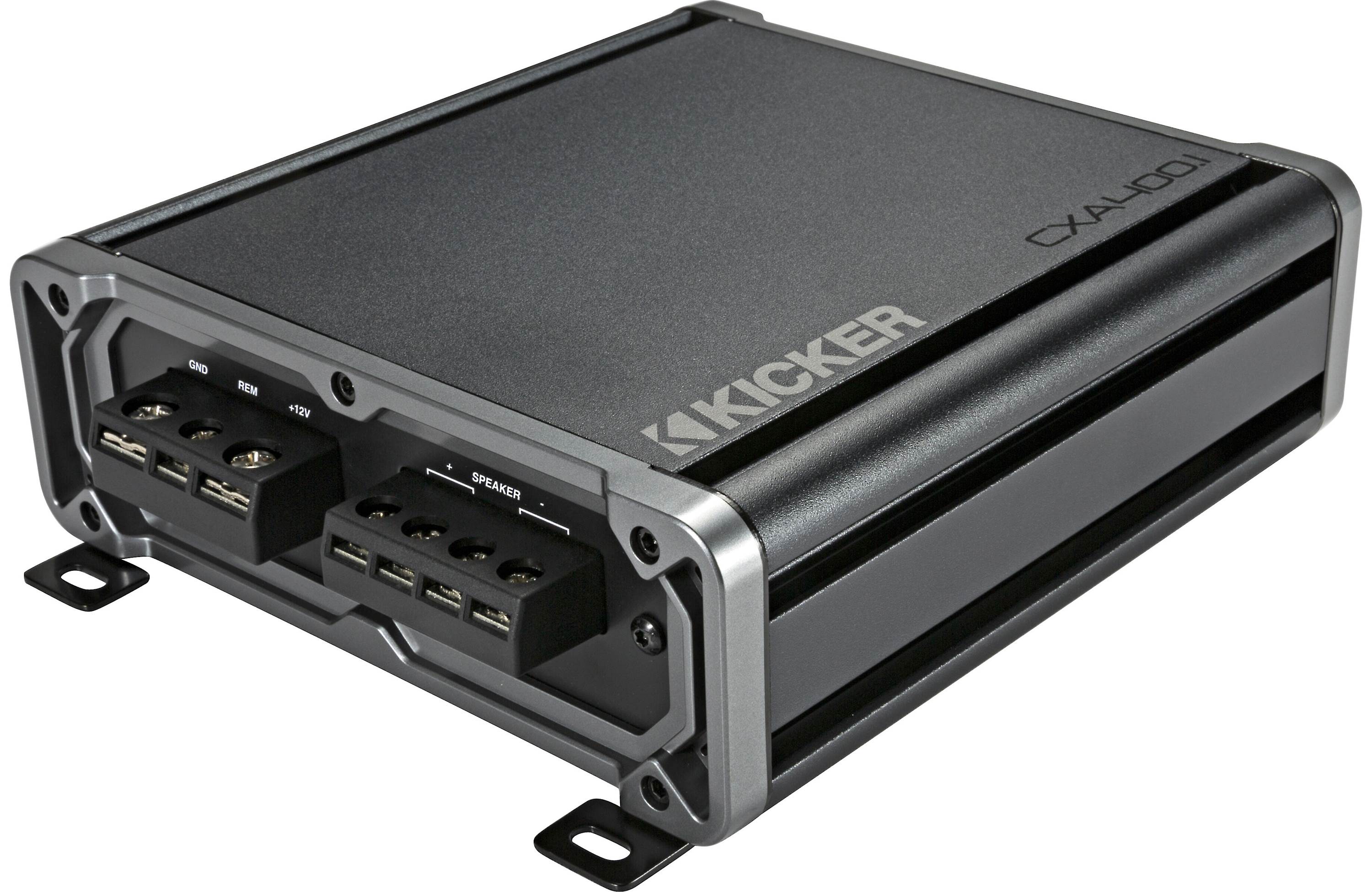

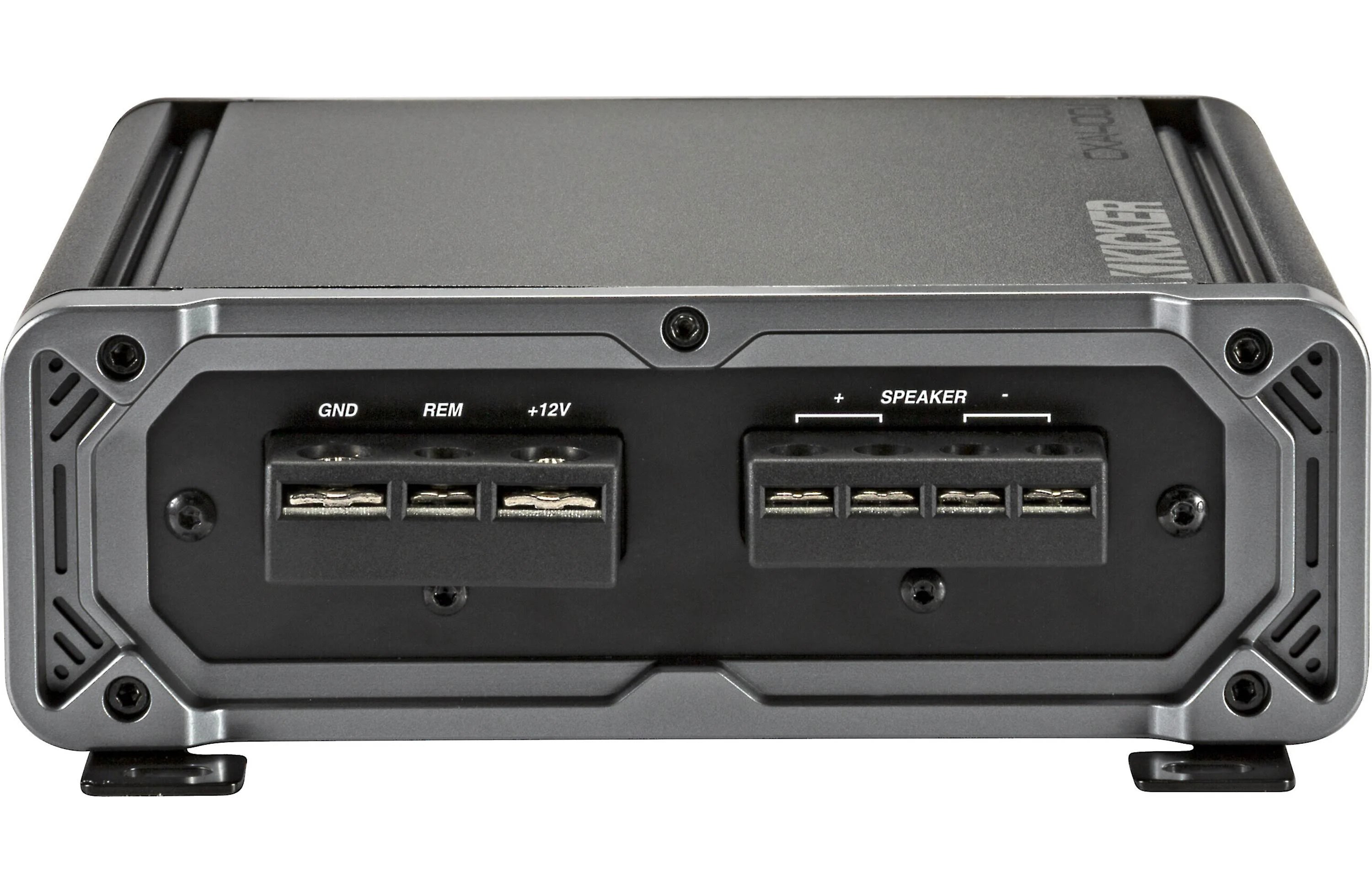

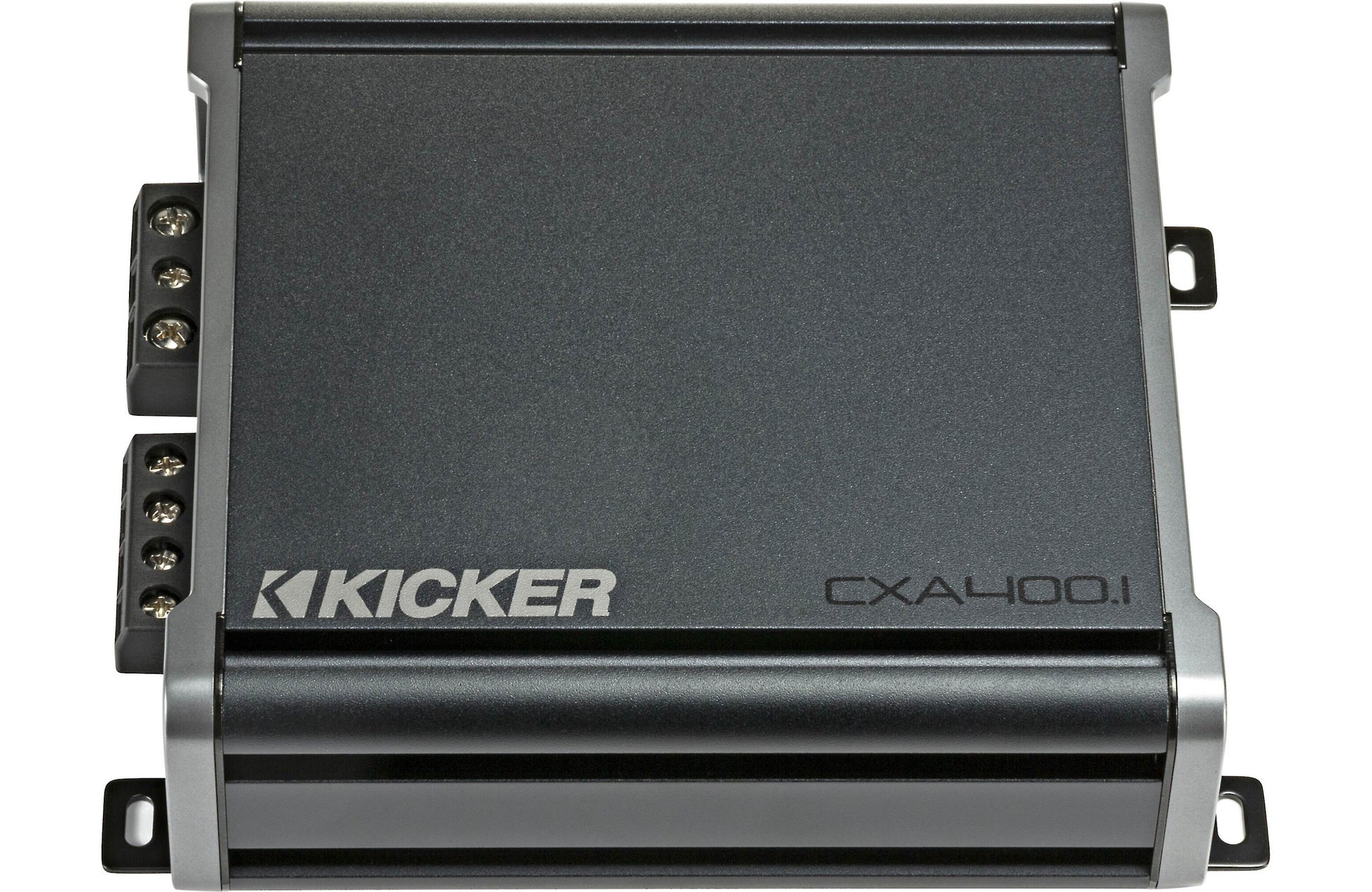

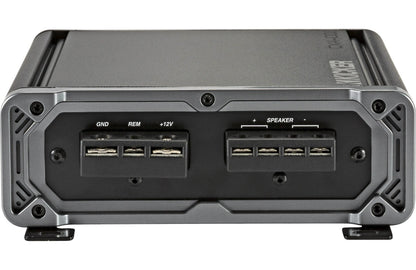

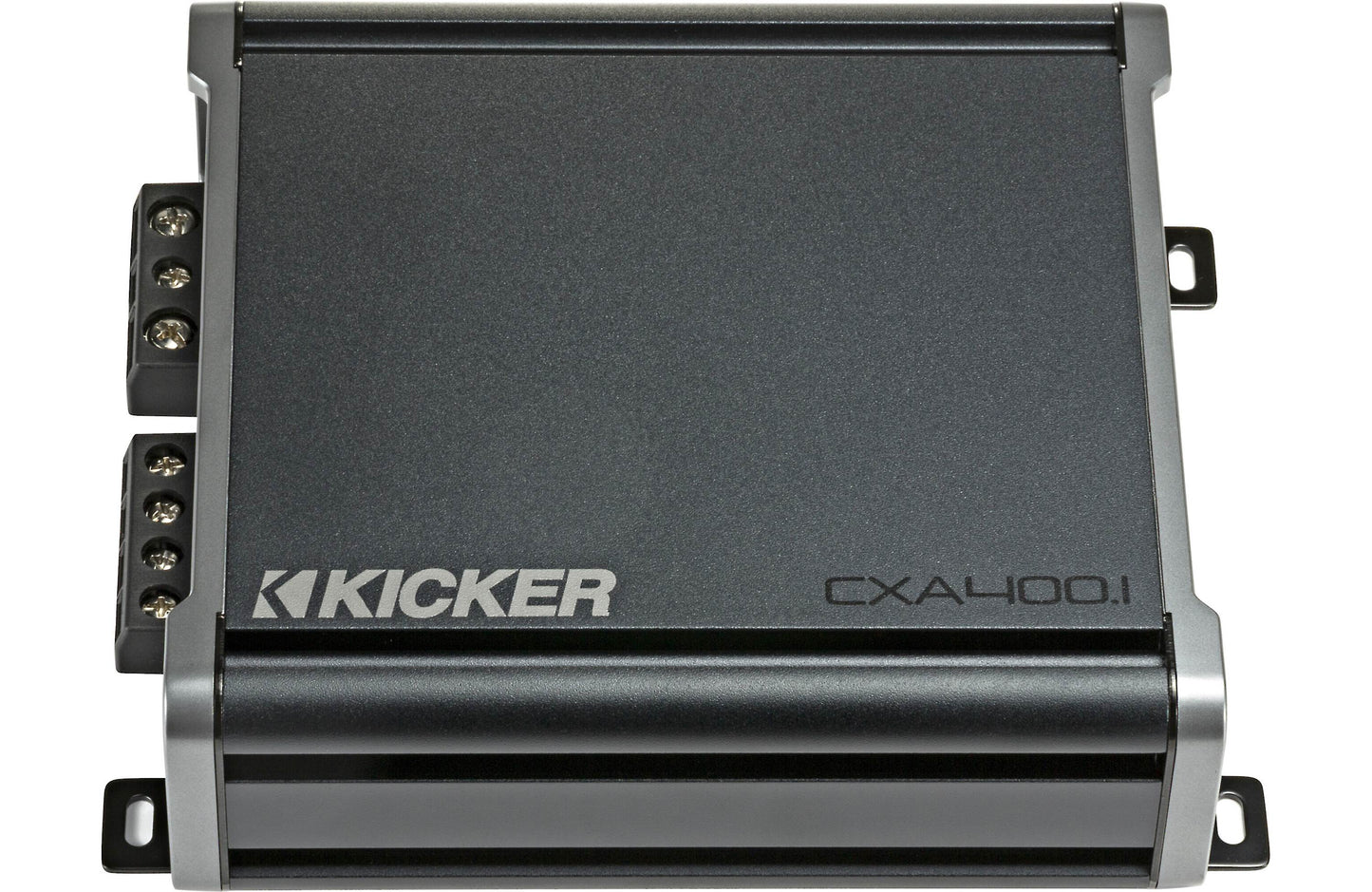

Kicker CXA400.1 Mono Class D Amplifier
Kicker CXA400.1 Mono Class D Amplifier
Couldn't load pickup availability
20 in stock
Give your system dedicated amplifier power
The Kicker CXA400.1 Mono Class D Amplifier gives you a dedicated single channel of amplification. Match its supported frequency range and output to the driver configuration in your build.
Key details
- Model / SKU: CXA 400.1
- Frequency Response (Hz):: 25-200, +0/-1dB
Fitment & system matching
Match RMS output at the final wired impedance to your speakers or subwoofers. Check minimum impedance, mounting dimensions, fuse requirements and power-wire size. Peak/MAX ratings are not continuous RMS output.
Full product details & specifications
Specifications
MODEL
CXA400.1
Power (watts/ch) 4 Ohm
150x1
Power (watts/ch) 2 Ohm
300x1
Power (watts/ch) 1 Ohm
400x1
CXRC Remote Bass Capable (sold sep.)
yes
Dimensions (in, cm): (all models 2-3/8, 5.9H x 6-3/4, 17W x ...L)
8-1/8, 20.6
Frequency Response (Hz):
25-200, +0/-1dB
Input Sensitivity:
250mV-10V (Low Level)
1V-40V (High Level)
Signal-to-Noise Ratio:
>95dB, a-weighted, re: rated power
Active Crossover:
Variable Lo-pass 50Hz–200Hz, 12dB/octave
Subsonic Filter:
25Hz @24dB/octave
KickEQ™ Boost
Variable 0-6dB @40Hz
