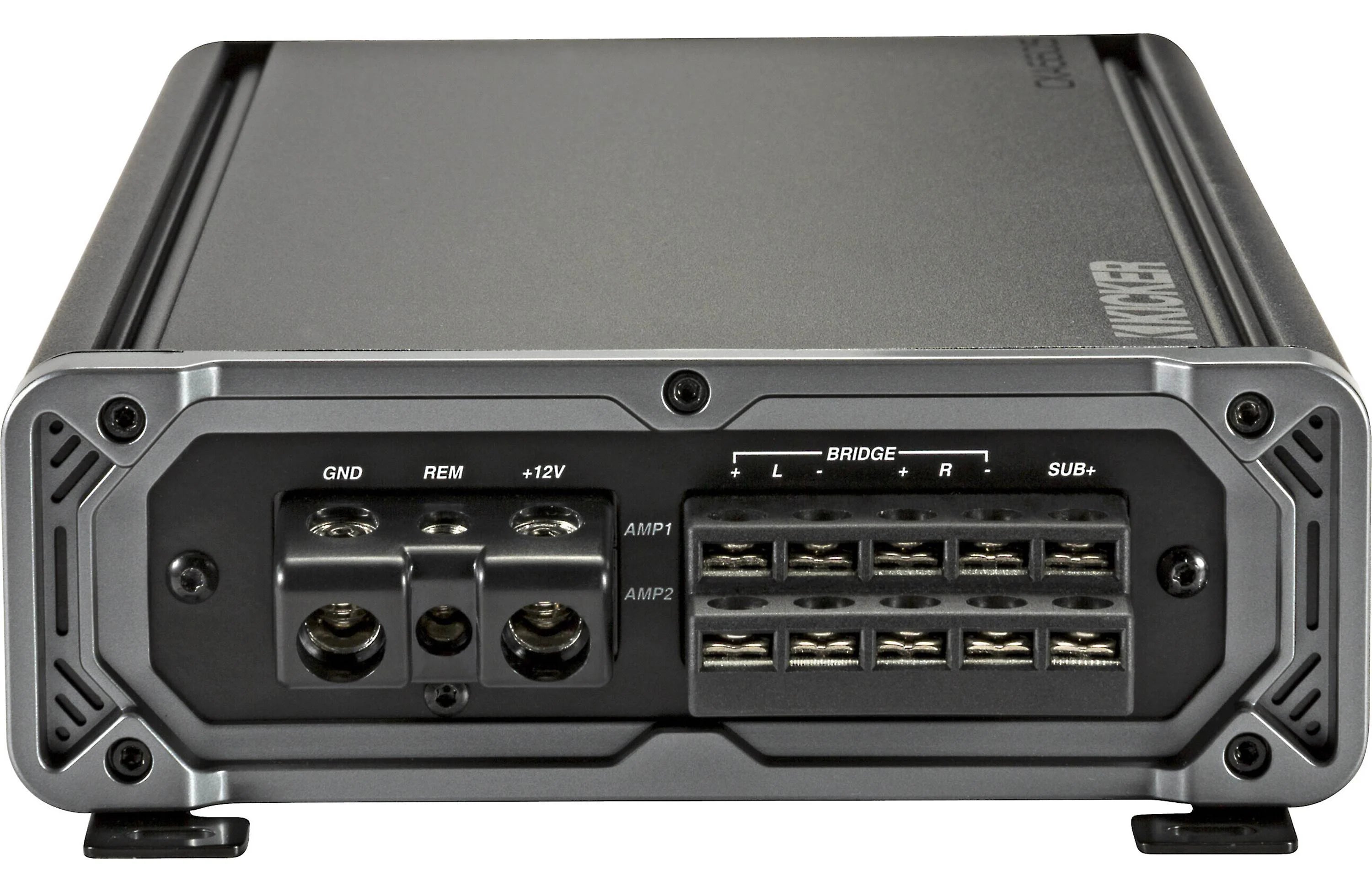

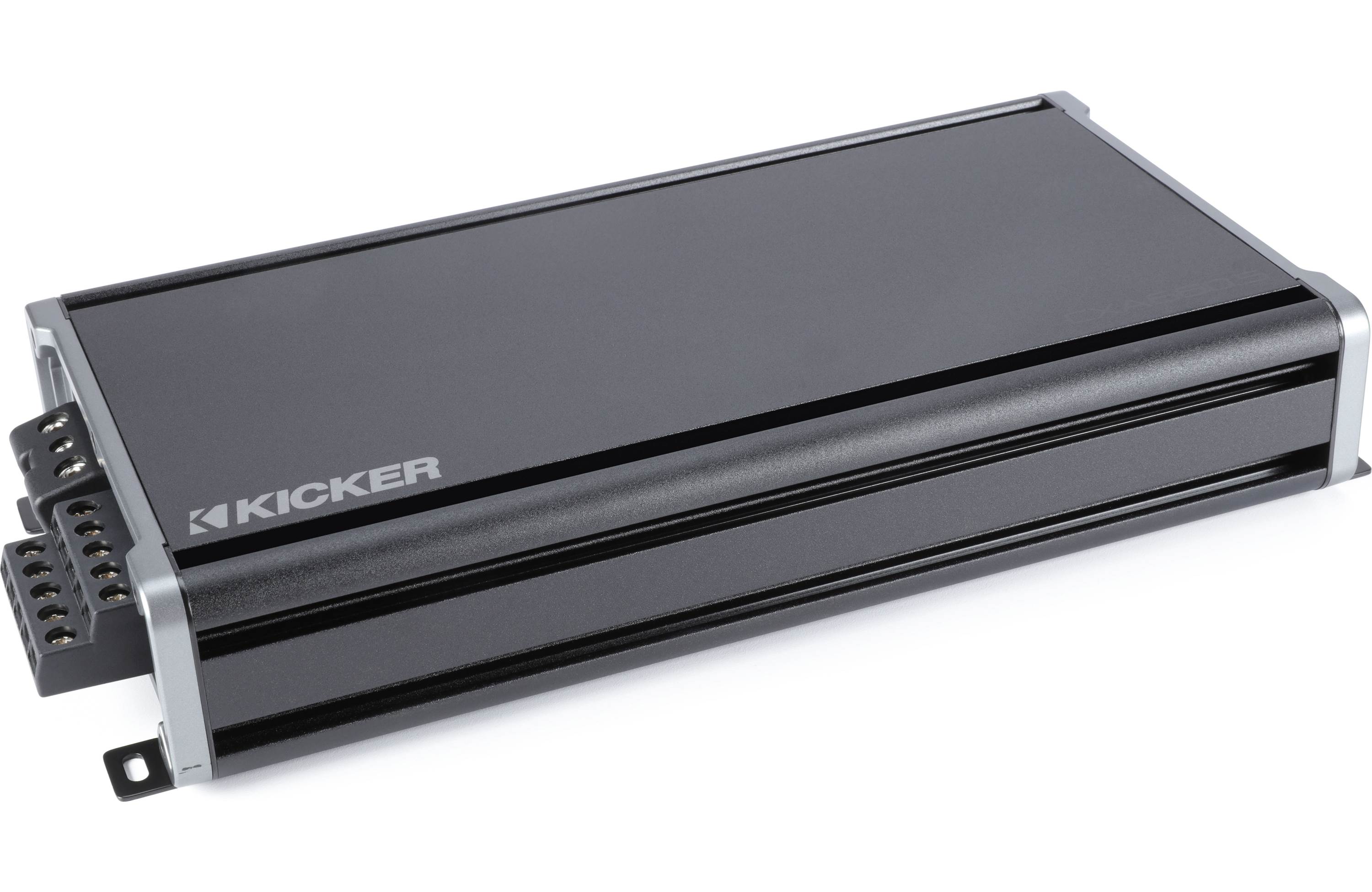

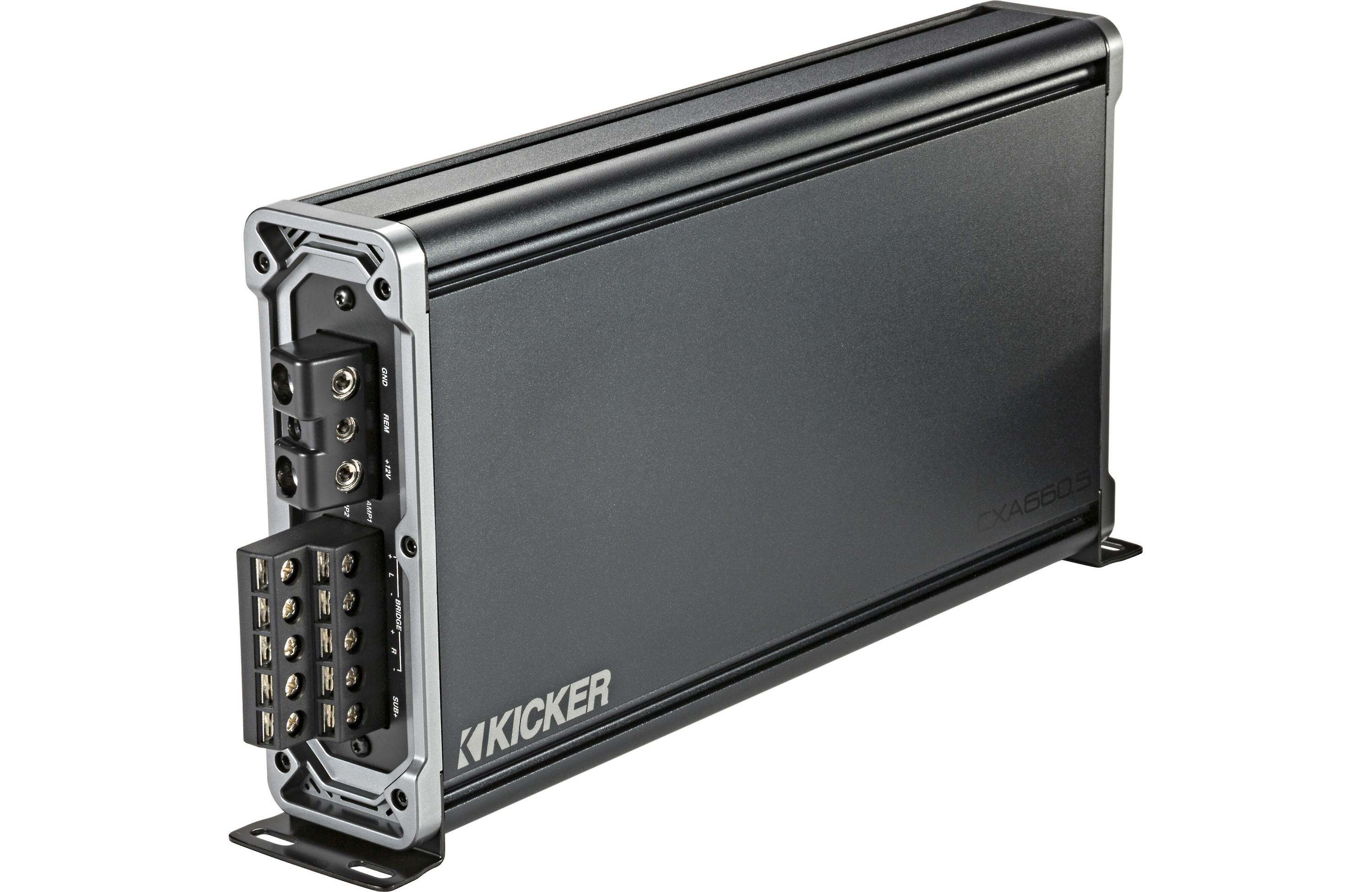

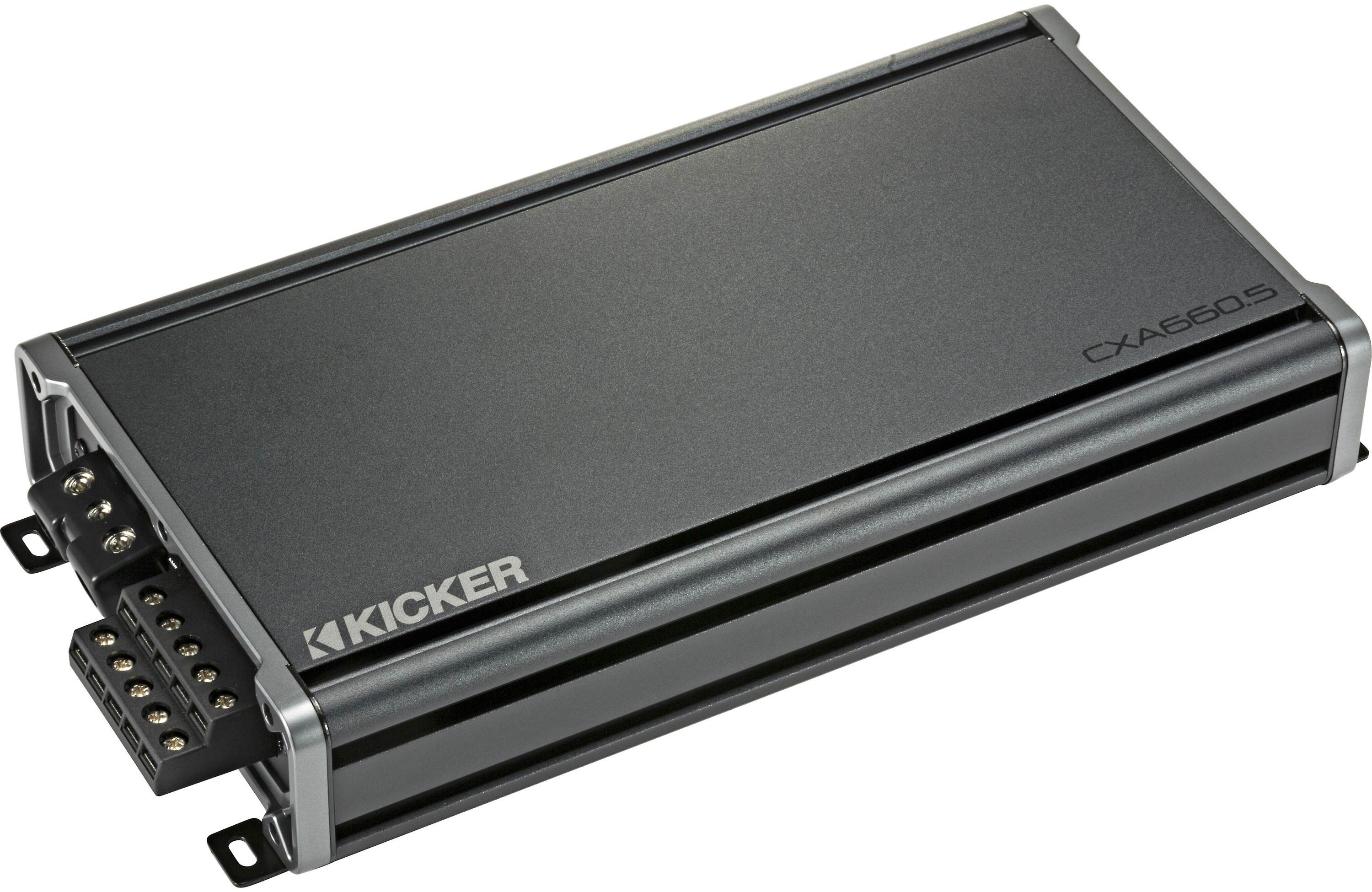

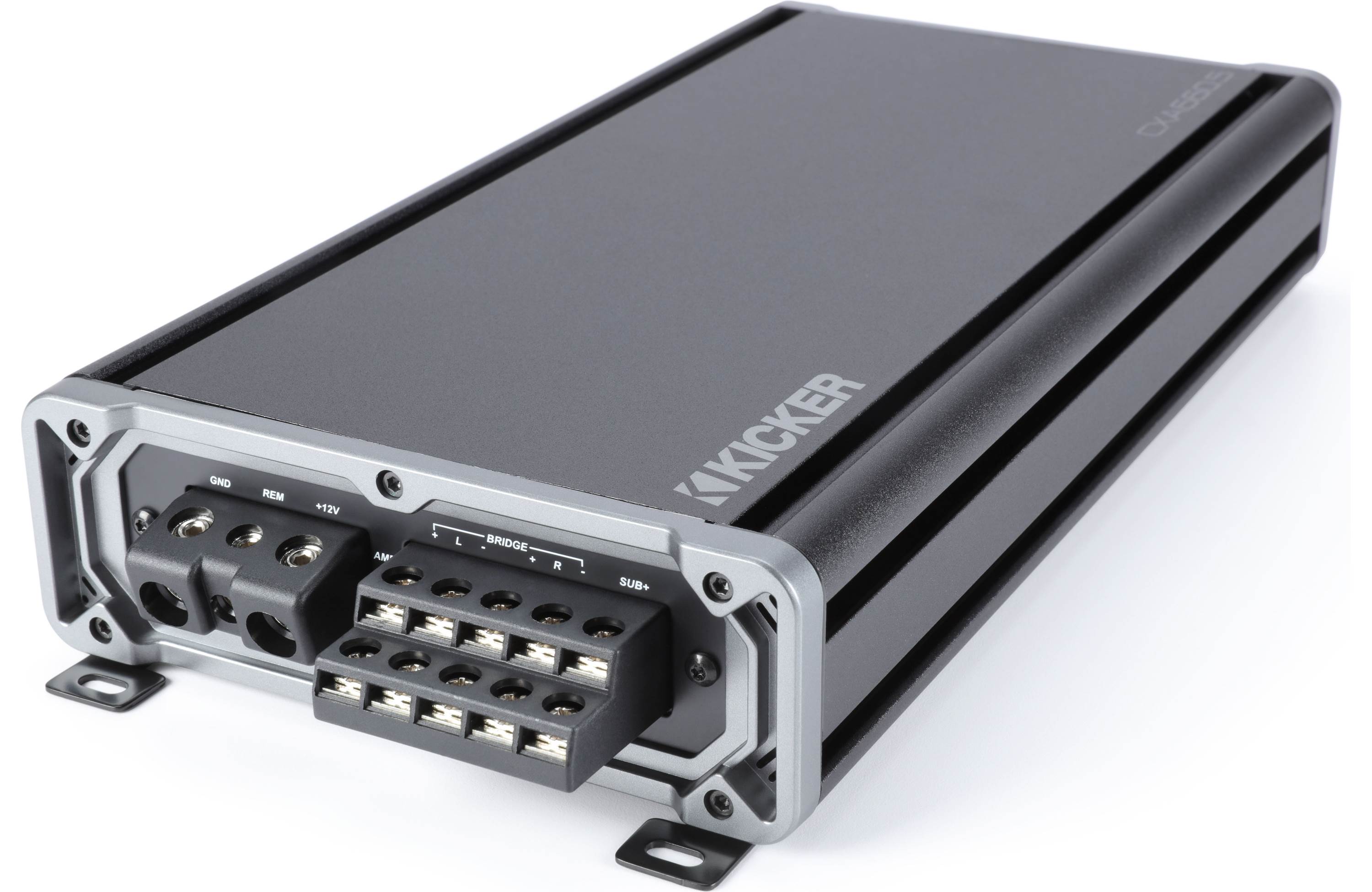

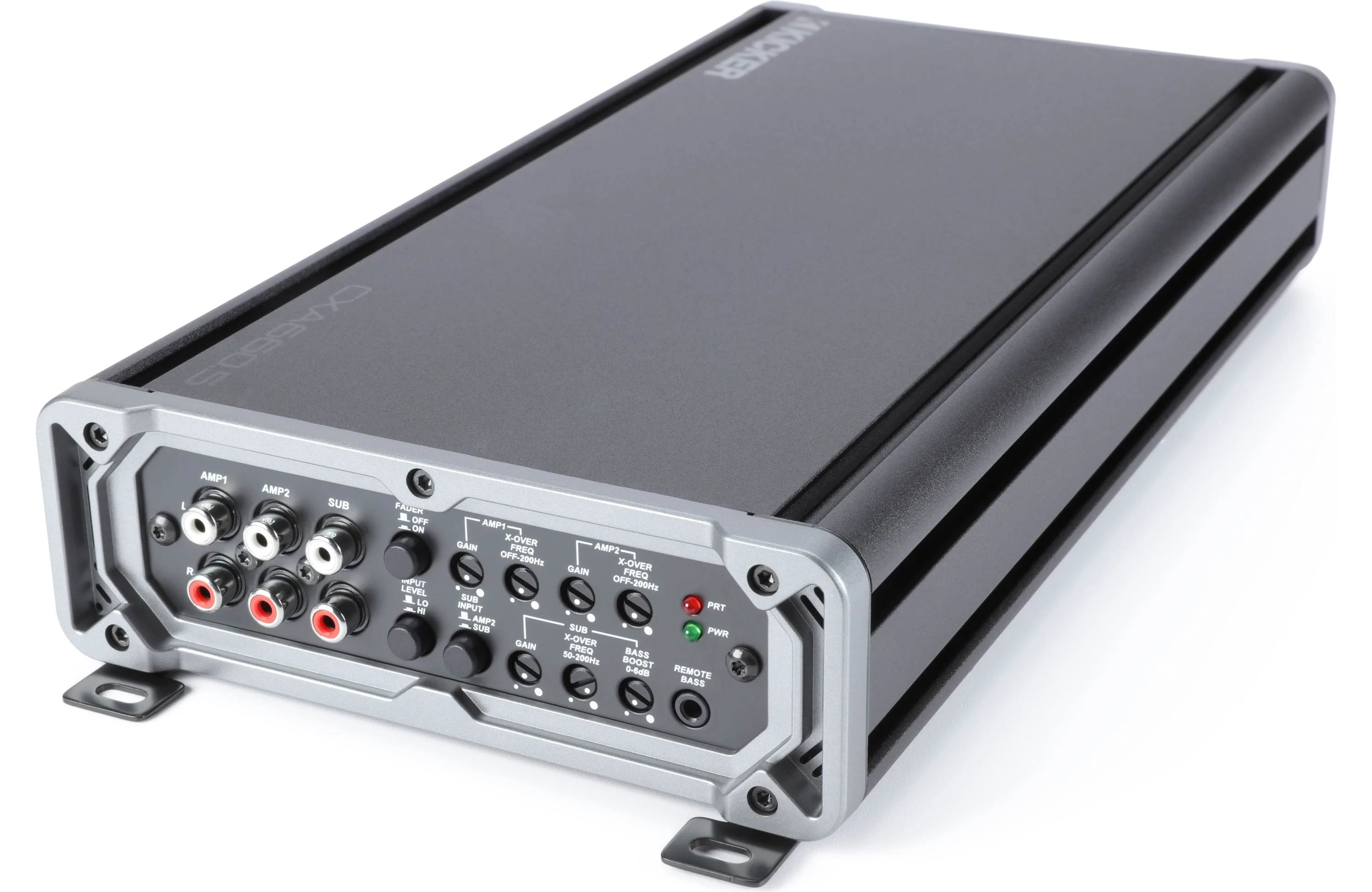

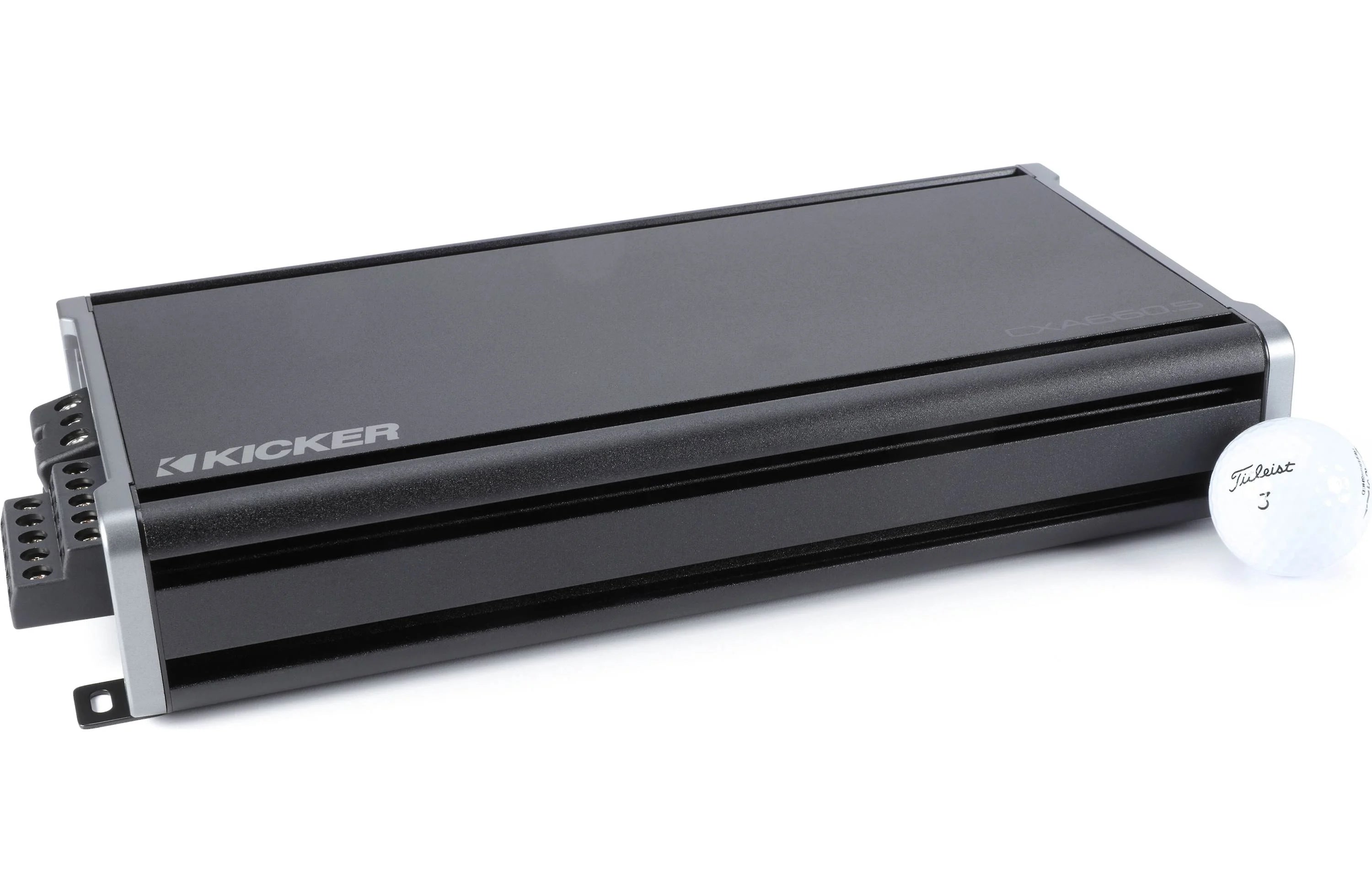

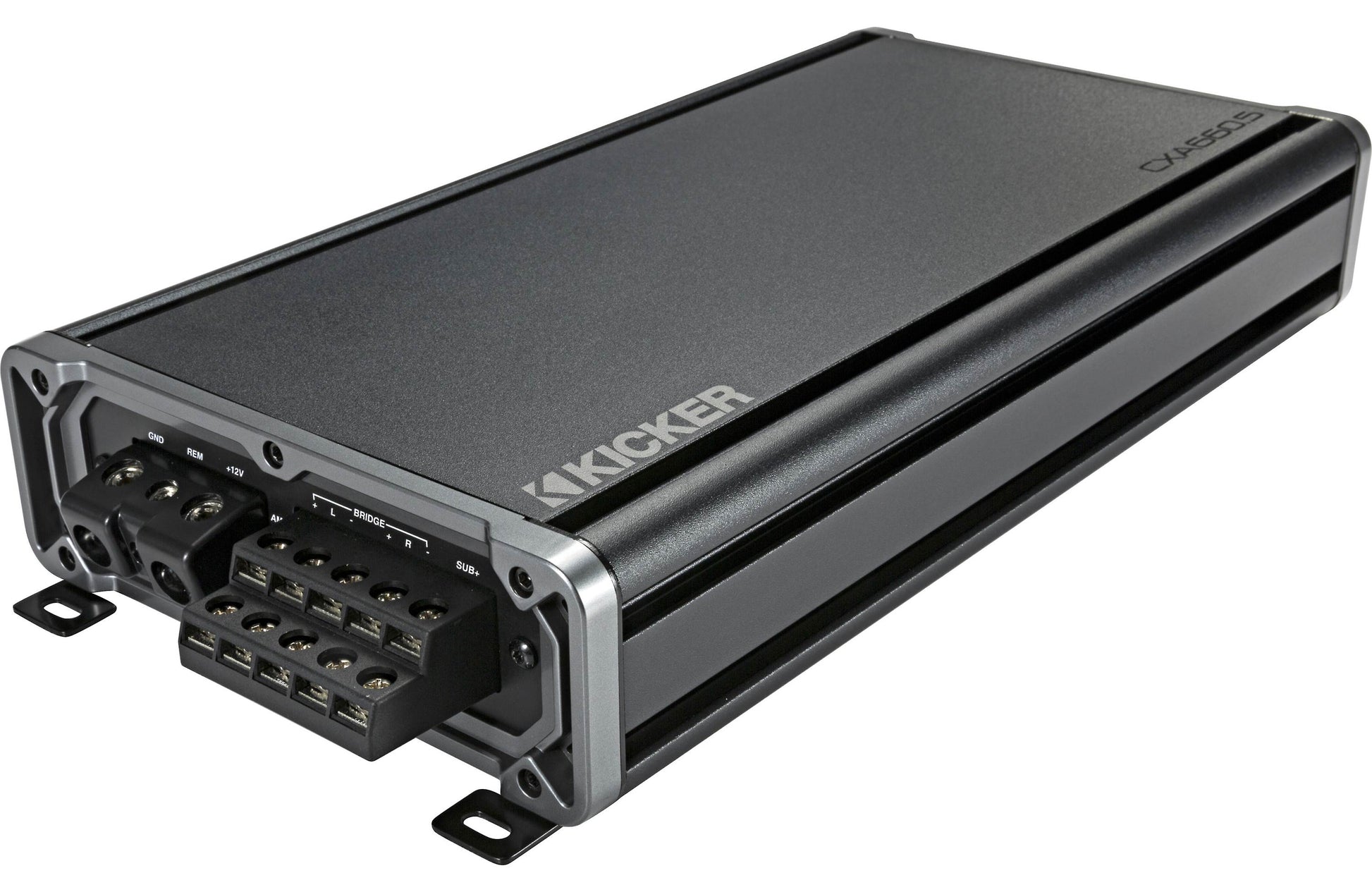

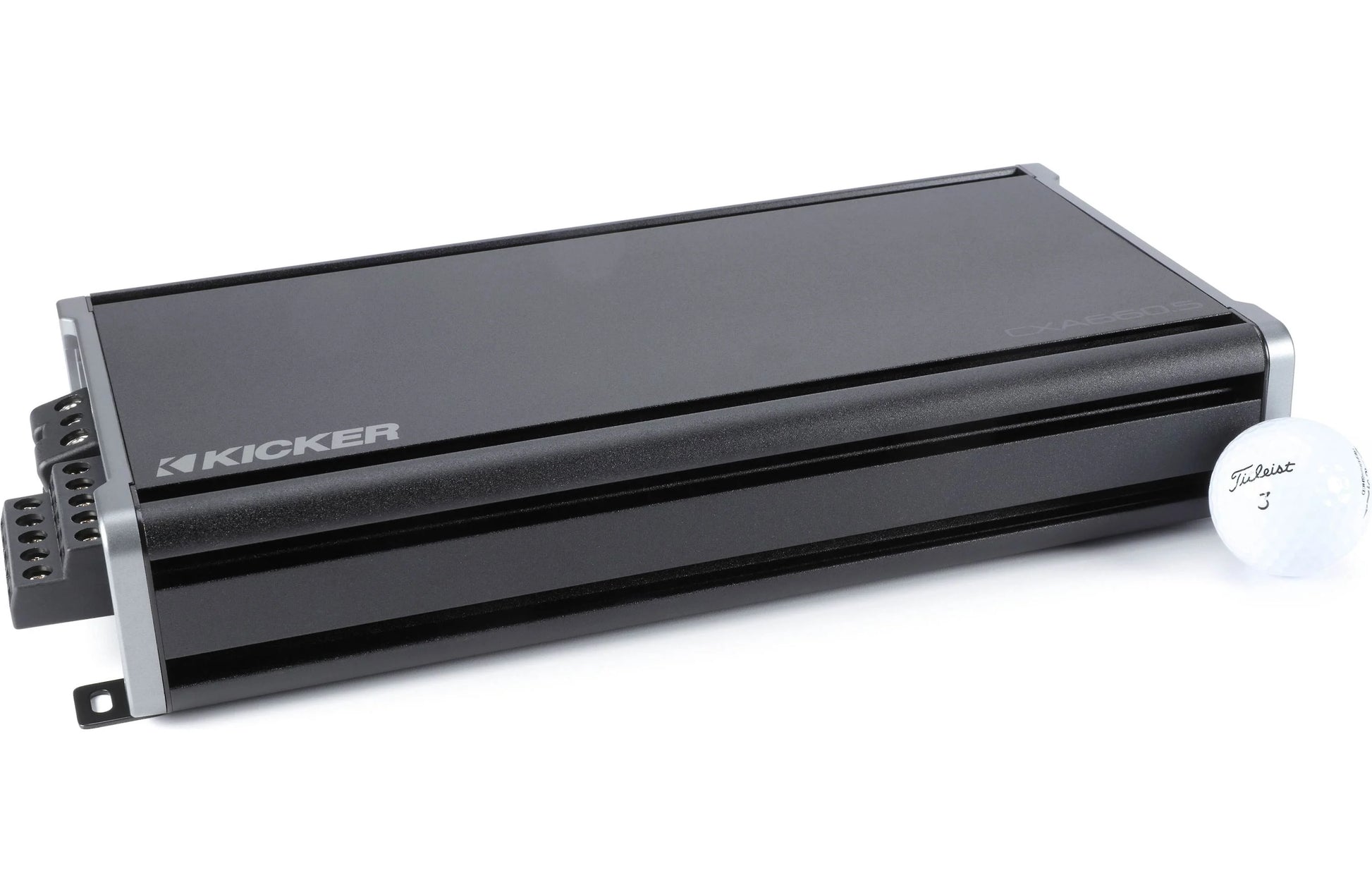

Kicker CXA660.5 5-Channel Amplifier
Kicker CXA660.5 5-Channel Amplifier
Couldn't load pickup availability
20 in stock
Give your system dedicated amplifier power
The Kicker CXA660.5 5-Channel Amplifier lets you build around a five-channel amplifier, bringing speaker and subwoofer amplification into one unit.
Key details
- Model / SKU: CXA 660.5
- Frequency Response (Hz):: 10Hz-20kHz
- Frequency Response (Hz – Sub Ch.):: 25Hz-200Hz
Fitment & system matching
Match RMS output at the final wired impedance to your speakers or subwoofers. Check minimum impedance, mounting dimensions, fuse requirements and power-wire size. Peak/MAX ratings are not continuous RMS output.
Full product details & specifications
Specifications
MODEL
CXA660.5
Power (watts/ch) 4 Ohm Stereo
65x4
Power (watts/ch) 2 Ohm Stereo
90x4
Power (watts/ch) 4 Ohm Mono
180x2
Power (watts/ch) 4 Ohm Mono Sub Ch
150x1
Power (watts/ch) 2 Ohm Mono Sub Ch
300x1
CXRC Remote Bass Capable (sold sep.)
yes
Dimensions (in, cm): (all models 2-3/8, 5.9H x 6-3/4, 17 W x ...L)
14-1/8, 35.7
Frequency Response (Hz):
10Hz-20kHz
Frequency Response (Hz – Sub Ch.):
25Hz-200Hz
Input Sensitivity:
250mV-10V (Low Level)
1V-40V (High Level)
Signal-to-Noise Ratio:
90dB

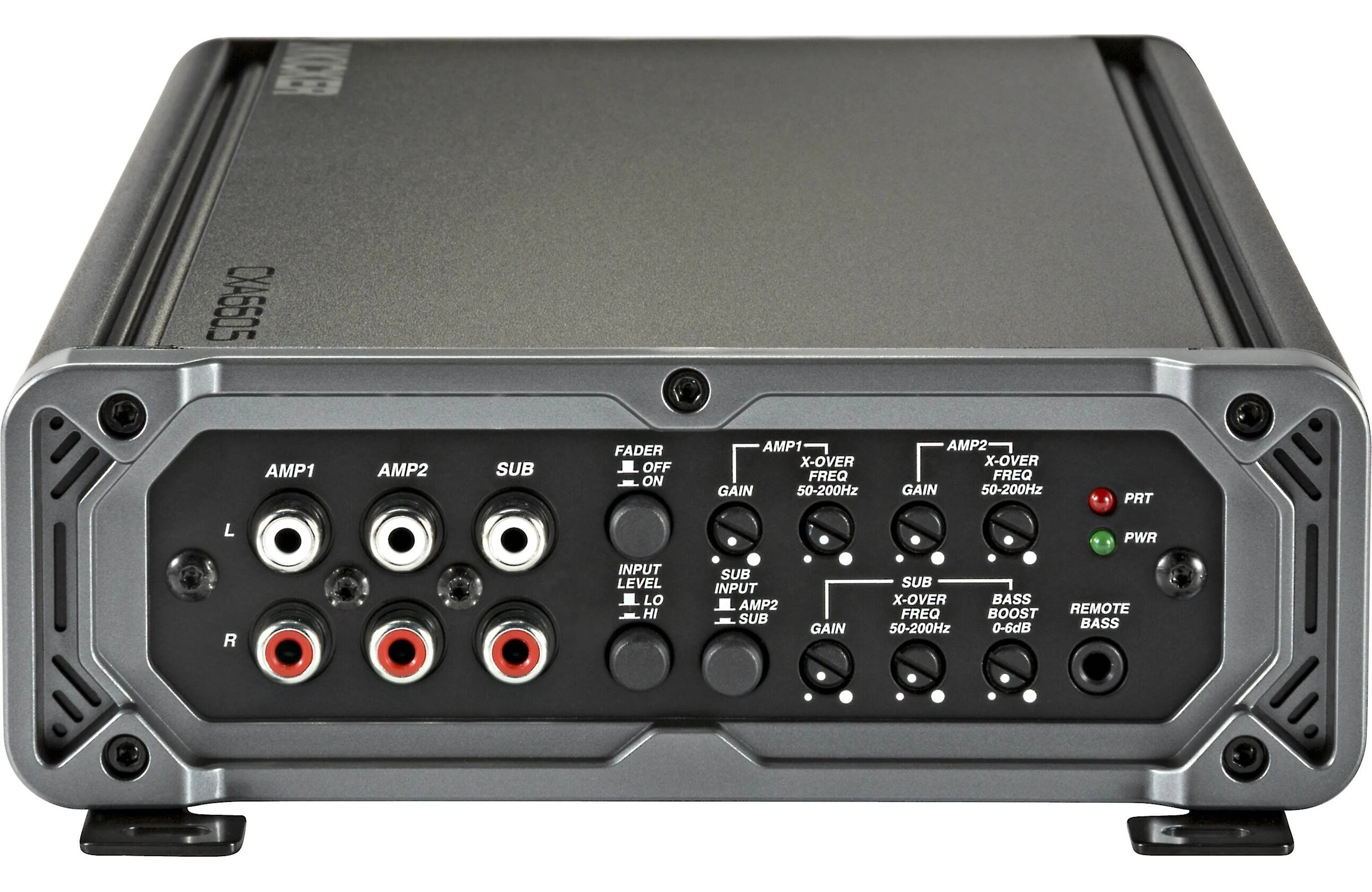

Active Crossover:
Amp 1-2: High Pass 10-200Hz @ 12dB/Octave
Sub Channel: Low Pass 50-200Hz @ 12dB/Octave
Subsonic Filter:
25Hz @24dB/Octave
KickEQ™ Boost
Variable 0-6dB @40Hz
